Soluna 10K Pack HV User manual

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 1 of 25 Published date: March 2021
Installation Manual
Lithium Battery Pack
SOLUNA 10K Pack HV
Suitable for indoor installation
Soluna Australia Pty Ltd
ACN 634 963 296
March 2021 Version 2.2

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 2 of 25 Published date: March 2021
About this manual
This manual describes how to install the Soluna 10K Pack HV battery system (hereafter
referred to as 'the BS'). Please read the manual in its entirety before installing the BS and
follow all instructions throughout the installation process.
If you are uncertain about any of the requirements, recommendations or safety procedures
described in this manual, contact Soluna Australia immediately for advice and clarification.
Phone: Within Australia 1300 126 888
Within New Zealand 09 886 9685
Outside Australia [phone]
Email [email protected]m.au
Web www.soluna.com.au
Head office 1/677 Murray Street
Perth WA 6005
The information included in this manual is accurate at the time of publication. However, with
respect to product design and technical specification updates, Soluna Australia reserves the
right to make changes at any time without prior notice. Further, the illustrations in this manual,
which help explain system configuration concepts and installation instructions, may differ from
the actual BS's appearance at the installation location.
Please search the technical section of www.soluna.com.au to ensure the Australia/New
Zealand edition of the Installation Manual is the latest version. You must also complete the
warranty registration form online at https://soluna.com.au/warranty/
Version information
Version Date Content Author
V1.0 4 Feb 2021 First edition GJ
V2.0 8 Feb 2021 Text edit/proof JN
V2.1 3 March 2021 Schematic diagrams GJ
V2.2 9 March 2021 Second proof JN/GJ
V2.2 18 March 2021 Final proof JN

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 3 of 25 Published date: March 2021
Installation manual 1
Lithium battery pack 1
Soluna 10K Pack HV 1
Suitable for indoor installation 1
Soluna Australia Pty Ltd 1
March 2021 Version 2.2 1
About this manual 2
1. Safety precautions 4
Warnings 4
Safety instructions 5
General safety precautions 5
Risks of explosion 5
Risks of fire 5
Risks of electric shock 5
Risks of damage to the BS 5
Battery handling guide 5
Response to emergencies 6
Leaking batteries 6
Fire 6
Wet batteries 6
Damaged batteries 6
Accredited installers 6
Safety equipment 7
2. Product introduction 8
Features 8
Application 8
Unpacking the BS 8
Packing list 9
Installation materials 9
Installation location 9

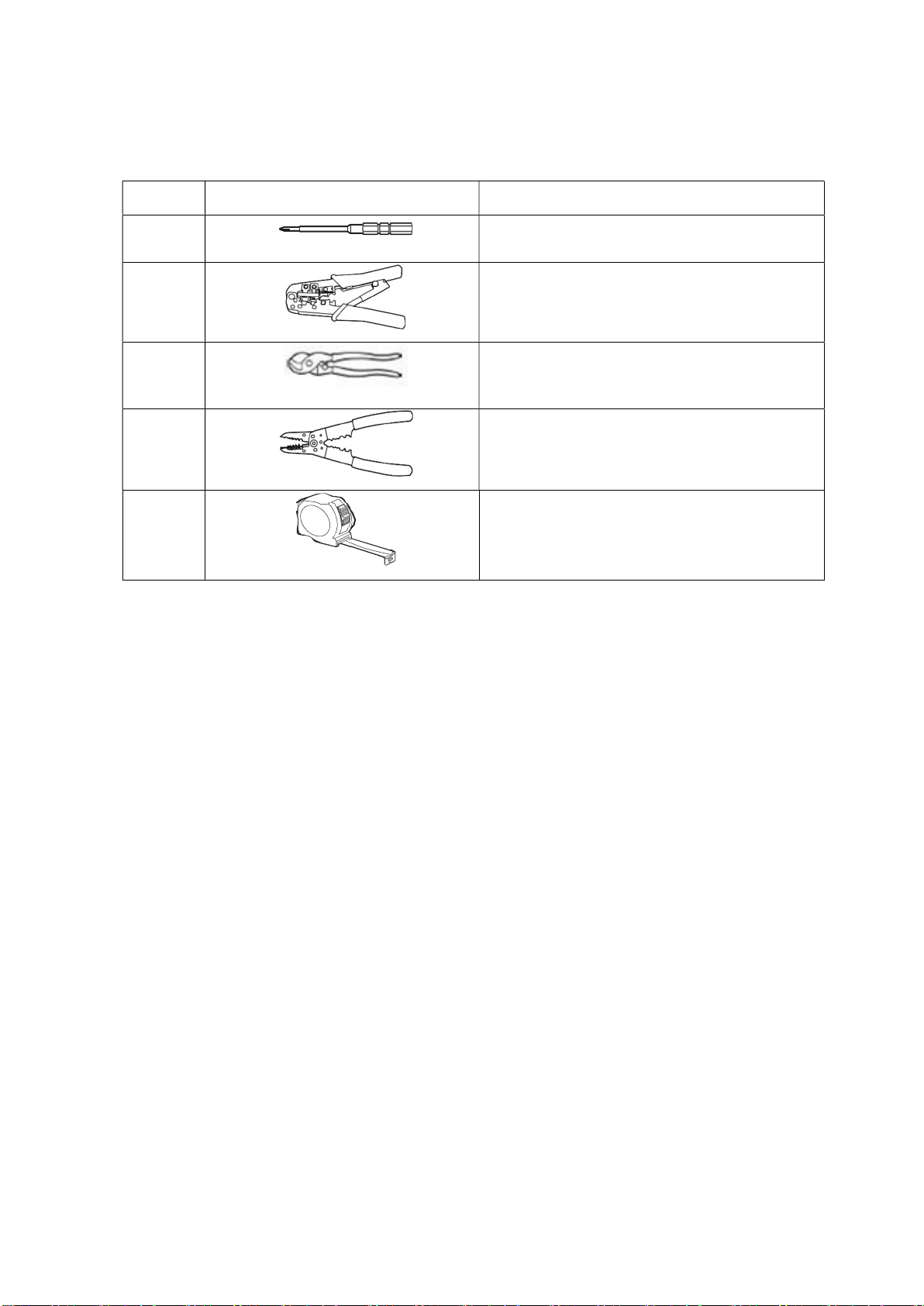

Installation tools 10

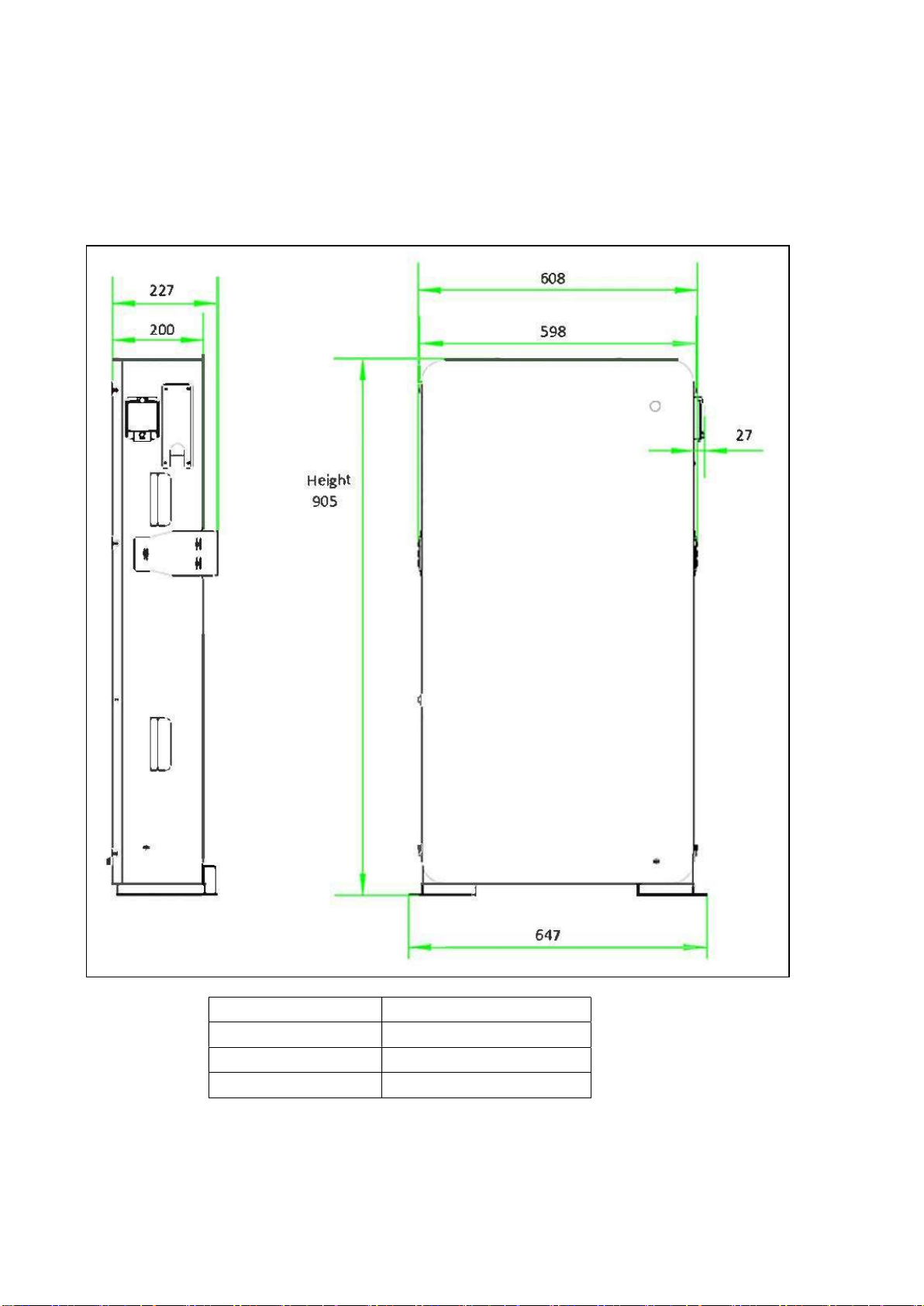

Outline dimensions (mm) 11
Technical data 12
Appearance 13
Wiring port 14
3. Installation 15
Space requirements during installation and operation 15
Installation requirements 16
Wiring specification 16

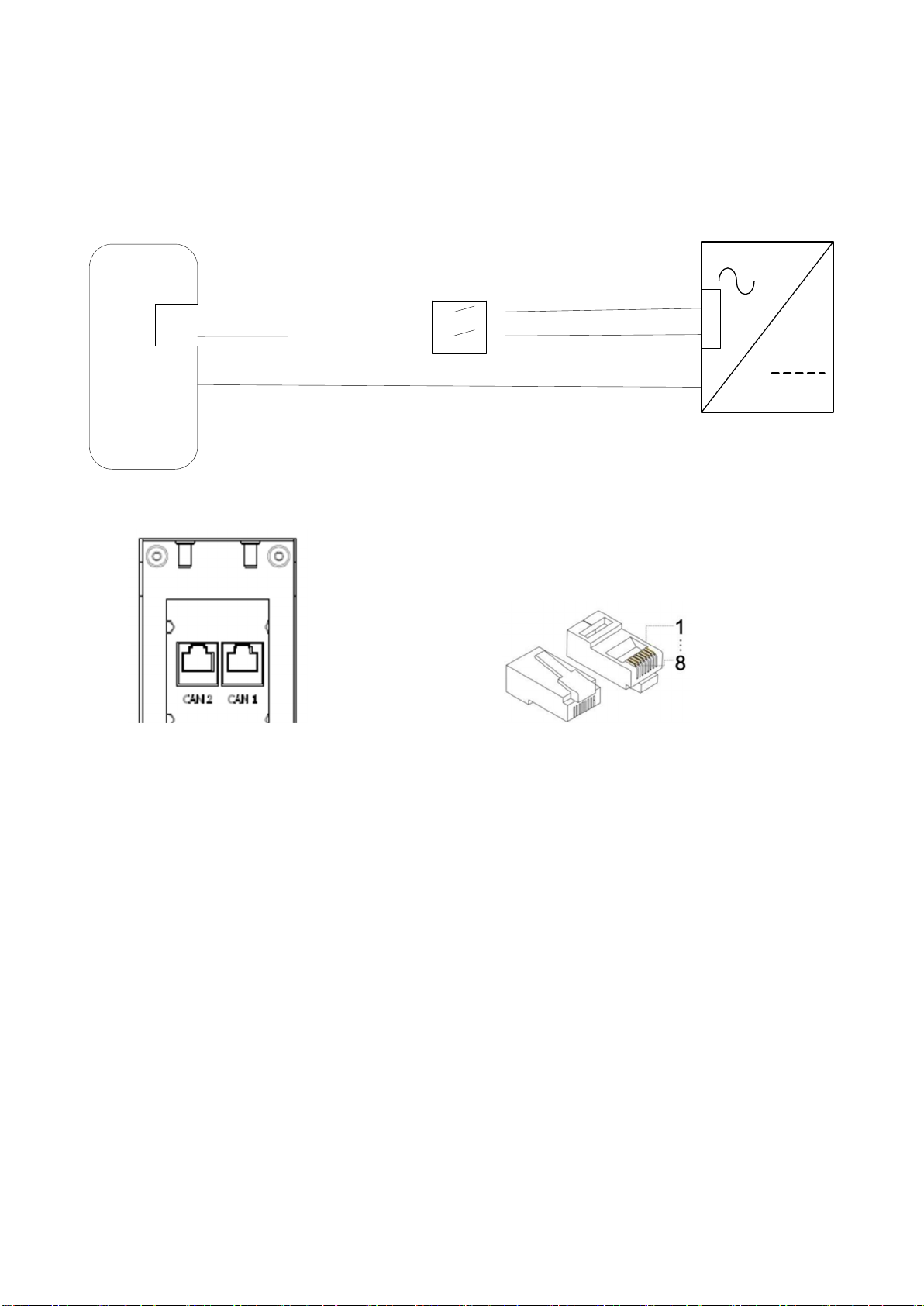

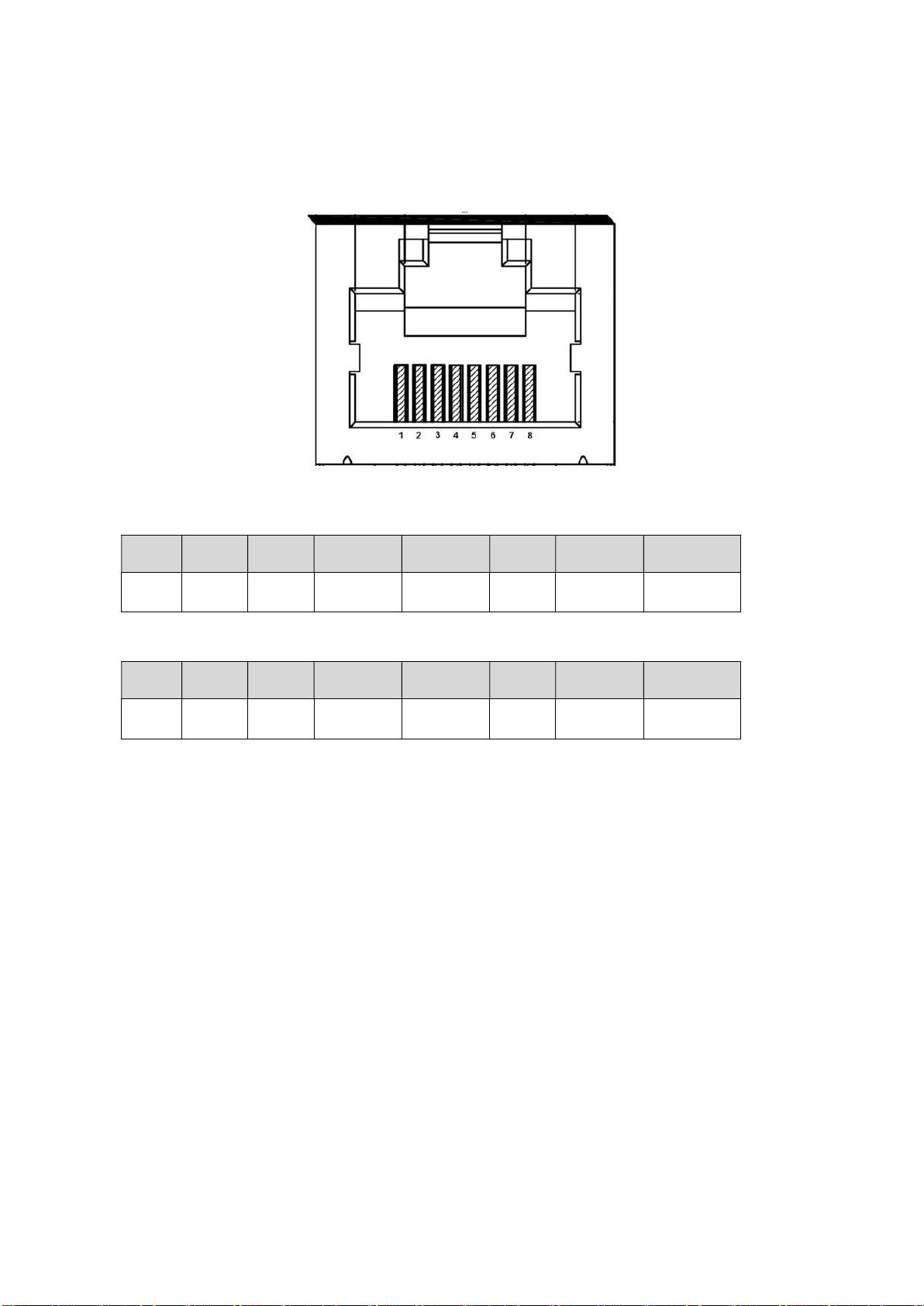

CAN communication interface (CAN 1 and CAN 2) 17

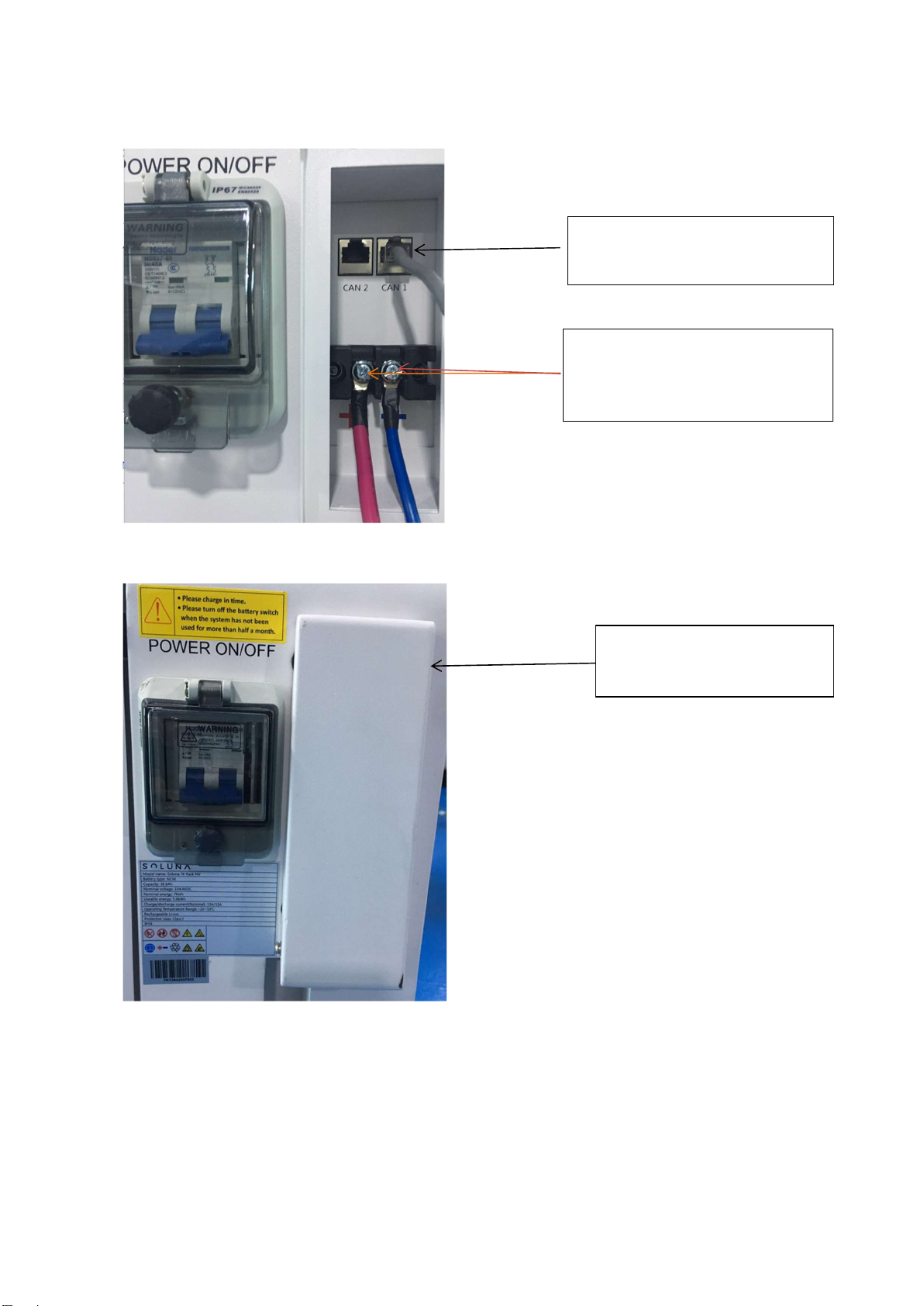

Electrical connection 18
Electrical connection procedures 19
Operating instructions 23
4. Consumer 'Start up' and 'Shut down' procedure. 23
5. Care and maintenance 25
6. Contact us 25

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 4 of 25 Published date: March 2021
1. Safety precautions
Warnings
Warning signs indicate conditions that may cause severe injury to the installer or damage to
the BS, and that caution should be exercised to avoid danger. The following table describes
the warning signs used in this manual.
Figure 1 – warning symbols.
Sign Description
This BS contains high-voltage materials that can cause an electric shock,
resulting in severe injury.
Ensure that battery polarity is observed, and that the BS is connected
correctly.
Keep the BS away from an open flame or sources of ignition.
Keep children and animals away from the BS.
Read the manual in its entirety before installing and operating the BS.
The BS is heavy enough to cause severe injury if not handled correctly.
The BS contains electrolyte, which is corrosive if it leaks.
The BS may explode if not handled correctly.
The BS should be recycled, not be disposed of with household waste, at the
end of its working life. For more information, contact Soluna Australia.
There is a risk of physical injury or damage to the BS if the installation
requirements are not followed and/or the BS is mishandled.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 5 of 25 Published date: March 2021
Safety instructions
For safety reasons, installers must familiarise themselves with this manual's contents and all
warnings before installing the BS.
General safety precautions
Please observe the precautions described in the following section. Failure to do so
may result in serious injury to persons or animals or damage to property.
Risks of explosion
1) Do not subject the BS to strong impacts.
2) Do not crush or puncture the BS.
3) Do not incinerate the BS.
Risks of fire
1) Do not expose the BS to temperatures in excess of 60° Celsius.
2) Do not place the BS near a heat source such as a fireplace.
3) Do not expose the BS to direct sunlight.
4) Do not allow the BS connectors to touch conductive objects such as wires.
Risks of electric shock
1) Do not disassemble the BS, as high DC voltage may be present.
2) Do not touch the BS with wet hands.
3) Do not expose the BS to moisture or liquids.
4) Keep children and animals away from the BS.
Risks of damage to the BS
1) Do not allow the BS to come into contact with liquids.
2) Do not subject the BS to high pressures.
3) Do not place objects on top of the BS.
Battery handling guide
1) Use the BS only as directed.
2) Do not use the BS if it is cracked, broken or otherwise damaged, or fails to operate.
3) Do not attempt to open, disassemble, repair, tamper with or modify the BS – it is not user-
serviceable.
4) Handle the BS and its components with care to protect it from damage during
transportation.
5) Do not strike, pull, drag or step on the BS.
6) Do not subject the BS to any strong force.
7) Do not insert foreign objects into any part of the BS.
8) Do not use solvents to clean the BS.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 6 of 25 Published date: March 2021
Response to emergencies
The Soluna 10K PACK HV BS comprises multiple batteries that are designed in such a way as
to prevent hazards resulting from failures. However, Soluna Australia cannot guarantee the
absolute safety of the BS.
Leaking batteries
If the BS leaks electrolyte, avoid contact with the leaking liquid or gas. The electrolyte is
corrosive – contact with it may cause skin irritation and/or chemical burns. If a person/animal is
exposed to the leaked substance, do the following.
1) Avoid inhalation of the leaked substance.
2) Evacuate the contaminated area and seek medical attention immediately.
3) Avoid eye contact with the leaked substance.
4) If eye contact occurs, rinse eyes with flowing water for 15 minutes and immediately seek
medical attention.
5) Avoid skin contact with the leaked substance.
6) If the skin does come into contact with the leaked substance, wash the affected area
thoroughly with soap and water and immediately seek medical attention.
7) Avoid ingestion of the leaked substance.
8) If ingestion does occur, induce vomiting and seek medical attention immediately.
Fire
Always keep an ABC or carbon-dioxide fire extinguisher nearby in case of fire.
The BS may catch fire if heated above 150° Celsius.
If there is a fire near or at the location in which the BS is installed, do the following.
1) If it is safe to do so, extinguish the fire before the BS ignites.
If the BS does ignite, do not try to extinguish the fire; instead, call the fire brigade. Notify
everyone and evacuate people and animals from the area immediately.
If the BS catches fire, it will produce noxious and very unpleasant gases – do not
approach.
Wet batteries
If the BS becomes wet or is submerged in water, stay out of the water and contact Soluna
Australia or your distributor for technical assistance.
Damaged batteries
Damaged batteries must be handled with extreme caution – they are not fit for use and may
pose a danger to people, animals or property.
If the BS appears damaged, return it to its original container and contact Soluna Australia or
your distributor for further instructions.
Damaged batteries may leak electrolyte or produce flammable gas. If
you suspect such
damage, immediately contact Soluna Australia for advice and information.
Accredited installers

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 7 of 25 Published date: March 2021
In Australia and New Zealand, the required standard is that of Clean Energy Council
Accredited Installer, qualified to install battery storage systems connected to the grid.
This manual and the tasks and procedures described herein are intended for use only by such
an accredited installer; that is, a trained and qualified electrician with the following skills and
experience.
1) Knowledge of the functional principles and operation of on-grid systems.
2) Knowledge of the dangers and risks associated with installing and using electrical
devices, as well as acceptable mitigation methods.
3) Knowledge of the installation of electrical devices.
4) Knowledge of and adherence to this manual, as well as all safety precautions and best
practice.
Safety equipment
The following safety gear should be worn when dealing with the BS.
Item Photo Name
1 Insulated gloves
2 Safety goggles
3 Safety shoes

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 8 of 25 Published date: March 2021
2. Product introduction
The Soluna 10K PACK HV is an NCM-type lithium battery product with a battery management
system ('BMS'). This high-voltage BS features CAN communication, as well as under-voltage,
over-voltage, over-current, over-temperature and under-temperature protection functions. It is
characterised by high energy density, long life, safety and reliability and is environmentally
sustainable.
Features
1) Excellent safety performance.
2) Long cycle life.
3) Support for CAN communication.
4) High energy density.
5) Excellent BMS.
Application
1) Back-up power.
2) Micro-grid.
3) Home energy storage system.
Unpacking the BS
Remove the nails from the wooden case with a claw hammer, open the wooden case and
remove the wooden board.
①
②
③
Number Name Remark
① Wooden board
② Soluna 10K PACK HV
③ Accessory box

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 9 of 25 Published date: March 2021
Remove the BS from its packaging and stand it upright. Check for visual damage.
All other items are contained in a box in one corner of the packaging. Remove them and
check whether any items are missing.
Note: retain packaging for future storage or transportation.
Packing list
The following table lists each item and the numbers of these included. If anything is damaged
or missing, contact Soluna Australia or your distributor.
Item Name Qty (pcs) Remark
1 Soluna 10K PACK HV 1
2 Protective earthing conductor
(PE wire)
1
3 Inner-hexagon wrench (3.0) 1
4 Inner-hexagon wrench (4.0) 1
5 Inner-hexagon screws (M4) 4
6 Inner-hexagon screws (M6） 2
7 Phillips screws（M6） 10
8 Expansion screws 8
9 CAN communication wire 1
Installation materials
Installers should prepare the following installation materials.
1) Battery connection / charging cables
2) Network connection cables
Installation location
Ensure that the installation location meets the following requirements.
1) The building is designed to withstand earthquakes.
2) The BS location is internal and out of direct sunlight.
3) The floor is flat and level.
4) There are no flammable or explosive materials nearby.
5) The ambient temperature is between 15° and 30° Celsius.
6) The temperature and humidity remain at a constant level.
7) There is minimal dust and/or dirt in the area.
8) There are no corrosive gases present, including ammonia and acid vapour.
If the ambient temperature is outside the operating range, the BS will stop operating to
protect itself. The optimal operating temperature range for the BS is 15° to 30° Celsius.
Frequent exposure to harsh temperatures may adversely affect the performance and
longevity of the BS.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 10 of 25 Published date: March 2021
Installation tools
The following tools are required to install the BS.
Item Photo Name
1 Phillips-screwdriver bit
2 Network crimper
3 Wire cutter
4 Wire stripper
5 Tape measure
All tools should be appropriately insulated to prevent accidental electric shock or short circuits.
Use adjustable tools and measuring instruments that are certified for precision and accuracy.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 11 of 25 Published date: March 2021
Outline dimensions (mm)
Figure 2.1 – outline dimensions.
Depth Width
Width (mm) 647 ±2
Depth (mm) 227 ±2
Height (mm) 905 ±3
Weight (kg) 103

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 12 of 25 Published date: March 2021
Technical data
Physical characteristics
Width (mm) 647 ±2
Depth (mm) 227 ±2
Height (mm) 905 ±3
Weight (kg) 103
Electrical characteristics
Battery type NCM
Total energy capacity (kWh) 10
Usable energy capacity (kWh) 8
Battery capacity (Ah) 36.6
Voltage range (V) 242 to 327
Nominal voltage (V) 280.8
Charge voltage (CV) 327
Discharge voltage (V) 234
Charge/discharge current (nominal) (A) 15/15
Max. charge/discharge current (A) 30/30
Charge/discharge power (nominal) (kW) 4.2
Max. charge/discharge power (kW) 8
DoD (%) 80
Cycle life ≥3600
Battery pack round-trip efficiency (%) >95
DC disconnect Contactor fuse
BMS
Power consumption (mA) ≤100 (work), ≤0.1 (sleep)
Monitoring parameters System voltage, system current cell voltage, cell temp.
Communication CAN
Operating conditions
Operating temperature (° C) -10 to +45
Operating temperature (recommended) (° C) +15 to +30
Storage temperature (° C) -20 to +60
Humidity (%) 5 to 95
Altitude (maximum) (m) 2,000
Cooling strategy Natural convection
Reliability and certification
Certificates Cell – UL1642; Battery – IEC62619 & UL1973
AS/NZS 60950
Hazardous materials classification Class 9
Transportation UN38.3
Ingress rating IP54

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 13 of 25 Published date: March 2021
Appearance
Figure 2.2 – appearance.
Number Name Remark
① Cable entry
② Power ON/OFF
③ Upper handle
④ Lower handle
⑤ Grounding
⑥ Grounding
⑦ Power light

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 14 of 25 Published date: March 2021
Wiring port
The Soluna 10K PACK HV's wiring port is visible once the cover cap has been opened (see
diagram below for details).
Figure 2.3 – Wiring port.
Number Name Remark
① CAN 1 port For external communication (inverter)
② CAN 2 port For internal communication (BMS)
③ Battery '+'
④ Battery '–'

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 15 of 25 Published date: March 2021
3. Installation
The BS is too heavy for one person to carry. Ensure that two or more people are available
to do so.
Note: an external bi-pole circuit breaker is required for battery output. During installation, an
external bi-pole DC isolator is required.
Space requirements during installation and operation
To ensure adequate ventilation during installation, where possible, allow a space of 200 cm in
all directions around the BS.
Position Minimum
spacing
(cm)
Remark
Side spacing 100 Allow a clearance of at least 100 cm on either side of the BS.
Above 40 Nothing should be placed on top of the BS – allow clearance of at
least 40 cm.
Below Always use the floor-mounting brackets supplied. Their height is
adjustable, allowing the installer to ensure that the BS is level when
installed (minimum height is the bottom of the bracket).
Backspacing 10 The BS needs to be installed against a wall.
Note: for detailed requirements concerning the width of the maintenance channel, escape
routes, etc., refer to applicable standards for the country/region in which the BS is installed.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 16 of 25 Published date: March 2021
Installation requirements
The Soluna 10K Pack HV should be installed against a wall, with eight holes drilled into that
wall to fix the BS mounting brackets. See the following diagram for details.
Wiring specification
To standardise the BS wiring specification, the following are required to connect the wires.
Battery wire Communication cable
Use of a 10mm conductor with double
insulation is recommended.
Use of communication cable with a shielding function is
recommended.
Earth connection specification
Step 1: drill holes in the wall. Step 3: install the battery module.
Step 2: screw the bracket to the wall.
Connect the front plate to the housing.
Connect the earth wire at this location.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 17 of 25 Published date: March 2021
CAN communication interface (CAN 1 and CAN 2)
Figure 3.1 – CAN interface definition.
CAN 1 port (for external communication)
1 2 3 4 5 6 7 8
— — —
CAN
1H
CAN
1L
— — —
CAN 2 port (for internal communication)
1 2 3 4 5 6 7 8
— — — — — —
CAN
2H
CAN
2L
Note: CAN 1H/CAN 1L used for external communication (inverter); CAN 2H/CAN 2L used for
internal communication (battery CAN ports).

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 18 of 25 Published date: March 2021
Electrical connection
Please refer to the following diagram for details of double pole isolation of 10K Pack HV
battery systems.
BAT +
BAT -
DC Input
CAN 1 CAN 1
Inverter
POS +
NEG -
10mm
10mm
10mm
10mm
Soluna 10K pack
DP 40a
500VDC
Preparation

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 19 of 25 Published date: March 2021
Electrical connection procedures
Step 1. Connect the earth cable.
Step 2. Create power cables.
Crimp the correct size cable lugs to the DC cables - 10mm cable x 5mm centre hole.
The earth terminal and cable should be
fastened with an M6 screw.
Crimp the cable lugs 10mm x 5mm with
a wire crimping tool.
Heat-shrink sleeve should be applied to
the exposed conductive crimp lug.

10K Pack HV Installation Manual
©
2021 Soluna Australia Pty Ltd Page 20 of 25 Published date: March 2021
Step 3. Lock power cables and communication cable.
Step 4. Lock the cover.
Remove communication cable
from accessory box and plug
CAN 1 into the inverter.
Lock power cable with a Phillips
screwdriver (M5), ensuring the
correct polarity and a firm
connection of 3NM torque.
Lock the terminal cover plate
with a hexagon wrench
(2.5mm).
