Huawei UPS2000-G-1 kVA User manual

UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide
Issue 05
Date 2022-05-23
HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.

Copyright © Huawei Digital Power Technologies Co., Ltd. 2022. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Digital Power Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are the property of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei
Digital Power Technologies Co., Ltd. and the customer. All or part of the products, services and features
described in this document may not be within the purchase scope or the usage scope. Unless otherwise
specied in the contract, all statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Digital Power Technologies Co., Ltd.
Address:
Website:
Huawei Digital Power Antuoshan Headquarters
Futian,Shenzhen 518043
People's Republic of China
https://e.huawei.com
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. i

About This Document
Purpose
This document describes the battery packs for the UPS2000-G-(1 kVA–3 kVA)
series in terms of appearance, technical specications, installation, and connection.
Intended Audience
This document is intended for:
● Technical support engineers
● Hardware installation engineers
● Commissioning engineers
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Remarks
Indicates a hazard with a high level of risk
which, if not avoided, will result in death or
serious injury.
Indicates a hazard with a medium level of
risk which, if not avoided, could result in
death or serious injury.
Indicates a hazard with a low level of risk
which, if not avoided, could result in minor
or moderate injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in
equipment damage, data loss, performance
deterioration, or unanticipated results.
NOTICE is used to address practices not
related to personal injury.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide About This Document
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. ii

Symbol Remarks
Supplements the important information in
the main text.
NOTE is used to address information not
related to personal injury, equipment
damage, and environment deterioration.
Change History
Change History
Issue Date Description
05 2022-05-23 Added the ESS-36V12-9*2AHBPVBB01-C
and ESS-96V12-9AHBPVBB02-C, which
are applicable only in China.
04 2016-05-15 Updated the documentation.
03 2015-10-12 Added the 2 kVA UPS battery pack.
02 2015-08-10 Updated the battery pack dimensions.
01 2015-06-25 The issue is the rst ocial release.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide About This Document
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Safety Information.................................................................................................................. 1
2 Appearance and Characteristics...........................................................................................2
2.1 Appearance................................................................................................................................................................................ 2
2.2 Characteristics...........................................................................................................................................................................3
2.2.1 1 kVA UPS Battery Pack.....................................................................................................................................................3
2.2.2 2 kVA UPS Battery Pack.....................................................................................................................................................4
2.2.3 3 kVA UPS Battery Pack.....................................................................................................................................................5
3 Installing a Battery Pack........................................................................................................7
3.1 Unpacking and Checking...................................................................................................................................................... 8
3.2 Installation Preparations....................................................................................................................................................... 8
3.3 Procedure................................................................................................................................................................................... 9
3.3.1 Rack-mounted Installation............................................................................................................................................... 9
3.3.2 Tower-mounted Installation.......................................................................................................................................... 10
4 Connecting Battery Packs to a UPS.................................................................................. 13
4.1 Connecting Battery Packs to a 1 kVA UPS................................................................................................................... 13
4.2 Connecting Battery Packs to a 2 kVA UPS................................................................................................................... 14
4.3 Connecting Battery Packs to a 3 kVA UPS................................................................................................................... 15
A Acronyms and Abbreviations............................................................................................. 17
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide Contents
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. iv

1 Safety Information
● Only the designated professional technical personnel are allowed to install
and operate battery packs.
● Read this document closely before operating battery packs.
● When operating the equipment, comply with local laws and regulations.
● Do not modify default parameters unless required by the document or
approved by technical support engineers.
● To prevent electric shocks, use insulated tools and wear insulated gloves when
connecting cables.
● To prevent personal injury, wear protective shoes when moving battery packs.
● In the case of re, use a dry powder extinguisher. Liquid extinguishant may
cause electric shocks.
● Do not touch uninsulated battery terminals. Otherwise, electric shocks may
occur.
● Using incorrect battery models may cause explosion. Dispose of used batteries
by following instructions.
● Cut o power supply and remove metal objects such as watches and rings
before maintenance.
● Do not transport the equipment by holding the mounting ears, front panel, or
wiring port covers. Move the equipment in compliance with the corresponding
requirements. Figure 1-1 shows the transportation rules.

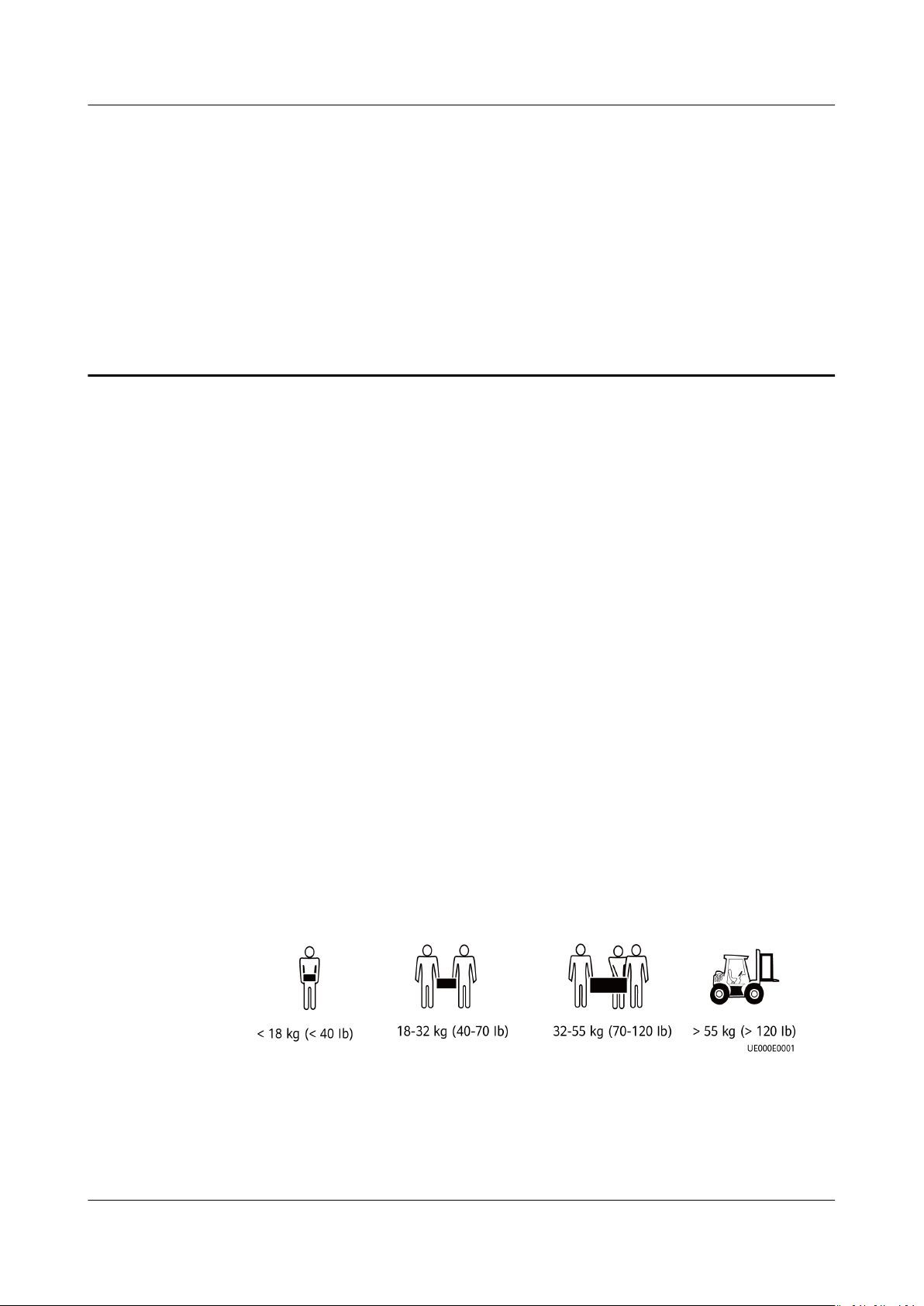

Figure 1-1 Transportation rules
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 1 Safety Information
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 1

2 Appearance and Characteristics
2.1 Appearance
A rack-mounted battery pack can also be tower-mounted.
The model of the standard battery pack for the 1 kVA UPS with long backup time
is ESS-36V12-9*2AHBPVBB01 (or ESS-36V12-9*2AHBPVBB01-C, applicable only in
China). The model of the standard battery pack for the 2 kVA UPS with long
backup time is ESS-72V12-9AHBPVBB01. The model of the standard battery pack
for the 3 kVA UPS with long backup time is ESS-96V12-9AHBPVBB02 (or
ESS-96V12-9AHBPVBB02-C, applicable only in China). The three models of battery
packs have similar appearances. This document uses the standard battery pack
(ESS-96V12-9AHBPVBB02) for the 3 kVA UPS with long backup time as an
example, as shown in Figure 2-1.
Figure 2-1 Appearance and external ports of the standard battery pack
(ESS-96V12-9AHBPVBB02) for the 3 kVA UPS with long backup time
(1) DC port 1 (2) DC port 2
(3) Protection switch
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 2

Table 2-1 lists the input and output ports on the battery pack.
Table 2-1 Input and output ports on the battery pack
No. Port Port Type
1 DC port 1 SA50 x 2
2 DC port 2 SA50 x 2
2.2 Characteristics
2.2.1 1 kVA UPS Battery Pack
Model
ESS-36V12-9*2AHBPVBB01 (or ESS-36V12-9*2AHBPVBB01-C, applicable only in
China)
Interior
Contains two battery strings. Each string contains three 9 Ah/12 V DC batteries.
The output voltage of the battery pack is 36 V DC.
Basic Features
● Appearance: black
● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 88 mm x 438 mm x 410 mm
● Weight: 17.3 kg
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 3

Graphics of the Interior
Figure 2-2 ESS-36V12-9*2AHBPVBB01 or ESS-36V12-9*2AHBPVBB01-C battery
pack interior
2.2.2 2 kVA UPS Battery Pack
Model
ESS-72V12-9AHBPVBB01
Interior
Contains one battery string with six 9 Ah/12 V DC batteries. The output voltage of
the battery pack is 72 V DC.
Basic Features
● Appearance: black
● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 88 mm x 438 mm x 410 mm
● Weight: 21.7 kg
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 4

Graphics of the Interior
Figure 2-3 ESS-72V12-9AHBPVBB01 battery pack interior
2.2.3 3 kVA UPS Battery Pack
Model
ESS-96V12-9AHBPVBB02 (or ESS-96V12-9AHBPVBB02-C, applicable only in China)
Interior
Contains one battery string with eight 9 Ah/12 V DC batteries. The output voltage
of the battery pack is 96 V DC.
Basic Features
● Appearance: black
● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 88 mm x 438 mm x 510 mm
● Weight: 28.9 kg
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 5

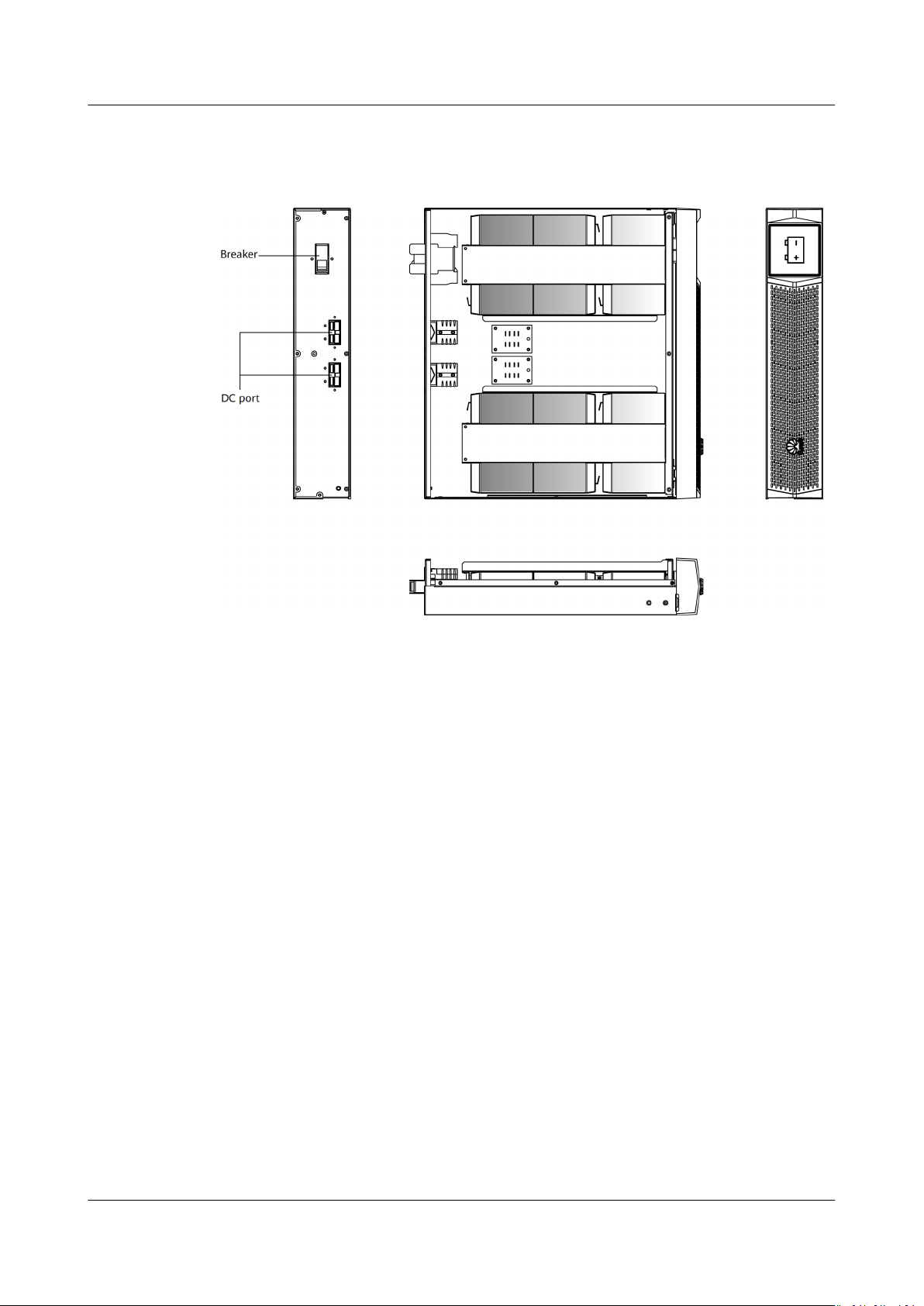

Graphics of the Interior
Figure 2-4 ESS-96V12-9AHBPVBB02 or ESS-96V12-9AHBPVBB02-C battery pack
interior
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 6

3 Installing a Battery Pack
NO TICE
Only battery packs of the same model can be installed or used for replacement.
Do not use battery packs of dierent models together. For details, see the
nameplate on the enclosure. The following gures are for reference only.

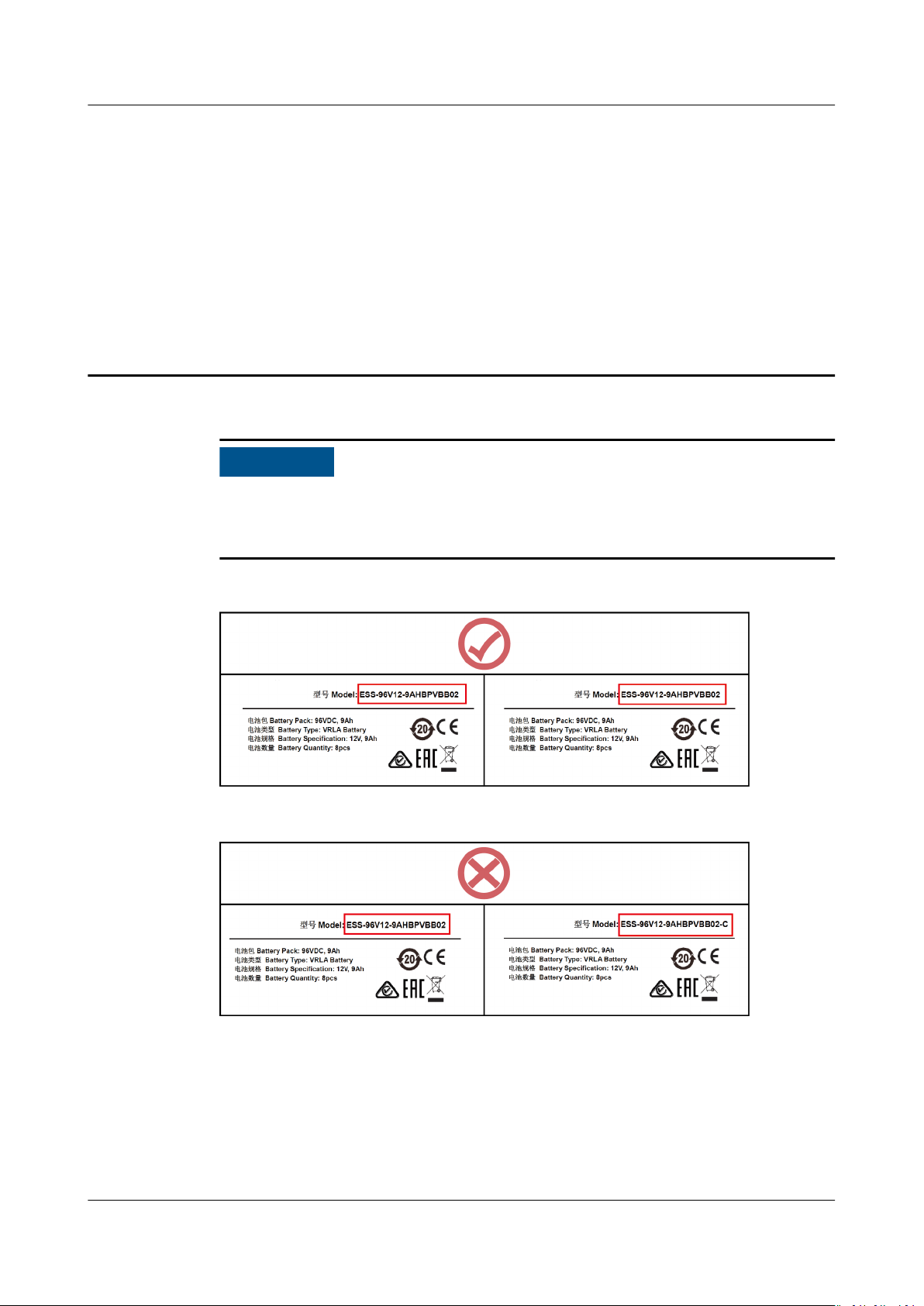

Figure 3-1 Same model
Figure 3-2 Dierent models
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 7

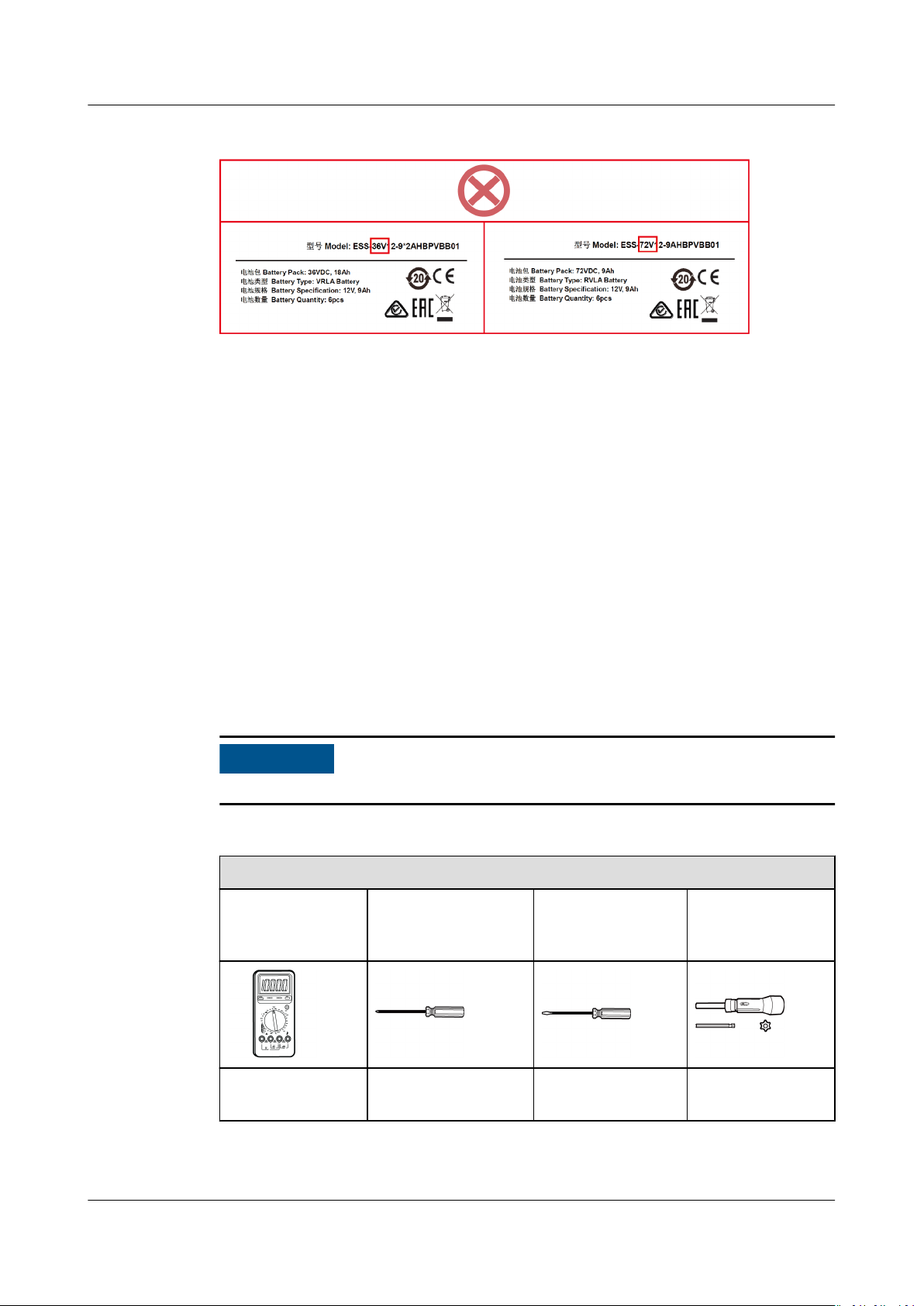

Figure 3-3 Dierent voltages
3.1 Unpacking and Checking
After a battery pack is delivered onsite, unpack it and check as follows:
● If any damage is found on the battery pack appearance, contact the carrier
immediately.
● Check that the battery pack barcode (on the rear of the pack, near the wiring
port) is consistent with that specied in the order. If not, contact the local
Huawei oce immediately.
● Do not transport the equipment by holding the mounting ears, front panel, or
wiring port covers.
● Do not wear rings, watches, or other metal objects when moving the battery
pack.
3.2 Installation Preparations
NO TICE
Get tools insulated to prevent electric shocks.
Table 3-1 Installation tools
Appearance, Specications, and Name
Multimeter Phillips screwdriver
(PH2 x 150 mm,
PH3 x 250 mm)
Flat-head
screwdriver (2
mm x 80 mm)
Torque
screwdriver
Wire stripper Insulation tape Cotton cloth Heat-shrink
tubing
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 8

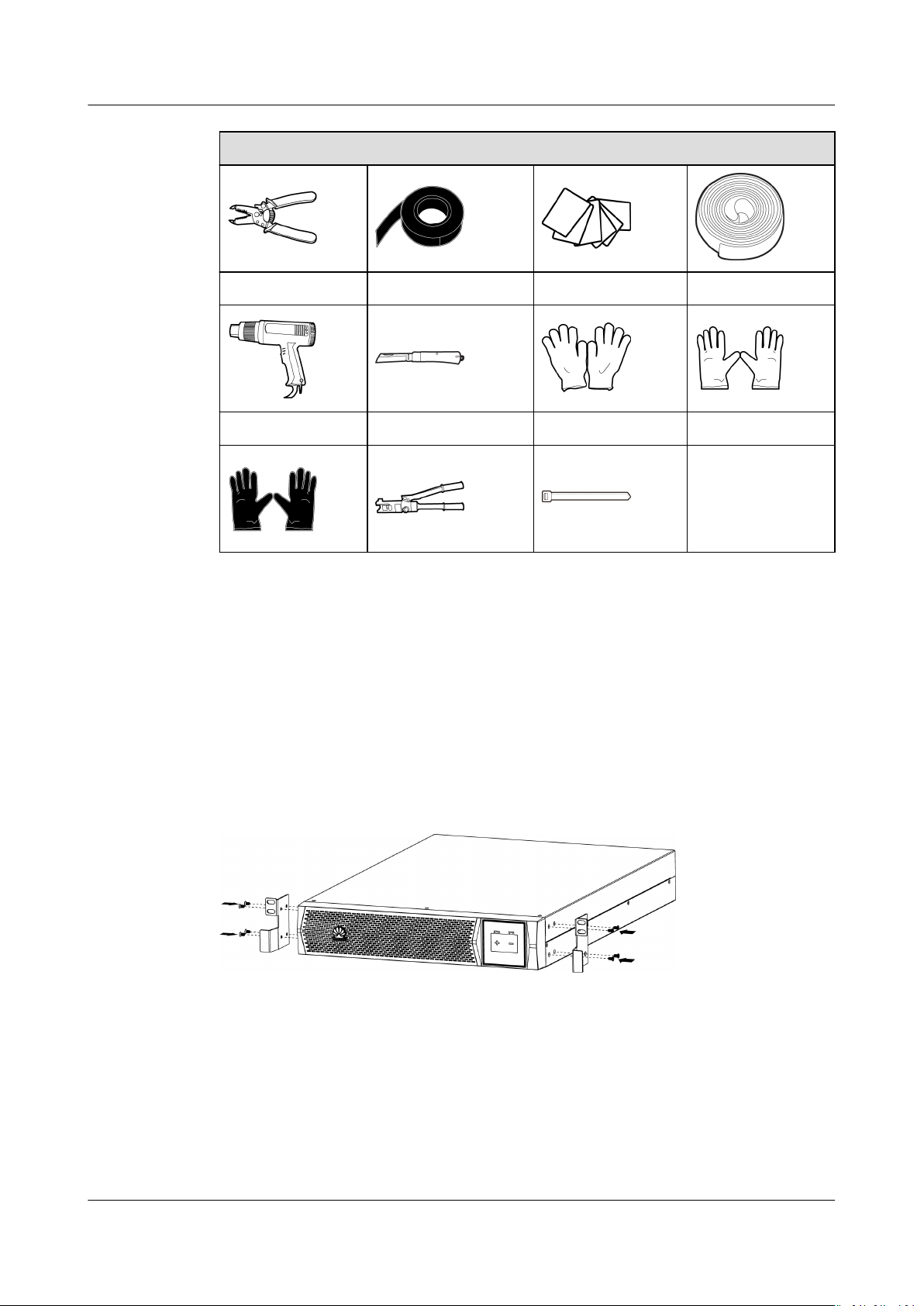

Appearance, Specications, and Name
Heat gun Electrician's knife Protective gloves ESD gloves
Insulated gloves Hydraulic pliers Cable tie -
-
3.3 Procedure

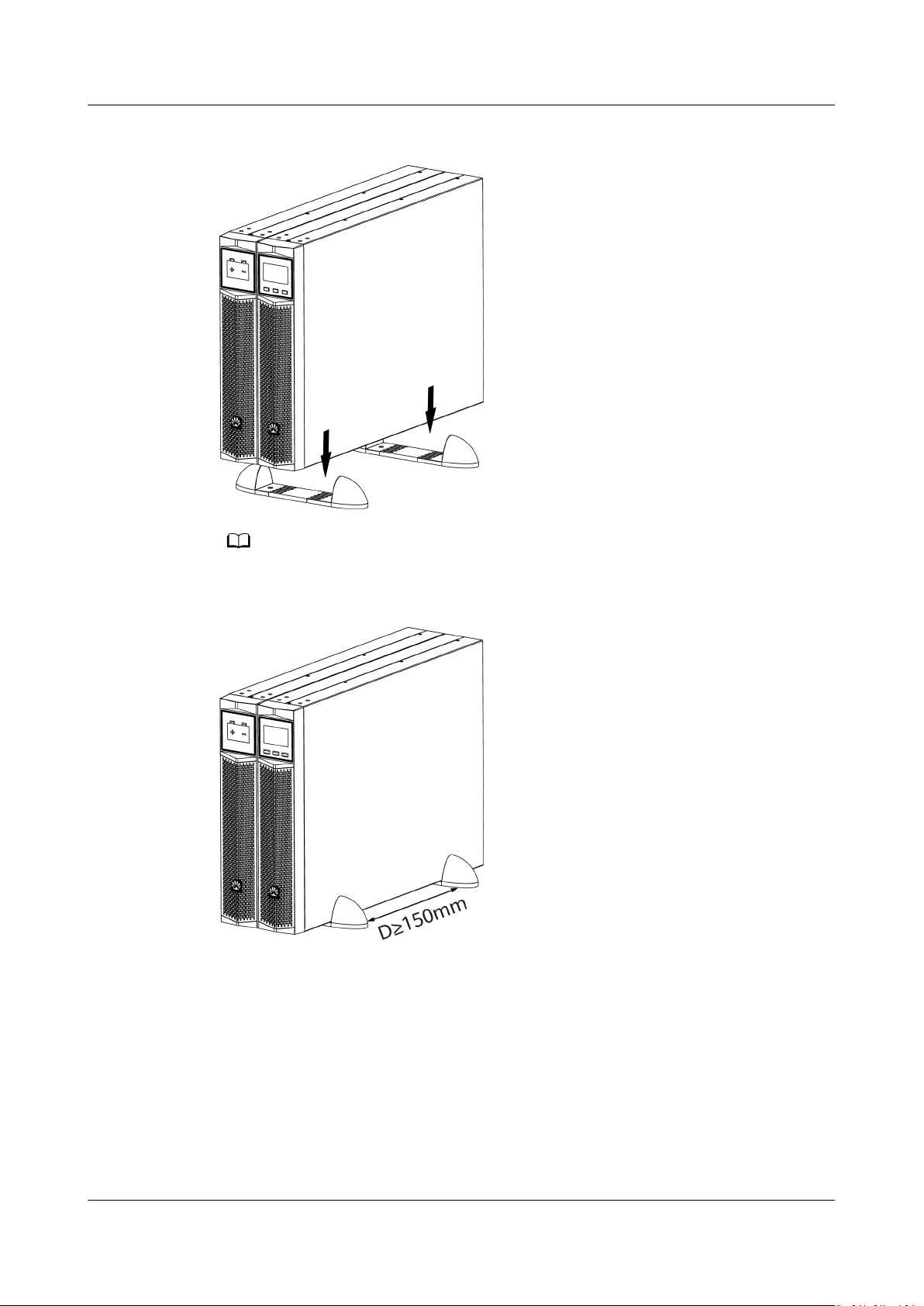

Battery packs of rack-mounted UPSs can either be rack-mounted or tower-
mounted.
3.3.1 Rack-mounted Installation
Procedure
Step 1 Install mounting ears.
Step 2 Install the battery pack.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 9

NO TE
The recommended torque for tightening the screws is 3 N·m.
----End
3.3.2 Tower-mounted Installation
Procedure
Step 1 Remove the front panel.
Step 2 Adjust the battery pack panel as shown in the following gure.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 10

Step 3 Adjust the Huawei logo and reinstall the front panel.
Step 4 Assemble the support base and extension kit.
NO TE
The support base installed here is the standard conguration of the UPS. The standard
conguration of the battery pack contains only the extension kit.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 11

Step 5 Install the battery pack.
NO TE
The assembled UPS and battery pack are 300 mm deep in total.
Step 6 Complete the installation.
----End
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 3 Installing a Battery Pack
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 12

4 Connecting Battery Packs to a UPS
4.1 Connecting Battery Packs to a 1 kVA UPS
Figure 4-1 shows the connection between the ESS-36V12-9*2AHBPVBB01 (or
ESS-36V12-9*2AHBPVBB01-C, applicable only in China) battery packs and a 1 kVA
UPS. Use the battery cables delivered with the battery packs to connect battery
packs to the UPS and to connect battery packs in parallel.
● A maximum of two ESS-36V12-9*2AHBPVBB01 (or
ESS-36V12-9*2AHBPVBB01-C, applicable only in China) battery packs can be
connected in parallel. Two battery packs connected in parallel are used as an
example.
● A battery pack has two output ports with the same functions for parallel
connection. If one of the output ports is used to connect to a UPS or battery
packs connected in parallel, the other can be used to connect to an external
charger.
● Before connecting cables, ensure that the circuit breakers on the battery packs
are OFF.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 4 Connecting Battery Packs to a UPS
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 13

Figure 4-1 Connection between the ESS-36V12-9*2AHBPVBB01 or
ESS-36V12-9*2AHBPVBB01-C battery packs and a UPS
4.2 Connecting Battery Packs to a 2 kVA UPS
Figure 4-2 shows the connection between the ESS-72V12-9AHBPVBB01 battery
packs and a 2 kVA UPS. Use the battery cables delivered with the battery packs to
connect the battery packs to the UPS and to connect battery packs in parallel.
● A maximum of four ESS-72V12-9AHBPVBB01 battery packs can be connected
in parallel. Two battery packs connected in parallel are used as an example.
● A battery pack has two output ports with the same functions for parallel
connection. If one of the output ports is used to connect to a UPS or battery
packs connected in parallel, the other can be used to connect to an external
charger.
● Before connecting cables, ensure that the circuit breakers on the battery packs
are OFF.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 4 Connecting Battery Packs to a UPS
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 14

Figure 4-2 Connection between the ESS-72V12-9AHBPVBB01 battery packs and a
UPS
4.3 Connecting Battery Packs to a 3 kVA UPS
Figure 4-3 shows the connection between the ESS-96V12-9AHBPVBB02 (or
ESS-96V12-9AHBPVBB02-C, applicable only in China) battery packs and a 3 kVA
UPS. Use the battery cables delivered with the battery packs to connect the
battery packs to the UPS and to connect battery packs in parallel.
● A maximum of four ESS-96V12-9AHBPVBB02 (or ESS-96V12-9AHBPVBB02-C,
applicable only in China) battery packs can be connected in parallel. Two
battery packs connected in parallel are used as an example.
● A battery pack has two output ports with the same functions for parallel
connection. If one of the output ports is used to connect to a UPS or battery
packs connected in parallel, the other can be used to connect to an external
charger.
● Before connecting cables, ensure that the circuit breakers on the battery packs
are OFF.
UPS2000-G-(1 kVA–3 kVA) Battery Pack
Quick Guide 4 Connecting Battery Packs to a UPS
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 15
