Soluna 10K Pack HV User manual

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 1 of 26 Published date: February 2021
Installation Manual
Lithium Battery Pack
SOLUNA 10K Pack HV
Suitable for indoor installation
Soluna Australia Pty Ltd
ACN 634 963 296
February 2021 Version 2.1

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 2 of 26 Published date: February 2021
About this manual
This manual describes how to install the Soluna 10K PACK HV battery system (hereafter
referred to as 'the BS'). Please read the manual in its entirety before installing the BS and
follow all instructions throughout the installation process.
If you are uncertain about any of the requirements, recommendations or safety procedures
described in this manual, contact Soluna Australia immediately for advice and clarification.
Phone: Within Australia 1300 126 888
Outside Australia [phone]
Email [e-mail]
Web www.soluna.com.au
Head office 1/677 Murray Street
Perth WA 6005
The information included in this manual is accurate at the time of publication. However, with
respect to product design and technical specification updates, Soluna Australia reserves the
right to make changes at any time without prior notice. Further, the illustrations in this manual
–which help explain system configuration concepts and installation instructions –may differ
from the actual BS's appearance at the installation location.
Please search the technical section of www.soluna.com.au to ensure the Australian edition of
the Installation Manual is the latest version. You must also complete the warranty registration
form online at https://soluna.com.au/warranty/
Version information
Version
Date
Content
Author
1.0
04/02/21
10K Pack HV installation manual
GJ
2.0
08/02/21
10K Pack HV installation manual
JN
2.1
17/02/21
10K pack HV installation manual schematic
diagrams
GJ

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 3 of 26 Published date: February 2021
INSTALLATION MANUAL 1
LITHIUM BATTERY PACK 1
SOLUNA 10K PACK HV 1
SUITABLE FOR INDOOR INSTALLATION 1
SOLUNA AUSTRALIA PTY LTD 1
FEBRUARY 2021 VERSION 2.0 1
ABOUT THIS MANUAL 2
1. SAFETY PRECAUTIONS 4
WARNINGS 4
SAFETY INSTRUCTIONS 5
GENERAL SAFETY PRECAUTIONS 5
RISKS OF EXPLOSION 5
RISKS OF FIRE 5
RISKS OF ELECTRIC SHOCK 5
RISKS OF DAMAGE TO THE BS 5
BATTERY HANDLING GUIDE 5
RESPONSE TO EMERGENCIES 6
LEAKING BATTERIES 6
FIRE 6
WET BATTERIES 6
DAMAGED BATTERIES 6
ACCREDITED INSTALLERS 7
SAFETY EQUIPMENT 7
2. PRODUCT INTRODUCTION 8
FEATURES 8
APPLICATION 8
UNPACKING THE BS 8
PACKING LIST 9
INSTALLATION MATERIALS 9
INSTALLATION LOCATION 9
INSTALLATION TOOLS 10
OUTLINE DIMENSIONS (MM) 11
TECHNICAL DATA 12
APPEARANCE 13
WIRING PORT 14
REMARK 14
3. INSTALLATION 15
SPACE REQUIREMENTS DURING INSTALLATION AND OPERATION 15
INSTALLATION REQUIREMENTS 16
WIRING SPECIFICATION 16
USE OF STANDARD COMMUNICATION CABLE WITH A SHIELDING FUNCTION IS RECOMMENDED. 16
CAN COMMUNICATION INTERFACE (CAN 1AND CAN 2) 17
ELECTRICAL CONNECTION 18
ELECTRICAL CONNECTION PROCEDURES 19
OPERATING INSTRUCTIONS 23
4. CONSUMER 'START UP'AND 'SHUT DOWN'PROCEDURES23
5. CARE AND MAINTENANCE 25
FIRMWARE UPGRADE 25
6. TROUBLESHOOTING 26
7. CONTACT US 26

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 4 of 26 Published date: February 2021
1. Safety precautions
Warnings
Warning signs indicate conditions that may cause severe injury to the installer or damage to
the BS, and that caution should be exercised to avoid danger. The following table describes
the warning signs used in this manual.
Figure 1 –warning symbols.
Sign
Description
ThisBS contains high-voltage materials that cancause anelectric shock,
resulting in severe injury.
Ensure that battery polarity is observed, and that the BS is connected
correctly.
Keep the BS away from an open flame or sources of ignition.
Keep children and animals away from the BS.
Read the manual in its entirety before installing and operating the BS.
The BS is heavy enough to cause severe injury if not handled correctly.
The BS contains electrolyte, which is corrosive if it leaks.
The BS may explode if not handled correctly.
The BS should be recycled, not be disposed of with household waste, at the
end of its working life. For more information, contact Soluna Australia.
There is a risk of physical injury or damage to the BS if the installation
requirements are not followed and/or the BS is mishandled.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 5 of 26 Published date: February 2021
Safety instructions
For safety reasons, installers must familiarise themselves with this manual's contents and all
warnings before installing the BS.
General safety precautions
Please observe the precautions described in the following section. Failure to do so
may result in serious injury to persons or animals or damage to property.
Risks of explosion
1) Do not subject the BS to strongimpacts.
2) Do not crush or puncture the BS.
3) Do not incinerate the BS.
Risks of fire
1) Do not expose the BS to temperatures in excess of60° Celsius.
2) Do not place the BS near a heat source such as afireplace.
3) Do not expose the BS to direct sunlight.
4) Do not allowthe BS connectors totouch conductive objects such as wires.
Risks of electric shock
1) Do not disassemble the BS, as high DC voltage may be present.
2) Do not touch the BS with wet hands.
3) Do not expose the BS to moisture or liquids.
4) Keep children and animals away from the BS.
Risks of damage to the BS
1) Do not allow the BS to come into contact withliquids.
2) Do not subject the BS to high pressures.
3) Do not place objects on top of the BS.
Battery handling guide
1) Use the BS only as directed.
2) Do not use the BS if it is cracked, broken or otherwise damaged, or fails to operate.
3) Do not attempt to open, disassemble, repair, tamper with or modify the BS –it is not user-
serviceable.
4) Handle the BS and its components with care to protect it from damage during
transportation.
5) Do not strike, pull, drag or step on the BS.
6) Do not subject the BS to any strong force.
7) Do not insert foreign objects into any part of the BS.
8) Do not use solvents to clean the BS.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 6 of 26 Published date: February 2021
Response to emergencies
The Soluna 10K PACK HV BS comprises multiple batteries that are designed in such a way as
to prevent hazards resulting from failures. However,Soluna Australia cannot guarantee the
absolute safety of the BS.
Leaking batteries
If the BS leaks electrolyte, avoid contact with the leaking liquid or gas. The electrolyteis
corrosive –contact with it may cause skin irritationand/or chemical burns. If a person/animal is
exposed to the leaked substance, do the following.
1) Avoid inhalation of the leaked substance.
2) Evacuate the contaminated area and seek medical attention immediately.
3) Avoid eye contact with the leaked substance.
4) If eye contact occurs, rinse eyes with flowing water for 15 minutes and immediately seek
medical attention.
5) Avoid skin contact with the leaked substance.
6) If the skin does come into contact with the leaked substance, wash the affected area
thoroughly with soap and water and immediately seek medical attention.
7) Avoid ingestion of the leaked substance.
8) If ingestion does occur, induce vomiting and seek medical attention immediately.
Fire
Always keep an ABC or carbon-dioxide fire extinguisher nearby in case of fire.
The BS may catch fire if heated above 150° Celsius.
If there is a fire near or at the location in which the BS is installed, do the following.
1) If it is safe to do so, extinguish the fire before the BS ignites.
If the BS does ignite, do not try to extinguish the fire; instead, call the fire brigade. Notify
everyone and evacuate people and animals from the area immediately.
If the BS catches fire, it will produce noxious and very unpleasant gases –do not
approach.
Wet batteries
If the BS becomes wet or is submerged in water, stay out of the water and contact Soluna
Australia or your distributor for technical assistance.
Damaged batteries
Damaged batteries must be handled with extreme caution –they are not fit for use and may
pose a danger to people, animals or property.
If the BS appears damaged, return it to its original container and contact Soluna Australia or
your distributor for further instructions.
Damaged batteries may leak electrolyte or produce flammable gas. If you suspect such
damage, immediately contact Soluna Australia for advice and information.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 7 of 26 Published date: February 2021
Accredited installers
In Australia and New Zealand, the required standard is that of Clean Energy Council
Accredited Installer, qualified to install battery storage systems connected to the grid.
This manual and the tasks and procedures described herein are intended for use only by such
an accredited installer;that is, a trained and qualified electrician with the following skills and
experience.
1) Knowledge of the functional principles and operation of on-gridsystems.
2) Knowledge of the dangers and risks associated with installing and using electrical
devices, as well as acceptable mitigation methods.
3) Knowledge of the installation of electricaldevices.
4) Knowledge of and adherencetothis manual,aswellasall safety precautions and best
practice.

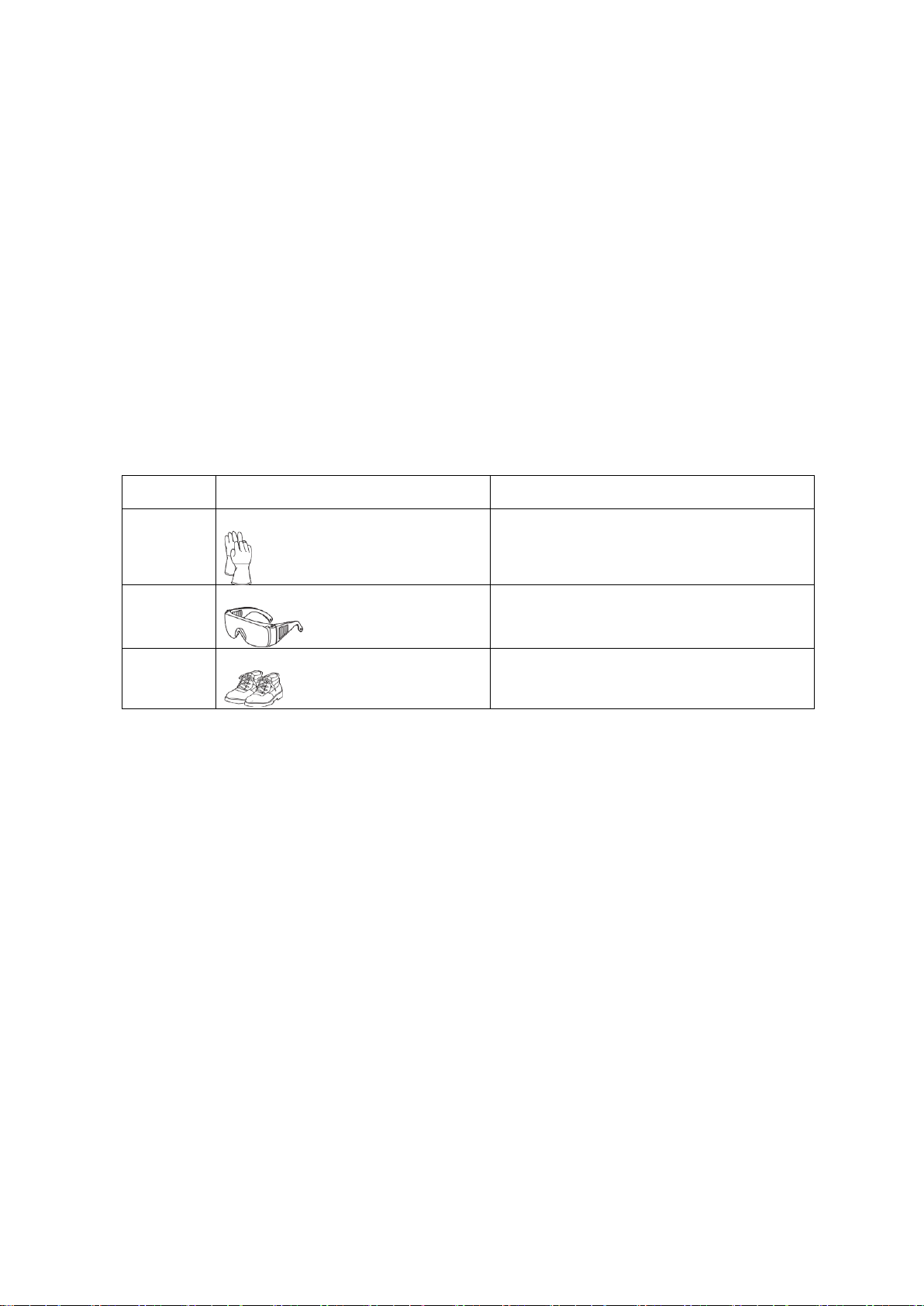

Safety equipment
The following safety gear should be worn when dealing with the BS.
Item
Name
1
Insulated gloves
2
Safety goggles
3
Safety shoes

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 8 of 26 Published date: February 2021
2. Product introduction
The Soluna 10K PACK HV is an NCM-type lithium battery product with a battery management
system ('BMS'). This high-voltage BS features CAN communication, as well as under-voltage,
over-voltage, over-current, over-temperature and under-temperature protection functions. It is
characterised by high energy density, long life, safety and reliability and is environmentally
sustainable.
Features
1) Excellent safety performance.
2) Long cycle life.
3) Support for CAN communication.
4) High energy density.
5) Excellent BMS.
Application
1) Back-up power.
2) Micro-grid.
3) Home energy storage system.

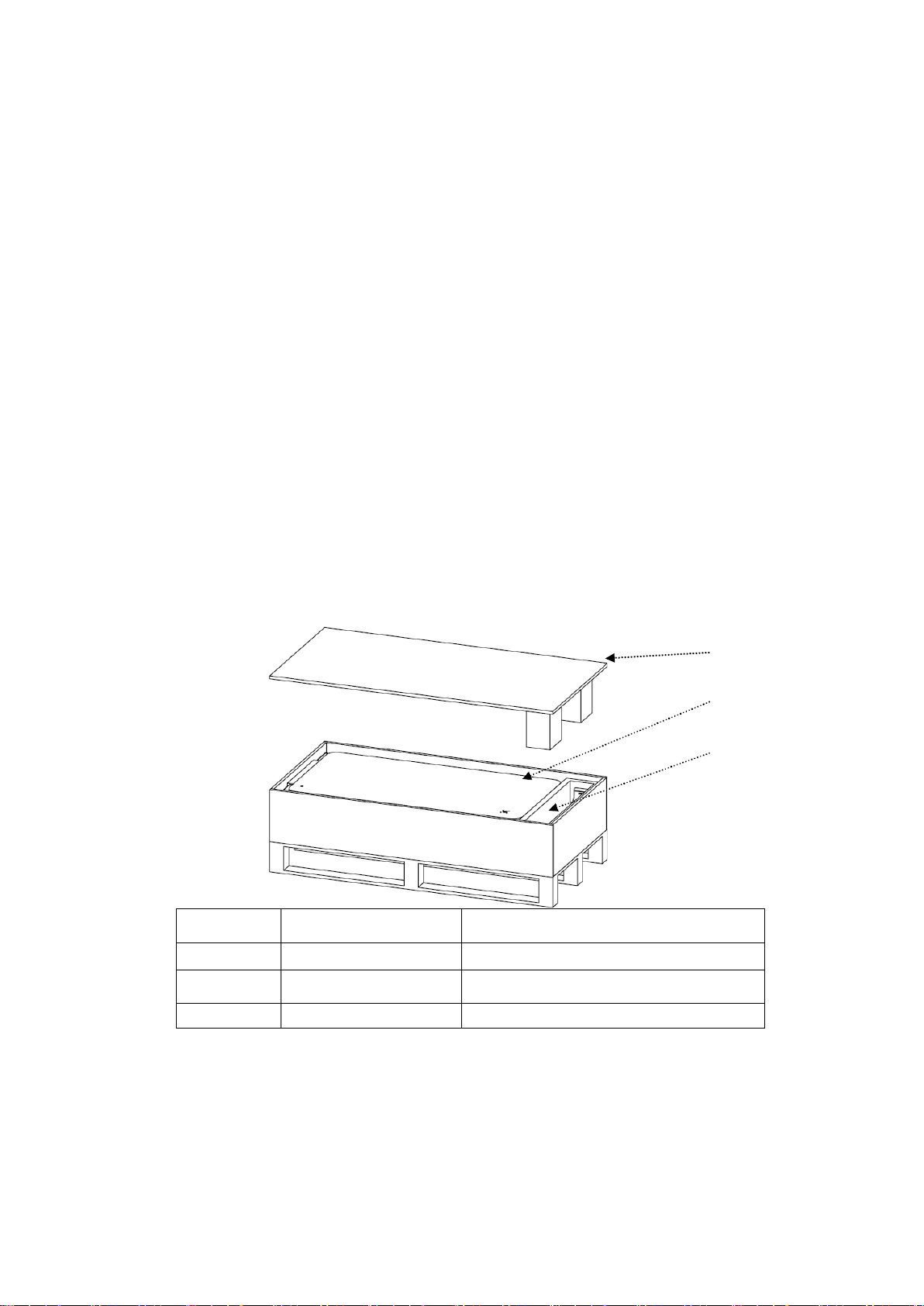

Unpacking the BS
Remove the nails from the wooden case with a claw hammer, open the wooden case and
remove the wooden board.
①
②
③
Number
Name
Remark
①
Wooden board
②
Soluna 10K PACK HV
③
Accessory box

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 9 of 26 Published date: February 2021
Remove the BS from its packaging and stand it upright. Check for visual damage.
All other items are contained in a box in one corner of the packaging. Remove them and
check whether any items are missing.
Note: retain packaging for future storage or transportation.
Packing list
The following table lists each item and the numbers of these included. If anything is damaged
or missing, contact Soluna Australia or your distributor.
Item
Name
Qty (pcs)
Remark
1
Soluna 10K PACK HV
1
2
Protective earthing conductor
(PE wire)
1
3
Inner-hexagon wrench (3.0)
1
4
Inner-hexagon wrench (4.0)
1
5
Inner-hexagon screws (M4)
4
6
Inner-hexagon screws (M6）
2
7
Phillips screws（M6）
10
8
Expansion screws
8
9
CAN communication wire
1
Installation materials
Installers should prepare the following installation materials.
1) Battery connection / charging cables
2) Network connection cables
Installation location
Ensure that the installation location meets the following requirements.
1) The building is designed to withstand earthquakes.
2) The BS location is internal and out of direct sunlight.
3) The floor is flat and level.
4) There are no flammable or explosive materials nearby.
5) The ambient temperature is between 15° and 30° Celsius.
6) The temperature and humidity remain at a constantlevel.
7) There is minimal dust and/or dirt in thearea.
8) There are no corrosive gases present, including ammonia and acidvapour.
If the ambient temperature is outside the operating range, theBS will stop operating to
protect itself. The optimal operating temperature range for the BS is 15° to 30° Celsius.
Frequent exposure to harsh temperatures may adversely affect the performance and
longevity of the BS.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 10 of 26 Published date: February 2021
Installation tools
The following tools are required to install the BS.
Item
Name
1
Phillips-screwdriver bit
2
Network crimper
3
Wire cutter
4
Wire stripper
5
Tape measure
All tools should be appropriately insulated to prevent accidental electric shock or short circuits.
Use adjustable tools and measuring instruments that are certified for precision and accuracy.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 11 of 26 Published date: February 2021
Outline dimensions (mm)
Figure 2.1 –outline dimensions.
Depth Width
Width (mm)
647 ±2
Depth (mm)
227 ±2
Height (mm)
905 ±3
Weight (kg)
103

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 12 of 26 Published date: February 2021
Technical data
Physical characteristics
Width (mm)
647 ±2
Depth (mm)
227 ±2
Height (mm)
905 ±3
Weight (kg)
103
Electrical characteristics
Battery type
NCM
Total energy capacity (kWh)
10
Usable energy capacity (kWh)
8
Battery capacity (Ah)
36.6
Voltage range (V)
242 to 327
Nominal voltage (V)
280.8
Charge voltage (CV)
327
Discharge voltage (V)
234
Charge/discharge current (nominal) (A)
15/15
Max. charge/discharge current (A)
30/30
Charge/discharge power (nominal) (kW)
4.2
Max. charge/discharge power (kW)
8
DoD (%)
80
Cycle life
≥3600
Battery pack round-trip efficiency (%)
>95
DC disconnect
Contactor fuse
BMS
Power consumption (mA)
≤100 (work), ≤0.1 (sleep)
Monitoring parameters
System voltage, system current cell voltage, cell temp.
Communication
CAN
Operating conditions
Operating temperature (° C)
-10 to +45
Operating temperature (recommended) (° C)
15 to +30
Storage temperature (° C)
-20 to +60
Humidity (%)
5 to 95
Altitude (maximum) (m)
2,000
Cooling strategy
Natural convection
Reliability and certification
Certificates
Cell –UL1642; Battery –IEC62619 & UL1973
AS/NZS 60950
Hazardous materials classification
Class 9
Transportation
UN38.3
Ingress rating
IP54

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 13 of 26 Published date: February 2021
Appearance
Figure 2.2 –appearance.
Number
Name
Remark
①
Cable entry
②
Power ON/OFF
③
Upper handle
④
Lower handle
⑤
Grounding
⑥
Grounding
⑦
Power light

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 14 of 26 Published date: February 2021
Wiring port
The Soluna 10K PACK HV's wiring port is visible once the cover cap has been opened (see
diagram below for details).
Figure 2.3 –Wiring port.
Number
Name
Remark
①
CAN 1 port
For external communication (inverter)
②
CAN 2 port
For internal communication (BMS)
③
Battery '+'
④
Battery'–'

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 15 of 26 Published date: February 2021
3. Installation
The BS is too heavy for one person to carry. Ensure that two or more people are available
to do so.
Note: an external bi-pole circuit breaker is required for battery output. During installation, an
external bi-pole DC isolator is required.
Space requirements during installation and operation
To ensure adequate ventilation during installation, where possible, allow a space of 200 cm in
all directions around the BS.
Position
Minimum
spacing
(cm)
Remark
Side spacing
100
Allow a clearance of at least 100 cm on either side of the BS.
Above
40
Nothing should be placed on top of the BS –allow clearance of at
least 40 cm.
Below
Always use the floor-mounting brackets supplied. Their height is
adjustable, allowing the installer to ensure that the BS is level when
installed (minimum height is the bottom of the bracket).
Backspacing
10
The BS needs to be installed against a wall.
Note: for detailed requirements concerning the width of the maintenance channel, escape
routes, etc., refer to applicable standards for the country/region in which the BS is installed.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 16 of 26 Published date: February 2021
Installation requirements
The Soluna 10K Pack HV should be installed against a wall, with eight holes drilled into that
wall to fix the BS mounting brackets. See the following diagram for details.
Wiring specification
To standardise the BS wiring specification, the following are required to connect the wires.
Battery wire
Communication cable
Use of a 10 mm conductor with double
insulation is recommended.
Use of communication cable with a shielding function is
recommended.
Earth connection specification
Step 1: drill holes in the wall.
Step 3: install the battery module.
Connect the front plate to the housing.
Connect the earth wire at this location.
Step 2: screw the bracket to the wall

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 17 of 26 Published date: February 2021

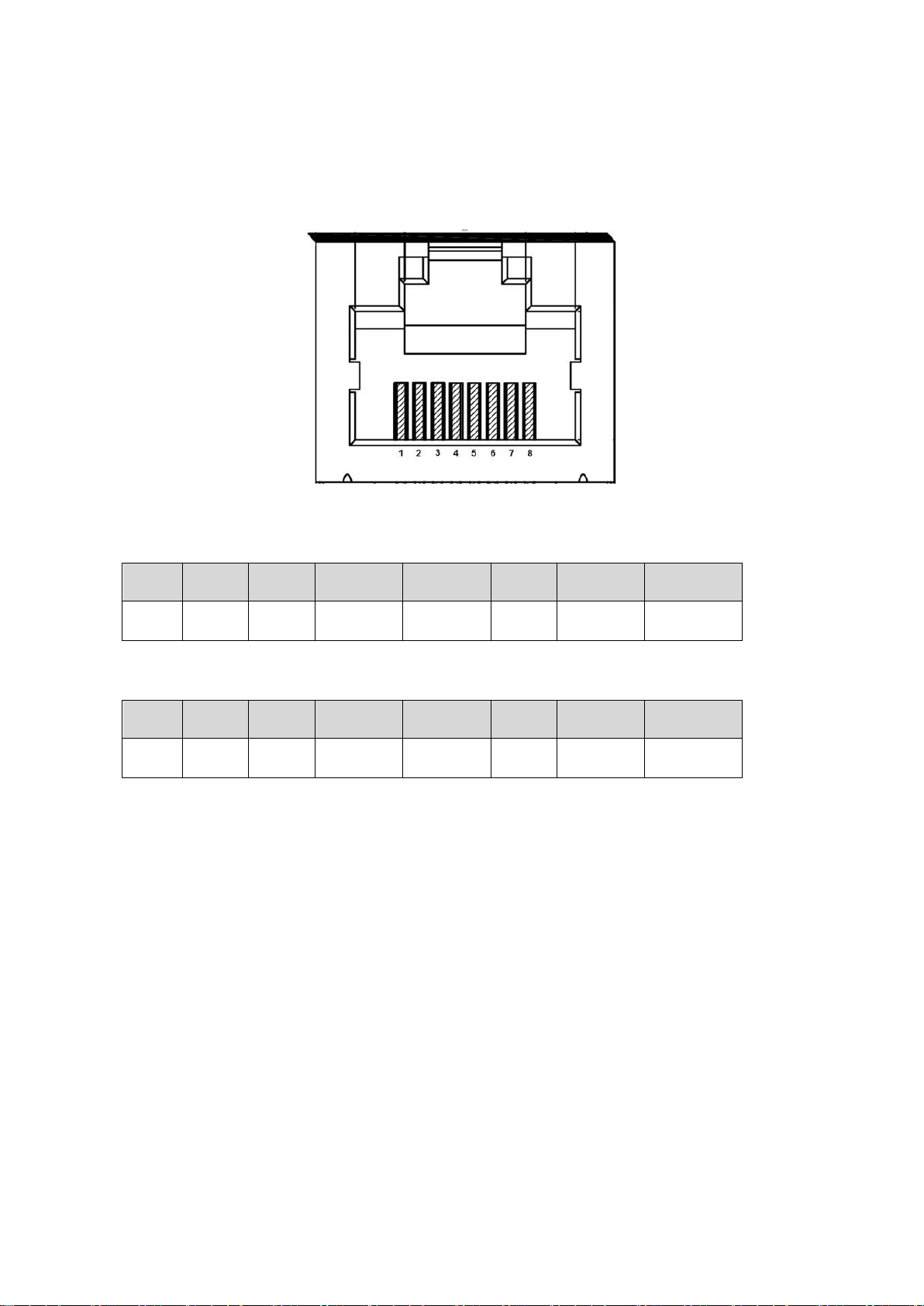

CAN communication interface (CAN 1 and CAN 2)
Figure 3.1 –CAN interface definition.
CAN 1 port (for external communication)
1
2
3
4
5
6
7
8
—
—
—
CAN
1H
CAN
1L
—
—
—
CAN 2 port (for internal communication)
1
2
3
4
5
6
7
8
—
—
—
—
—
—
CAN
2H
CAN
2L
Note: CAN 1H/CAN 1L used for external communication (inverter); CAN 2H/CAN 2L used for
internal communication (battery CAN ports).

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 18 of 26 Published date: February 2021
Electrical connection
Please refer to the following diagram for details for double pole isolation of the 10k pack HV
battery systems.
BAT +
BAT -
DC Input
CAN 1 CAN 1 Inverter
POS +
NEG -
10mm
10mm
10mm
10mm
Soluna 10K pack
DP 40a
500VDC
Preparation

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 19 of 26 Published date: February 2021

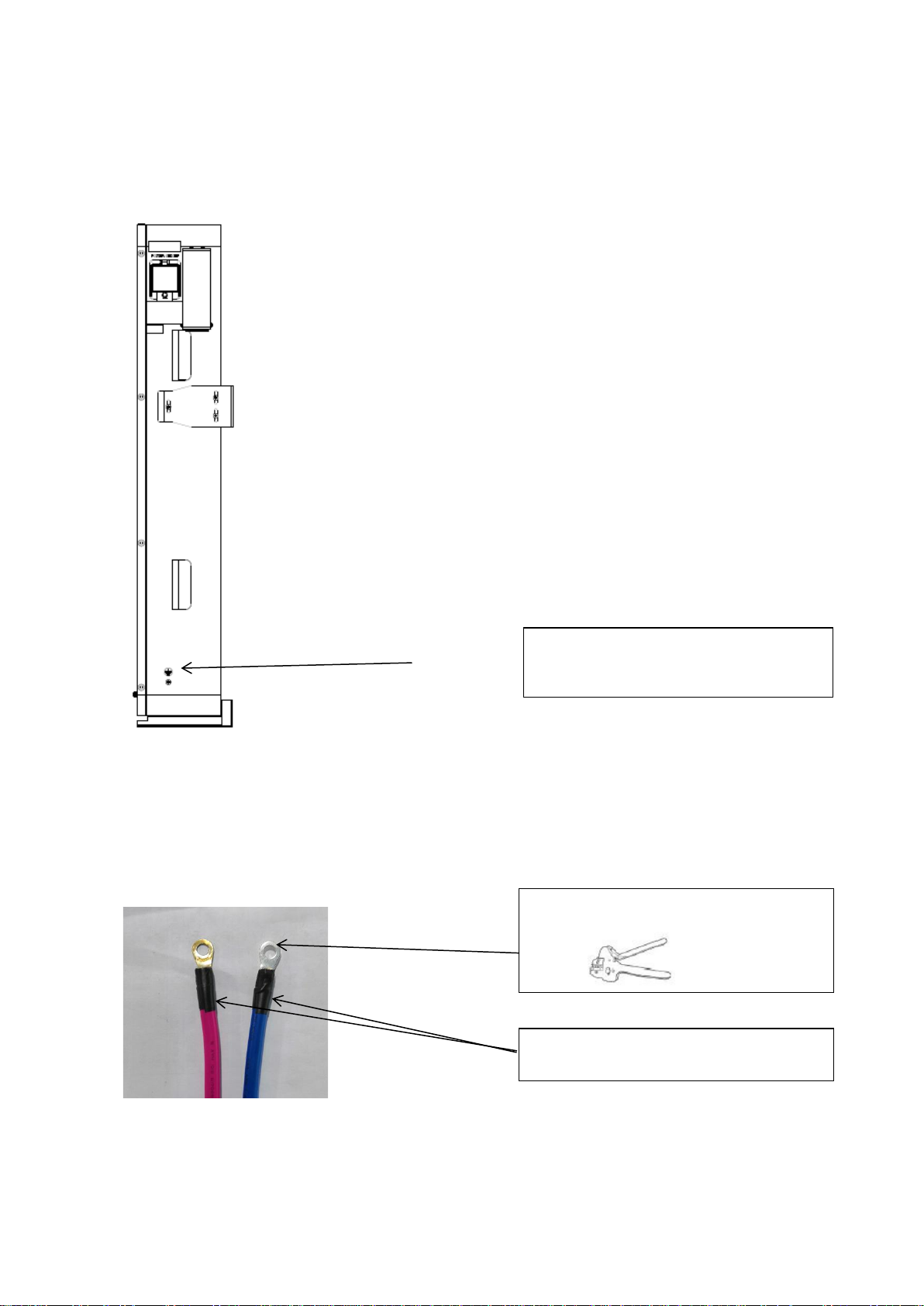

Electrical connection procedures
Step 1. Connect the earth cable.
Step 2. Create power cables.
Crimp the correct cable lugs 10mm cable x 5mm screw hole.
The earth terminal and cable should be
fastened with an M6 screw.
crimp the cable lugs 10mm x 5mm with
a wire crimping tool.
Heat-shrink sleeve should be applied to
the exposed conductive crimp lug.

10K Pack HV Installation Manual
© 2021 Soluna Australia Pty Ltd Page 20 of 26 Published date: February 2021
Step 3. Lock power cables and communication cable.
Step 4. Lock the cover.
Remove communication cable
from accessory box and plug
CAN 1 into the inverter.
Lock power cable with a Phillips
screwdriver (M5), ensuring the
correct polarity and a firm
connection of 3NM torque.
Lock the terminal cover plate
with a hexagon wrench
(2.5 mm).
