Somerset CDR-600 User manual

CDR-500 & CDR-600
Side Operated Dough Sheeter
&
Fondant Sheeters
OPERATIONS MANUAL
SOMERSET INDUSTRIES
1-3 ESQUIRE RD. • N. BILLERICA, MA 01862 • USA • 978-667-3355
Email: [e-mail]
Web: www.smrset.com

NOTICE: !! READ CAREFULLY ALL INSTRUCTIONS BEFORE YOU START.!!
UNCRATING AND SETUP
•Cut off the fastener wrapped around the machine and the base.
•Lift the machine straight up out of the wooden base.
•Install the machine in its final position or temporarily secure it to a solid surface.
•Wipe off any dirt that may accumulate during shipping. Use a soft cloth.
•Check the nameplate for correct voltage and frequency.
•Plug the machine to the proper power source that matches the nameplate
requirements.
•Turn the power switch “ON”(green button) and the check for proper operation of
the machine.
WARNING!!
•NEVER OPERATE THE MACHINE WITHOUT GUARDS IN PLACE
•KEEP YOUR HANDS FROM INFEED
•DO NOT INSERT FOREIGN OBJECTS INTO INFEED
•DO NOT CLEAN MACHINE WHILE CONNECTED TO ELECTRICAL
SUPPLY
•WHATCH YOUR HANDS AND FINGERS
NOTE: The machine will not operate when safety cover is removed.
OPERATING PROCEDURE
The rollers are easily adjustable to any thickness of crust you may need.
Release the adjusting handle, by squeezing the handle.
Move the handle to the left, to
decrease the dough thickness.
Move the handle to the right, increase
the dough thickness.

OPERATION
Dust the infeed tray with the flour before using the machine.
For best results the dough to be rolled should be at room temperature.
Dust the dough with flour when putting it on the infeed tray.
Follow steps 1 to 3 as in the following diagram:
If the dough tears or the machine makes a thumping sound, this indicates that the
dough is too thick to go through that particular setting of the rollers or the dough
is too cold and stiff and requires longer rest period before use.
•IF THE DOUGH GETS STUCK, TURN THE POWER OFF, REMOVE
SAFETY COVER THEN REMOVE THE DOUGH.
•NEVER ATTEMPT TO REMOVE THE DOUGH BY HAND WHILE THE
MACHINE IS RUNNING.
Step 1:
Place dough on the infeed
Step 2:
Dough Exits
Step 3:
Decrease dough thickness by moving the
handle to the left with every pass, until the
desired thickness is reached.

CLEANING
Before cleaning
Turn power off and disconnect the power cord of the machine
Remove the safety cover by removing the four thumbscrews.
All scrapers are readily removable.
Top scraper #3
Remove scraper from its mounting pins by pushing scraper downward.
Unhook both springs by lifting scraper up and remove it.
Bottom scraper #2:
Unhook both springs attached on scraper and remove it by lifting up.
By removing both scrapers, the whole machine is exposed and ready to be cleaned.

Clean the rolls with dry cloth (never use water).
Wipe rollers with lightly oiled cloth (use vegetable oil).
Wash, dry and apply a thin film of vegetable oil on the edge of scraper that touches the
roller.
Install the scrapers in the opposite order of their removal.
Close the safety cover and secure it with the 4 thumbscrews.
Turn the power ON, and the machine is ready for use.
!! CAUTION !!
!! THIS MACHINE IS MAINTENANCE FREE. !!
!! NEVER USE OIL OR GREASE ON ANY OF THE PARTS
OF THE MACHINE. !!
!! ALL PARTS ARE PERMANENT SELF-LUBRICATED. !!

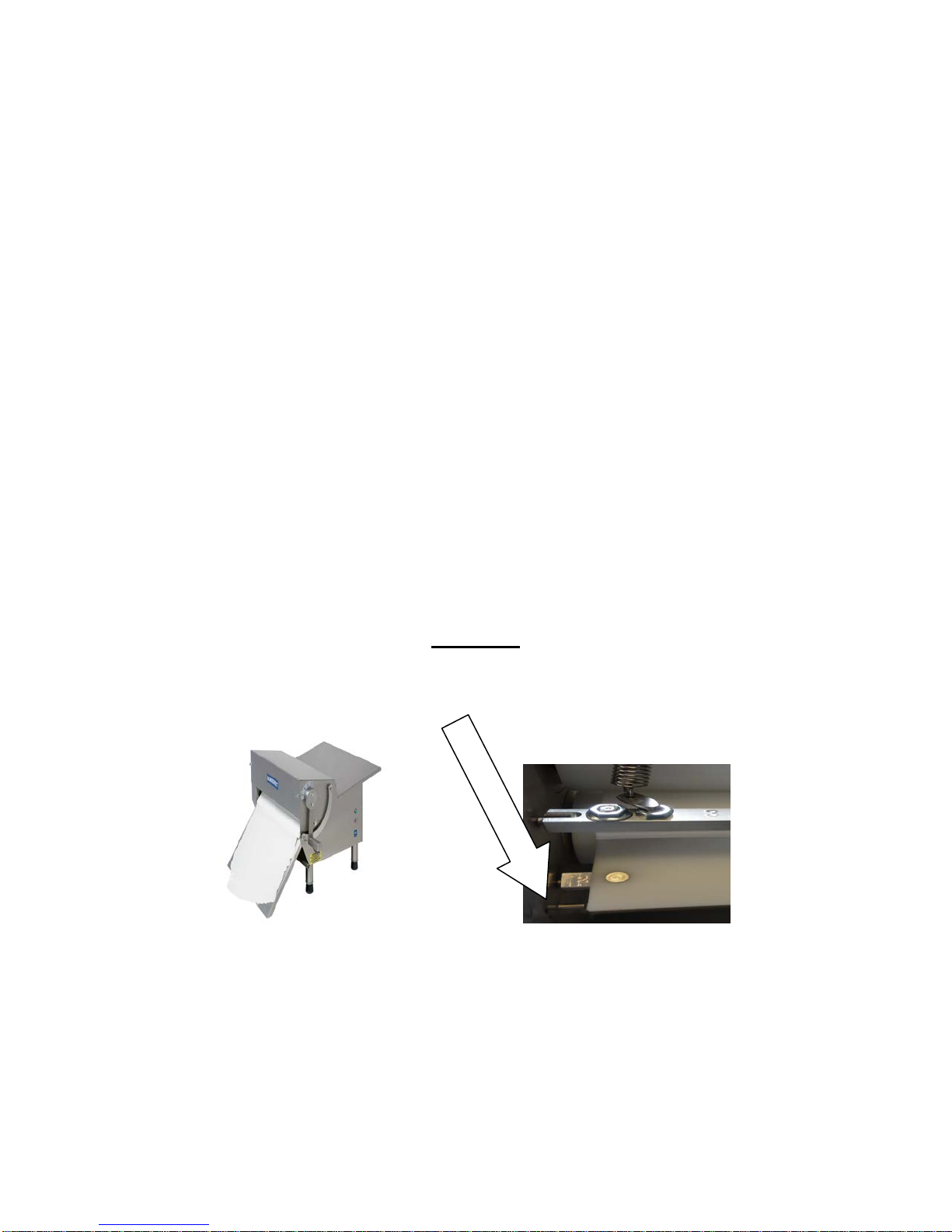

Quick Tips
•Fondant Discharge Tray is only included with the CDR-500F or CDR-600F
•The Scraper pin under the scraper #2 is there for the discharge tray.

13
12 11 10
7
8
9
10
9
715 13
12
11
22
17
31
18
23
24
27
26
36
19 20
29
16
19
21
30
29
1
25
33
33
32
33
32
6
14
2
3
34
5
33
33
31
4
4
122
08/27/07 W.R.L. K.S. ECO# 07-023 B
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV

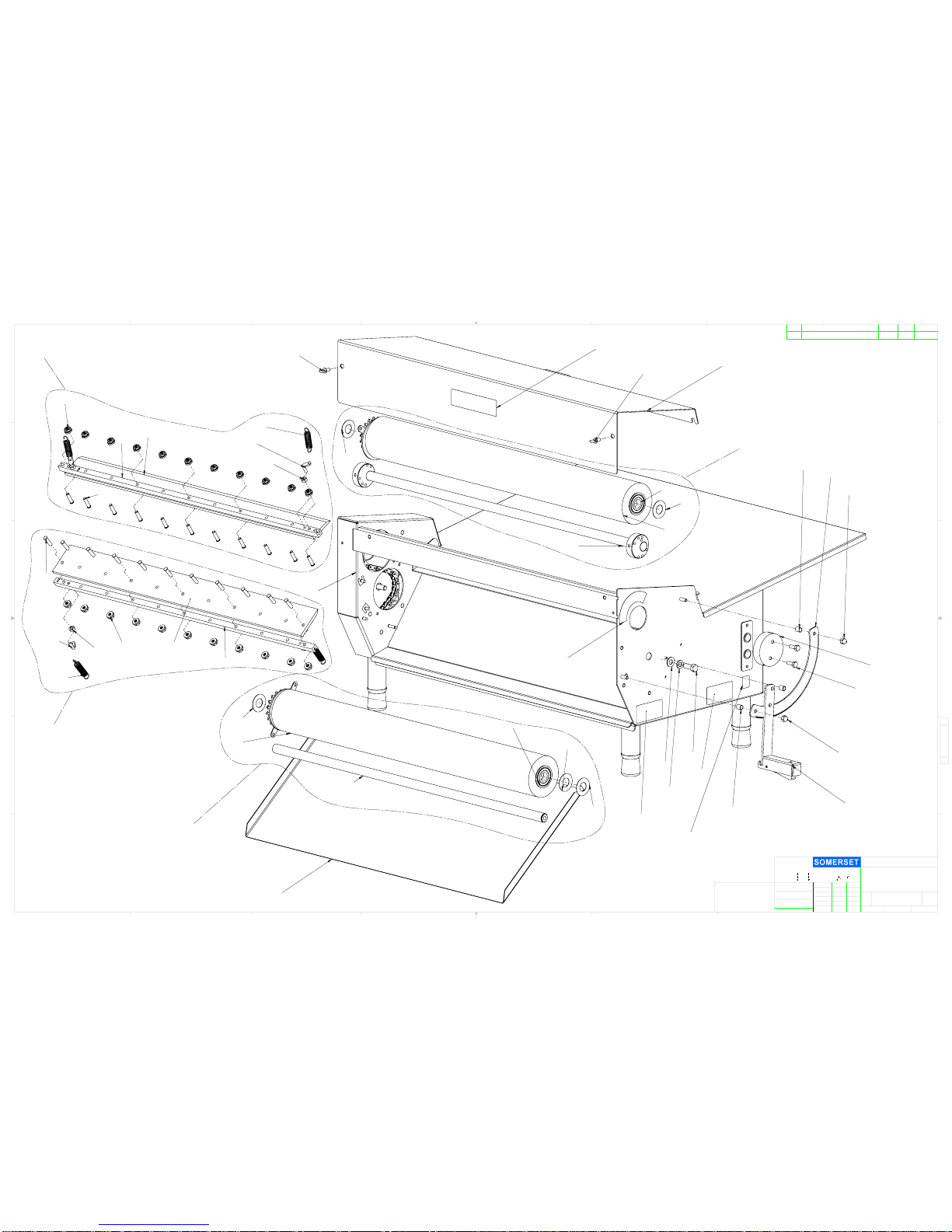

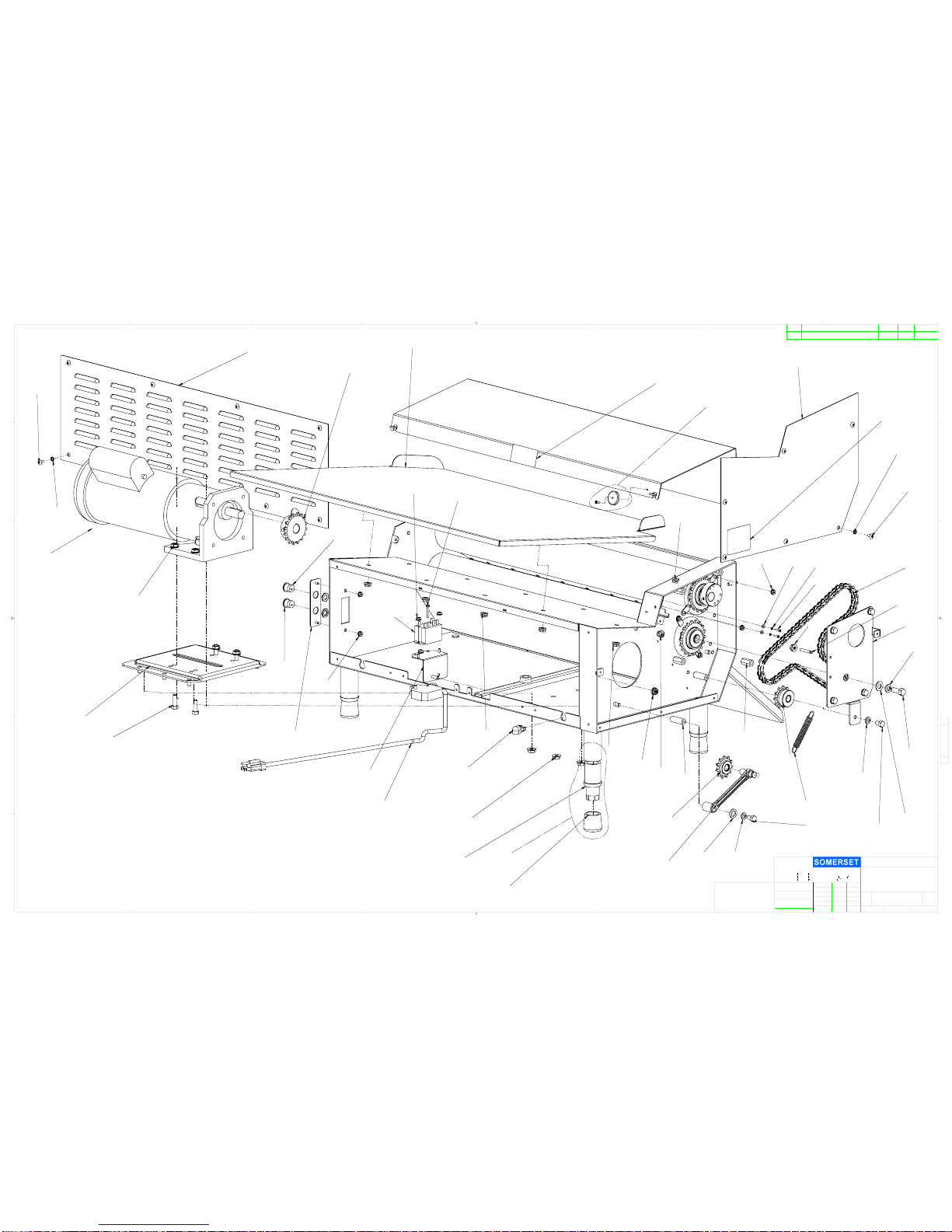

0600-PART
D
0600-PART
SHEET 1 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2.3
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0600-PART
D
0600-PART
SHEET 1 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:2.3
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
REV
DESCRIPTION
CHG'D
APP'D
DATE
CDR-600 PART
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT

DATE
APP'D
CHG'D
DESCRIPTION
REV
B ECO# 07-023 K.S. W.R.L. 08/27/07
ITEM NO. PART NUMBER DESCRIPTION
1 0600-010 FRAME, CDR-600 MAIN
2 0600-400 ROLL, ASM UPPER
2 0600-455 ROLL METAL ASM UPPER
3 0600-402 ROLL, ASM MIDDLE
3 0600-454 ROLL METAL ASM MIDDLE
4 0600-435 ROLL W/ BRGS
4 0600-438 ROLL METAL W/ BRGS
5 0600-452 SHAFT/ECCENTRIC ASSY
6 0600-502 SCRAPER, COMPLETE #2
7 0600-521 SHAFT, SCRAPER #2
8 0600-511 SCRAPER #2
9 3010-202 PEM, FHS-0420-16
10 3000-303 NUT, FLANGE 1/4-20
11 3000-306 NUT, HEX 1/4-20
12 3010-100 STUD,SCRAPER 21/32 BENT
13 4000-251 SPRING, SCRAPER
14 0600-503 SCRAPER, COMPLETE #3
15 0600-512 SCRAPER #3
16 0500-424 HANDLE, ADJUST COMPLETE
17 0600-121 COVER, SAFETY
18 0600-304 TRAY, DISCHARGE
19 2000-418 SPACER TUBING
20 0500-417 PLATE, ADJUST
21 0500-421 COVER, ECCENTRIC COMPLETE
22 5000-312 LABEL, "SOMERSET" 3"
23 5000-313 LABEL, "KEEP FINGERS..."
24 5000-316 LABEL, CCW INDICATOR GRADUATED
25 5000-317 LABEL, NSF
26 3000-103 WASHER, LOCK SPLIT 3/8
27 3000-201 WASHER, FLAT 3/8
28 3000-406 SCREW, 5/16-18 X 3/4 HEXHD GR8
29 3000-302 NUT, ACORN 1/4-20
30 3000-404 SCREW, 1/4-20 X 3/4 HEXHD
31 3000-403 SCREW, 1/4-20 X 1/2 THUMB W/SHOULDER
32 4000-100 BEARING, R12RS ROLL
33 3000-225 WASHER, NYLATRON 1.50
34 0600-408 SHAFT, MIDDLE
114 5000-261 ORANGE WIRE NUT
115 3010-219 PEM, HFH-0616-16ZI
116 2000-413A LEG COLUMN
117 2000-413B INSERT, LEG MOUNTING
122 5000-314 LABEL, "DO NOT OPERATE..."
123 5000-276 BUSHING, 90 STR REL HEYCO1320
0600-PART
SHEET 2 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
0600-PART
SHEET 2 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
CDR-600 PART
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT
AA
D
C
B
A
E
F
REV
0600-PART
D
C
D
C
B
A
E
F
REV
0600-PART
D
C
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
B
C
D
E
F
A
B
C
D
E
F

44
80
79
65
54
60
50
48
66
39
55
38
40
42
41
71
51 70
45
79
80
64
66 55
47
70
71
86
67
68
53
37
76 77
78
39
72
46
39
67
67
35
74
36
43
62
59
39
57
73
74
58
49
57
75
66
08/27/07 W.R.L. K.S. ECO# 07-023 B
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0600-PART
D
0600-PART
SHEET 3 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2.4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0600-PART
D
0600-PART
SHEET 3 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:2.4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
REV
DESCRIPTION
CHG'D
APP'D
DATE
CDR-600 PART
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT

DATE
APP'D
CHG'D
DESCRIPTION
REV
08/27/07 W.R.L. K.S. ECO# 07-023 B
ITEM NO. PART NUMBER DESCRIPTION
35 2000-415 LEG, ASM COMPLETE
36 2000-433 LEG WITH RUBBER TIP
37 4000-233 SPACER, HEX 0.5 X 1.0
38 2000-431 SHAFT,ALIGNMENT, IDLER SUPPORT
39 3000-303 NUT, FLANGE 1/4-20
40 2000-428 ARM, IDLER
41 4000-252 SPRING, EXTENSION, 4LG X .5 DIA. X .063
42 2000-630 SPROCKET, IDLER W/ BUSHING
43 2000-432 MAGNET/RIVET ASSY
44 0600-301 PANEL, LOUVERED
45 0500-302 COVER,HOUSING
46 0600-300 TRAY, INTAKE
47 0500-231 PLATE ECCENTRIC COMPLETE
48 CONSULT FACTORY BASE, MOTOR W/ STUDS
49 2000-328 BRACKET, RELAY
50 2000-330 PLATE, P.B. SWITCH
51 4000-011 SPACER .50ID X .78OD X .123 PL
52 4000-521 SPROCKET 41B11 W/ BUSHING
53 CONSULT FACTORY SPROCKET, DRIVE
54 CONSULT FACTORY CHAIN DRIVE
55 4000-300 LEG TIP RUBBER
56 CONSULT FACTORY GEARMOTOR
57 5000-150 RELAY, 120 VAC
57 5000-151 RELAY, 220 VAC
58 5000-230 HARNESS, POWER MOLDED
58 5000-231 CORDSET USA 220VAC
58 5000-232 CORDSET ENGLAND
58 5000-233 CORDSET AUSTRALIA
59 5000-198 SWITCH, POWER RED
60 5000-199 SWITCH, POWER GREEN
61 2000-631 SWITCH, ELECTRONIC COMPLETE
62 5000-276 BUSHING, 90 STR REL HEYCO1320
63 5000-274 BUSHING, STR REL MIRCO
64 5000-311 LABEL, ETL
65 5000-313 LABEL, "KEEP FINGERS..."
66 3000-300 NUT, FLANGE 8-32
67 3000-103 WASHER, LOCK SPLIT 3/8
68 3000-201 WASHER, FLAT 3/8
69 3000-406 SCREW, 5/16-18 X 3/4 HEXHD GR8
70 3000-102 WASHER, LOCK SPLIT 5/16
71 3000-405 SCREW, 5/16-18 X 1/2 HEXHD
72 3010-151 STUD, SCRAPER 1 3/8"
73 3000-414 SCREW, 5/16-18 X 1 HEXHD
74 3000-305 NUT, FLANGE 5/16-18
75 3000-416 SCREW, 8-32 X 1 PAN HD PH
76 3000-204 WASHER, FLAT #4
77 3000-104 WASHER, LOCK SPLIT #4
78 3000-400 SCREW, 4-40 X 1/2 PAN HD PH
79 3000-101 WASHER LOCK #10 INT TOOTH
80 3000-402 SCREW, 10-32 X 3/8 TRUSS PH SS
86 3000-409 SCREW, 3/8-16X1 HEXHD SS
143 4000-303 LEG, BUMPER
155 3010-219 PEM, HFH-0616-16ZI
156 2000-413A LEG COLUMN
157 2000-413B INSERT, LEG MOUNTING
0600-PART
SHEET 4 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
0600-PART
SHEET 4 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
CDR-600 PART
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT
AA
D
C
B
A
E
F
REV
0600-PART
D
C
D
C
B
A
E
F
REV
0600-PART
D
C
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
B
C
D
E
F
A
B
C
D
E
F

19
18
17
16
13
21
37
31
32
30
35
36
22
15
39
15
14
16
19
18
17
13
6
65
28
27
23
26
25
24
34
38
26
33
1
4
10 11
11
11
40
23
5
11
11
6
7
9
12
20
8
8
11/21/07 W.R.L. K.S. ECO# 07-039 C
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0500-PART
D
0500-PART
SHEET 1 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0500-PART
D
0500-PART
12/13/05
12/13/05
WRL
WmLunt
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
REV
DESCRIPTION
CHG'D
APP'D
DATE
CDR-500 SPARES
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.

DATE
APP'D
CHG'D
DESCRIPTION
REV
C ECO# 07-039 K.S. W.R.L. 11/21/07
ITEM NO. PART NUMBER DESCRIPTION
1 0500-010 FRAME CDR-500 MAIN
2 2000-415 LEG ASM COMPLETE
3 2000-433 LEG WITH RUBBER TIP
4 4000-300 LEG TIP RUBBER
5 2000-402 ROLL ASM MIDDLE
5 2000-454 ROLL METAL ASM MIDDLE
6 2000-435 ROLL W/ BRGS
6 2000-438 ROLL METAL W/ BEARINGS
7 0500-400 ROLL ASM UPPER
7 0500-455 ROLL METAL ASM UPPER
8 4000-100 BEARING, R12RS ROLL
9 0500-452 SHAFT/ECCENTRIC ASSY
10 2000-408 SHAFT, MIDDLE 20
11 3000-225 WASHER, NYLATRON 1.50
12 0500-501 SCRAPER #2 COMPLETE
13 2100-520 SHAFT, SCRAPER #1 2100
14 0500-511 SCRAPER #2
15 3010-202 PEM, FHS-0420-16
16 3000-303 NUT, FLANGE 1/4-20
17 3000-306 NUT, HEX 1/4-20
18 3010-100 STUD,SCRAPER 21/32 BENT
19 4000-251 SPRING, SCRAPER
20 0500-502 SCRAPER #3 COMPLETE
21 0500-512 SCRAPER #3
22 0500-304 TRAY, DISCHARGE (500F OPTION)
23 0500-424 HANDLE ADJUST COMPLETE
24 0500-421 COVER, ECCENTRIC COMPLETE
25 0500-417 PLATE, ADJUST
26 2000-418 SPACER TUBING
27 3000-201 WASHER, FLAT 3/8
28 3000-103 WASHER, LOCK SPLIT 3/8
29 3000-406 SCREW, 5/16-18 X 3/4 HEXHD GR8
30 2000-330 PLATE, P.B. SWITCH
31 5000-198 SWITCH POWER RED
32 5000-199 SWITCH POWER GREEN
33 3000-302 NUT, ACORN 1/4-20
34 3000-404 SCREW, 1/4-20 X 3/4 HEXHD
35 5000-317 LABEL, NSF
36 5000-314 LABEL, "DO NOT OPERATE..."
37 5000-312 LABEL, "SOMERSET" 3"
38 5000-316 LABEL, CCW INDICATOR GRADUATED
39 3000-403 SCREW, 1/4-20 X 1/2 THUMB W/SHOULDER
40 5000-313 LABEL, "KEEP FINGERS..."
121 3010-219 PEM, HFH-0616-16ZI
122 0500-040 BRACE MOTOR 500&600
123 2000-018 BASE,MOTOR
124 5000-264
TERMINAL, RING TONGUE, 16-14 AWG FOR #8
STUD
125 4000-303 LEG, BUMPER
126 5000-261 ORANGE WIRE NUT
0500-PART
SHEET 2 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
0500-PART
SHEET 2 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
CDR-500 SPARES
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT
AA
D
C
B
A
E
F
REV
0500-PART
D
C
D
C
B
A
E
F
REV
0500-PART
D
C
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
B
C
D
E
F
A
B
C
D
E
F

56
59 51
62
?
76 61
70
71
53
58
58
77
50
65
54
81
84
72
74
73
82
47
66
49
58
87
68
67
71
70
52
82
48
82
65
64
64
65
49
49
83
85
80
55 86
79
61
60
59
49
75
11/21/07 W.R.L. K.S. ECO# 07-039 C
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0500-PART
D
0500-PART
SHEET 3 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
REV
0500-PART
D
0500-PART
12/13/05
12/13/05
WRL
WmLunt
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
REV
DESCRIPTION
CHG'D
APP'D
DATE
CDR-500 SPARES
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.

DATE
APP'D
CHG'D
DESCRIPTION
REV
11/21/07 W.R.L. K.S. ECO# 07-039 C
ITEM NO. PART NUMBER DESCRIPTION
47 4000-233 SPACER, HEX 0.5 X 1.0
48 2000-431 SHAFT,ALIGNMENT, IDLER SUPPORT
49 3000-303 NUT, FLANGE 1/4-20
50 2000-328 BRACKET, RELAY
51 0500-300 TRAY, INTAKE
52 0500-302 COVER,HOUSING
53 0500-231 PLATE ECCENTRIC COMPLETE
54 2000-428 ARM, IDLER
55 0500-121 COVER, SAFETY
56 2100-301 PANEL, LOUVERED COMPLETE
57 1500-024 BASE, MOTOR W/ STUDS
58 3000-300 NUT, FLANGE 8-32
59 5000-114 GEARMOTOR, 1/2HP 115VAC
59 CONSULT FACTORY GEARMOTOR,FAST .75KW 15:1
60 3000-414 SCREW, 5/16-18 X 1 HEXHD
61 3000-305 NUT, FLANGE 5/16-18
62 CONSULT FACTORY SPROCKET, DRIVE
63 CONSULT FACTORY CHAIN, DRIVE
64 3000-101 WASHER LOCK #10 INT TOOTH
65 3000-402 SCREW, 10-32 X 3/8 TRUSS PH SS
66 3010-151 STUD, SCRAPER 1 3/8"
67 3000-201 WASHER, FLAT 3/8
68 3000-103 WASHER, LOCK SPLIT 3/8
69 3000-406 SCREW, 5/16-18 X 3/4 HEXHD GR8
70 3000-102 WASHER, LOCK SPLIT 5/16
71 3000-405 SCREW, 5/16-18 X 1/2 HEXHD
72 2000-631 SWITCH, ELECTRONIC COMPLETE
73 3000-204 WASHER, FLAT #4
74 3000-400 SCREW, 4-40 X 1/2 PAN HD PH
75 5000-150 RELAY, 120 VAC
75 5000-151 RELAY, 220VAC
76 5000-230 HARNESS, POWER MOLDED
76 5000-231 CORDSET USA 220VAC
76 5000-232 CORDSET ENGLAND
76 5000-233 CORDSET AUSTRALIA
77 3000-416 SCREW, 8-32 X 1 PAN HD PH
78 5000-274 BUSHING STR.REL. MICRO
79 5000-276 BUSHING, 90 STR REL HEYCO1320
80 4000-521 SPROCKET 41B11 W/GARLOCK
81 5000-311 LABEL, ETL
82 5000-313 LABEL, "KEEP FINGERS..."
83 4000-011 SPACER .50ID X .78OD X .123 PL
84 2000-630 SPROCKET IDLER W/ BUSHING
85 3000-104 WASHER, LOCK SPLIT #4
86 2000-432 MAGNET/RIVET ASM
88 3010-219 PEM, HFH-0616-16ZI
89 0500-040 BRACE MOTOR 500&600
90 2000-018 BASE,MOTOR
91 5000-264
TERMINAL, RING TONGUE, 16-14 AWG FOR #8
STUD
92 4000-303 LEG, BUMPER
93 5000-261 ORANGE WIRE NUT
0500-PART
SHEET 4 OF 4
12/13/05
12/6/05
12/13/05
WRL
WmLunt
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
DATE
Q.A.
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
PROPRIETARY AND CONFIDENTIAL
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
0500-PART
SHEET 4 OF 4
12/13/05
12/13/05
WRL
WmLunt
SCALE: 1:4
REV
DWG. NO.
D
SIZE
TITLE:
NAME
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET DRAWING PER:
ANSI Y14.5M - 1982
DIMENSIONS ARE IN INCHES [MILLIMETER]
.XX
.015 [ .4]
.XXX
.005 [ .13] FRACTIONAL 1/32 [ .8]
.XXXX
.0005 [ .013] ANGULAR: 1
C
SOMERSET INDUSTRIES, INC.
NORTH BILLERICA, MA 01862
DATABASE:SOLIDWORKS
WRL
N/A
N/A
CDR-500 SPARES
THE INFORMATION CONTAINED IN THIS
DRAWING AND ASSOCIATED CAD DATA
FILES IS THE SOLE PROPERTY OF
SOMERSET INDUSTRIES. IT MAY NOT
BE REPRODUCED IN PART, OR AS A
WHOLE, OR SENT TO ANY OTHER VENDOR,
WITHOUT THE EXPRESS WRITTEN
CONSENT OF SOMERSET INDUSTRIES.
N/A
WEIGHT
AA
D
C
B
A
E
F
REV
0500-PART
D
C
D
C
B
A
E
F
REV
0500-PART
D
C
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
B
C
D
E
F
A
B
C
D
E
F
