Sonic Life PROFESSIONAL VC-12 User manual

USER MANUAL
PROFESSIONAL VC-12
PULSATION VM-10
Sonic Wave Vibration System
Read this manual carefully before use.
Professional VC-12
Pulsation VM-10
Sonic Whole Body
Vibration Training
Equipment

Please read this manual carefully before use. Please keep this manual in a safe place.
Pulsation & Professional User Manual Contents
Body and base plate will be packaged separately
Power Cord
Remote Control with Battery
Audio Connection Cable Input
with External Audio
T Spanner for Assembly
Bolts (8pcs)
Package Components Please check contents of shipping box carefully.
If anything is damaged or missing please contact the Sonic Life service department immediately at 877-684-7245.
Safety System Use ............................... 5
Control Panel & Display....................... 6
Buttons.................................................. 6
Assembly Steps.................................7-8
Disassembly Instructions.................... 8
Remote Control Use............................. 8
Manual & Pre-Programmed Modes..... 9
User Cautions & Warnings ................ 10
Contact Information ........................... 10
Disclaimers & References ................. 11
Specifications ..................................................... 1
Safety Guidelines-HANDLING ........................... 1
Safety Guidelines-POWER ................................ 2
Safety Guidelines-INSTALLATION .................... 2
Safety Guidelines-OPERATION ......................... 3
Safety Guidelines-MAINTENANCE/STORAGE. 3
Principle of Sonic (Sound) Operation............... 4
Beneficial Effects and Applications.................. 4
Components........................................................ 5
Audio System ..................................................... 5

1
Follow these instructions and cautions for safe and proper operation of the unit to prevent any accidents.
Meaning of Symbols
* These specifications are subject to change at manufacturer's discretion without prior notice.
WARNING or
ATTENTION

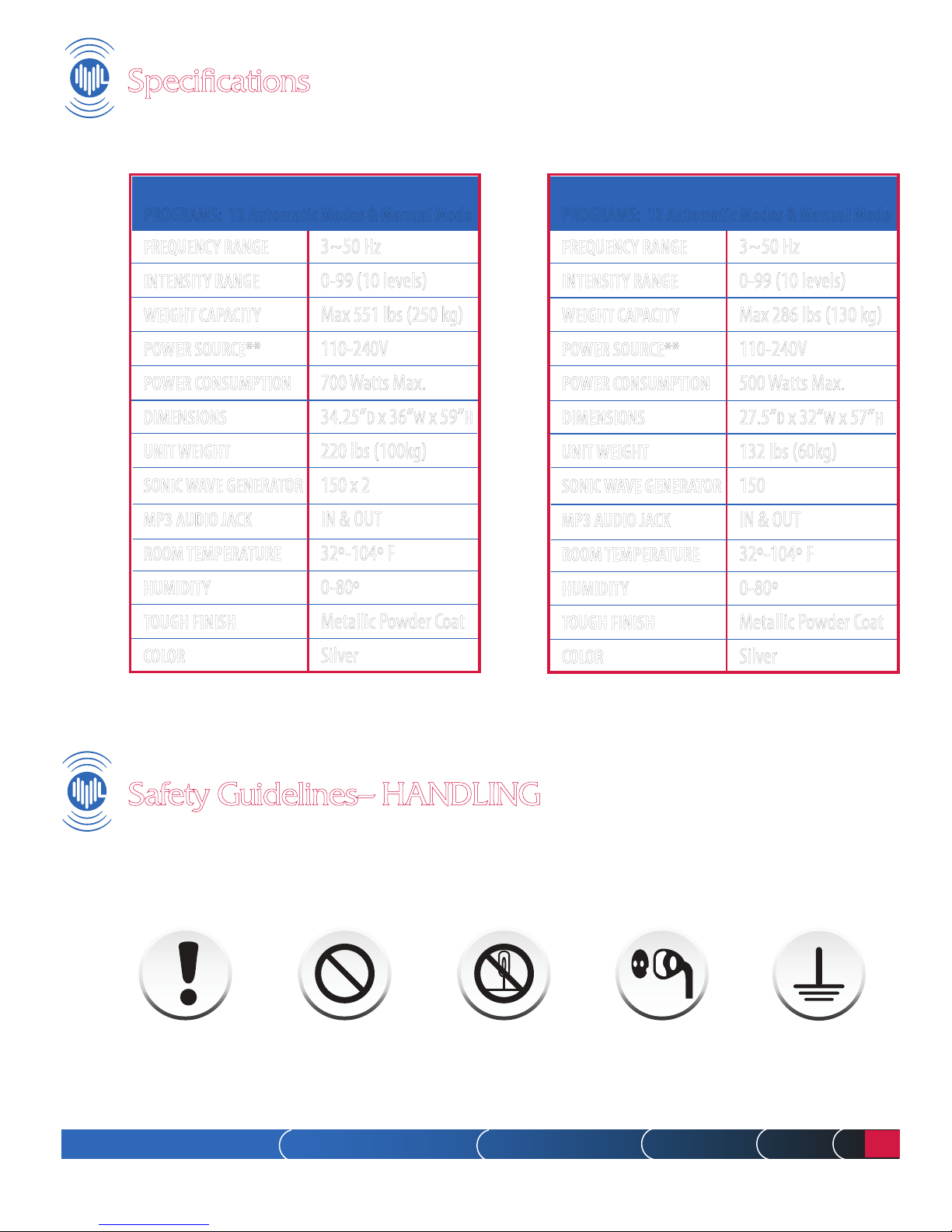

Specications
Safety Guidelines– HANDLING
NO
Do Not Attempt Do Not Remove Remove Plug Ground
PROFESSIONAL VC-12
FEATURES VC-12
PROGRAMS: 12 Automatic Modes & Manual Mode
FREQUENCY RANGE 3~50 Hz
INTENSITY RANGE 0-99 (10 levels)
WEIGHT CAPACITY Max 551 lbs (250 kg)
POWER SOURCE** 110-240V
POWER CONSUMPTION 700 Watts Max.
DIMENSIONS 34.25”Dx 36”Wx 59”H
UNIT WEIGHT 220 lbs (100kg)
SONIC WAVE GENERATOR 150 x 2
MP3 AUDIO JACK IN & OUT
ROOM TEMPERATURE 32º-104º F
HUMIDITY 0-80º
TOUGH FINISH Metallic Powder Coat
COLOR Silver
FEATURES VM-10
PROGRAMS: 12 Automatic Modes & Manual Mode
FREQUENCY RANGE 3~50 Hz
INTENSITY RANGE 0-99 (10 levels)
WEIGHT CAPACITY Max 286 lbs (130 kg)
POWER SOURCE** 110-240V
POWER CONSUMPTION 500 Watts Max.
DIMENSIONS 27.5”Dx 32”Wx 57”H
UNIT WEIGHT 132 lbs (60kg)
SONIC WAVE GENERATOR 150
MP3 AUDIO JACK IN & OUT
ROOM TEMPERATURE 32º-104º F
HUMIDITY 0-80º
TOUGH FINISH Metallic Powder Coat
COLOR Silver
PULSATION VM-10

2
To move the product, please lift and hold the product by using the Hand Hold Grips
under the plate (1 & 2 in the photo).
Never push the base as feet will become dislodged causing the unit to become unlevel.
1 12 2
Safety Guidelines– POWER
Safety Guidelines– INSTALLATION
WARNING or ATTENTION
NO
Do Not Attempt
Remove Plug
WARNING or ATTENTION
WARNING or ATTENTION
NO
Do Not Attempt
• The power plug should not be depressed on rear side of the product.
• It is recommended to use a quality Line Conditioner. A Line Conditioner protects the
unit from power-related damage and performance problems. Check the Sonic Life
website for preferred models. www.SonicLife.com
• Do not touch power plug with wet hands.
•
Do not bend power cord excessively or place under any heavy objects.
•
Do not use a damaged power cord or outlet.
•
An exclusive power outlet (dedicated circuit) shall be assigned for plugging the
product in. Simultaneous use of other appliances may destroy fuses or may cause a
failure of the unit.
• Remove dirt and dust from power plug terminals with a dry cloth prior to use or storage.
•
If you see smoke or detect a burning smell coming from the unit, please stop
operation immediately and remove the power plug from the electrical outlet.
• Do not install the equipment in wet or high humidity areas.
• Do not install the equipment in the areas where it may be exposed to water.
• Install the equipment at least 8 inches away from the wall.
• Install the equipment on a solid (not carpeted) and level floor to make sure it stays level.
• Make sure the power outlet is capable of supporting the maximum power consumption
of the equipment (see specifications.)
• Use extreme care when moving the unit. Always use the hand holds.
Inappropriate handling may cause injury and/or damage to the product.

3
•Press the START button after you are standing with feet shoulder width
apart and posture erect. Abrupt operation with poor posture may cause harm.
•Never step off the unit while in motion as it may cause injury. Press the
STOP button, wait for the unit to stop completely, then dismount.
•Do not jump or play on the platform while in operation as it may cause injury to
the user and/or damage to the unit.
•When the elderly, the disabled or children use the product they need to be
accompanied by a guardian for safety.
• Do not repair or modify the product In any way to avoid any consequential
damage or malfunction of the product. Contact the Sonic Life Service
department for any Sonic Life mechanical/electronic function questions
please call: 877-684-7245.
Safety Guidelines– OPERATION
Safety Guidelines– MAINTENANCE/STORAGE
• Do not place any flammable material near the product.
• Unplug the power plug from the outlet before cleaning.
• Do not spray water directly on the unit. Do not use benzene, thinner
or bleach to clean the product as it may damage the finish and/or the electronics.
• To clean the control panel, please wipe it off with dry cloth. Do not use water
directly on the control panel to avoid damage to the electronics.
• To clean the product surface, please use appropriate cleanser suitable
for the product material. Do not spray the cleaner directly on the machine.
• Clean the product before long term storage.
WARNING or ATTENTION
Do Not Remove
WARNING or ATTENTION
NO
Do Not Attempt

4
Sonic wave vibrations are generated using newly developed technology that utilizes sonic
speaker mechanisms instead of rotating motors. This sonic energy is delivered to the human
body, stimulating muscle fibers (myocytes) in a manner stronger than the earth’s gravity. It
exercises muscle fibers to repeat fast and strong contraction and relaxation actions, which
strengthens the body faster than traditional muscle training programs.*
✝
GENERAL TRAINING
Helps Improve Body Balance and Health*
✝
The Sonic Life Vibration Equipment are very effective and efficient exercise products for those
who can not exercise due to physical problems or disabilities as well for trained athletes. In only
10 minute sessions, and in a floor space of only 3 feet square, users can successfully exercise
easily and quickly without stress to bones, ligaments and muscles. The user experiences the
effect of regular aerobic exercises by just standing on the unit.*
✝
SPECIAL TRAINING
Increase Muscle Strength and Endurance*
✝
Sonic Life exercise increases strength and stamina by stimulating fast twitch muscle fibers. For
athletes who need high power in a short time, as in running, jumping, and throwing, it is very
critical to maintain the weight and performance of fast twitch muscle fiber. The Sonic vibrations
also help improve muscular endurance by stimulating HGH, human growth hormone, secretion
to improve performance of slow twitch muscle fibers.*
✝
Safe, Efficient Effect of Sonic Waves* ✝
Sonic waves exercise and stretch tendons and ligaments which are hard to exercise with
traditional exercise. Sonic waves exercises not only the large muscles of the human body but
also small muscles such as facial muscles and pelvic muscles which traditional exercise cannot
effectively affect.*
✝
Using whole body sonic vibration exercise, combined with standard power training:
• Increases maximum muscle strength * ✝
• Reduces required training period * ✝
• Reduces training sessions. * ✝
Contrary to usual muscle training like weight lifting, sonic vibration exercise does not cause any
overload to joint, tendon, or ligament; in other words, it does not cause any risk of injury.*
✝
Principle of Sonic (Sound) Wave Operation
Benecial Effects & Applications

5
Control
Panel
Base/
Platform
Power
Inlet
Body
External sound sources are to be plugged into the jack.
Headset or earphones are connected into this jack.
Controls the sound. Turn off the volume/sound dial when not
in use. To turn off: turn dial toward the front of the unit until
you hear the “Click”sound.
Sonic Life equipment features the DUO (dual mode operation) technology which allows
the user to “feel the music” as well as the vibration at the same time!
Simply connect the external source from your MP3 Player
or Computer into the audio input jack.
INPUT Jack
2
OUTPUT Jack
3
1
VOLUME
Components of the Professional & Pulsation Models
MP3/PC DUO Audio System
Located on right side
under the handles
of the Professional &
Pulsation Models
DUO
Audio
Inlet
System
“Feel the Music!” With your MP3 Player or Computer!
Sonic Life Safety System
Sonic Life equipment features a safety sytem which allows the machine to turn off automatically when user steps
down from machine or when there is not enough weight on the machine.
MODE 1: Safety Turn-Off feature is working if
weight is less than 66 to 88 pounds or when user
steps off the unit. This is the default setting.
MODE 2: Start button working all the time. Safety
Turn-Off feature is not activated
HOW TO CHANGE MODE:
Push “TIME” button and “MODE” button at same time
to change back and forth from Mode 1 to Mode 2.
BLUE light indicates MODE 1
PINK light indicated MODE 2

6
2
INTENSITY Control Button
• Vibration intensity is displayed
in the range of 10~99.
• In Pre-Programmed mode,
high (HI), middle (HL),or
low (LO) is displayed.
7
POWER Button/Display
8
TIME Display
Remaining time is displayed.
9
INTENSITY Display
3
1
START / STOP Button
4
TIME Button
5
MODE Button
10
FREQUENCY Display
11
MODE Display
Selected program or
manual mode is
displayed
6
TONE Button
1
4
5
6
7
10
11
POWER Button Press Power Button to check control panel (You will hear ringing sound when it
turns on). When not in use for 20 minutes it will change to Standby Mode.
INTENSITY Control Button In Manual mode, the level of intensity can be selected in the range
of 10~99(by increments of 10).In Pre-Programmed mode, by using the arrow buttons. The intensity
can be selected from 3 levels : HI (high), HL (medium), Lo (low)
START / STOP Button Blue:STOP,Red: IN OPERATION)
Press this button once to start unit. Press it again to stop operation:
TIME Button Each press increases time by 1 minute increments up to a maximum of 10 minutes.
You can use this button during operation.
MODE Button Individual modes can be selected in sequence: Manual, Pro1, Pro2, Pro3, Pro4.
FREQUENCY Control Button In Manual mode, the frequency (Hz) can be selected from
3 to 50 Hz by the increment of 1Hz.
TONE Button Blue: TONE off • Red: TONE in operation
Press this button once to feel vibration only with sound off (when the music source is turned on).
Press it again to feel vibration and enjoy music at the same time.
FREQUENCY
Control Button
Frequency range of
3 - 50Hz is displayed.
Control Panel & Display
Buttons
Use of the
REMOTE CONTROL
is the preferred method of
operation by many users.
See page 8.

7

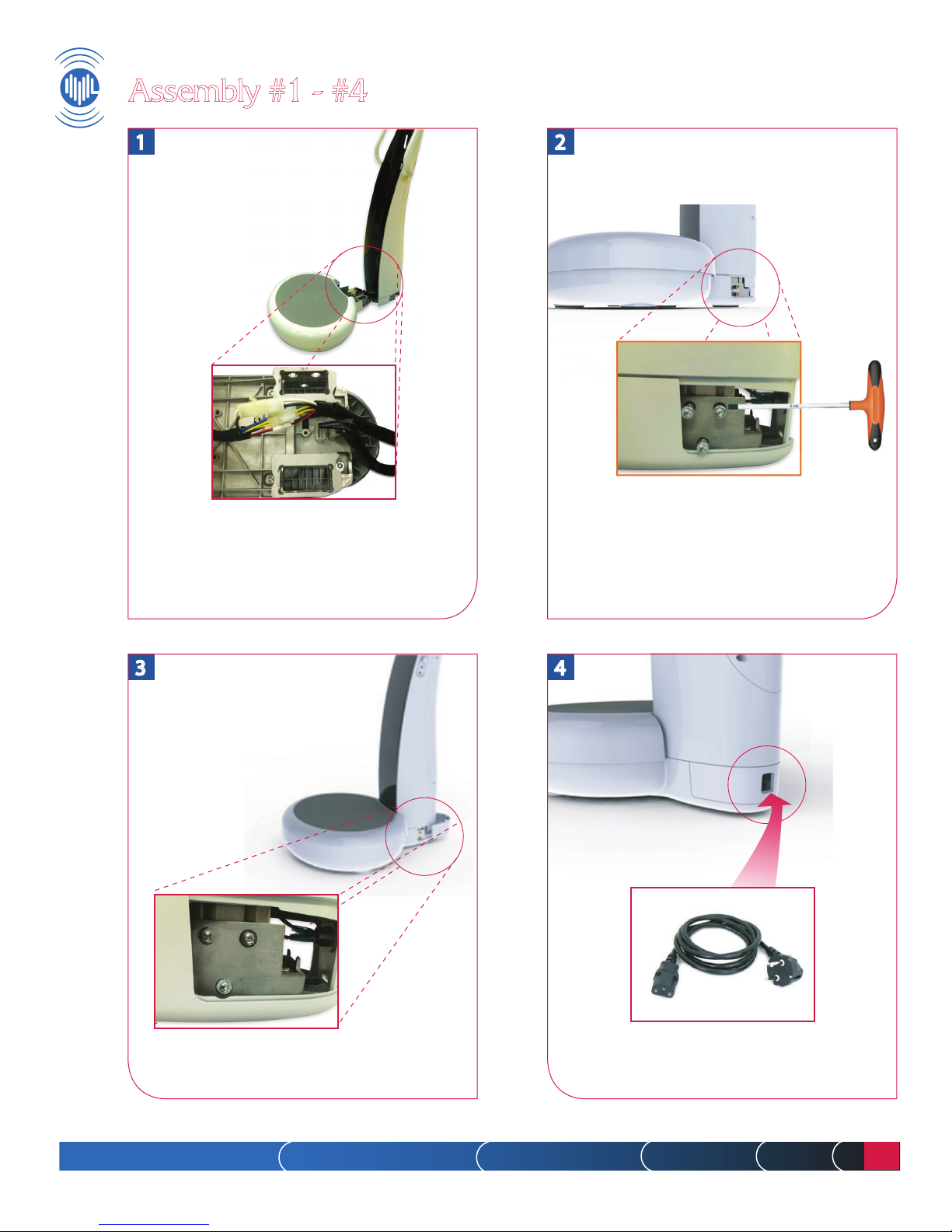

Align the guide pin of the platform to
the body, then insert the bolt under
the plate.
1 2
Assemble the plate's cover. Connect the power cable to the
power terminal.
3 4
With the unit’s body in place, use the
enclosed T-wrench to fasten 3 bolts
on each side (total of 6.)
Fasten the bolts tightly to make sure
the unit's body does not sway.
Place the unit's body close to the
platform, and connect the 2 internal
connection cables.
Make sure cables are not placed in
between plate and body.
Assembly #1 - #4

8
DISASSEMBLY PROCEDURE is
the reverse order of the assembly
procedure.
Power cable must be removed
prior to disassembly.
Disassemble the unit
following the assembly
sequence in reverse order
from #5 to #1.
5
6
Plug the power cord, at the rear of the unit, into the electrical outlet.
Turn on the “ON” power switch on the control panel of the unit.
Step on the platform and stand with feet shoulder width apart and
posture erect.
IN MANUAL MODE PRE-PROGRAMMED MODE
Turn the power switch "ON"
Press "START" button, and then press
“INTENSITY” and “FREQUENCY” control
buttons one by one to check that the
unit operates properly.
Press POWER Button to turn on the remote
(initial settings: frequency to 3Hz, intensity
to "0", and time to "1" minute).
Press TIME Button on the remote to set the time
in increments of 1 minute per press, up to 10
minutes maximum.
Press START Button on remote.
Adjust INTENSITY(0-99, increment by 10)
and FREQUENCY(3-50Hz) to your choice.
Press STOP Button on remote to stop
operation. Step down from the platform after it
stops completely.
Also Press POWER Button on remote to stop
operation and change into standby.
Press MODE Button to select the program you
want: Pro1, Pro2, Pro3, and Pro4.
Press INTENSITY Button to adjust intensity.
Time is set to 10 minutes (You can't change
intensity and frequency during operation.)
Press START Button.
Press STOP Button to stop operation. Step
down from the platform after it stops completely.
Press POWER Button to stop operation and
change into standby mode.
Use the arrow buttons to change the intensity
to HI (high), HL (medium) and LO (low).
Assembly #5 - Disassembly #6
2
3
1
Remote Control Instructions
2
3
1
4
5
6
7
8
4
5
6
7
8
9
Many users prefer using the Remote Control to operate the unit.
10

9
Manual Training Modes STIMULATION AREA PER FREQUENCY*
✝
whole body exercise
arms, shoulders
chest, shoulders
shoulders, back
hip, back, abdomen (trunk)
abdomen, hip, thigh
hip, thigh, abdomen
waist, thigh
(inner)
thigh (inner), prostate (male)
thigh, face
whole body (vertebra), face, knees
whole body (vertebra), shoulders,
knees
3Hz
4Hz
5Hz
6Hz
7Hz
8Hz
9Hz
10Hz
11Hz
12Hz
13Hz
14Hz
thigh (front), calves, knees
thigh (front), calves, knees
abdomen, thigh (inner), pelvis (front)
whole body stimulation (stretching)
whole body stimulation (stretching)
whole body stimulation (stretching)
pelvis (side) , sartorius, lower abdomen (female)
pelvis (side), sartorius, lower abdomen (female)
calves, thigh (back)
calves, thigh (back)
calves, thigh (back)
Entire upper muscle stimulation, neuromuscular
training, BMD enhancement, rehabilitation training,
muscle massage, circulation massage.
15Hz
16Hz
17Hz
18Hz
19Hz
20Hz
21Hz
22Hz
23Hz
24Hz
25Hz
26Hz~50Hz
LOWER BODY PROGRAM:
hips, thighs, calves
Programed to apply, based on bio-electro-
myographic experiments, a range of frequencies
which can mostly stimulate gluteus maximus,
femoral muscle, and soleus muscle: the mode
of vibrational exercise to easily influence hips,
thighs, and calves when standing erect.*
✝
UPPER BODY PROGRAM:
shoulders, arms, chest
Programed to apply, based on bio-electromyo-
graphic experiments, a range of frequencies which
can mostly stimulate trapezius muscle, biceps,
and pectoral muscle: the mode of vibrational
exercise to easily influence shoulders, arms, and
chest when standing erect.*
✝
ABDOMEN PROGRAM:
rectus abdominus & erector spinae muscules
Programed to apply, based on bio-electro-
myographic experiments, a range of frequencies
which can mostly stimulate rectus abdominus
muscle and erector spinae muscules: the mode
of vibrational exercise to easily influence group of
abdomen muscles when standing erect. Rectus
abdominus muscle is stimulated by all frequencies
when standing erect.*
✝
WHOLE BODY PROGRAM:
muscles of whole body
Programed to apply whole range of frequencies
(3-50Hz) and all intensity levels(10-99) which can
stimulate most of the muscles in whole body:
the general mode of vibrational exercise you can
feel and enjoy compelling rhythms of sonic wave
vibrations.*
✝
Manual &Pre-Programmed Training Modes
Pre-Programmed Training Modes STIMULATION AREA PER BODY REGION
Use the arrow buttons to change the intensity to HI (high), HL (medium) and Lo (low).
SESSION INFORMATION: Do just one 10 minute session per day to start. After 7-10 days you may add
another daily session as your body becomes attuned to whole body vibration. If you do add another daily session, it
should be different from the session you did earlier in the day such as a Manual Mode in the morning and a
Pre-Programmed Mode in the afternoon. Sessions should be 7-10 hours apart.* ✝

10
Sonic Life VC-12 and VM-10 are a leading-edge exercisers using whole body sonic wave vibrations
and is a very safe product. However, users are required to obey the following safety requirements. If
these requirements are not adhered to by the user, Sonic Life is not responsible for any subsequent
results, injuries or damages.*
✝
Period of Use Excessive use can cause overload to the human body. It is recommended to use 10
minutes or less per session and 2 sessions a day once your body has become attuned (See page 9.)
Safety for Children The Sonic Life equipment is very safe and healthy for children with a few
minor adjustments. Children’s brains are in a developmental stage up to the age of 12-13 years.
Therefore the session is generally kept to under 5 minutes at 50% intensity in either the Auto Mode
or in the Manual Mode. Some Autistic, ASD or CP children have been comfortable with sitting on
the platform for the full 10 minute session but at 10 Hz and a low frequency at or below 30%. If the
child wants to get off the machine after only 3 or 4 minutes please STOP the machine completely
and then remove the child. Never let a child or adult dismount from the machine while it is in
operation. See page 5 for Safety Mode Use.*
✝
Consult with Your Doctor in case of the following physical conditions prior to use of the Sonic Life
equipment and any other whole body vibration equipment.*
✝
User Cautions &Warnings
* ✝
CONTRAINDICATIONS/MEDICAL/PHYSICAL CONDITIONS
THAT SHOULD NOT USE WHOLE BODY VIBRATION TREATMENT
* ✝
•Serious Cardiovascular Disease •Pregnancy •Tumors
•Hip & Knee Replacements •Pacemaker •Epilepsy, Seizures
•Acute Hernia, Discopthy, Sondyloysis •Recent Infections •Severe Diabetic
•Recent Surgical Wounds or Implants •Severe Migraine Complications
•Recently Placed IUD’s, Metal Pins or Plates •Acute Thrombosis
The above list of contraindications is not absolute. If one of these conditions applies to you, we
strongly advise that you consult with your physician before using the Sonic Life units or any whole
body vibrational equipment. Research is still being conducted on the effects of whole body vibration
on certain medical conditions which may reduce the above list. Practical experience indicates that
there are many health conditions and concerns where it may be beneficial to integrate whole body
vibration use into those individuals’ treatment. In these cases, this should always be done under the
supervision of a physician or trained professionals.*
✝
2
3
1
Thank You for Purchasing a Sonic Life Whole Body Vibration Exercise Unit!
Service Department email (preferred method) [e-mail]
TOLL FREE: 877-684-7245 • FAX: [phone]
© 2014 Sonic Life USA All Rights Reserved.
www.SonicLife.com

* Disclaimer: Sonic Life Products are not intended to diagnose, treat or cure any disease. The benets listed in this brochure are based on indepen-
dent studies, listed below, which reference years of research and those studies are independent of Sonic Life products and have not been evaluated
by the FDA.
This machine is not intended for use in the diagnosis of disease or other medical conditions, or in the cure, mitigation, treatment, or prevention of
disease or other medical conditions, in man or other animals.
Sonic Life is the U.S.A. distributor of Sonix Equipment which is manufactured in South Korea which has the following registrations:
† REFERENCES
• Blottner D, et al., Human skeletal muscle structure and function preserved by vibration muscle exercise following 55 days of bed rest.
Eur J Appl Physiol. 2006; 97:261–271.
• Bosco, et al., Hormonal responses to whole-body vibration in men. Eur J Appl Physiol. 2000 Apr;81(6):449-54.
• Cardinale & Lim, Electromyography activity of vastus lateralis muscle during whole-body vibrations of different frequencies.
J Strength Cond Res. 2003 Aug; 17(3):621-4.
• Cardinale & Wakeling, Whole body vibration exercise: are vibrations good for you? Athens: Hylonome Editions, 1999; 2:67–76.
• Chanou, et al., Whole-body vibration and rehabilitation of chronic diseases: a review of the literature. J Sports Sci Med.
Jun 2012; 11(2): 187–200.
• Delecluse, et al., Strength increase after whole-body vibration compared with resistance training. Med Sci Sports Exerc.
2003 Jun; 35(6):1033-41.
• Elfering, et al., Stochastic resonance whole-body vibration, musculoskeletal symptoms, and body balance: a worksite training study.
Saf Health Work. Sep 2013; 4(3): 149–155.
• Flieger, et al., Mechanical stimulation in the form of vibration prevents postmenopausal bone loss in ovariectomized rats.
Calcif Tissue Int. 1998 Dec;63(6):510-4.
• Goto & Takamatsu, Hormone and lipolytic responses to whole body vibration in young men. Jpn J Physiol.
2005 Oct; 55(5):279-84.
• Gusi, et al., Low-frequency vibratory exercise reduces the risk of bone fracture more than walking: a randomized controlled trial.
BMC Musculoskelet Disord. 2006 Nov 30; 7:92.
• Keller, et al., Varying whole body vibration amplitude differentially affects tendon and ligament structural and material properties.
J Biomech. 2013 May 31; 46(9):1496-500.
• Kvorning, et al., Effects of vibration and resistance training on neuromuscular and hormonal measures. Eur J Appl Physiol. 2006 Mar; 96(5):615-25.
• Mahieu, et al., Improving strength and postural control in young skiers: whole-body vibration versus equivalent resistance training improving strength
and postural control in young skiers: whole-body vibration versus equivalent resistance training.
J Athl Train. 2006; 41(3): 286–293.
• Ritzmann, et al., Whole body vibration training - improving balance control and muscle endurance.
PLoS One. 2014; 9(2): e89905.
• Rubin, et al., Prevention of postmenopausal bone loss by a low-magnitude, high-frequency mechanical stimuli: a clinical trial
assessing compliance, efficacy, and safety. J Bone Miner Res. 2004 Mar; 19(3):343-51.
• Rubin, et al., Transmissibility of 15-hertz to 35-hertz vibrations to the human hip and lumbar spine: determining the physiologic feasibility of delivering
low-level anabolic mechanical stimuli to skeletal regions at greatest risk of fracture because of osteoporosis. S
pine (Phila Pa 1976). 2003 Dec 1; 28(23):2621-7.
• Savoia, et al., Low-level laser therapy and vibration therapy for the treatment of localized adiposity and fibrous cellulite.
Dermatol Ther (Heidelb). 2013 May 23; 3(1):41-52.
• Stewart, et al., Plantar vibration improves leg fluid flow in perimenopausal women.
Am J Physiol Regul Integr Comp Physiol. 2005 Mar; 288(3):R623-9.
• Trans, et al., Effect of whole body vibration exercise on muscle strength and proprioception in females with knee osteoarthritis.
Knee. 2009 Aug; 16(4):256-61.
• Vissers, et al., Effect of long-term whole body vibration training on visceral adipose tissue: a preliminary report.
Obes Facts. 2010; 3(2):93-100.
Sonic Life is the U.S.A. distributor of Sonix Equipment which is manufactured in South Korea .
11
