Product Overview
This section introduces key features of the NSsp 15700.
Topics:
lEnterprise Class High-Performance Firewall
lFeature Summary
lSystem Architecture
lHardware Overview
Enterprise Class High-performance Firewall
Firewalls must evolve and adapt to support dynamic ITenvironments. Firewall limitations can present major
IT operations bottlenecks.
The SonicWall Network Security services platform NSsp 15700 is a next-generation firewall with high port
density and Multi-Gigabit interfaces, that can process several million connections while checking for zero-
day and advanced threats. Designed for large enterprise, higher education, government agencies and
MSSPs, the NSsp eliminates attacks in real time without slowing performance. It is designed to be highly
reliable and deliver uninterrupted services.
Feature Summary
Topics:
lSimplified Management and Reporting
lAdvanced Threat Protection
lCapture Cloud Platform
lDeep Packet Inspection of SSL/TLS (DPI-SSL)
lContent Filtering Service
lIntrusion Prevention Service
lApplication Control
lUnified Policy Configuration and Management
lMultiple Instances / High Availability
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
1
4

Simplified Management and Reporting
Ongoing management, monitoring and reporting of network activity are handled through the SonicWall on-
premises Network Security Manager (NSM) or cloud-based Capture Security Center (CSC).
Advanced Threat Protection
Every business day, SonicWall encounters and catalogs over 140,000 new and updated forms of malware.
These variants are updated frequently to bypass static filters in a variety of devices and services.
Furthermore, many attackers build or outsource components, such as evasion tactics or runners in order to
make their malware more powerful and difficult to detect.
SonicWall Capture Advanced Threat Protection™ (Capture ATP) is used by over 150,000 customers across
the world through a variety of solutions and it helps to discover and stop over 1,200 new forms of malware
each business day. Furthermore, for compliance and performance-sensitive customers, the NSsp 15700
integrates with Capture Security Appliance (CSa), a local device based on the memory-based file analysis
technology, and Real-Time Deep Memory Inspection™ (RTDMI).
Capture Cloud Platform
SonicWall's Capture Cloud Platform delivers cloud-based threat prevention and network management plus
reporting and analytics for organizations of any size. The platform consolidates threat intelligence gathered
from multiple sources including our award-winning multi-engine network sandboxing service, Capture
Advanced Threat Protection, as well as more than 1.1 million SonicWall sensors located around the globe.
Deep Packet Inspection of SSL/TLS (DPI-SSL)
lThe NSsp 15700 provides inspection for over millions of simultaneous TLS/SSL and SSH encrypted
connections regardless of port or protocol.
lSupport for TLS 1.3
Content Filtering Service
Allows security administrators to create and apply policies that allow or deny access to sites based on
individual or group identity, or by time of day, for over 50 pre-defined categories.
Intrusion Prevention Service
The extensible signature language provides proactive defense against newly discovered application and
protocol vulnerabilities.
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
5

Application Control
The NSsp 15700 catalogs thousands of applications through App Control and monitors their traffic for
anomalous behavior through the on-board Application Firewall.
Unified Policy Configuration and Management
The NSsp 15700 enables organizations to intuitively configure and enforce policies by combining network,
application and web filtering security in one place.
Multiple Instances / High Availability
NSsp 15700 architecture allows multiple independent firewalls to share hardware resources to support
MSSPs, or provide flexible resources for evolving organizations. These independent firewalls may also be
configured as high-availability (HA) pairs, either within one NSsp, or across multiple NSsp. Unlike other high
performance firewall systems, the NSsp operates through containers rather than shared hardware
resources. Software containers along with NUMAarchitecture assure identical operation for all instances on
the NSsp 15700.
The NSsp 15700 supports three kinds of High Availability:
lStandalone HA — Instances on one NSsp from high availability pairs. See Instance HA Pair on a
Standalone NSsp Node.
lMulti-appliance instance-level HA — Instances on different NSsp 15700 appliances form HA pairs.
See Configuring Multi-Appliance Instance-Level HA.
lAppliance-level HA — Two NSsp appliances ,are paired as Primary Active and Secondary Standby.
See Setting Up Unit-to-Unit HA.
System Architecture
The NSsp 15700 centers on four Intel Xeon processors on two cards, or physical blades, linked by a 3.2
Terabits per second switch fabric. This enables the support of multiple independent firewalls with direct
access to the NSsp's high-performance hardware. Non-Unified Memory Access architecture combined with
software containers maximizes security and performance.
There are two logical blades, or CPUs, per physical blade. These logical blades are allocated to a Root
Instance firewall, or to tenant instances. Each logical blade offers the nine cores available on each Xeon
minus one devoted to system software. At the time of this writing, the Root Instance requires a minimum
two logical blades, and a maximum of two logical blades are available to support virtual firewalls.
Virtual firewall instances are confined to software containers, consequently providing the highest security
and predictable performance.
Virtual firewalls require an allocation of at least two CPU cores: one Control Plane (CP) and one Data Plane
(DP). Up to two CP cores and seven DPcores can support a virtual firewall. Cores supporting a virtual
firewall must reside on one logical blade.
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
6

Hardware Overview
The NSsp is a rack-mounted 2U enterprise firewall capable of supporting multiple virtual firewalls on a single
high-performance, high-reliability platform. It can support multiple firewall instances for MSSPs or redundant
virtual firewalls for high-availability applications.
Topics:
lFront Panel
lRear Panel
lLEDs
lSpecifications
Front Panel
X0 - X15 10Gb SFP+ Ports (16)
These ports support small form-factor pluggable (SFP) modules and 10Gb Base-T
copper modules.
X16 - X19 40Gb QSFP+ Ports (4)
These 40Gb ports also support 10Gb interface connectivity.
X20 - X25 100Gb QSFP28 Ports (6)
Serial Console Port
MGMT Port – 1GbE
LED Indicators
LEDs from top: Power, Alarm, System Status, MGMT Port
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
7

SSD Drives – 480GB (4)
LCD Screen
Rear Panel
AUX MGMT Ports (2) – 1GbE
Provides management access for SonicWall Technical Support
Power Switches and Status LEDs (2)
Press and release to power on
LED status:
lOff – Power is off for the compute blade
lBlinking Blue – Compute blade is in powering-up stage
lSolid Blue – Power is on and compute blade is up and ready
Power Alarm Cutoff Button
Press to stop alarm after power supply failure
Power Supplies (2) - 1200W each
Fully redundant, field replaceable
Ground
Fans (10)
Key Compartment
Contains keys to unlock SSD handles for removal/replacement
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
8

LEDs
LED Name LED Color Description
10Gb SFP+ Link LEDs,
X0-X15
Off
Solid Green
No link
Link is up
40Gb QSFP+ Link LEDs,
X16-X19
Off
Solid Green
No link
Link is up
100Gb QSFP28 Link LEDs,
X20-X25
Off
Solid Green
No link
Link is up
MGMT Port Link LED Off
Solid Green
Solid Amber
No link
100Mbps
1Gbps
All Activity LEDs,
X0-X25, MGMT
Off
Blinking Green
No traffic
Traffic present
Power Off
Green
Power is off for the compute blade
Power is on for the compute blade
Alarm Off
Green
Red
No alarm activity
Minor system alarm
Major/critical system alarm (thermal, fan, etc.)
System Status Off
Amber
Green
No compute blade or no power
Compute blade is not ready
Compute blade is ready
MGMT Port Off
Blinking Amber
No activity
Traffic present
Specifications
NOTE: For a list of qualified SFP+/QSFP transceivers, contact SonicWall Technical Support.
Feature Detail
Number of Compute Blades 2
Number of CPUs 4
100G QSFP28 6
40G QSFP+ 4
NSSP 15700 SPECIFICATIONS
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
9

Feature Detail
10G SFP+ 16
SSD in Compute Blade (1 per Blade) 240GB
Front SSDs for Blade #1 (Top) 480GB
RAID Configuration RAID 1
Front SSDs for Blade #2 (Bottom) 480GB
RAID Configuration RAID 1
Compact Flash 32GB 2
USB USB 2.0 Type A
Console RS232 RJ45
Management Port 1GbE RJ45
4056 Fan 10
Redundant Power Supplies 2
Power 1200 Watts
SonicOSX 7 Getting Started Guide for the NSsp Series
Product Overview
10

System Setup
Topics:
lDefault Settings
lSystem Startup
lSonicOS/X Basic Configuration
lConnecting LAN and WAN Interfaces
lNetwork Configuration
lRegistration and Licensing
Default Settings
Port IP Address / Login / Password
Serial number on nameplate; in initial firmware
Authentication
code
Available in GUI on Dashboard with system information
Registration code from MySonicWall.com
Maintenance key from MySonicWall.com
Console Serial port: baud rate: 115200; data: 8; parity none; stop 1; flow control; none
Login = techsupport / sonicwall-<buildnum>
X0 10.10.10.10
X1 Not set by default
Management
(Blade 1)
192.168.168.168
Management
(Blade 2)
192.168.168.167
SafeMode https://192,168,168.168:65443 (admin; password)1
SonicOSX 7 Getting Started Guide for the NSsp Series
System Setup
2
11

Port IP Address / Login / Password
MySonicWall.com register on MySonicWall.com to establish login and password
1SafeMode is accessed through the Management (Blade 1) port which is by default 192.168.168.168.
This value may be changed in ChassisOS. For details, see Access the Console Port and Configure
IP Addresses from the CLI
NOTE: The login credentials are admin/password if SonicOS/X is unavailable; otherwise the
administrator’s SonicOS/X credentials work. See Using the SafeMode GUI.
System Startup
SonicOS/X comes up a few minutes after connecting the SonicOS/X to a power source. You can configure
your SonicOS/X from either the X0 or MGMT interface:
lHTTPS Management via X0
lHTTPS Management via MGMT Port
HTTPS Management via X0
The X0 interface can be configured as a static, transparent, or Layer 2 Bridged Mode interface.
1. Connect your management computer to the SonicOS/X X0 interface and configure your computer
with a static IP address on the LAN subnet (default subnet: 10.10.10.0/24)
2. In your browser, enter the default IP address https://10.10.10.10 and log in using the default
credentials:
3. Username: admin
Password: password
4. Continue with SonicOS/X Basic Configuration.
HTTPS Management via MGMT Port
The MGMT port is a dedicated 1 Gigabit Ethernet interface for appliance management and SafeMode
access.
1. Connect your management computer to the SonicOS/X MGMT interface and configure your
computer with a static IP address on the MGMT subnet (default subnet: 192.168.168.0/24).
2. In your browser, enter the default IP address https://192.168.168.166 and log in using the
default credentials:
3. Username: admin
Password: password
4. Continue with SonicOS/X Basic Configuration.
If the services are enabled, you can access SafeMode, SSH, or ping via the MGMT port. From SafeMode,
you can upgrade firmware, boot backup images and more.
SonicOSX 7 Getting Started Guide for the NSsp Series
System Setup
12

Using SafeMode
SafeMode is accessed on HTTPS port 65443. This is accessed via MGMT (Blade 1) configured in user
interface settings. The default is 192.168.168.168. Log in using the default MGMT SafeMode credentials:
lUsername: admin
lPassword: password
SafeMode is also accessed through the aux MGMT port. For more information on SafeMode, see Using the
SafeMode GUI.
Using CLI
From SSH, you can access the SonicOS/X command line interface (CLI) for configuration and to view logs
and settings. Log in with default SonicOS/X credentials:
lUsername: admin
lPassword: password
For more on using the CLI, see CLI Bring-Up.
SonicOS/X Basic Configuration
Use the following steps to complete a basic system configuration.
1. Navigate to POLICY | Rules and Policies to create security rules for handling traffic. There are no
default rules, so no traffic can be passed until rules are created.
IMPORTANT: Without policy rules, the SonicOS/X only allows management traffic on X0 or the
MGMT port. No other traffic is allowed until policy rules are created by the administrator.
2. Navigate to NETWORK | System > Interfaces to configure the X1 WAN interface.
lStatic – Configures the appliance for a network that uses static IP addresses.
lDHCP – Configures the appliance to request IP settings from a DHCP server in the network.
WAN connectivity is needed for product registration and licensing. Be sure to configure DNS for the
WAN interface.
3. Configure the administrator username and password.
4. Connect the X0 interface to your LAN network and connect X1 to the Internet, as described in
Connecting LAN and WAN Interfaces.
5. Register SonicOS/X as described in Registration and Licensing.
6. For network configuration considerations, refer to Network Configuration.
SonicOSX 7 Getting Started Guide for the NSsp Series
System Setup
13

Connecting LAN and WAN Interfaces
After the initial setup is complete, physically connect the LAN and WAN interfaces to the network devices in
your environment for access to your networks or the Internet.
To connect the interfaces:
1. Using a Twinax cable or a fiber SFP+ module with a fiber cable, connect the appliance LAN interface
(X0) to your local network 10G switch or device.
2. Using a Twinax cable or a fiber SFP+ module with a fiber cable, connect the appliance WAN interface
(X1) to your Internet connection.
Network Configuration
Although the X0, X1 ...X15 front panel interfaces support up to 10Gb SFP+ operation, they may be setup for
1Gb operation.
The Root Instance for multibladed operation has reserved use of X0 through X3. Interface ports X4 and up
can be reserved for multiinstances. Note that to reach the license manager and receive a DHCP address, the
instances must have their own path to the Internet.
Each instance can support up to 8 virtual ports: X0...X7. X1 on each instance needs to connect to a front
panel port with access to a DHCP server or assign static IP address. While adding a new instance, on the
interface configuration tab, configure the instance X1 so that it is mapped to a front panel port and VLANID
that is setup with WANaccess. This is necessary for both cases (Static and Dynamic IP address
assignment).
For static IP configuration, choose an IP in the LAN network that is not in use. For example, if the DHCP
server uses a start range from 10.206.52.10 to 10.206.52.200, then use an IP below the range or above
the range, but not the Broadcast (10.206.52.255) or Gateway IP (for example, 10.206.52.100) address.
SonicOSX 7 Getting Started Guide for the NSsp Series
System Setup
14

For details on configuring management IP addresses, see Configure IP Addresses from the CLI. The X0 and
X1 ports can be configured through SonicOS/X GUI at NETWORK | System > Interface > Interface
Settings.
NOTE: SafeMode access is through the top AUX MGMT port to the Management (Blade 1) port. Refer
to the illustration in Rear Panel.
Registration and Licensing
To register SonicOS/X, you can click Register in the SonicOS/X web management interface, then enter your
MySonicWall credentials. Or you can log in to MySonicWall at https://www.mysonicwall.com from a browser
and register SonicOS/X there, then synchronize from within SonicOS/X.
Registration in MySonicWall requires your SonicOS/X serial number and authentication code, which you can
find on the appliance label or on the DEVICE | Settings > Status page of the SonicOS/X web interface.
You can purchase additional Security Service licenses by clicking Licenses in the row for your SonicOS/X on
the My Products page in MySonicWall.
Instance Licenses
When you register the SonicOS/X and license security services on it, additional license keys are
automatically created for a Multi-Instance deployment. These Instance licenses have unique serial numbers
and authentication codes. All security services licensed on the SonicOS/X are inherited by each Instance.
Each Instance license is separate and independent, allowing each Instance to have a unique configuration.
Latest Firmware
After product registration, be sure to download the latest firmware and upgrade your SonicOS/X. You can
run different SonicOS/X firmware versions on each Instance, if desired. The Instance firmware images are
available for download along with the main firmware in MySonicWall.
NOTE: Enabling Multi-Instance requires a chassis reboot, which can take up to 15 minutes.
SonicOSX 7 Getting Started Guide for the NSsp Series
System Setup
15

Configuring Multiple Instances
Topics:
lEnabling Multi-Instances
lConfiguring Multi-Instances
lLicenses for Multiple Instances
lDeactivating an Instance
lInstance HA Pair on a Standalone NSsp Node
This feature allows the NSsp security appliance to launch multiple firewall instances, each serving as an
independent firewall. The Root Instance (RI) configures and launches each instance. After the instances are
up and running, their X0...X7 interfaces allow access for detailed network configuration.
Navigate to DEVICE | Multi-Instance to find configuration and monitoring screens.
NAVIGATING TO MULTI-INSTANCE OPTIONS
Each instances’s X0, X1, X2... X7 interfaces are mapped to a VLAN on the front panel port (X0 to X25) by the
RI. Each instance can be configured with up to eight ports. Each instance port is mapped to a front panel
port and tagged with a VLAN ID.
SonicOSX 7 Getting Started Guide for the NSsp Series
Configuring Multiple Instances
3
16

Enabling Multi-Instances
This feature is enabled from the Settings screen. To enable Multi-instances, we first reserve logical blades
and front panel ports that are used for supporting spawned instances.
To Enable Multiple Instances:
1. To select the number of logical blades, click and select up to two. Click Accept to save changes. This
step requires the chassis to reboot for changes to take effect.
2. The next step is to reserve front panel ports for instances. These ports are the ones available for
instance configuration.
3. To select ports, click on ports that are orange. Selected ports turn green. The legend on the right of
the display provides details on the colors and the status of ports.
4. Click Accept to save changes. This step does not require a reboot. Front panel port reservations can
be modified anytime after multiple instances are enabled.
5. Ports reserved for the instances are green, and ports available to instances, but not yet reserved, are
orange. To reserve an orange port for instances, simply click on it to turn it green.
After Multi-Instances are enabled and logical blades are selected and ports are reserved, the reserved ports
for Multi-Instances are exclusive, that is, not available for the rest of the sub-system.
Any time Multi-Instances is disabled and the chassis is rebooted, all the Multi-Instance port(s) are
unreserved and are available to the rest of the system while all instances configured in the system are lost.
SELECTING PORTS FOR INSTANCES
Currently, a maximum of two logical blades might be configured to support instances. With four logical
blades in the system, two logical blades are used by the multi-bladed firewall while the other two can be
used for instances. However, the configuration is flexible, we could have three logical blades running in
multi-bladed firewall mode with one logical blade configured to launch instances.
SonicOSX 7 Getting Started Guide for the NSsp Series
Configuring Multiple Instances
17

ALLOCATING CPUS
The previous screen shows the Multi-Instance-enabled settings in the DEVICE | Multi-Instances >
Settings screen. In this case, four logical blades are available and one is allocated to instances, while three
support multi-bladed firewall operation.
After Multi-Instance (MI) operation is enabled on the GUI and the configuration is saved, the firewall
prompts for reboot before the settings can be applied.
NOTE: Enabling Multi-Instance requires a chassis reboot, which can take up to 15 minutes.
After the reboot firewall confirmation button is clicked, the firewall comes up with one or two logical blades
enabled for launching instances. In the left navigation column of the display, the Instances screen is
enabled only when MI is enabled. In order to change the number of logical blades selected to launch MI
instances, the firewall has to go through the reboot processes. This means the currently running instance-
support blades is also rebooted.
In order to revert back, with all the logical blades to work as one big multi-bladed firewall, the MI-enabled
settings are disabled and the firewall goes through the reboot process again.
To reserve front panel ports for virtual firewall instances:
1. Identify available ports by looking for orange colored ports on the GUI.
2. Click on the port to turn it green.
3. Click Accept.
To allocate CPUs to instances:
1. Navigate to DEVICE | Multi-Instance > Settings and locate the controls under Setup Multi-
Instance.
2. Move the Enable switch to the right to turn on Multi-Instance capability.
3. Determine the number of CPUs available to support instances.
4. Click Accept and then reboot the system.
SonicOSX 7 Getting Started Guide for the NSsp Series
Configuring Multiple Instances
18

Configuring Multi-Instances
After you have MI (Multi-Instances) enabled in the RI (Root Instance), then we can configure and launch the
multiple instances. Each instance is an independent virtual firewall with its own routing table, policy
configuration, licenses and security services. Licenses of Multi-instances are inherited from the Root
Instance. Say you are using Deep Packet Inspection (DPI) and the root instance had acquired a DPI license
before adding the Multi-Instance, then the Multi-Instance does not need further operations, it already has
this license. When adding the Multi-Instance first, the root instance acquires the DPI license, and then the
Multi-Instance must be manually synchronized with the DPI license to the Root Instance by clicking Sync on
the License screen. Each instance can be configured with the required number of cores based on the use
case. Currently, we support up to eight Data Path (DP) cores maximum for each virtual firewall and two
(Control Path) CP cores per virtual firewall. Each instance virtual firewall is accessed through its DHCP-
enabled X1 WAN interface. The instance user interface is accessed by way of X0 as well, when an instance’s
X0 mapping is setup with an accessible static IP, gateway, subnet, is accessible to the RI front panel port,
and VLAN mapping is properly set.
Each instance virtual firewall can be accessed through its DHCP-enabled X1 WAN interface or Static X1
WAN interface.
The following figure shows the multi-instance screen with five instances added.
The Root Instance (RI) serves as the console through which all the instances are deployed. RI allows the
user to add instances, start the service, stop the service and delete the instance. Each instance added
through the Add Instance dialog is stored in the RI. This allows the user to add as many instances as
possible, however, there is a limit on the number of instances that are launched because of CPU core and
license availability.
Adding an Instance

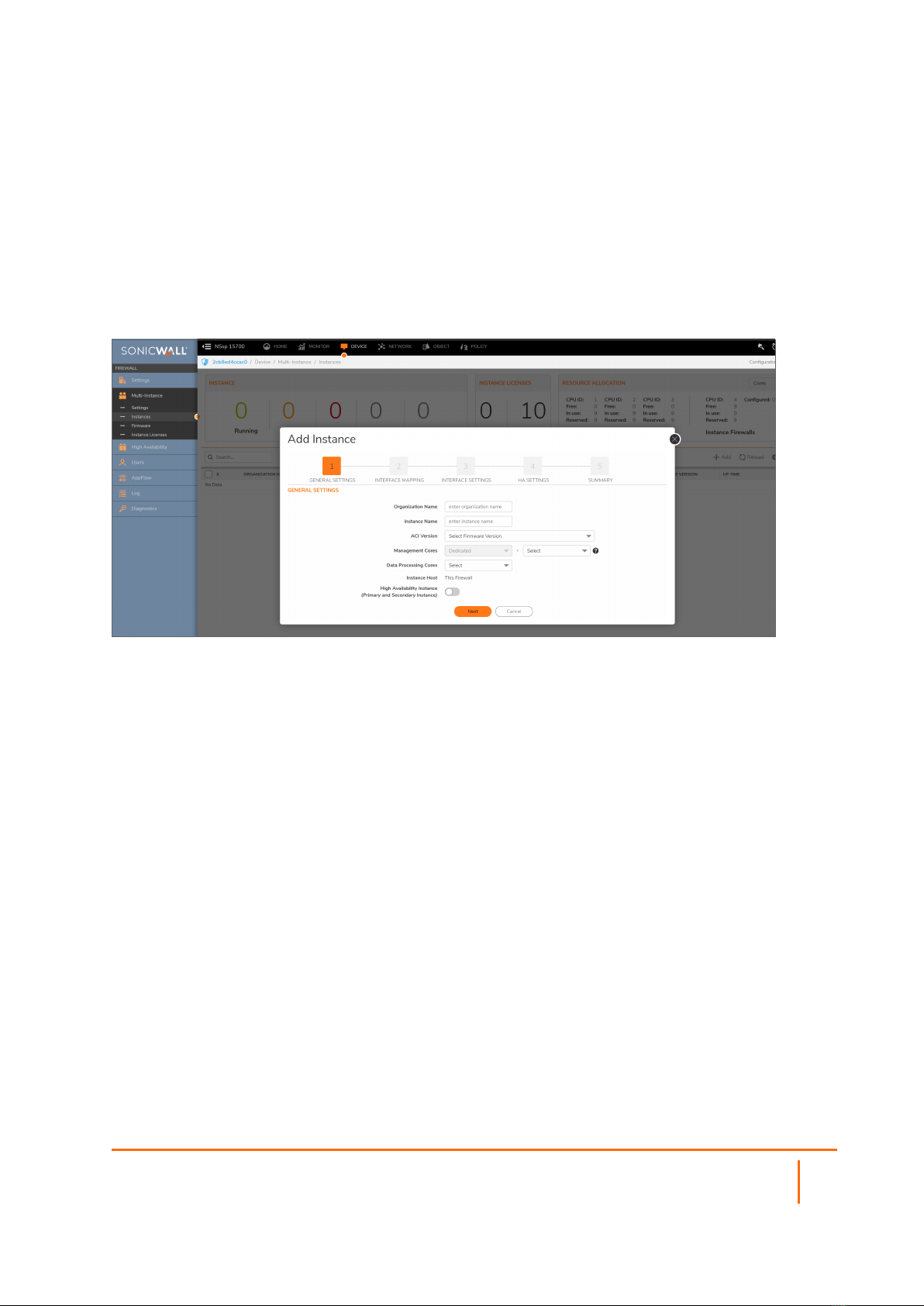

In order to add an instance, click Multi-Instance | Instances, and then click +Add. A dialog box pops-up.
There is a limit on the number of instances that can be launched because of CPU core availability and total
Instance Licenses available in the system.
Before completing this step, upload the Instance Firmware from the Multi-Instance > Firmware page. A
typical Multi-Instance setup work flow is:
SonicOSX 7 Getting Started Guide for the NSsp Series
Configuring Multiple Instances
19

Enable Multi-Instances:
1. Reserve Logical Blades.
2. Reserve port(s) and reboot chassis.
3. Register the box, if not registered, to obtain instance instances.
4. Verify that instance licenses are available on the Multi-Instance > Instance Licenses page.
5. Upload the Instance Firmware from the Multi-Instance > Firmware page.
6. Add instance, or start/stop/reboot/edit/deactivate/delete instances(s).
ADD INSTANCE DIALOG BOX
In the +Add dialog, all the fields must be populated:
lOrganization Name — identifies operating enterprise, a name that is a string.
lInstance Name — field requires a name that is a string. The Instance Name length can be equal to
or greater than eight characters and less than or equal to 63 characters.
lACI Version — a drop-down menu and you must pick one of the ACI versions that need to be
running on the instance. In order to upload an ACI, follow the instructions mentioned under
Uploading Instance Firmware.
lManagement Cores — only two Control Plane cores can be dedicated to a particular instance.
Select the number from the right drop-down menu.
lData Processing Cores — allows the user to select the number of DP Cores. Limit this allocation to
eight for this release. Ideal maximum would be four.
lHigh Availability Instance — Sets up redundant instance: Primary (active) and Secondary
(standby).
When completed, click Next, the dialog moves to the interface mapping stage:
Setup interfaces for the instance by mapping each X0, X1, X2...X7 to a physical interface from the drop-
down menu. The drop-down menu shows only those front panel ports that were reserved for instances. For
each interface, provide a unique VLAN. In setting VLAN IDs:
lVLAN should be in the range of 65 .. 4094
lFor a given instance, the VLAN configured on X0 .. X7 should be unique, two or more instances of Xn
cannot have the same VLAN.
SonicOSX 7 Getting Started Guide for the NSsp Series
Configuring Multiple Instances
20
