1 | Information about this document
4 / 16 Instructions sonnenBatterie pro 2.0
1 Information about this document
This document describes the installation of the sonnenBatterie pro 2.0.
Read this document in its entirety.
Keep this document in the vicinity of the sonnenBatterie.
1.1 Using this document
These instructions describe the installation of the sonnenBatteriepro2.0, which is com-
posed of three sonnenBatterieeco8.0 storage systems.
The complete description of the installation process can be found in the
sonnenBatterie eco8.0 installation instructions.
Always observe the product documentation for the sonnenBatterie eco8.0.
1.2 Target group of this document
This document is intended for authorised electricians. The action described here must only
be performed by authorised electricians.
The section Display on the internet portal [P.14] contains important information for the
target groups operator and authorised electrician.
1.3 Designations in this document
The following designations are used in this document:
Complete designation Designation in this document
sonnenBatterie eco 8.0 Storage system eco 8.0
sonnenBatterie pro 2.0 Storage system pro 2.0
1.4 Designation of the pro 2.0
The full designation is composed of the term ‘pro 2.0’ and the total capacity. This totally
capacity is the sum of the individual capacities of the three storage systems.
pro 2.0/36
sonnenBatterie eco 8.0/12
2 kWh
6 x
sonnenBatterie eco 8.0/12
sonnenBatterie eco 8.0/12
2 kWh
6 x
2 kWh
6 x
Illustration1: Example - Meaning of the designation pro 2.0/36
1.5 Explanation of symbols
DANGER Extremely dangerous situation leading to certain death or serious injury if the
safety information is not observed.

Information about this document | 1
KD-523 | 22375 | EN | X00 5 / 16
WARNING Dangerous situation leading to potential death or serious injury if the safety
information is not observed.
CAUTION Dangerous situation leading to potential injury if the safety information is not
observed.
NOTICE Indicates actions that may cause material damage.
Important information not associated with any risks to people or property.
Symbol Meaning
►
Work step
1. 2. 3. … Work steps in a defined order
üCondition
• List
Table1: Additional symbols

2 | Product description
6 / 16 Instructions sonnenBatterie pro 2.0
2 Product description
2.1 Technical data
System data (AC)
Nominal voltage 400 V
Nominal frequency 50 Hz
Nominal power 9,900 W
Nominal current 14.3 A
Power factor range 0.9 cap. ... 0.9 ind.
Current (Max. continous) 14.4 A
Max. output fault current 120 mA
Inrush current 0 A
Mains connection three-phase, L1 / L2 / L3 / N / PE
Mains topology TN / TT
Mains connections fuse Miniature circuit breaker | Type B | 13 - 16 A
sonnenBatterie pro
consisting of 3 x eco
2.0/24 2.0/30 2.0/36 2.0/42 2.0/48
8.0/8 8.0/10 8.0/12 8.0/14 8.0/16
Battery data (DC)
Cell technology lithium iron phosphate (LiFePO4)
Usable capacity 24 kWh 30 kWh 36 kWh 42 kWh 48 kWh
Nominal voltage 51.2 V
Current
(Max. continous)
75 A
Short-circuit current (ISC) 80 A
Min. number of
battery modules
12
Max. number of
battery modules
24
Dimensions / Weight
Storage system,
individual
187/67/23
Dimensions pro 2.0 187/271/23 cm1
Weight pro 2.0 510 kg 591 kg 672 kg 753 kg 834 kg
1 Specificiation without the outer minimum distances to be observed.

Product description | 2
KD-523 | 22375 | EN | X00 7 / 16
sonnenBatterie pro
consisting of 3 x eco
2.0/22,5 2.0/30 2.0/37,5 2.0/45
8.0/7,5 8.0/10 8.0/12,5 8.0/15
Battery data (DC)
Cell technology lithium iron phosphate (LiFePO4)
Usable capacity 20.25 kWh 27 kWh 33.75 kWh 40.5 kWh
Nominal voltage 48 V
Current
(Max. continous)
75 A
Short-circuit current (ISC) 90 A
Min. number of
battery modules
9
Max. number of
battery modules
18
Dimensions / Weight
Storage system,
individual
186/67/23
Dimensions pro 2.0 186/271/23 cm2
Weight pro 2.0 393 kg 462 kg 531 kg 600 kg
2 Specificiation without the outer minimum distances to be observed.

2 | Product description
8 / 16 Instructions sonnenBatterie pro 2.0
2.2 Overview of function and installation
These sonnenBatterie pro2.0 instructions are a supplement to the applicable
product documentation for the sonnenBatterie eco8.0. The product docu-
mentation, above all the installation instructions, must always be observed.
• The sonnenBatterie pro2.0 consists of three individual eco8.0 storage systems.
• During installation one storage system is designated as the master and the other two as
slave1 and slave2. The master storage system controls the other storage systems after
installation is complete.
• Connections such as the Modbus line or signal line are made on the master storage sys-
tem.
• The storage systems are connected to each other by Ethernet cable. An external switch
is installed for this purpose, to which all three storage systems are connected. The
switch is connected to the home network router.
• If a router with a sufficient number of free slots is available, the external switch can be
omitted.
5
2
A1 A2
1
4
3
6
Master
7
Slave 2
Slave 1
89
Illustration2: System components
1 Power meter WM271
2 Modbus line (not included in scope of delivery)
3 Mains line
4 Switch (not included in scope of delivery)
5 Ethernet line (not included in scope of delivery)
6 Home network router (not included in scope of delivery)
7 Master storage system (with Display)
8 Slave 1 storage system
9 Slave 2 storage system

Mounting | 3
KD-523 | 22375 | EN | X00 9 / 16
3 Mounting
3.1 Selecting the installation location
The heavy floor load applied by the storage system must be taken into account
when selecting the installation location. The specified weight for the entire sys-
tem can be found in the section Technical data [P.6]. Applicable building codes
must be observed in each case!
3.2 Observing minimum distances
100 cm
5 cm
15 cm
35 cm35 cm
50 cm
Illustration3: Minimum distances to neighbouring objects
Observe the specified minimum distances to neighbouring system parts or objects.
The minimum distances ensure that:
• there is sufficient heat dissipation,
• the storage system doors can be opened easily and
• there is sufficient space for installation and maintenance work.
3.3 Installing the storage systems
Install the storage systems in a suitable location as described in the relevant installation
instructions.

4 | Electrical installation
10 / 16 Instructions sonnenBatterie pro 2.0
4 Electrical installation
DANGER Electrical work on the storage system and electrical distributor
Danger to life due to electrocution!
Switch off the storage system to electrically isolate it.
Disconnect the relevant electrical circuits.
Secure against anyone switching on the device again.
Wait five minutes so the capacitors can discharge.
Check that the device is disconnected from the power supply.
Only authorised electricians are permitted to carry out electrical work.
NOTICE Observe maximum line lengths
None of the lines connected to the storage system (mains line, ethernet
line, other data lines) are allowed to exceed a maximum length of 30m.
4.1 General information about installation
Always observe the specifications in the installation instructions for the eco8.0 stor-
age system.
Important note:
• The conditions described in the installation instructions for the relevant storage system
apply to the installation of the residual current device (RCD) marked in figure 'Circuit
diagram overview - electrical connection of the pro 2.0 [P.11]’. If an RCD of the re-
quired type is already installed, it is not necessary to install an additional RCD.
• In the case of an existing installation of three eco8.0 storage systems connected in par-
allel, the installation of the power meters must be changed.
4.2 Selecting the measurement concept
• The standard measurement concept (also referred to as the CP measurement concept
or setup 1) is recommended for power measurement of a sonnenBatterie pro 2.0. This
corresponds to the structure of the installation described in the following section Wiring
the components [P.11].
• The GP measurement concept (also referred to as setup 4) should only be used if the
standard measurement concept can’t be implemented or if the individual components
for the power measurement are already installed as the GP concept and elaborate con-
version is to be avoided. Please note that the GP measurement concept can lead to a
lower efficiency of the storage system.
• Measurement concept GP (setup 4) must not be used if several pro 2.0 storage systems
which are connected to the same production unit (e.g. pv system), are connected in
parallel.

Electrical installation | 4
KD-523 | 22375 | EN | X00 11 / 16
4.3 Wiring the components
Install the individual components according to the following scheme:
12
11
13
L1
L2
L3
N
PE
12 12
14 15
kWh 3~
L1 L2 L3 N PE
NL1 L2 L3
A1 A2
19
18
16
17
3
1
2
L1 L2 L3 N PE
L1 L2 L3 N PE
20
1
2
3
4
1 2 3
1 2 3
3
2
6
5
1
10
9
8
7

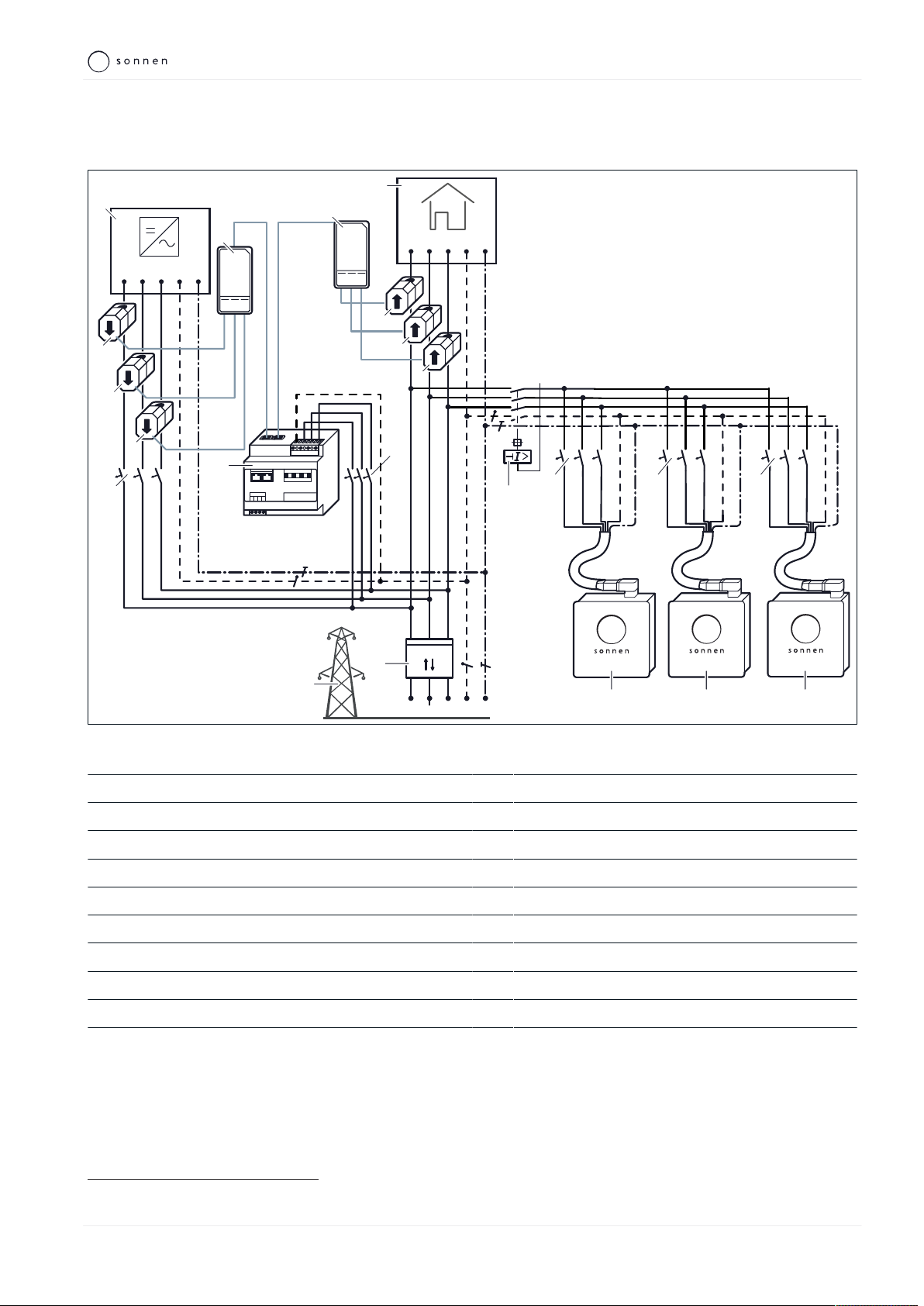

Illustration4: Circuit diagram overview - electrical connection of the pro 2.0
1 PV inverter 11 RCD3
2 Current transformer for generation – L1 12 Miniature circuit breaker B13 or B16
3 Current transformer for generation – L2 13 Master storage system
4 Current transformer for generation – L3 14 Slave 1 storage system
5 Transformer interface for generation (A1) 15 Slave 2 storage system
6 Transformer interface for consumption (A2) 16 Bidirectional counter
7 Current transformer for consumption– L1 17 Public electrical mains
8 Current transformer for consumption – L2 18 Miniature circuit breaker4
9 Current transformer for consumption – L3 19 Power meter WM271
10 Consumer in building 20 PV inverter miniature circuit breaker
3 According to the requirement in the installation instructions of the respective storage system.
4 Protection of the line must be ensured.

4 | Electrical installation
12 / 16 Instructions sonnenBatterie pro 2.0
4.4 Electrical connection
4.4.1 Connecting the mains line
Observe the following points:
• The mains connection must be protected with a typeB miniature circuit breaker, rated
current 13A or 16A.
• The cable cross-section from the miniature circuit breaker to the electrical consumer
must be adapted to suit the larger loads if necessary.
Connect the mains line as described in the installation instructions for the eco8.0 stor-
age system (section ‘Connecting the mains line’).
4.4.2 Connecting the Ethernet lines
The connection to the customer router is established via a switch. If the customer router
has a sufficient number of free slots, the three storage systems can be connected directly
to the router. A switch is not necessary in this case.
Connect the Ethernet lines as shown in figure System components [P.8]. The Ethernet
cables, the switch and the router are not included in the scope of delivery.
The required output type can be found in section ‘Connecting the Ethernet cable’ in
the storage system installation instructions.
4.4.3 Connecting the Modbus line
Connect the Modbus cable as shown in figure System components [P.8].
4.4.4 Connecting the signal line
Connect the signal cable to the master as described in the storage system installation
instructions.

Commissioning | 5
KD-523 | 22375 | EN | X00 13 / 16
5 Commissioning
5.1 Commissioning new systems
Proceed as follows to configure and commission a sonnenBatterie pro 2.0.
Conditions:
üOrdered sonnenBatterie pro 2.0 kit
üReceived pairing code
If you have not received a pairing code, please contact your sales representative at sonnen.
1. Establish a connection between the laptop/pc and the storage system master, as de-
scribed in the respective installation instructions.

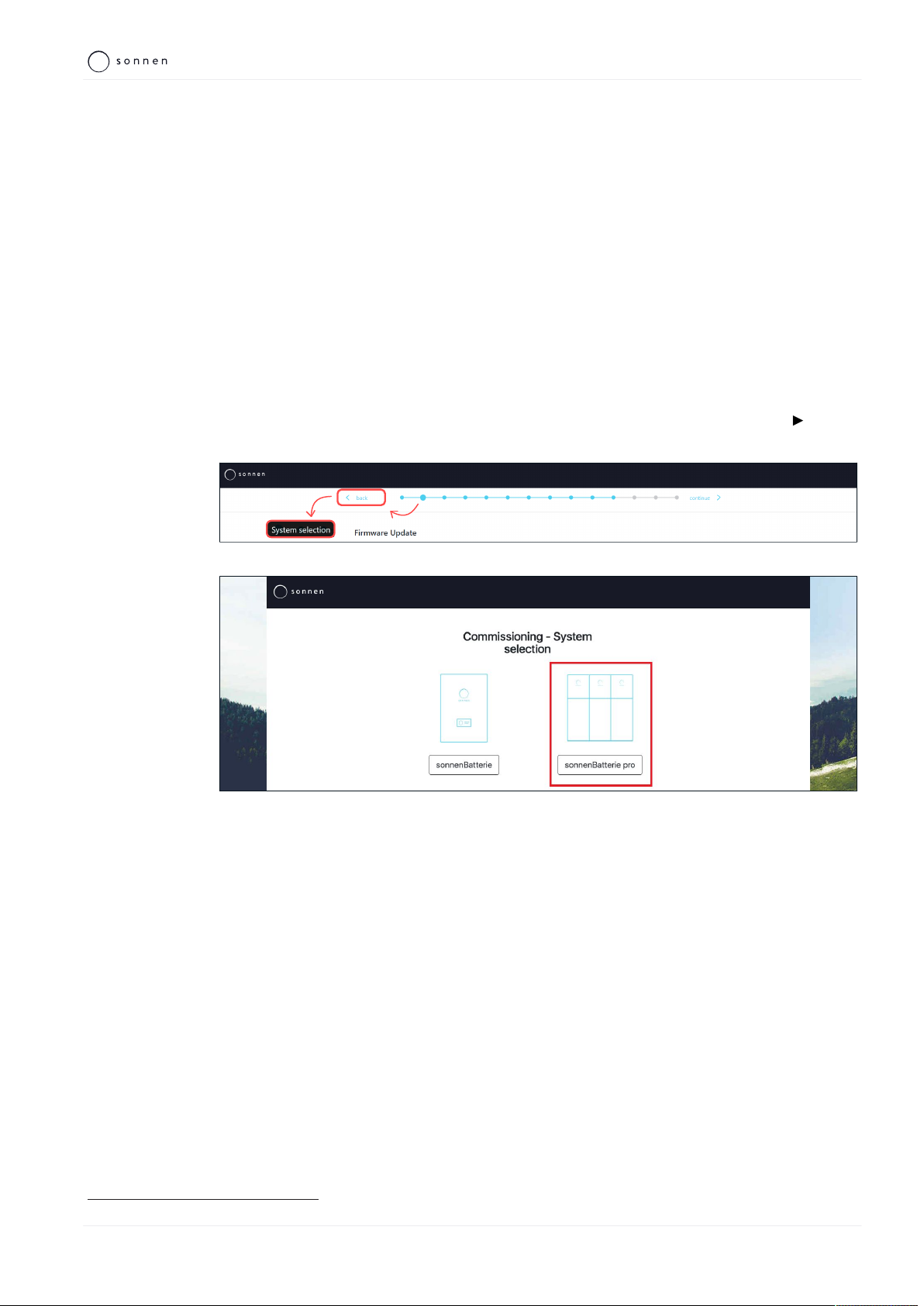

2. Navigate to the ‘System selection’ page of the commissioning assistant 2.05, as de-
scribed in the respective installation instructions. If this page does not appear:
►
Make
sure that the first page of the commissioning assistant is displayed.
3. Select the ‘sonnenBatterie pro’ button on the ‘System selection’ page.
4. Enter the activation code of the pro 2.0 and start the commissioning assistant.
5. Run the commissioning assistant until it is fully complete.
5.2 Commissioning existing systems
In the case of systems that were previously three storage systems connected in parallel,
proceed as follows:
1. Disconnect the power supply to the storage systems (see section ‘Decommissioning’ in
the installation instructions for the relevant storage system).
2. Define which storage system will act as the master, and which as slave1 and slave2.
3. Carry out all necessary installation changes (see Electrical installation [P.10]).
4. Uninstall all surplus power meters for the two slave storage systems.
5. Recommission the storage system.
6. Commission the storage system as described in section Commissioning new systems
[P.13].
5 Function only available in commissioning assistant 2.0!

6 | Display on the internet portal
14 / 16 Instructions sonnenBatterie pro 2.0
6 Display on the internet portal
• The internet portal presents current information and data for the storage system.
The description of the individual operating steps, the displays and diagrams and the re-
gistration process can be found in the operating instructions for the relevant storage
system.
• To view the data for the sonnenBatterie pro2.0, the system must be registered with the
serial number of the master storage system. The data for the entire pro2.0 system, such
as the PV production, consumption and discharge, is displayed on the internet portal for
the master.
• In theory it is also possible to log in using the serial number of one of the slaves, but
please note that in this case not all data will be displayed after the pro2.0 is configured,
not even for the individual eco8.0 storage system.

sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
