Sony BC-U2A User manual

Z:\E\_Sony\z_F-O-P\PT18F085_BC-U1ABC-
U2A_OI\PT18F085_4735492031_JP+\4735492031\4735492031BCU2ASY\01JP-BCU2SY\01JP01COV.fm
4-735-492-03(1)
お買い上げいただきありがとうございます。
電気製品は安全のための注意事項を守らないと、
火災や人身事故になることがあります。
この取扱説明書には、事故を防ぐための重要な注意事項と製品の取り扱いかたを示してあります。
この取扱説明書をよくお読みのうえ、製品を安全にお使いください｡お読みになったあとは、
いつでも見られるところに必ず保管してください｡
BC-U2A
© 2017 Sony Corporation
BC-U2A
4-735-492-03(1)
取扱説明書2ページ JP
Operating Instructions Page 14 GB
Manuel d’installation Page 23 FR
Installationsanleitung Seite 33 DE
Istruzioni per l’installazione Pagina 41 IT
Instrucciones de instalación Pagina 50 ES
CS
CT
KR
RU
KZ
Battery Charger
Z:\E\_Sony\z_F-O-P\PT18F085_BC-U1ABC-U2A_OI\PT18F085_4735492031_JP+\4735492031\4735492031BCU2ASY\01JP-
BCU2SY\01JP05BCOV.fm
Printed in China
BC-U2A
4-735-492-02(1)
BC-U2A
4-735-492-02 (1)

14
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
Important Safety Instructions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
WARNING
This unit has no power switch.
When installing the unit, incorporate a readily accessible
disconnect device in the fixed wiring, or connect the power
plug to an easily accessible socket-outlet near the unit. If a
fault should occur during operation of the unit, operate the
WARNING
English

15
GB
disconnect device to switch the power supply off, or
disconnect the power plug.
Batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.
WARNING: THIS WARNING IS APPLICABLE FOR USA
ONLY.
If used in USA, use the UL LISTED power cord specified
below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade
(NEMA 1-15P Configuration)
Cord Type NISPT-2 or SPT-2, two 16 or 18 AWG wires
Length Minimum 1.5 m (4 ft.11 in.), Less than 2.5 m (8 ft.
3 in.)
Rating Minimum 7 A, 125 V
Using this unit at a voltage other than 120V may require the
use of a different line cord or attachment plug, or both. To
reduce the risk of fire or electric shock, refer servicing to
qualified service personnel.
WARNING: THIS WARNING IS APPLICABLE FOR OTHER
COUNTRIES.
1. Use the approved Power Cord (2-core mains lead) /
Appliance Connector / Plug that conforms to the safety
regulations of each country if applicable.
2. Use the Power Cord (2-core mains lead) / Appliance
Connector / Plug conforming to the proper ratings (Voltage,
Ampere).
If you have questions on the use of the above Power Cord /
Appliance Connector / Plug, please consult a qualified service
personnel.
WARNING
The apparatus shall not be exposed to dripping or splashing.
No objects filled with liquids, such as vases, shall be placed on
the apparatus.
Do not install the appliance in a confined space, such as book
case or built-in cabinet.
IMPORTANT
The product name and rating are located in the following
location on the unit.
—Bottom
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.

16
For the customers in the U.S.A.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and
receiver.
— Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician
for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
For the customers in Canada
CAN ICES-3 (B)/NMB-3(B)
For the customers in Europe
This product is intended for use in the following
Electromagnetic Environments: E1 (residential), E2
(commercial and light industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio).
CAUTION
RISK OF ELECTRIC SHOCK
The fuse in primary circuit is/could be in the neutral.
The mains shall be disconnected to de-energize the phase
conductors.
This equipment is not suitable for use in locations where
children are likely to be present.
CAUTION
— There is a danger of explosion if a battery other than
specified is charged. Do not charge batteries other than the
recommended batteries.
— When you dispose of the battery or the product, you must
obey the law in the corresponding area or country.
Do not dispose of the battery or the product in a fire or a hot
oven, or mechanically crush or cut the battery. It may
explode or cause a fire.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

17
— Do not place the battery in a high temperature place, such
as under direct sunlight or near fire. It may ignite, explode,
or cause a fire. Do not immerse or wet the battery in water
or seawater. This may cause an electric shock.
No naked flame sources, such as lighted candles, should be
placed on the apparatus.
CAUTION
When you connect the DC output cable of the unit to
peripheral device, use the supplied cable to prevent
malfunction due to radiation noise.
Türkiye’deki müşteriler için
AEEE Yönetmeliğine Uygundur
For the customers in the U.S.A.
SONY LIMITED WARRANTY - Please visit
http://www.sony.com/psa/warranty for important information
and complete terms and conditions of Sony’s limited
warranty applicable to this product.
For the customers in Canada
SONY LIMITED WARRANTY - Please visit
http://www.sonybiz.ca/pro/lang/en/ca/article/resources-
warranty for important information and complete terms and
conditions of Sony’s limited warranty applicable to this
product.
For the customers in Europe
Sony Professional Solutions Europe - Standard Warranty
and Exceptions on Standard Warranty.
Please visit http://www.pro.sony.eu/warranty for important
information and complete terms and conditions.
For the customers in Korea
SONY LIMITED WARRANTY - Please visit
http://bpeng.sony.co.kr/handler/BPAS-Start for important
information and complete terms and conditions of Sony’s
limited warranty applicable to this product.

18
Table of Contents / Overview
Table of Contents / Overview
Table of Contents
Overview ..................................................................... 18
Location and Function of Parts ............................... 19

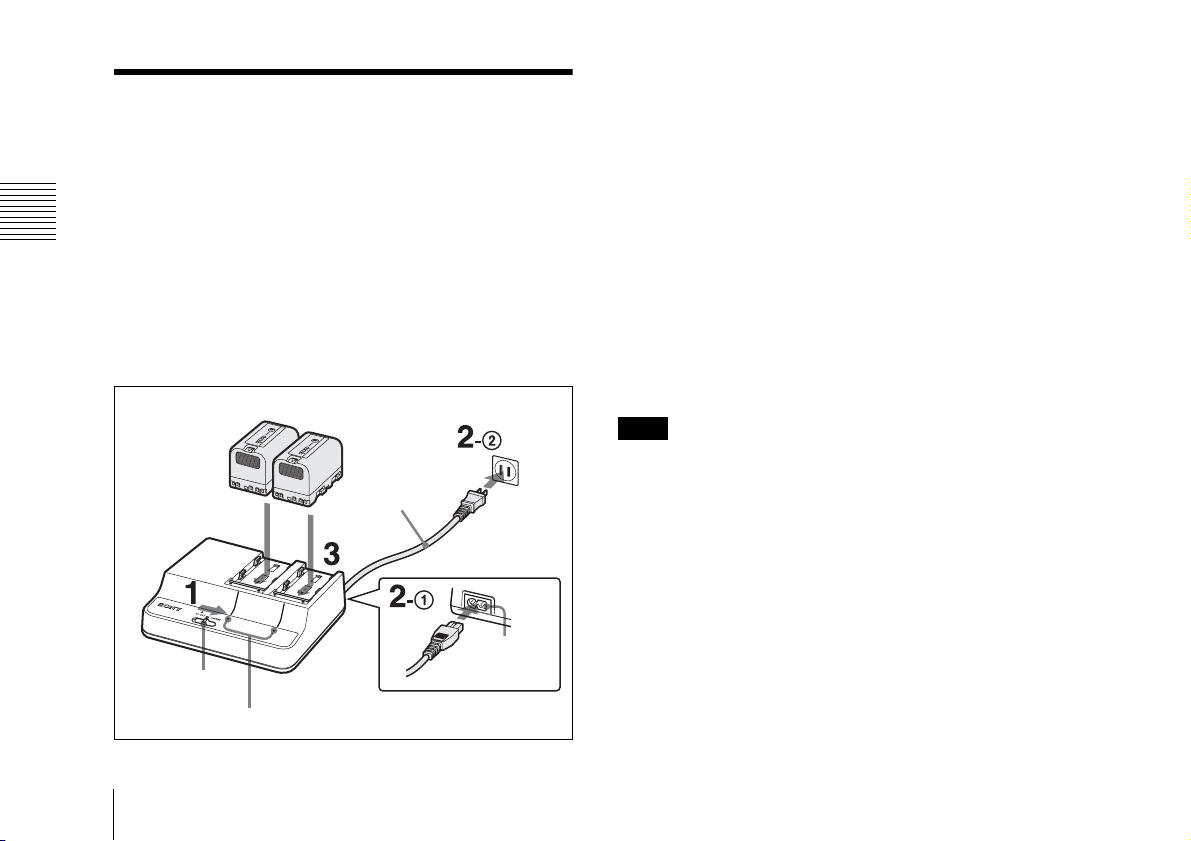

Charging Battery Packs ............................................ 20
Specifications ............................................................. 22
Overview
The BC-U2A Battery Charger charges Sony Lithium-ion Battery
Packs. It has the following features.
• In CHARGE mode, it can charge two battery packs
simultaneously (two batteries of the same model or two batteries
of different models).
• In DC OUT mode, it can charge one battery while supplying
power to a connected device.
If some trouble occurs when operating this unit, disconnect the AC
power cord from the AC power source to shut off power supply.
For details on battery packs that can be charged using the unit, visit the Sony
Professional products website.
Sony Professional products website:
U.S.A. http://pro.sony.com
Canada http://www.sonybiz.ca
Latin America http://sonypro-latin.com
Europe http://www.pro.sony.eu/pro
Middle East, Africa
http://sony-psmea.com
Russia http://sony.ru/pro/
Brazil http://sonypro.com.br
Australia http://pro.sony.com.au
New Zealand http://pro.sony.co.nz
Japan http://www.sonybsc.com
Asia Pacific http://pro.sony-asia.com
Korea http://bp.sony.co.kr
Note

Location and Function of Parts
Location and Function of Parts 19
China http://pro.sony.com.cn
India http://pro.sony.co.in

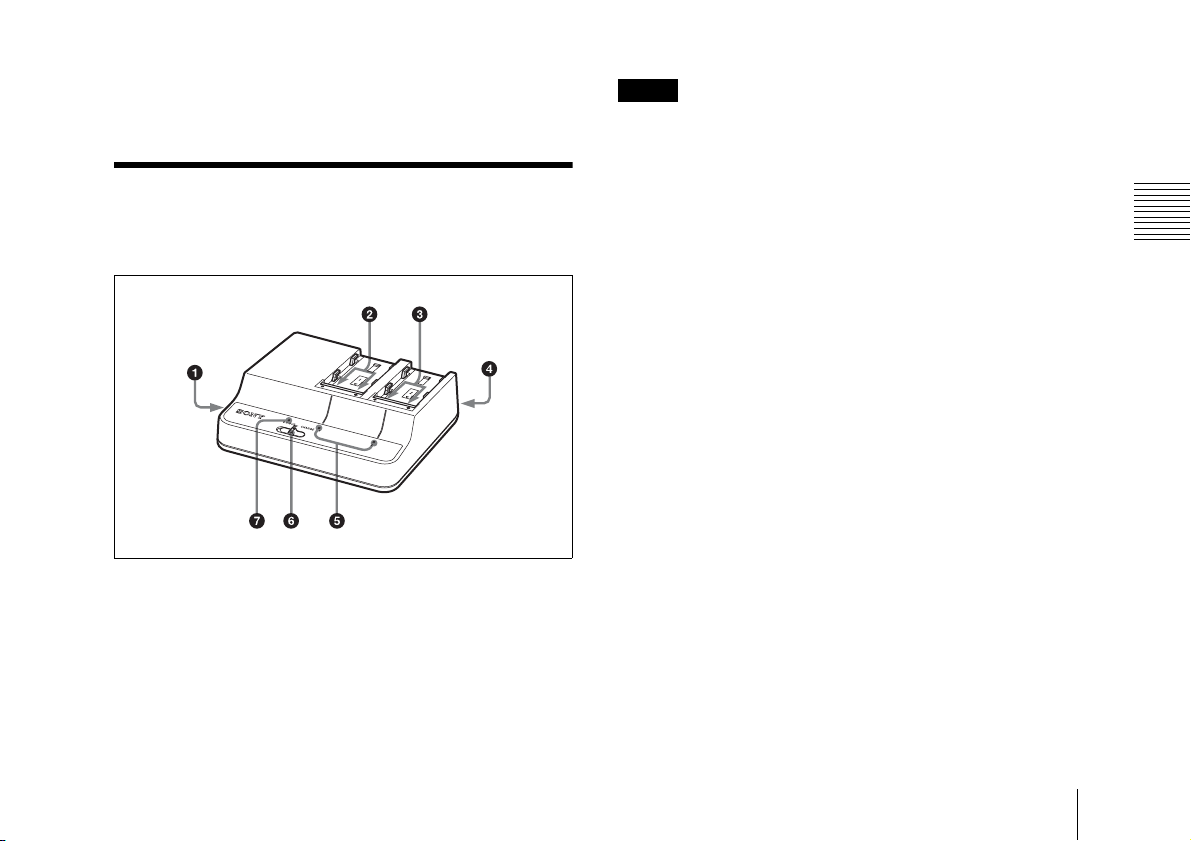

Location and Function of
Parts
aDC OUT connector
Supplies DC power to a connected device via the supplied DC output
cable when the mode select switch is set to DC OUT.
The DC output cable has a plug with black insulation and a plug with
yellow insulation. Connect the plug with black insulation to this
apparatus and the plug with yellow insulation to the connected
device.
• Do not connect a device with power requirements higher than the
specified values.
• Depending on the power consumed by the connected device, the
apparatus may become warm. This is not a malfunction. Avoid
prolonged contact with the apparatus if it should become warm.
bChannel 1 charge connectors
Supplies power when the mode select switch is set to CHARGE.
cChannel 2 charge connectors
Supplies power regardless of the setting of the mode select switch.
dAC input connector
Connects to an AC power source via the AC power cord.
eCHARGE indicators
Shows the charging status of the attached battery packs during
charging of battery packs.
For details, see “Charging Battery Packs” on page 20.
fMode select switch
CHARGE: Supplies power to the lithium-ion battery pack
connected to channel 1.
DC OUT: Supplies DC power from the DC OUT connector, and at
the same time supplies power to a lithium-ion battery pack
connected to channel 2. (A battery pack connected to channel 1
is not charged.)
gDC OUT indicator
Lights in green when the mode select switch is set to DC OUT and
DC power is being supplied.
If some trouble is detected, the indicator goes dark.
Notes

20
Charging Battery Packs
Charging Battery Packs
Charging Battery Packs
Charging time
The time to charge a completely exhausted battery pack to its full
capacity is shown below. (When the temperature is 25°C (77°F). The
charging time is not affected by whether one or two battery packs are
being charged, or by combinations of different battery models.)
BP-U30: approximately 130 minutes
BP-U60: approximately 150 minutes
BP-U90: approximately 190 minutes
Charging in CHARGE mode
You can charge two battery packs simultaneously.
1Set the mode select switch to CHARGE.
2Connect the AC power cord 1to the AC input connector
and 2to an AC power source.
3Attach the battery packs.
Place the battery packs with the triangle marks facing the
charge connectors and slide them in the direction indicated by
the arrows.
Be sure to push the battery packs to engage the charge
connectors until they click.
Charging begins, and the CHARGE indicators show the
charging status.
Flashing in orange: Charged between 0 to 80%
Flashing in green: Charged over 80%
Lit in green: Fully charged
The charging current is automatically blocked if a battery pack other
than a lithium-ion battery pack is attached. Be sure to charge
designated battery packs only.
Lithium-ion battery packs To AC power source
AC power cord
AC input
connector
Mode select switch
CHARGE indicators
Note

Charging Battery Packs
Charging Battery Packs 21
Charging in DC OUT mode
You can charge a battery pack on channel 2 while supplying power
to a connected device.
1Set the mode select switch to DC OUT.
2Connect the supplied DC output cable 1to the DC OUT
connector and 2to the DC powered device.
3Connect the AC power cord 1to the AC input connector
and 2to an AC power source.
DC power is supplied to the device connected in step 2, and the
DC OUT indicator lights in green.
4Attach a battery pack to channel 2.
See step 3in “Charging in CHARGE mode” for information about how
to attach a battery pack.
Detaching a battery pack
Slide the attached battery pack in the opposite direction to that when
attaching then pull it up.
When an error is detected
When one of the following conditions is detected during charging,
the CHARGE indicator flashes in orange and green alternately:
• After the start of charging, quick charging does not begin.
• Charging does not finish within a specified period.
• The voltage for battery charging has exceeded the specified level.
• The internal voltage has exceeded the specified level.
• The internal voltage has dropped below the specified level.
Action to take if an error is detected
Immediately disconnect the AC power cord from the AC power
source, remove the battery packs, and contact the vendor from whom
you purchased the apparatus.
To DC powered device
Yellow
DC output cable
(supplied)
Mode select switch
Lithium-ion battery pack
AC input
connector
AC power cord
To AC power source
CHARGE indicator
Black
DC OUT indicator
DC OUT
connector

22
Specifications
Specifications
Specifications
Voltage source 100 V to 240 V AC, 50/60 Hz
Power consumption 89 W
Current drain Charging: 165 VA (100 V), 205 VA (240 V)
Output Charging: 16.4 V, 2.4 A/1.5 A
DC output: 12 V, 3.0 A
Operating temperature
Charging: 0°C to 45°C (32°F to 113°F)
DC output: −5°C to +45°C (23°F to 113°F)
Storage temperature −20°C to +60°C (−4°F to +140°F)
Dimensions (w/h/d) 177.0 × 53.2 × 137.0 mm
(7 × 2 1/8× 5 1/2inches)
Mass Approx. 620 g (1 lb 6 oz) (including DC
output cable, not including AC power cord)
Supplied accessories
DC output cable (Part number: 1-912-595-11) (1)
Operating Instructions (1)
Warranty Booklet (1)
Design and specifications are subject to change without notice.
.
Notes
•Always verify that the unit is operating properly before use. SONY
WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,
EITHER DURING THE WARRANTY PERIOD OR AFTER
EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER
REASON WHATSOEVER.
•SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND
MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.
•SONY WILL NOT BE LIABLE FOR THE TERMINATION OR
DISCONTINUATION OF ANY SERVICES RELATED TO THIS
UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY
KIND.
If the unit is suddenly taken from a cold to a warm location, or if ambient
temperature suddenly rises, moisture may form on the outer surface of the
unit and/or inside of the unit. This is known as condensation. If
condensation occurs, turn off the unit and wait until the condensation
clears before operating the unit. Operating the unit while condensation is
present may damage the unit.
The life expectancy of the electrolytic capacitor is about 5 years under
normal operating temperatures and normal usage (8 hours per day; 25 days
per month). If usage exceeds the above normal usage frequency, the life
expectancy may be reduced correspondingly.
•For safety, use only the Sony battery packs.
•The battery terminal of this unit (the connector for battery packs and AC
adaptors) is a consumable part. Power may not be supplied to the unit
properly if the pins of the battery terminal are bent or deformed by
shock or vibrations, or if they become corroded due to prolonged
outdoor use. Periodic inspections are recommended to keep the unit
working properly and to prolong its usable lifetime. Contact a Sony
service or sales representative for more information about inspections.
