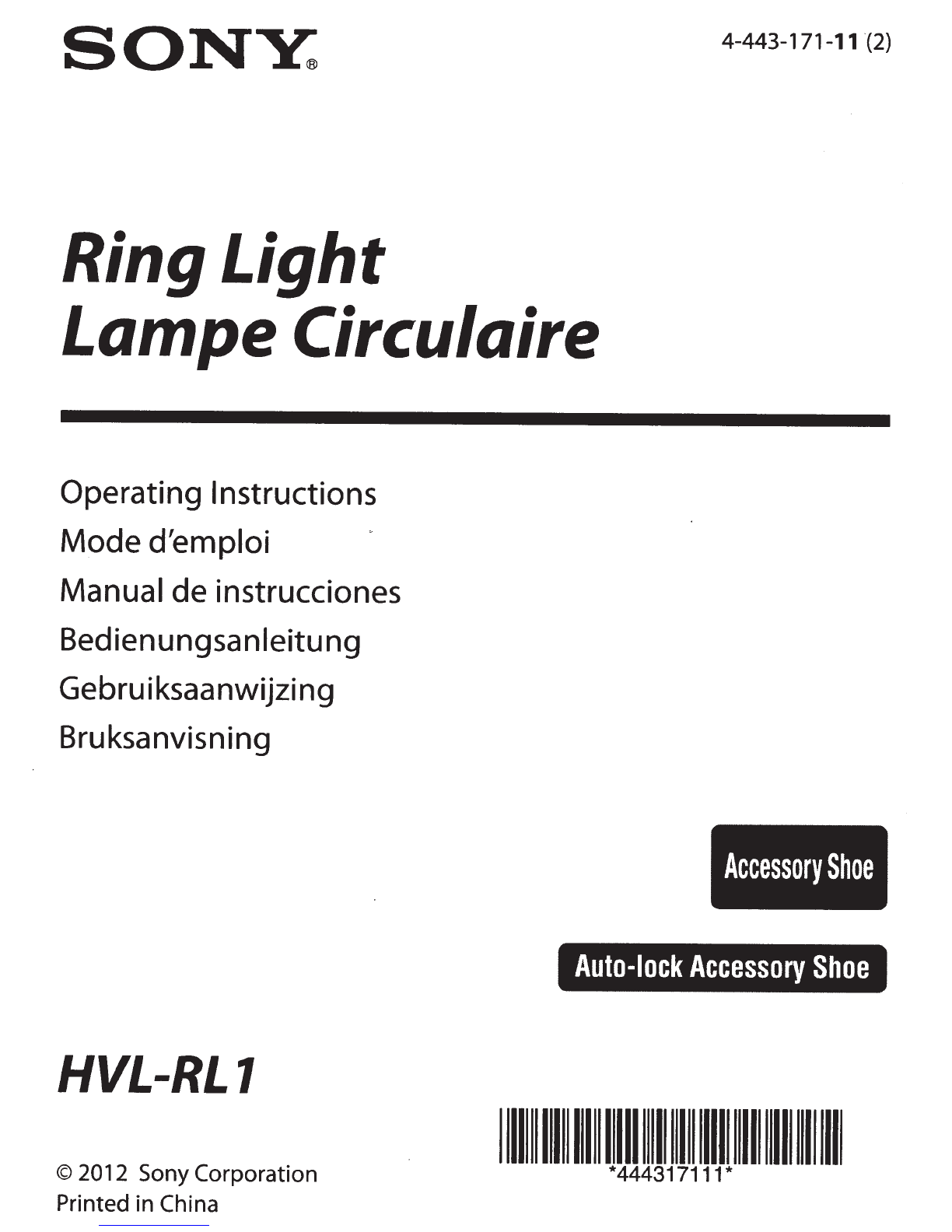

Sony HVL-RL1 User manual

SONY:
Ring
Light
LampeCirculaire
Operating Instructions
Mode d'emploi
Manual de instrucciones
Bedienungsanleitung
Gebruiksaanwijzing
Bruksanvisning
4-443-171-11
(2)
Accessory
Shoe
Auto-lock
Accessory
Shoe
HVL-RL1
© 2012 Sony Corporation
Printed in China
1111111111111111111111
*444317111*

•
•
I
4

English
WARNING
To reduce fire
or
shock hazard, do not expose the unit to rain
or
moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified
personnel only.
Do not expose the batteries to excessive heat such
as
sunshine, fire
or
the like.
Keep out
of
reach
of
small children to prevent accidential swallowing.
For customer in U.S.A.
CAUTION
You are cautioned that any changes
or
modifications not expressly approved in this
manual could void your authority to operate this equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class
Bdigital device, pursuant to Part
15
of
the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and,
if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there
is
no guarantee that
interference will not occur in a particular installation.
If
this equipment does cause
harmful interference to radio
or
television reception, which can be determined
by turning the equipment offand on, the user
is
encouraged to try to correct the
interference by one
or
more
of
the following measures:
-Reorient
or
relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet
on
a circuit different from that to which
the receiver
is
connected.
-Consult the dealer
or
an experienced radio/TV technician for help.
For customer in Europe
-
Disposal
of
Old Electrical & Electronic
Equipment
(Applicable
in
the
European
Union
and
other
European countries
with
separate collection systems)
This symbol on the product
or
on
its packaging indicates that this
product shall not be treated
as
household waste. Instead it shall
be handed over to the applicable collection point for the recycling
of
electrical and electronic.equipment.
By
ensuring this product
is
disposed
of
correctly, you will help prevent potential negative
consequences for the environment and
human
health, which
could otherwise be caused by inappropriate waste handling
of
this
product. The recycling
of
materials will help to conserve natural
resources. For more detailed information about recycling
of
this
product, please contact your local Civic Office, your household
waste disposal service
or
the shop where you purchased the product.

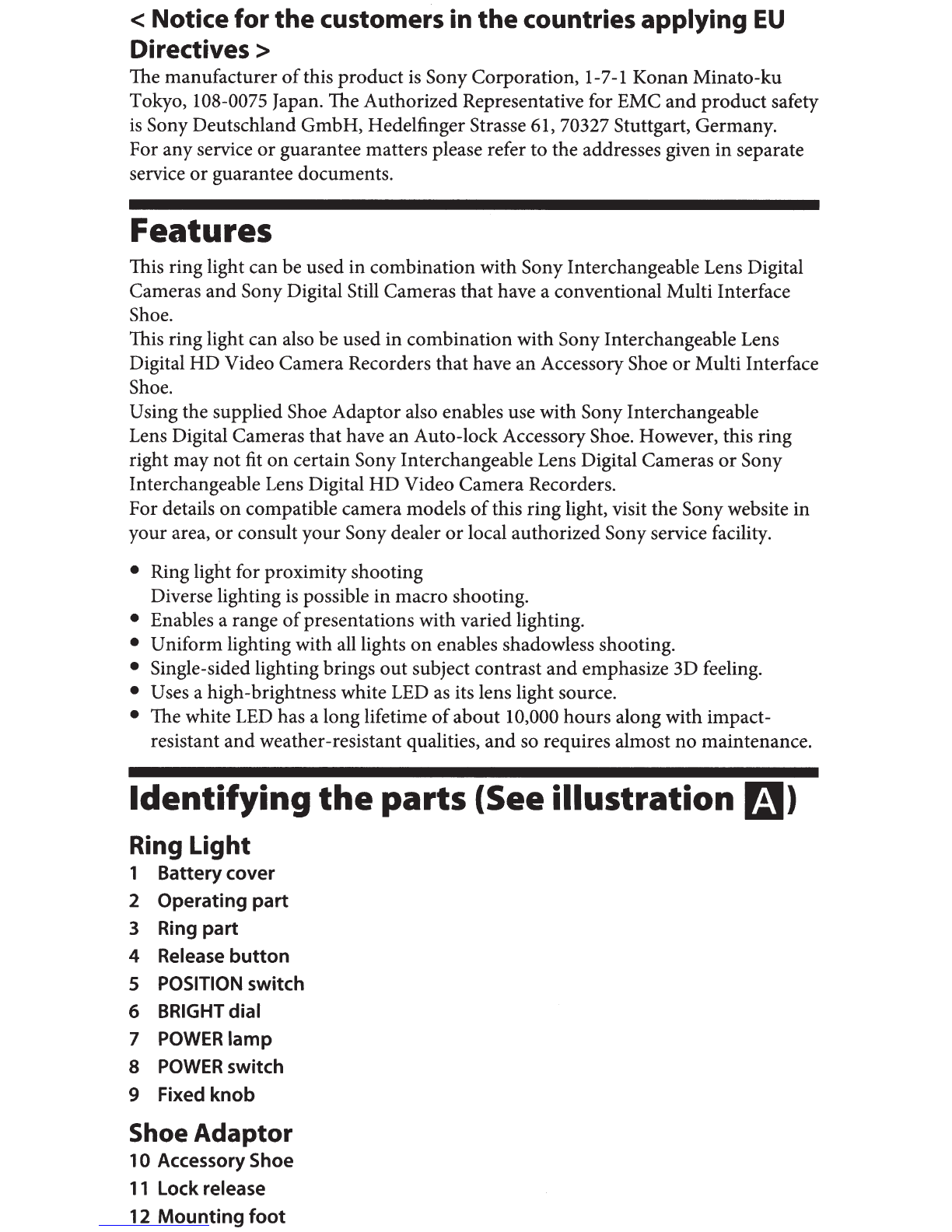

< Notice for the customers in the countries applying EU
Directives >
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service
or guarantee matters please refer to the addresses given in separate
service
or guarantee documents.
Features
This ring light can be used in combination with Sony Interchangeable Lens Digital
Cameras and Sony Digital Still Cameras that have a conventional Multi Interface
Shoe.
This ring light can also be used in combination with Sony Interchangeable Lens
Digital
HD Video Camera Recorders that have an Accessory Shoe or Multi Interface
Shoe.
Using the supplied Shoe Adaptor also enables use with Sony Interchangeable
Lens Digital Cameras that have an Auto-lock Accessory Shoe. However, this ring
right may not
fit on certain Sony Interchangeable Lens Digital Cameras or Sony
Interchangeable Lens Digital HD Video Camera Recorders.
For details on compatible camera models
of this ring light, visit the Sony website in
your area,
or consult your Sony dealer or local authorized Sony service facility.
• Ring light for proximity shooting
Diverse lighting
is possible in macro shooting.
• Enables a range
of presentations with varied lighting.
• Uniform lighting with all lights
on enables shadowless shooting.
• Single-sided lighting brings out subject contrast and emphasize 3D feeling.
• Uses a high-brightness white
LED as its lens light source.
• The white
LED has a long lifetime of about 10,000 hours along with impact-
resistant and weather-resistant qualities, and so requires almost no maintenance.

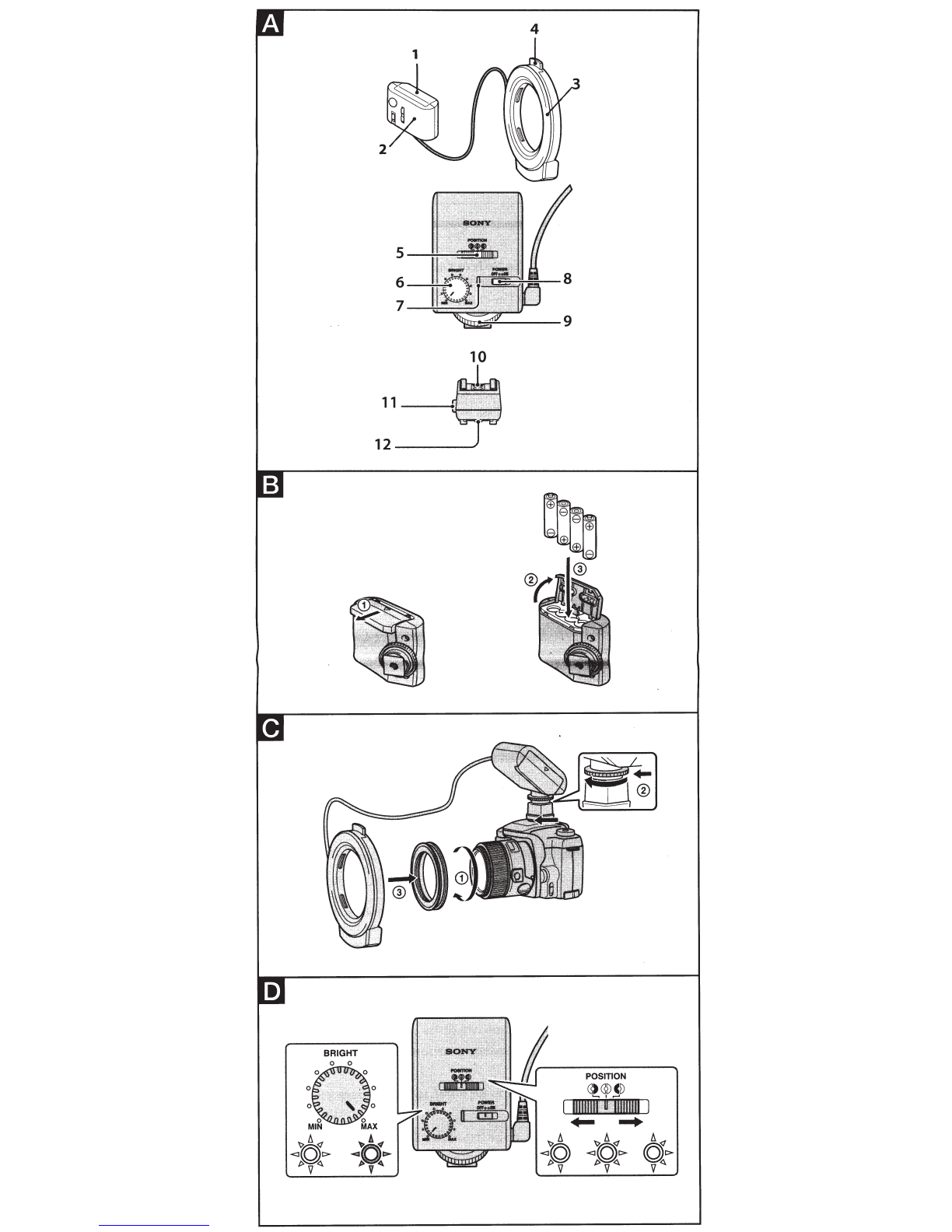

Identifying the parts (See illustration ri3)
Ring Light
1 Battery cover
2 Operating part
3 Ring part
4 Release button
5 POSITION switch
6 BRIGHT dial
7 POWER lamp
8 POWER switch
9 Fixed
knob
Shoe Adaptor
10 Accessory Shoe
11 Lock release
12 Mounting foot

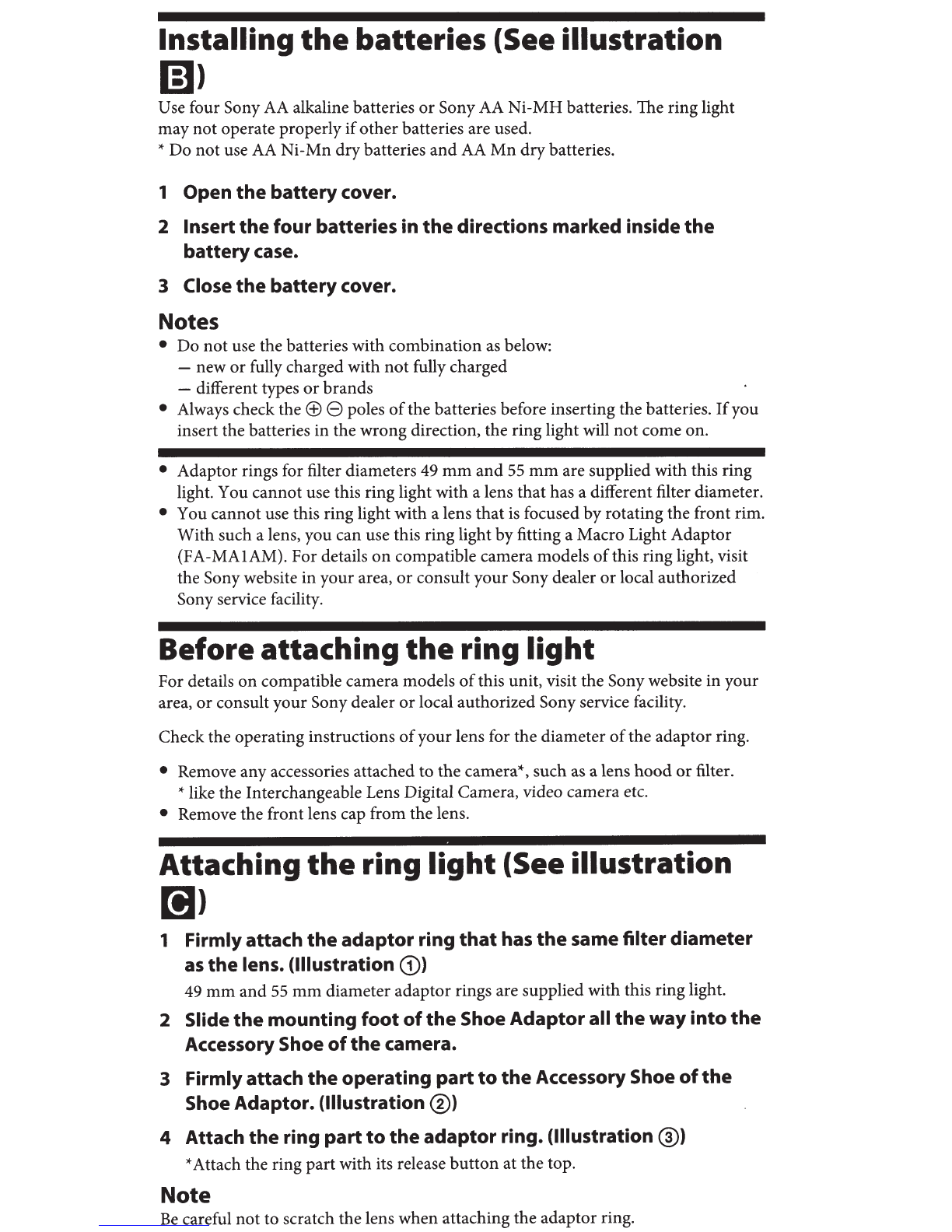

Installing the batteries (See illustration
G])
Use four Sony AA alkaline batteries or Sony AA Ni-MH batteries. The ring light
may
not operate properly if other batteries are used.
*Do
not use AA Ni- Mn drybatteries and AA Mn dry batteries.
1 Open the batterycover.
2 Insert thefour batteries in
the directions marked inside the
battery case.
3 Close the batterycover.
Notes
• Do not use the batteries with combination as below:
-new
or fully charged with not fully charged
-different types
or brands
• Always check the
(±) 8 poles of the batteries before inserting the batteries. If you
insert the batteries in the wrong direction, the ring light will
not come on.
• Adaptor rings for filter diameters 49
mm and 55 mm are supplied with this ring
light. You cannot use this ring light with a lens that has a different filter diameter.
• You cannot use this ring light with a lens
that is focused by rotating the front rim.
With such a lens, you can use this ring light byfitting a Macro Light Adaptor
(FA-MAlAM). For details
on compatible camera models of this ring light, visit
the Sony website in your area,
or consult your Sony dealer or local authorized
Sony service facility.
Before attaching the ring light
For details on compatible camera models of this unit, visit the Sonywebsite in your
area,
or consult your Sony dealer or local authorized Sony service facility.
Check the operating instructions
of your lens for the diameter of the adaptor ring.
• Remove any accessories attached to the camera*, such as a lens
hood or filter.
*like the Interchangeable Lens Digital Camera, video camera etc.
• Remove the front lens cap from the lens.
Attaching the ring light (See illustration
[til
1 Firmly attach the adaptor ring that has the same filter diameter
as the lens. (Illustration G))
49 mm and 55 mm diameter adaptor rings are supplied with this ring light.
2 Slide the mounting foot of the Shoe Adaptor all the way into the
Accessory Shoe
of the camera.
3 Firmly attach the operating part
to the Accessory Shoe of the
Shoe Adaptor.
(Illustration®)
4 Attach the ring part to the adaptor ring. (Illustration@)
*Attach the ring part with its release button at the top.
Note

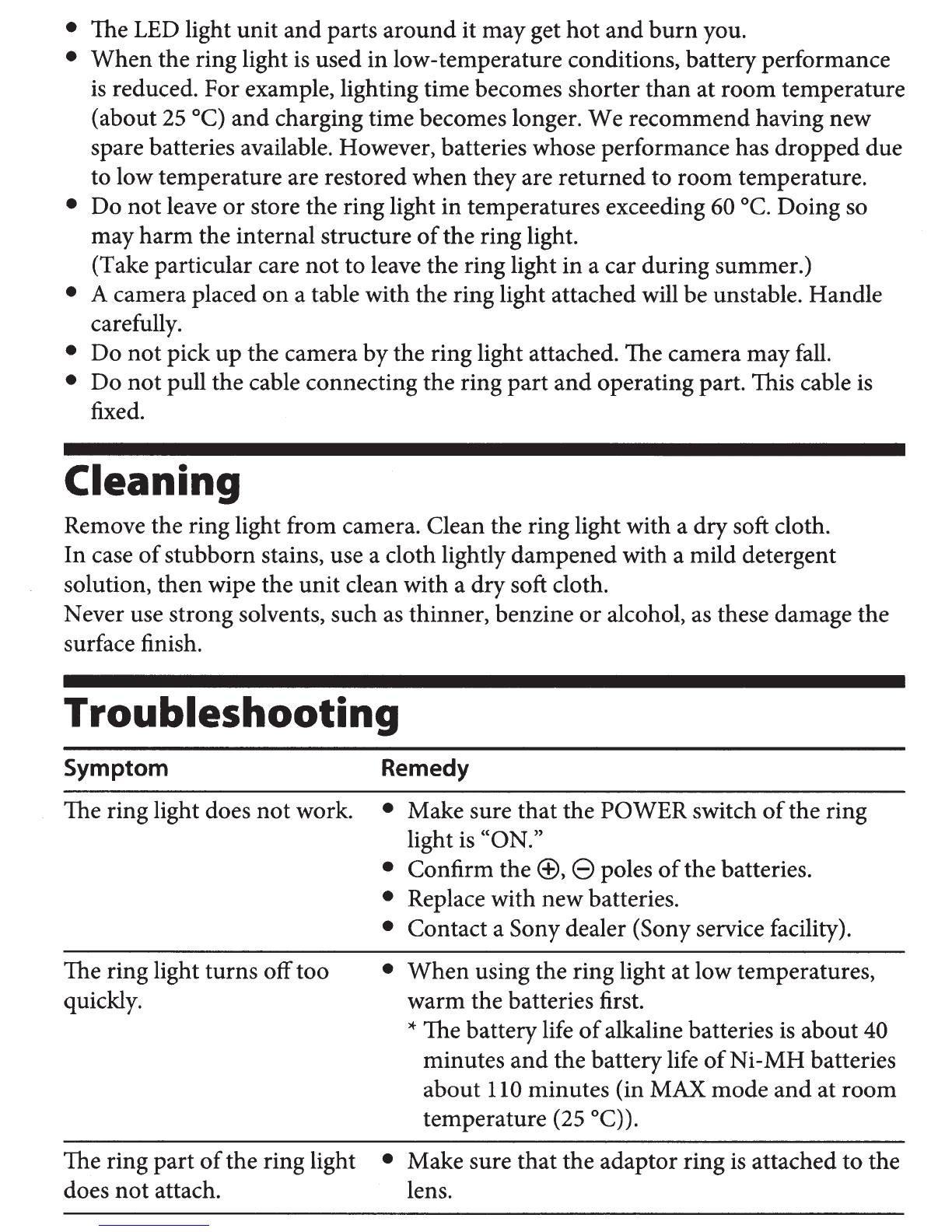

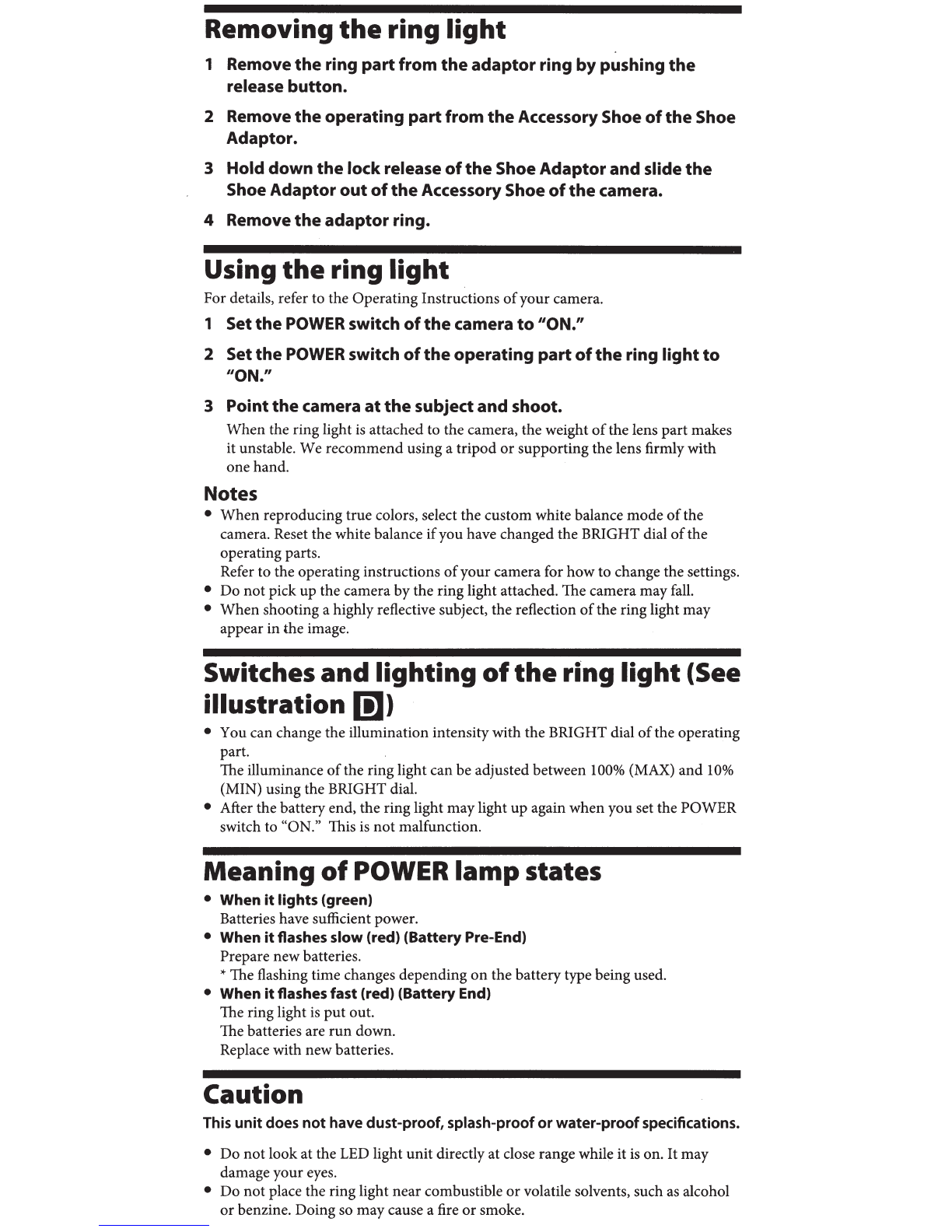

Be careful not to scratch the lens when attaching the adaptor ring.
