SERVICE MANUAL
Revision History
Revision History
Sony EMCS Co.
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
SERVICE NOTE
SPECIFICATIONS
REPAIR PARTS LIST
DISASSEMBLY ADJUSTMENTS
SERVICE NOTE
SPECIFICATIONS
REPAIR PARTS LIST
DISASSEMBLY ADJUSTMENTS
Link (Japanese)
Link (Japanese)
Link (English)
Link (English)
Ver. 1.1 2009.10
LENS FOR DSLR CAMERA
2009J0800-1
© 2009.10
Published by Tokai TEC9-852-691-12
US Model
Canadian Model
AEP Model
Chinese Model
Japanese Model
SAL1855
(DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
•About the Lens Test Projector and Finished Inspection JIG 2
・レンズ投影器と完成検査治具 2について
分解図につきましては，英語版を
ご参照ください。

— 2 —
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
SPECIFICATIONS
• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash for ADI.
•Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused
at infinity.
Equivalent 35mm-format focal length *1(mm)
27-82.5
Lens groups elements
7-8
Angle of view *1
76°-29°
*1The values for equivalent 35mm-format focal length and angle of view are based on Digital Single Lens Reflex Cameras equipped with an APS-
C sized image sensor.
Minimum focus *2(m (feet))
0.25 (0.82)
*2Minimum focus is the shortest distance from the image sensor to the subject.
Maximum magnification (X)
0.34
Minimum f-stop
f/22-36
Filter diameter (mm)
55
Dimensions (maximum diameter ×height) (mm (in.))
Approx. 69.5 ×69 (2 3/4 ×2 3/4)
Mass (g (oz.))
Approx. 210 (7 4/8)
Included items
Lens (1), Front lens cap (1), Rear lens cap* (1), Set of printed documentation
* The packaging lid is included instead if you purchase the lens as part of a kit.
Designs and specifications are subject to change without notice.
TELE
WIDE
Extra-Low Dispersion Glass
1st Lens
(-1.925mm)
2nd Lens
(38.011mm)
Amount of zoom
movement
Amount of focus movement
(7.065mm)
Aspheric Lens
Aspheric Lens

1-1
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
1. SERVICE NOTE
1-1. Chemicals
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health and environment, and wastes resources.
Manage the chemicals carefully as follows.
•Store chemicals sealed in a specific place to prevent from exposure to high temperature or direct sunlight.
•Avoid dividing chemicals into excessive numbers of small containers to reduce natural evaporation.
•Keep containers sealed to avoid natural evaporation when chemicals are not in use.
•Avoid using chemicals as much as possible. When using chemicals, divide only required amount to a small plate from the container and
use up it.
1-2. Exterior Parts
Be careful to the following points for exterior parts used in this unit.
•Use a piece of cleaning paper or cleaning cloth for cleaning exterior parts. Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint thinner, ketone, nor alcohol.
•Insert the specific screws vertically to the part when installing a exterior part.
Be careful not to tighten screws too much.
1-3. Unleaded Solder
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
•Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature for a short time.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Be sure to control soldering iron tips used for unleaded solder and those for leaded solder so they are managed separately. Mixing
unleaded solder and leaded solder will cause detachment phenomenon.

1-2
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
1-4. SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C during repairing.
•Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE WITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

2-1
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)

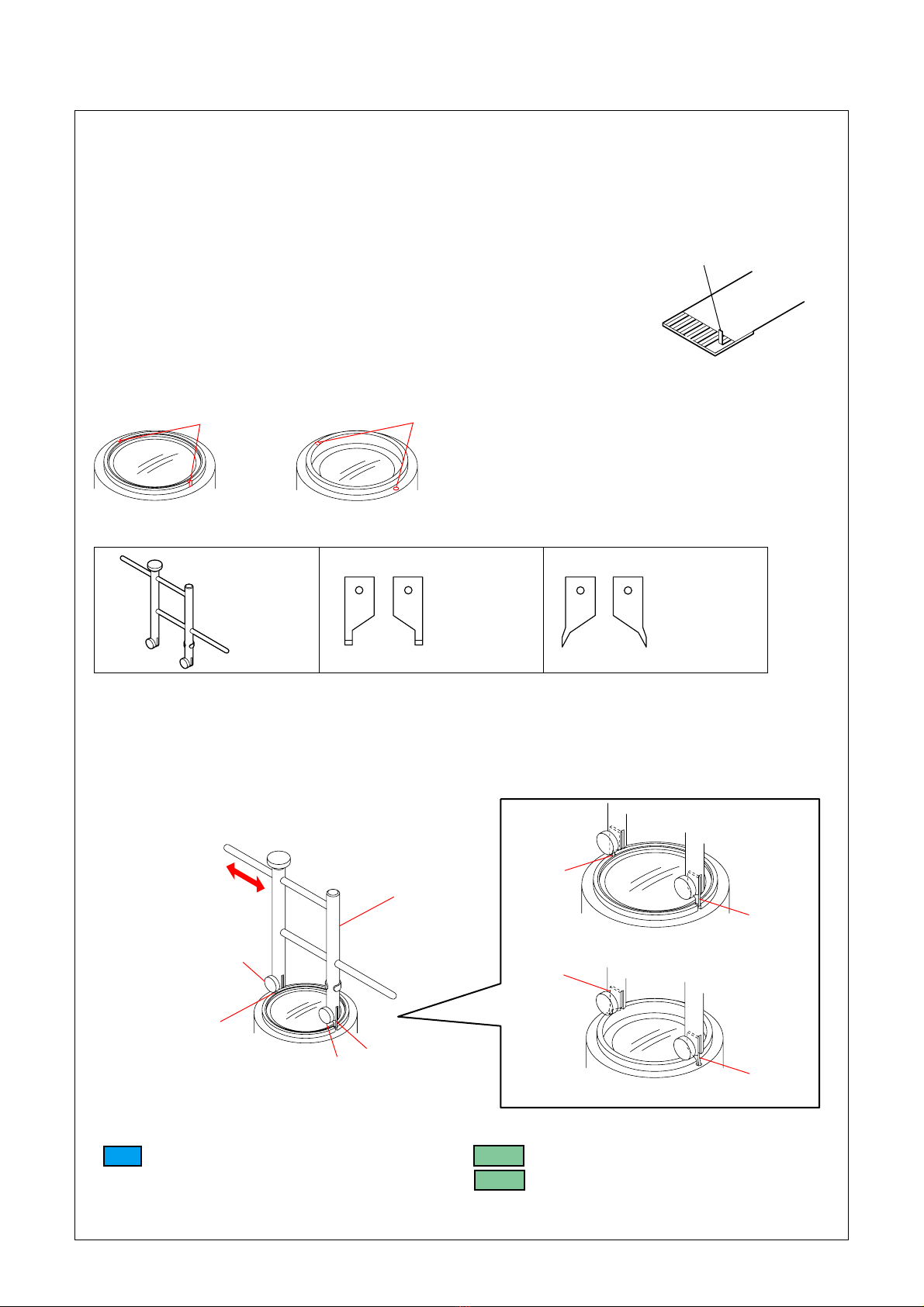

2. DISASSEMBLY
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped.
• When installing a connector, don’t press down at wire of connector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.
UNIVERSAL WRENCH
In case of the following notches or holes are located in the lens block, etc during disassembling/
assembling the lens, Use the universal wrench.
How to Use
Attach the chip-A or chip-B to the universal wrench.
For the notches: chip-A
For the holes: chip-B
Match the universal wrench to the holes or notches of the lens block, etc.
Notches Holes
Universal wrench
J-6082-609-A
Chip-A for
universal wrench:
J-6082-609-1
Chip-B for
universal wrench:
J-6082-609-2
Notches
Chip-A
Chip-A
Chip-B
Chip-B
Chip
Fixed screw
Fixed screw
Chip
Match the universal wrench
to the width of holes or notches. Universal wrench
Holes
B-10 FT-210
Grease (FT-210): 7-640-018-91
Adhesive bond (B-10): J-6082-612-A
SERVICE TOOLS
SG-310
Grease (SG-310): 7-640-008-88

SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
2-2

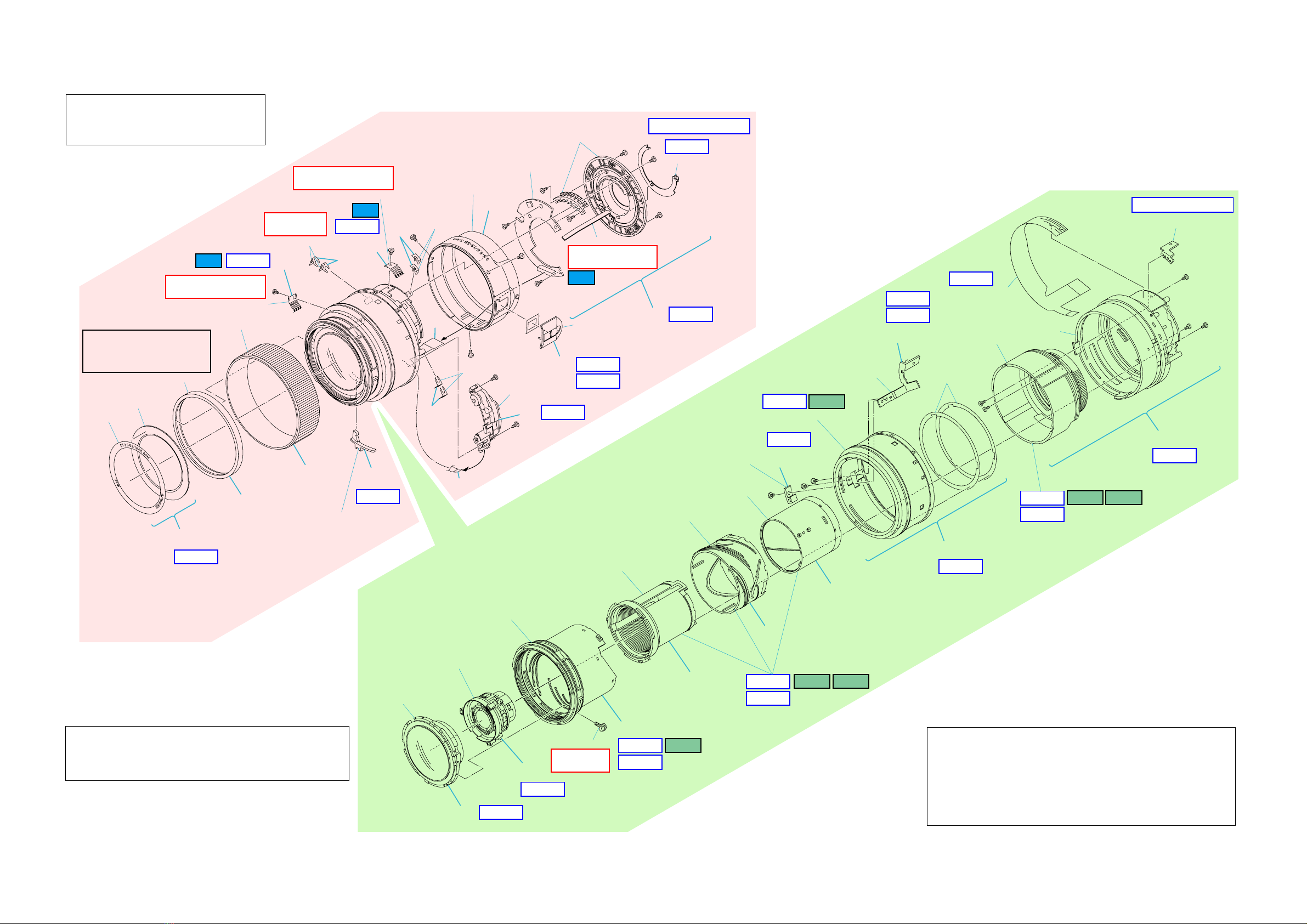

2-1. DISASSEMBLY
REPAIR PARTS LIST
REPAIR PARTS LIST
6
5
qd
1
q;
9
8
3
2
7
1
25
qs qa
6
6
4
6q;
3
9
8
7
6
4
B-10
B-10
SG-310
SG-310 FT-210
FT-210
SG-310 FT-210
Focus Stopper
HELP09
HELP10
HELP12
HELP21
HELP22
HELP15
HELP14
HELP16
HELP17
HELP18
HELP19
HELP11
HELP20
HELP10
HELP01
HELP02
HELP06
HELP04
HELP13
HELP03
HELP05
HELP07
HELP08
HELP23
2-1-1
2-1-2
Fixed Sleeve
Zoom Interlocking Key
GP1 Moving Barrel
Zoom Brush
Focus Drive Ring
Mount Block
CL-005 Mount
Rear Holding Tube Assy
(Note 3)
Mount Cover
Focus Rubber Ring
Front Lens Barrel
Tele Stopper
Zoom Cam Sleeve
Back Adjustment
Washer
Fixed Hold Ring
Focus Brush
Zoom Rubber Ring
Control Tube Block
(Note 3)
Zoom Sheet
ZF Flexible Flexible
PWB
Front Ring
Front
Decoration Plate
Zoom Key Stopper
DC Motor
(Geared)
Switch Panel Block
(Note 2, 3)
Function Lever
Back Adjustment Washer
Back Adjustment
Washer
1st Lens Barrel Block
2nd Lens Barrel Block
Screw
Note 1:
This lens can disassemble both the
1st lens side and the mount side.
FLANGE BACK
ADJUSTMENT
APERTURE DIAMETER
ADJUSTMENT
ZOOM BRUSH POSITION
ADJUSTMENT
FOCUS BRUSH POSITION
ADJUSTMENT
FOCUS-SHIFT
ADJUSTMENT
B-10
Install the focus ring,
orienting the concave
step side to the eyepiece.
Note 3
Two types of these parts, black and brown, are provided.
Refer to Ò3.REPAIR PARTS LISTÓ.
Note 2:
How to remove the switch panel block (Scratch prevention)
1. Remove three screws fixing the rear holding tube assy.
2. Set the AF/MF switch to AF.
3. Push the rear holding tube assy to the mount side.
4. Remove the switch panel block by inserting a Philips
screwdriver or a knife from the focus ring side.

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
HELP
Note for assembling and grease applying positions are shown.
HELP01
How to remove the switch panel block (Scratch prevention)
1. Remove three screws fixing the rear holding tube assy.
2. Set the AF/MF switch to AF.
3. Push the rear holding tube assy to the mount side.
4. Remove the switch panel block by inserting a Philips screwdriver or a knife from the focus ring side.
Switch Panel Bloc
k
Push the Rear Holding Tube Assy to the Mount side
and insert a Philips screwdriver or a knife.
Philips screwdriver or knife.

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

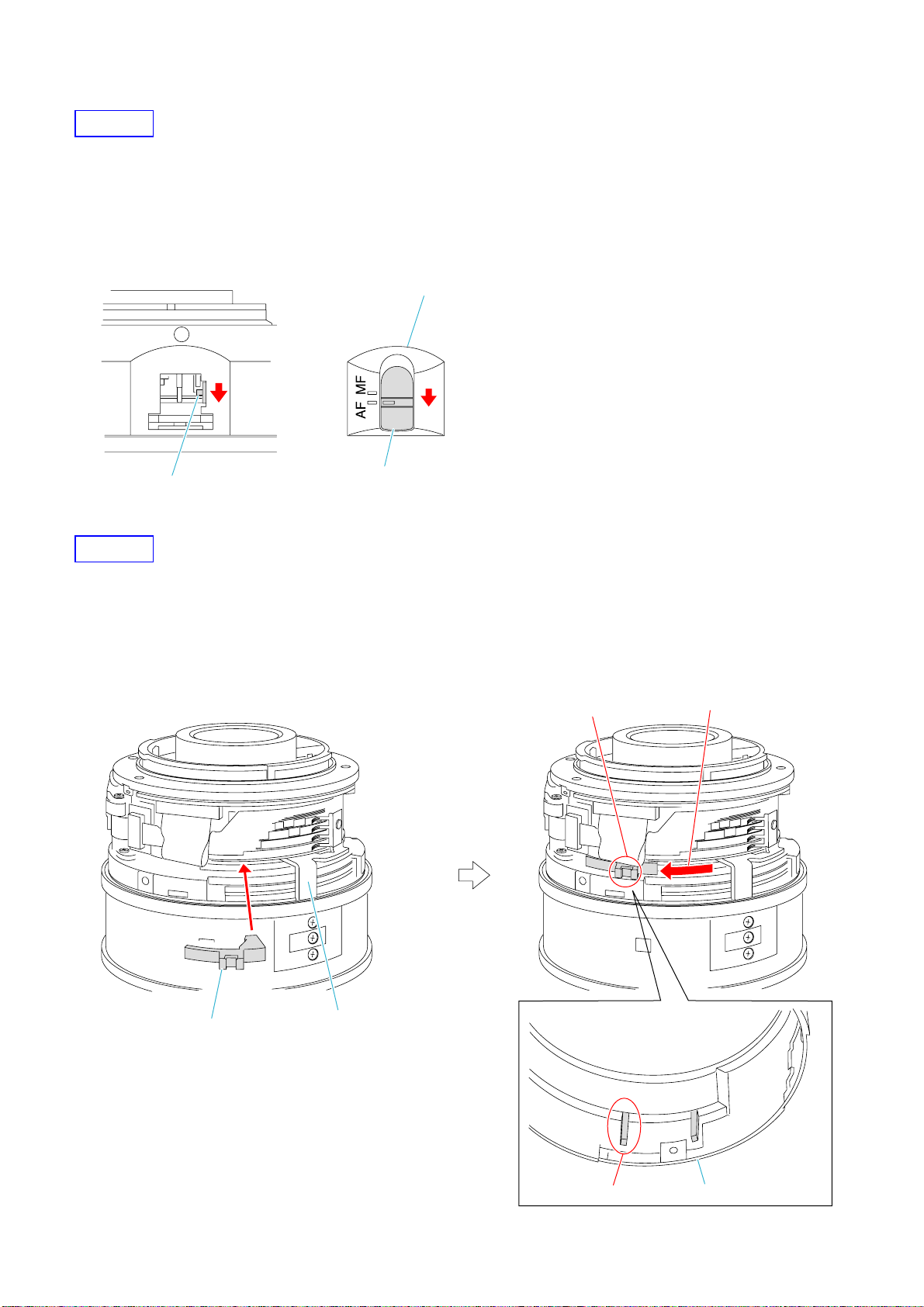

HELP02
Note on switch panel installation
1. Set the slide switch of DC Motor (Geared) to AF.
2. Set the knob of switch panel block to AF.
3. Peel the released paper from the switch panel block and install the switch panel block.
HELP03
1. Set the zoom to a position other than the TELE end and install the zoom key stopper.
2. Push counterclockwise the zoom key stopper.
Note: When installing the rear holding tube assy, insert the projection A of rear holding tube assy in the groove of zoom key
stopper.
Slide Switch
(DC Motor (Geared))
Switch Panel Bloc
k
MF Side
AF Side
Knob
Zoom Key Stopper
Rear Holding Tube Assy
Set the zoom to a position
other than the TELE end
Push counterclockwise
Projection A
Groove of the
Zoom Key Stopper

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

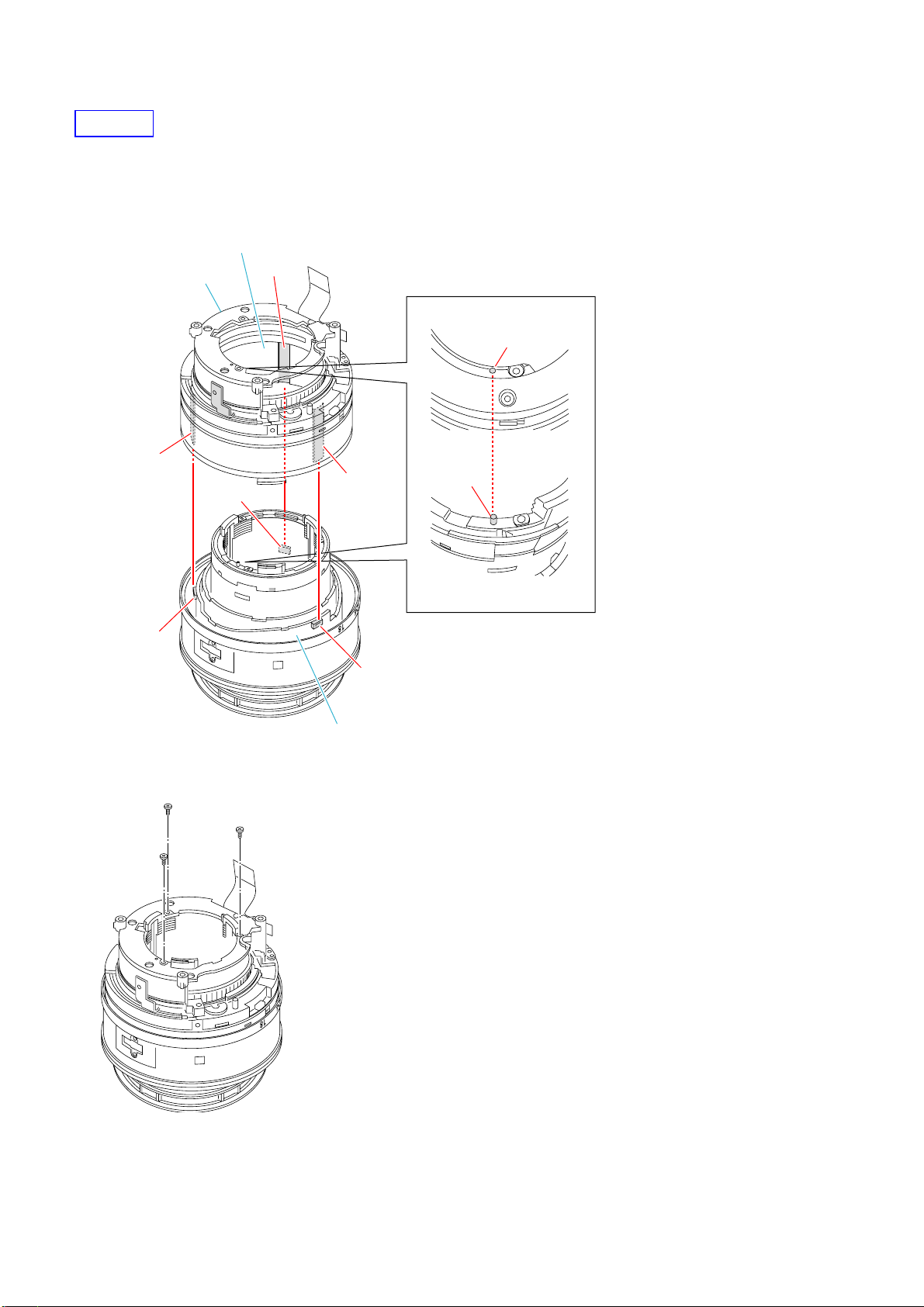

HELP04
1. While inserting the aperture interlocking fork in the aperture lever, install the mount block.
2. Select 1 to 2 pieces of back adjustment washer to make a combination of specified thickness.
Note: The amount of back adjustment washer differs depending on the adjustment. (Refer to the flange back adjustment.)
3. Push the back adjustment washers in between the boss and the Mount Block. (3 locations)
Note: When stacking several pieces of back adjustment washer, install the washers so that thin one comes at the outer side.
4. Tighten the mount block with three screws.
5. Connect the ZF Flexible PWB to the connector of the CL-005 Mount.
Mount Bloc
k
Aperture Interlocking Fork
Aperture Lever
Back Adjustment Washer
Mount Block
ZF Flexible PWB
Back Adjustment Washer
Back Adjustment
Washer Connector of
CL-005 Mount
Boss
Thin
Thick

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
HELP05
1. Set the zoom to somewhere in the range of “28-35” and the focus to the infinity end.
2. Aligning the character [DT] on the front decoration plate with the slant portion of bayonet, affix the front decoration plate.
Note: Align with the slant portion of bayonet at the Tele stopper side.
HELP06
1. Affix the flexible of DC Motor (Geared) to the fixed holding tube.
2. Connect the ZF Flexible PWB to the connector.
Front Decoration Plate
Tele Stopper
Slant portion of bayonet
ZF Flexible PWB
Connector
Affix the flexible of
DC Motor (Geared) to
the Fixed Holding Tube.

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

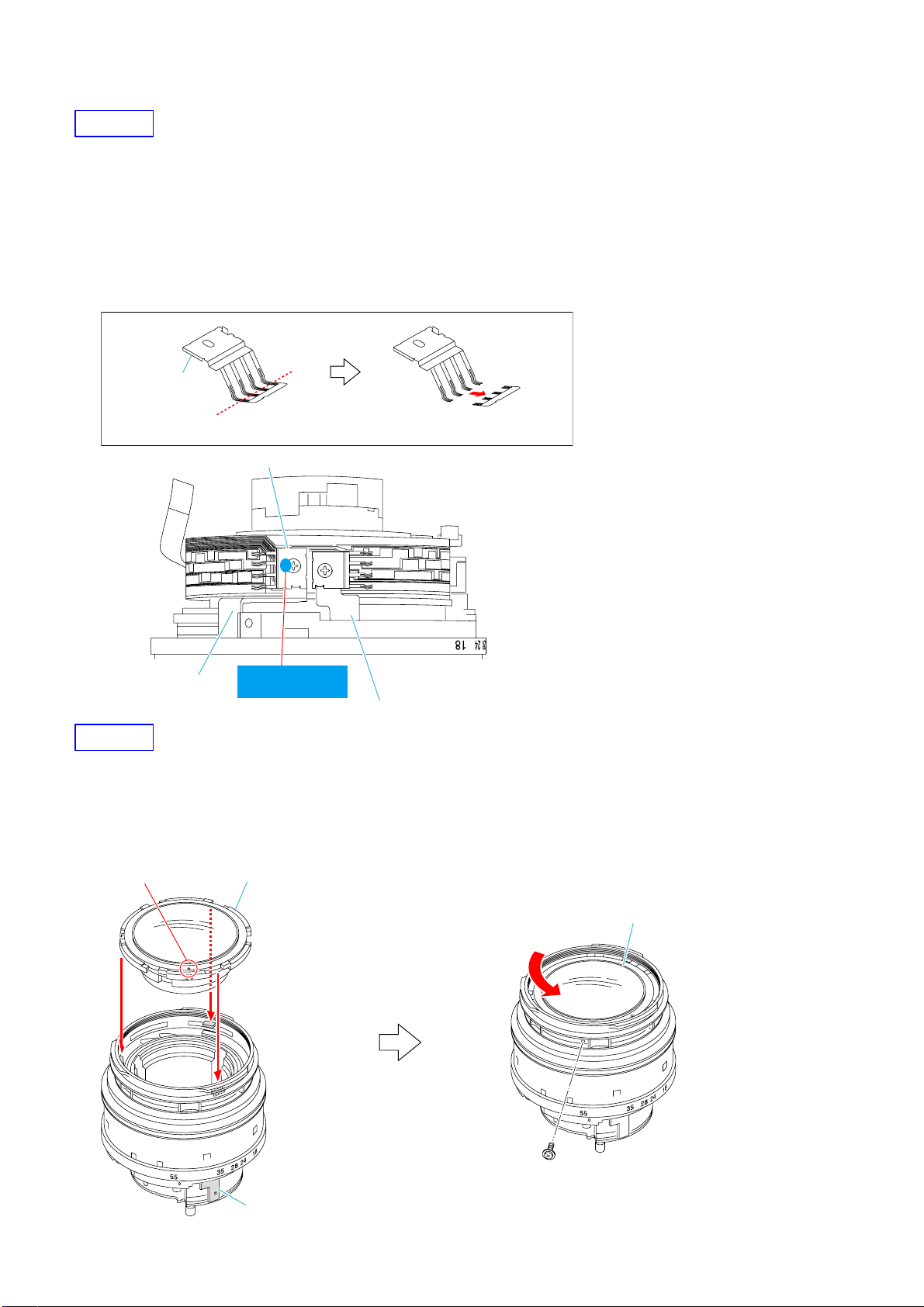

HELP07
Adhesive bond (B-10): J-6082-612-A
1. Cut the tip of focus brush with nippers.
2. Install the focus brush and fix it with one screw.
Note: Install it in the state that the focus stopper and the zoom interlocking key locate in the center.
3. After performing the focus brush position adjustment, apply the adhesive bond (B-10) to the head of screw.
Focus Brush
Focus Stopper
Zoom Interlocking Key Apply the adhesive bond (B-10)
Focus Brush
Cut with nippers.

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

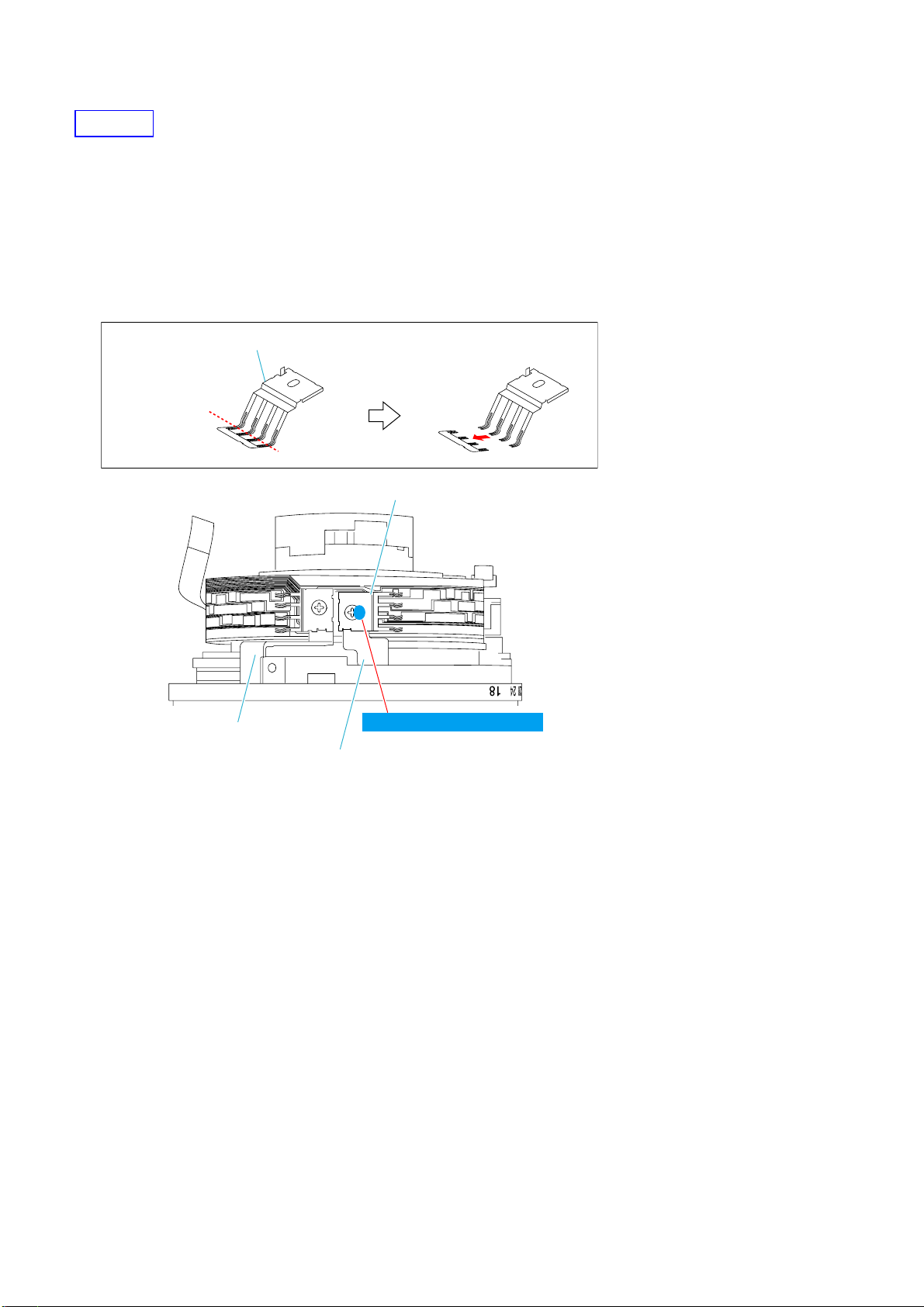

HELP08
Adhesive bond (B-10): J-6082-612-A
1. Cut the tip of zoom brush with nippers.
2. Install the zoom brush and fix it with one screw.
Note: Install it in the state that the focus stopper and the zoom interlocking key locate in the center.
3. After performing the zoom brush position adjustment, apply the adhesive bond (B-10) to the head of screw.
HELP09
1. Install the 1st lens barrel block.
Note: Align the index hole with the focus stopper.
2. Turn counterclockwise the 1st lens barrel block and fix it with one screw.
Zoom Interlocking Key
Focus Stopper
Zoom Brush
Zoom Brush
Apply the adhesive
bond (B-10)
Cut with nippers.
1st Lens Barrel Block
Focus Stopper
1st Lens Barrel Bloc
k
Index hole

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

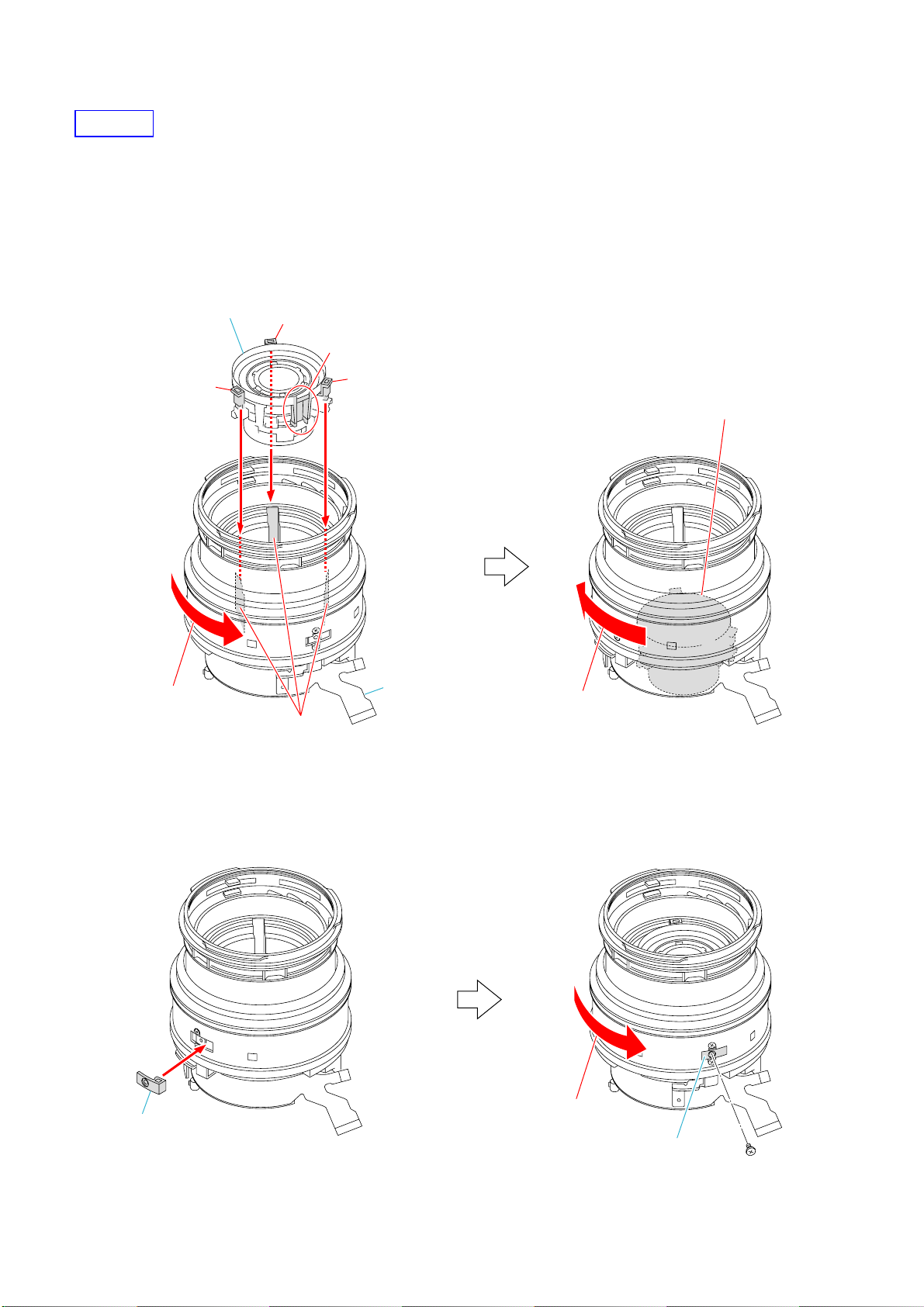

HELP10
1. Set the zoom to the TELE end and insert the 2nd lens barrel block, aligning the grooves with the projections at three locations.
Note: Align the aperture lever with the ZF flexible PWB.
2. Set the zoom to the WIDE end, and the 2nd lens barrel block is pulled in and fixed.
Note: If the zoom is set to the TELE end, the 2nd lens barrel block will be dislocated. Therefore, do not set the zoom to the TELE
end.
3. Install the Tele stopper.
Note: Install it in the state that the zoom is set to a position other than the TELE end.
4. Push the zoom to the TELE end and tighten it with one screw.
2nd Lens Barrel Block
ZF Flexible PWB
Aperture Lever
Set to the WIDE end.
Set to the TELE end.
Projection
Projection
Projection
The 2nd lens barrel block
is pulled in and fixed.
Groove
Tele Stopper
Tele Stopper Push to the TELE end

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

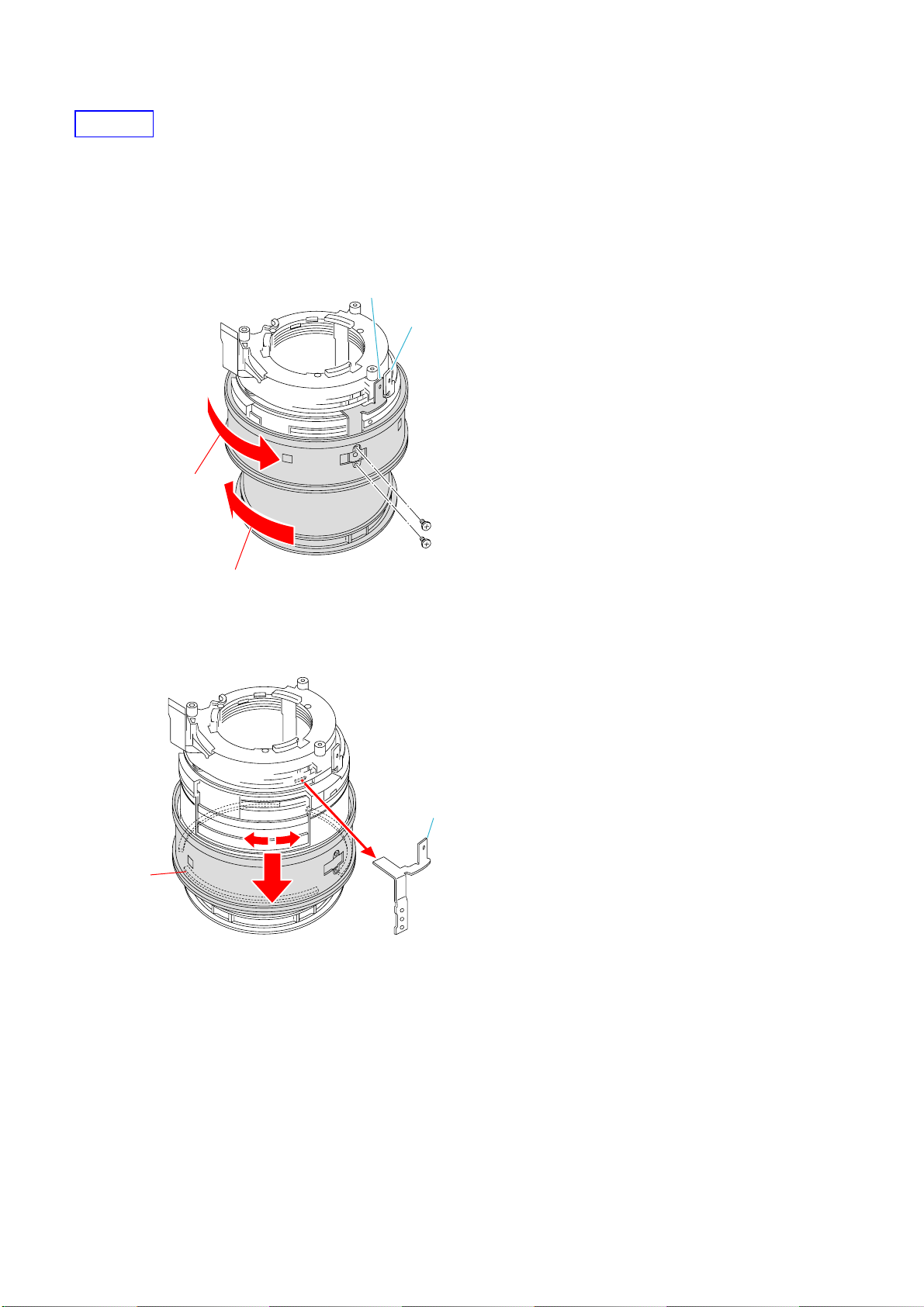

HELP11
How to remove the zoom interlocking key
1. Set the zoom to the WIDE end and the focus to the NEAR end. (In the state that the zoom interlocking key and the focus stopper
locate in the center.)
2. Remove two screws.
3. Unlock the engagement of the bayonet by moving right and left the control tube block and shift it in the front lens barrel direction.
4. Remove the zoom interlocking key.
Zoom Interlocking Key
Focus Stoppe
r
Set to the WIDE end.
Set the unit to the near end.
Zoom Interlocking Key
Bayonet

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
HELP12
How to install the zoom interlocking key
1. Set the zoom to the WIDE end.
Note: If the zoom is set to the TELE end, the front lens barrel will be dislocated. Therefore, never set the zoom to the TELE end.
2. Set the focus to the near end by rotating.
3. Remove the bayonet from the control tube block and shift the control tube block in the front lens barrel direction.
4. Insert the zoom interlocking key in the hole of zoom cam sleeve and hold it.
5. Return the control tube block and engage the bayonet with it.
6. Align the control tube block with the hole of zoom interlocking key and tighten them with two screws.
Set the unit to the near end.
Move the hole of Zoom Cam Sleeve in
the arrow direction. (Set to the WIDE end.)
Front Lens Barrel
Bayonet
Zoom Interlocking Key
Remove the bayonet and shift the control tube
block in the front lens barrel direction.
Hole of Zoom Cam Sleeve
Zoom Interlocking Ke
y
Bayonet
Return the control tube block
and engage the bayonet with it.

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
HELP13
1. Aligning the pin of fixed sleeve with the pin hole of fixed hold ring, install the fixed holding tube block.
Note: Insert the projections of front lens barrel in the grooves of focus drive ring.
2. Fix it with three screws.
Focus Drive Ring
Front Lens Barrel
Fixed Hold Ring
Fixed Sleeve
Fixed Hold Ring Block
Pin
Groove
Groove
Groove
Projection
Projection
Projection
Pin hole

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

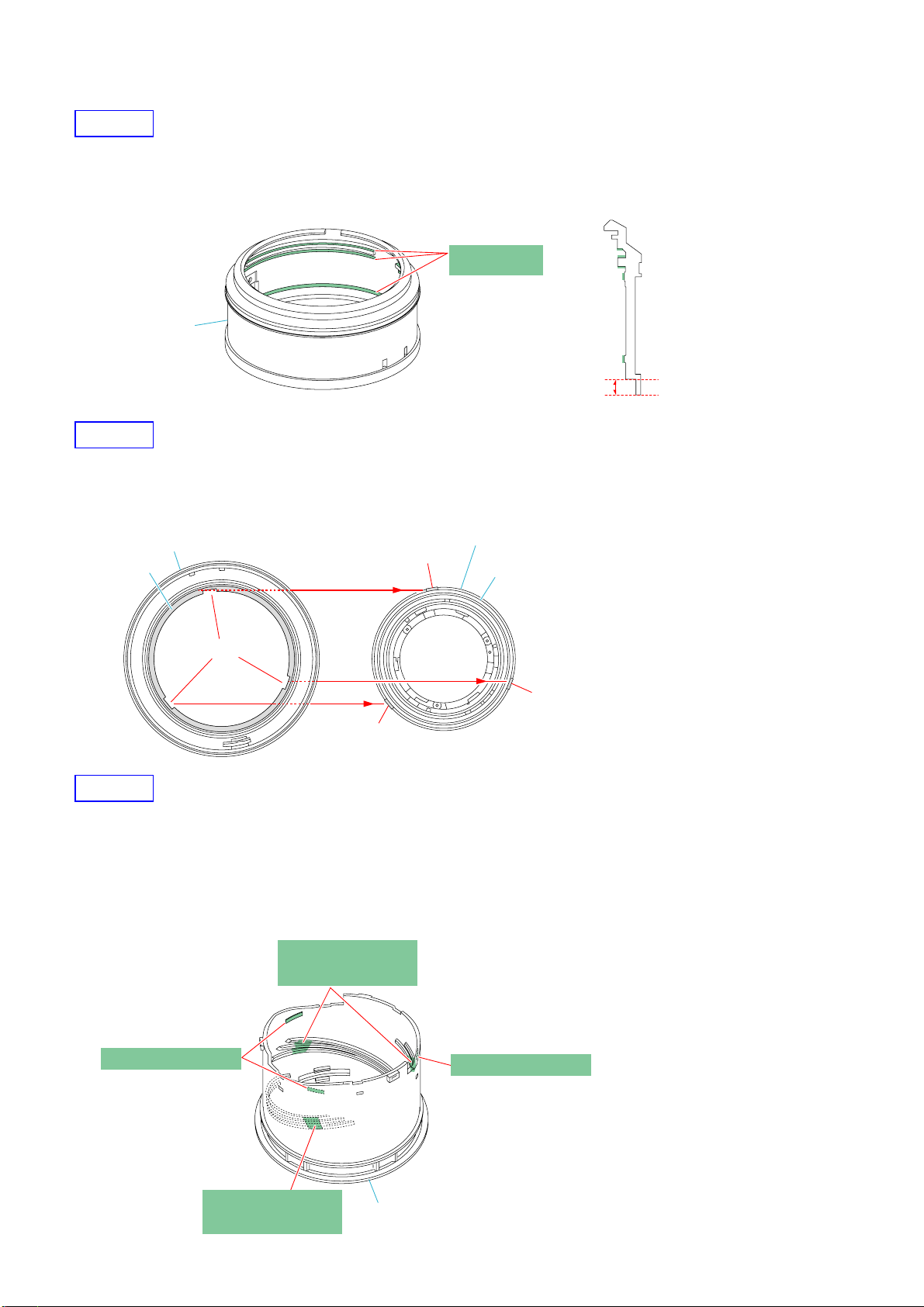

HELP14
Grease (FT-210): 7-640-018-91
1. Apply the grease (FT-210) to the indicated portion of control tube block.
HELP15
1. Align the cut portion of control tube block with the cut portion of zoom sheet.
2. Aligning the projections of front lens barrel with the cut portions of control tube block, insert the control tube block in the front lens
barrel block.
HELP16
Grease (SG-310): 7-640-008-88
1. Apply the grease (SG-310) to the indicated portions of front lens barrel. (Three locations)
Note: Apply the grease so that the groove of helicoid is filled with grease.
2. Apply the grease (SG-310) to the indicated portions of front lens barrel. (Three locations)
Apply the grease
(FT-210)
Be careful not to apply
the grease to this area.
Control Tube Block
Control Tube Block
Zoom Sheet
Front Lens Barrel Block
Front Lens Barrel
Projection
Projection
Projection
Cut Portion
Front Lens Barrel
Apply the grease (SG-310) Apply the grease (SG-310)
Apply the grease (SG-310)
(Fill the groove of helicoid
with the grease)
Apply the grease (SG-310)
(Fill the groove of helicoid
with the grease)

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

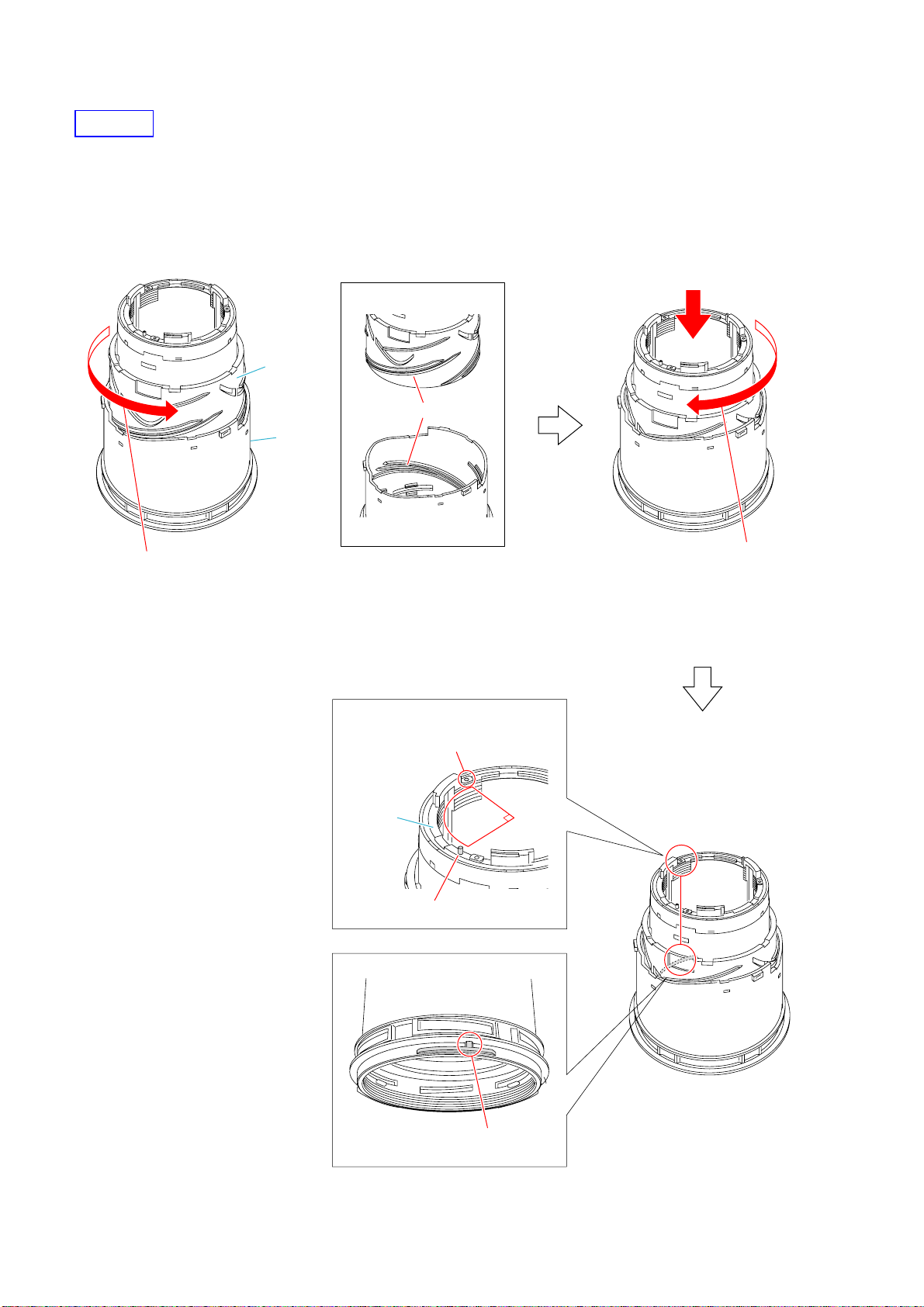

HELP17
1. Mount the GPI moving barrel on the front lens barrel.
2. Rotate counterclockwise (viewing from the mount side) the GP1 moving barrel and assemble it at the position where the helicoid is
engaged (Clicked).
Note: When moving the helicoid to the last, confirm that the bayonet click portion comes to the location where the screw hole
locates about 90 degrees apart from the pin of fixed sleeve in the clockwise direction (viewing from the mount side).
GP1 Moving Barrel
Front Lens
Barrel
Fixed
Sleeve
Front Lens Barrel
GP1 Moving
Barrel
Helicoid
Pin
Meet the Helicoids each other by rotating
counterclockwise the GP1 moving barrel
When the helicoid engages (clicks),
assemble the GP1 moving barrel
by rotating it clockwise.
Screw at the location where it is
clockwise (viewing from the mount)
turned by about 90 degrees from the pin
Bayonet click portion

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)
HELP18
Grease (FT-210): 7-640-018-91
Grease (SG-310): 7-640-008-88
1. Apply the grease (SG-310) to the grooves of fixed sleeve. (Three locations)
Note: Apply the grease so that the groove is filled with grease.
2. Apply the grease (FT-210) to the wall of oblong hole of fixed sleeve. (Six locations)
3. Apply the grease (SG-310) to the indicated portions of GP1 moving barrel. (Six locations)
Note: Apply the grease so that the grease remains on the wall.
4. Apply the grease (SG-310) to the helicoids of zoom cam sleeve. (Six locations)
Note: Apply the grease so that the grease remains on the wall.
Fixed Sleeve
Apply the grease (SG-310)
to the grooves (Three locations)
(Groove is filled)
Apply the grease (FT-210)
to the wall of oblong hole
(Six locations)
GP1 Moving Barrel
Apply the grease (SG-310)
(Six inner locations)
Apply the grease (SG-310)
(Three inner locations)
Zoom Cam Sleeve
Apply the grease (SG-310)
(Three inner locations)

HELP
SAL1855 (DT 3.5-5.6/18-55 SAM) (DT 18-55mm F3.5-5.6 SAM)

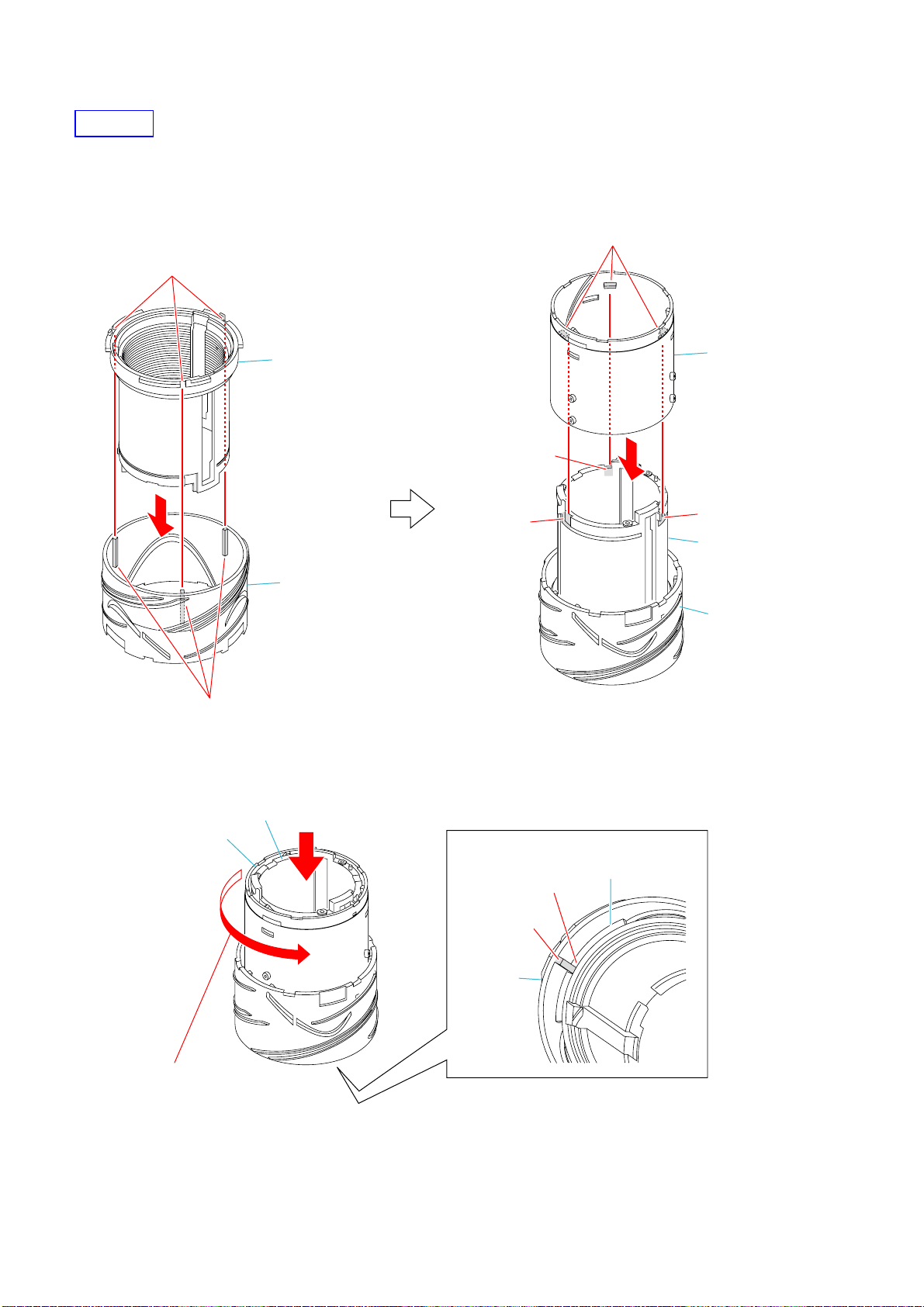

HELP19
1. Align the cut portions A of fixed sleeve with the projections of GP1 moving barrel and drop the fixed sleeve in GP1 moving barrel.
2. While holding the fixed sleeve and the GP1 moving barrel, install the zoom cam sleeve, aligning the projections of zoom cam sleeve
with the cut portions B of fixed sleeve.
3. Align the cut portions A of fixed sleeve with the projections of GP1 moving barrel again and assemble the zoom cam sleeve by
rotating it counterclockwise (viewing from the mount side).
Fixed Sleeve
GP1 Moving Barrel
Zoom Cam Sleeve
Fixed Sleeve
GP1 Moving Barrel
Cut Portion A
Cut Portion B
Cut Portion B
Cut Portion B
Projection
Projection
Fixed Sleeve
Zoom Cam Sleeve
Fixed Sleeve
GP1 Moving
Barrel
Cut Portion A
Projection
Rotate counterclockwise
the Zoom Cam Sleeve
(Viewing from the mount side)
