Sony 158N5100BT User manual

SONY.
Bluetooth®
Audio
System
The warranty
for
this product
is
included in this manual (page
38,
39).
La
garantie de
ce
produit est inclus dans le present manuel (page
41).
Owner's Record
The model and serial numbers are located on the
bottom
of
the unit.
Record these numbers in the spaces provided below.
Refer
to
these numbers wheneveryou call upon yourSony dealer regarding
this product.
Model
No.
-------
Serial No.
--------
For
the
connection/installation, see page 32.
Pour le raccordement/l'installation, reportez-vous
a
Ia
page
35.
Para
Ia conexi6n/instalaci6n, consulte Ia pagina 34.
To
cancel the demonstration (DEMO) display, see page
18.
Pour annuler l'affichage de demonstration (DEMO), reportez-vous
a
Ia
page
21.
Para
cancelar
Ia
pantalla de demostraci6n (DEMO), consulte
Ia
pagina 20.
ffi]~~
DIGITAL
AUDIO
I
TEXT
I
Madefor
~
iPod D
iPhone
WORKS
WITH
PANDORA
4-548-379-11(1)
Operating Instructions
Mode d'emploi
Manual de instrucciones

For
safety,
be
sure
to
install this unit
in
the
dashboard
of
the car
as
the rear side
of
the unit
becomes hot during use.
For
details,
see
"Connection/Installation"
(page
32).
The nameplate indicating operating voltage, etc.,
is
located on the
bottom
of
the chassis.

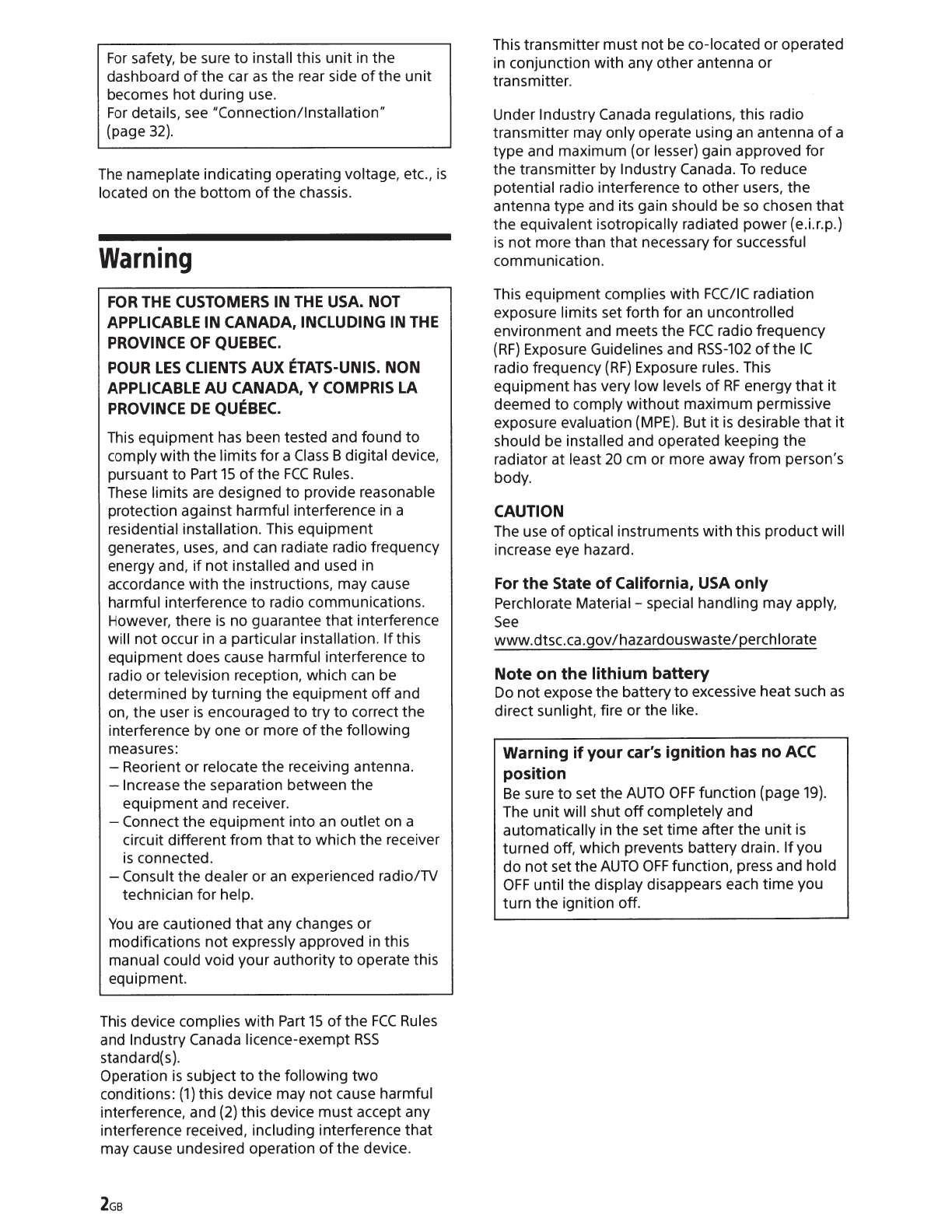

Warning
FOR
THE
CUSTOMERS
IN
THE
USA.
NOT
APPLICABLE
IN
CANADA,
INCLUDING
IN
THE
PROVINCE
OF
QUEBEC.
POUR
LES
CLIENTS
AUX
ETATS-UNIS.
NON
APPLICABLE
AU
CANADA, V
COMPRIS
LA
PROVINCE
DE
QUEBEC.
This equipment has been tested and found to
comply with the limits fora
Class
8 digital device,
pursuant to Part
15
of
the
FCC
Rules.
These limits are designed to provide reasonable
protection against harmful interference
in
a
residential installation. This equipment
generates, uses, and
can
radiate radio frequency
energy and,
if
not
installed and used
in
accordance with the instructions, may cause
harmful interference
to
radio communications.
However, there
is
no guarantee that interference
will not occur in a particular installation.
If
this
equipment does cause harmful interference to
radio or television reception, which
can
be
determined by turning the equipment
off
and
on, the user
is
encouraged to try to correct the
interference by one or more
of
the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect
the equipment into
an
outlet on a
circuit different from that to which the receiver
is
connected.
-Consult
the dealer or
an
experienced radio/TV
technician for help.
You
are
cautioned
that
any changes or
modifications
not
expressly approved in this
manual could void your authority to operate this
equipment.
This device complies with Part
15
of
the
FCC
Rules
and Industry Canada licence-exempt
RSS
standard(s).
Operation
is
subject to the following
two
conditions:
(1)
this device may
not
cause harmful
interference, and
(2)
this device must accept any
interference received, including interference that
may cause undesired operation
of
the device.
This transmitter must not be co-located or operated
in conjunction with any other antenna or
transmitter.
Under Industry Canada regulations, this radio
transmitter may only operate using
an
antenna
of
a
type and maximum (or lesser) gain approved for
the transmitter by Industry Canada.
To
reduce
potential radio interference to other users, the
antenna type and its gain should be
so
chosen
that
the equivalent isotropically radiated power (e.i.r.p.)
is
not more than that necessary for successful
communication.
This equipment complies with
FCC/IC
radiation
exposure limits set forth for
an
uncontrolled
environment and meets the
FCC
radio frequency
(RF)
Exposure Guidelines and
RSS-102
of
the
IC
radio frequency
(RF)
Exposure rules. This
equipment
has
very low levels
of
RF
energy
that
it
deemed to comply
without
maximum permissive
exposure evaluation
(MPE).
But
it
is
desirable
that
it
should be installed and operated keeping the
radiator at least 20
em
or more away from person's
body.
CAUTION
The use
of
optical instruments with this product will
increase eye hazard.
For
the State
of
California,
USA
only
Perchlorate Material -special handling may apply,
See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Note on the lithium battery
Do
not
expose the battery
to
excessive heat such
as
direct sunlight, fire or the like.
Warning ifyour
car's
ignition has no
ACC
position
Be
sure to set the
AUTO
OFF
function (page
19).
The unit will shut
off
completely and
automatically in the set time after the
unit
is
turned off, which prevents battery drain.
If
you
do not set the
AUTO
OFF
function, press and hold
OFF
until the display disappears each time you
turn the ignition off.

Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY
INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR OTHER DAMAGES INCLUDING,
WITHOUT LIMITATION,
LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF THE
PRODUCT OR ANY ASSOCIATED EQUIPMENT,
DOWNTIME, AND PURCHASER'S TIME RELATED TO
OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS
HARDWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio
transmitter.
Please check
your vehicle operation manual or
contact the manufacturer of your vehicle or your
vehicle dealer, before you install this product into
your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic
device connected
to the handsfree operate using
radio signals, cellular, and landline networks
as well
as user-programmed function, which cannot
guarantee connection under all conditions.
Therefore
do not rely solely upon any electronic
device
for essential communications (such as
medical emergencies).
On BLUETOOTH communication
• Microwaves emitting from a BLUETOOTH device
may affect the operation of electronic medical
devices. Turn
off this unit and other BLUETOOTH
devices in the following locations, as it may cause
an accident.
-where inflammable gas is present, in a hospital,
train, airplane,
or petrol station
-near
automatic doors or a fire alarm
• This
unit supports security capabilities that
comply with the BLUETOOTH standard to provide
a secure connection
when the BLUETOOTH
wireless technology is usep, but security may not
be enough depending on the setting. Be careful
when communicating using BLUETOOTH wireless
technology.
•
We do not take any responsibility for the leakage
of information during BLUETOOTH
communication.
If you have any questions or problems concerning
your unit that are not covered in this manual,
consult
your nearest Sony dealer.

Table
of
Contents
Warning
...................................
2
Guide
to
Parts and Controls
...................
5
Getting Started
Detaching
the
Front Panel
....................
7
Resetting
the
unit
...........................
7
Setting
the
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preparing a
BLUETOOTH
Device
................
8
Connecting an iPod/USB Device
..............
10
Connecting Other Portable Audio Device
.......
10
Listening
to
the
Radio
Listening
to
the
Radio
.......................
10
Using Radio Data System
(RDS)
...............
11
Listening
to
the
SiriusXM Radio
(MEX-N5100BT only) . . . . . . . . . . . . . . . . . . . . .
11
Playback
Playing a Disc
.............................
12
Playing an iPod/USB Device
..................
12
Playing a
BLUETOOTH
Device
.................
13
Searching and Playing Tracks
.................
13
Listening
to
Pandora®
Setting
up
Pandora®
........................
14
Streaming Pandora®
........................
14
Available Operations in Pandora®
.............
14
Handsfree Calling {via
BLUETOOTH
only}
Receiving a Call
............................
15
Making a
Call
..............................
15
Available Operations during Call
..............
16
Useful Functions
Song
Pal
with
iPhone/
Android Phone
..........
16
Using Siri
Eyes
Free
.........................
18
Settings
Canceling
the
DEMO
Mode
..................
18
Basic Setting Operation
.....................
18
General Setup
(GENERAL)
....................
18
Sound Setup (SOUND)
......................
19
Display Setup
(DISPLAY)
.....................
21
BLUETOOTH
Setup (BT). . . . . . . . . . . . . . . . . . . . . .
21
SongPal Setup
(SONGPAL)
...................
22
Additional Information
Updating
the
Firmware . . . . . . . . . . . . . . . . . . . . .
22
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting
...........................
26
Connection/Installation
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Parts List
for
Installation . . . . . . . . . . . . . . . . . . . .
32
Connection {For MEX-N5100BT). . . . . . . . . . . . . . .
33
Connection (For MEX-N4100BT)
..............
34
Installation
...............................
36
Important notice
The warranty
for
this product
is
included .
in
this
manual (page 38, 39). Keep this manual
for
future
use.
.
;:

Guide
to
Parts
and
Controls
Main
unit
Front panel removed (inner panel)
L
[I]
Front panel release button
[g)
SRC
(source)
Turn on
the
power.
Change
the
source.
-OFF
Press
and hold
for
1second
to
turn
the
source
off
and display the clock.
Press
and hold
for
more than 2 seconds
to
turn
off
the
power
and
the
display.
If
the
unit
is turned
off
and the display
disappears, operation
by
the
remote
commander
is
not
available.
~
Control dial
Rotate
to
adjust
the
volume.
PUSH
ENTER
Enter
the
selected item.
Press
SRC,
rotate then press
to
change
the
source.
Press
and hold
for
more than 2 seconds
to
establish "SongPal" function (connection).
VOICE
(page
16,
17,
18)
Activate voice dial, voice recognition when
the
"SongPal" function
is
on (Android™ phone
only},
or
the
Siri
function (iPhone only}.
N-Mark
Touch
the
control dial
with
Android phone
to
make
BLUETOOTH
connection.
@]
Disc
slot
[ID
Display
window
rn:J
SEEK+/-
Tune in radio stations automatically.
Press
and
hold
to
tune
manually.
~
,..,_.. (prev/next)
.,..,..,..
(fast-reverse/fast-forward)
[1]
~
(disc eject)
[ft]
Q
(browse) (page 13, 14)
Enter the browse mode during playback.
[ID
~CALL
Enter the call menu. Receive/end a call.
Press
and hold
for
more than 2 seconds
to
switch the
BLUETOOTH
signal.
[Q]
~(back)
Return
to
the previous display.
MODE (page 10, 13, 14, 16)
[1] Receptor for
the
remote commander
[12]
MENU*
Open
the
setup menu.
*
Not available when the
BT
phone
is
selected.
MJ
Number
buttons
(1
to 6}
Receive stored radio stations.
Press
and hold
to
store stations.
Call
a stored phone
number
.
Press
and hold
to
store a phone number.
ALBUM
T/.&
Skip
an
album
for
audio device.
Press
and
ho
ld
to
skip albums continuously.
5GB

Press A to thumbs up, or • to thumbs down in
Pandora®(page
14).
4 (repeat}
~(shuffle}
MIC (page 16}
PAUSE
[H) MEGA BASS
Press to turn on/off the MEGA BASS function.
M] PTY (program type}
Select PTY in RDS.
CAT (category} (MEX-N5100BT only)
Select radio channels in SiriusXM.
[1§] AUX inputjack
[1] DSPL (display)
Press to change display items.
- SCRL (scroll}
Press and hold to scroll a display item .
~USB port
~ RESET (inner panel} (page 7}
12Q] Microphone (inner panel} (MEX -N4100BT only)
In order for the handsfree function to work
properly, do not cover the microphone with
tape, etc. The
VOL (volume)+ button has a tactile dot.
12] SOUND*
Open the SOUND menu directly.
-MENU*
Press and hold to open the setup menu.
* Not available when the BT phone is selected.
~ +-;t;.J;-+
Select a setup item , etc.
ENTER
Enter the selected item.
1+111 /~ (prev/next}
+!-(album+/-)
~ VOL (volume}+/-
Remove the insulation film before use.

Getting
Started
Detaching
the
Front
Panel
You
can
detach the front panel
of
this unit to
prevent theft.
1
Press
and hold
OFF
CD
untilthe
unit
turns
off, press
the
front
panel release
button
@,
then
pull
the
panel towards you
to
remove.
Caution alarm
If
you turn the ignition switch
to
the
OFF
position
without
detaching the front panel, the caution
alarm will sound for a few seconds.
The
alarm will
only sound
if
the built-in amplifier
is
used.
Serial
numbers
Make sure the serial numbers on the bottom
of
the
unit and the back
of
the front panel are matched
correctly. Otherwise you cannot make
BLUETOOTH
pairing, connection and disconnection by
NFC.
Resetting
the
unit
Before operating the unit for the first time, after
replacing the car battery, or changing the
connections, you must reset the unit.
Press
RESET
on the inner panel with a ball-point pen, etc., after
detaching the front panel.
Note
Pressing
RESET
will erase the clock setting and some
stored contents.
Setting
the
Clock
1
Press
MENU,
rotate
the
control dial
to
select
[SET
GENERAL],
then
press it.
2
Rotate the control dial
to
select
[SET
CLOCK-ADJ],
then press it.
The hour indication flashes.
3 Rotate the control dial
to
set the
hour
and minute.
To
move the digital indication, press SEEK+/-.
4 After setting the minute, press
MENU.
The setup
is
complete and the clock starts.
To
display
the
clock
Press
DSPL.

Preparing a BLUETOOTH Device
You can enjoy music, or perform handsfree calling
depending on the BLUETOOTH compatible device
such as a
smartphone, cellular phone and audio
device (hereafter "BLUETOOTH device" if not
otherwise specified). For details on connecting,
refer
to the operating instructions supplied with the
device.
Before
connecting the device, turn down the
volume of this unit; otherwise, loud sound may
result.
By touching the control dial on the unit with an
NFC* compatible smartphone, the unit is paired and
connected
with the smartphone automatically.
*
NFC (Near Field Communication) is a technology
enabling short-range wireless communication
between various devices, such
as mobile phones and
IC tags. Thanks to the NFC function, data
communication
can be achieved easily just by
touching the relevant symbol or designated location
on
NFC compatible devices.
For a
smartphone with Android OS 4.0 or lower
installed, downloading the app "NFC Easy Connect"
available
at Google Play™ is required. The app may
not be downloadable in some countries/regions.
1 Activate the NFC function on the
smartphone.
For details, refer to the operating instructions
supplied
with the smartphone.
2 Touch the N-Mark part of the unit with
the N-Mark part of the smartphone.
Make sure that 0 lights up on the display of the
unit.
To disconnect by One touch
Touch the N-Mark part of the unit with the N-Mark
part of the smartphone again.
Notes
• When making the connection, handle the
smartphone carefully to prevent scratches.
•
One touch connection is not possible when the unit is
already connected to another NFC compatible device.
In this case, disconnect the other device, and make
connection with the smartphone again.
When connecting a
BLUETOOTH device for the first
time, mutual registration (called "pairing") is
required. Pairing enables this unit and other devices
to recognize each other.
1 Place the BLUETOOTH device within 1m
(3 ft) of this unit.
2 Press CALL, rotate the control dial to
select [SET PAIRING], then press it.
0 flashes while the unit is in pairing standby
mode.
3 Perform pairing on the BLUETOOTH
device so it detects this unit.
4 Select [MEX-XXXX] (your model name)
shown in the display of the BLUETOOTH
device.
If your model name does not appear, repeat
from step 2.
DR-BT30Q t
IMEX-XXX~1il
xxxxxxxx
5 If passkey* input is required on the
BLUETOOTH device, input [0000].
* Passkey may be called "Passcode," "PIN code,"
"PIN number" or "Password," etc., depending on
the device.
IL_..!:tt-r--lnput passkey
IUXX2QXQSX~t-- [0000]
When pairing is made, 0 stays lit.
6 Select this unit on the BLUETOOTH device
to establish the BLUETOOTH connection.
~" or '1" lights up when the connection is made.
Note
While connecting to a BLUETOOTH device, this unit
cannot
be detected from another device. To enable
detection, enter the pairing mode and search for this
unit from another device.

To start playback
For details, see "Playing a BLUETOOTH Device"
(page
13).
To cancel pairing
Perform step 2 to cancel the pairing mode after this
unit and the BLUETOOTH device are paired.
To use a paired device, connection with this unit is
required. Some paired devices will connect
automatically.
1 Press CALL, rotate the control dial to
select [SET BT SIGNL], then press it.
Make sure that 0 lights up.
2 Activate the BLUETOOTH function on the
BLUETOOTH device.
3 Operate the BLUETOOTH device to
connect
to this unit.
~~ or ~~ lights up.
Icons in the display:
~~
Lights up when handsfree calling is
available byenabling the HFP (Handsfree
Profile).
~~
Lights up when the audio device is
playable by enabling the A2DP
(Advanced Audio Distribution Profile).
T.ll
Indicates the signal strength status of
connected cellular phone.
To connect the last-connected device from
this
unit
Activate the BLUETOOTH function on the
BLUETOOTH device.
Press SRC, then select {BT P~ONE] or [BT AUDIO].
Press ENTER to connect with the cellular phone, or
PAUSE to connect with the audio device.
Note
While streaming BLUETOOTH audio, you cannot
connect from this
unit to the cellular phone. Connect
from the cellular phone
to this unit instead.
Tip
With BLUETOOTH signal on: when the ignition is turned
to on, this unit reconnects automatically to the last-
connected cellular phone.
To install the microphone
For details, see "Installing the microphone (MEX-
N5100BT only)" (page 35).
When an iPhone/iPod with iOSS or later installed is
connected to the USB port, the unit is paired and
connected
with the iPhone/iPod automatically.
To enable BLUETOOTH Auto Pairing, make sure
(AUTOPAIR] in (BT] is set to (ON] (page 22).
1 Activate the BLUETOOTH function on the
iPhone/iPod.
2 Connect an iPhone/iPod to the USB port.
Make sure that 0 lights up on the display of the
unit.
Notes
• BLUETOOTH Auto Pairing is not possible if the unit is
already connected to another BLUETOOTH device. In
this case, disconnect the other device, then connect
the iPhone/iPod again.
•
If BLUETOOTH Auto Pairing is not established, see
"Preparing a BLUETOOTH Device" for details (page 8).

Connecting an iPod/USB Device
1 Turn down the volume on the unit.
2 Connect the iPod/USB device to the unit.
To connect an iPod/iPhone, use the USB
connection cable for iPod (not supplied).
Connecting Other Portable
Audio Device
1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect the portable audio device to the
AUX input jack (stereo mini jack) on the
unit with a connecting cord (not
supplied)*.
* Be sure to use a straight type plug.
4 Press SRC to select [AUX].
To match the volume level of the connected
device
to other sources
Start playback of the portable audio device at a
moderate volume, and set your usual listening
volume on
the unit.
Press MENU, then select [SET SOUND]-+ [SET AUX
VOL] (page 21).
10GB
Listening to the Radio
Listening to the Radio
To listen to the radio, press SRC to select [TUNER].
1 Press MODE to change the band (FM1,
FM2, FM3,
AM1 or AM2).
2 Press MENU, rotate the control dial to
select [SET GENERAL], then press it.
3 Rotate the control dial to select [SET
BTM], then press it.
The unit stores stations in order of frequency on
the number buttons.
1 Press MODE to change the band (FM1,
FM2, FM3, AM1 or AM2).
2 Perform tuning.
To tune manually
Press and hold SEEK+/- to locate the
approximate frequency, then press SEEK+/-
repeatedly
to fine adjust to the desired
frequency.
To tune automatically
Press SEEK+/-.
Scanning stops when the
unit receives a station.
1 While receiving the station that you want
to store, press and hold a number button
(1 to 6) until [MEM] appears.
1 Select the band, then press a number
button (1 to 6 ).

Using Radio Data System (RDS)
1 Press PTY during FM reception.
2 Rotate the control dial until the desired
program type appears, then press it.
The unit starts to search for a station
broadcasting the selected program type.
Type of programs
NEWS (News), INFORM (Information), SPORTS
(Sports), TALK (Talk), ROCK (Rock), CLS ROCK
(Classic Rock), ADLT HIT (Adult Hits), SOFT RCK (Soft
Rock), TOP 40 (Top 40), COUNTRY (Country),
OLDIES (Oldies), SOFT (Soft), NOSTALGA
(Nostalgia), JAZZ (Jazz), CLASSICL (Classical),
RAND B (Rhythm and Blues), SOFT RB (Soft
Rhythm and Blues), LANGUAGE (Foreign
Language),
REL MUSC (Religious Music), REL TALK
(Religious Talk), PERSNLTY (Personality), PUBLIC
(Public), COLLEGE (College), WEATHER (Weather)
The
CT data from the RDS transmission sets the
clock.
1 Set [SET CT-ON] in [SET GENERAL]
{page 19).
Listening to the SiriusXM Radio
(MEX·N5100BT only)
Only SiriusXM brings you more of what you love to
listen to, all in one place. Get over140 channels,
including commercial-free music plus the best
sports, news, talk, comedy and entertainment.
Welcome
to the world of satellite radio. A SiriusXM
Connect Vehicle Tuner and Subscription are
required.
For more information, visit
www.siriusxm.com
After installing
your SiriusXM Connect Vehicle Tuner
and antenna, press
SRC to select [SIRIUSXM]. You
should be able to hear the SiriusXM preview
channel on Channel1. After verifying that you can
hear the preview channel, select Channel 0
to find
the Radio ID of your tuner. In addition, the Radio ID
is located on the bottom of the SiriusXM Connect
Vehicle Tuner and its packaging.
You will need this
number to activate your subscription. Write the
number down for reference.
In the USA, you can activate online or by calling
SiriusXM Listener Care:
• Online: Visit www.siriusxm.com/activatenow
• Phone: Call1-866-635-2349
In Canada, you can activate online or by calling
SiriusXM Listener Care:
• Online: Visit www.siriusxm.ca/activatexm
• Phone: Call1-877-438-9677
As part of the activation process, the SiriusXM
satellites will send an activation message to your
tuner. When your radio detects that the tuner has
received the activation message, your radio will
display:
[SUBSCRIPTION UPDATED - ENTER TO
CONTINUE]. Once subscribed, you can tune to
channels in your subscription plan.
Notes
• The activation process usually takes
10 to 15 minutes,
but may take up to an hour.
• Your radio will need
to be turned on and receiving the
SiriusXM signal to receive the activation message.
1 Press Q {browse).
2 Rotate the control dial to select the
desired channel, then press it.
To select channels from categories
1 Press CAT.
2 Rotate the control dial to select the desired
category,
then press it.
To store channels
1 While receiving the channel that you want to store,
press and
hold a number button (1 to 6) until [MEM]
appears.
To receive the stored channel, press MODE to select
[SX1], [SX2] or [SX3], then press a number button (1
to 6).
11GB

To set a parental control
The parental control feature allows you to limit
access to SiriusXM channels with mature content.
When enabled,
the parental control feature requires
you
to enter a passcode to tune to the locked
channels.
Information on setting up the passcode
and locking channels can be
found below.
1 Press MENU and rotate the control dial.
2 Select [SET GENERAL] -+ [SET PARENTAL] -+
[SET LOCK SEL]-+ [SET LOCK-ON].
3 Enter the passcode by rotating the control dial on
the
unit or pressing f /. on the remote
commander.
To move the entry position, press SEEK+/- on the
unit or+-!-+
on the remote commander.
The initial passcode is [0000].
4 After entering the passcode, press ENTER.
To unlock the channels, select [SET LOCK-OFF].
To change the passcode
1 Press MENU and rotate the control dial.
2 Select [SET GENERAL] -+ [SET PARENTAL] -+ [SET
CODEEDIT].
3 Enterthe current passcode on the current passcode
input display, then press ENTER.
The initial passcode is [0000].
4 Enter your new 4-digit passcode on the new
passcode input display, then press ENTER.
To change display items
Press DSPL to change as follows:
Channel
Number (Default}_. Channel Name_. Artist
Name_. Song Title_. Content Info_. Category Name
_.Clock
12GB
Playback
Playing a Disc
1 Insert the disc {label side up).
Playback starts automatically.
Playing an iPod/USB Device
In these Operating Instructions, "iPod" is used as a
general reference
for the iPod functions on an iPod
and iPhone, unless otherwise specified by the text
or illustrations.
For details on
the compatibility of your iPod, see
"About iPod" (page 23} or visit the support site on
the back cover.
MSC (Mass Storage Class) and MTP (Media Transfer
Protocol} type USB devices (such as a USB flash
drive,
digital media player, Android phone)
compliant with the USB standard can be used.
Depending on the digital media player or Android
phone, setting the USB connection mode to MTP is
required.
Notes
•
For details on the compatibility of your USB device,
visit the support site
on the back cover.
• Playback
of the following files is not supported.
MP3/WMA/ AAC/FLAC:
-copyright-protected files
-
DRM (Digital Rights Management) files
-Multi-channel audio files
MP3/WMA/AAC:
-lossless compression files
WAV:
-Multi-channel audio files
1 Connect an iPod/USB device to the USB
port (page 10).
Playback starts.
If a device is already connected, to start
playback, press SRC to select [USB] ([IPD]
appears in
the display when the iPod is
recognized).
2 Adjust the volume on this unit.
To stop playback
Press and hold OFF for 1 second.

To remove the device
Stop playback, then remove the device.
Caution for iPhone
When you connect an iPhone via USB, phone call
volume
is controlled by the iPhone, not the unit. Do
not inadvertently increase the volume on the unit
during a call, as a sudden loud sound mayresult
when
the call ends.
1 During playback, press and hold MODE
until [MODE IPOD] appears.
Operations of the iPod become available.
Note that the volume
can be adjusted only by
the unit.
To exit passenger control
Press and hold MODE until [MODE AUDIO] appears.
Playing a BLUETOOTH Device
You can play contents on a connected device that
supports BLUETOOTH A2DP {Advanced Audio
Distribution Profile).
p)
>))) ((<<
1 Make BLUETOOTH connection with the
audio device (page 8).
2 Press SRC to select [BT AUDIO].
3 Operate the audio device to start
playback.
4 Adjust the volume on this unit.
Notes
• Depending on the audio device, information such
as
title, track number/time and playback status may not
be displayed on this unit.
•
Even if the source is changed on this unit, playback of
the audio device does not stop.
•
[BT AUDIO] does not appear in the display while
running the "Song
Pal" application via the BLUETOOTH
function.
To match the volume level of the BLUETOOTH
device to other sources
Start playback of the BLUETOOTH audio device at a
moderate volume, and set your usual listening
volume on the unit.
Press MENU, then select [SET SOUND]-+ [SET BTA
VOL] {page 21 ).
Searching and Playing Tracks
1 During playback, press c; (repeat) or ~
(shuffle) repeatedly to select the desired
play mode.
Playback in the selected play mode may take
time
to start.
Available play modes differ depending on the
selected sound source.
1 During CD, USB or BT AUDI0*1 playback,
press Q {browse)*2
to display the list of
search categories.
When the track list appears, press ~ {back)
repeatedly
to display the desired search
category.
*1 Available only for audio devices supporting
AVRCP (Audio Video Remote Control Profile} 1.4
or above.
*2 During USB playback, press Q (browse) for
more than 2 seconds
to directly return to the
beginning
of the category list.
2 Rotate the control dial to select the
desired search category, then press it to
confirm.
3 Repeat step 2 to search the desired track.
Playback starts.
To exit the Quick-BrowZer mode
Press Q {browse).
1 Press Q (browse).
2 Press SEEK +.
3 Rotate the control dial to select the item.
The list is jumped in steps of 10% of the total
number
of items.
4 Press ENTER to return to the Quick-
BrowZer
mode.
The selected item appears.
5 Rotate the control dial to select the
desired item, then press it.
Playback starts.
13GB

Listening to Pandora®
Pandora® is available to stream music through your
iPhone and Android phone.
You can control
Pandora® on a
BLUETOOTH connected iPhone/
Android phone from this unit.
The Pandora® service
is not available in some
countries/regions.
Setting up Pandora®
1 Check the compatibility of your mobile
device by visiting the support site on the
back cover.
2 Download the latest version of the
Pandora® application from your
smartphone's app store. A list of
compatible devices can be found at
www.pandora.com/everywhere/mobile
Streaming Pandora®
1 Connect the mobile device with this unit
(page 8).
2 Press SRC to select [PANDORA].
3 Launch Pandora® application on your
mobile device.
4 Press PAUSE to start playback.
If the device number appears
Make sure that the same numbers are displayed
(e.g., 123456) in this
unit and the mobile device,
then press
ENTER on this unit and select [Yes] on
the mobile device.
When activating the BLUETOOTH function
You can adjust the volume level.
Press MENU, then select [SET SOUND]~ [SET BTA
VOL] (page 21).
14GB
Available Operations in
Pandora®
"Thumbs Up" or "Thumbs Down" feedback allows
you
to personalize stations.
1 During playback, press.._ (Thumbs Up) or
T (Thumbs Down).
The station list allows you to easily select a desired
station.
1 During playback, press Q (browse).
2 Press SEEK + to select the sorting order
[BY
DATE] or [A TO Z].
3 Rotate the control dial to select the
desired station, then press it.
Playback starts.
The track currently being played can be
bookmarked and stored in
your Pandora® account.
1 During playback, press MODE.

1
Handsfree
Calling
(via
BLUETOOTH
only}
To
use a cellular phone, connect it
with
this unit.
For
details, see "Preparing a
BLUETOOTH
Device"
(page 8).
~
Receiving
a
Call
1 Press
CALL
when
a call
is
received
with
a
ringtone.
The phone call starts.
Note
The
ringtone and talker's voice are
output
onlyfrom the
front speakers.
To
reject
the
call
Press
and hold
OFF
for 1second.
To
end
the
call
Press
CALL
again.
Making
a
Call
You
can make a call from the phonebook or call
history when a cellular phone supporting
PBAP
(Phone Book Access Profile)
is
connected.
1 Press
CALL,
rotate
the
control dial
to
select [PHONE BOOK],
then
press it.
2 Rotate
the
control dial
to
select an initial
from
the
initial list,
then
press it.
3 Rotate
the
control dial
to
select a
name
from
the
name list,
then
press it.
4 Rotate
the
control dial
to
select a
number
from
the
number
list,
then
press
it.
The phone call starts.
1
Press
CALL,
rotate
the
control dial
to
select
[RECENT
CALL],
then
press it.
A list
of
the call history appears.
2 Rotate
the
control dial
to
select a name
or
phone
number
from
the
call history,
then
press it.
The phone call starts.
1
Press
CALL,
rotate
the
control dial
to
select [DIAL NUMBER],
then
press it.
2 Rotate
the
control dial
to
enter
the
phone number, and lastly select [ ]
(space),
then
press
ENTER*.
The phone call starts.
*
To
move the digital indication, press SEEK+/-.
Note
[_]appears instead
of[#]
on
the display.
1
Press
CALL,
rotate
the
control dial
to
select [REDIAL],
then
press it.
The phone call starts.
1
Press
SRC,
rotate
the
control dial
to
select
[BT
PHONE],
then
press it.
2
Press
a
number
button
(1
to
6)
to
select
the
contact you
want
to
call.
3
Press
ENTER.
The phone call starts.
Presetting
phone
numbers
You
can store
up
to
6 contacts in
the
preset dial.
1 Select a phone number
that
you
want
to
store in
the preset dial, from the phonebook, call history
or
by
inputting the phone
number
directly.
The
phone number appears in the display
of
this
unit.
2
Press
and hoid a number
button
(1
to
6)
until [MEM]
appears.
The
contact
is
stored
in
the selected preset number.
15GB

You
can make a call by saying
the
voice tag stored
in a connected cellular phone
that
has a voice
dialing function.
1 Press
CALL,
rotate
the
control dial
to
select
[VOICE
DIAL],
then
press it.
Alternatively, press
VOICE
while
the
"SongPal"
function
is
off.
2 Say
the
voice tag stored
on
the
cellular
phone.
Your voice
is
recognized, and
the
call
is
made.
To
cancel voice dialing
Press
VOICE.
Available
Operations
during
Call
To
adjust
the
ringtone
volume
Rotate
the
control dial while receiving a call.
To
adjust
the
talker's voice
volume
Rotate
the
control dial during a call.
To
adjust
the
volume
for
the
other
party
(Mic
gain adjustment)
Press
MIC.
Adjustable
volume
levels: [MIC-LOW], [MIC-MID],
[MIC-Hl].
To
reduce echo and noise (Echo Canceler/
Noise Canceler Mode)
Press and hold
MIC.
Settable
mode:
[EC/NC-1], [EC/NC-2].
To
switch
between
handsfree
mode
and
handheld
mode
During a call, press
MODE
to
switch the
phone
call
audio
between
the
unit
and cellular phone.
Note
Depending on the cellular phone, this operation may
not
be
available.
To
check
the
status
of
SMS*
a
flashes
when
a
new
SMS
is
received, and stays
lit
when
there are unread messages.
* Available only for a cellular phone supporting
MAP
(Message
Access
Profile}.
16GB
Useful
Functions
Song
Pal
with
iPhone/
Android
Phone
Downloading
the
"SongPal"
application (version
2.1
or
later)
is
required
from
the
App
Store
for
iPhone
or
from
Google Play
for
Android phone.
Notes
•
For
your safety, follow your local
traffic laws and regulations, and
do not operate the application
while driving.
• "Song
Pal"
is
an
app for
controlling
Sony
audio devices
which
are
compatible with
"Song
Pal",
by your iPhone/
Android phone.
• What you
can
control with "Song
Pal"
varies
depending
on
the connected device.
•
To
make
use
of
"Song
Pal"
features,
see
the details
on
your iPhone/Android phone.
•
For
further details
on
"Song
Pal,"
visit the following
URL:
http:/
/rdlsony.net/help/speaker/songpal/
1 Make
the
BLUETOOTH
connection
with
iPhone/
Android
phone
(page 8}.
2 Launch
the
"SongPal" application.
3 Press and
hold
ENTER
on
the
unit
for
more
than
2 seconds.
Connection
to
iPhone/
Android
phone
starts.
For details on
the
operations on
iPhone/
Android phone, see
the
help
of
the
application.
If
the
device
number
appears
Make sure
that
the
number
is
displayed (e.g.,
123456),
then
select [Yes] on
the
iPhone/
Android
phone.
To
terminate connection
Press and hold
ENTER.

Selecting the source or application
You can operate to select the desired source or
application on iPhone/Android phone.
To select the source
Press SRC repeatedly. Alternatively, press SRC,
rotate the control dial to select the desired source,
then press ENTER.
To display the source list
Press SRC.
Announcement of various information by
voice guide (Android phone only}
When SMS, Twitter/Facebook/Calendar
notifications, etc., are received, they are
automatically announced through the unit
speakers.
For details on settings, refer to the help of the
application.
Activating voice recognition (Android
phone only}
By registering applications, you can control an
application
by voice command. For details, refer to
the help of the application.
To activate voice recognition
1 Press VOICE to activate voice recognition.
2 Say the desired voice command into the
microphone when
(Say Source or App] appears on
the Android phone.
Notes
• Voice recognition may not be available in some cases .
• Voice recognition may not work properly depending
on the performance
of the connected Android phone.
• Operate underconditions where noise such
as engine
sound
is minimized during voice recognition.
Replying a message of SMS (Android
phone only}
You can reply a message by voice recognition.
1 Activate voice recognition, then ihput "Reply."
The message inputdisplayappears on the " Song Pal "
application.
2 Input a reply message by voice recognition.
The list of message candidates appears on the
"
SongPal " application.
3 Rotate the control dial to select the desired
message, then press it.
The message is sent out.
Making sound and display settings
You can adjust the settings relating to sound and
displayvia iPhone/ Android phone.
For details on settings, refer to the help of the
application.

Using Siri Eyes Free
Siri Eyes Free allows you to use an iPhone
handsfree by simply speaking into the microphone.
This function requires you
to connect an iPhone to
the unit with BLUETOOTH Auto Pairing. Availability
is limited iPhone 4s or later. Make sure that your
iPhone is running the latest iOS version.
You must complete BLUETOOTH registration and
connection configurations
for the iPhone with the
unit in advance. For details, see "Preparing a
BLUETOOTH Device" {page 8).
1 Activate the Siri function on the iPhone.
For details, refer to the operating instructions
supplied
with the iPhone.
2 Press VOICE.
The voice command display appears.
3 After the iPhone beeps, speak into the
microphone.
The iPhone beeps again, then Siri starts
responding.
To deactivate Siri Eyes Free
Press VOICE.
Notes
• The iPhone may not recognize your voice depending
on usage conditions.
(For example, if you are in a
moving car.)
•
Siri may not function properly, or the response time
may lag in locations where iPhone signals are difficult
to receive.
• Depending on the iPhone's operating condition,
Siri
may not function properly, or may quit.
•
If you play a track with an iPhone using the
BLUETOOTH audio connection, when the track starts
playback via
BLUETOOTH, the Siri function
automatically quits and the unit switches to the
BLUETOOTH audio source.
• When
Siri is activated during audio playback, the unit
may switch
to the BLUETOOTH audio source even if
you do not specify a track to play.
• When connecting
the iPhone to the USB port, Siri may
not function properly, or may quit.
• When connecting the iPhone
to the unit, do not
activate Siri with the iPhone. Siri may not function
properly, or may quit.
• There
is no audio sound while Siri Eyes Free is
activated.
18GB
Settings
Canceling the DEMO Mode
You can cancel the demonstration display which
appears when
the source is off and the clock is
displayed.
1 Press MENU, rotate the control dial to
select
[SET DISPLAY], then press it.
2 Rotate the control dial to select [SET
DEMO], then press it.
3 Rotate the control dial to select [SET
DEMO-OFF], then press it.
The setting is complete.
4 Press ~ (back} twice.
The display returns to normal reception/play
mode.
Basic Setting Operation
You can set items in the following setup categories:
General setup
{GENERAL), Sound setup {SOUND),
Display setup {DISPLAY), BLUETOOTH setup {BT),
SongPal setup {SONGPAL)
{Not available when the BT phone is selected.)
1 Press MENU.
2 Rotate the control dial to select the setup
category,
then press it.
The items that can be set differ depending on
the source and settings.
3 Rotate the control dial to select the
options, then press it.
To return to the previous display
Press ~ (back).
General Setup {GENERAL)
CLOCK-ADJ (clock adjust) (page 7)
CAUT ALM (caution alarm)
Activates
the caution alarm: [ON], [OFF] (page 7).
(Available only while the source is off and the
clock is displayed.)
BEEP
Activates the beep sound: [ON], [OFF].

AUTO
OFF
Shuts
off
automatically after a desired
time
when
the
unit
is
turned off: [NO], [30S] {30
seconds), [30M] {30 minutes), [60M] {60
minutes).
STEERING
Registers/resets
the
setting
of
the steering
wheel remote control.
(Available
when
connected
with
the
connection
cable
(not
supplied).) (Available
only
while
the
source
is
off
and
the
clock
is
displayed.)
STR
CONTROL
(steering control)
Selects
the
input
mode
of
the
connected remote
control.
To
prevent a malfunction, be sure
to
match
the
input
mode
with
the
connected
remote control before use.
USER
Input
mode
for
the
steering wheel remote
control (automatically selected
when
[STR
EDIT]
is
complete or
[STR
RESET)
is
performed)
EXTERNAL
Input
mode
for
the
wired remote control
excluding
the
steering wheel remote control
STR
EDIT
{steering edit)
Registers
the
functions
{SOURCE,
ATT,
VOL+/-,
SEEK+/-,
VOICE,
CALL)
to
the
steering wheel
remote control:
8 Rotate
the
control dial
to
select
the
function
you
want
to
assign
to
the
steering wheel
remote control, then press it.
f)
While
[REGISTER]
is
blinking, press and
hold
the
button
on
the
steering wheel remote
control you
want
to
assign
the
function to.
When registration
is
complete,
[REGISTERED]
is
displayed.
E)
To
register
other
functions, repeat steps 8
and
f).
STR
RESET
(steering reset)
Resets
the
setting
of
the steering wheel remote
control:
[YES],
[NO].
Notes
• While making settings, only button operation
on
the unit
is
available.
For
safety, park your
car
before making this setting.
• If
an
error occurs while registering,
all
the
previously-registered information remains. Restart
registration from the function where the error
occurred.
•
This
function may not
be
available
on
some
vehicles.
For
details
on
the compatibility
of
your
vehicle, visit the support site
on
the
back
cover.
AUX-A {AUX audio)
Activates
the
AUX source display: [ON], [OFF].
(Available
only
while the source
is
off
and
the
clock
is
displayed.) {Not available
when
the
"SongPal" connection
is
established.)
REAR/SUB (MEX-N4100BT only)
Switches the audio
output:
[SUB-OUT]
(subwoofer), [REAR-OUT]
(power
amplifier).
(Available only while
the
source
is
off
and
the
clock
is
displayed.)
CT
{clock
time)
Activates
the
CT
function: [ON],
[OFF].
BTM {page 10)
(Available only
when
the
tuner
is
selected.)
PARENTAL
{MEX-N5100BT only)
Sets
the parental lock
to
[ON],
[OFF],
and edits
the
passcode (page
12).
(Available only
when
SiriusXM
is
selected.)
SXM
RESET
{SiriusXM reset) (MEX-N5100BT only)
Initializes
the
SiriusXM Connect Vehicle Tuner
settings (preset channels/parental lock):
[YES],
[NO].
(Available only
when
SiriusXM
is
selected.)
FIRMWARE
Checks/updates
the
firmware version. For
details, visit
the
following
support
site:
http:/
/esupport.sony.com/
FW
VERSION
(firmware version)
Displays current firmware version.
FW
UPDATE
(firmware update)
Enters firmware update process:
[YES],
(NO].
(Available only
while
the
source
is
off
and
the
clock
is
displayed.)
Sound
Setup
(SOUND)
This setup menu
is
available
when
any source
except
for
the
BT
phone
is
selected.
MEGABASS (mega bass)
Reinforces bass sound in synchronization
with
the
volume
level: [ON],
[OFF].
(Automatically sets
to
[OFF]
when
[C.AUDIO+]
is
set
to
[ON].)
C.AUDIO+ (CiearAudio+)
Reproduces sound by
optimizing
the digital
signal
with
the
Sony recommended sound
settings: [ON],
[OFF].
(Automatically sets
to
[OFF]
when
[EQ10
PRESET]
is
changed
and/or
[MEGABASS]
is
set
to
[ON].)
EQ10
PRESET
Selects an equalizer curve
from
10 equalizer
curves or off:
[OFF],
[RAND
B),
[ROCK],
[POP],
[DANCE],
[HIP-HOP],
[ELECTRONICA],
[JAZZ],
[SOUL],
[COUNTRY],
[CUSTOM].
The equalizer curve setting can be memorized
for
each source.
19GB

EQ10 SETTING
Sets [CUSTOM] of EQ10.
BASE
Selects a preset equalizer curve as a basis for
further customizing: [BAND1] 32Hz, [BAND2] 63
Hz, [BAND3] 125Hz, [BAND4] 250Hz, [BANDS]
500 Hz, [BAND6] 1 kHz, [BAND7] 2kHz, [BANDS]
4kHz, [BAND9] 8 kHz, [BAND10] 16kHz.
The volume level
is adjustable in 1dB steps,
from -6 dB
to +6 dB.
POSITION {listening position)
F/R
POS {front/rear position)
Simulates a natural sound field by delaying
the
sound output from speakers to suit your
position:
0 [FRONT L] {front left),
8 [FRONT R] {front right),
E) [FRONT] (center front),
0 [ALL] (center of your car),
[OFF] (no position set)
ADJ POSITION* {adjust position)
Fine-tunes
the listening position setting: [+3]-
[CENTER]- [-3].
SW POS* (subwoofer position)
®[NEAR] (near),
@[NORMAL] {normal),
@ [FAR] (far)
BALANCE
Adjusts
the sound balance: [RIGHT-15]-
[CENTER]-
[LEFT-15].
FADER
Adjusts the relative level: [FRONT-15]- [CENTER]
- [REAR-15].
OSEE {digital sound enhancement engine)
Improves digitally compressed sound by
restoring high frequencies lost in
the
compression process.
This setting can be memorized for each source
other than the tuner.
Selects
the OSEE mode: [ON], [OFF].
AAV {advanced auto volume)
Adjust
the playback volume level of all playback
sources
to the optimum level: [ON], [OFF].
20GB
RB ENH (rear bass enhancer)
Rear
Bass Enhancer enhances the bass sound by
applying a low pass filter setting to the rear
speakers. This function allows
the rear speakers
to work as a subwoofer if one is not connected.
(Available only when
[SW DIREC] is set to [OFF].)
{MEX-N4100BT: Available
only when [REAR-OUT]
is selected in [REAR/SUB].)
RBE MODE (rear bass enhancer mode)
Selects
the rear bass enhancer mode: [1], [2], [3],
[OFF].
LPF FREQ {low pass filter frequency)
Selects
the subwoofer cut-off frequency: [50Hz],
[60Hz], [80Hz], [100Hz], [120Hz].
LPF SLOP (low pass filter slope)
Selects
the LPF slope: [1], [2], [3].
SW DIREC (subwoofer direct connection)
You can use the subwoofer without a power
amplifier when it is connected to the rear
speaker lead. (Available only when
[RBE MODE]
is set to [OFF].)
{MEX-N4100BT: Available
only when [REAR-OUT]
is selected in [REAR/SUB].)
Be sure to connect a 4- 8 ohm subwoofer to
either of the rear speaker leads. Do not connect
a speaker
to the other rear speaker lead.
SW MODE (subwoofer mode)
Selects
the subwoofer mode: [1], [2], [3], [OFF].
SW PHASE (subwoofer phase)
Selects
the subwoofer phase: [NORM], [REV].
SW POS* (subwoofer position)
Selects
the subwoofer position: [NEAR],
[NORMAL],
[FAR].
LPF FREQ {low pass filter frequency)
Selects
the subwoofer cut-off frequency: [50Hz],
[60Hz], [80Hz], [100Hz], [120Hz].
LPF SLOP {low pass filter slope)
Selects
the LPF slope: [1], [2], [3].
S.WOOFER (subwoofer)
SW LEVEL (subwoofer level)
Adjusts
the subwoofer volume level:
[+10 dB]- [0 dB]- [-10 dB].
{[ATI]
is displayed at the lowest setting.)
SW PHASE (subwoofer phase)
Selects
the subwoofer phase: [NORM], [REV].
SW POS* (subwoofer position)
Selects
the subwoofer position: [NEAR],
[NORMAL],
[FAR].
LPF FREQ {low pass filter frequency)
Selects
the subwoofer cut-off frequency: [50Hz],
[60Hz], [80Hz], [100Hz], [120Hz].
LPF SLOP {low pass filter slope)
Selects
the LPF slope: [1], [2], [3].
