Sony CDX-3002 User manual

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31 (1)
3-856-316-31 (1)
1996 by Sony Corporation
FM/MW/LW
Compact Disc
Player
Operating Instructions
Mode d’emploi
Bedienungsanleitung
Istruzioni per l’uso
CDX-3002
EN
F
D
I
For installation and connections, see the supplied installation/connections
manual.
En ce qui concerne l’installation et les connexions, consulter le manuel
d’installation/connexions fourni.
Zur Installation und zum Anschluß siehe die mitgelieferte Installations-/
Anschlußanleitung.
Per l’installazione e i collegamenti, fare riferimento al manuale di istruzioni di
installazione/collegamenti in dotazione.

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
2
EN
Features
General
•Detachable-front panel enables you to take
the front panel away with you when you
leave your car (page 4).
•Caution alarm will be activated if you turn
off the ignition key without removing the
front panel from the unit.
•24-hour digital clock provided (page 5).
•Built-in power amplifier (max. output:
20 W ×4 ch.) enables you to enjoy 4- speaker
systems.
•Line outputs for connecting an optional
power amplifier.
CD player section
•1 bit DAC (Digital-to-Analog Converter) for
a clear sound reproduction.
•Quick recovery mechanism for preventing
sound skipping.
•Convenient functions such as the Intro Scan
Function for locating a desired track, the
Repeat Play Function for playing a track
repeatedly, and the Shuffle Play Function
for playing tracks in random order.
Tuner section
•Up to 30 stations can be preset: 18 FM
stations and 6 MW and LW stations.
•Automatic Memory function stores a total
of 30 stations in memory quickly and easily
(page 8).
•The traffic announcement stand-by
function (SDK) for automatically starting the
traffic announcement broadcasts while
listening to a radio programme (FM band
only) or CD playback.

3
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
EN
Table of Contents
Precautions ............................................................... 4
Detaching and Attaching the Front Panel ............ 4
Setting the Clock ...................................................... 5
CD Player Operation
Playing a CD ............................................................. 6
Ejecting the CD ........................................................ 6
Locating the Beginnings of Tracks
— AMS (Automatic Music Sensor)
Function .......................................................... 6
Locating the Desired Part of a Track
— Manual Search Function ............................... 6
Searching for the Desired Track
— Intro Scan Function ........................................ 6
Playing Tracks Repeatedly
— Repeat Play Function..................................... 6
Playing Tracks in Random Order
— Shuffle Play Function .................................... 7
Radio Reception
Searching for Stations Automatically
— Automatic Tuning .......................................... 7
If FM Stereo Reception is Poor
— Monaural Mode .............................................. 7
Tuning in by Adjusting the Frequency
— Manual Tuning ............................................... 8
Memorising Stations Automatically
— Automatic Memory Function ....................... 8
Memorising Only the Desired Stations ................ 8
Receiving the Memorised Stations ........................ 8
Traffic Announcement
Reception
Receiving Traffic Announcements ........................ 9
Searching for another Traffic Information
Station ................................................................... 9
Hearing a Traffic Announcement at the Preset
Volume Level ....................................................... 9
Other Functions
Adjusting the Sound Characteristics .................. 10
Enjoying Bass and Treble at Low Volume
— Loudness Function ....................................... 10
Muting the Sound Quickly
— Mute Function .............................................. 10
Muting the Beep Tone ........................................... 10
Turning on the Clock Display
— Power Select Function ................................. 10
Maintenance ........................................................... 11
Dismounting the Unit ........................................... 11
Location of Controls .............................................. 12
Specifications .......................................................... 13
Troubleshooting Guide ......................................... 14

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
4
EN
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts. Do not leave
them in a car parked in direct sunlight where
there can be a considerable rise in the
temperature inside the car.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the centre
of the disc outward.
Do not use solvents such as benzine, thinner,
commercially available cleaners or antistatic
spray intended for analog discs.
Notes on Moisture condensation
On a rainy day or in a very damp area,
moisture may condense on the lenses inside
the CD player. Should this occur, the unit will
not operate properly. In this case, remove the
disc and wait for about an hour until the
moisture has evaporated.
When you play 8 cm CDs
To use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
damage.
Detaching and Attaching
the Front Panel
The front panel of this unit can be detached in
order to prevent the unit from being stolen.
Detaching the Front Panel
Before detaching the front panel, be sure to
press the OFF button first. Then press the
RELEASE button to open up the front panel
and detach the panel by pulling it towards you
as illustrated.
Be sure not to drop the panel after detaching it
from the unit.

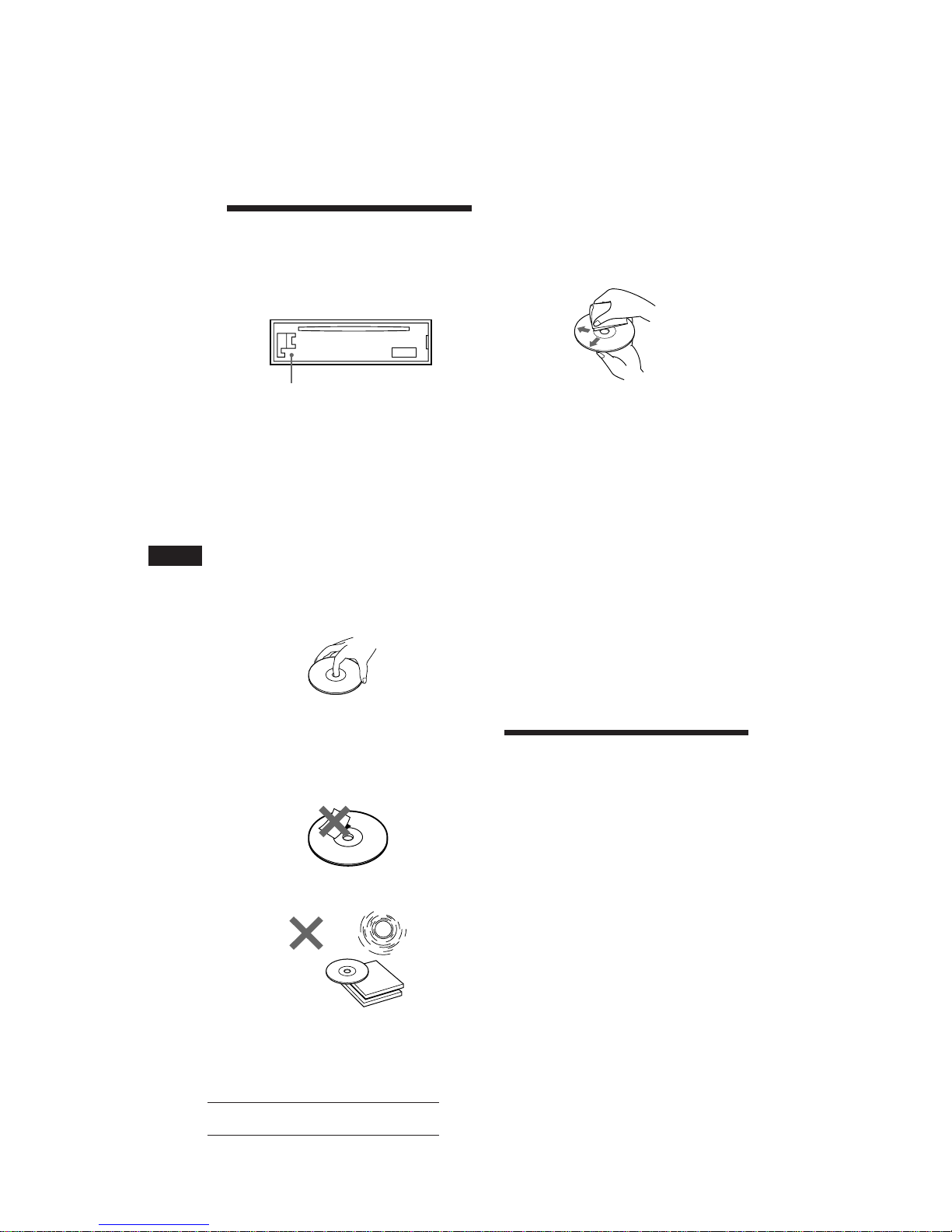

Reset button
Precautions
•Before operating the unit for the first time or
after replacing the car battery, press the reset
button with a ballpoint pen etc., then operate
the unit.
•If your car is parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
•If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
•If no sound comes from the speakers of
2-speaker systems, set the fader control to the
centre position.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
Notes on CDs
A dirty or defective disc may cause sound
dropouts during playback. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge to keep the disc
clean. Do not touch the surface.
Do not stick paper or tape on the labelled
surface.
OFF button
RELEASE button

5
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
EN
Attaching the Front Panel
Apply the right side of the front panel to the
unit by attaching part Aof the front panel to
part Bof the unit as illustrated, then swing
the left side into the unit until it clicks.
Notes
•Make sure that the front panel is the right way up when
attaching it to the unit as it cannot be attached upside
down.
•Do not press the front panel hard against the unit when
attaching it to the unit. It can easily be attached by
pressing it lightly against the unit.
•When you carry the front panel with you, put it in the
supplied front panel case.
•Do not press hard or give excessive pressure to the
display window of the front panel.
•Before removing the front panel, be sure to turn the
power off. However, if you press the RELEASE button to
detach the panel while the unit is still turned on, the
power will automatically turn off in order to protect the
speakers from being damaged.
•Do not expose the front panel to direct sunlight, heat
sources such as hot air ducts or leave it in a humid place.
Never leave it on the dashboard etc. of a car parked in
direct sunlight where there may be a considerable rise in
temperature inside the car.
Caution Alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will be activated and a beep tone
will be heard for a few seconds (only for cars
with an accessory position on the ignition key
switch).
Setting the Clock
The clock has a 24-hour digital indication.
For example, setting it to 10:08
1Display the time.
(Press the
OFF
or
DSPL
button during
unit operation.)
2Press the
DSPL
button for more than
two seconds.
Set the hour digits.
3Press the
SEL
button
momentarily.
Set the minute digits.
4Press the
DSPL
button momentarily.
The clock activates.
Note
If the car has no accessory position on the ignition key
switch, the clock cannot be set unless the power is turn on.
Set the clock after you have turned on the radio, or started
CD playback.
B
The hour digit(s) blinks.
100
1000
The minute digits blink.
1000
1008
to go back to go forward
to go back to go forward
A

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
6
EN
CD Player Operation

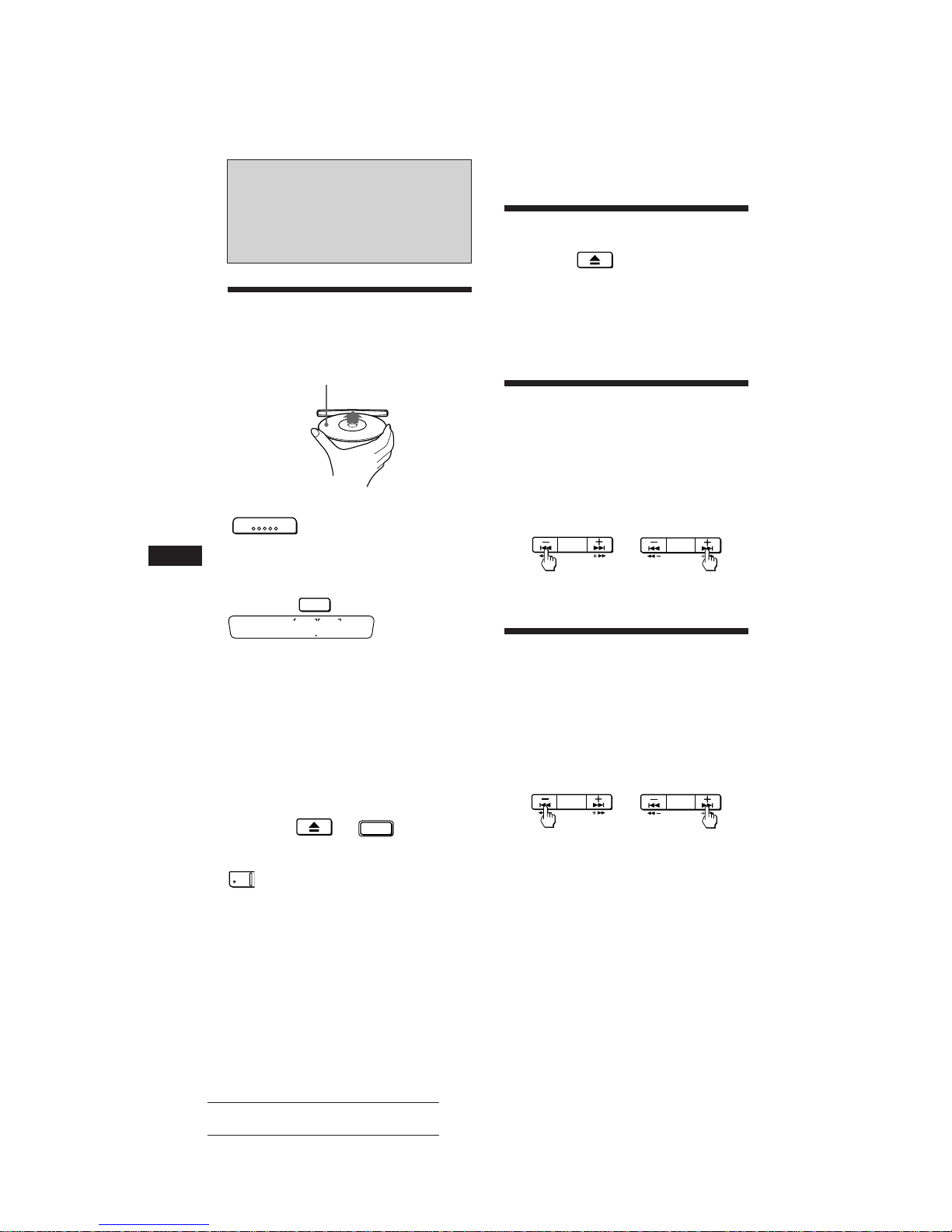

Playing a CD
After inserting the CD, playback will
start from the first track automatically.
If an CD is already inserted, press the
CD button to start playback.
When the unit starts CD playback, the
elapsed playing time will be displayed.
To display the elapsed playing time and the
track number alternately, press the
DSPL
button.
When the last track on the CD is
over,
the track number indication will return to “1”,
and playback will continue from the first track
of the CD.
Note
To play a 8 cm CD, use the optional Sony compact disc
single adapter (CSA-8).
To stop playback,
eject the CD by pressing the button or
press the
OFF
button.
Playback stops also when you select another
source (radio) by pressing the
TUNER
button.
Ejecting the CD
Press the button.
Note
If you leave the ejected disc in the disc insertion slot after
you have pressed the 6button, the disc will automatically
retract into the unit after about 15 seconds in order to
protect it.
Locating the Beginnings
of Tracks
— AMS (Automatic Music Sensor) Function
During playback, press either side of
the SEEK/AMS/MANU button once for
each track you wish to skip.
Locating the Desired Part
of a Track — Manual Search Function
During playback, press and hold either
side of the SEEK/AMS/MANU button for
more than two seconds. Release the
button when you have found the
desired part.
If you reverse to the beginning of the disc, “_ _ ” appears
on the display. Forwarding to the end of the disc causes
“ _ _” to be displayed.
In either case, you can neither proceed to the previous nor
the following track.
Searching for the Desired
Track — Intro Scan Function
Press the
1
INTRO
button during playback.
n“INTRO” appears on the display.
The first 10 seconds of all the tracks are played.
When you find the desired track, press the
button once more. The unit returns to normal
playback mode.
Playing Tracks Repeatedly
— Repeat Play Function
Press the
2
REPEAT
button during playback.
n“REPEAT” appears on the display.
When the currently played track is over, it will
be played again from the beginning.
To cancel this mode, press the button again.
Label side up To locate
previous tracks
To locate
succeeding tracks
215
MIN SEC
Elapsed playing time
AMS
SEEK
MANU
AMS
SEEK
MANU
To reverse To forward
AMS
SEEK
MANU
AMS
SEEK
MANU

7
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
EN
Playing Tracks in Random
Order —Shuffle Play Function
Press the
3
SHUF
button during playback.
n“SHUF” appears on the display.
All tracks on the currently selected disc are
played in random order.
CD Player Operation/Radio Reception
TUNER SDK
FMI nFMII nFMIII nMW nLW n
FMI n···
For higher frequenciesFor lower frequencies
AMS
SEEK
MANU
AMS
SEEK
MANU
879 STEREO
FM
Radio Reception
Searching for Stations
Automatically — Automatic Tuning
1Select the desired band.
2Press either side of the SEEK/AMS/MANU
button once to search for the next station
(automatic tuning).
The scanning stops when a station is received.
Press either side of the SEEK/AMS/MANU
button repeatedly until the desired station is
received.
When an FM stereo programme with sufficient
signal strength is tuned in,
the “STEREO" indication appears.
To keep the automatic tuning from stopping on
stations too frequently (local seek mode), press
the
SENS
button momentarily to get the “LOCAL”
indication.
Only the stations with relatively strong signals will be
tuned in. The local seek mode functions only when
automatic tuning is in operation.
If FM Stereo Reception is
Poor — Monaural Mode
Press the
SENS
button momentarily.
n“MONO” appears on the display.
The sound will improve, but it will be
monaural.
By pressing the SENS button, you can change the
displayed items as follows:
zLOCAL zMONO zNormal mode

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
8
EN
Tuning in by Adjusting the
Frequency — Manual Tuning
1Select the desired band (page 7).
2Press and hold either side of the SEEK/
AMS/MANU button.
Release the button when the desired station
is received.
PREVENT ACCIDENTS!
When tuning in during driving, use automatic
tuning.
Memorising Stations
Automatically
— Automatic Memory Function
Stations with the clearest reception are
automatically searched and memorized on
each band (FMI, FMII, FMIII, MW and LW).
Up to 6 stations on each band can be stored on
the preset number buttons 1 to 6 in the order of
band frequency.
1Select the desired band (page 7).
2Press the
A.MEM
button for more than two
seconds.
The unit will be start scanning the selected
band and memorise the tuned stations on
the preset number button 1 through 6
automatically.
Memorising Only the
Desired Stations
1Select the desired band (page 7).
2Tune in the station which you wish to
store on a preset number button.
3Press and hold the desired preset
number button (
1
INTRO
to
6
) for about
two seconds until you hear a beep tone.
The number of the pressed preset number
button appears in the display window.
Up to 6 stations on each band (FMI, FMII, FMIII, MW
and LW) can be stored on the preset number buttons in the
order of your choice. Therefore, 18 stations can be
memorised on FM.
If you try to store another station on the same preset
number button, the previously stored station will be erased.
Receiving the Memorised
Stations
1Select the desired band (page 7).
2Press momentarily the preset number
button (
1
INTRO
to
6
) on which the
desired station is stored.
Note
If you press the preset number button for more than two
seconds, the currently received station will be memorised.
To receive the previously memorised station, make sure
that the preset number button is pressed only momentarily.
For lower frequencies For higher frequencies
AMS
SEEK
MANU
AMS
SEEK
MANU

9
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
EN
Traffic Announcement
Reception
Receiving Traffic
Announcements
Press the
SDK
button. n“SDK”
appears on the display.
About 30 seconds later the unit will start to
search for a traffic information station.
When the station is tuned in, the “SK”
indication too will appear.
When a traffic announcement starts
nthe “SDK” indication will flash.
The reception of the traffic announcement will
override the current radio broadcast or CD
playback. When the announcement is over, the
interrupted radio reception or CD playback
will be resumed.
To stop receiving the traffic announcements,
press the SDK button again.
Notes
•While the station is broadcasting a traffic announcement
(with the “SDK” indication flashing), the SEEK/AMS/
MANU, SENS and preset number buttons will not be
operational.
•While the unit is receiving a traffic information station
(with the “SDK” flashing), the automatic memory
function (page 8) cannot be activated.
•During MW and LW reception, the SDK function does
not work; if you press the SDK button, the unit will
automatically switch to FMI.
Searching for another
Traffic Information
Station
Press the SEEK/AMS/MANU button while
the “SDK” indication is lit but not
flashing.
Hearing a Traffic
Announcement at the
Preset Volume Level
1Adjust the volume to the desired level
with the button.
2Press the
3
SHUF
button while pressing the
SEL
button. nA beep sound
will be heard and the volume level will
be memorised.
When a traffic announcement starts, it is
heard at the preset volume level.
Radio Reception/Traffic Announcement Reception

Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
10
EN
Other Functions
Adjusting the Sound
Characteristics
1Select the item you want to adjust by
pressing the
SEL
button
repeatedly.
VOL (volume) nBAS (bass) nTRE
(treble) nBALANCE (balance) nFADER
(fader) nVOL (volume) n···
2Adjust the selected item by pressing
either side of the button.
Adjust within three seconds after selecting.
(After three seconds the buttons will again
serve as volume control buttons.)
Enjoying Bass and Treble
at Low Volume
— Loudness Function
Press the
2
REPEAT
button while pressing
SEL
button. n“LOUD” will
appear on the display.
The bass and treble will be boosted.
To cancel, press again.
Muting the Sound Quickly
— Mute Function
Press the
MUTE
button. nThe “MUTE”
indication flashes.
The sound is muted at once.
To restore the previous volume level, press
again.
This function will be also cancelled when:
— + side of the or
OFF
button is
pressed.
— ejecting a CD by pressing the 6button during CD
playback.
Muting the Beep Tone
Press the
6
button while pressing
the
SEL
button.
To reactivate the beep tone, press these buttons
once more.
Note
When connecting an optional power amplifier to the LINE
OUT, the beep tone is disabled.
Turning on the Clock
Display — Power Select Function
Only for cars with an accessory position on the
ignition key switch
To turn the Power Select Function ON
Press the
OFF
button while pressing
the
SEL
button.
The Power select Function ties the clock
display power to the accessory position on the
ignition key switch.
To avoid battery wear, the clock is not
displayed while the unit is initializing.

11
EN
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)

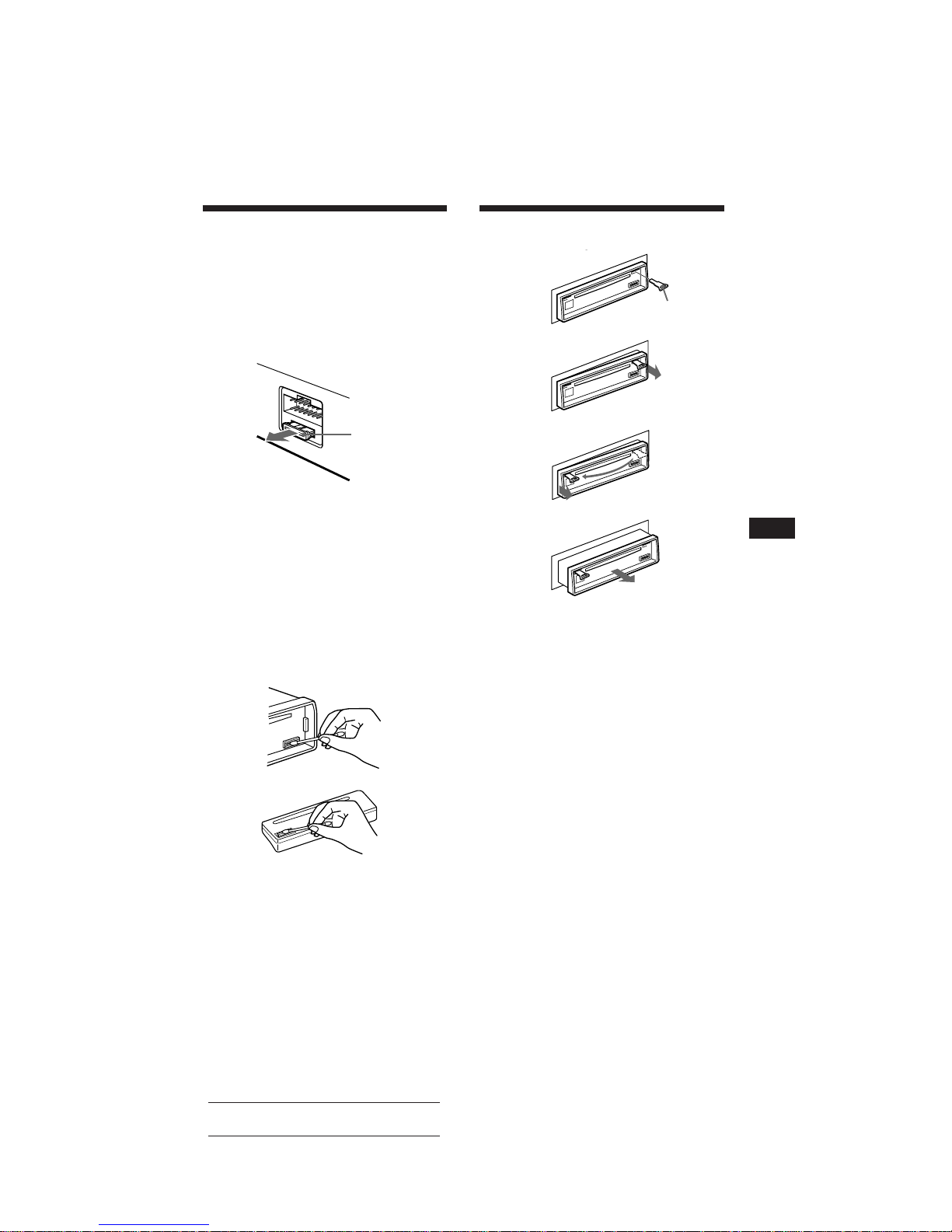

Dismounting the Unit
1
2
3
4
Release key
(supplied)
Maintenance
Fuse Replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Cleaning the Connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing the RELEASE
button, then detach it and clean the connectors
with a cotton swab dipped in alcohol. Do not
apply too much force. Otherwise, the
connectors may be damaged.
Fuse (15 A)
Main unit
Back of the front panel
0
Other Functions

12
EN
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
Location of Controls
Refer to the pages in rfor details.
1MUTE button 0
2OFF button 4560
3SEL (control mode select/character set)
button 590
4DSPL (display mode change/time set)
button 56
5Display window
6CD (CD play) button 6
7SEEK/AMS/MANU (automatic tuning/
Automatic Music Sensor/preset search)
button 6789
86(eject) button 69
9SENS (sensitivity adjust) button 7
0RELEASE (front panel release) button
4!º!¡
!¡ Reset button (located on the front side
of the unit hidden by the front panel) 4
!™ +/– (volume/bass/treble/balance/fader
control) button 590
!£ During radio reception:
Preset number buttons 8
During CD playback:
1
INTRO
INTRO (intro scan) button 6
2
REPEAT
REPEAT (repeat play) button 6
3
SHUF
SHUF (shuffle play) button 7
!¢ TUNER (radio on/band select) button
67
!∞ SDK (traffic announcement) button 9
!§ A.MEM (Automatic Memory function)
button 8
RELEASE
DSPLOFF
162 3 4 5
SEL CD
TUNER SDK
INTRO REPEAT SHUF
MUTE SENS
A.MEM
AMS
SEEK
MANU

13
EN
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
Specifications
CD player section
System Compact disc digital audio
system
Signal-to- noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 87.5 – 108.0 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.5 % (stereo),
0.3 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
Capture ratio 2 dB
MW/LW
Tuning range MW: 531 – 1,602 kHz
LW: 153 – 281 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity MW: 30 µV
LW: 50 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 20 W ×4 (at 4 ohms)
General
Output lead Power antenna control
lead/Power amplifier
control lead
Tone controls Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 188 ×58 ×180 mm
(w/h/d)
Mounting dimension Approx. 183 ×53 ×158 mm
(w/h/d)
Mass Approx. 1.3 kg
Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Optional accessories RCA pin cord
RC-63 (1 m), RC-64 (2 m),
RC-65 (5 m)
Cleaning cloth XP-CD1
Compact disc single
adapter CSA-8
Design and specifications are subject to change without
notice.

14
EN
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
Troubleshooting Guide
The following checklist will assist in the correction of most problems which you may encounter with
your unit.
Before going through the checklist below, refer to the connection and operating procedures.
General
Problem
No sound.
The contents of the memory
have been erased.
Indications do not appear in the
display window.
No beep tone.
Cause/Solution
•Adjust the volume with +side of the button.
•Set the fader control to the centre position for 2-speaker
systems.
•The power cord or battery has been disconnected.
•The reset button has been pressed.
nStore stations into the memory again.
Remove the front panel and clean the connectors. See “Cleaning
the Connectors” of “Maintenance” for details.
•An optional power amplifier is connected to the LINE OUT.
•The beep tone is muted (page 10).
CD playback
Problem
CD cannot be loaded.
Play does not begin.
CD is automatically ejected.
CD will not eject.
The operation buttons do not
function.
The sound skips due to
vibration.
Cause/Solution
•Another CD is already loaded.
• The CD was forcibly inserted upside down.
Dusty disc.
The ambient temperature is more than 50°C.
Press the 6button for more than two seconds.
Press the reset button.
•The unit is installed at an angle of more than 20°.
•The unit is not installed in a sturdy part of the car.
Radio reception
Cause/Solution
•Memorise the correct frequency.
•The broadcast is too weak.
The broadcast is too weak.
nUse manual tuning.
•Tune in precisely.
•The broadcast is too weak.
nPress the
SENS
button to enter the MONO mode.
Problem
Preset tuning is not possible.
Automatic tuning is not
possible.
The “STEREO” indication
flashes.

15
EN
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
Error displays
The following indications will flash for about five seconds.
Display Solution
Clean or insert the CD correctly.
Press the reset or 6button.
Cause
CD is dirty or inserted upside down.
The CD player cannot be operated
because of some problem.
If the above-mentioned solutions do not help to improve the situation, consult your nearest Sony
dealer.

2
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
F
Caractéristiques
Généralités
•Vous pouvez emporter la façade détachable
quand vous quittez votre véhicule (page 4).
•Un avertisseur retentit si vous tournez la clé
de contact sans avoir préalablement enlevé la
façade de l’appareil.
•Horloge numérique à cycle de 24 heures
intégrée (page 5).
•L’amplificateur de puissance intégré
(puissance max.: 20 W ×4 ca) vous permet
de relier un système à 4 haut-parleurs.
•Les sorties de ligne servent à raccorder un
amplificateur de puissance optionnel.
Section lecteur CD
•Un convertisseur numérique-analogique
(DAC) de 1 bit améliore la qualité de la
reproduction sonore.
•Mécanisme de reprise rapide de la lecture
pour éviter les pertes de son.
•Fonctions pratiques habituelles telles que le
balayage des intros pour rechercher une
plage, la répétition pour écouter plusieurs
fois une plage et la lecture aléatoire pour
écouter les plages d’un disque dans un ordre
quelconque.
Section tuner
•Possibilité de présélectionner jusqu’à 30
stations: 18 en FM et 6 dans chaque gamme
d’ondes PO et GO.
•Fonction de mémoire automatique pour
présélectionner 30 stations de façon simple et
rapide (page 8).
•Fonction de veille d’informations routières
SDK pour recevoir automatiquement les
informations routières pendant l’écoute
d’une station de radio (FM uniquement) ou
du CD.

3
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
F
Table des matières
Précautions ............................................................... 4
Retrait et pose de la façade ..................................... 4
Réglage de l’horloge ................................................ 5
Fonctionnement du lecteur de
CD
Lecture d’un CD ...................................................... 6
Ejection du CD ......................................................... 6
Recherche des débuts de plage
— Fonction AMS (Automatic Music
Sensor, détecteur automatique de
musique) ......................................................... 6
Localisation d’un passage sur une plage
— Fonction de recherche manuelle .................. 6
Recherche d’une plage
— Fonction d’écoute des intros ........................ 7
Répétition
— Lecture répétée des plages ........................... 7
Lecture des plages dans un ordre aléatoire
— Fonction de lecture aléatoire ........................ 7
Réception radio
Recherche automatique des stations
— Accord automatique ...................................... 7
Si la réception FM stéréo n’est pas bonne
— Réception mono ............................................. 8
Accord par réglage de la fréquence
— Accord manuel ............................................... 8
Mémorisation automatique des stations
— Fonction de mémorie automatique ............. 8
Mémorisation de stations particulières ................ 8
Réception des stations mémorisées ...................... 8
Réception des informations
routières
Réception des informations routières................... 9
Recherche d’une autre station d’informations
routières ................................................................ 9
Ecoute des informations routières à un niveau
prédéterminé ....................................................... 9
Autres fonctions
Réglage du son ....................................................... 10
Pour obtenir un son équilibré même à faible niveau
— Correction physiologique ........................... 10
Coupure rapide du son
— Fonction sourdine ........................................ 10
Coupure des bips sonores .................................... 10
Activation de l’affichage de l’horloge
— Fonction de sélection d’alimentation ........ 10
Entretien .................................................................. 11
Retrait de l’appareil ............................................... 11
Nomenclature des touches ................................... 12
Spécifications .......................................................... 13
Guide de dépannage ............................................. 14

4
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
F
N’exposez pas les disques au rayonnement
direct du soleil ou à des sources de chaleur
telles que des conduits d’air chaud et ne les
laissez pas dans une voiture garée en plein
soleil car la température de l’habitacle risque
d’augmenter considérablement.
Avant la lecture, essuyez les disques avec un
chiffon de nettoyage en option. Essuyez
chaque disque du centre vers la circonférence.
N'utilisez pas de solvants tels que de la
benzine, du diluant, des produits de nettoyage
vendus dans le commerce ou des
vaporisateurs anti.
Remarque sur la condensation
d'humidité
Les jours de pluie ou dans les régions très
humides, de la condensation risque de se
déposer sur les lentilles du changeur CD et
l’appareil ne fonctionne pas normalement.
Dans ce cas, vous devez enlever le disque et
attendre environ une heure que l’humidité se
soit évaporée.
Lecture de CD de 8 cm
Utilisez l’adaptateur pour disque compact
simple Sony (CSA-8) de manière à protéger
votre lecteur CD contre tout dommage.
Retrait et pose de la
façade
Vous pouvez détacher la façade afin d’éviter
que l’appareil ne soit volé.
Retrait de la façade
Avant de détacher la façade, appuyez sur la
touche OFF. Appuyez ensuite sur la touche
RELEASE pour ouvrir la façade. Enlevez-la en
la tirant vers vous, comme indiqué sur
l’illustration.
Un disque sale ou défectueux peut provoquer
des pertes de son à la lecture. Pour conserver
une qualité sonore optimale, manipulez le
disque comme indiqué ci-dessous.
Saisissez le disque par les bords et n’en
touchez pas la surface de façon à ce qu’il reste
propre.
Précautions
•Avant la première mise en service de
l’appareil ou après avoir remplacé la batterie
de la voiture, appuyez sur la touche de
réinitialisation à l’aide d’un stylo à bille, etc.,
et faites ensuite fonctionner l’appareil.
•Si vous avez garé votre voiture en plein soleil et
que la température à l’intérieur a
considérablement augmenté, attendez que
l’appareil se refroidisse avant de vous en servir.
•Si l’alimentation électrique n’arrive pas à
l’appareil, vérifiez d’abord les connexions. Si
elles sont correctes, vérifiez le fusible.
•Si aucun son ne sort des deux haut-parleurs,
réglez le fader (balance avant-arrière) sur la
position centrale.
Pour toute question ou problème au sujet de
cet appareil, dont vous ne trouveriez pas
l’explication dans ce mode d’emploi, consultez
votre revendeur Sony.
Remarques sur les CD
Ne collez pas de papier ni de ruban adhésif sur
la surface imprimée.
Touche de réinitialisation

5
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
F
Réglage de l’horloge
L’horloge fonctionne sur 24 heures.
Par exemple, réglez l’heure sur 10:08
1Affichez l’heure.
(Appuyez sur
OFF
ou DSPL pendant
que l’appareil fonctionne.)
2Appuyez sur DSPL pendant plus de
deux secondes.
Réglez l’heure.
3Appuyez brièvement sur la touche
SEL
.
Réglez les minutes.
4Appuyez brièvement sur la touche
DSPL
.
L’horloge fonctionne.
Remarque
Si le véhicule possède une clé de contact sans position
accessoire, vous ne pourrez pas régler l’horloge si l’appareil
est éteint. Allumez la radio ou démarrez la lecture d’un CD
avant de régler l’horloge.
Touche OFF
Touche RELEASE
Veillez à ne pas laisser tomber la façade
lorsque vous la retirez de l’appareil.
Pose de la façade
Présentez la partie droite de la façade sur
l’appareil en fixant la partie Ade la façade sur
la partie Bde l’appareil comme illustré et
faites ensuite pivoter le côté gauche dans
l’appareil jusqu’à ce qu’il s’encliquette.
Remarques
•Vérifiez que la façade est dans le bon sens avant de la
fixer, car elle ne peut pas être fixée dans l’autre sens.
•Ne forcez pas pour fixer la façade sur l’appareil.Une
légère pression est suffisante.
•N’appuyez pas avec force sur l’afficheur de la façade.
•Rangez la façade dans son étui pour la transporter.
•Mettez l’appareil hors tension avant de retirer la façade.
Cependant, si vous appuyez sur la touche RELEASE
quand l’appareil est sous tension, il se met
automatiquement hors tension pour protéger les haut-
parleurs.
•Ne laissez pas la façade en plein soleil, près de sources de
chaleur comme des conduits d’air chaud ou dans un
endroit humide. Ne la laissez jamais sur le tableau de
bord, etc. d’une voiture garée en plein soleil, car la
température risque d’augmenter considérablement.
Avertisseur
Si vous mettez la clé de contact du véhicule sur
la position OFF sans enlever la façade,
l’avertisseur se déclenche et émet un bip
sonore pendant quelques secondes
(uniquement sur les voitures dont le contact
comporte une position accessoires).
A
B
Les chiffres des heures clignotent.
100
1000
Les chiffres des minutes clignotent.
1000
1008
pour reculer pour avancer
pour reculer pour avancer

6
Actual total number: Sony CDX-3002 (E,F,G,I) 3-856-316-31(1)
F
Ejection du CD
Appuyez sur .
Remarque
Si vous laissez le disque éjecté dans la fente après avoir
appuyé sur la touche 6, il est automatiquement
réintroduit dans l'appareil au bout de 15 secondes environ
par mesure de protection.
Recherche des débuts de
plage
— Fonction AMS (Automatic Music Sensor,
détecteur automatique de musique)
En cours de lecture, appuyez sur l’un
des deux côtés de la touche SEEK/AMS/
MANU autant de fois que vous voulez
sauter de plage.
Localisation d’un passage
sur une plage
— Fonction de recherche manuelle
Pendant la lecture, appuyez sur l’un ou
l’autre côté de la touche SEEK/AMS/
MANU et maintenez enforncé pendant
plus de deux secondes. Relâchez cette
touche dès que vous avez trouvé le
passage voulu.
Si vous revenez au début du disque, l’indication “_ _ ”
apparaît sur l’afficheur. Si vous avancez jusqu’à la fin du
disque, l’indication “ _ _” s’affichera.
Dans un cas comme dans l’autre, vous ne pouvez passer à
la plage précédente ou à la plage suivante.
Fonctionnement du
lecteur de CD
Lecture d’un CD
Introduisez un CD, la lecture commence
automatiquement à partir de la
première Plage.
S’il y a déjà un CD, appuyez sur
CD pour entamer la lecture.
Lorque l’appareil entame la lecture du
CD, le temps de lecture écoulé s’affiche.
Pour afficher alternativement le temps de
lecture écoulé et le numéro de plage, appuyez
sur la touche
DSPL
.
Temps de lecture écoulé
Quand la dernière plage du CD est
terminée,
l’indication du numéro de plage revient sur
“1” et la lecture reprend à partir de la première
plage du CD.
Remarque
Pour écouter un disque de 8 cm, utilisez l'adaptateur Sony
CSA-8 (non fourni).
Pour arrêter la lecture,
appuyez sur ou
OFF
, le CD est
éjecté.
La lecture s’arrête également si vous choisissez
une autre source (radio) en appuyant sur
TUNER
.
Etiquette vers le haut
AMS
SEEK
MANU
AMS
SEEK
MANU
Pour aller vers les
plages précédentes
Pour aller vers les
plages suivantes
215
MIN SEC
AMS
SEEK
MANU
AMS
SEEK
MANU
Pour reculer Pour avancer
