Sony CDX-S2000 - Fm/am Compact Disc Player User manual

1
Ver 1.0 2003. 11
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type MG-611XA-186//K
Optical Pick-up Name KSS1000E
SERVICE MANUAL
US Model
CDX-S2000/SW200
Canadian Model
CDX-S2000
E Model
CDX-S2000/S2000S
CDX-S2000/S2000S/SW200
AUDIO POWER SPECIFICATIONS (US Model)
POWER OUTPUTAND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio 120 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range US, Canadian Model:
87.5 – 107.9 MHz
E model:
FM tuning interval:
50 kHz/200 kHz
switchable
87.5 – 108 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
SPECIFICATIONS
AM
Tuning range US, Canadian Model:
530 – 1,710 kHz
E Model:
AM tuning interval:
9 kHz/10 kHz switchable
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 52 W ×4 (at 4 ohms)
General
Outputs Audio outputs terminal (rear)
Power antenna relay control terminal
Power amplifier control terminal
Inputs Antenna input terminal
Tone controls Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
• The tuner and CD sections have no adjustments.
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
9-961-387-01
2003K04-1
© 2003. 11
– Continued on next page –
FM/AM COMPACT DISC PLAYER

2
CDX-S2000/S2000S/SW200
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LASÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ×50 ×176 mm
(7 1/8 ×2 ×7 in.) (w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(7 1/4 ×2 1/8 ×6 3/8 in.) (w/h/d)
Mass Approx. 1.2 kg
(2 lb. 10 oz.)
Supplied accessories Parts for installation and connections (1 set)
Front panel case (1)
Design and specifications are subject to change without
notice.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)

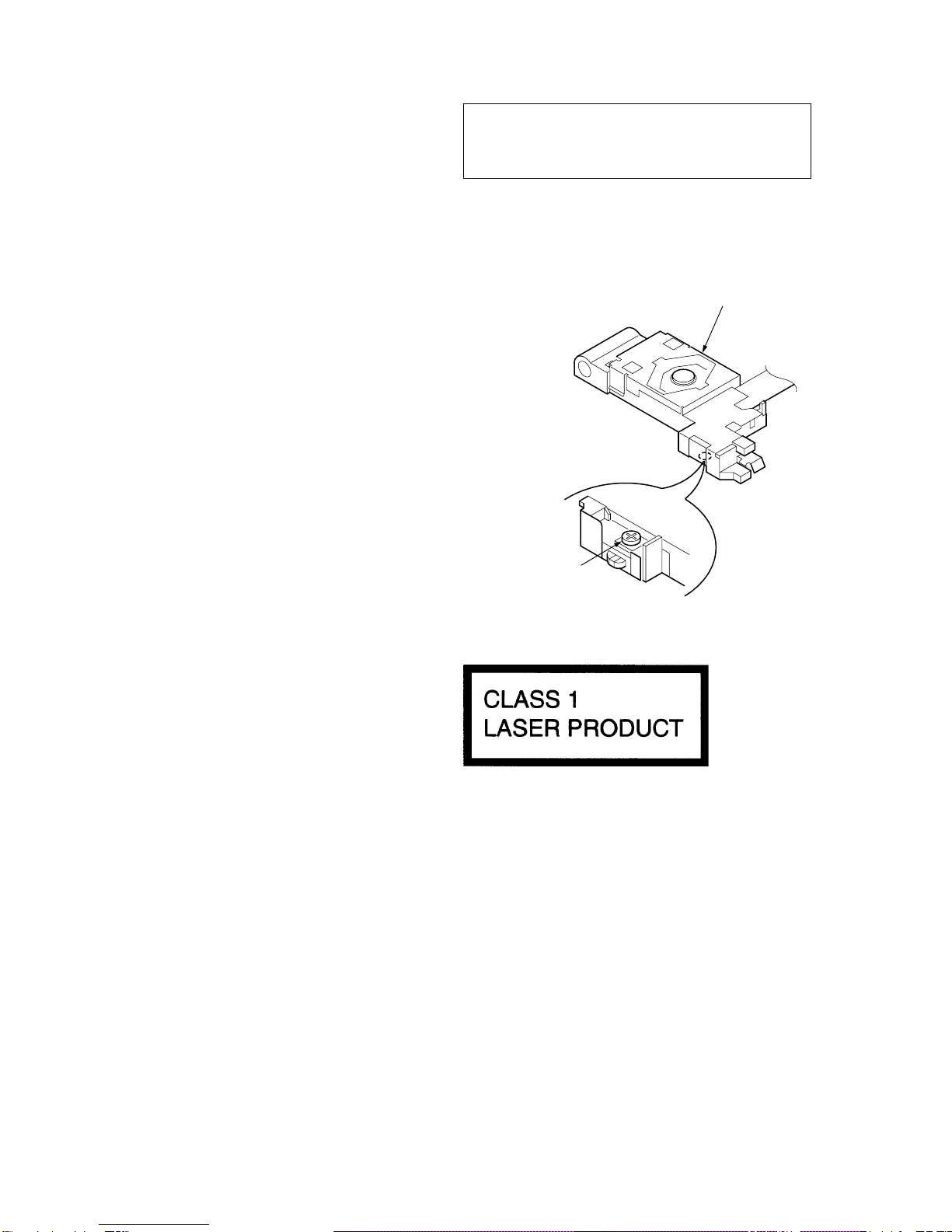

SERVICE NOTES
•E model
This label is located on the bottom of the chassis.
optical pick-up
semi-fixed resistor

3
CDX-S2000/S2000S/SW200
Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable
CDs)
This unit can play the following discs:
Type of discs Label on the disc
Audio CD
MP3 files
•Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
•You cannot play a CD-R/CD-RW that is not finalized∗.
•You can play MP3 files recorded on CD-ROMs, CD-Rs, and
CD-RWs.
•A CD-R/CD-RW to which a session can be added can be played.
∗A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.

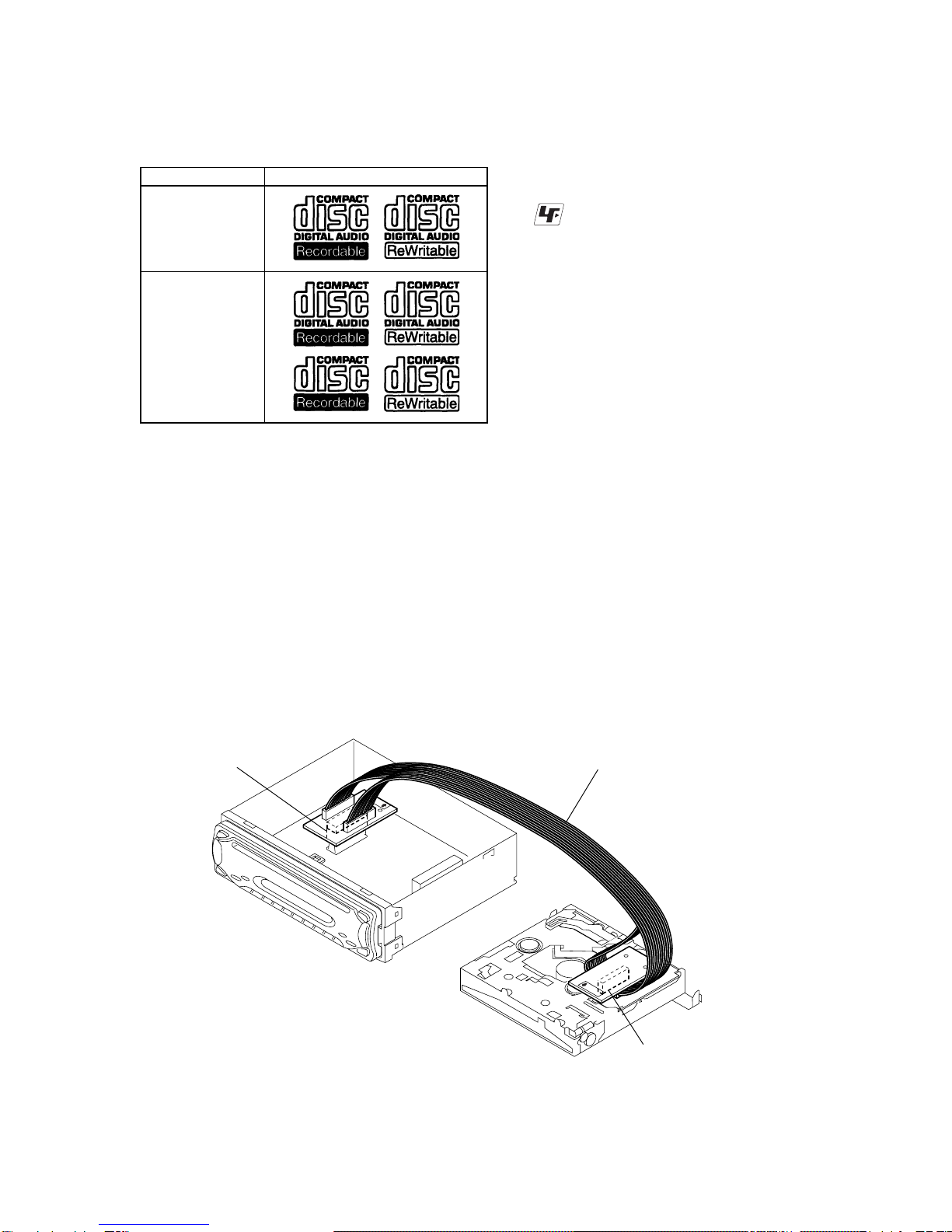

EXTENSION CABLE AND SERVICE POSITION
Whenrepairingor servicingthisset, connectthejig (extensioncable)
as shown below.
•Connect the MAIN board (CN751) and the SERVO board (CN1)
with the extension cable (Part No. J-2502-076-1).
SERVO BOAR
D
CN1
MAIN BOARD
CN751 J-2502-076-1
zUNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

4
CDX-S2000/S2000S/SW200
TABLE OF CONTENTS
1. GENERAL
Location of Controls (US, Canadian Model) .......................... 5
Location of Controls (E Model) .............................................. 5
Connections (US, Canadian Model)........................................ 6
Connections (E Model) ........................................................... 7
2. DISASSEMBLY
2-1. Sub Panel (1)Assy .............................................................. 9
2-2. CD Mechanism Block ......................................................... 9
2-3. Main Board ....................................................................... 10
2-4. Chassis (T) Sub Assy ........................................................ 10
2-5. Roller Arm Assy ................................................................ 11
2-6. Chassis (OP) Assy ............................................................. 11
2-7. Optical Pick-up ................................................................. 12
2-8. SL MotorAssy (M902) ..................................................... 12
2-9. LE Motor Assy (M903) ..................................................... 13
2-10. Servo Board....................................................................... 13
3. DIAGRAMS
3-1. IC Pin Descriptions ........................................................... 14
3-2. Block Diagram –CD Section–........................................... 18

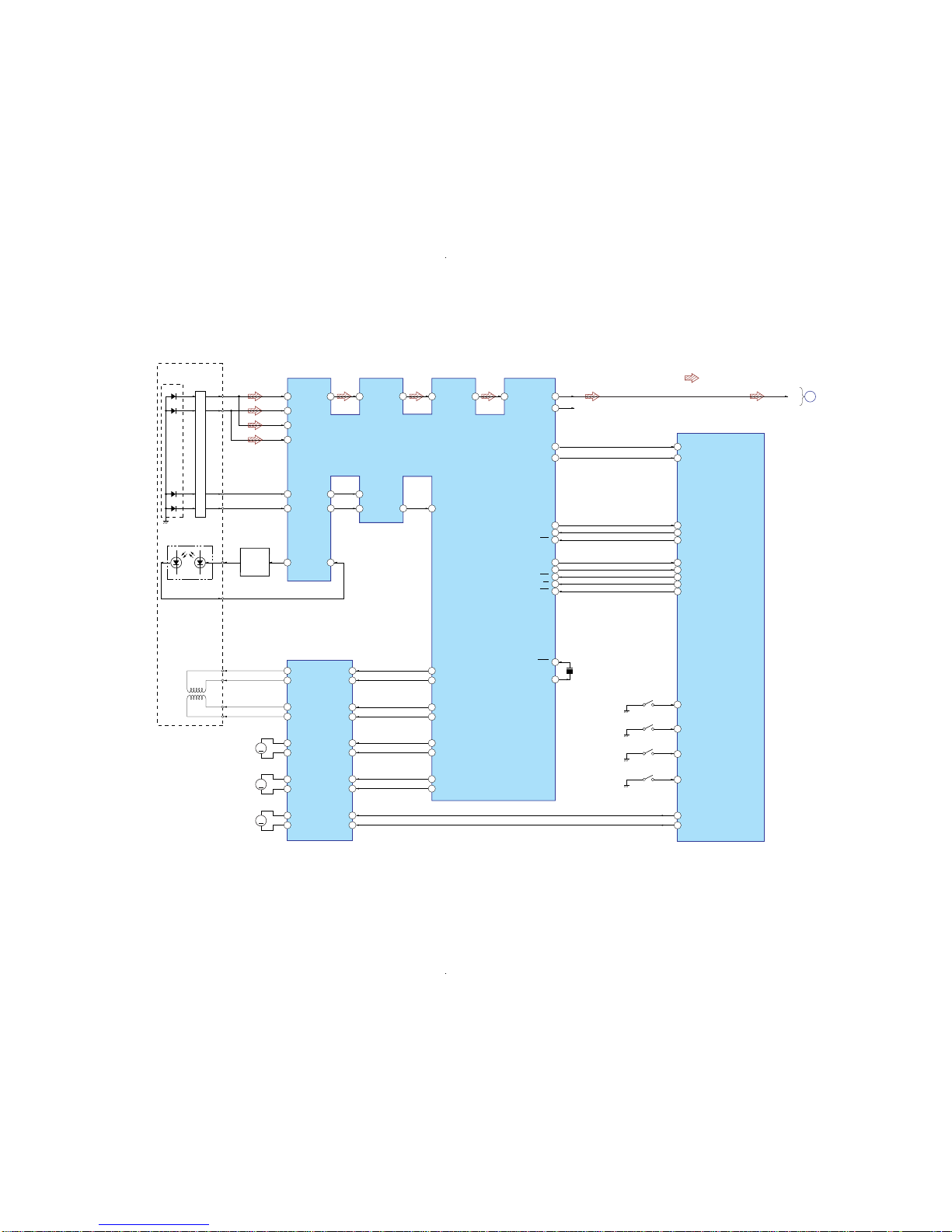

3-3. Block Diagram –Main Section–........................................ 19
3-4. Block Diagram –Display Section–.................................... 20
3-5. Circuit Boards Location .................................................... 20
3-6. Note for Printed Wiring Boards and
Schematic Diagrams .......................................................... 21
3-7. Waveforms......................................................................... 21
3-8. Printed Wiring Boards –CD Mechanism Section–............ 22
3-9. Schematic Diagram –CD Mechanism Section– ................23
3-10. Schematic Diagram –Main Section (1/2)– ........................ 24
3-11. Schematic Diagram –Main Section (2/2)– ........................ 25
3-12. Printed Wiring Boards –Main Section– ............................ 26
3-13. Printed Wiring Board –Display Section– .......................... 27
3-14. Schematic Diagram –Display Section–............................. 28
3-15. IC Block Diagrams............................................................ 29
4. EXPLODED VIEWS
4-1. Main Section ..................................................................... 31
4-2. Front Panel Section ........................................................... 32
4-3. CD Mechanism Section (1) ...............................................33
4-4. CD Mechanism Section (2) ...............................................34
4-5. CD Mechanism Section (3) ...............................................35
4-6. CD Mechanism Section (4) ...............................................36
5. ELECTRICAL PARTS LIST ........................................ 37

5
CDX-S2000/S2000S/SW200

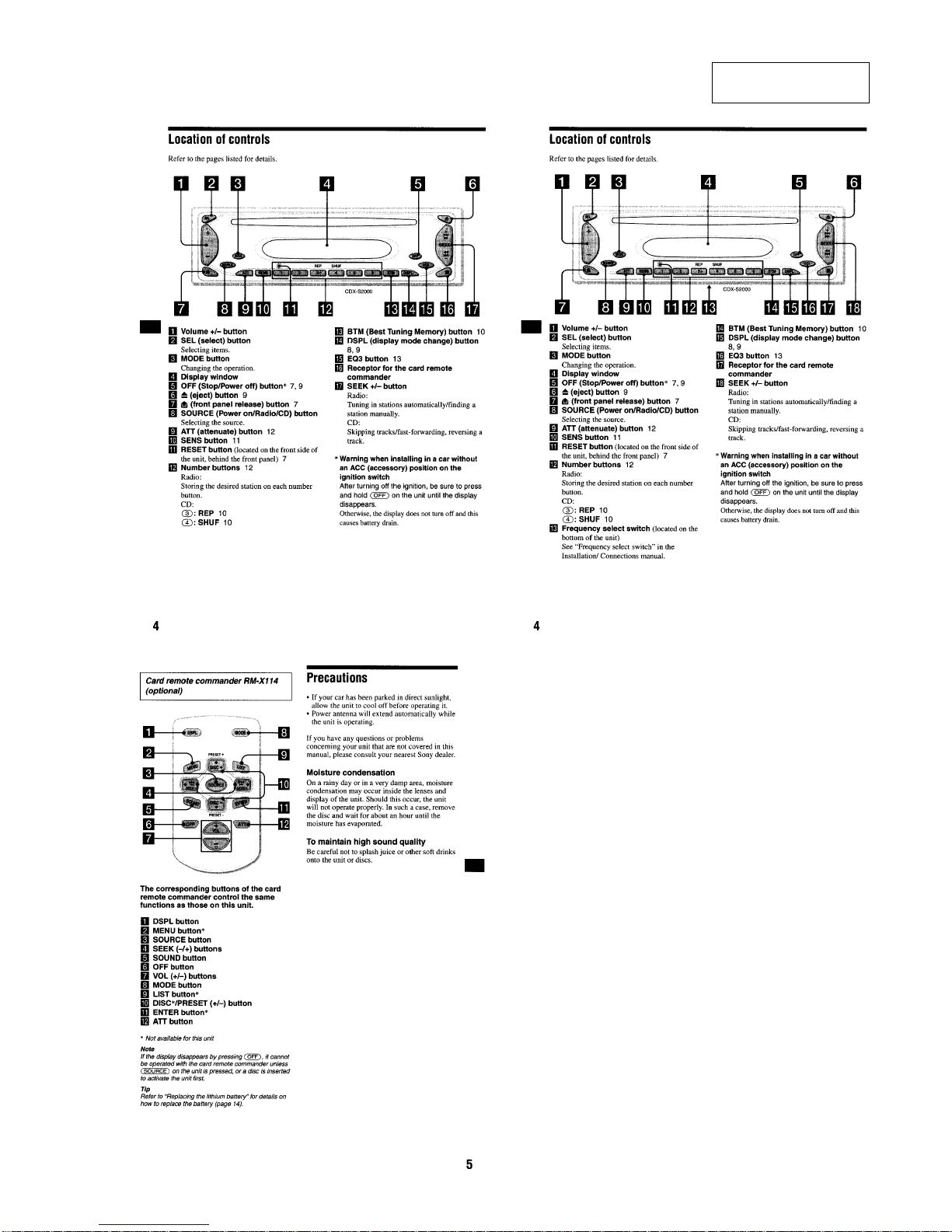

SECTION 1
GENERAL This section is extracted
from instruction manual.
(US, Canadian Model) (E Model)

6
CDX-S2000/S2000S/SW200

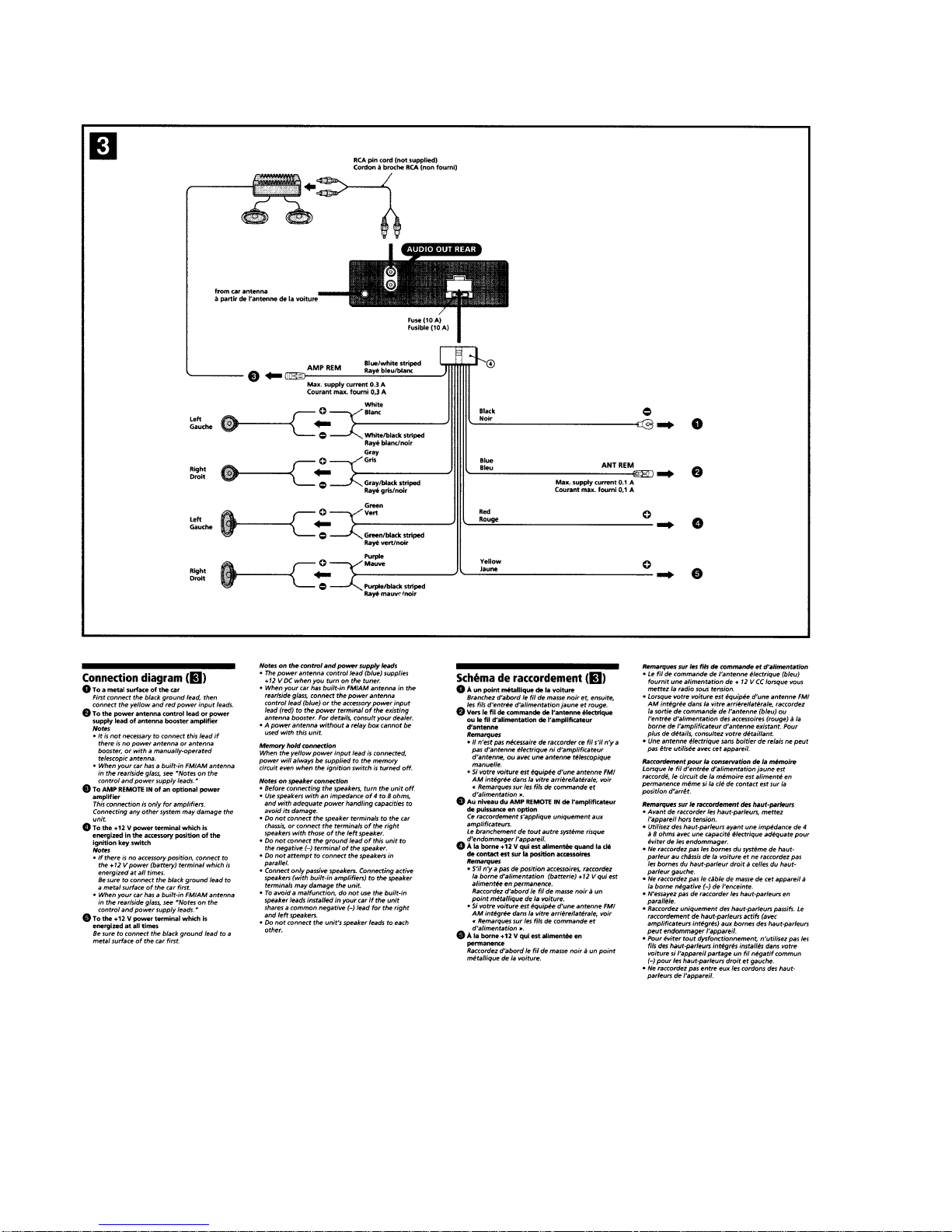

Connections (US, Canadian Model)

7
CDX-S2000/S2000S/SW200

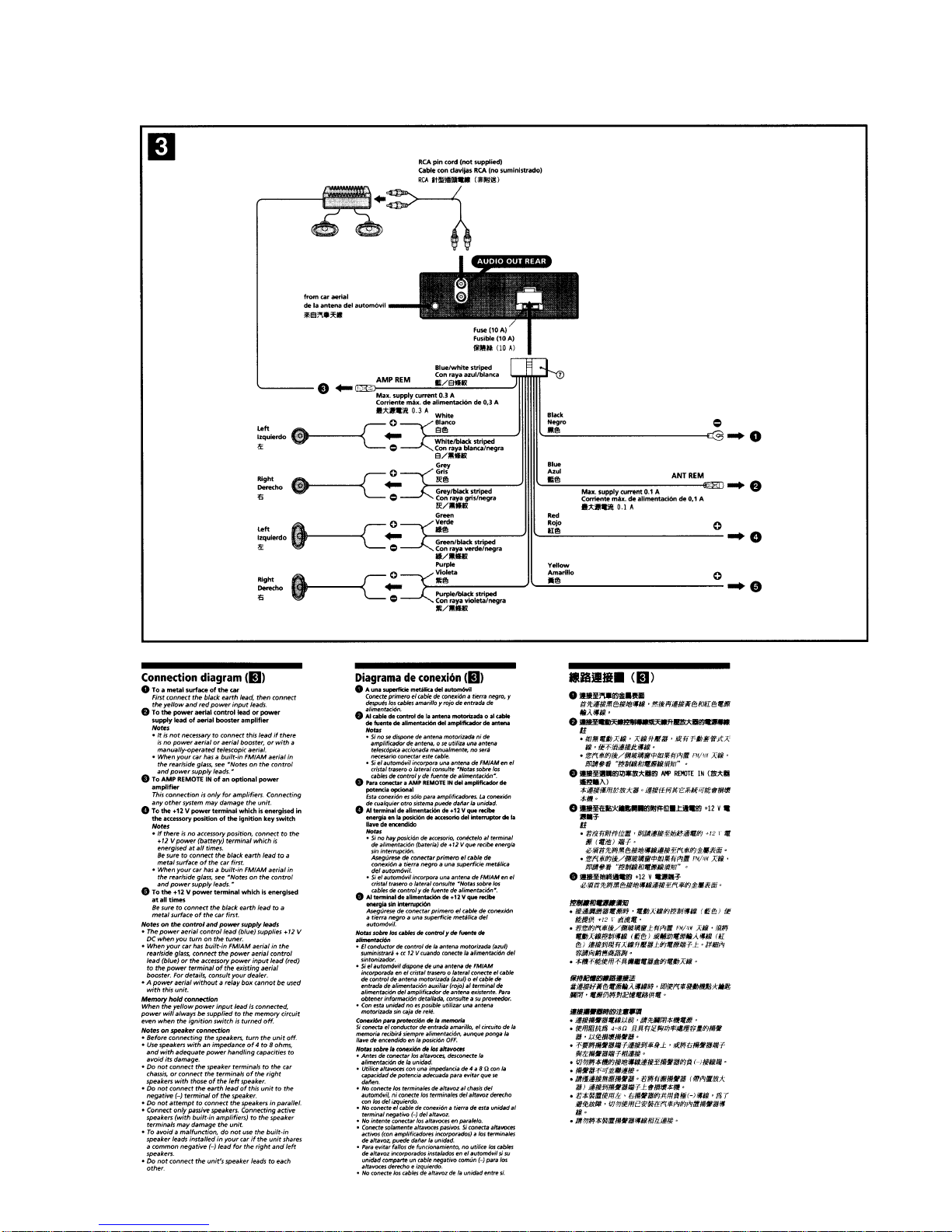

Connections (E Model)

8
CDX-S2000/S2000S/SW200 SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
2-1. SUB PANEL (1) ASSY
(Page 9)
2-2. CD MECHANISM BLOCK
(Page 9)
SET
2-3. MAIN BOARD
(Page 10) 2-4. CHASSIS (T) SUB ASSY
(Page 10)
2-5. ROLLER ARM ASSY
(Page 11)
2-6. CHASSIS (OP) ASSY
(Page 11)
2-8. SL MOTOR ASSY (M902)
(Page 12)
2-10. SERVO BOARD
(Page 13)
2-7. OPTICAL PICK-UP
(Page 12) 2-9. LE MOTOR ASSY (M903)
(Page 13)

9
CDX-S2000/S2000S/SW200
2-2. CD MECHANISM BLOCK
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL (1) ASSY
2 two claw
s
3 two claws
4 sub panel (1) assy
1 two screws
(+PTT 2.6
x 6)
7 bracket (CD)
5 CD mechanism block
4 CN751
3
1 screw
(+PTT 2.6 x 6
)
2 screw
(+PTT 2.6 x 6)
6 two screws
(+PTT 2.6 x 6)

10
CDX-S2000/S2000S/SW200
2-4. CHASSIS (T) SUB ASSY
2-3. MAIN BOARD
1 three screws
(+BTT)
3 MAIN board
2 two screws
(+PTT 2.6
x 8
)
5 SENSOR board
6 chassis (T) sub assy
4 claw
1 two screws
(+P 1.7
x 2.2)
2 two screws
(+P 1.7
x 2.2)
3 claw

11
CDX-S2000/S2000S/SW200

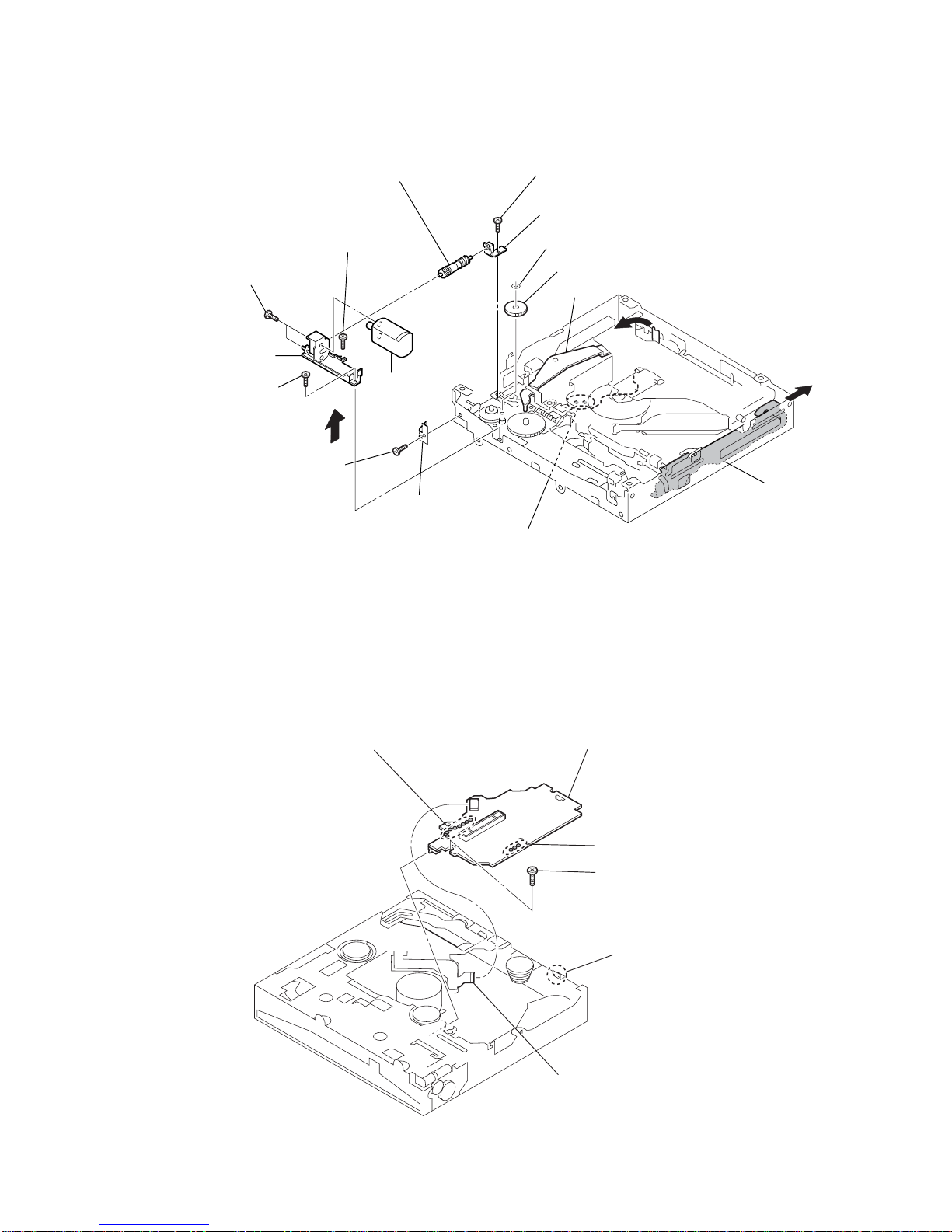

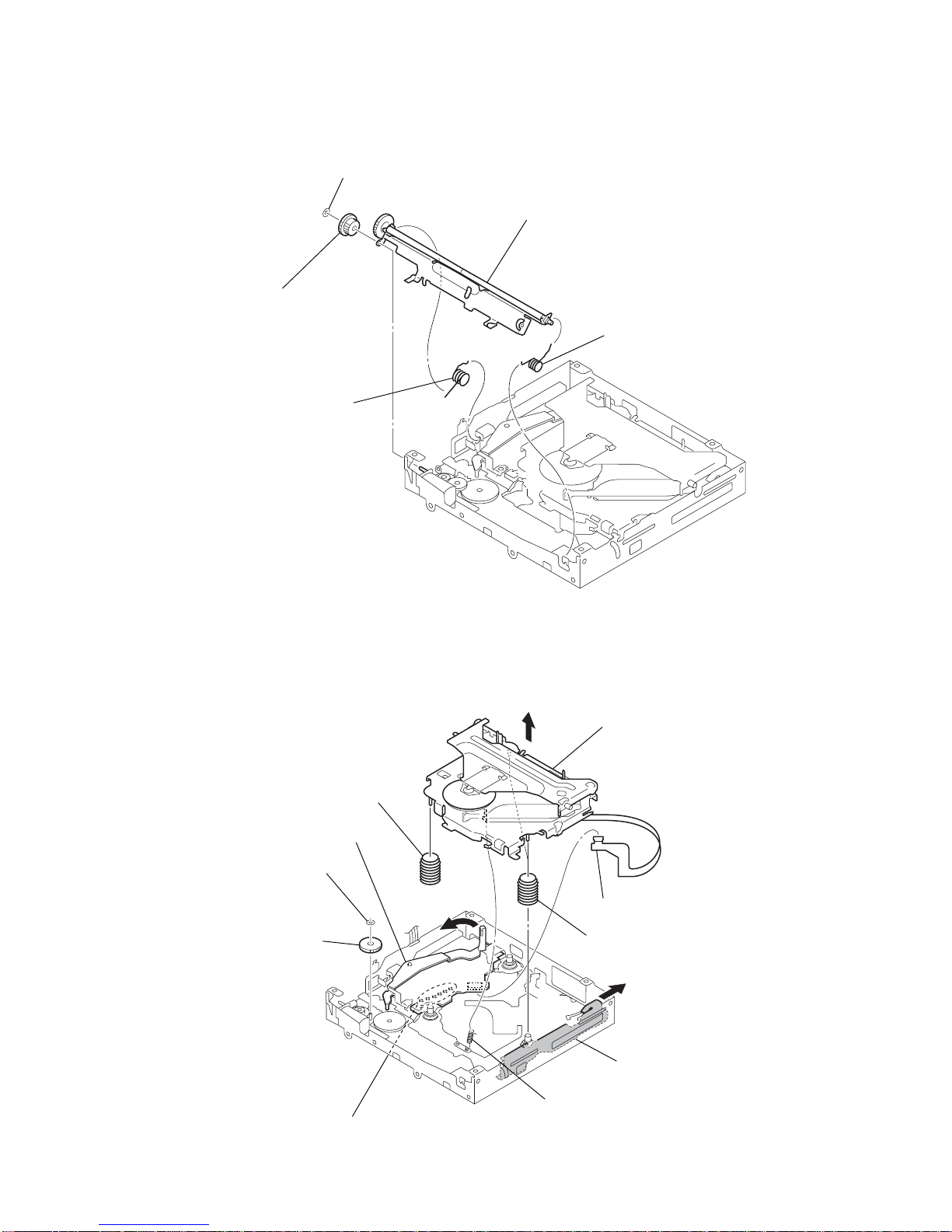

2-5. ROLLER ARM ASSY
2-6. CHASSIS (OP) ASSY
3 washer (1.0 – 2.5)
4 worm wheel (RA)
5 roller arm assy
1 spring (RAL)
2 spring (RAR)
4 washer
0 compression spring (damper)
9 two compression springs (damper
)
qa chassis (OP) assy
5 gear (LE1)
1 CN2
lever (D)
slider (R)
6
7
8
2 Remove the six solderings.
3 tension coil spring (KF)

12
CDX-S2000/S2000S/SW200
2-7. OPTICAL PICK-UP
2-8. SL MOTOR ASSY (M902)
1 tension coil spring (CHKG)
2 chucking arm sub assy
3 screw
(+B 1.4
x 5)
4 rack (SL)
5 claw
6 main shaft
7 optical pick-up
1 screw
(+P 1.4 x 1.8)
2 SL motor assy (M902)

13
CDX-S2000/S2000S/SW200
2-9. LE MOTOR ASSY (M903)
2-10. SERVO BOARD
2 washer
4
qd
3
gear (LE1)
7 leaf spring (LE)
5
lever (D)
bracket (LEM)
slider (R)
6 screw
(+P 1.7
x 2.2)
8 screw
(+M 1.7
x 2.5)
qa screw
(+M 1.7
x 2.5)
qf two toothed lock screws
(+M 1.4
)
qs screw
(+M 1.7
x 2.5)
9 bearing (LEB)
0 woam (LEB) assy
qg LE motor assy
(M903)
1 Remove the soldering.
3 CN2
5 claw
6 SERVO board
4 toothed lock screw
(M 1.7)
1 Remove the eight solderings.
2 Remove the three solderings.

14
CDX-S2000/S2000S/SW200
3-1. IC PIN DESCRIPTIONS
• IC1 µPD63712GC-8EU-A (RF AMP, DIGITAL SERVO, DIGITAL SIGNAL PROCESSOR) (SERVO BOARD)
Pin No. Pin Name I/O Pin Description
1LDOLaser diode ON/OFF control signal output (L: laser OFF, H: laser ON)
2PDIDimmer monitor input from optical pick-up laser diode.
3PNINot used. (Fixed at L in this set)
4AVDD — Analog power supply pin (+3.3V)
5DGND — Ground
6RFOK O RFOK signal output to system control IC.
7INTQ O CD text pack synchronization signal output to system control IC.
8RST I CD reset signal input from system control IC.
9A0I
Command/parameter discrimination signal input from system control IC.
(L: command transmission, H: parameter transmission)
10 STB I Data strobe signal input from system control IC.
11 SCK I Serial clock input from system control IC.
12 SO O Serial data output to system control IC.
13 SI I Serial data input from system control IC.
14 DVDD — Power supply pin (+3.3 V)
15 DAVDD — D/A converter power supply (+) pin (+3.3 V)
16 ROUT O Analog audio signal output (R-ch)
17 DAGND — Ground
18 REGC — Capacitor connection pin for SCF regulator.
19 DAGND — Ground
20 LOUT O Analog audio signal output (L-ch)
21 DAVDD — D/A converter power supply (+) pin (+3.3 V)
22 XVDD — Power supply pin (+3.3V)
23 XTAL O Main system clock output (16.9344 MHz)
24 XTAL I Main system clock input (16.9344 MHz)
25 XGND — Ground
26 DVDD — Power supply pin (+3.3 V)
27 C1D1/FZD O Not used. (Open)
28 C1D2/TZD O Not used. (Open)
29 C2D1/RMUTE O CD R-ch data zero detection signal output
30 C2D2/LMUTE O CD L-ch data zero detection signal output
31 C2D3/SHOCK/SBSY O Not used. (Open)
32 LOCK/FR O Not used. (Open)
33 WFCK/MIRR O Not used. (Open)
34 RFCK/HOLD O Not used. (Open)
35 PLCK O Not used. (Open)
36 C16M O Not used. (Open)
37 DGND — Ground
38 TX O Not used. (Open)
39 EMPH/RAMOVER O Not used. (Open)
40 FLAG O Not used. (Open)
41 DVDD — Power supply pin (+3.3 V)
42 LIMIT I Not used. (Fixed at L in this set)
43 XTALEN I Oscillation circuit ON/OFF control signal input (L: ON, H: OFF)
(Fixed at L in this set)
44 DGND — Ground
45 DIN I Not used. (Connect to DOUT in this set)
46 DOUT O Not used. (Connect to DIN in this set)
47 SCKIN I Not used. (Connect to SCKO in this set)
48 SCKO O Not used. (Connect to SCKIN in this set)
49 LRCKIN I Not used. (Connect to LRCK in this set)
SECTION 3
DIAGRAMS

15
CDX-S2000/S2000S/SW200
Pin No. Pin Name I/O Pin Description
50 LRCK O Not used. (Connect to LRCKIN in this set)
51 DVDD — Power supply pin (+3.3 V)
52 FD+ O Focus servo drive PWM signal output (+)
53 FD– O Focus servo drive PWM signal output (–)
54 TD+ O Tracking servo drive PWM signal output (+)
55 TD– O Tracking servo drive PWM signal output (–)
56 SD+ O Sled servo drive PWM signal output (+)
57 SD– O Sled servo drive PWM signal output (–)
58 MD+ O Spindle servo drive PWM signal output (+)
59 MD– O Spindle servo drive PWM signal output (–)
60 DGND — Ground
61 TESTEN I Test setting input (Fixed at L in this set)
62 to 66 TEST4 to TEST0 I Test setting input (Fixed at L in this set)
67 ADGND — A/D converter power supply (–) pin
68 EFM O EFM signal output
69 ASY I EFM comparator reference voltage input
70 ADVDD — A/D converter power supply pin (+3.3 V)
71 RFI I RF signal input for EFM data growing.
72 EQ2 — Not used. (Open)
73 EQ1 — RF amplifier equalizer parts connection pin
74 RF– I Not used. (Open)
75 RF2– I RF amplifier inversion input
76 AGCO O RF signal output after on AGC.
77 AGCI I RF AGC signal amplifier input
78 RFO O RF signal output before onAGC.
79 ATEST I Not used. (Open)
80 C3T — Capacitor connection pin for 3T detection.
81 AGND — Ground
82 A I Signal input (A) from optical pick-up detector.
83 C I Signal input (C) from optical pick-up detector.
84 B I Signal input (B) from optical pick-up detector.
85 D I Signal input (D) from optical pick-up detector.
86 F I Signal input (F) from optical pick-up detector.
87 E I Signal input (E) from optical pick-up detector.
88 VREFIN I Reference voltage (+1.65 V) input
89 AVDD — Analog power supply pin (+3.3 V)
90 REFOUT O Reference voltage (+1.65 V) output
91 REFC — Capacitor connection pin for reference voltage output.
92 FE– I Focus error signal amplifier inversion input
93 FEO O Focus error signal amplifier output
94 ADCIN I Not used. (Open)
95 TE- I Tracking error signal amplifier inversion input
96 TEO O Tracking error signal amplifier before output
97 TE2 O Tracking error signal amplifier after output
98 TEC I Tracking error signal comparator input
99 AGND — Ground
100 PWMSW I Not used. (Fixed at L in this set)

16
CDX-S2000/S2000S/SW200
• IC801 MB90473PF-G166-BNDE1 (SYSTEM CONTROL) (MAIN BOARD (2/2))
Pin No. Pin Name I/O Pin Description
1ATT O Audio mute control signal output
2 to 4 NC — Not used in this set. (Open)
5BEEP O Beep signal output to power amp IC
6VOL ATT O Electrical volumeATT control output
7 to 10 NC — Not used in this set. (Open)
11 VSS — Ground pin
12 to 14 NC — Not used in this set. (Open)
15 TU ATT O Tuner mute control output
16, 17 NC — Not used in this set. (Open)
18 CD SI I CD servo serial data signal input
19 CD SO O CD servo serial data signal output
20 CD SCK O CD servo serial clock signal output
21 RE 0 O Not used in this set. (Open)
22 RE 1 O Not used in this set. (Open)
23 VCC+3.3 — Power supply pin (+3.3V)
24 EEP SIO I/O Serial data signal input/output for EEPROM comunication
25 EEP SCK O Serial clock signal output for EEPROM comunication
26 SHUT SW I Shutter switch open/close detect signal input Not used in this set. (Open)
“L”: Panel open, “H”: Panel close
27 LCD CE O Chip enable signal output to LCD driver IC
28 LCD SO O Serial data signal output to LCD driver IC Flash: UART serial out
29 LCD SCK O Serial clock signal output to LCD driver IC
30 NC — Not used in this set. (Open)
31 STB O Standby signal output to power amp IC
32 AUX — Not used in this set. (Open)
33 IIC SCK O IIC bus serial clock signal output
34 IIC SIO I/O IIC bus serial data signal input/output
35 VCC+3.3 — Power supply pin (+3.3V) (for A/D converter)
36 AVRH+3.3 — External reference power supply (+3.3V) (for A/D converter)
37 AVSS — Ground pin (for A/D converter)
38, 39 KEY IN0, 1 I Key signal input
40 NC — Not used in this set. (Open)
41 RC IN0 I Rotary commander key signal input
42 VSS — Ground pin
43, 44 NC — Not used in this set. (Fixed at “L”.)
45 VSM I S meter voltage detect signal input
46 DST SEL I Destination select pin
47 KEY ACK I Key acknowledge detect signal input
48 NC — Not used in this set. (Open)
49, 50 MD0, 1 I Input for operation mode designation (Fixed at “H”.)
51 MD2 I Input for operation mode designation (Fixed at “L”.)
52 NC — Not used in this set. (Open)
53 BU IN I Back up power supply detect signal input
54 OP REQ/INTQ O OP REQ/INTQ select signal output
55 CD SELFSW I CD mechanism self load position detect switch signal input
56 DIAG I Condition input from power amp IC
57 TU ATT IN I Tuner ATT signal input Not used in this set. (Open)
58 UNI SI I Serial data signal input Not used in this set. (Open)
59 UNI SO O Serial data signal output Not used in this set. (Open)
60 UNI SCK O Serial clock signal output Not used in this set. (Open)
61 BUS ON O Bus on signal output
62 SYS RST O System reset signal output

17 17
CDX-S2000/S2000S/SW200
Pin No. Pin Name I/O Pin Description
63 TELATT O TEL ATT signal output Not used in this set. (Open)
64 ACC IN I Accessory power supply detect signal input
65 SIRCS I Remote control signal (infrared rays) input
66 RAM BU O Not used in this set. (Fixed at “L”.)
67 TEST IN I Test mode detect signal input
68 FLASH W I Memory mode changeover signal input
Normally “H” input (single chip mode) “L” after reset: Flash write mode
69 NOSE SW O Not used in this set. (Fixed at “H”.)
70, 71 NC — Not used in this set. (Open)
72 DOOR SW I Front panel open/close detect signal input
“L” input: Panel close, “H” input: Panel open
73 DOOR IND O Not used in this set. (Open)
74 RC IN1 I Rotary commander shift key signal input
75 XKEY ON O Key power supply control signal output Pin rj (KEY ACK) active: “L” output
76 NC — Not used in this set. (Open)
77 RESET I Reset signal input
78 NC — Not used in this set. (Open)
79 X1A — Oscillator connect pin (32 kHz)
80 X0A — Oscillator connect pin (32 kHz)
81 VSS — Ground pin
82 X0 — Oscillator connect pin (3.68 MHz)
83 X1 — Oscillator connect pin (3.68 MHz)
84 VCC+3.3 — Power supply pin (+3.3 V)
85 to 88 NC — Not used in this set. (Open)
89 ZERO DET R I Mechanism deck mute zero closs detect signal input R
90 ZERO DET L I Mechanism deck mute zero closs detect signal input L
91 CD STB O CD servo data strob signal output Timing of data latch: “L” output
92 CD IN SW I CD mechanism IN-SW detect signal input
93 CD LOAD O CD mechanism loading motor control signal output
94 CD ON/EJECT O CD mechanism eject motor control signal output
95 CDM ON/D SW I CD mechanism DSW detect signal input
96 CD LIMIT I CD mechanism IN-LIMIT SW signal input
97 RFOK I CD servo RFOK signal input
98 CD XRST O CD servo reset signal output
99 CD A0 O CD servo command/parameter identification signal output
Command transmission: “L” output, parameter transmission: “H” output
100 NC — Not used in this set. (Open)

1818
CDX-S2000/S2000S/SW200

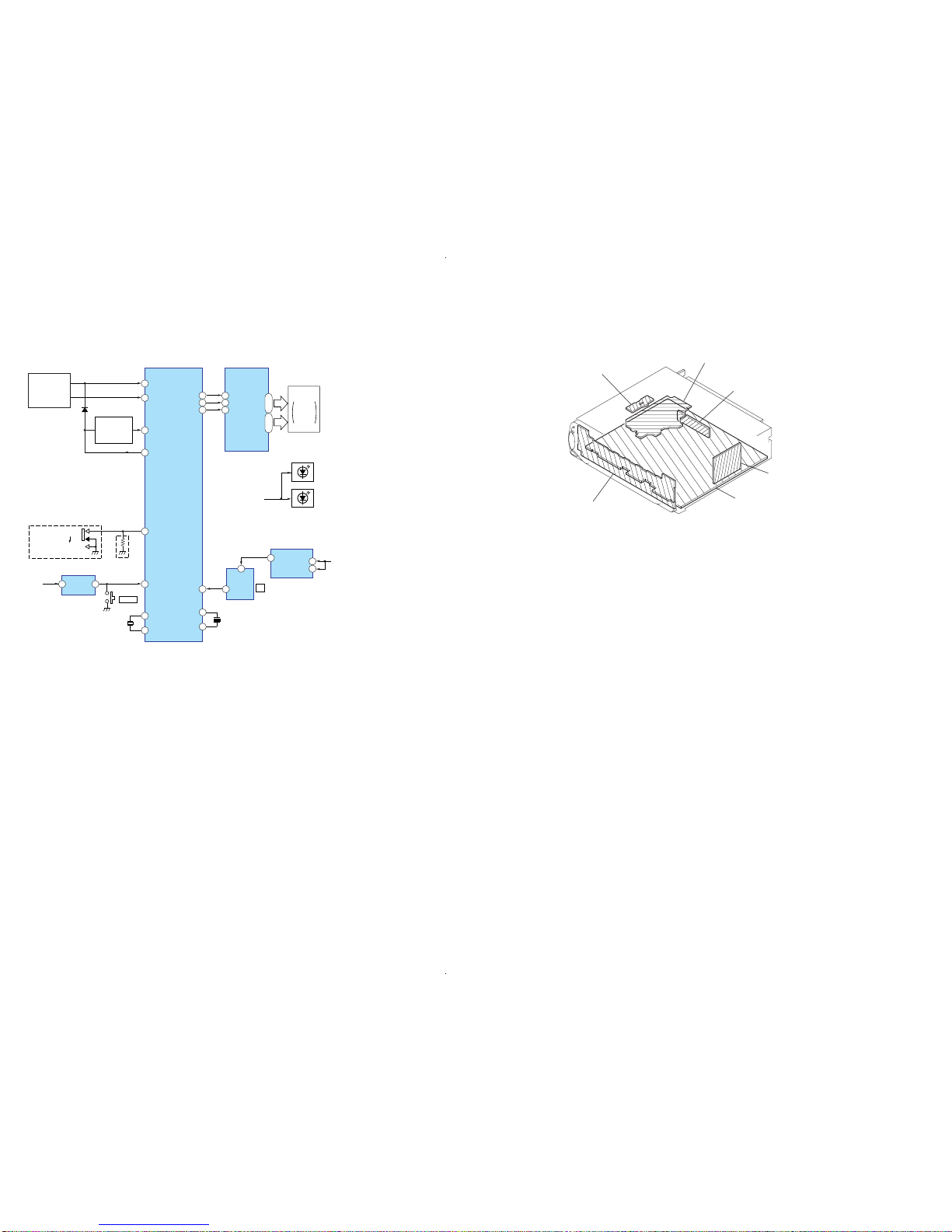

3-2. BLOCK DIAGRAM — CD SECTION —
76
AGCO
RF AMP,DIGITAL SERVO,
DIGITAL SIGNAL PROCESSOR
IC1
78
RFO
93
FEO
96
TEO
77 AGCI
92 FE–
95 TE– 97
TE2 98 TEC
52 FD+
PD1
PD2
E
F
I-V AMP
PD LD
DETECTOR
71 RFI 68
EFM 69 ASY
84
82
85
83
87
86
E
C
D
A
B
F
1LD 2
PD
(FOCUS)
(TRACKING)
2-AXIS DEVICE
OPTICAL
PICK-UP BLOCK
(KSS-1000E)
• Siganal Path
: CD PLAY
LASER DIODE
M
M
M
13
14
VO1–
VO1+
15
16
VO4+
VO4–
17
18 VO3–
VO3+
10
9
VOL+
VOL–
FWD
REV
1
28
OPIN2+ 5
53 FD–
OPIN2– 6
54 TD+
OPIN1+ 2
55 TD–
OPIN1– 3
56 SD+
OPIN4+ 27
57 SD–
OPIN4– 26
58 MD+
OPIN3+ 24
59 MD–
OPIN3– 23
11
12
VO2–
VO2+
M903
(LOADING)
M901
(SPINDLE)
M902
(SLED)
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE/LOADING
MOTOR DRIVE
IC2
12
SO
13
SI
11
SCK
6
RFOK
7
INTQ
10
STB
9
A0
8
RST
CD-L MAIN
SECTION
A
20
LOUT
16
ROUT R-CH
20 CD_SCK
97 RF_OK
54 OP INTQ
91 CD_STB
55 CD_SELFSW
92 CD_INSW
96 CD_LIMIT
99 CD_A0
98 CD XRST
CD LOAD
93
CD ON/EJECT
94
SYSTEM CONTROL
IC801 (1/3)
18 CD_SI
19 CD_SO
SW2
(SELF)
95 CD_DSW
SW1
(DOWN)
SW3
(DISC IN)
SW4
(LIMIT)
30
LMUTE 90 ZERO DET L
29
RMUTE 89 ZERO DET R
PD2
E
F
LD
PD
FCS+
FCS–
TRK+
TRK–
PD1
AUTOMATIC
POWER
CONTROL
Q1
• R-ch is omitted due to same as L-ch.
24
23
X1
16.934MHz
XTAL
XTAL
(Page 19)

19 19
CDX-S2000/S2000S/SW200
3-3. BLOCK DIAGRAM — MAIN SECTION —
1ANT 7B2
ELECTRONIC VOLUME
IC401
PJ601
(ANTENNA)
TUX601
(TUNER UNIT)
POWER AMP
IC100
SYSTEM CONTROL
IC801 (2/3)
CNP901
6B1
R-CH (FRONT)
R-CH (REAR)
BATT
9C2
8C1
R-CH
4
3
10
VCC
11
TU VDD
15
E2P VDD
13
TU-SCL
14
TU-SDA
6
S-METER
7
TU MUTE
16
E2P SCL
17
E2P SDA
45 VSM
AU+8V
TU+5V
U COM+3.3V
15 TU ATT
25 EEP SCK
24 EEP SIO
L
R
CD-L
R-CH 17
18
OUTS1
OUTS2 R-CH
L
R
5
3
PR+
PR-
9
7
RF+
RF-
29
27
SW1
R-CH
SW2
BATT
30
37
REG1
REG2
31
33
REG3
REG4
34
REG5
TU+5V
BATT
25
24
OUTF1
OUTR1
29
MUTE
2SDA
AU+8V
U-COM+3.3V
SERVO+3.3V
MECHA+6V
DISP+B
4SCL
SDA
SCL
16 ACGND
22 STB
25 DIAG
AU+8V
35 VP
15
7
10
12
11
16
1
9
2
4
3
5
6
30
31
SCL
SDA
SCL
SDA
SCL
SDA
SCL
SDA
33
IIC SCK
34
IIC SIO
6
VOL ATT
1
ATT
5
BEEP
31
STB
56
DIAG
53
BU IN
67
TEST IN
12 INRR(FL) FL+
FL-
RL+
RL-
FR+
FR-
RR+
RR-
AMP-REM
ANT-REM
ACC
TEST
23
OUTF2
11 INRF(RL)
22
OUTR2
MUTE
Q405
MUTE
Q407
REAR
AUDIO OUT
PJ401
MUTE CONTROL
Q400,401
BATT
64
ACC IN
BATTERY CHECK
Q902,906,907
ACC CHECK
Q900
TU+5V REG
Q601
MUTE
Q404
D400
D912
F901
CD
SECTION
A
• Signal Path
• R-CH is omitted due to same as L-CH.
: CD PLAY
: FM
: AM
(Page 18)

2020
CDX-S2000/S2000S/SW200
3-4. BLOCK DIAGRAM — DISPLAY SECTION — 3-5. CIRCUIT BOARDS LOCATION
KEY
ACKNOWLEDGE
SWITCH
Q800
X801
32.768kHz
79
80
82
83
38
28
29
27
39
47
75
77
SYSTEM CONTROL
IC801 (3/3)
LCD DRIVER
IC901
KEYIN0
CLK
CE
LCD SO
LCD SCK
LCD CE
DIMMER
KEYIN1
KEY ACK
DISP+B
XKEY ON
46 DST SEL
RESET
2IN 1
OUT
X1A
X0A
X0
X1
X800
3.68MHz
S802
RESET
63
64
62
COM4
COM1
LCD901
LIQUID
CRYSTAL
DISPLAY
PANEL
LED910,911
LCD
BACK LIGHT
D801
4
|
49
51
|
54
|
SEG4
SEG49
|
CL
DI
CE
DISP+B
65
SIRCS
2
VDD
4
CE
1
VCC
+3.3V REG
IC905
IR
LED901,902,904-909,
LSW905-911,913,914,
916-920
REMOTE CONTROL
SIGNAL RECEIVER
IC951
2OUT
3V OUT
U COM+3.3V
()
()
KEY MATRIX
E model
US,Canadian
model
9K
RESET
IC802
S800
FREQUENCY
SELECT 10K
LSW905-911,913,
914,916-920,
S901-906
MAIN board
DISPLAY board
SENSOR board
SERVO board
SPEAKER board
tuner unit
(TUX601
)
