Sony EXR-22 User manual

Ss
ONY
3-757-418-21
(1)
FM/AM
Cassette
Car
Stereo
EXR-22
Operating Instructions _ pagez
Before operating the unit, please read this manual thoroughly and retain it
for future reference.
Owner’s Record
The model and serial numbers are located on the top of the unit.
Record the serial number in the space provided below. Refer to these
numbers whenever you call upon your Sony dealer regarding this
product.
Model No. EXR-22 Serial No.
Mode d’emploi page 23
Avant la mise en service de cet appareil, priére de lire attentivement ce
mode d'emploi que l'on conservera pour toute référence ultérieure.
For installation and connections, see the supplied installation/connec-
tions manual.
Pour linstallation et les connexions, se reporter au manuel
d'instaflation/connexions fourni.
© 1993 by Sony Corporation

WARNING
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmtul interference to
tadio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equip-
ment and receiver.
—cConnect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.

Table of Contents
Features ......... adavadbagutsuecaceasesveesseibeastersoescaceesestescsdecseestedcatuessorscessees 4
Precautions .... 5
Location and Function of Controls ............ +6
Detaching and Attaching the Front Panel ..... seitece
SOttiNg the COCK viciesssossssscvsccescornessassavencscconsonscsscosceseaseonsesvodensesatoes
Listening to the Tape Playback.............. i Sosbaads sasissassvavasteactcsvanaveete 11
Radio Reception
Searching for the Stations Automatically
— Automatic TUNING ...........sccccssesssesrorereees esostasebscieeds Bdebatioses, 12

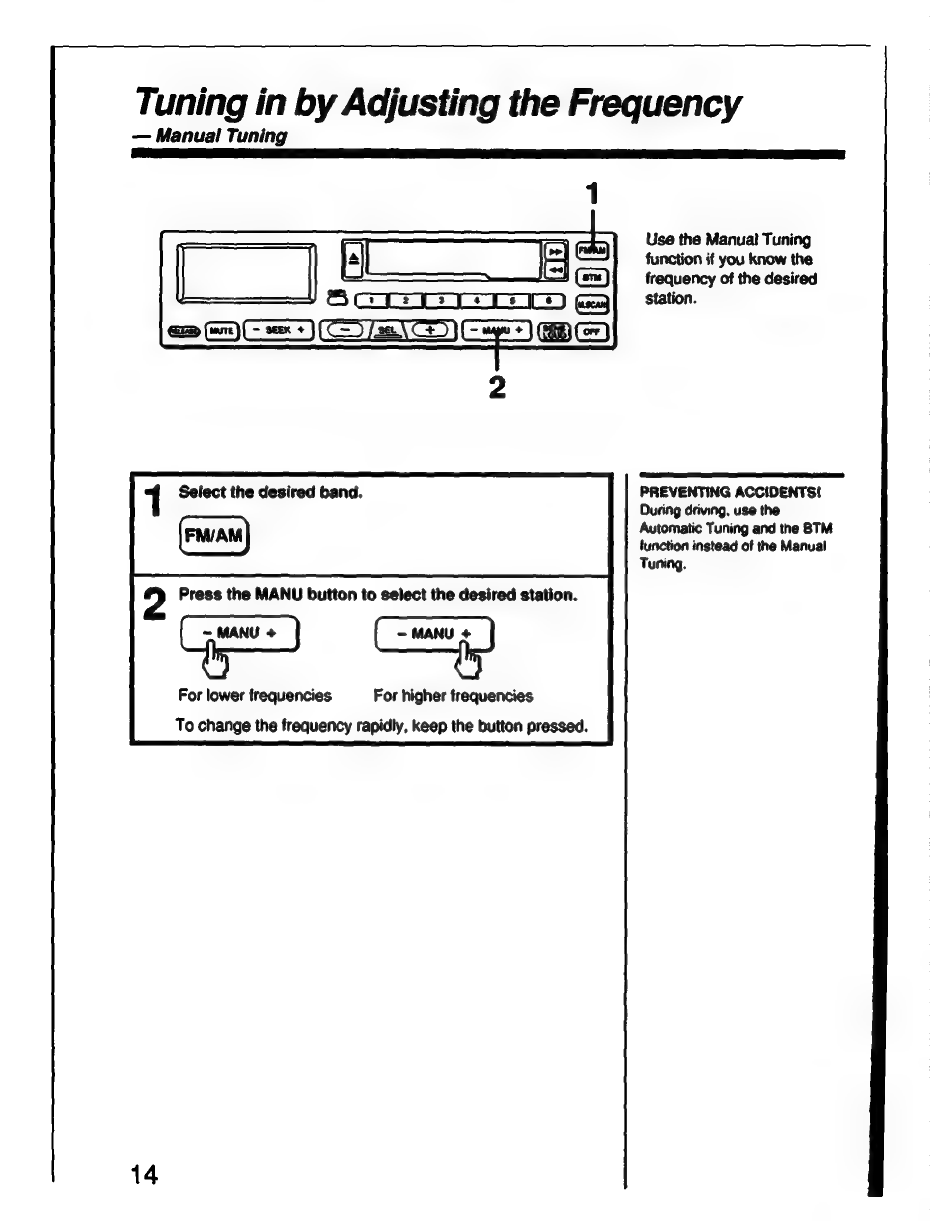

Tuning in by Adjusting the Frequency
— Manual Tuning .............scscssscesresssersertsestecercssrssserecsreressssees 14
Memorizing the Stations Automatically
—BTM Function ............cssecrcsrcsscsessscsecssesccscerrecsecerosscssersescesee 18
Memorizing Only the Desired Stations ...........ssccsssssssrcsscssesseesee 16
Receiving Stations Stored in the MeMOSY ..............scsresscsseserecnes 17

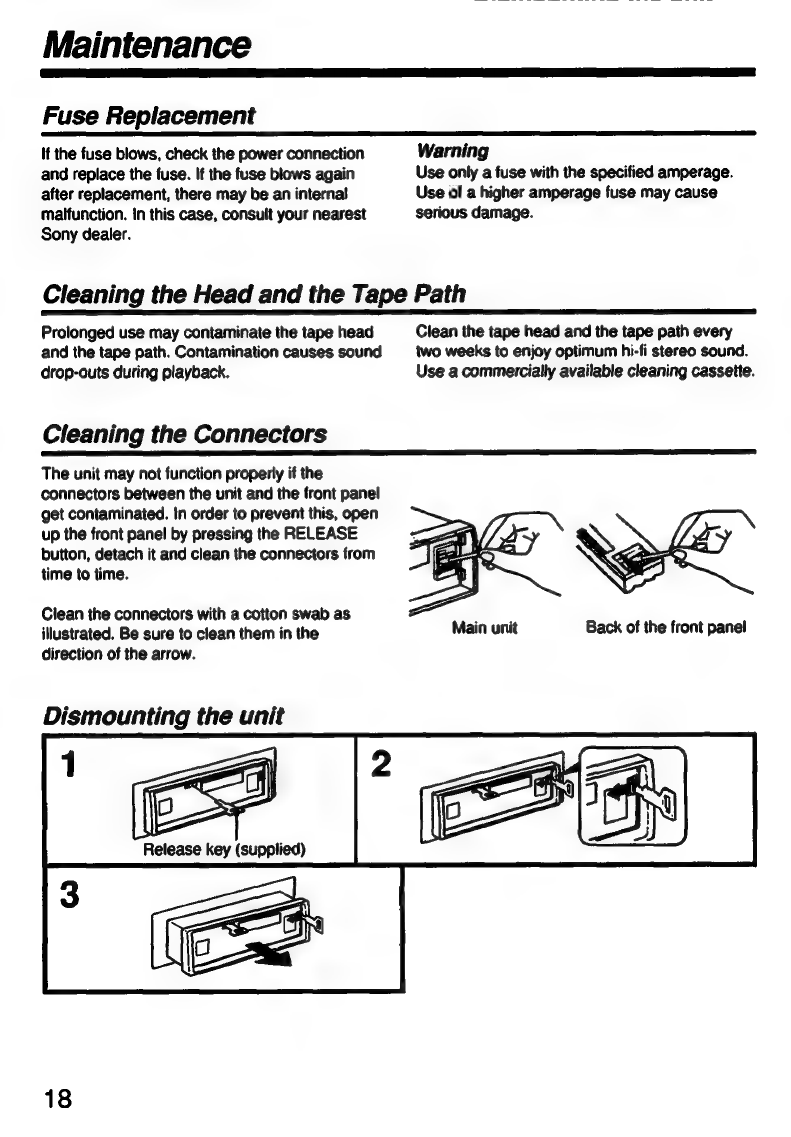

Maintenance ............sssscsssesssees iseasecessecesens Saebscencasestcsasesssxe pessssnsaen 18 i
Specifications ................

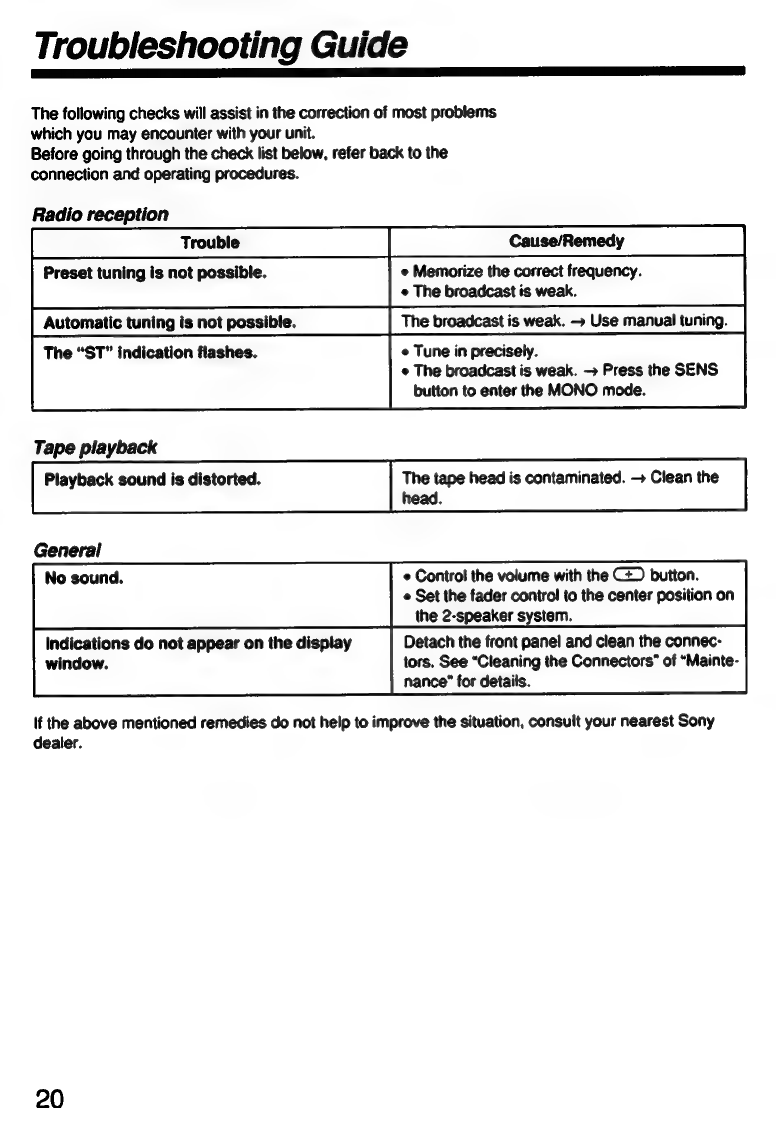

Troubleshooting Guide

Features
General Tuner section
¢ Detachable-front panel enables you to take e SSIR (Sony Super Interference Rejection)
the front panel away with you when you leave PLL synthesizer tuner
your car (page 9). Up to 30 stations can be preset, 18 stations
¢ Built-in high power amplifier (max. 20 W x 4) on FM, 12 stations on AM (page 16).
enables you to enjoy a 4-speaker system. ¢ BTM (Best Tuning Memory) function
¢ Line output for connecting an optional power automatically selects and stores the stations
amplifier. with strong signals on the preset number
¢ Provided with a digital 12-hour clock buttons in order of frequency (page 15).
(page 10). ¢ Memory scan function scans each of the
preset stations for five seconds in order.
Cassette player section
e The auto-reverse function changes the tape
direction automatically.

Precautions
e If your car was parked in direct sunlight resulting in a considerable
rise in temperature inside the car, allow the unit to cool off before
operating it.
¢ If no power is supplied to the unit, check the connections first. If
everything is in order, check the fuse.
¢ If no sound comes from the speakers of a 2-speaker system, set
the fader control to the center position.
If you have any questions or problems concerning your unit that are
not covered in this manual, please consult your nearest Sony
dealer.
Notes on Cassettes
Cassette care
¢ Avoid touching the tape surface of a cassette, as any dirt or dust
will contaminate the heads.
e Keep cassettes away from equipment with built-in magnets such
as speakers and amplifiers, as erasure or distortion on the
recorded tape could occur.
Do not expose cassettes to direct sunlight, extremely cold
temperatures or moisture.
¢ When the tape is played back for a long time, the cassette shell
may become warm because of the built-in power amplifier.
However, this is not a sign of a malfunction.
Notes on Cassettes longer than 90 minutes
The use of cassettes longer than 90 minutes is not recommended
except for tong continuous play. The tapes used for these cassettes
are very thin and tend to be stretched easily. Frequent playing and
stopping operation may cause these tapes to be pulled into the
cassette deck mechanism.
Notes on the Front Panel
e When you detach the front panel, turn off the power to the unit.
However, if you detach the front panel while the unit is turned on,
the power will automatically be turned off. This will protect
speakers from being damaged.
e Do not expose the front panel to direct sunlight, heat sources such
as hot air-ducts, extremely cold temperatures or moisture.

Location and Function of Controls
Refer to the pages in @ for details.
[1] DSPL. (display change/time set) button
[2] 4 (eject) button
Press to stop tape playback and to eject
the cassette.
[3] Cassette insertion door
[4] 44 P (fast winding)/DIR (tape
transport direction change) buttons ®
During playback, press << or > for fast
winding. or press both <4 and DP
simultaneously to listen to the other side of
the cassette.
[5] FM/AM (radio on/band select) button ®
At each pressing, the button changes the
band cyclically as follows:
E FMI — FMII > FMIII > AMI > ctil|
[6] RELEASE (front pane! release) button @
SEEK (automatic tuning) button ®
Press the — side to search stations in lower
frequencies and the + side to search
stations in higher frequencies.
MANU (manual) button ®
Press to tune in the desired stations
manually.

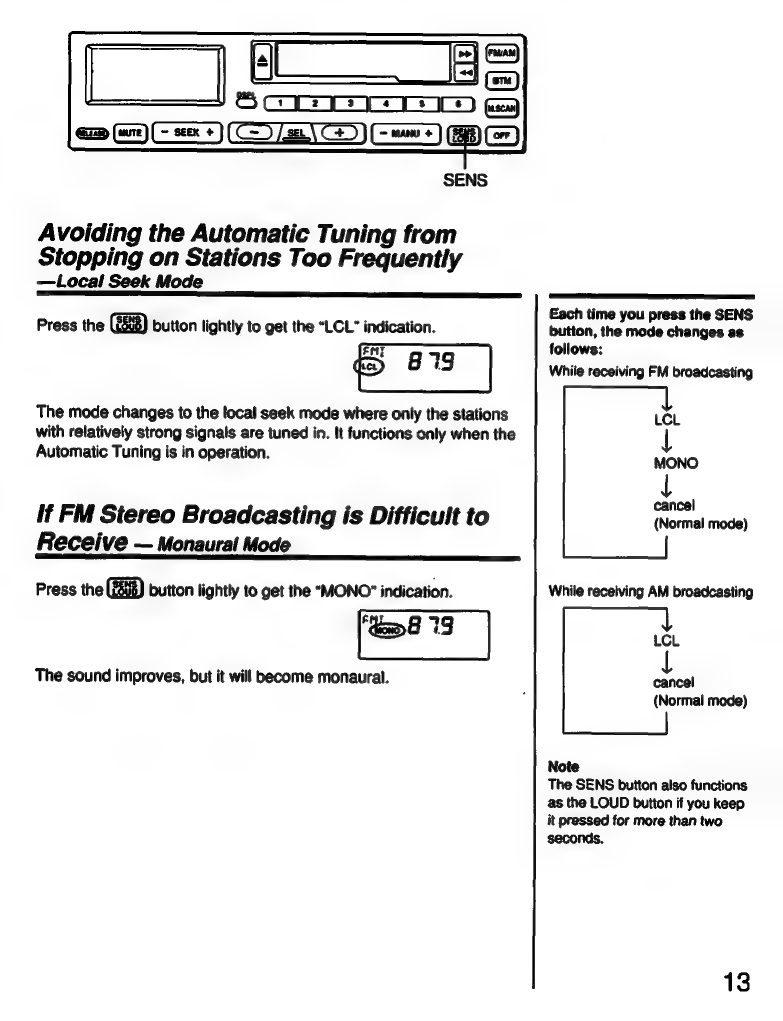

SENS/LOUD (sensitivityoudness)
button ®
Press for more than two seconds to
reinforce the bass and treble especially
when listening at a low volume level. To
disengage the button, press it again for
more than two seconds.
POWER SELECT switch (located on the
bottom of the unit)
See the description about the POWER
SELECT switch in the
installation/Connections manual.

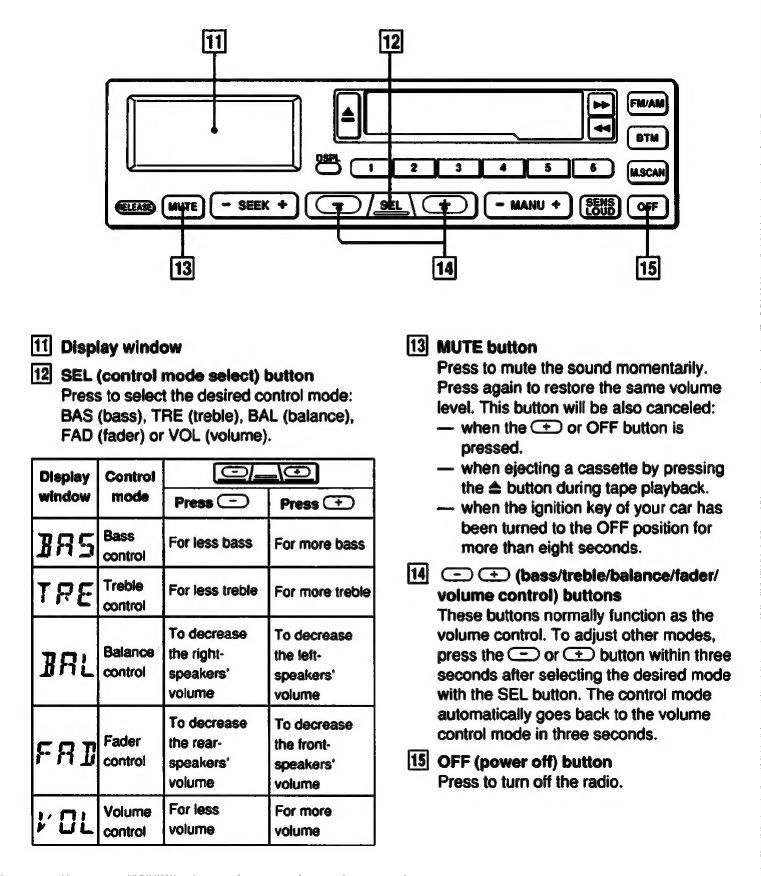

[17] Display window
[13] SEL (contro! mode select) button
Press to select the desired control mode:
BAS (bass), TRE (treble), BAL (balance),
FAD (fader) or VOL Ee
Display de en
window | mode
For less bass | For more
| ett
| trees For less treble | For more treble
Elna
To decrease
R fae Balance | the right-
t.| control | speakers’
volume
To decrease / To decrease
weer
the
rear-
vei
Di
controt
speakers’
rs’
volume ae
y fa) ney For less For more
LUillco volume volume
[13] MUTE button
Press to mute the sound momentarily.
Press again to restore the same volume
level. This button will be also canceled:
— when the or OFF button is
pressed.
— when ejecting a cassette by pressing
the & button during tape playback.
— when the ignition key of your car has
been turned to the OFF position for
more than eight seconds.
CG (bassttreble/balance/tader/
volume control) buttons
These buttons normally function as the
volume control. To adjust other modes,
press the or button within three
seconds after selecting the desired mode
with the SEL button. The control mode
automatically goes back to the volume
control mode in three seconds.
[15] OFF (power off) button
Press to turn off the radio.

Location and Function of Controls
During radio reception
Preset number buttons @@
BTM (Best Tuning Memory) button ®
M.SCAN (memory scan) button ®
Press to scan the memorized stations.
Muting a beep sound
Press the (3) button while pressing the SEL button. To obtain the beep sound again, press these
buttons aaain.

Detaching and Attaching the Front Panel
Detaching the Front Panel
Before detaching the front panel, be sure to press the OFF button
first. Then press the RELEASE button to open up the front panel,
and detach the panel by pulling it towards you as illustrated.
RELEASE button
Do not drop the pane! when detaching it from the unit.
Attaching the Front Panel
Apply the right hand side of the front panel to the unit by attaching
part @ of the front panel to part © of the unit as illustrated and
push until it clicks.
Do not press hard or apply excessive pressure to the display
window of the front oanel.
Notes
¢ Make sure that the front panel
is the right way up when
attaching it to the unit. It
cannot be attached upside
down.
¢ When attaching the front
panel, do not press it hard
against the unit. It can be
easily attached by pressing
lightly.
e Never leave the detached front
panel in your car if itis parked
in direct sunlight. There could
be a considerable rise in
temperature inside the car.
« When you carry the front panel
with you, put it in the supplied
front panel case.
e The display window may
become warm while the unit is
operated. This is not a sign of
a malfunction.

Setting the Clock
2,3,4
Se
an)
eo
eC
+)
(Maile)
BEI
For example, set it to 10:08.
1 Turn the ignition key to the ON position.
Press the DSPL button if the clock indication does not
come on.
OSPL
Press the DSPL button for more than two seconds.
OSPL
a
~N
4
While hotding down the DSPL button,
press (manu +) to set the time.
~: To advance the hour digits ay ' oca—
+: To advance the minute digits a a ie
To advance the digits rapidly, keep the button pressed.
The clock starts when you take your finger off the
OSPL button.
10
The clock has a 12-hour
digital indication.
Note
If the POWER SELECT switch
of the unit ts set to the OFF
position, the clock cannot be set
unless the power is turned on.
Set the clock after you turned on
the radio, or tape playback.
When setting the time digits
e Minute and hour digits do not
go backward.
¢ 00° comes after “59°. The
hour digits do not change
then.

Listening to the Tape Playback
2 —_Cassetig insertion opp
_)] Bs
6
OSes)
(uscan)
eo
Ce
+)
(C/I
C™
+)
BE)
insert a cassette to start playback.
Playback starts automatically.
To listen to the reverse side of the cassette,
)
press simultaneously.
To Eject the Cassette and Listen to the Radio
Press the & button.
To Wind the Tape Rapidly
ae a EP SC AY EE LT
Direction
— resume playback, press C=) or) lightly so as not to depress
it.
Getting the clock indication
during a tape playback
Press the DSPL button.
Press it again to return to the
previous indication.
Note
Before turning off the unit; eject
the tape to avoid tape damage.
Tape transport direction
indication.
The side facing up is being
played.
The side facing down is being
played.
* *<J>° indicator will flash while
fast-winding the tape.
uoyesedg 10Aeig eyesseg

Searching for the Stations Automatically
— Automatic Tuning
J =si‘(asaésgS}
et
CieiG@ Ce) Be)
1 Select the desired band.
2° the SEEK button.
GS
For lower frequencies For higher frequencies
The scanning stops when a station is received. Press the
button repeatedly until the desired station is received.
12
If you do not know the
frequency of the station
you wish to tune in, use the
Automatic Tuning function.
Note
FM has three bands (FMI. FMil.
anc FMIIl). Three bands cover
the same frequency range. To
change the band, press ‘rwaw),
While receiving FM broadcast-
ing
The “ST” indication will appear
when an FM stereo program
with sufficient signal strength is
tuned in. The program will be
received in stereo.
Getting the clock indication
while listening to the radio
Press the DSPL button. Each
time you press the button, the
display mode changes as
follows:
Frequency display
mode
l
Clock display
mode

bacaed
eee
e) Cum +) DG)
SENS
Avoiding the Automatic Tuning from
Stopping on Stations Too Frequently
—Local Seek Mode
Press the button lightly to get the “LCL” indication.
ino
The mode changes to the local seek mode where only the stations
with relatively strong signals are tuned in. It functions only when the
Automatic Tuning is in operation.
If FM Stereo Broadcasting is Difficult to
Receive — Monaural Mode
Press the button lightly to get the “MONO” indication.
The sound improves, but it will become monaural.
i
Each time you press the SENS
button, the mode changes as
follows:
While receiving FM broadcasting
LCL
MONO
cancel
(Normal mode)
While receiving AM broadcasting
LCL
cancel
(Normal mode)
Note
The SENS button also functions
as the LOUD button if you keep
it pressed for more than two
seconds.
13

Tuning in by Adjusting the Frequency
— Manual Tuning
Use the Manual Tuning
tie
os frequency of the desired
i ——_ (exaq{ Station.
ee ©) Cx +) (eI) a
1 Select the desired band. PREVENTING ACCIDENTS!
During driving, use the
Fam) Automatic Tuning and the 8TM
tunction instead of the Manual
Tuning.
Press the MANU button to select the desired station.
For lower frequencies For higher frequencies
To change the frequency rapidly, keep the button pressed.
14

Memorizing the Stations Automatically
— BTM (Best Tuning Memory) Function
Oe
exp
(wa)
ex
+)
(Cl
GD)
1 Select the desired band.
Press the BTM button to activate BTM (Best Tuning
Memory) function.
The BTM function
The BTM function searches all the receivable stations
within the currently selected band and memorizes the ones
in good receiving conditions in sequence from the lowest
frequency.
How to memorize the stations on the preset number
buttons
— When there is no preset number indicated on the display window:
all the preset number buttons set in the currently selected band
will be filled with the memories.
—— When there is a preset number indicated on the display window:
the unit will memorize the stations on the preset number buttons
from the one currently being displayed. For example, when you
choose FMI and preset number 3 is being displayed, the
operation will start from the preset number 3 on FMI and stops at
the preset number 6 on FMIII.
Stations with clearest
reception are automatically
searched and memorized
on each band (FMI, FMII,
FMiIl and AMI, AMII). Up
to 6 stations on each band
can be stored on the
preset number buttons 1 to
6 in the order of frequency.
The receivable frequencies of
FMI, FMII and FMIII are the
same.
Therefore, 18 stations can be
memorized on FM.
Note
There may be cases where
there are not enough receivable
stations due to the lack of
stations in the vicinity or weak
broadcasting signals. In such
cases, the BTM operation may
stop without all the buttons being
occupied with memories.

Memorizing Only the Desired Stations
Up to 6 stations on each
band (FMI, FMI], FMI
and AMI, AMII) can be
stored in the memory in
order of your choice.
For example, store a station on the preset number button 1.
Select the desired band. Only one station per band
(FMI, FMII, FMIII and AMI,
[Fuvam| AMII) can be stored in the
memory on each preset
number button.
If you try to store another station
Tune in the station which you wish to store on the on the same preset number
preset number button (page 12 or 14). button, the previously stored
Station will be erased.
.
Keep the preset number button pressed for about two When the “MEM” indication
seconds until the “MEM” indication comes on in the te leg on, the eau pai
i in ihe memory operation
Riapray wens is completed. The “MEM”
C1 | et 9g Cuem) indication goes off after a while.
Repeat the same procedure to store other stations.
Checking in Order, All the Stations Stored
in the Memory — Memory Scan Function
Press the M.SCAN button. Note
The tuner will receive in order, all the stations stored in the There may be cases in which
memory for five seconds each. even the stations stored in the
memory cannot be received due
To cancel to weak signals in the vicinity of
Press the M.SCAN button once more. The memory scan your car.
will be canceled and you will be able to listen to the station
currently being received.
16

Receiving Stations Stored in the Memory
1 Select the desired band.
Press lightly the preset number button on which the
desired station is to be stored.
Gag) Es)
Notes
e If the signals in the vicinity of
your car are too weak, even
Stations stored in the memory
cannot be received.
¢ If you press the preset number
button for more than two
seconds, the currently
received station will be
memorized. To receive the
previously memorized station,
press the preset number
button only lightly.
17
uondedey oipey

Maintenance
Fuse Replacement
If the fuse blows, check the power connection
and replace the fuse. If the fuse blows again
after replacement, there may be an internal
malfunction. In this case, consult your nearest
Sony dealer.
Warning
Use only a fuse with the specified amperage.
Use of a higher amperage fuse may cause
serious damage.
Cleaning the Head and the Tape Path
Prolonged use may contaminate the tape head
Clean the tape head and the tape path every
and the tape path. Contamination causes sound two weeks to enjoy optimum hi-fi stereo sound.
drop-outs during playback.
Cleaning the Connectors
Use a commercially available cleaning cassette.
The unit may not function properly if the
connectors between the unit and the front panel
get contaminated. In order to prevent this, open
up the front panel by pressing the RELEASE
button, detach it and clean the connectors from
time to time.
Clean the connectors with a cotton swab as
illustrated. Be sure to clean them in the
direction of the arrow.
Dismounting the unit
Be NO
Main unit Back of the front panel

Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION 10
watts per channel minimum continuous average power at 4 ohms,
4 channels driven, from 30 to 20,000 Hz with no more than 1%
total harmonic distortion.
Other Specifications
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 3.2-8 ohms
Maximum power output
20 W x 4 (at 4 ohms)*
* Measured at 14.4 V
Cassette player section
Tape track 4-track 2-channel stereo
Frequency response 30 - 16,000 Hz
Signal-to-noise ratio 55 0B
Wow and flutter 0.13% (WRMS)
Tuner section
FM
Tuning range 87.5 — 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency
10.7 MHz
Usable sensitivity 12 dBf (75 ohms)
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo), 70 dB
(mono)
Harmonic distortion at 1 kHz
0.6% (stereo), 0.4% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Capture ratio 2d8
AM
Tuning range §30 - 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency
450 kHz
Sensitivity 35 nV
General
Output lead Power antenna relay control
lead
Power amplifier control lead
Bass + 8 dB at 100 Hz
Treble + 8 dB at 10 kHz
+6 dB at 100 Hz
+6 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Approx. 186 x 57 x 170 mm
(77/8 x 2*/a x 644 in.)
(wih/d),
Not incl. projecting parts and
controls
Mounting dimensions Approx. 182 x 53 x 154 mm
(7'la x 2%/e x 618 in.)
(w/hid),
not incl. projecting parts and
controls
Mass Approx. 1.3 kg (2 Ib 14 02.)
Accessories supplied Mounting hardware (1 set)
Power connecting cord (1)
Front pane! case (1)
Tone controls
Loudness
Dimensions
Design and specifications subject to change without
notice.
19

Troubleshooting Guide
The following checks will assist in the correction of most problems
which you may encounter with your unit.
Before going through the check list below, refer back to the
connection and operating procedures.
Radio reception
CauserRemedy
Preset tuning is not possible. « Memorize the correct frequency.
e The broadcast is weak.
The broadcast is weak. + Use manual tuning.
e Tune in precisely.
e The broadcast is weak. - Press the SENS
button to enter the MONO mode.
Automatic tuning is not possible.
The “ST” indication flashes.
Tape playback
Playback sound is distorted. The tape head is contaminated. — Clean the
head.
General
No sound. ¢ Control the volume with the button.
¢ Set the fader control to the center position on
the 2-speaker system.
Indications do not appear on the display Detach the front panel and clean the connec-
window. tors. See “Cleaning the Connectors” of “Mainte-
nance” for details.
If the above mentioned remedies do not help to improve the situation, consult your nearest Sony
dealer.
20
