Sony Xplod CDX-F7700 User manual

1
Ver 1.0 2004. 01
Model Name Using Similar Mechanism CDX-F5500
CD Drive Mechanism Type MG-611MA-186//K
Optical Pick-up Name KSS1000E
SERVICE MANUAL
US Model
Canadian Model
AUDIO POWER SPECIFICATIONS (US Model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio 120 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 52 W ×4 (at 4 ohms)
SPECIFICATIONS
General
Outputs Audio output terminals (front/rear)
Subwoofer output terminal (mono)
Power antenna relay control terminal
Power amplifier control terminal
Inputs TelephoneATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input orAUX IN terminal
Remote controller input terminal
Antenna input terminal
Tone controls Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
Loudness +8 dB at 100 Hz
+2 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ×50 ×178 mm
(7 1/8 ×2 ×7 1/8 in.) (w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(7 1/4 ×2 1/8 ×6 3/8 in.) (w/h/d)
Mass Approx. 1.3 kg (2 lb. 14 oz.)
Supplied accessories Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander RM-X141A
Design and specifications are subject to change without
notice.
• The tuner and CD sections have no adjustments.
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
9-877-508-01
2004A04-1
© 2004. 01
FM/AM COMPACT DISC PLAYER
CDX-F7700/F7705X
Photo: CDX-F7700

2
CDX-F7700/F7705X
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SERVICE NOTES
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
optical pick-up
semi-fixed resistor

3
CDX-F7700/F7705X
Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable
CDs)
This unit can play the following discs:
Type of discs Label on the disc
Audio CD
MP3 files
•Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
•You cannot play a CD-R/CD-RW that is not finalized∗.
•You can play MP3 files recorded on CD-ROMs, CD-Rs, and
CD-RWs.
•A CD-R/CD-RW to which a session can be added can be played.
∗A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.
EXTENSION CABLE AND SERVICE POSITION
Whenrepairingorservicing thisset,connectthe jig(extensioncable)
as shown below.
•Connect the MAIN board (CN751) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
zUNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SERVO BOAR
D
CN2
MAIN BOARD
CNP301 J-2502-076-1

4
CDX-F7700/F7705X
TABLE OF CONTENTS
1. GENERAL
Location of Controls................................................................ 5

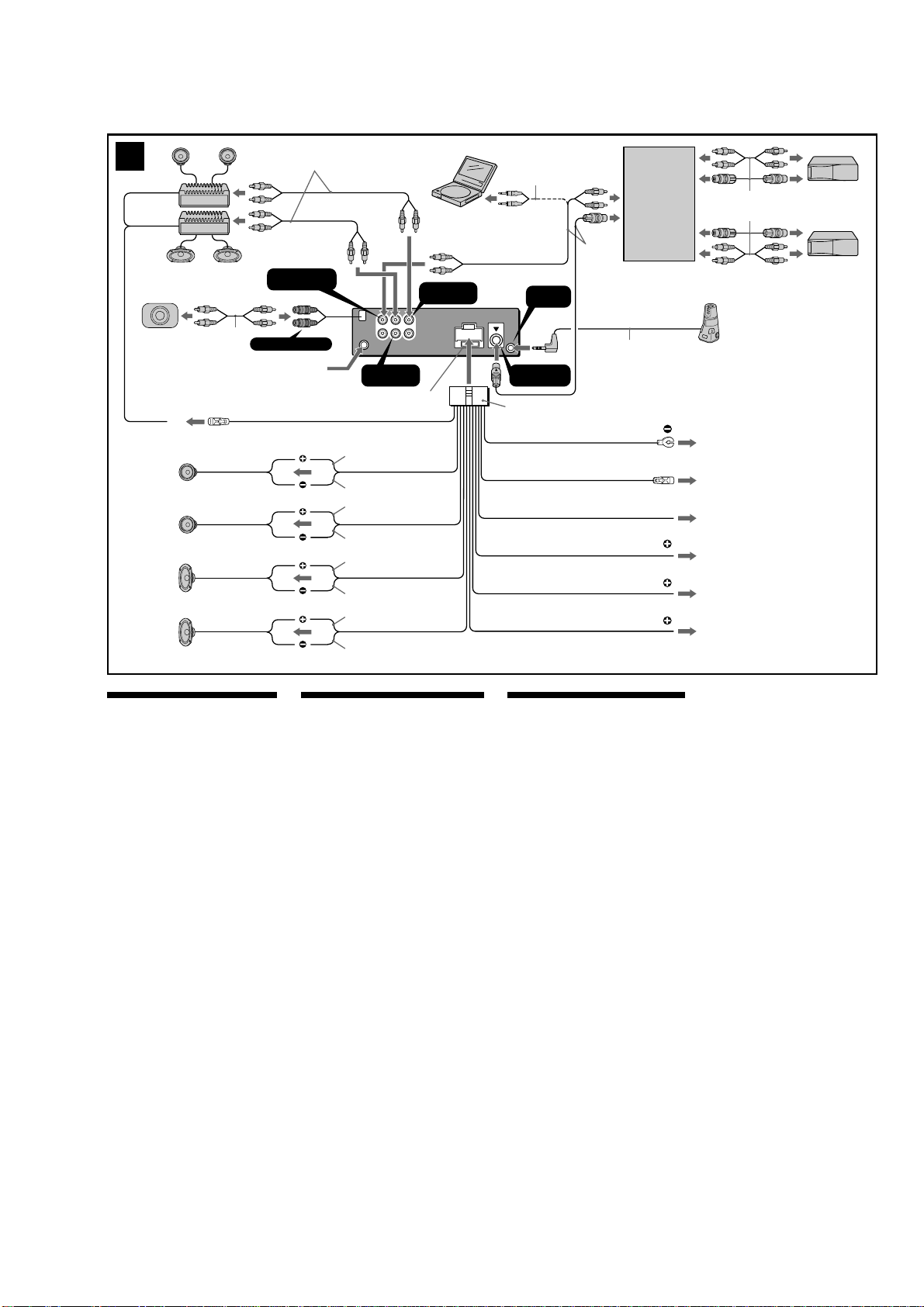

Connections ............................................................................. 7
2. DISASSEMBLY
2-1. Sub Panel Assy (CD)........................................................... 9
2-2. CD Mechanism Block ......................................................... 9
2-3. Main Board ....................................................................... 10
2-4. Chassis (T) Sub Assy ........................................................10
2-5. Roller Arm Assy ................................................................ 11
2-6. Chassis (OP) Assy ............................................................. 11
2-7. Optical Pick-up ................................................................. 12
2-8. SL Motor Assy (M902) ..................................................... 12
2-9. LE Motor Assy (M903) ..................................................... 13
2-10. Servo Board....................................................................... 13
3. DIAGRAMS
3-1. IC Pin Descriptions ........................................................... 14
3-2. Block Diagram –CD Section–........................................... 20
3-3. Block Diagram –Main Section–........................................ 21
3-4. Block Diagram –Display Section–.................................... 22
3-5. Note for Printed Wiring Boards and
Schematic Diagrams .......................................................... 23
3-6. Waveforms......................................................................... 23
3-7. Circuit Boards Location .................................................... 23
3-8. Schematic Diagram –CD Mechanism Section (1/2)– ....... 24
3-9. Schematic Diagram –CD Mechanism Section (2/2)– ....... 25
3-10. Printed Wiring Boards –CD Mechanism Section–............ 26
3-11. Schematic Diagram –Main Section (1/3)– ........................ 27
3-12. Schematic Diagram –Main Section (2/3)– ........................ 28
3-13. Schematic Diagram –Main Section (3/3)– ........................ 29
3-14. Printed Wiring Boards –Main Section– ............................ 30
3-15. Printed Wiring Board –Sub Section– ................................ 32
3-16. Schematic Diagram –Sub Section– ................................... 33
3-17. Printed Wiring Board –Key Section– ................................ 34
3-18. Schematic Diagram –Key Section–................................... 35
3-19. IC Block Diagrams............................................................ 36
4. EXPLODEDVIEWS
4-1. Main Section ..................................................................... 38
4-2. Front Panel Section ........................................................... 39
4-3. CD Mechanism Section (1) ............................................... 40
4-4. CD Mechanism Section (2) ............................................... 41
4-5. CD Mechanism Section (3) ............................................... 42
4-6. CD Mechanism Section (4) ............................................... 43
5. ELECTRICAL PARTS LIST......................................... 44

5
CDX-F7700/F7705X
4
Location of controls
Refer to the pages listed for details.
aDSPL (display mode change) button
13, 16, 22
bNumber buttons
Radio:
To store stations/receive stored stations.
CD/MD:
(1):REP 14
(2):SHUF 15
(6):PA U S E *
1
12
Sound:
(5):BBE MP*
1
21
cDSO button 24
dMENU button
To display the menus.
eSOURCE (Power on/Radio/CD/MD*
2
/
AUX*
3
) button
To select the source.
fSEEK/AMS (</,) buttons
To skip tracks/fast-forward, reverse a track/
tune in stations automatically, find a station
manually/select a setting.
gSOUND button 21
hOFF (Stop/Power off) button
12, 26
iVOL (+/–) buttons
To turn up or down the volume.
jEQ7 button 23
Card remote commander RM-X141A
DISC
–
AT TOFF
REP
PTY
SHUF
DSPL
1
4
MODE
BBE MP PAUSE
2
5
3
6
SOURCE
DISC
+
SEEK
+
SEEK
–
SOUND
ENTER
MENU
LIST
CAT
EQ7DSO
VOL
DISC
–
SOURCE
DISC
+
SEEK
+
SEEK
–
In menu mode, the currently selectable button(s) of
these four are indicated with a “
v ” in the display .
(SEEK) (<):
to select
leftwards
(DISC) (M):
to select upwards
(DISC) (m):
to select downwards
(SEEK) (,):
to select
rightwards
SECTION 1
GENERAL This section is extracted
from instruction manual.
5
kMODE button
To change operation.
lLIST (CAT)*
4
button 16, 19
mDISC (ALBUM) (M/m) buttons
To receive preset stations/change the disc*
5
,
skip albums*
6
/select a menu.
nENTER button
To enter a setting.
oATT button 22
*1 Available only when playing back on this unit.
*2 When an optional MD unit is connected.
*3 Available only when an optional Sony portable
device is connected to AUX IN terminal of the unit.
When you connect a Sony portable device and CD/
MD unit(s) at the same time, use the AUX IN
selector.
*4 The CAT button is available only when the XM
tuner is connected.
*5 When an optional CD/MD unit is connected.
*6 Available only when an MP3 file is played.
Note
If the display disappears by pressing
(OFF) , it cannot
be operated with the card remote commander unless
(SOURCE) on the unit is pressed, or a disc is inserted
to activate the unit first.
Tip
For details on how to replace the battery, see
“Replacing the lithium battery” on page 27.
Selecting a disc and album
Disc and album can be skipped using the DISC
(ALBUM) (M/m) buttons.
(With this unit)
(With optional unit)
*7 Available only when an MP3 file is played.
Skipping tracks continuously
Press once either SEEK/AMS (<or ,)
button, then press again within about 1 second
and hold.
To Press
Skip albums*
7
–Albumselection Mor m[once for each album]
To continuously skip
albums, press and hold
either button.
To Press
Skip discs
–Discselection Mor m[once for each disc] To continuously skip discs,
press once and press again
within about 1 second (and
hold) either button.
Skip albums*
7
–Albumselection Mor m[hold for a moment] and release.
To continuously skip
albums, press (and hold)
within about 1 second of
first releasing the button.

6
CDX-F7700/F7705X
6
The buttons on the unit share the same
functions as those on the card remote
commander.
a5SEEK/AMS (.m/M>)
buttons
bVolume control dial/SOUND button
Rotate to:
– Adjust the volume.
– Adjust the sound settings.
Press to:
– Select the sound items.
3qs DISC (ALBUM)/PRESET (+/–)
buttons
4MODE button
6DSO button
7SCRL (scroll) button
8Display window
9Z(eject) button (located on the front side
of the unit, behind the front panel) 12
0OPEN button 10, 12
qa Receptor for the card remote
commander
qd OFF (Stop/Power off) button*
qf EQ7 button
qg RESET button (located on the front side of
the unit, behind the front panel) 10
qh SOURCE button
qj Number buttons
qk DSPL (display mode change) button
ql IMAGE button 25
*Warning when installing in a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
and hold (OFF) on the unit until the display
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
P
U
S
H
S
O
U
N
D
DISC/
PRESET
MODE
DISC/
PRESET
SEEK
+
SEEK
– IMAGE
OFF
DSO
EQ7
SCRL
REP SHUF BBE MP PAUSE
6
OPEN
D
E
SOURCE DSPL1
S
2534
CDX-F7705X/F7700

7
CDX-F7700/F7705X
L
R
AUDIO OUT
FRONT
BUS AUDIO IN
/AUX IN
*
2
BUS
CONTROL IN
REMOTE
IN
AUDIO OUT
REAR
SUB OUT (MONO)
Schéma de raccordement (3)
1 À un point métallique de la voiture
Branchez d‘abord le fil de massenoir et, ensuite, les fils
d‘entrée d‘alimentation jaune et rouge.
2 Vers le fil de commande de l‘antenne électrique ou le fil
d‘alimentation de l‘amplificateur d‘antenne
Remarques
•Il n
’ est pas nécessaire de raccorder ce fil s ’ il n'y a pas
d
’ antenne électrique ni d ’ amplificateur d ’ antenne, ou avec
une antenne télescopique manuelle.
•Sivotre voiture est équipée d
’ une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les fils de
commande et d
’ alimentation ».
3 Au niveau du AMP REMOTE IN de l’amplificateur de
puissance en option
Ceraccordement s’applique uniquement aux amplificateurs. Le
branchement de tout autre système risque d’endommager
l’appareil.
4 Vers le cordon de liaison d’un téléphone de voiture
5 Vers le connecteur du signal d’éclairage de la voiture
Raccordez d’abord le fil de massenoir à un point métallique du
véhicule.
6 À la borne +12 V qui est alimentée quand la clé de contact
est sur la position accessoires
Remarques
•S
’ il n ’ y a pas de position accessoires,raccordez la borne
d
’ alimentation (batterie) +12 V qui est alimentée en
permanence.
Raccordez d’abord le fil de massenoir à un point métallique
du véhicule.
•Sivotre voiture est équipée d
’ une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les fils de
commande et d'alimentation ».
7 À la borne +12 V qui est alimentée en permanence
Raccordez d’abord le fil de massenoir à un point métallique du
véhicule.
Remarques sur les fils de commande et d’alimentation
•Le fil de commande de l’antenne électrique (bleu) fournit une
alimentation de + 12 V CClorsque vous mettez la radio sous
tension.
•Lorsque votre voiture est équipée d’une antenne FM/AM intégrée
dans la vitre arrière/latérale, raccordez le fil de commande de
l’antenne (bleu) ou l’entrée d’alimentation des accessoires
(rouge) à la borne d’alimentation de l’amplificateur d’antenne
existant. Pour plus de détails, consultez votre détaillant.
•Une antenne électrique sansboîtier de relais ne peut pas être
utilisée avec cet appareil.
Raccordement pour la conservation de la mémoire
Lorsque le fil d’entrée d’alimentation jaune est raccordé, le circuit
de la mémoire est alimenté en permanence même si la clé de
contact est sur la position d’arrêt.
Remarques sur le raccordement des haut-parleurs
•Avant de raccorder les haut-parleurs, mettez l’appareil hors
tension.
•Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms
avec une capacité électrique adéquate pour éviter de les
endommager.
•Ne raccordez pas les bornes du système de haut-parleurs au
châssisde la voiture et ne raccordez pas les bornes deshaut-
parleurs droit à celles du haut-parleur gauche.
•Ne raccordez pas le câble de massede cet appareil à la borne
négative (–) de l’enceinte.
•N’essayezpas de raccorder les haut-parleurs en parallèle.
•Raccordez uniquement des haut-parleurs passifs. Le raccordement
de haut-parleurs actifs (avec amplificateurs intégrés) aux bornes
des haut-parleurs peut endommager l’appareil.
•Pour éviter tout dysfonctionnement, n’utilisez pas les fils des
haut-parleurs intégrés installés dans votre voiture si l’appareil
partage un fil négatif commun (–) pour les haut-parleurs droit et
gauche.
•Ne raccordez pas entre eux les cordons des haut-parleurs de
l’appareil.
Remarque sur le raccordement
Si les haut-parleurs et l’amplificateur ne sont pas raccordés
correctement, le message «
Failure » s’affiche. Dans ce cas,assurez-
vous que les haut-parleurs et l’amplificateur sont bien raccordés.
3
Source selector
(not supplied)
Sélecteur de source
(non fourni)
Selector de fuente
(no suministrado)
XA-C30
AMP REM
Max. supply current 0.3 A
Courant max. fourni 0,3 A
Corriente máx. de alimentación de 0,3 A
Fuse (10 A)
Fusible (10 A)
Fusible (10 A)
Blue/white striped
Rayé bleu/blanc
Con rayas azules y blancas
Supplied with the CD/MD changer
Fourni avec le changeur de CD/MD
Suministrado con el cambiador de CD/MD
3
*
6
from car antenna
à partir de l’antenne de la voiture
desde la antena del automóvil
5
6
4
ANT REM
4
ATT
1
*
1
*
1
Diagrama de conexión (3)
1 A una superficie metálica del automóvil
Conecte primero el cable de toma a tierra negro, y después
los cables con raya naranja/blanca, amarillo, y rojo de entrada
de alimentación.
2
Al cable de control de la antena motorizada o al cable de
fuente de alimentación del amplificador de antena
Notas
•Si no se dispone de antena motorizada ni de amplificador
de antena, o se utiliza una antena telescópica accionada
manualmente, no será necesario conectar este cable.
•Siel automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables de
control y de fuente de alimentación”.
3 Para conectar a AMP REMOTE IN del amplificador de
potencia opcional
Esta conexión es sólo para amplificadores. La conexión de
cualquier otro sistema puede dañar la unidad.
4 Al cable de interfaz de un teléfono para automóvil
5 A una señal de iluminación del automóvil
Asegúrese de conectar primero el cable de toma a tierra
negro a una superficie metálica del automóvil.
6 Al terminal de alimentación de +12 V que recibe energía
en la posición de accesorio del interruptor de la llave de
encendido
Notas
•Sino hay posición de accesorio, conéctelo al terminal de
alimentación (batería) de +12 V que recibe energía sin
interrupción.
Asegúrese de conectar primero el cable de toma a tierra
negro a una superficie metálica del automóvil.
•Siel automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables de
control y de fuente de alimentación”.
7 Al terminal de alimentación de +12 V que recibe energía
sin interrupción
Asegúrese de conectar primero el cable de toma a tierra
negro a una superficie metálica del automóvil.
Notas sobre los cables de control y de fuente de alimentación
•El cable de control de la antena motorizada (azul) suministrará
ccde + 12V cuando conecte la alimentación del sintonizador.
•Siel automóvil dispone de una antena de FM/AM incorporada
en el cristal trasero o lateral, conecte el cable de control de
antena motorizada (azul) o el cable de entrada de alimentación
auxiliar (rojo) al terminal de alimentación del amplificador de
antena existente. Para obtener más información, consulte a su
proveedor.
•Con esta unidad no es posible utilizar una antena motorizada
sin caja de relé.
Conexión para protección de la memoria
Si conecta el conductor de entrada amarillo, el circuito de
la memoria recibirá siempre alimentación, aunque apague
la llave de encendido.
Notas sobre la conexión de los altavoces
•Antes de conectar los altavoces, desconecte la alimentación de
la unidad.
•Utilice altavoces con una impedancia de 4 a 8
Ω con la
capacidad de potencia adecuada para evitar que se dañen.
•No conecte los terminales de altavoz al chasisdel automóvil, ni
conecte los terminales del altavoz derecho con los del
izquierdo.
•No conecte el cable de toma a tierra de esta unidad al terminal
negativo (–) del altavoz.
•No intente conectar los altavoces en paralelo.
•Conecte solamente altavoces pasivos. Siconecta altavoces
activos (con amplificadores incorporados) a los terminales de
altavoz, puede dañar la unidad.
•Para evitar fallos de funcionamiento, no utilice los cables de
altavoz incorporados instalados en el automóvil si su unidad
comparte un cable negativo común (–) para los altavoces
derecho e izquierdo.
•No conecte los cables de altavoz de la unidad entre sí.
Nota sobre la conexión
Siel altavoz y el amplificador no están conectados correctamente,
aparecerá “
Failure ” en la pantalla. Siesasí,compruebe la
conexión de ambos dispositivos.
Red
Rouge
Rojo
Yellow
Jaune
Amarillo
Black
Noir
Negro
Blue
Bleu
Azul
White
Blanc
Blanco
Green
Vert
Verde
Purple
Mauve
Morado
White/black striped
Rayé blanc/noir
Con rayas blancas y negras
Gray/black striped
Rayé gris/noir
Con rayas grises y negras
Green/black striped
Rayé vert/noir
Con rayas verdes y negras
Gray
Gris
Gris
Left
Gauche
Izquierdo
Right
Droit
Derecho
Left
Gauche
Izquierdo
Right
Droit
Derecho
Light blue
Bleu ciel
Azul celeste
Max. supply current 0.1 A
Courant max. fourni 0,1 A
Corriente máx. de alimentación de 0,1 A
ILLUMINATION
*
1
RCApin cord (not supplied)
*
2
Besure to match the color-codedcord
for audio to the appropriate jacks
from the unit. If you connectan
optional CD/MD unit, you cannot use
AUX IN terminal.
*
3
Auxiliary optional equipment suchas
portable DVD player (not supplied)
*
4
Suppliedwith the auxiliary equipment
*
5
Suppliedwith XA-C30
*
6
Insert with the cord upwards.
*
1
Cordonà broche RCA(non fourni)
*
2
Veillez à faire correspondrele code
couleuraudio aux fichesde l’appareil.
Sivous raccordezun appareil CDou
MD en option, vous ne pouvez pas
utiliser la borne AUX IN.
*
3
Appareil auxiliaire en option, par
exemple un lecteur de DVD portable
(non fourni)
*
4
Fourniavec l’appareil auxiliaire
*
5
Fourniavec le XA-C30
*
6
Insérezavec le câbleversle bas.
*
1
Cable conterminales RCA(no
suministrado)
*
2
Asegúresede hacer coincidirel código
codificado con colores para audio con
las tomas apropiadas de la unidad. Si
conectauna unidad de CD/MD
opcional,no podrá utilizar el terminal
AUX IN.
*
3
Equipoopcional auxiliar comoun
reproductor de DVD portátil (no
suministrado)
*
4
Suministradoconel equipo auxiliar
*
5
Suministradoconel XA-C30
*
6
Insertar con el cable hacia arriba.
*
3
*
4
*
5
2
7
Orange/white striped
Rayé orange/blanc
Con rayas naranjas y blancas
Purple/black striped
Rayé mauve/noir
Con rayas violetas y negras
Connection diagram (3)
1 To a metal surface of the car
First connect the black ground lead, then connect
the yellow and red power input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is no
power antenna or antenna booster, or with a
manually-operated telescopic antenna.
•When your car has a built-in FM/AM antenna in
the rear/side glass,see“Notes on the control and
power supply leads.”
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the interface cable of a car telephone
5 To a car’s illumination signal
Be sure to connect the black ground lead to a metal
surface of the car first.
6 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
•If there is no accessoryposition, connect to the +12
V power (battery) terminal which is energized at
all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
•When your car has a built-in FM/AM antenna in
the rear/side glass,see“Notes on the control and
power supply leads.”
7 To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a metal
surface of the car first.
Notes on the control and power supply leads
•The power antenna control lead (blue) supplies +12 V
DCwhen you turn on the tuner.
•When your car has built-in FM/AM antenna in the rear/
side glass,connect the power antenna control lead
(blue) or the accessorypower input lead (red) to the
power terminal of the existing antenna booster. For
details, consult your dealer.
•Apower antenna without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected, power
will always be supplied to the memory circuit even when
the ignition switch is turned off.
Notes on speaker connection
•Before connecting the speakers, turn the unit off.
•Usespeakers with an impedance of 4 to 8 ohms, and
with adequate power handling capacities to avoid its
damage.
•Do not connect the speaker terminals to the car
chassis,or connect the terminals of the right speakers
with those of the left speaker.
•Do not connect the ground lead of this unit to the
negative (–) terminal of the speaker.
•Do not attempt to connect the speakers in parallel.
•Connect only passivespeakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
•To avoid a malfunction, do not use the built-in speaker
leads installed in your car if the unit shares a common
negative (–) lead for the right and left speakers.
•Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly,
“Failure” appears in the display. In this case,make sure
the speaker and amplifier are connected correctly.
Connections

8
CDX-F7700/F7705X SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
2-1. SUB PANEL ASSY (CD)
(Page 9)
2-2. CD MECHANISM BLOCK
(Page 9)
SET
2-3. MAIN BOARD
(Page 10) 2-4. CHASSIS (T) SUB ASSY
(Page 10)
2-5. ROLLER ARM ASSY
(Page 11)
2-6. CHASSIS (OP) ASSY
(Page 11)
2-8. SL MOTOR ASSY (M902)
(Page 12)
2-10. SERVO BOARD
(Page 13)
2-7. OPTICAL PICK-UP
(Page 12) 2-9. LE MOTOR ASSY (M903)
(Page 13)

9
CDX-F7700/F7705X
2-2. CD MECHANISM BLOCK
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY (CD)
2 two claw
s
3 two claws
5 sub panel assy (CD)
1 two screws
(+PTT 2.6
x 6)
CN601
4
7 bracket (CD)
5 CD mechanism block
4 CNP301
3
1 screw
(+PTT 2.6 x 6
)
2 screw
(+PTT 2.6 x 6)
6 two screws
(+PTT 2.6 x 6)

10
CDX-F7700/F7705X
2-4. CHASSIS (T) SUB ASSY
2-3. MAIN BOARD
1 three ground point screws
(+PTT 2.6 x 6)
3 MAIN board
4 CN401
2 two screws
(+PTT 2.6
x 8)
5 two screws
(+PTT 2.6
x 8
)
6 cord
5 SENSOR board
6 chassis (T) sub assy
4 claw
1 two screws
(+P 1.7
x 2.2)
2 two screws
(+P 1.7
x 2.2)
3 claw

11
CDX-F7700/F7705X
2-5. ROLLER ARM ASSY
2-6. CHASSIS (OP) ASSY
3 washer (1.1 – 2.5)
4 worm wheel (RA)
5 roller arm assy
1 spring (RAL)
2 spring (RAR)
4 washer
0 compression spring (damper)
9 two compression springs (damper
)
qa chassis (OP) assy
5 gear (LE1)
1 CN1
lever (D)
slider (R)
6
7
8
2 Remove the six solderings.
3 tension coil spring (KF)

12
CDX-F7700/F7705X
2-7. OPTICAL PICK-UP
2-8. SL MOTOR ASSY (M902)
1 tension coil spring (CHKG)
2 chucking arm sub assy
3 screw
(+B 1.4
x 5)
4 rack (SL)
5 claw
6 main shaft
7 optical pick-up
1 screw
(+P 1.4 x 1.8)
2 SL motor assy (M902)

13
CDX-F7700/F7705X
2-9. LE MOTOR ASSY (M903)
2-10. SERVO BOARD
2 washer
4
qd
3
gear (LE1)
7 leaf spring (LE)
5
lever (D)
bracket (LEM)
slider (R)
6 screw
(+P 1.7
x 2.2)
8 screw
(+M 1.7
x 2.5)
qa screw
(+M 1.7
x 2.5)
qf two toothed lock screws
(+M 1.4
)
qs screw
(+M 1.7
x 2.5)
9 bearing (LEB)
0 woam (LEB) assy
qg LE motor assy
(M903)
1 Remove the soldering.
3 CN1
5 claw
6 SERVO board
4 toothed lock screw
(M 1.7)
1 Remove the eight solderings.
2 Remove the three solderings.

14
CDX-F7700/F7705X SECTION 3
DIAGRAMS
3-1. IC PIN DESCRIPTIONS
• IC3 CXD3059AR (DIGITAL SERVO/DIGITAL SIGNAL PROCESSOR) (SERVO BOARD (1/2))
Pin No. Pin Name I/O Pin Description
1MIRR I/O Mirrer signal input/output
2DFCT I/O Defect signal input/output
3FOK I/O Focus OK signal input/output
4VSS — Ground pin
5LOCK I/O Not used in this set. (Open)
6MDP O Spindle motor servo control signal output
7SSTP I Disc most inner detection signal input
8IOVSS1 — Digital ground pin for I/O
9SFDR O Sled drive signal output
10 SRDR O Sled drive signal output
11 TFDR O Tracking drive signal output
12 TRDR O Tracking drive signal output
13 FFDR O Focus drive signal output
14 FRDR O Focus drive signal output
15 IOVDD1 — Digital power supply pin for I/O
16 AVDD0 — Analog power supply pin for I/O
17 AVSS0 — Analog ground pin
18 NC — Not used. (Open)
19 E I E signal input
20 F I F signal input
21 TEI I Tracking error signal input from the DSSP block
22 TEO O Tracking error signal output to the RF amp block
23 FEI I Focus error signal input from the DSSP block
24 FEO O Focus error signal output form the RF amp block
25 VC I/O VC voltage output to the RF amp block
Center voltage input from the DSSP block by command select
26 A I A signal input
27 B I B signal input
28 C I C signal input
29 D I D signal input
30 NC — Not used. (Open)
31 AVDD4 — Analog power supply pin
32 RFDCO I/O RFDC signal output
RFDC signal input from the DSSP block by command select
33 PDSENS I Reference voltage input for PD
34 AC SUM O RFAC suming amp signal output
35 EQ IN I Equalizer circuit signal input
36 LD O APC amp signal output
37 PD I APC amp signal input
38 NC — Not used. (Open)
39 RFC I EQ cut off frequency adjustment input
40 AVSS4 — Analog ground pin
41 RFACO O RFAC signal output
42 RFACI I RFAC signal input or EFM signal input
43 AVDD3 — Analog power supply pin
44 BIAS I Asymmetry circuit constant current input
45 ASYI I Asymmetry comparate voltage input
46 ASYO O EFM full swing signal output
47 VPCO O Charge pomp output for wideband EFM PLL
48 VCTL I VCO2 control voltage input for wideband EFM PLL
49 AVSS3 — Analog ground pin

15
CDX-F7700/F7705X
Pin No. Pin Name I/O Pin Description
50 CLTV I VCO1 control voltage input
51 FILO O Filter signal output for master PLL
52 FILI I Filter signal input for master PLL
53 PCO O Charge pomp output for master PLL
54 AVDD5 — Analog power supply pin
55 DDVROUT O DC/DC converter output
56 DDVRSEN I DC/DC converter output voltage monitor signal input
57 AVSS5 — Analog ground pin
58 DDCR I Reset signal input for DC/DC converter
59 NC — Not used. (Open)
60 BCKI I D/A interface bit clock signal input
61 PCMDI I D/A interface serial data signal input
62 LRCKI I D/A interface LR clock signal input
63 LRCK O D/A interface LR clock signal output
64 VSS — Digital ground pin for internal
65 PCMD O D/A interface serial data signal output
66 BCK O D/A interface bit clock signal output
67 VDD — Digital power supply pin for internal
68 EMPH O Not used in this set. (Open)
69 EMPHI I Not used in this set. (Fixed at “L”.)
70 IOVDD2 — Digital power supply pin for I/O
71 DOUT O Digital out signal output
72, 73 TEST I Test pin Normally “L”.
74 IOVSS2 — Digital ground pin for I/O
75 NC — Not used in this set. (Open)
76 XVSS — Ground pin for master clock
77 XTAO O Crystal oscillation circuit output (16.9344 MHz)
78 XTAI I Crystal oscillation circuit input (16.9344 MHz)
79 XVDD — Power supply pin for master clock
80 AVDD1 — Analog power supply pin
81 AOUT1 O L channel analog signal output
82 VREFL O L channel reference voltage output
83 AVSS1 — Analog ground pin
84 AVSS2 — Analog ground pin
85 VREFR O R channel reference voltage output
86 AOUT2 O R channel analog signal output
87 AVDD2 — Analog power supply pin
88 NC — Not used. (Open)
89 IOVDD0 — Digital power supply pin for I/O
90 RMUT O R channel “O” detection flug output
91 LMUT O L channel “O” detection flug output
92 NC — Not used. (Open)
93 XTSL I X’tal select signal input 16.9344 MHz: “L”, 33.8688 MHz: “H”
94 IOVSS0 — Digital ground pin for I/O
95 XTACN I Oscillation circuit control input “H”: Oscillation start, “L”: Oscillation stop
96 SQSO O Sub 80 bit and PCM peak, level data signal output CD text data signal output
97 SQCK I Clock signal input for SQSO read out
98 SBSO O Sub P-W serial data signal output Not used in this set. (Open)
99 EXCK I Clock signal input for SBSO read out Not used in this set. (Open)
100 XRST I System reset signal input “L”: reset
101 SYSM I Mute signal input “H”: mute Not used in this set. (Fixed at “L”.)
102 DATA I Serial data signal input
103 VSS — Digital ground pin for internal

16
CDX-F7700/F7705X
Pin No. Pin Name I/O Pin Description
104 XLAT I Latch signal input
105 CLOK I Serial data transfer clock signal input
106 VDD — Digital power supply pin for internal
107 SENS O SENS signal output
108 SCLK I Clock signal input for SENS serial data read out
109 ATSK I/O Input/output for anti-shock
110 WFCK O WFCK signal output Not used in this set. (Open)
111 XUGF O XUGF signal output Not used in this set. (Open)
112 XPCK O XPCK signal output Not used in this set. (Open)
113 GFS O GFS signal output
114 C2PO O C2PO signal output
115 SCOR O Sub cord sync signal output
116 VDD — Digital power supply pin for internal
117 C4M O 4.2336 MHz signal output Not used in this set. (Open)
118 WDCK O Word clock signal output Not used in this set. (Open)
119 COUT I/O Track count signal input/output Not used in this set. (Open)
120 NC — Not used. (Open)

17
CDX-F7700/F7705X
• IC303 M30624MGP (SYSTEM CONTROL) (MAIN BOARD (3/3))
Pin No. Pin Name I/O Pin Description
1SIRCS I Remocon data input
2(NCO) O Not used
3CD SO/TSO O CD servo serial data output
4CD SI/TSI I CD servo serial data input
5CD CKO/TCKO O CD servo serial clock output
6BYTE I Connecting to ground.
7CNVSS I Flash write-in signal input
8XCIN I Sub clock signal input (32.768kHz)
9XCOUT O Sub clock signal output (32.768kHz)
10 RESET I CPU reset input
11 XOUT O Main clock signal output (6MHz)
12 VSS — Ground
13 XIN I Main clock signal input (6MHz)
14 VCC1 — Ground
15 NMI I Non maskable interrupt signal input
16 CD INTQ I CD-TEXT sync. signal input
17 DAVN I RDS data block sync. detection signal input
18 BU IN I Back-up power detection signal input
19 NS MASK O NS-MASK signal output
20 BEEP O Beep signal output
21 FSW IN I DD converter OSC frequency count input
22 FSW OUT O DD converter OSC frequency change output
23 SA CLK O Spectrum analyzer clock output
24 TEL ATT I Telephone mute signal input
25 ATT O Mute signal output
26 VOL ATT O Electronic volume mute signal output
27 I2C CKO O I2C bus serial clock output
28 I2C SIO O I2C bus serial data output
29 UNI SO O SONY bus serial data output
30 UNI SI I SONY bus serial data input
31 UNI CKO O SONY bus serial clock output
32 TUNER ATT O Tuner mute signal output
33 EE SIO I/O Tuner pack EEPROM serial data input/output
34 EE CKO O Tuner pack EEPROM serial clock output
35 RE IN0 I Rotary encoder signal input 0
36 RE IN1 I Rotary encoder signal input 1
37 NOSE SW I Front panel detection signal input
38 DOOR SW I Panel open detection signal input
39 HOLD I External bus data input (HOLD)
40 AMP DIAG I AMP self-diagnosis function control signal input
41 AMP STB O AMP standby signal output
42 (NCO) O Not used
43 (NCO) O Not used
44 WRI/WR I External bus data input (WRI/WR)
45 CD LIMIT I CD LIMIT switch detection signal input
46 CD D SW I CD D switch detection signal input
47 CD IN SW I CD IN switch detection signal input
48 4V SEL I 4V PRE-OUT select signal input
49 MP3 SEL I Deck mechanism select signal input
50 DST SEL1 I Destination select setting pin 1
51 DST SEL2 I Destination select setting pin 2
52 CD LM LOAD O CD loading signal output

18
CDX-F7700/F7705X
Pin No. Pin Name I/O Pin Description
53 CD LM EJECT O CD eject signal output
54 CD RESET O CD reset signal output
55 CD AO O CD AO signal output
56 CD STB O CD strobe signal output
57 (NCO) O Not used
58 CD RF OK I CD RF OK signal input
59 CD ON I CD ON signal input
60 VCC2 — Power supply pin (+5V)
61 DISP RESET O Display CPU reset signal output
62 VSS — Ground
63 TEST IN I Test mode signal input
64 BUS ON O BUS ON signal output
65 SYS RST O System reset signal output
66 BUS/AUX O BUS AUDIO/AUX-IN select signal output
67 (NCO) O Not used
68 ACC IN I ACC power supply check signal input
69 ILL IN I ILL check signal input
70 RC IN1 I Rotary commander signal input
71 CDM ON I CD power supply ON signal input
72 CD SELF SW I CD SELF switch detection signal input
73 TU ATT IN I Tuner attenuator zero cross signal input
74 ZERO DET1 I ZERO detection signal input 1
75 ZERO DET2 I ZERO detection signal input 2
76 Z ATT I Z mute signal input
77 (NCO) O Not used
78 (NCO) O Not used
79 ROMC EN O Connecting to ground.
80 QUALITY I Tuner noise detection signal input
81 MPTH O Not used
82 VSM I S-meter signal input
83 SA IN I Spectrum analyzer data input
84 KEY IN1 I Key signal input
85 KEY IN0 I Key signal input
86 RC IN0 I Rotary commander signal input
87 KEY ACK2 I Rotary commander ACK signal input
88 KEY ACK0 I Key ACK signal input
89 KEY ACK1 I Key ACK signal input
90 DOORING O Sub panel LED power supply control signal output
91 RAM BU I RAM back-up input
92 FLD ON O FL driver power supply control signal output
93 FL ON O FL power supply control signal output
94 AVSS — Ground
95 DISP CE O Display CPU chip enable output
96 VREF — AD converter reference voltage (+5V)
97 AVCC — Power supply pin (+5V)
98 DISP SI/RX I Display CPU serial data input
99 DISP SO/TX O Display CPU serial data output
100 DISP CKO O Display CPU serial clock output

19 19
CDX-F7700/F7705X
• IC901 M30823MH-080GP (DISPLAY CONTROL) (KEY BOARD)
Pin No. Pin Name I/O Pin Description
1SYS CE I Main chip enable input
2(NCO) O Not used
3FL DAT3 O FL serial data output 3
4(NCO) O Not used
5FL CLK IN I FL serial clock input
6BYTE I Connecting to ground.
7CNVSS I Flash write-in signal input
8PLL LPF O PLL low pass filter connection pin
9PLL GND I Ground
10 RESET I CPU reset input
11 XOUT O Main clock signal output (8MHz)
12 VSS — Ground
13 XIN I Main clock signal input (8MHz)
14 VCC — Power supply pin (+5V)
15 NMI I Non maskable interrupt signal input
16 (NCO) O Not used
17 GCP IN I GCP pulse interrupt signal input
18, 19 (NCO) O Not used
20 GCP OUT O GCP pulse signal output
21 LAT O FL data LAT output
22 BK O FL BK signal output
23 GCP2 O FL GCP signal output 2
24 (NCO) O Not used
25 GCP1 O FL GCP signal output 1
26 (NCO) O Not used
27 GCP4 O FL GCP signal output 4
28 GCP3 O FL GCP signal output 3
29 SYS SO O Main bus serial data output
30 SYS SI I Main bus serial data input
31 SYS CLK O Main bus serial clock output
32 (NCO) O Not used
33 FL DAT1 O FL serial data output 1
34 (NCO) O Not used
35 FL CLK O FL serial clock output
36 to 38 (NCO) O Not used
39 HOLD I External bus data input (HOLD)
40 to 43 (NCO) O Not used
44 WRI/WR I External bus data input (WRI/WR)
45 to 59 (NCO) O Not used
60 VCC — Power supply pin (+5V)
61 (NCO) O Not used
62 VSS — Ground
63 to 93 (NCO) O Not used
94 AVSS — Ground
95 (NCO) O Not used
96 VREF — Reference voltage (+5V)
97 AVCC — Power supply pin (+5V)
98 (NCO) — Not used
99 FL DAT2 O FL serial data output 2
100 FL CLK IN I FL serial clock input

2020
CDX-F7700/F7705X
3-2. BLOCK DIAGRAM — CD SECTION —
46
ASYO
RF AMP,DIGITAL SERVO,
DIGITAL SIGNAL PROCESSOR
IC3
41
RFACO
24
FEO
22
TEO
42 RFACI
23 FEI
21 TEI
13 FFDR
PD1
PD2
E
F
I-V AMP
PD LD
DETECTOR
45 ASYI
27
26
29
28
19
20
E
C
D
A
B
F
36 LD 37
PD
(FOCUS)
(TRACKING)
2-AXIS DEVICE
OPTICAL
PICK-UP BLOCK
(KSS1000E)
• Siganal Path
: CD PLAY
LASER DIODE
M
M
M
13
12
VO1–
VO1+
6
7
VO4+
VO4–
8
9VO3–
VO3+
5
4
VLO+
VLO–
FWD
REV
1
2
VIN2+ 22
14 FRDR
VIN2– 21
11 TFDR
VIN1+B 19
12 TRDR
VIN1–B 18
9SFDR
VIN4+ 31
10 SRDR
VIN4– 32
6MDP
VIN3+ 25
MUTE 34
11
10
VO2–
VO2+
M903
(LOADING)
M901
(SPINDLE)
M902
(SLED)
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE/LOADING
MOTOR DRIVE
IC1
3
FOK
96
SQSO
97
SQCK
100
XRST
102
DATA
104
XLAT
105
CLOK
107
SENS
CD-L MAIN
SECTION
A
81
AOUT1
86
AOUT2 R-CH
18 CD SQCK
15 CD XRST
14 CD DATA
13 CD XLAT
53 MEC_SELFSW
45 MEC_INSW
42 MEC_LIMIT
12 CD CLOK
11 CD SENS
108
SCLK 10 CD SCLK
113
GFS 8CD GFS
114
C2PO 7CD C2PO
115
SCOR 52 CD SCOR
81 X1
80 X0
MEC LOAD
43
MEC EJECT
44
CD
SYSTEM CONTROL
IC4
AUDIO INTERFACE
IC8
+1.5V REG
IC7
SYSTEM CONTROL
IC303 (1/3)
19 CD FOK
16 CD SQSO
DRON
41
SD1O
14
LRCK1B
19
LRCK1A
16
SD0O
11
BCK1B
18
BCK1A
15
CLCK
22
SRMSTB
41
RESET
2
STANDBY
3
BUCK
36
I2C SCL
7
I2C SDA
6
BUSO
28
SW2
(SELF)
46 MEC_DSW
SW1
(DOWN)
SW3
(DISC IN)
SW4
(LIMIT)
91
LMUT 22 CD LMUT
90
RMUT 23 CD RMUT
20
LINK OFF IC273 (1/3)
IC252 (1/3)
IC273 (2/3)
IC273 (3/3)
56
UNISI
25
RXD
57
UNISO
58
UNICLK
50
BUS ON
75
RSTX
61
EJECT OK
67
MECON CHK
69
EMPH
32
DEC SDA
31
DEC SCL
30
DEC INT
29
DEC STBY
28
DEC XRST
27
DEC SSTBY
37
DEC XMUTE
65
DECON
63
MECON
64
CDON
66
ZMUT
60
A ATT
51
BU IN
26
TXD
PD1
E
F
LD
PD
FCS+
FCS–
TRK+
TRK–
PD2
AUTOMATIC
POWER
CONTROL
Q1
+1.5V
CONTROL
Q2,3
+3.3V
CONTROL
Q5,6
• R-ch is omitted due to same as L-ch.
77
78
X1
16.9344MHz
X2
18.43MHz
XTAI
XTAO
66
BCK
60
BCKI
61
PCMDI
63
LRCK
62
LRCKI
65
PCMD
MAIN
SECTION
B
DOOR SW
LINK OFF
17 UNI SI
UNI SO
ATT
BU CHK
UNI SCK
BUS ON
SYS RST
38
CD ON
VOUT
59
CDM ON
71
Z ATT
C D+6V
76
68
CDON CHK
15 VDD
3
CE
CD+3.3V
+1.5V
+3.3V
BU+3.3V
62
IC252 (3/3)
25
IC252 (2/3)
Q267
17
26
53
(Page 21)
(Page 21)
