Sony XAV-A1 - Av Center Product guide

XAV-A1
XAV-C1
© 2005 Sony Corporation
2-597-872-36(1)
AV Center
Installation/Connections
Установка/Подсоединения
Notice to dealers and installers
Please return this manual to the customer after the installation is completed.
Замечание для продавцов и выполняющих монтаж специалистов
Пожалуйста, после завершения установки верните настоящее руководство покупателю.
GB
RU

2
Unit is designed for negative ground
12 V DC systems only
The unit cannot be used in trucks or other cars
with 24 V systems. Otherwise, there is a risk of fire
and damage.
Do not disassemble or remodel the
unit
This can cause electric shock, personal injury or
fire. Do not connect any other system’s power
supply cord to this unit’s power supply cord
directly. If you are in any doubt about the safe
installation of this unit, please consult your nearest
Sony dealer.
Do not install in locations which
interfere with airbag operation
Otherwise there is a risk of accidents and injury.
Use only the specified fuse
When replacing the fuse, be sure to use only a fuse
of the same rating (ampere rating). Otherwise
there is a risk of fire.
Cautions
•Do not get the wires under a screw, or caught in
moving parts (e.g. seat railing).
•Before making connections, turn the car ignition
off to avoid short circuits.
•Connect the yellow and red power input leads
only after all other leads have been connected.
•Run all ground wires to a common ground
point.
•Be sure to insulate any loose unconnected wires
with electrical tape for safety.
Notes on the power supply cord (yellow)
•When connecting this unit in combination with
other stereo components, the connected car
circuit’s rating must be higher than the sum of
each component’s fuse.
•When no car circuits are rated high enough,
connect the unit directly to the battery.
On safety
Comply with the Traffic Laws in your country.
Precautions

3
Table of Contents
Precautions ...................................................................................................... 2
Parts List .......................................................................................................... 4
Connection Example....................................................................................... 5
Connecting Information ................................................................................. 6
Connecting the cords ......................................................................................................... 6
Using the tap....................................................................................................................... 6
1Car Systems Connections.......................................................................... 7
Connecting without optional TV tuner unit .................................................................. 9
Connecting with optional TV tuner unit (For Russia and Ukraine only) ................. 10
2Installing the Main Unit .......................................................................... 11
Before installation ............................................................................................................ 11
Installation procedure ..................................................................................................... 12
3After Installation and Connections ........................................................ 14

4
123
456
789
q; qa qs
qd
Parts List
The numbers in the list are keyed to those in the instructions.
CAUTION
Handle the bracket
8carefully to avoid
injuring your fingers.
×4×4×4
×2
×2

5

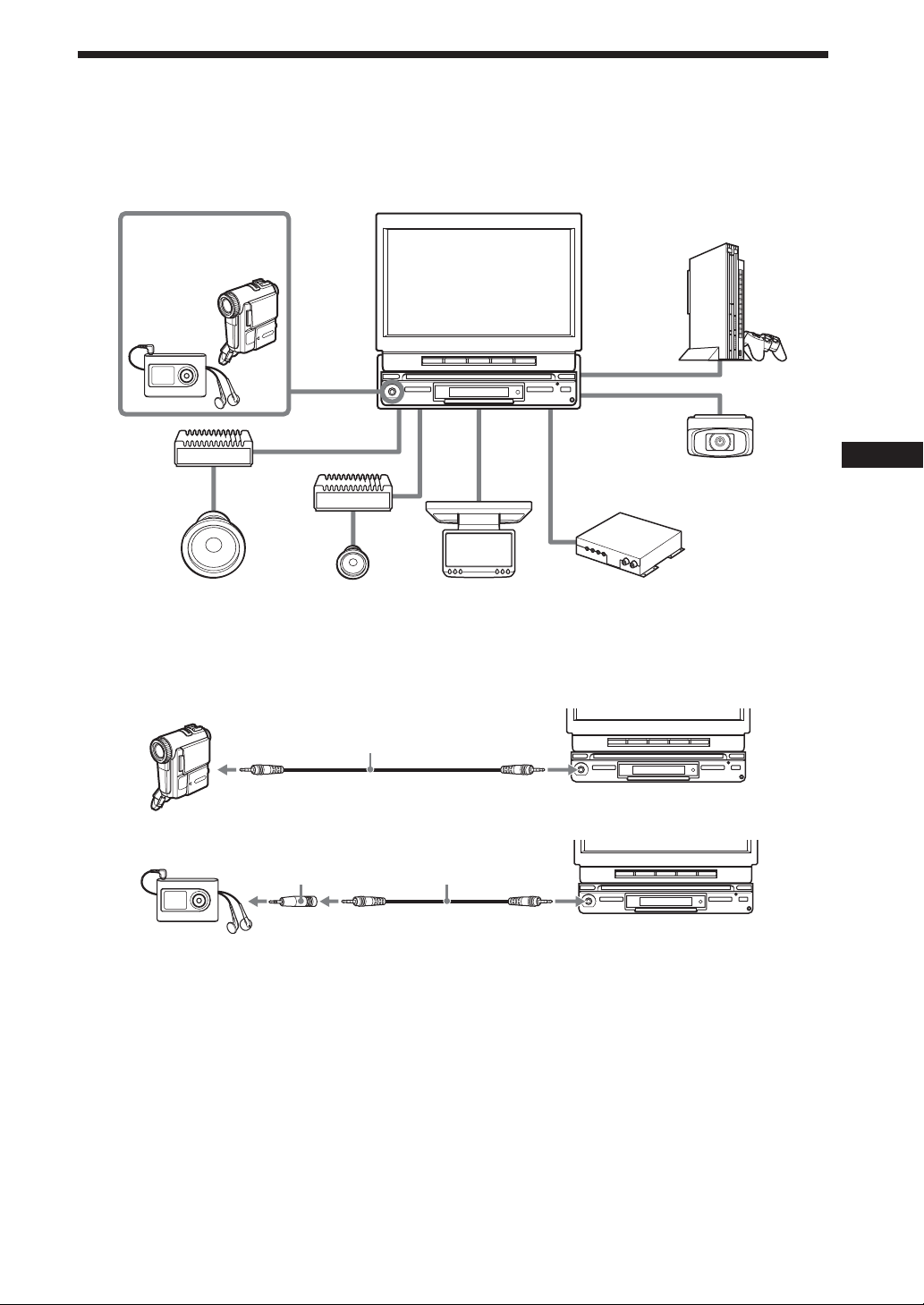

Connection Example
For details, see the section “1Car Systems Connections” (pages 7 - 10). Be sure to refer also to the
documentation for all other components in the system.
System configuration
*Connect with supplied connecting cable 2. (Use a conversion plug 3when you connect the audio equipment.)
**For Russia and Ukraine only
When you connect the video camera
2
When you connect the audio player
23
Notes
•Be sure to connect the ground cord before connecting the amplifier.
•If you connect an optional power amplifier and do not use the built-in amplifier, the beep sound will be deactivated.
Walkman or
Video Camera
(optional)
AV Center XAV-A1
XAV-C1
Game (optional)
A/V IN*
(Front)
(AUX 1)
AUX 2
AUX 3
SUB OUT
(MONO)
FRONT
L/R
REAR
L/R
REAR
MONITOR
OUT
AUX 3 and BUS Back Camera
(optional)
Amplifier
(optional)
Amplifier
(optional)
Subwoofer
(optional) Speaker
(optional)
Rear Monitor
(optional)
TV Tuner XT-V70**
(optional)

6
Connecting the cords
Connect each cord using the taps. For the combination of each
cord, see the following table. Also, see the section “1Car
Systems Connections” (next page).

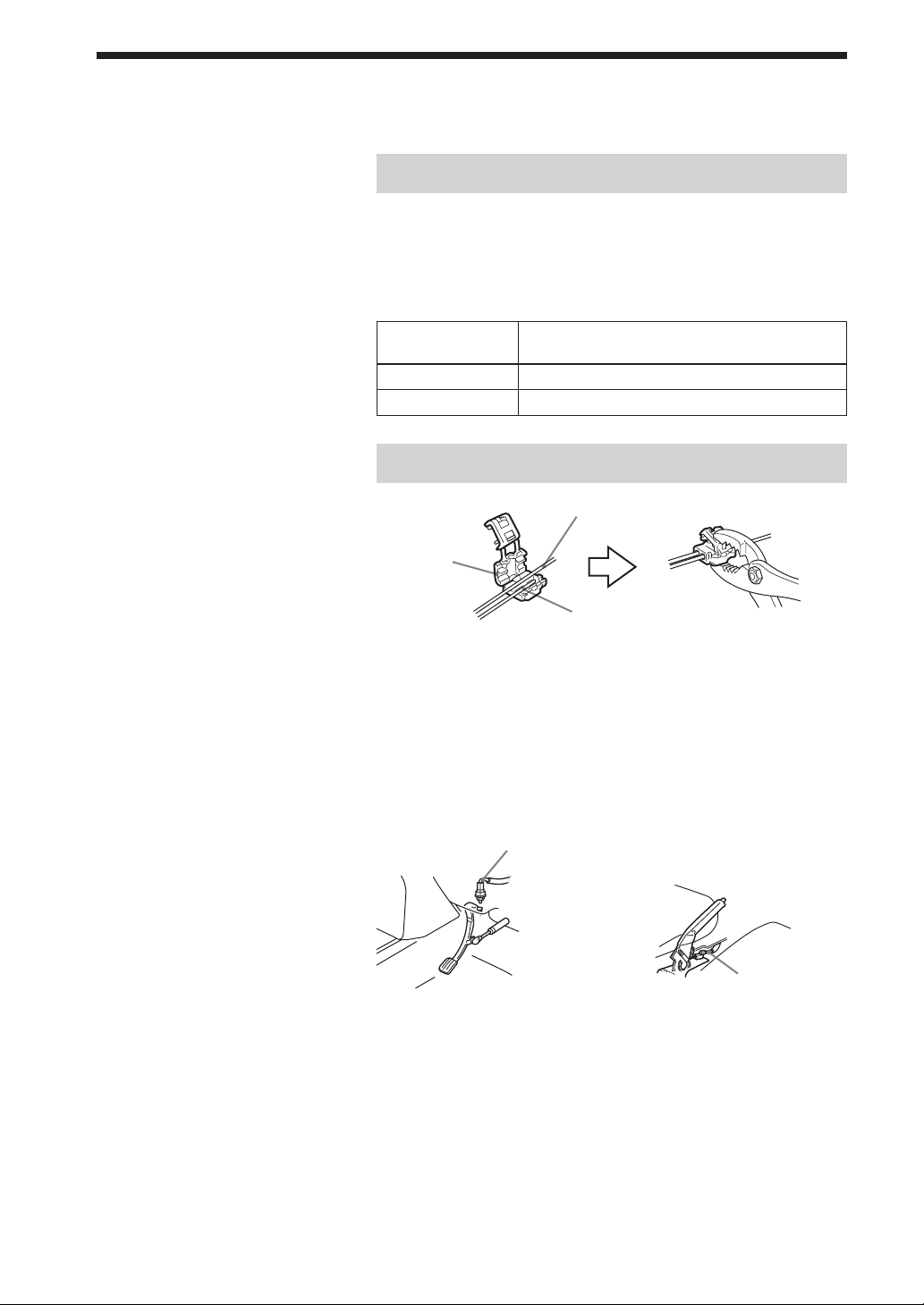

Using the tap
Connecting the parking cord
The mounting position of the parking brake switch cord depends
on your car. Refer to the system connection illustrations below
and consult your car dealer or your nearest Sony dealer for
further details.
Foot brake type Hand brake type
The cord for utilizing the back camera better
Purple/white cord (for the connection to the power terminal
cord of the back lamp)
If you connect the purple/white cord to the power terminal cord
of the back lamp, the image of back camera will be automatically
displayed on the monitor when a back lamp lights up. You can
adjust the parking location viewing the image of back camera
when you backup.
Parking brake
switch cord
Connecting Information
For details, see the section “1Car Systems Connections” (next page).
Notes
•Be sure to connect the power input
cord after all other cords are connected.
•If the parking brake switch cord is too
thin, connect the parking cord to the
parking brake switch cord directly
without using the tap.
Parking brake switch cord
Tap 7
Parking cord
(Light green)
Main unit side Car side
Purple/white Power terminal cord of the back lamp
Light green Parking brake switch cord
Parking brake
switch cord

7
1Car Systems Connections
Refer also to the documentation for all other components in the system.
Also see “Connecting Information” on page 6.
• Components listed here except for supplied accessories are available separately. When connecting such
components, be sure to also refer to their documentation.
For specifications and other information on separately available components, contact your dealer.
Prevention of accidents caused by short-circuits
To prevent the risk of accidents caused by short-circuits, connect the power supply leads (red and yellow)
only after all other wiring has been completed, and only with the ignition key in the OFF position.
Otherwise, accidental short-circuiting can lead to electric shock and to serious damage.
When a fuse has blown, check the wiring and locate the cause of the problem before replacing the fuse.
When replacing the fuse, be sure to use only a fuse of the same rating (ampere rating). Using a different
fuse or bridging the contacts with wire is highly dangerous and can lead to serious damage.
Make sure to connect all of the following leads.
Otherwise there is a risk of electric shock, damage to the equipment, or malfunction.
•Connect purple/white lead to back lamp lead of car.
•Connect orange/white lead to illumination signal lead of car.
•Connect light green lead to parking brake switch lead of car.
• Connect yellow lead to battery power supply of car.
•Connect red lead to accessory power supply of car.
•Connect black lead to metal point on car chassis.
*Do not mix up the yellow and red leads, as this will cause the memory contents to be lost.
Observe the following precautions.
Otherwise there is a risk of electric shock, damage to the equipment, or malfunction.
•Cover unused connectors with electrician’s tape to prevent accidental contact.
•Route FM/AM aerial cable, bus cable, RCA interconnects, and power supply leads as far apart from
each other as possible, to prevent noise interference.
• Always grasp the connector and do not pull the cable when disconnecting the bus cable or other cables.
Otherwise the cable may become detached.
Notes on the control and power supply leads
• The power aerial control lead (blue) supplies +12 V DC when turn on the tuner.
• When your car has built-in FM / AM aerial in the rear / side glass, connect the power aerial control
lead (blue) or the accessory power input lead (red) to the power terminal of the existing aerial booster.
For details, consult your dealer.
•Apower aerial without relay box cannot be used with this unit.
Memory hold connection
When the yellow power input lead is connected, power will always be supplied to the memory circuit
even when the ignition key is turned off.

8
Notes on speaker connection
•Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid
its damage.
•Do not connect the speaker terminals to the car chassis, or connect the terminals of the right speakers
with those of the left speaker.
•Do not connect the ground lead of this unit to the negative Eterminal of the speaker.
• Do not attempt to connect the speakers in parallel.
•Connect only passive speakers. Connecting active speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
•To avoid a malfunction, do not use the built-in speaker wires installed in your car if the unit shares a
common negative Elead for the right and left speakers.
•Do not connect the unit’s speaker cords to each other.

9
FRONT L/R
REAR L/R
SUB OUT (MONO)
REAR MONITOR OUT
AUX 2
AUX 3
13 57
24 68
57
468
Front speakers
(optional)
Rear speakers
(optional)
RCA interconnects
(optional)
RCA interconnects
(optional)
RCA interconnects
(optional)
Amplifiers
(optional)
This terminal is not
used in this case.
Power
supply
leads 1
(for main
unit)
Active subwoofer
(optional)
To game etc.
To rear
monitor etc.
To the optional
back camera or
video
From car aerial*
Connecting without optional TV tuner unit
RC-104 (optional)
digital output
Purple/White (5 m)
Blue/whiteMax. supply current 0.3 A
AAMP REM
Cfrom the car’s speaker connector
Dfrom the car’s power connector
See “Power connection diagram”
on next page for details.
Fuse
(10 A)
+Speaker, Rear, Right
–Speaker, Rear, Right
+Speaker, Front, Right
–Speaker, Front, Right
+Speaker, Front, Left
–Speaker, Front, Left
+Speaker, Rear, Left
–Speaker, Rear, Left
1Purple
2
3Grey
4
5White
6
7Green
8
Negative polarity positions 2, 4, 6,
and 8 have striped cords.
Cfrom the car’s speaker connector Dfrom the car’s power connector
4Yellow continuous power supply
5Blue power aerial control
6Orange/ switched
White illumination power
supply
7Red switched power supply
8Black earth
Positions 1, 2, and 3 do not have pins.
ATo AMP REMOTE IN of an optional power amplifier
This connection is only for amplifiers. Connecting any other system may damage the unit.
Warning
If you have a power aerial without a relay box, connecting this unit with the supplied power
supply leads 1may damage the aerial.
Light green (2.5 m)
Parking brake
switch lead of car
Aerial adaptor qd
* Note for the aerial connecting
If your car aerial is an ISO (International Organization for Standardization) type, use the supplied adaptor qd to
connect it. First connect the car aerial to the supplied adaptor qd, then connect it to the aerial jack of the main unit.
Protection device
To the +12 V power terminal
of the back lamp lead of car

10
Connecting with optional TV tuner unit (For Russia and Ukraine only)
AUX 3
To the +12 V power terminal which is
energized in the accessory position of the
ignition key switch. Be sure to connect the
black ground lead first.
TV tuner unit *
XT-V70
(optional)
To a metal point
of the car
To the optional back camera
or video
Tuner
amplifier
unit
Aerial cord
Film aerial
Power connection diagram
Auxiliary power connector may vary depending on the car. Check your car’s auxiliary power connector
diagram to make sure the connections match correctly. There are three basic types (illustrated below). You
may need to switch the positions of the red and yellow leads in the car stereo’s power connecting cord.
After matching the connections and switched power supply leads correctly, connect the unit to the car’s
power supply. If you have any questions and problems connecting your unit that are not converted in
this manual, please consult the car dealer.
ARed
Yellow
BRed
Yellow
Red
Yellow
4Yellow switched power supply
7Red continuous power supply
CRed
Yellow
Red
Yellow
the car without ACC position
4Yellow continuous power supply
7Red switched power supply
Auxiliary power connector Red
Yellow
*For Russia and
Ukraine only

11
Installation angle
The unit should be installed within an
angle of 30 degrees from horizontal. If
this angle is exceeded, the monitor may
not open up or retract properly.
Note
Keep the units and connection cables
apart.
2Installing the Main Unit
After all connections are made, install the main unit to the
dashboard.
Before installation
This unit is designed to be completely safe, but if not installed
correctly, it can cause accidents. Be sure to verify the following
points before installation.
Install the main unit to the in-dash location, and the amplifier unit
under the navigator’s seat, etc.
• If the monitor in the opened position is close to a air-
conditioning outlet, the outlet should be closed.
•Install the unit so that the monitor when opened up will not
block access to the hazard switch or other important controls.
• Do not install the unit (monitor) in locations which may be
subject to excessively low or high temperatures. (Otherwise the
unit may be deformed and the LCD may be damaged.)
Exposure to direct sunlight can also lead to high temperatures
and should be avoided.
Selecting the installation location
1Set the ignition key to OFF or remove it.
2Place the units in their intended mounting
locations to check the cable length and monitor
installation conditions.
Installation procedure precautions
•Perform the installation carefully. Dropping the unit or
otherwise subjecting it to strong impact or force may deform
the chassis, resulting in failure of the monitor loading
mechanism or other defects.
NNTT
NT/N T/N T/NT
•To allow for proper opening and closing of the monitor, there
must be a clearance of at least 170 mm between the closest
position of the shift lever and the mounting surface for the unit.
•In some cases, the shift lever may touch the monitor when
moved to a certain position. Make sure that there is no
obstruction to driving operations.
•When installing this unit together with other car audio
equipment (single DIN slot size) in a stacked configuration,
install the main unit on top.
Shift lever At least 170 mm
from mounting
surface

12
Installation procedure
Mounting example
When installing this unit, be sure to close the monitor of the unit.
If the monitor is opened while installing and given too much
force, it may cause a malfunction.
1
2
3
182 mm
53 mm
Claws
8
Dashboard
8
9
0
qs
Fire wall

13
Nissan cars
Align the brackets of the factory-installed car stereo with the
mounting holes marked “N” on the side of the main unit, and use
the supplied pan-head screws 5to fasten the brackets.
*Be sure to use only the supplied pan-head screws 5for
installation. If any other screws are used, make sure they
conform to the requirements shown below.
Using longer screws can cause internal damage to the unit.
Damage can also occur if the screws are used directly on the
unit without the brackets of the factory-installed car stereo.
Screws of factory-
installed car stereo
bracket
Bracket of
factory-installed
car stereo
5
Toyota cars (illustration shows an example for a Toyota car)
Align the brackets of the factory-installed car stereo with the
mounting holes marked “T” on the side of the main unit, and use
the supplied screws to fasten the brackets. For Toyota cars, the
supplied screws 5should be used.
Notes
•Do not press the front panel buttons of
the unit during installation and do not
apply strong force.
•Do not place any objects on top of the
unit.
•If a salient of the genuine bracket
touches the unit due to its figure, and
makes attachment hard, process the
bracket by scraping the salient off.
Screws of factory-
installed car stereo
bracket
Bracket of
factory-installed
car stereo
XAV-A1
XAV-C1
XAV-A1
XAV-C1
5
5 mm
6 mm

14
Note
To avoid the possibility of damage, you
should not use a needle or push the
button too strongly.

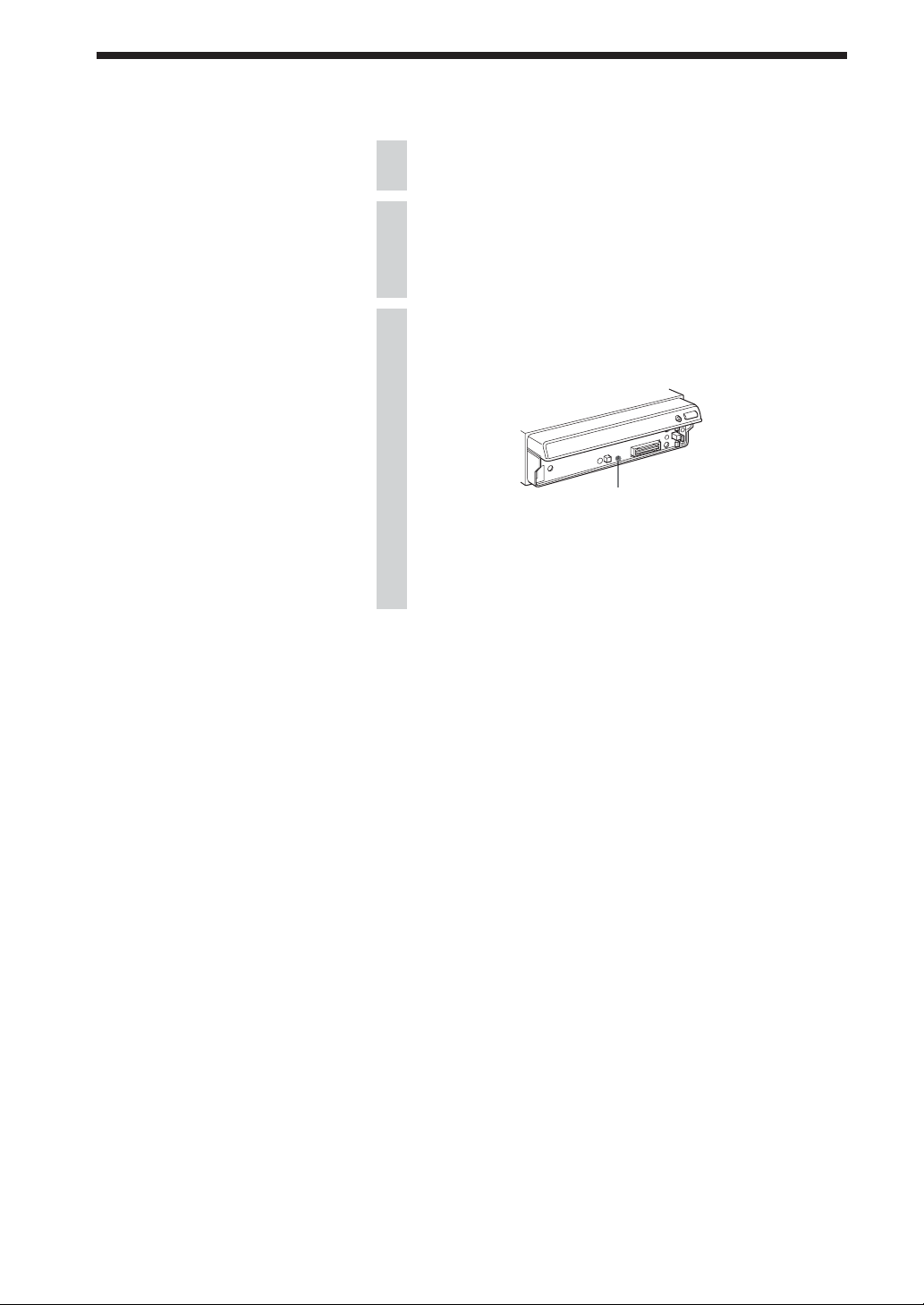

3After Installation and Connections
1Start the car’s engine.
2Verify that the brake lights, other lights, horn, turn
indicators, and all other electrical parts operate
normally.
3Use a mechanical-pencil or similar to push the Reset
button on the unit.
When you press the Reset button, the system becomes
operative.
Reset button

2
Данное устройство предназначено
только для работы в системах 12 В
постоянного тока с отрицательным
заземлением
Данное устройство не может быть
использовано в грузовых или других
автомобилях, оснащенных системами 24 В.
Несоблюдение этого требования может
привести к возгоранию и повреждению
устройства или автомобиля.
Не разбирайте и не переделывайте
устройство
Это может вызвать поражение электрическим
током, травму или возгорание. Не
подсоединяйте проводов электропитания
других систем напрямую к проводу
электропитания данного устройства. В
случаях, когда у вас имеются сомнения в
безопасности установки данного устройства,
пожалуйста, обращайтесь за помощью к
ближайшему распространителю продукции
корпорации Sony.
Не устанавливайте в местах, где это
может помешать функционированию
системы пневмоподушек
Несоблюдение этого требования может стать
причиной несчастных случаев и травм.
Пользуйтесь только указанным
предохранителем
При замене предохранителя, пользуйтесь
только предохранителем одинакового
номинала (в амперах). Несоблюдение этого
требования может привести к возгоранию.
Меры предосторожности Внимание
•Следите за тем, чтобы проводка не попала
под отвертку или не была защемлена
движущимися частями (например,
монтажные направляющие в гнезде).
•Перед тем как выполнять подсоединения,
чтобы предотвратить короткое замыкание,
выключите зажигание автомобиля.
•Подсоединяйте желтый и красный провода
электропитания только после того, как были
подсоединены все другие провода.
•Подводите все провода заземления к
общей точке заземления.
•В целях безопасности всегда изолируйте все
свободные неподсоединенные провода
изоляционной лентой.
Примечания по проводу электропитания
(желтый)
•Если данное устройство подсоединяется в
сочетании с другими стереокомпонентами,
номинальная мощность электроцепи
автомобиля должна быть выше суммы
предохранителей всех компонентов.
•Если ни одна из цепей автомобиля не имеет
достаточно высокой номинальной мощности,
подключайте устройство напрямую к
аккумуляторной батарее.
По безопасности
Соблюдайте установленные в вашей стране
правила дорожного движения.

3
Содержание
Меры предосторожности ........................................................................... 2
Список деталей ............................................................................................ 4
Пример подсоединений .............................................................................. 5
Информация по соединениям ................................................................... 6
Соединение проводов ....................................................................................... 6
Использование обжимных соединителей ..................................................... 6
1Подсоединение систем автомобиля ................................................... 7
Подсоединение без опционного блока ТВ-тюнера....................................... 9
Подсоединение с опционным блоком ТВ-тюнера (Только для России и
Украины) ............................................................................................................. 10
2Установка основного устройства ....................................................... 11
Перед установкой ............................................................................................. 11
Процедура установки....................................................................................... 12
3После выполнения установки и подсоединений ............................14

4
Список деталей
Номера, приведенные в списке” используются в качестве ключей в инструкциях.
ВНИМАНИЕ
При работе с
монтажным кожухом 8
соблюдайте
осторожность, чтобы
не поранить пальцы.
123
456
789
q; qa qs
qd
×4×4×4
×2
×2

5
Пример подсоединений
Подробную информацию смотрите в разделе “1Подсоединение систем автомобиля” (стр. 7-10).
Обязательно ознакомьтесь также с документацией, прилагаемой к другим компонентам системы.
Конфигурация системы
*Подключайте с помощью прилагаемого соединительного кабеля 2. (Для подсоединения аудиоаппаратуры
пользуйтесь адаптером 3)
** Только для России и Украины
Подсоединение камеры заднего вида
2
Подсоединение аудиоплеера
23
Примечания
•Перед тем как подсоединить усилитель, обязательно подсоедините провод заземления.
•В случае если вы подсоединяете опционный усилитель мощности и не пользуетесь встроенным усилителем,
звуковой сигнал подтверждения будет отключен.
Портативный
плеер или
видео камера
(продаются
отдельно)
Мультимедийная система
AV Center XAV-A1
XAV-C1
Игровая приставка
(продается
отдельно)
Вход A/V
IN* (Front)
(AUX 1)
AUX 2
AUX 3
Выход SUB-
OUT (МОNО) Выход
FRONT L/R
REAR L/R
Выход
заднего
монитора
REAR
MONITOR-
OUT
AUX 3 и
BUS Камера заднего
вида (продается
отдельно)
Усилитель
(продается
отдельно) Усилитель
(продается
отдельно)
Сабвуфер
(продается
отдельно)
Динамик
(продается
отдельно)
Задний монитор
(продается
отдельно)
ТВ-тюнер
ХT-V70**
(продается
отдельно)

6
Соединение проводов
Соединяйте все провода с помощью обжимных
соединителей. Комбинация для каждого из проводов
указана в таблице внизу. Также обращайтесь к разделу “1
Подсоединение систем автомобиля” (на следующей
странице).
Использование обжимных соединителей
Подсоединение провода датчика стояночного
тормоза
Расположение провода переключения стояночного тормоза
зависит от модели вашего автомобиля. Ознакомьтесь с
приведенными внизу рисунками подсоединения системы и
обратитесь за дальнейшей подробной информацией к
продавцу вашего автомобиля или ближайшему
распространителю продукции корпорации Sony.
Провод для более эффективного использования
камеры заднего вида
Фиолетовый/белый провод (для подсоединения к
проводу электропитания лампы заднего хода)
Если вы подсоедините фиолетовый/белый провод к проводу
электропитания лампы заднего хода, изображение с камеры
заднего вида будет автоматически отображаться на экране
каждый раз, когда зажигается лампа заднего хода. Вы
сможете корректировать расположение автомобиля при
парковке по изображению с камеры заднего вида во время
подачи машины назад.
Информация по соединениям
Подробную информацию смотрите в разделе “1Подсоединение систем автомобиля” (на
следующей странице).
Примечания
•Выполняйте подсоединение провода
электропитания только после того,
как были подсоединены все
остальные провода.
•Если провод переключения
стояночного тормоза слишком
тонкий, подсоединяйте провод
датчика стояночного тормоза к
проводу переключения стояночного
тормоза напрямую, без
использования обжимного
соединителя.
На основном
устройстве
Фиолетовый/белый
Светло-зеленый
На автомобиле
Провод электропитания лампы заднего хода
Провод переключения стояночного тормоза
Обжимной
соединитель 7
Провод переключения стояночного тормоза
Провод датчика
стояночного тормоза
(Светло-зеленый)
Ножной стояночный
тормоз
Ручной стояночный
тормоз
Провод переключения
стояночного тормоза
Провод
переключения
стояночного
тормоза
