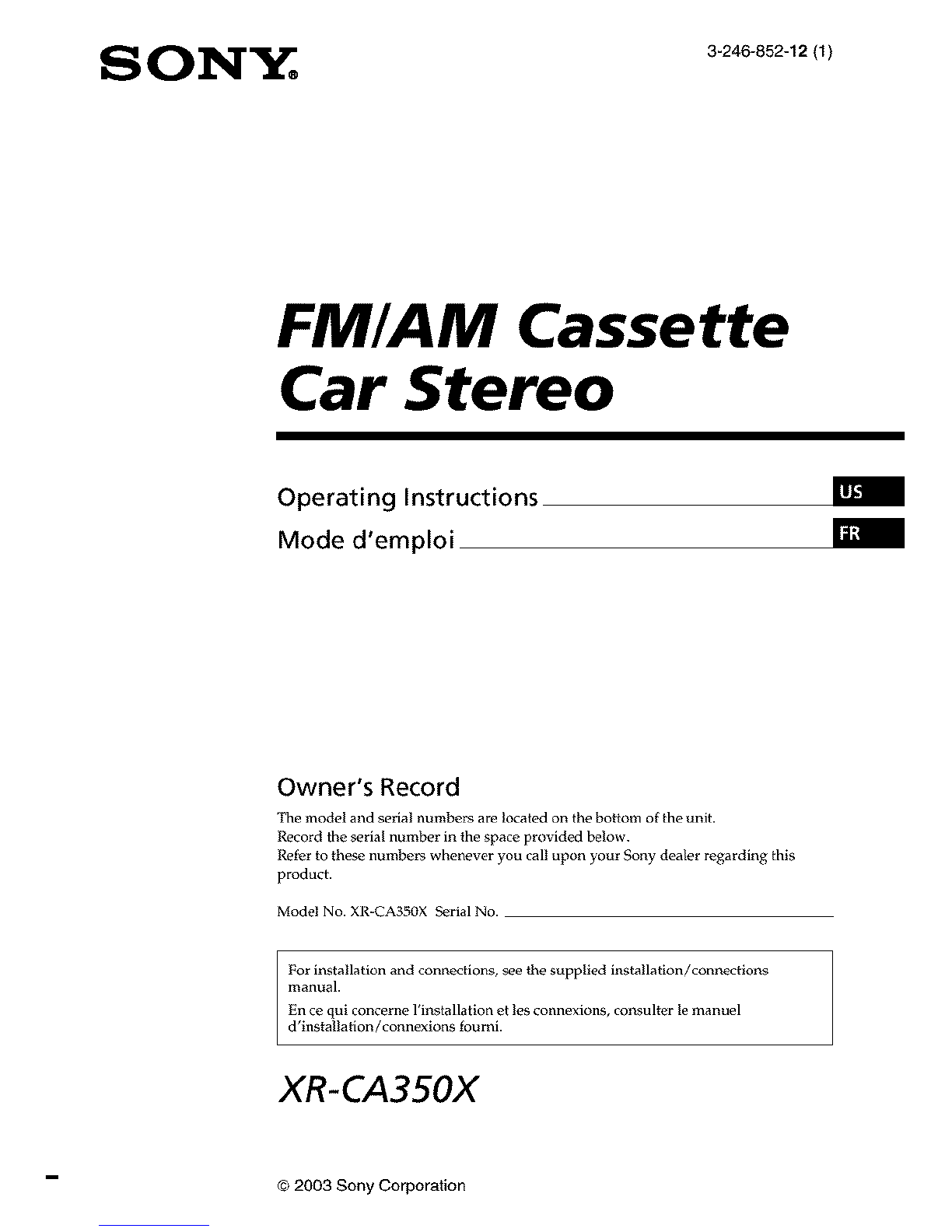

SONY, 3-2.°-._2-.2,1
FM/AM Cassette
Car Stereo
Ll_l
Operating Instructions
Mode d'emploi
Owner's Record
"Fhe model and serial numbers are lOCated on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. XR-CA350X Serial No.
For installation and connections, see the supplied installation/connections
manual.
En ce qui concerne l'installatlon et les connexions, consulter le manuel
d'installatlon/connexlons fourni.
XR-CA350X
© 2003 Sony Corporation

Warning
This equipment has been tested and found to
comply with the limits for a Cla_s B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communicatio_zs. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and receiver.
-- Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Welcome !
Thank you for purchasing this Sony Cassette
Player.
In addition to the cassette playback and radio
operations, you can expand your system by
connecting an optional CD/MD unit*L
When you operate this unit or a connected
optional CD unit with the CD TEXT function,
[he CD TEXT information will appear in the
display when you play a CD TEXT disc*L
tYou can connect a CD changer, an MD changer,
a CD player, or an MD player.
_A CD TEXT disc is an audio CD that includes
information such as the disc name, artist name,
and track names.
This information is recorded on the disc.
READY
The "XM _ady" l_o indicates that this
product will control a Sony XM tuner module
(sold separately).
Plea_ see your nearest au[horized Sony dealer
for details on the XM tuner module.
For instructions on XM tuner operation, please
refer to the XM tuner module's included
instruction manual.
2

Precautions
•If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of a
2*speaker system, set the fader control to the
center position.
• When a tape is played back for a long period,
the cassette may become warm because of
the built-in power amplifier. However, this is
not a sign of malfunction.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
To maintain high quality sound
If you have drink holders near your audio
equipment, be careful not to splash juice or
other soft drinks onto the car audio. Sugary
reMdues on this unit or cassette tapes may
contaminate the playback heads, reduce the
sound quality, or prevent sound reproduction
altogether.
Cassette cleaning kits cannot remove sugar
from the tape heads.
®
Notes on Cassettes
Cassette care
• Do not touch the tape surface of a cassette, as
any dirt or dust will contaminate the heads.
• Keep cas_ttes away from equipment with
built-in magnets such as speakers and
amplifiers, as erasure or distortion on the
recorded tape could occur.
• Do not expose cassettes to direct sunlight,
extremely cold temperatures, or moisture.
• Slack in the tape may cause the tape to be
caught in the machine. Before you insert the
tape, use a pencil or similar object to turn the
reel and take up any slack.
Slack
• Distorted cassettes and loose labels can cause
problems when inserting or ejecting tapes.
Remove or replace loose labels.
• The _und may become distorted while
playing the cassette. The cassette player head
should be cleaned after each 50 hours of use.
Cassettes longer than 90 minutes
The use of cassettes longer than 90 minut_ is
not recommended except for long continuous
play. The tape used for these cassettes is very
thin and tends to stretch easily. Frequent
playing and stopping of these tapes may cause
them to become entangled in the cassette deck
mechanism.
3

Table of Contents
Location of controls ................................................. 5
Getting Started
Resetting the unit ................................................ 6
Detachil_g the front panel .................................. 6
Setting the clock .................................................. 7
Cassette Player
Listening to a tape ............................................... 7
Radio reception during fast-forwarding or
rewinding of a tape
-- Automatic Tuner Activation (ATA) ..._.. 8
Radio
Storing stations automatically
--- Best Tuning Memory (BTM) ................... 8

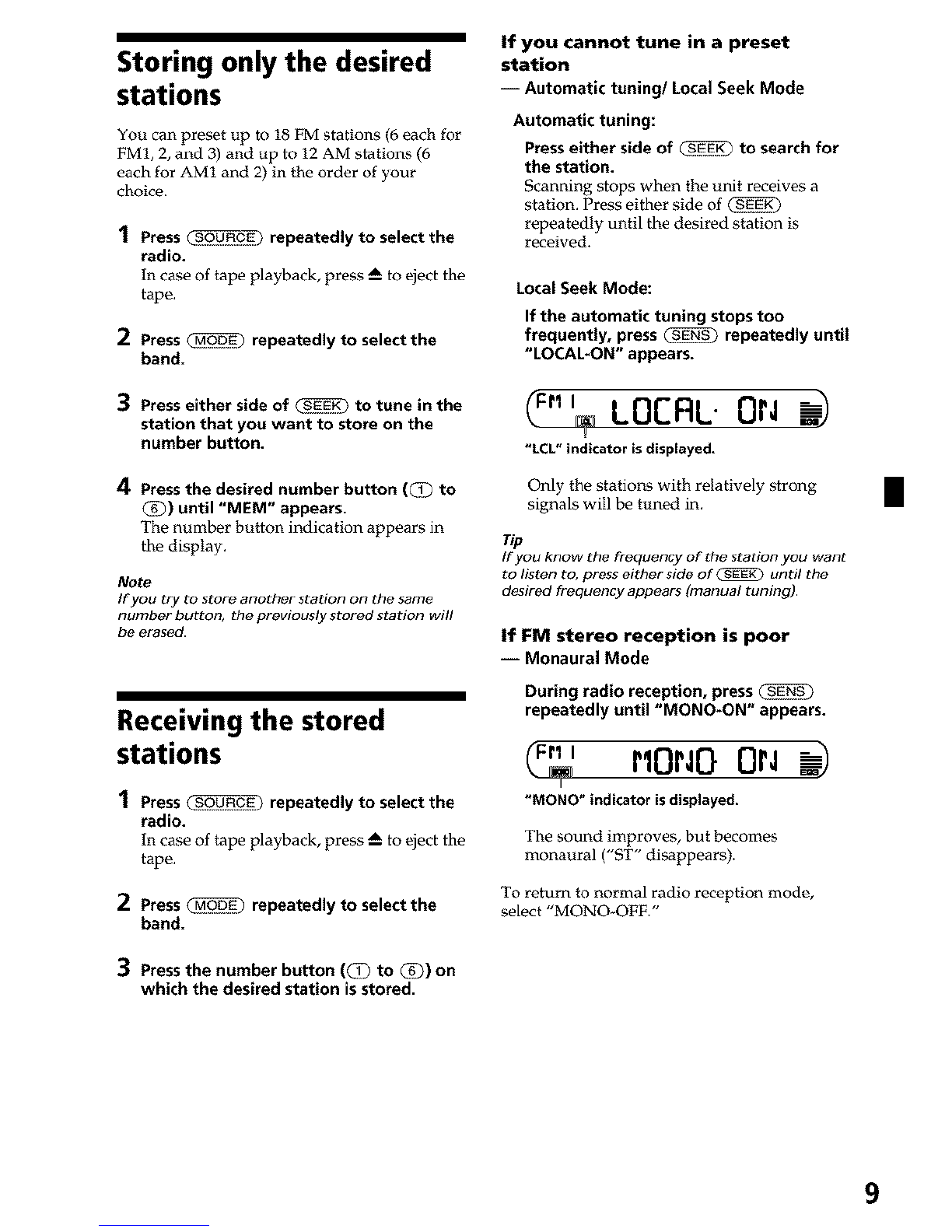

Storing only the desired stations ...................... 9
Receiving the stored stations ............................. 9
Other Functions
Adjusting the balance and fader ..................... 10
Attenuatil_g the sound ..................................... 10
Changing the sound and display settings ..._ 10
Setting the equalizer
--EQ3 ............................................................ 11
CD/MD Unit
Playil_g a CD or MD ......................................... 12

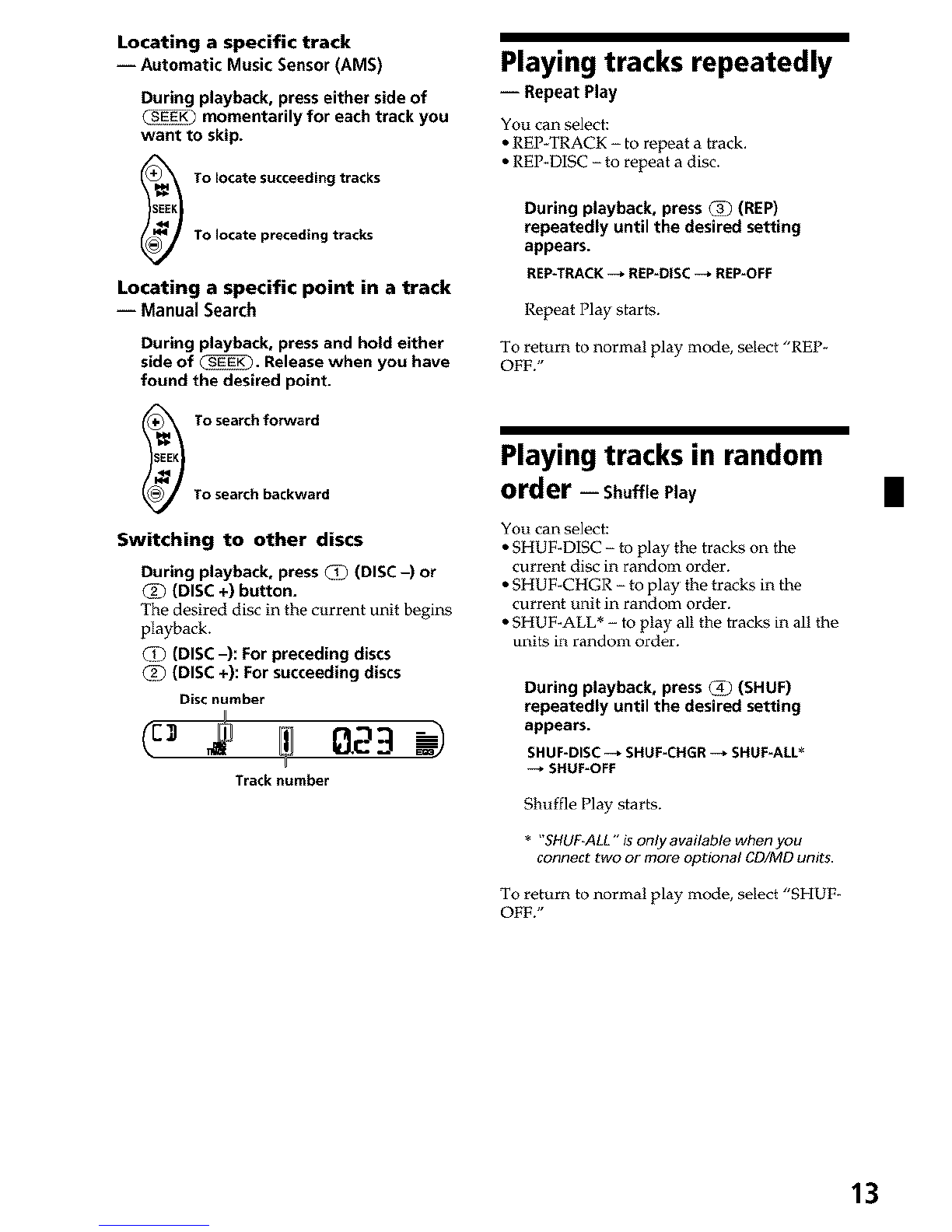

Playil_g tracks repeatedly
-- Repeat Play .............................................. 13
Playil_g tracks in random order
--- Shuffle Play .............................................. 13
Additional Information

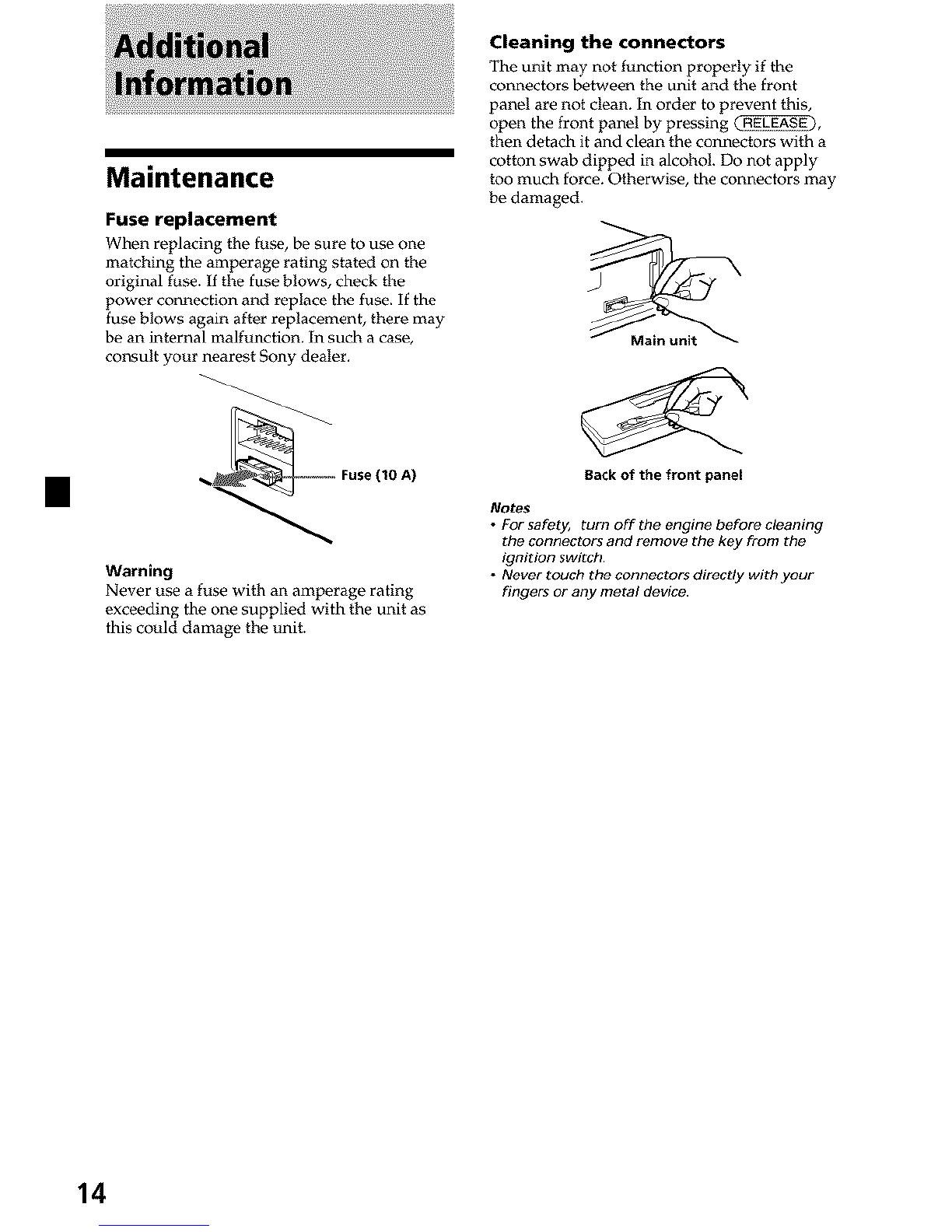

Maintenance ....................................................... 14
Removing the unit ............................................ 15
Specifications ..................................................... 16
Troubleshooting guide ..................................... 17
4

Location of controls
Refor to the pagos listed for details.
[] SOURCE (Radio/CD/MD) button
8,9,11,12
[] MODE button
During radio reception:
Band select 8, 9
During CD/MD playback:
CD/MD unit select 12
[] Volume +/- button 7, 10, 11
[] _--(eject) button 7, 8, 9, 12
[] Display window
[] _t<l/l_l_ (fast winding)/DIR (tape
transport direction change) buttons 7, 8
[] SEEK button
Seek 9
Automatic Music Sensor 13
Manual search 13
[] DSPL (display mode change) button
7,12
[] EQ3button 11
[] RELEASE (front panel release) button
6,14
[] SEL(select)button 7, 10, 11, 12
[] RESET button (located on the front side
of the unit behind the front panel) 6
[] ATT (attenuate) button 10
[] Number buttons t0, 12
During radio reception:
Preset number select 9
During CD/MD playback:
_) DISC- 13
@DISC+ 13
@REP 13
@SHUF 13
[] BTM/ATA button 8
[] SENS button 9
[] OFF button* 6
*Warning when installing in a car
without ACC (accessory) position on
the ignition key switch
Be sure to press _on the unit for 2
seconds to turn off the clock display after
turning off the engine.
When you press _ momentarily, the
clock display does not turn off and this
causes battery wear.
5

Resetting the unit
Before operating the unit for the first time, or
after replacing the car battery or changing the
coru_ections, you must reset the unit.
Remove the front panel and press the RESET
button with a pointed object, such as a fialb
point pen.
RESET button
Note
Pressing the RESETbutton will erase the clock
setting and some memorized functions.
Detaching the front panel
You can detach the front panel of this unit to
protect the unit from being stolen.
1Press _.
2Press _, then slide the front
panel a little to the left, and pull it off
towards you.
Notes
• Be sure not to drop the panel when detaching it
from the unit.
•If you detach the panel while the unit is still
turned on, the power will turn off automatically
to prevent the speakers from being damaged.
• When carrying the front panel with you, use the
supplied front panel case.
Attaching the front panel
Attach part _) of the front panel to part _) of
the unit as illustrated and push the left side
into position until it clicks.
Notes
• Be sure not to attach the front panel upside
down.
• Do not press the front panel too hard against the
unit when attaching it.
• Do not press too hard or put excessive pressure
on the display window of the front panel.
• Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place, Never leave it on the
dashboard of a car parked in direct sunlight or
where there may be a considerable rise in
temperature.
Caution alarm
If you turn the car ignition off without
removing the front panel, the caution alarm
will beep for a few seconds.
If you connect an optional power amplifier and
do not use the builbin amplifier, the beep
sound will fie deactivated.
6

Setting the clock
The clock uses a 12q_our digital indication.
Example: To set the clock to 10:08
'! Press __D for 2 seconds.
(SET _
The hour indication flashes.
)
OPress either side of the volume button
to set the hour.
to go forward
to go back
( ET )
I_ Press _.
The minute indication flashes.
OPress either side of the volume button
to set the minute.
to go forward
to go back
(SET I__
2Press_D-
The clock starts.
After the clock setting is complete, the
display returns to normal play mode.
Listening to a tape
Insert a cassette.
Playback starts automatically.
The side facing up isplayed.
TAPE
The side facing down isplayed.
TAPE
To change the tape's playback direction, press 4_1
and IH_.
To stop playback and eject the
cassette
Press --_.
Fast-winding the tape
During playback, press _or IH_.
Direction
indicator* To advance To rewind
FWD b,_ _1
REV _
*The _indicator will flash while fast-winding the
tape.
To start playback during fast-forwarding or
rewinding, press the other fast*winding button
partially until the locked button is released.
7

Radio reception during
fast-forwarding or
rewinding of a tape
-- Automatic Tuner Activation (ATA)
When fast+forwarding or rewinding with the
_1_ or _ button, the radio will turn on
automatically.
During playback, press _(ATA)
repeatedly until "ATA*ON" in the display
appears.
ATA=ON '_ ATA-OFF
(_UII RTA Or,l
ATA mode starts.
To return to normal play mode, select "ATA+
OFF."
Storing stations
automatically
-- Best Tuning Memory (BTM)
The unit selects the stations with the strongest
signals and stores them in the order of their
frequencies. You can store up to 6 statiolls on
each band (FM1, FM2, FM3, AM1, and AM2).
Caution
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
1Press _C_ repeatedly to select the
radio.
In case of tape playback, press --_to eject the
tape.
Each time you press _), the source
changes as follows:
Radio_CD* _MD*
*If the corresponding optional equipment is
not connected, this item will not appear.
2Press _repeatedly to select the
band.
Each time you press _, the band
changes as follows:
FM1 _FM2 _FM3 _AM1 _AM2
3Press _(ATA) for 2 seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
•The unit does not store stations with weak
signals, If only a few stations can be received,
some number buttons wifl retain their" former
setting.
•When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.
8

Storing only the desired
stations
You can preset up to 18 FM stations (6 each for
FM1, 2, and 3) and up to 12 AM stations (6
each for AM1 and 2) in the order of your
choice.
1Press _C_ repeatedly to select the
radio.
In ca_ of tape playback, press A to eject the
tape.
2 Press _repeatedly to select the
band.
3Press either side of _to tune in the
station that you want to store on the
number button.
4Pressthe desired number button (_ to
_) until "MEM" appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
Receiving the stored
stations
1 Press _C_ repeatedly to select the
radio.
In ca_ of tape playback, press A to eject the
tape.
2Press _repeatedly to select the
band.
3Pressthe number button (_'j to G) on
which the desired station isstored.
If you cannot tune in a preset
station
-- Automatic tuning/Local Seek Mode
Automatic tuning:
Press either side of _to search for
the station.
Scanning stops when the unit receives a
station. Pros either side of
repeatedly until the desired station is
received.
Local Seek Mode:
If the automatic tuning stops too
frequently, press _repeatedly until
"LOCAL.ON" appears.
_F.,f_ LOCAL" Or,l _
"LCL"indlcatorlsdisplayed.
Only the stations with relatively strong
signals will be tuned in.
Tip
If you know the frequency of the station you want
to listen to, press either side of _until the
desired frequency appears (manual tuning).
If FM stereo reception is poor
-- Monaural Mode
During radio reception, press
repeatedly until "MONO-ON" appears.
r=Or40or,=
"MONO" indicator isdisplayed.
The sound improves, but becomes
monaural ("ST" disappears).
To return to normal radio reception mode,
select "MONO_OFF."
9

Adjusting the balance and
fader
You can adjust the balance and fader.
Press @_ repeatedly until "BAL" or
"FAD" appears.
Each time you press _, the item
changes as follows:
LOW* _MID* _HIGH* --*
BAL (left-right) _FAD (front-rear)
*When EO3 is activated (page 11).
2Press either side of the volume button to
adjust the selected item.
Adjust within 3 seconds after selecting the
item.
Changing the sound and
display settings
The following items can be set:
• A.SCRL (Auto Scroll)* (page 12).
• M.DSPL (Motion Display)
- the demonstration mode which appears
when the tape is ejected and no source is
selected (e.g., tuner is turned off).
• BEEP - to turn the beep sound on or off.
1Press _ and the desired preset
number button simultaneously.
_) +@: A.SCRL*
_) +@: M.DSPL
_) +@: BEEP
*Whenno CDor MD isplaying, this item will
not appear.
2Press _and the preset number
button repeatedly to select the desired
setting (Example: ON or OFF).
Attenuating the sound
Press _.
After "ATT_ON" momentarily flashes, the
"ATT" indication appears in the display.
To restore the previous volume level, press
again.
"ATT-OFF" flashes momentarily.
10

Setting the equalizer
-- EQ3
You can _lect an equalizer curve for 7 music
types (XPLOD, VOCAL, CLUB, JAZZ, NEW
AGE, ROCK, CUSTOM, and OFF (equalizer
OFF)).
You can store a different equalizer setting for
each source.
Selecting the equalizer curve
1 Press _L_ to select a source (Radio,
CD or MD) or insert a cassette.
2Press _) repeatedly to select the
desired equalizer curve.
Each time you press _, the item
changes.
(Eo3 i----)
To cancel the equalizing effect, select
"OFF."
Adjusting the equalizer curve
You can store and adjust the equalizer settings
for different tone ranges.
1 Press _) to select asource (Radio,
CD or MD) or insert a cassette.
2Press _3_ repeatedly to select the
desired equalizer curve.
3Adjusting the equalizer curve.
O Press _ repeatedly to select the
desired tone range.
Each time you press _, the tone
range changes.
LOW _MID _HI (_ BAL _FAD)
Press either side of the volume button
repeatedly to adjust to the desired
volume level.
The volume level is adjustable by 1 dB
steps from -10 dB to +10 dB.
(LO. ÷ 10d
Repeat step _and _to adjust the
equalizer curve.
To r_tore the factory_set equalizer
curve, press _ for 2 _conds.
After 3 seconds, the display returns to
normal play mode.
Note
When EQ3 is set to "OFF, "you cannot adjust the
equalizer settings.
11

This unit can control external CD/MD units.
If you connect an optional CD unit with the
CD TEXT function, the CD TEXT information
will appear in the display when you play a CD
TEXT disc.
Playing a CD or MD
1Press CS_..E_ repeatedly to select CD
or MD.
In case of tape playback, press --_to eject the
tape.
2Press _until the desired unit
appears.
CD/MD playback starts.
When a CD/MD unit is connected, all the
tracks play from the beginning.
Tip
With the optional MG Memory Stick System-up
Player MGS-X1 connected to this unit, press
to select "MD, " then press _to
select the unit number of the MD (MD1 or MD2,
etc.).
Changing the display item
Each time you press _ during CD, CD
TEXT, or MD playback, the item changes as
follows:
Elapsed playback time
Disc name*VArtist name .2 _ Track name .3
Clock
*_ If you have not labeled the disc or if there is no
disc name prerecorded on the MD, "NO NAME"
appears in the display.
,2 If you play a CD TEXT disc, the artist name
appears in the display after the disc name. (Only
for CD TEXT discs with the artist name.)
**If the track name of a CD TEXT disc or MD is not
prerecorded, "NO NAME" appears in the
display.
Automatically scrolling a display
item -- Auto Scroll
If the disc name, artist name, or track name on
aCD TEXT di_ or MD exceeds 8 characters
and the Auto Scroll function is on, information
automatically scrolls across the display as
follows:
•Thedisc name appears when the disc has
changed (if the disc name isselected).
• The track name appears when the track has
changed (if the track name isselected).
If you press _) to change the display
item, the di_ or track name of the CD TEXT or
MD disc is scrolled automatically whether you
set the function ON or OFF.
During playback, press _ and @ to
select "A.SCRL-ON."
To cancel Auto Scroll, select "A.SCRL_OFF."
Note
For some discs with very many characters, the
following cases may happen:
-- Some of the characters are not displayed.
-- Auto Scroll does not work.
12

Locating a specific track
-- Automatic MusicSensor(AMS)
During playback, press either side of
momentarily for each track you
want to skip.
To locate succeedingtracks
TOlocate precedingtracks
Locating a specific point in a track
-- Manual Search
During playback, press and hold either
side of _. Release when you have
found the desired point.
Switching to other discs
During playback, press _(DISC-) or
(DISC +) button.
The desired disc in the current unit begins
playback.
(DISC -): For preceding discs
(DISC +): For succeeding discs
Discnumber
u
Track number
Playing tracks repeatedly
-- Repeat Play
You can _lect:
•REP*TRACK - to repeat a track.
• REP_DISC - to repeat a disc.
During playback, press _(REP)
repeatedly until the desired setting
appears.
REP-TRACK _REP_DISC_REP_OFF
Repeat Play starts.
To return to normal play mode, select "REP-
OFF."
Playing tracks in random
order -Shuffle Play
You can select:
•SHUF-DISC - to play the tracks on the
current disc in random order.
• SHUF_CHGR - to play the tracks in the
current unit in random order.
• SHUF-ALL* - to play all the tracks in all the
units in random order.
During playback, press _(SHUF)
repeatedly until the desired setting
appears.
SHUF-DISC _SHUF_CHGR _SHUF_ALL*
SHUF_OFF
Shuffle Play starts.
* "SHUF-ALL" isonly available when you
connect two or more optional CD/MD units.
To return to normal play mode, select "SHUF-
OFF."
13

Maintenance
Fuse replacement
When replacing the fu_, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there may
be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing _,
then detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.
Main unit
Backof the front panel
Notes
•For safety, turn off the engine before cleaning
the connectors and remove the key from the
ignition switch.
•Never touch the connectors directly with your
fingers or any metal device.
14

Removing the unit
1 Remove the protection collar.
ODetach the front panel (page 6).
I_ Engage the release keys together
with the protection collar.
keycorrectly.
OPull out the release keys to remove
the protection collar.
2Remove the unit.
OInsert both release keys together until
they click.
Face the hook
inwards.
I_ Pull the release keys to unseat the
unit.
Slide the unit out of the mounting.
15

Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
22 watts per channel minimum continuous average power into 4
ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
5 % total harmonic distortion.
Other specifications
Tape track 4-track 2-channel stereo
Wow and flutter 0.13 % (WRMS)
Frequency response 30 - 15,000 Hz
Signal-to-noise ratio 55 dB
FM
Tuning range FM tuning interval:
87.5 - 107.9 MHz
(at 200 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 67 dB (stereo),
69 dB (mono)
Harmonic distortion at I kHz
0.5 % (stereo),
0.3 % (mono)
Separation 35 dB at I kt{z
Frequency response 30 - 15,000 Hz
AM
Tuning range AM tuning interval:
530 - 1,710 kHz
(at 10 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 pV
Outputs Speaker outputs
(sure seal connectors)
Speaker impcKlance 4 - 8 ohms
Maximum power output 45W x4 (at 4 ohms)
Outputs Audio output
Power antenna relay
control lead
Power amplifier control
lead
Inputs BUS control input terminal
BUS audio input terminal
Tone controls Low:
+10 dB at 60 Hz (Xplod)
Mid:
+10 dB at 1 kfIz (Xplod)
High:
+10 dB at 10 kHz (Xplod)
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 x 50 x 178 mm
(7_/8x2x7_/ in)
(w/h/d)
Mounting dimensions Approx. 182 x 53 x 161 mm
(7 _/4 x 2 _/_ x 63/_ in)
(w/h/d)
Mass Approx. 1.2 kg (2 lb 10 oz)
Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Optional accessories BUS cable (supplied with
an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)
Optional equipment CD changer (10 discs)
CDX-656
CD changer (6 discs)
CDX-T69
MD changer (6 discs)
MDX-66XLP
XM Satellite Radio Receiver
XT-XM1
MG-MS System-up Player
MGS-X1
Source selector
XA-C30
AUX-IN Selector
XA-300
Design and specigications are subject to change
without notice.
16

Troubleshooting guide
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through tho chocklist below, chock the connections and operating procedures.
General
Problem Cause/Solution
No sound. • Cancel the ATT function (page 10).
•Set the fader control to the center position for 2_speaker
systems.
• Adjust the volume with @.
The contents of the memory •The power cord or battery has been disconnected.
have been erased. • The RESET button was pressed.
-4 Store again into the memory.
indications do not appear • Remove the front panel and clean the cow,hectors. See
in the display. "Cleaning the connectors" (page 14) for details.
• The clock display disappears if you press _ for 2
seconds.
-4 Press _ again for 2 seconds to display the clock.
Tape playback
Problem Cause/Solution
The sound is distorted. The tape head is contaminated.
Clean the head with a commercially available dry-type
cleaning cassette.
Radio reception
Problem Cause/Solution
Preset tuning is not possible. •Store the correct frequency in the memory.
• The broadcast signal is too weak.
Automatic tuning is not • The broadcast signal is too weak.
possible. --_ Use manual tuning.
• The local seek mode is ,set to ON.
-4 Set the local seek mode to OFF (pago 9).
The stations cannot be Connect an power ante_na control lead (blue) or accessory
received, power supply lead (red) to the power supply lead of a car's
The sound is hampered by antenna booster. (When your car has builtdn FM/AM antenl_a
noises, in the rear/side glass only.)
The "ST" indication flashes. • Tune in the frequency accurately.
• The broadcast signal is too weak.
-4 Set to monaural mode (page 9).
CDIMD playback
Problem Cause/Solution
The sound skips. A dirty or defective disc.
17

Error displays (when an optional CD/MD unit is connected)
The following indications will flash for about 5 seconds, and an alarm sound will be heard.
Display Cause Solution
NO MAG The disc magazine is not inserted in Insert the disc magazine in the CD/
the CD/MD unit. MD unit.
NO DISC No disc is iiz_orted in the CD/MD unit. InsertdiscsintheCD/MDunit.
A CD is dirty or inserted upside Clean or insert the CD correctly.
down. .2
ERROR*_ An MD does not play because of some Insert another MD.
problem. .2
A CD/MD cannot play because of Insert another CD/MD.
some problem.
BLANK, _ MD.*2N°tracks have been recorded on an it.Playan MD with tracks recorded on
The CD/MD unit cannot be operated Press the RESET button of the unit.
RESET because of some problem.
D _Ar_V The lid of the MD unit is open or MDs Close the lid or insert the MDs
NOT ,,__,-,_, are not inserted properly, properly.
The ambient temperature is more than Wait until the temperature goes
HI TEM P 50oc(I22OF). downbelow50°C(122°I:).
*_ When an error occurs during playback of a CD or MD, the disc number of the CD or MD does not appear
in the display.
*2 The disc number of the disc causing the error appears in the display.
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
18

Affichage des erreurs (Iorsqu'une unit_ CD/MD en option est raccordee)
Lc_ kldieations su iv_c_ cligno_c,nt pendant environ 5sccondc_ ct uric a_armc rctenti_.
Affichage Cause Solution
Lc c_argc, u r de, d k_tue_ n'_t 2as lntroduisc_ Ic c_argc, u r de disquo_
1]n')" a auc_n disc_uc da_ ]'appar¢,i] In_roduise_ dcs disqucs dan._
NO DISC CD/MD. I'avp_CDiMC,.
Un CD est souill_ ou a _t_ introd uit _ No.oyez ou introd uisez
I'env¢,_'5. *z co_r¢_'_3n1¢,mt ]¢, CD.
ERROR o,T_pc_.<Uede_eFoduire_nl_Den h_odui_,u_autrel_D.
Lecture d'un CDiMD [m_o_ible _n Introdu=se_ un autre CD_. M£}.
r_i_on d'um prob_rne.
BLANK" Auc_"c"Plasen'a_ _nrc'gistr_esu_ Li_,, upMD surlequc,1&_ ?'agcs
un MD. *_ ont _4 _nrcg[strdes.
fonctionn_r en raison d'un prob]_me, _6initlali_tion (RF_]_T} de ]'appa_il,
Lc eouvercle de ]'apparei] de ]_qD esi Fermez le couvercle o4 reme_ez les
NOT READYou,,_r_o_lc_M_no_o,,t_._ic._c._M_v_,cc.co_c_.,e_.
p]a_c.
La tem_6ra_u_e arabi_nh? d 6p a._:. A_tendez que _a _c.mpdratu re bais._e
HI TEMP 3ooc_,22on. _u_so,oc(_o_.
__Si une erreur se)pr_duit pendant la lecture d'un _;'Dou d'un MD, le num_ro de disque du CO o_ du MD
n'apFara_t pas dan_ la fenetre d'att_ch_qe,
_Le _m_ro d_ disque q_i po_e un probl_me _ppar_lt d_r_ I_ lend,re d_tfich_e,
Si les solutions propo "_-s c[-d _-ssusno 2_rmet62nt 2as de remdd(er au 2rob]bme, eons@tez votre
d6±ai]lant £ony.
http://www.sony.net]
Sor)y Corporation Pd_ed in Malaysia
