Sony MEGA BASS CFD-540 User manual

SONY.
3-758-442-21
(1)
B79
CD Radio Cassette-Corder
CFD-540
Operating Instructions
WIG
sygoa
pass
© 1994 by Sony Corporation

To prevent fire or shock hazard, do not
expose the player to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
OO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
For customers in Canada
To prevent electric shock, match wide blade of plug to wide
slot, fully insert.
Pit oe
0
a
ae
Se
oe
a
aE
oe
a,
FP
-:
ap
Aaa
ai
2a
PAT
z :
SSeS he ae ee een eee
Perea, Be dB FEF fet FSS ee TSS Ene gah fhe ag.
SE el pans rer ts ee L, Se
.
For customers in the United States
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur ina
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
Owner's Record
The model number is located on the rear of the CD radio
cassette-corder, and serial number is located in the battery
compartment. Record the serial number in the space
provided below. Refer to them whenever you call your Sony
dealer regarding this product.
Serial No.
Model! No. CFD-540
PLEADS HS Ra ee A dA ee ae ree ee EE I TPE USE SBE,

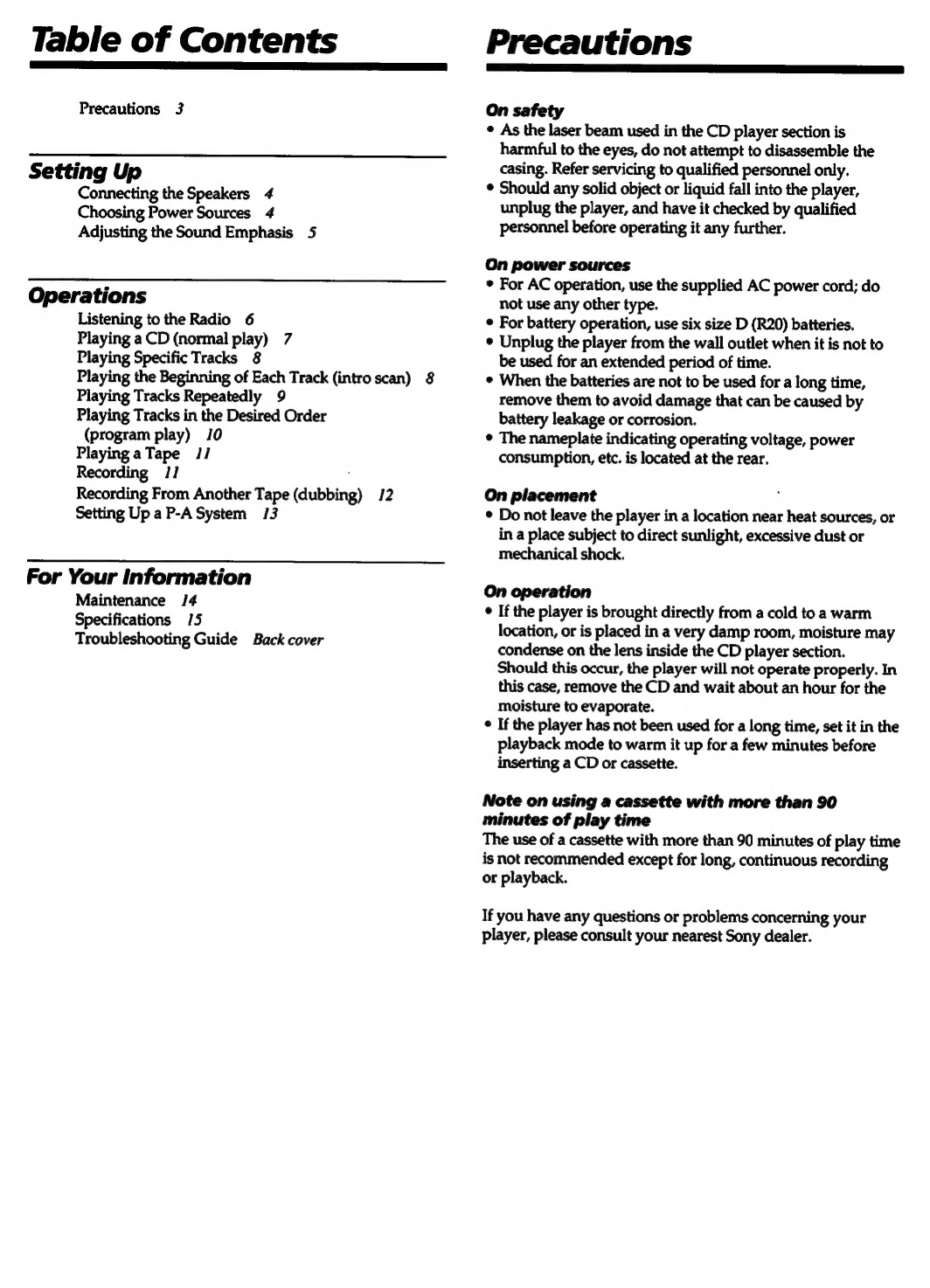

Table of Contents
Precautions 3
Setting Up
Connecting the Speakers 4
Choosing Power Sources 4
Adjusting the Sound Emphasis 5
Operations
Listening to the Radio 6
Playing a CD (normal play) 7
Playing Specific Tracks 8
Playing the Beginning of Each Track (intro scan) 8

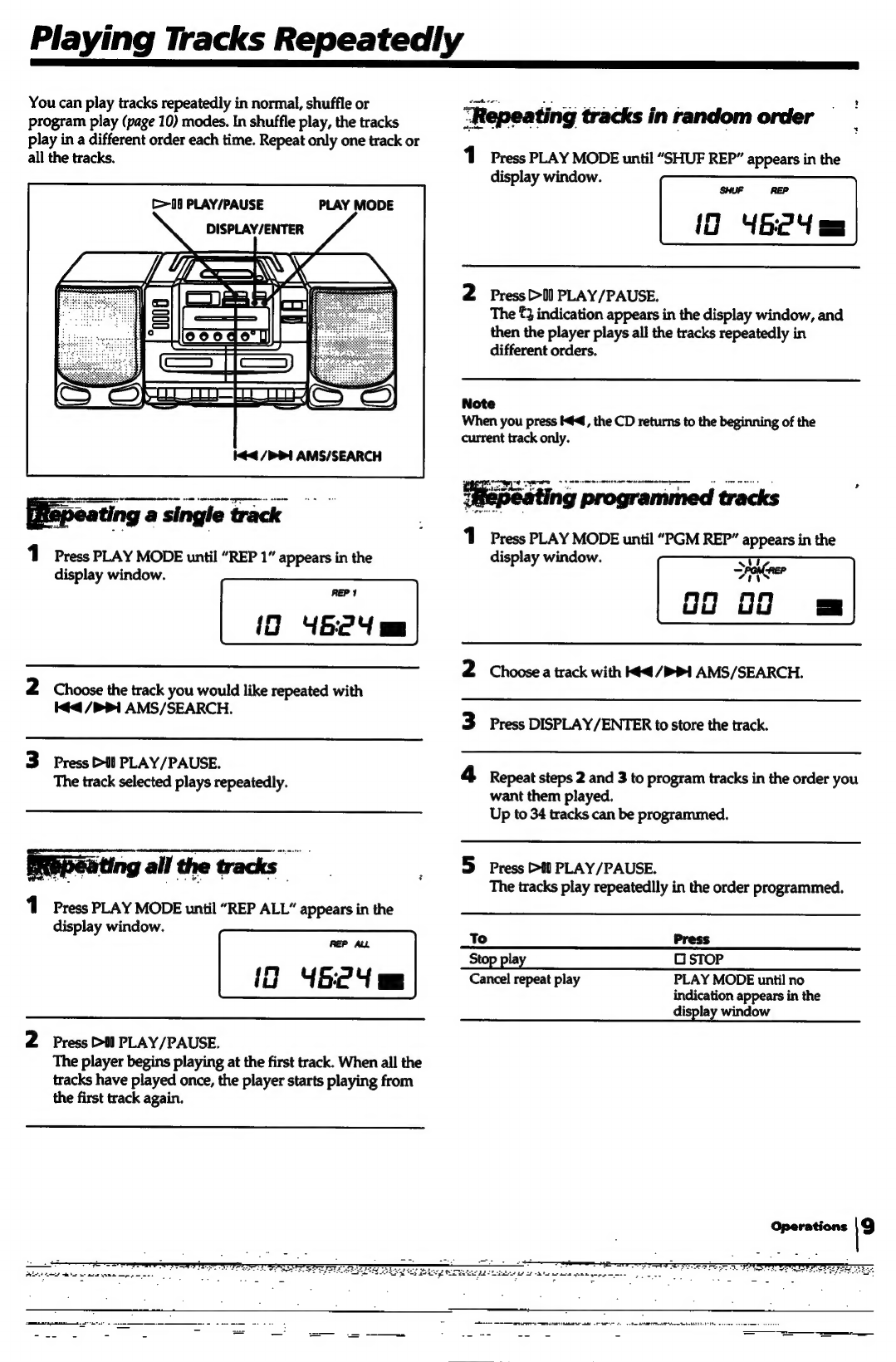

Playing Tracks Repeatedly 9
Playing Tracks in the Desired Order
(program play) 10
PlayingaTape //
Recording 11

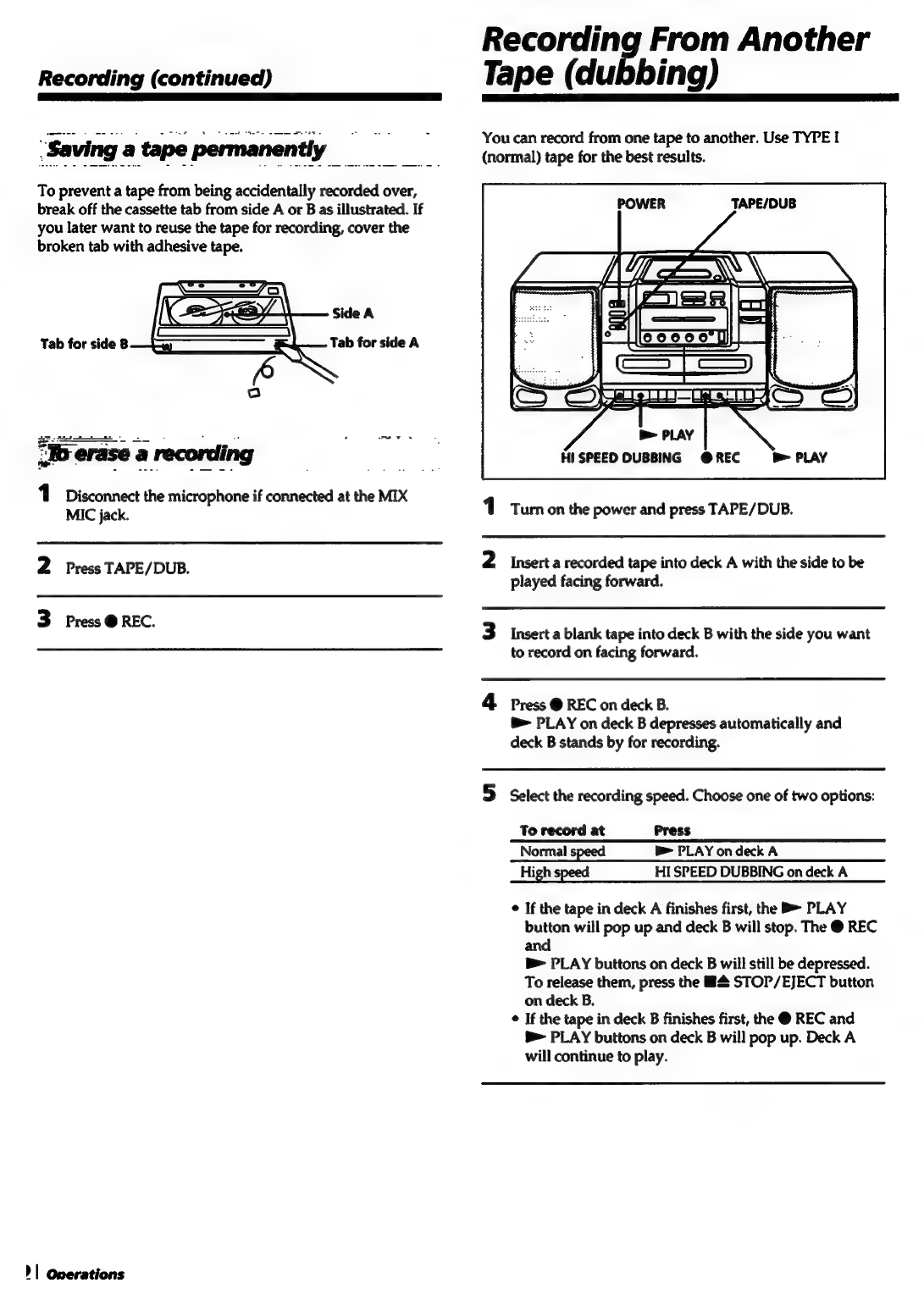

Recording From Another Tape (dubbing) 12

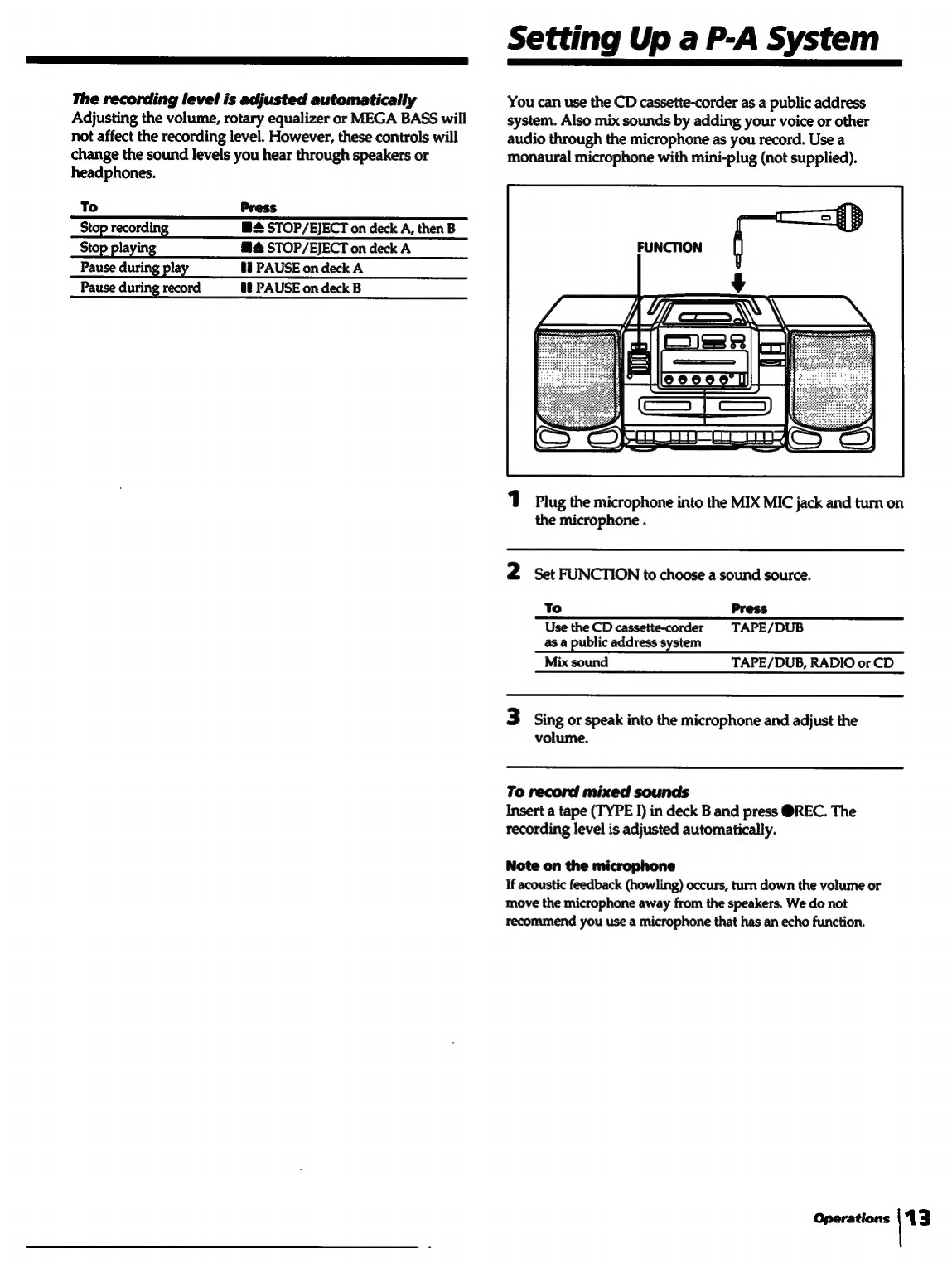

Setting UpaP-ASystem 13
For Your Information
Maintenance /4
Specifications 15

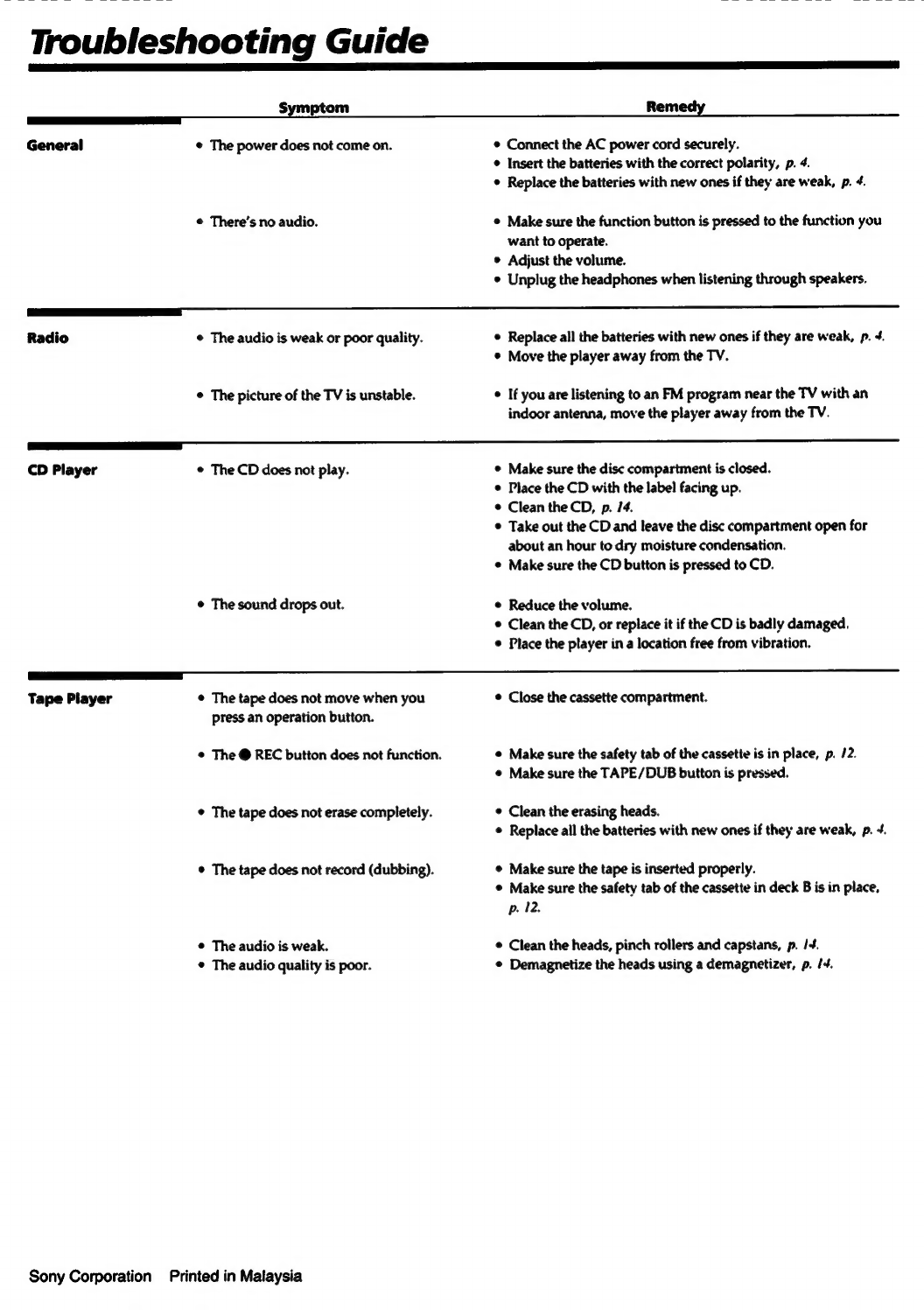

Troubleshooting Guide Back cover
Precautions
On safety
¢ As the laser beam used in the CD player section is
harmful to the eyes, do not attempt to disassemble the
casing. Refer servicing to qualified personnel only,
¢ Should any solid object or liquid fall into the player,
unplug the player, and have it checked by qualified
personnel before operating it any further.
On power sources
¢ For AC operation, use the supplied AC power cord; do
not use any other type.
¢ For battery operation, use six size D (R20) batteries.
¢ Unplug the player from the wall outlet when it is not to
be used for an extended period of time.
¢ When the batteries are not to be used for a long time,
remove them to avoid damage that can be caused by
battery leakage or corrosion.
¢ The nameplate indicating operating voltage, power
consumption, etc. is located at the rear,
On placement
¢ Do not leave the player in a location near heat sources, or
in a place subject to direct sunlight, excessive dust or
mechanical shock.
On operation
¢ If the player i is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lens inside the CD player section.
Should this occur, the player will not operate properly. In
this case, remove the CD and wait about an hour for the
moisture to evaporate.
¢ If the player has not been used for a long time, set it in the
playback mode to warm it up for a few minutes before
inserting a CD or cassette.
Note on using a cassette with more than 90
minutes of play time
The use of a cassette with more than 90 minutes of play time
is not recommended except for long, continuous recording
or playback.
If you have any questions or problems concerning your
player, please consult your nearest Sony dealer.

Setting Up
Connecting the Speakers
For easy transport, the dual speakers are detachable. Before
you begin listening to music, attach the speaker boxes and
connect the speaker plugs as shown below. Make sure you
turn off the power before making any connections.
1 Align the grooves and slide the speaker box down until
it snaps into place. @
2 Connect the right speaker plug to the RIGHT
connectors and the left speaker plug to the LEFT
connectors.
To detach the speakers
Unlock the speaker @ and slide the speaker box all the way
up and away from the player.
4| Setting Up
Choosing Power Sources
The CD cassette-corder has two separate power sources.
Use the AC power source (house current) whenever you
record because recording consumes the most power. Use six
size D (R20) batteries when the CD cassette-corder becomes
a portable.
Operating the player on AC power
Insert one end of the supplied power cord to the AC IN
socket located at the rear of the player @ and the other end
to the wall outlet ©.
to wall outlet
Operating the player on batteries
To play your CD cassette-corder on batteries, the AC power
cord must be disconnected from the player. Unplug the
player and insert six size D (R20) batteries (not supplied)
in the compartment.
When to replace the batteries
Replace the batteries when the OPR/BATT indicator dims
or when the player stops operating.
When the batteries are weak, replace all the batteries with
new ones.

Adjusting the Sound Emphasis
When playing CDs, tapes, or radio programs, use the
ROTARY EQUALIZER controls to equalize the reproduced
sound and MEGA BASS to reinforce the bass sound. You
can also adjust the balance of the left and right output
levels.
BALANCE MEGA BASS ROTARY
EQUALIZER
[ITE
SX
=
Oo
===
To equalize the reproduced sound
Turn the ROTARY EQUALIZER controls.
Frequency Turn the control Turn the control
coverage clockwise counterclockwise
100 Hz to increase to decrease
heavy bass heavy bass
sounds sounds
1 kHz toprovidemore _ to provide less
presence of presence of
vocals vocals
10 kHz to increase the to decrease the
brightness of the brightness of the
sound sound or to reduce
tape hiss
To reinforce the bass sound
Turn the MEGA BASS control toward MAX to increase
heavy bass sounds.
To decrease heavy bass sound, turn the MEGA BASS
control toward MIN.
To adjust the balance
Adjust the BALANCE control.
Use to adjust stereo imaging, especially when speakers are
not symmetrically placed.

is Operations |
Listening to the Radio
Whenever you want to listen to the radio, press the RADIO To improve broadcast reception
button. Reorient the antenna (for FM) or the player itself (for AM).
FM STEREO VOLUME
1 \(W=E NVA
B=39
BAND TUNING
1 Tum on the power and press RADIO.
2 Set BAND to FM or AM.
3 Turn TUNING to tune in a radio station.
When the radio tunes to an FM stereo broadcast, FM
STEREO indicator lights up.
If the received FM stereo is too weak, the reception
becomes monaural, and the FM STEREO indicator will
go off.
4 Press VOLUME to adjust the volume, and adjust the
sound emphasis (see Adjusting the Sound Emphasis on
page 5).
vot
c- =
To turn off the radio
Press POWER.
6| Operations

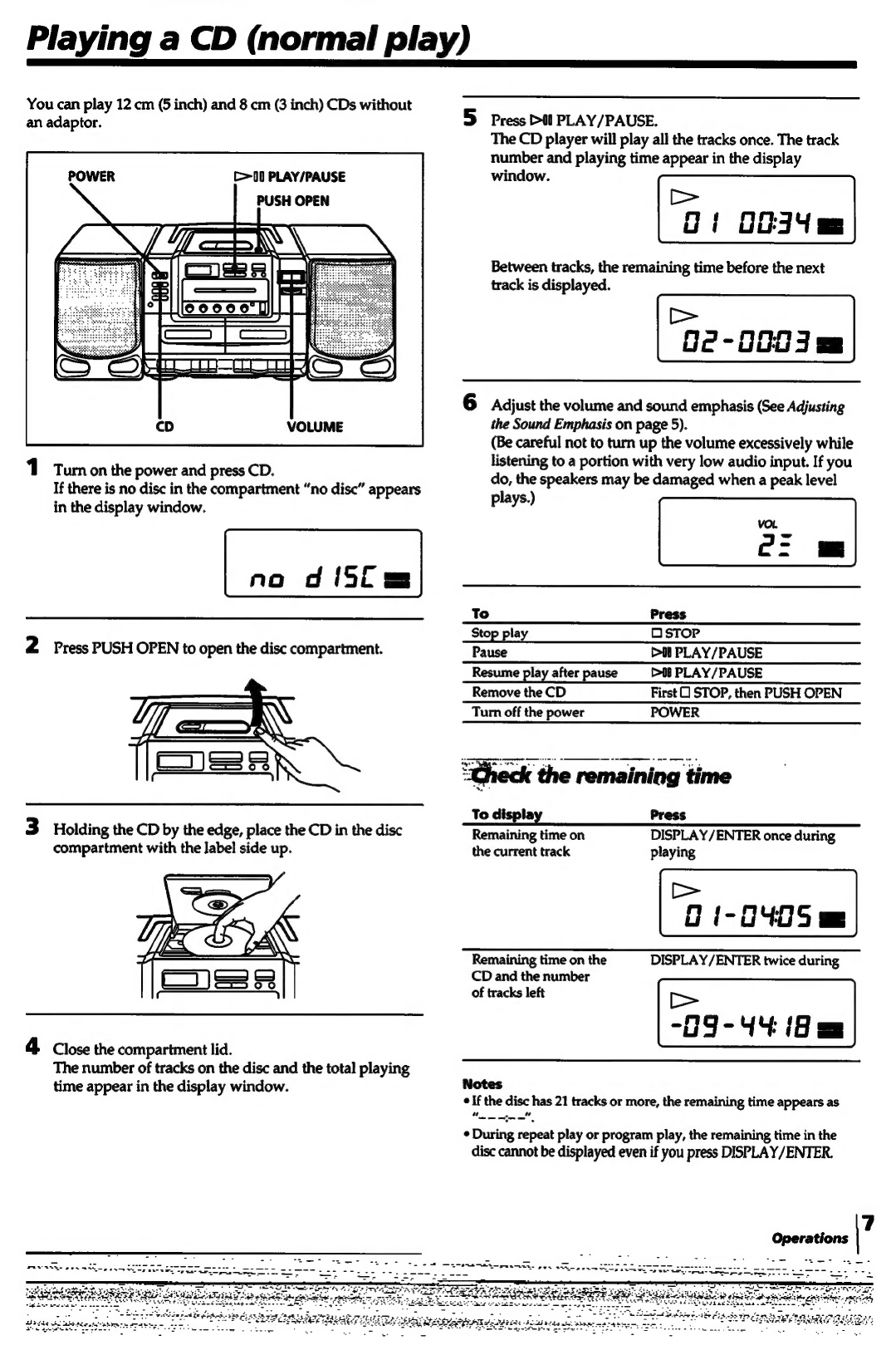

Playing a CD (normal play)
You can play 12 cm (5 inch) and 8 cm (3 inch) CDs without
an adaptor.
C10 PLAY/PAUSE
VOLUME
1 Turon the power and press CD.
If there is no disc in the compartment “no disc” appears
in the display window.
no d iS a
2 Press PUSH OPEN to open the disc compartment.
Coes
rr
3 Holding the CD by the edge, place the CD in the disc
compartment with the label side up.
4 Close the compartment lid.
The number of tracks on the disc and the total playing
time appear in the display window.
ot tet ei.
S Press Dill PLAY/PAUSE.
The CD player will play all the tracks once. The track
number and playing time appear in the display
window.
c
Oi 02:34 =
Between tracks, the remaining time before the next
track is displayed.
>
G2-0003 =
6 Adjust the volume and sound emphasis (See Adjusting
the Sound Emphasis on page 5).
(Be careful not to turn up the volume excessively while
listening to a portion with very low audio input. If you
do, the speakers may be damaged when a peak level
plays.)
To Press
Stop pla’ O STOP
Pause Dit PLAY/PAUSE
Resume play after pause Dit PLAY/PAUSE
Remove the CD First O STOP, then PUSH OPEN
Turn off the power POWER
x ‘the remaining time
To displa Press
Remaining time on DISPLAY/ENTER once during
the current track playing
ae
Ci-G4CS =
Remaining time on the DISPLAY/ENTER twice during
CD and the number
of tracks left ee
-O9-4% (5
Notes
¢ If the disc has 21 tracks or more, the remaining time appears as
¢ During repeat play or program play, the remaining time in the
disc cannot be displayed even if you press DISPLAY/ENTER.
Operations

Playing Specific Tracks
You can find the beginning of a track or a point in a track
while the player is playing or paused. Find a particular
track by specifying the track number.
ed /P PI
AMS/SEARCH
|=
—S Se
marrow oe
eo 7 ) a, 2 mm ites
AS | — |=
=o? lleeooo'L
——
=
To find the beginning of a track
To find Press*
the beginning of the i444 once
current track
the beginning of the td repeatedly
revious tracks
the beginning of the next PPI once
track
the beginning of the PPI repeatedly
succeeding tracks
* If one of the following indications is displayed, press the 0 STOP
button to clear the indication: INTRO, REP 1, REP ALL, SHUF
REP, PGM REP, PGM.
To find a point in a track
To search Press down
by listening for the point #@<4 or PPI in play mode
you want to hear
by observing the 144 or PPI in pause mode
time counter
8 Operations
ieroemias wt nea = ee
PF LED WEE RD TSE ee eg BAG EEG ae
OF PA ED Rarer PER Re SEED Baca BEET at tees ees LHe
5 ee ER Re ME ee ETE OEE EEE ESE PG
ASTD are WATER ab EAB eae ee ++ = oe : ; 3 ” Sa
Tee ota ep tae etree ee ree re,
Playing the Beginning of
Each Track (intro scan)
You can sample the first 10 seconds of each track on a CD.
[10 PLAY/PAUSE
PLAY MODE
1 Press CD.
2 Press PLAY MODE once to display “INTRO” while the
player is stopped.
10 4624 we
3 Press Dal PLAY/PAUSE.
The first track plays for ten seconds. The player then
skips to the next track to be played.
To start playing a track
Press id,
To cancel intro scan
Press any button for CD operation except DISPLAY /
ENTER and 48 PLAY/PAUSE.
el a ie a ae
aaa a sor TR ee Re ee eine
Word PARTE ee POTY Re Fe OR ae
eer el eee ee

Playing Tracks Repeatedly
You can play tracks repeatedly in normal, shuffle or
program play (page 10) modes. In shuffle play, the tracks
play in a different order each time. Repeat only one track or
all the tracks.
[10 PLAY/PAUSE
DISPLAY/ENTER
PLAY MODE
exh
1 Press PLAY MODE until “REP 1” appears in the
display window.
REP 1
(Q 462 U m
2 Choose the track you would like repeated with
<4 /PP1 AMS/SEARCH.
3 Press >i) PLAY/PAUSE.
The track selected plays repeatedly.
1 Press PLAY MODE until “REP ALL” appears in the
display window.
REP Alt.
0 46° m
2 Press Dil PLAY/PAUSE.
The player begins playing at the first track. When all the
tracks have played once, the player starts playing from
the first track again.
“Repeating tracks in random order
1 Press PLAY MODE until “SHUF REP” appears in the
display window.
SHUF REP
0 4524s
2 Press >I PLAY/PAUSE.
The 3 indication appears in the display window, and
then the player plays all the tracks repeatedly in
different orders.
Note
When you press 4, the CD returns to the beginning of the
current track only.
1 Press PLAY MODE until “PGM REP” appears in the
display window. > =
oo oo
2 Choose a track with K@/PP1 AMS/SEARCH.
3 Press DISPLAY/ENTER to store the track.
4 Repeat steps 2 and 3 to program tracks in the order you
want them played.
Up to 34 tracks can be programmed.
Press >i) PLAY/PAUSE.
The tracks play repeatedlly in the order programmed.
To Press
O STOP
PLAY MODE until no
indication appears in the
display window
Stop pla
Cancel repeat play

Playing Tracks in the Desired Order
(program play)
Program the CD cassette-corder to play tracks in any order To check the order of programmed tracks
you choose. Press DISPLAY/ENTER. With each press, the selections
appear in the programmed order.
Eo=f8
PLAY/PAUSE
To
change
the
order
of
the
tracks
DISPLAY/ENTER To change the order of the tracks, you must erase the
Lf Ae == AY \ A
current program and create a new one.
To erase the current program
Press 0 STOP once or open the disc compartment if the CD
is stopped. The current program will be erased.
Follow the steps in Playing tracks in the Desired Order to
create a new program.
PLAY MODE
44 /P Pt AMS/SEARCH
1 Press CD.
2 Press PLAY MODE until “PGM” appears in the display
window. =
TS
Co 0c
3 Choose a track with Ké<4 /PP1 AMS/SEARCH.
4 Press DISPLAY/ENTER to store the track.
5 Repeat steps 3 and 4 to program tracks in the order you
want them played.
Up to 34 tracks can be programmed.
if you make a mistake
Press DISPLAY/ENTER once and re-enter the track
number.
6 Press Dit PLAY/PAUSE.
The tracks play in the order programmed.
To Press
Stop play O STOP
Cancel program play PLAY MODE until no
indication appears in the
display window

Playing a Tape
We recommend you use TYPE I (normal) tape (printed on
the tape cassette).
WA STOP/EJECT > PLAY VOLUME
1° Turon the power and press TAPE/DUB.
2 Press 4 STOP/ EJECT to open the tape compartment.
Insert a recorded tape with the side you want to play
facing forward. Close the compartment.
3 Press B> PLAY to start playing.
4 Adjust the volume and sound emphasis (See Adjusting
the Sound Emphasis on page 5).
To Press
Stop play @4 STOP/EJECT
Pause tt PAUSE
Resume play after pause §8 PAUSE
Fast forward” >> FF
Rewind” <4 REW
Remove the cassette 4 STOP/EJECT
* For the side facing forward.
oa SS be ore dt ER ek RE ee -,
Recording
Whenever you record, we recommend you operate the CD
cassette-corder on house current instead of using batteries
because recording consumes a lot of battery power. We
recommend you use TYPE I (normal) tape (printed on the
tape cassette).
| ||| | tate
tL Lae
RADIO MA STOP/EJECT @ REC
1° Tum on the power and press RADIO or CD.
To record from Do
the radio Tune in the desired radio station.
aCD Insert the CD.
2 Press M4 STOP/EJECT and put a blank tape into deck
B with the side you want to record on facing forward.
3 Press @ REC.
> PLAY will depress automatically and recording
starts. CD recording starts after about 8 seconds
The recording level is adjusted automatically
Adjusting the volume, rotary equalizer or MEGA BASS will
not affect the recording level. However, these controls will
change the sound levels you hear through speakers or
headphones.
To stop recording
Press 4 STOP/EJECT.
To record in PGM (program) mode
1 Press CD.
2 Select PGM play (See Playing Tracks in the Desired Order
(program play) on page 10).
3 Press @ REC.
Disc playing and recording will automatically start after
about 8 seconds. ;
Continued on next page.
Gperations 4 41

Recording (continued)
“Saving. a tape permanently _
To prevent a tape from being accidentally recorded over,
break off the cassette tab from side A or B as illustrated. If
you later want to reuse the tape for recording, cover the
broken tab with adhesive tape.
Side A
Tab for side A
oe ‘ mee
2] erase « a 3 recording
1 Disconnect the microphone if connected at the MIX
MIC jack.
2 Press TAPE/DUB.
3 Press @ REC.
| Overations
Recording From Another
Tape (dubbing)
You can record from one tape to another. Use TYPE I
(normal) tape for the best results.
TAPE/DUB
HISPEED DUBBING @REC B> PLAY
1 Turon the power and press TAPE/DUB.
2 insert a recorded tape into deck A with the side to be
played facing forward.
3 insert a blank tape into deck B with the side you want
to record on facing forward.
4 Press @ REC on deck B.
B> PLAY on deck B depresses automatically and
deck B stands by for recording.
5 Select the recording speed. Choose one of two options:
To record at Press
Normal speed B> PLAY on deck A
High speed HI SPEED DUBBING on deck A
e If the tape in deck A finishes first, the B> PLAY
button will pop up and deck B will stop. The @ REC
and
B> PLAY buttons on deck B will still be depressed.
To release them, press the B4& STOP/EJECT button
on deck B.
e If the tape in deck B finishes first, the @ REC and
> PLAY buttons on deck B will pop up. Deck A
will continue to play.

The recording level is adjusted automatically
Adjusting the volume, rotary equalizer or MEGA BASS will
not affect the recording level. However, these controls will
change the sound levels you hear through speakers or
headphones.
To Press
Stop recording ®4 STOP/EJECT on deck A, then B
Stop playing @4 STOP/EJECT on deck A
Pause during play 88 PAUSE on deck A
Pause during record 88 PAUSE on deck B
Setting Up a P-A System
You can use the CD cassette-corder as a public address
system. Also mix sounds by adding your voice or other
audio through the microphone as you record. Use a
monaural microphone with mini-plug (not supplied).
1 Plug the microphone into the MIX MIC jack and turn on
the microphone .
2 Set FUNCTION to choose a sound source.
To Press
Use the CD cassette-corder TAPE/DUB
as a public address system
Mix sound TAPE/DUB, RADIO or CD
3 Sing or speak into the microphone and adjust the
volume.
To record mixed sounds
Insert a tape (TYPE I) in deck B and press @REC. The
recording level is adjusted automatically.
Note on the microphone
If acoustic feedback (howling) occurs, turn down the volume or
move the microphone away from the speakers. We do not
recommend you use a microphone that has an echo function.
Operations | 13

a For Your Information 7
Maintenance
Cleaning the lens
If the lens becomes dirty, it may cause a skipping of sound
during CD operation. Clean with a commercially available
blower.
Cleaning the tape heads and tape path
Contaminated heads cause poor recording or sound drop-
out in playback. We recommend cleaning after every 10
hours of operation. To make the best possible recording,
however, you should clean all surfaces over which tape
travels before each recording.
Wipe the heads, the pinch rollers and the capstans with a
cleaning swab slightly moistened with cleaning fluid or
alcohol.
Playback head Capstan
Pinch roller
Erase head Record/ Capstan
playback
head
Pinch roller
After cleaning the heads, rollers and the tape path, insert a
tape when the areas cleaned are completely dry.
Demagnetizing the tape heads
After 20 to 30 hours of use, enough residual magnetism
will have built up on the heads to begin to cause loss of
high frequency sound and hiss. At this time, you should
demagnetize the heads and all metal parts in the tape path
with a commercially available tape head demagnetizer.
Cleaning the cabinet
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent,
such as alcohol or benzene.
14| For Your information
Notes on Compact Discs
¢ Before playing, clean the CD with a cleaning cloth. Wipe
the CD from the center out.
* Do not use solvents such as benzene, thinner,
commercially available cleaners or anti-static spray
intended for viny] LPs.
¢ Do not expose the CD to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in direct
sunlight as there can be a considerable rise in temperature
inside the car.
¢ After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints on the CD, it may
cause tracking error.

Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 3.2-ohm loads, both channels driven from 150-10,000 Hz; rated 2.3 W per channel-
minimum RMS power, with no more than 10 % total harmonic distortion in AC operation.
System Compact disc digital audio system
Laser diode properties | Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 »W
(This output is the value measured at a distance
of about 200 mm from the objective lens surface
on the optical pick-up block.)
Spindle speed 200 r/min (rpm) to 500 r/min (rpm)
(CLV)
Error correction Sony Refined Super Strategy
Cross Interleave Reed Solomon Code
Number of channels 2
Frequency response 20-20,000 Hz + 2 dB
Wow and flutter Below measurable limit
Radio section
Frequency range FM: 87.6-108 MHz
AM: 530-1,710 kHz
Antennas FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Cassette-corder section
Recording system 4-track 2-channel stereo
Frequency response TYPE I (normal) cassette:
80-10,000 Hz
General
Speaker Woofer: 10 cm dia., 3.2 ohms
cone type
Tweeter: 3 cm
Inputs Mixing microphone input jack
(minijack):
Sensitivity 1.1 mV
For low impedance microphone
Outputs Headphones jack (stereo minijack)
For 16-68 ohms impedance
headphones
Speaker terminals
For supplied 3.2 ohms impedance
speaker
Power output 2.3W+23W
(excluding USA model) (at 3.2 ohms, 10% harmonic in DC
operation)
120 V AC, 60 Hz
Power requirements
DC 9 V, 6 size D (R20) batteries
Power consumption AC 20W
Battery life
FM recording Tape playback CD playback
Sony SUM-1 (NS) approx. 15h approx. 16h approx. 8h
Sony Alkaline AM1__ approx. 40h approx. 44h approx. 20h
Dimensions
Approx. 637 x 247 x 206 mm (w/h/d)
(25% x 9% x 8% in.) incl. projecting parts
Mass
Supplied accessory
6.2 kg (13 Ib 11 02) (incl. batteries)
AC power cord (1)
Design and specifications subject to change without notice.
Optional accessories
Sony DYNAMIC MICROPHONE series
Sony MDR stereo headphone series
For Your information | 4

Troubleshooting Guide
Symptom Rem
General © The power does not come on. ¢ Connect the AC power cord securely.
¢ Insert the batteries with the correct polarity, p. 4.
© Replace the batteries with new ones if they are weak, p. 4.
© There’s no audio. © Make sure the function button is pressed to the function you
want to operate.
© Adjust the volume.
¢ Unplug the headphones when listening through speakers.
Radio ¢ The audio is weak or poor quality. © Replace all the batteries with new ones if they are weak, p. 4.
© Move the player away from the TV.
© The picture of the TV is unstable. © If you are listening to an FM program near the TV with an
indoor antenna, move the player away from the TV.
a
CD Player © The CD does not play. ¢ Make sure the disc compartment is closed.
Place the CD with the label facing up.
¢ Clean the CD, p. /4.
¢ Take out the CD and leave the disc compartment open for
about an hour to dry moisture condensation.
¢ Make sure the CD button is pressed to CD.
© The sound drops out. © Reduce the volume.
© Clean the CD, or replace it if the CD is badly damaged.
© Place the player in a location free from vibration.
——————— = —<— ee
Tape Player ¢ The tape does not move when you © Close the cassette compartment.
press an operation button.
¢ The @ REC button does not function. © Make sure the safety tab of the cassette is in place, p. /2.
¢ Make sure the TAPE/DUB button is pressed.
¢ The tape does not erase completely. © Clean the erasing heads.
© Replace ail the batteries with new ones if they are weak, p. 4.
¢ The tape does not record (dubbing). © Make sure the tape is inserted properly.
© Make sure the safety tab of the cassette in deck B is in place,
p. 12.
© The audio is weak. © Clean the heads, pinch rollers and capstans, p. /+.
© The audio quality is poor. © Demagnetize the heads using a demagnetizer, p. /¥.
Sony Corporation Printed in Malaysia
