MICROFILM
E Model
SERVICE MANUAL
CORDLESS TELEPHONE
SPP-Q123
SPECIFICATIONS

– 2 –
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
1. GENERAL .......................................................................... 3
2. DISASSEMBLY
2-1. Battery Case Lid ................................................................... 7
2-2. Cabinet (Rear) ....................................................................... 7
2-3. Hand Main Board.................................................................. 7
3.TEST MODE ....................................................................... 8
4. ELECTRICAL ADJUSTMENTS ............................... 13
5. DIAGRAMS
5-1. Block Diagrams
• Base Unit Section ............................................................. 15
• Handset Section ................................................................17
5-2. Printed Wiring Board – Base Unit Section – ...................... 21
5-3. Schematic Diagram – Base Unit Section – ......................... 23
5-4. Schematic Diagram – Handset Section – ........................... 25
5-5. Printed Wiring Board – Handset Section – ......................... 27
5-6. IC Pin Function Description ............................................... 29
6. EXPLODEDVIEWS
6-1. Handset Section .................................................................. 31
6-2. Base Unit Section................................................................ 32
7. ELECTRICAL PARTS LIST ........................................ 33
TABLE OF CONTENTS

– 3 –
SECTION 1
GENERAL
1Charging terminals
2Hang-up tab
3Telescopic antenna
4CHARGE lamp
5PAGE key
1
23
4
5
678
5
4
3
2
1
7
8
9
!º
!¡
!™
6
LOCATION AND FUNCTION OF CONTROLS
BASE UNIT
6LINE jack
7DIAL MODE switch
8DC IN 9V jack
HANDSET
1SPEED DIAL
2TALK button
3TALK/BATT low lamp
4OFF button
5SPEAKER
6Helical antenna
7FLASH button
8Dialing keys
9CHANNEL button
0REDIAL/PAUSE button
!¡ PGM
!™ Microphone

– 4 –

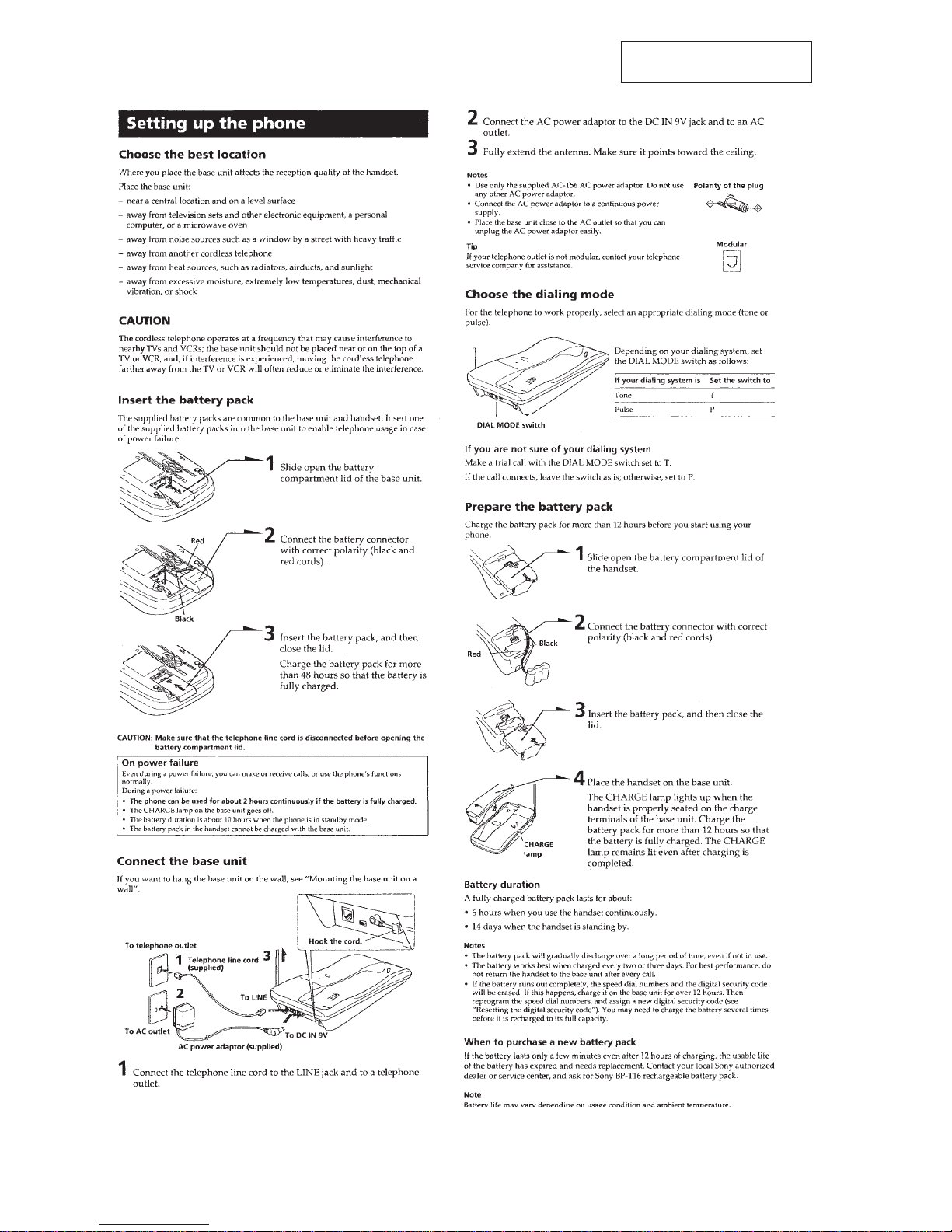

This section is extracted from
instruction manual.

– 5 –

– 6 –

– 7 –
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

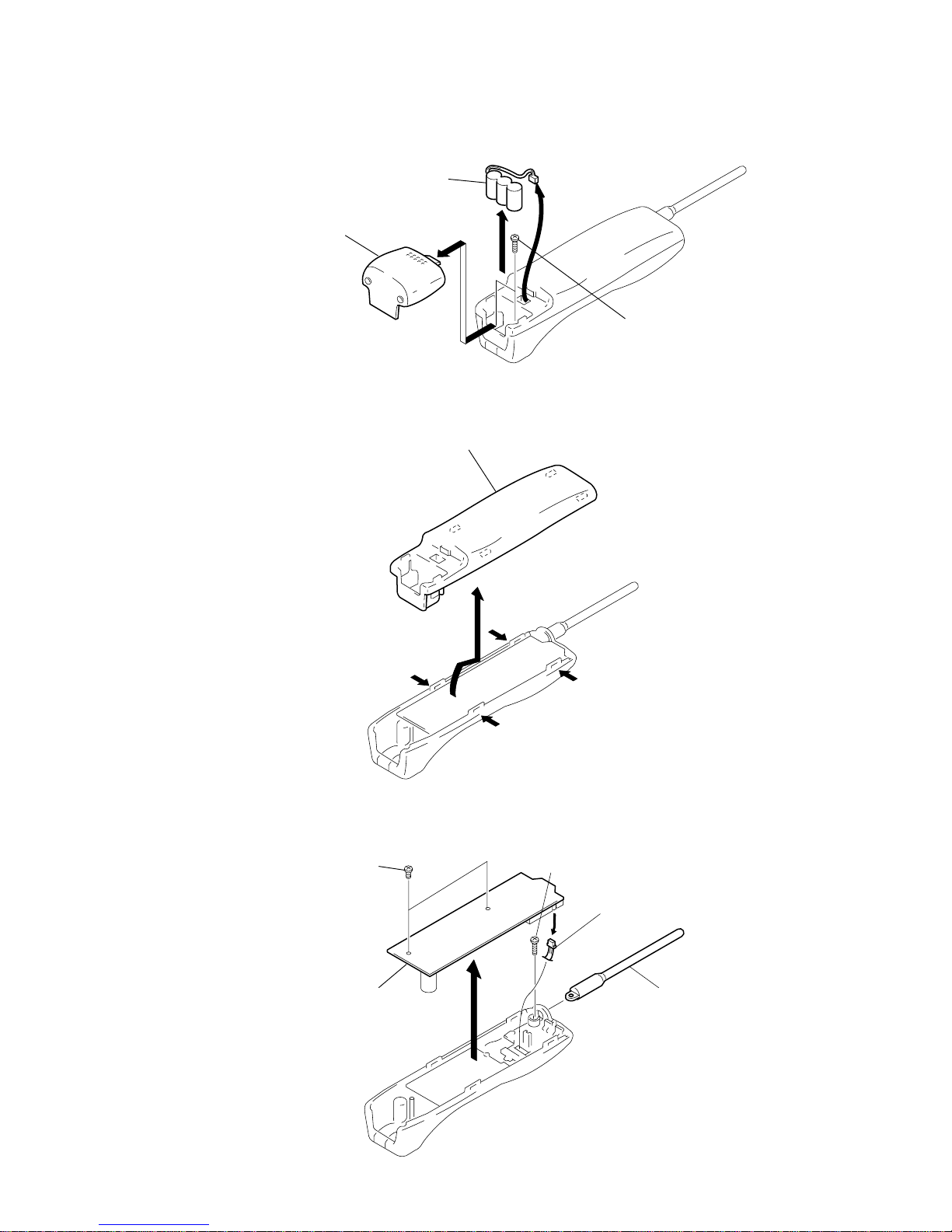

2-1. BATTERY CASE LID
Nickel cadmium battery
Battery case lid
1
2
3
4
Screws (2.6x8)
Cabinet (rear)
1
12
2
3
1 Screws (2.6x8)
2 Screw (2.6x12)
4 Connector (CN101
)
Hand main board Helical antenna
3
2-2. CABINET (REAR)
2-3. HAND MAIN BOARD

– 8 –
SECTION 3
TEST MODE
BASE UNIT SECTION
MANUALTEST MODE
Set the Test Mode:
1. Set the [DIALMODE] switch to “P” (pulse).
2. While pressing the [PAGE] key, switch on the power supply (Re-
set start).
3. With the [PAGE] key, still held down, switch the [DIALMODE]
switch “P” (pulse) n“T” (tone) n“P” (pulse).
4. When you release the [PAGE] key, test mode starts.
5. First dial “0” at 10 pps. Then output “1”, “4”, “8” and “#” with
DTMF.
6. Set to TX ON. Goes to external line state in 1 CH.
Release the Test Mode:
1. Pull out the AC adaptor and turn off the power.
MACHINETEST MODE
Set the Test Mode:
1. With one of the CH setting terminals in “H” input state, cause
Reset of Power ON. Equipment enters machine test mode.
2. Setting of CH according to logic input with CH setting terminal.
3. ON/OFF of TX is according to the input logic of the DIAL
MODE terminal.
Release the Test Mode:
1. Pull out the AC adaptor and turn off the power.
2. Remove the short plug and turn on the power again.

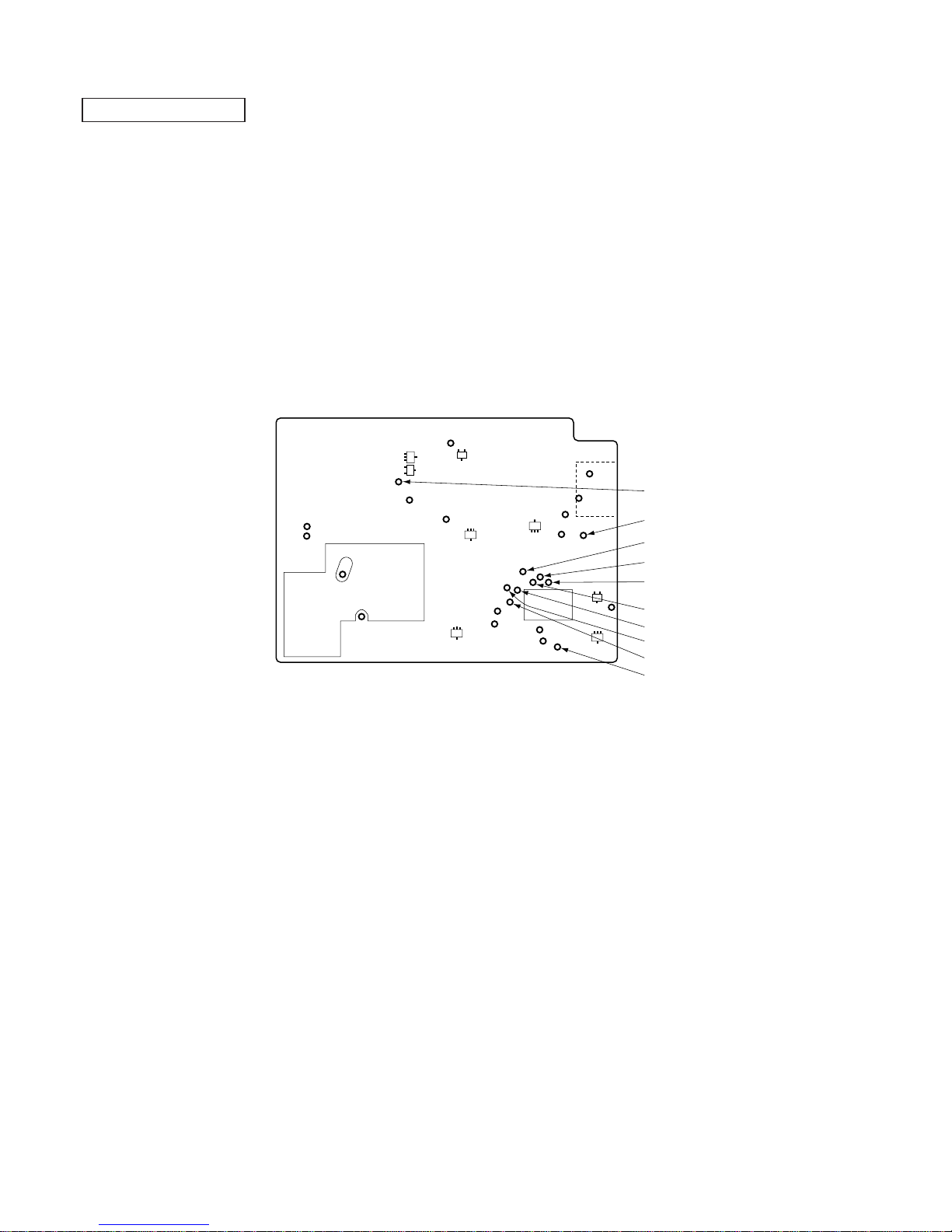

TP61 (M1)
TP62 (M2)
TP66 (TEST2)
TP63 (M3)
TP67 (TEST3)
TP65 (TEST1)
TP64 (M4)
TP106 (5V)
TP47 (DIAL MODE)
TP46(PAGE)
– base main board (conductor side) –

– 9 –
Channel Setting:
During startup in machine test mode, make the following channel
settings by loading the terminal input data.
Machine Test Mode Input / Output:
1. Input (Input ports for other than main tasks)
2. Output (Output ports for other than main tasks)
Pin Name Pin No. Function Logic
M1 (TP61) 23
M2 (TP62) 24
M3 (TP63) 25
M4 (TP64) 26
DIAL MODE (TP47) 17 Setting the TX ON/OFF H(T) : OFF, L(P) : ON
Manual : Channel increment Incrementing of channels in order from 1 to 25.
PAGE (TP46) 16 Machine : Dial data "5" is output to DTMF/DP exchange
Key input with "L" input.
The first time there is out
p
ut of "5" with DTMF.
Setting the CH (channel) Refer to channel settig
29 Pin 28 Pin 27 Pin Operation with Operation with
TEST1 (TP65) TEST2 (TP66) TEST3 (TP67) CHARGE LED TX ON
L L L If RSSI(H) is detected : Light ON If RSSI(H) is detected : Light ON
L L H If RSSI(L) is detected : Light ON If RSSI(L) is detected : Light ON
L H L If TX LOCK is detected : Light OFF If TX LOCK is detected : Light OFF
L H H If RX LOCK is detected : Light OFF If RX LOCK is detected : Light OFF
H L L BEEP output
H L H ID CODE output
H H L If RING is detected : Light ON If RING is detected : Light ON
H H H If PAGE KEY is input : Light ON If PAGE KEY is input : Light ON
Pin Name Pin No. Function H Logic L Logic
CHARGE DET (TP21) 18 State in section 1. Input Refer to section 1. Input
Pin No. 23 24 25 26 TX frequency RX frequency
Channel M1(TP61) M2(TP62) M3(TP63) M4(TP64) (MHz) (MHz)
CH1 H L L L 43.720 48.760
CH2 L H L L 43.740 48.840
CH3 HHL L 43.820 48.860
CH4 L L H L 43.840 48.920
CH5 43.920 49.020
CH6 43.960 49.080
CH7 44.120 49.100
CH8 44.160 49.160
CH9 44.180 49.200
CH10 44.200 49.240
CH11 44.320 49.280
CH12 44.360 49.360
CH13 44.400 49.400
CH14 H L H L 44.460 49.460
CH15 L H H L 44.480 49.500
CH16 H H H L 46.610 49.670
CH17 L L L H 46.630 49.845
CH18 46.670 49.860
CH19 46.710 49.770
CH20 46.730 49.875
CH21 46.770 49.830
CH22 46.830 49.890
CH23 H L L H 46.870 49.930
CH24 L H L H 46.930 49.990
CH25 H H L H 46.970 49.970
TEST1 L L H H 43.780 48.800
TEST2 H L H H 43.890 48.970
TEST3 L H H H 46.800 49.910
TEST4 HHHH 46.900 49.950

– 10 –
HANDSET SECTION
MANUALTEST MODE
Set the Test Mode:
1. Enter the test mode by pressing -key while pressing 1key
and [TALK] when in idle condition.
(Key operation -n1n[TALK])
2. The RINGER willringfor500msecwhenthetestmodeis started.
3. Measurement mode of consumption current. (42# state. Refer to
2-3.)
4. Use key input to carry out the various settings.
5. Use port inputs to set output from LED terminals.
Release the Test Mode:
1. Press the -, -and [#] key.
2. Turn off the power. (Remove the battery and replace them.)
MACHINETEST MODE
Set the Test Mode:
1. When power on reset is applied while a “H” (high) is input the
TEST SW(TP43) terminal (IC501 40pin), the RING (Level H,
500msec) sounds.
2. Following that, at a timing in which the TEST SW terminal has
“H” (high) input, there is output of “L” (low) by the CH (chan-
nel) setting control terminal. Then there is PLL setting to the
CH which was read to wit the CH setting terminal according to
that “L” (low) output.
3. Set the TX setting to TX OFF.
4. The channel is set by voice not by data.
5. Use port inputs to set output from LED terminals.
Release the Test Mode:
1. Turn off the power.
2. Remove the short plug and turn on the power.
TP43 (TEST SW)
TP36 (H) TP44 (TEST ACT)
TP35 (TALK LED)
TP55 (KEY LED) TP33 (TEST CH)
TP17(ROW1)
TP16 (ROW2)
TP15 (ROW3)
TP14 (ROW4)
TP13 (ROW5)
– hand main board (conductor side) –
IC101 IC501

– 11 –
Channel Setting:
During startup in machine test mode, make the following channel
settings by loading the terminal input data.
Machine Test Mode Input / Output:
1. Input (Input ports for other than main tasks)
2. Output (Output ports for other than main tasks)
Pin Name Pin No. Function Logic
ROW1 (TP17) 29
ROW2 (TP16) 31
ROW3 (TP15) 32 Setting the CH (channel) Refer to channel settig
ROW4 (TP14) 33
ROW5 (TP13) 34
TEST CH(TP33) 1 Control terminal for setting the CH (channel) H : OFF, L : ON
TEST SW(TP43) 40 Start up of the tet mode H : Start, L : No start
TEST ACT (TP44) 44 During the test mode, causes start of intermittent
o
p
eration with external in
p
ut. H : Intermittent start
Pin No. 34 33 32 31 29 RX frequency TX frequency
Channel ROW5(TP13) ROW4(TP14) ROW3(TP15) ROW2(TP16) ROW1(TP17) (MHz) (MHz)
CH1HLLLL43.720 48.760
CH2 H L L L H 43.740 48.840
CH3 HLL H L 43.820 48.860
CH4 H L L H H 43.840 48.920
CH5 H L H L L 43.920 49.020
CH6 H L H L H 43.960 49.080
CH7 H L H H L 44.120 49.100
CH8 H L H H H 44.160 49.160
CH9 H H L L L 44.180 49.200
CH10 H H L L H 44.200 49.240
CH11 H H L H L 44.320 49.280
CH12 H H L H H 44.360 49.360
CH13 H H H L L 44.400 49.400
CH14 H H H L H 44.460 49.460
CH15 HHHHL44.480 49.500
CH16 L L H H L 46.610 49.670
CH17 L L H H H 46.630 49.845
CH18 L H L L L 46.670 49.860
CH19 L H L L H 46.710 49.770
CH20 L H L H L 46.730 49.875
CH21 L H L H H 46.770 49.830
CH22 L H H L L 46.830 49.890
CH23 L H H L H 46.870 49.930
CH24 L H H H L 46.930 49.990
CH25 L HHHH46.970 49.970
TEST1 L L L H L 43.780 48.800
TEST2 L L L H H 43.890 48.970
TEST3 L L H L L 46.800 49.910
TEST4 L L H L H 46.900 49.950
Pin Name Pin No. Function H Logic L Logic
TALK LED(TP35) 48 Various input/output monitor output (default :
RSSI(H) detection). No detection Detection
KEY LED(TP55) 2 During test mode : All light lit. However, does not
include measurment of consumption current. No light Light

– 12 –
Key Processing (Setting the Manual Test Mode) :
1. (Upper position) (Lower position) Set with #.
2. 3X# can be substituted with X .
• By pressing the CH key there is increment of the channel. How-
ever, this does not include the test channel.
• Control of the power source durig 38# DATA TX is (TX & RX
RF & RX AF=ON) in 44# state.
• Control of the power source durig the 70# key check mode is 41#
state (TX OFF).
• For CH setting, SIGOUT control and power souce control (with
the exception of above-mentioned 38# state) the state can be set
independently.
Example :In15ch,theorderforcarryingoutTX modulationlevel
and RSSI (H) sensitivity setting is as follows :
The following are possible : 15# n44# n36#
36# n15# n44#
44# n36# n15#
Upper position 4
Lower position
TX RX
RF RX AF MIC Lk
0 QUIT 10 ch 20 ch Batt Alarm H A L T GKEY TEST
1 1 ch 11 ch 21 ch CHARGE DET GgGGG
22 ch 12 ch 22 ch GggGG
3 3 ch 13 ch 23 ch ggGGG
4 4 ch 14 ch 24 ch RX LOCK gggGG
5 5 ch 15 ch 25 ch TX LOCK ggggG
6 6 ch 16 ch T1 ch RSSI(H) ggggg
7 7 ch 17 ch T2 ch RSSI(L) -----
8 8 ch 18 ch T3 ch DATA TX -----
9 9ch 19ch T4ch -----
Purpose CH setting only SIGOUT control General
operation
Application Condition
sureillance with
TALK LED.
0 1 2 3 7
The standard is external communication
state.
State for standard electrical adjustment
process.
Mesurement mode of
consumption current.

– 13 –
SECTION 4
ELECTRICAL ADJUSTMENTS

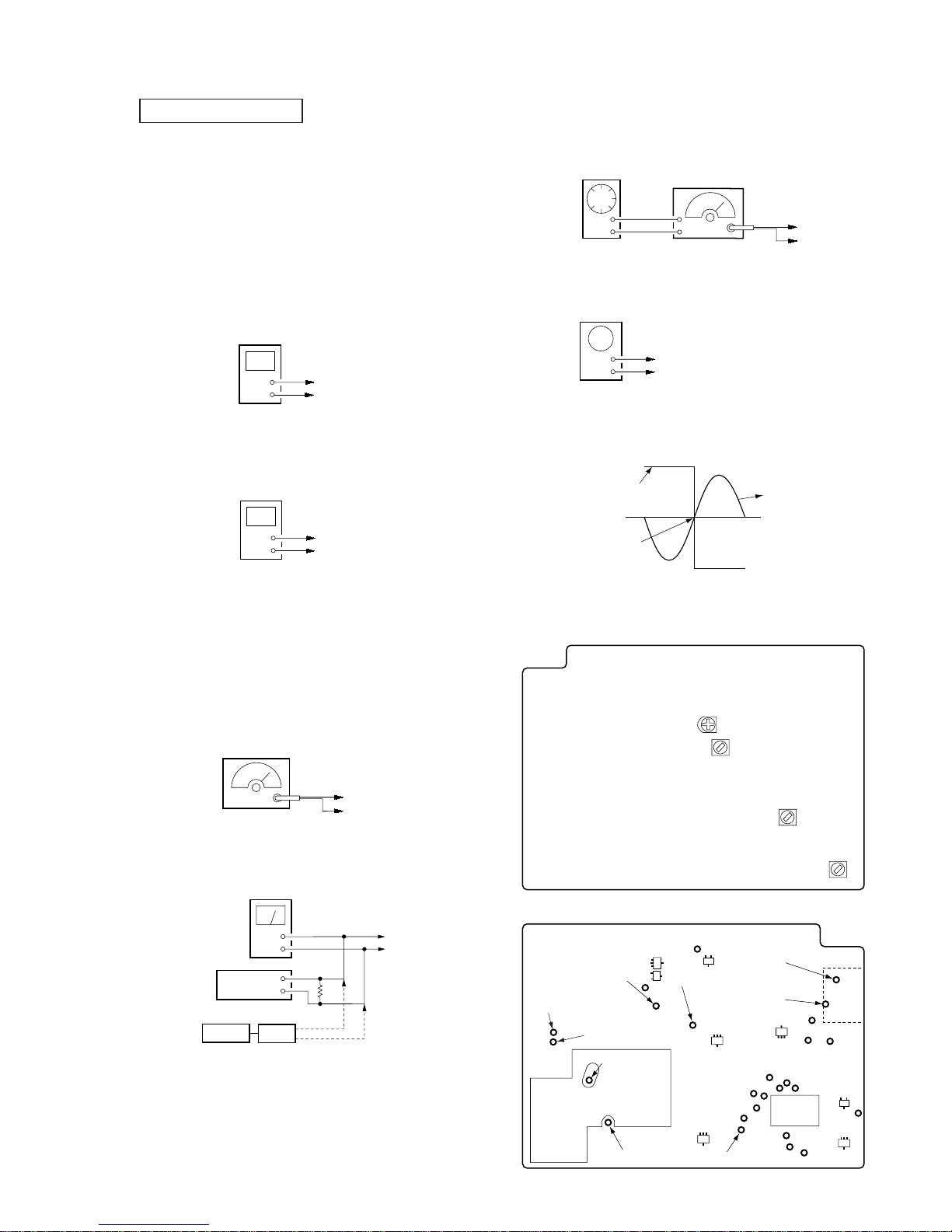

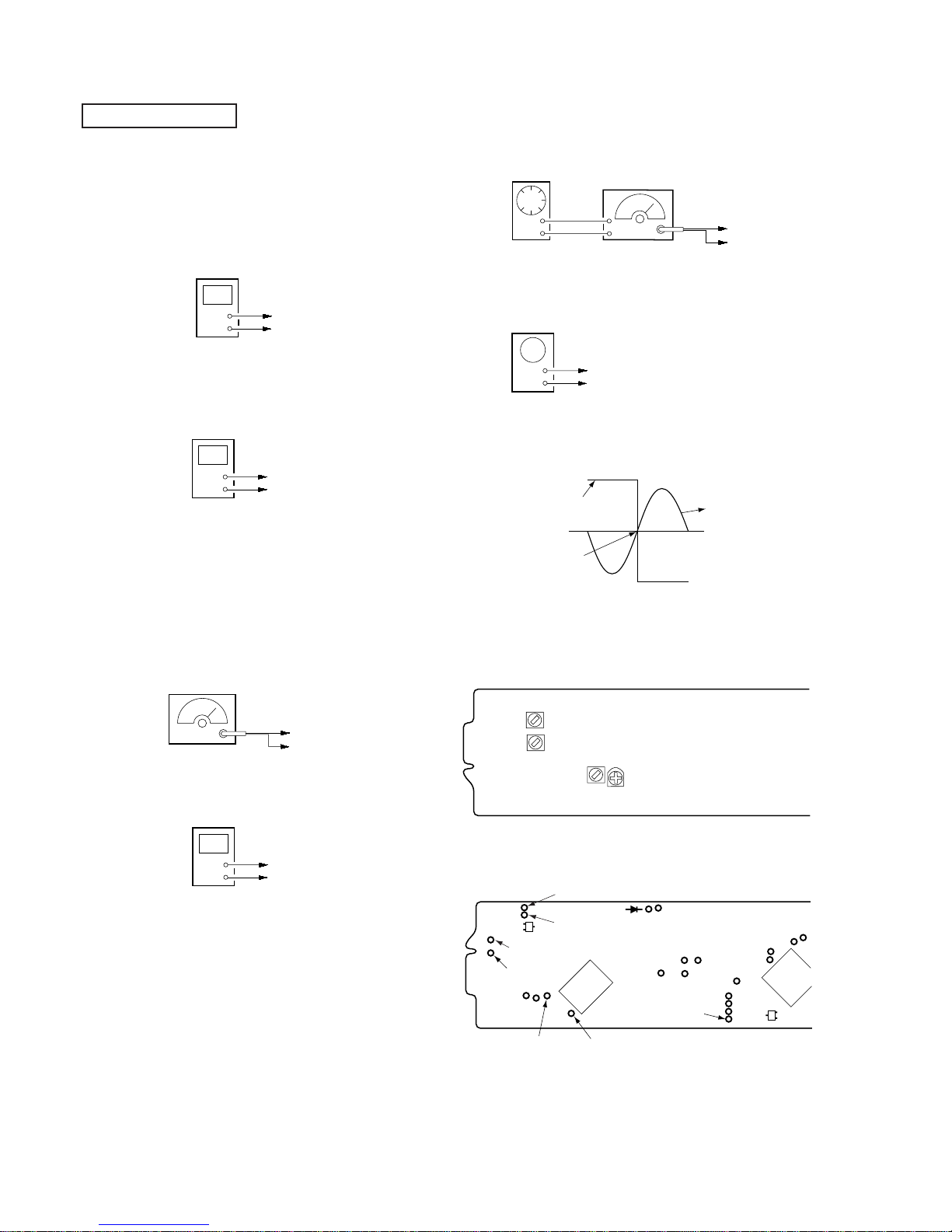

BASE UNIT SECTION
Note:
• Apply 9V dc from regurated DC power supply.
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
• Set to base unit machine test mode. (Refer to page 8.)
• Switch position :
S302 (DIAL MODE) : P(pulse)
TX SECTION ADJUSTMENT
• The electrolytic capacitor (10µF/10V) connected TP23 (DET
OUT) to GND. (Only TX section adjustment)
TXVT Adjustment
Setting :
Procedure :
1. The digital voltmeter connected TP6 (TX VT) to TP19 (GND).
2. Adjust the L52 for 2.2 ± 0.05V reading on the digital voltmeter.
RXVT Adjustment
Setting :
Procedure :
1. The digital voltmeter connected TP5 (RX VT) to TP19 (GND).
2. Adjust the L101 for 2.4 ± 0.05V reading on the digital voltme-
ter.
RX SECTION ADJUSTMENT
RX Level Adjustment
Note:
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
Setting :
Procedure :
1. Adjust the FL101 for the maximam reading on the level meter.
Also check that the output level is the specified values.
Specified Value : –2.6 to –10.6dBV
RSSI(H) Sensitivity Adjustment
Note:
• Perform the adjustment at T3CH (28CH : 49.910MHz) as a rule.
Setting :
Procedure :
1. Use the osclloscope to confirm the FM RF signal generator in-
put (AF) signal waveform and RSSI signal, and use the RV101
so that they are synchronized (duty is synchronized).
Adjustment Location :
+
–
digital voltmeter
TP6 (TX VT)
TP19 (GND)
+
–
digital voltmeter
TP5 (RX VT)
TP19 (GND)
FM RF
signal generator
Carrier frequency: 49.910 MHz
Modulation: 1 kHz
Deviation: 3 kHz
Output level: 60 dB
µ V (1 mV) (EMF)
TP2
TP3 (RF GND
)
FM RF
signal generator
Carrier frequency: 49.910 MHz
Modulation: 20 Hz (EXT)
Deviation: AM 50%
Output level: 6 dB
µ V (2 µ V) (EMF)
TP2
TP3 (RF GND)
AF oscillator
Output: 20 Hz
level meter
600
Ω
+
–
PBX tester
TP104
TP105
F.B.
DC 48V
or
+
–
osclloscope
(DC range)
TP9 (SIG OUT)
TP19 (GND)
0V
Adjust so that they
synchronize at 0V.
RSSI output waveform RF signal EXT
signal 20Hz
RSSI WAVEFORM
RV101
FL101
L101
L52
– base main board (component side) –
TP105
TP9 (SIG OUT)
TP104
TP23 (DET OUT)
– base main board (conductor side) –
TP19 (GND)
TP5 (RX VT)
TP6 (TX VT)
TP2
TP3 (RF GND)
IC501

– 14 –
HANDSET SECTION
Note:
•Apply 4V dc from regurated DC power supply.
•Perform the adjustment at T1CH (26CH : 43.780MHz) as a rule.
•Set to handset machine test mode. (Refer to page 10.)
TX SECTION ADJUSTMENT
TXVT Adjustment
Setting :
Procedure :
1. The digital voltmeter connected TP6 (TX VT) to TP3 (GND).
2. Adjust the L52 for 1.2 ± 0.05V reading on the digital voltmeter.
RXVT Adjustment
Setting :
Procedure :
1. The digital voltmeter connected TP5 (RX VT) to TP3 (GND).
2. Adjust the L102 for 0.8 ± 0.05V reading on the digital voltme-
ter.
RX SECTION ADJUSTMENT
RX Level Adjustment
Note:
•Perform the adjustment at T1CH (26CH : 43.780MHz) as a rule.
Setting :
Procedure :
1. Adjust the FL101 for the maximam reading on the level meter.
Also check that the output level is the specified values.
Specified Value : –8.6 to –16.6dBV
RSSI(H) Sensitivity Adjustment
Note:
•Perform the adjustment at T1CH (26CH : 43.780MHz) as a rule.
Setting :
Procedure :
1. Use the osclloscope to confirm the FM RF signal generator in-
put (AF) signal waveform and RSSI signal, and use the RV101
so that they are synchronized (duty is synchronized).
Adjustment Location :
+
–
digital voltmeter
TP6 (TX VT
)
TP3 (GND)
+
–
digital voltmeter
TP5 (RX VT
)
TP3 (GND)
FM RF
signal generator
Carrier frequency: 43.780 MHz
Modulation: 1 kHz
Deviation: 3 kHz
Output level: 60 dB
µ V (1 mV) (EMF)
TP2
TP3 (GND)
+
–
level meter
TP27 (SP)
TP26 (SP)
FM RF
signal generator
Carrier frequency: 43.780 MHz
Modulation: 20 Hz (EXT)
Deviation: AM 50%
Output level: 2 dB µ V (1.259 µ V) (EMF
)
TP2
TP3 (GND)
AF oscllator
Output: 20 Hz
+
–
osclloscope
(DC range)
TP9 (SIG IN)
TP3 (GND)
0V
Adjust so that they
synchronize at 0V.
RSSI output waveform RF signal EXT
signal 20Hz
RSSI WAVEFORM
– hand main board (component side) –
RV101
FL101
L52
L102
TP26 (SP)
TP9 (SIG IN)
– hand main board (conductor side) –
TP6 (TX VT)TP5 (RX VT)
TP3 (GND)
TP2
TP27 (SP)
IC101 IC501

SPP-Q123
– 15 – – 16 –

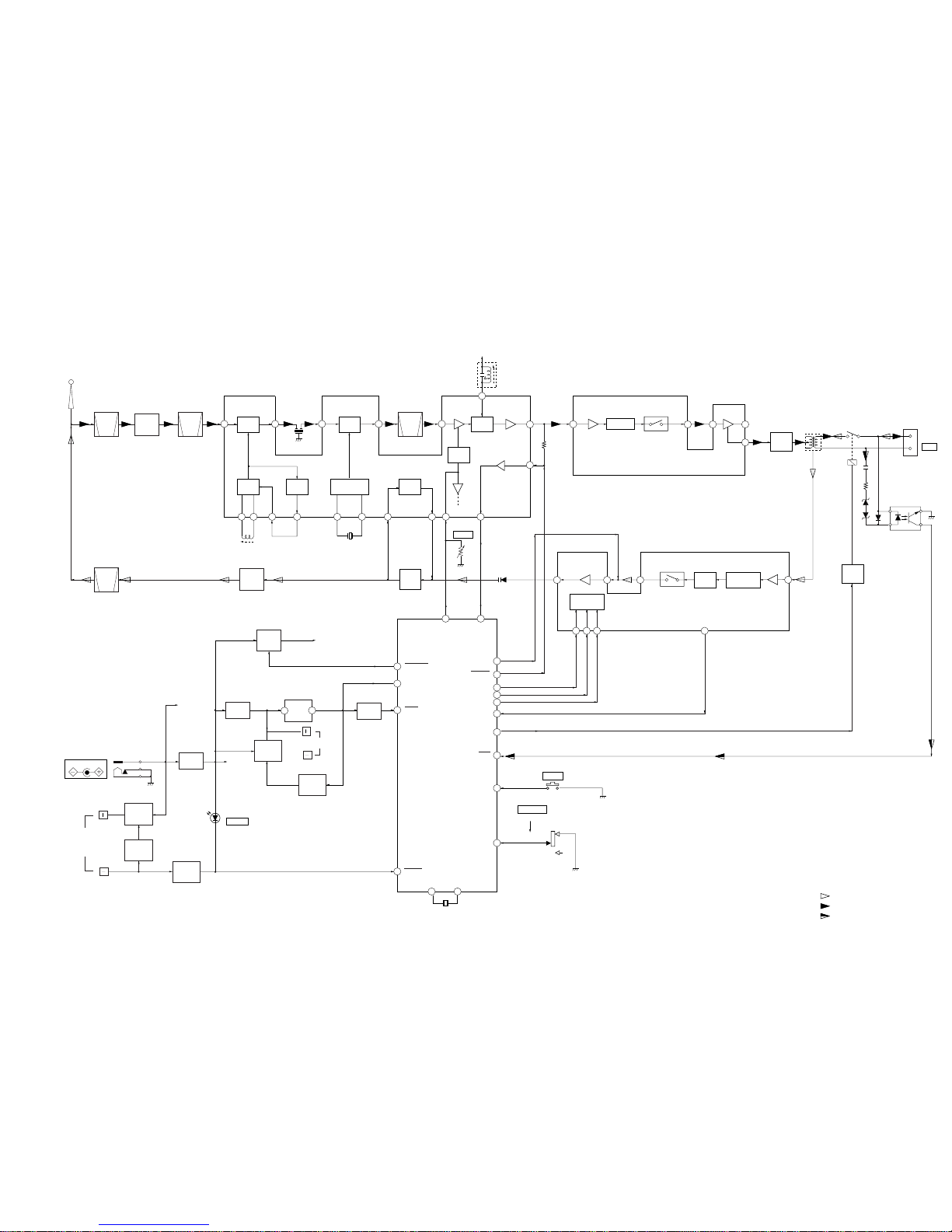

5-1. BLOCK DIAGRAMS
– BASE UNIT SECTION –
SECTION 5
DIAGRAMS
• Signal path.
: RX(From Tel Line)
: TX(To Tel Line)
:bell
22
7
6
3
2
1
5
20
30
16
19 4
10 9
RF
AMP
Q1
RF
AMP
Q51
TX B+
SWITCH
Q54
VOLTAGE
DET
IC301
BATTERY
SWITCH
Q701
SWITCH
CONTROL
Q702
CHARGE
DET
Q401
CHARGE
LIM
Q403
CHARGE
REG
Q402
REG
Q301
CHARGE
CIRCUIT
RESET
Q302
1st
MIX
2nd
MIX DET
DATA
COMP
RSSI
LPF
IF
AMP
IF
IN
EXPANDER
PX
PLL
40
44
3638 34 32
28
27 15 17 18 20
19
14
11
24
RX
PLL
4642
TX
PLL
TX VCO
L52
Q52
1 2247 23
LOCAL
OSC
43
X101
10.22MHz
X501
4.048MHz
43
9
6 7 8 5
10 LIMITER
AF
AMP
Q202
RELAY
DRIVE
Q201
COMPRESSOR
DATA LATCH
CONTROL
D401
CHARGE
23
ANT 1
TELESCOPIC
ANTENNA
BPF1
BPF
BPF51
BPF
BPF2
BPF
46.0MHz
49.0MHz
CF102
10.68MHz
CF101
460kHz
AMP
AF
OUT
COMP IN
L01 L02
RF
IN
MIX
IN
MIX
OUT
MIX
OUT
CONTR TVCOIN
D COMP OUT
PD OUT
PD OUT
RV101
RSSI H
MODULATION
D51
PRE
AMP
PRE
IN
MUTE EXP
OUT
EXPANDER
IC101(2/3)
FIL
OUT
LPF
CLK DATA STB
AMP
COMPRESSOR
IC101(3/3)
CHARGE
TERMINAL
B+
(+5.2V)
B+
(+9V)
B+
(+5.2V)
B+(+5V)
TX B+ CTRL
14 POW DET
12
18
RESET
SYSTEM
CONTROL
IC501
CHG DET
RSSI RX
DATA
TX DATA
CLK
DATA
STB
SIG IN
DP
RING
PAGE
17
DIAL MODE
H - MUTE
L101
LOCAL
OSC
OSC1 OSC2
MUTE
COMP
OUT
BATTERY
MJ201
LINE
DC IN 9V
J301
S301
PAGE
S302
DIAL MODE
P
T
RING
DET
PH201
T201
RY201
FL101
DET
MIX,IF AMP,DET
IC101(1/3)
SIGOUT

SPP-Q123
– 17 – – 18 –
– HANDSET SECTION –
24
27
31
34
• Signal path.
: RX (From Tel Line)
: TX (To Tel Line)
13
48
38
10
46
7
5
4
37
28
3
11
2
9
45 8
17 20
12
21
22
23
RF
AMP
Q1
RF
AMP
Q51
TX B+
SWITCH
Q54
VOLTAGE
DET
IC201
RESET
Q201
1st
MIX
2nd
MIX DET
RSSI
LPF
IF
AMP
IF
IN
EXPANDER
PX
PLL
40
44
3638 34 32
28
27 15 17 18 20
19
14
11
24
RX
PLL
4642
TX
PLL
TX VCO
L52
Q52
1 2247 23
LOCAL
OSC
43
X101
10.2MHz
X501
4.048MHz
43
9
6 7 8 20 5
10 LIMITER
BATT
ALARM
COMPRESSOR
DATA LATCH
CONTROL
29
D401-404
KEY LED
DRIVE
Q401
21
ANT 1
HELICAL
ANTENNA
BPF1
BPF
BPF51
BPF
BPF2
BPF
49.0MHz
46.0MHz
CF102
10.68MHz
CF101
460kHz
R01
R02
RECE
IN
RECEIVER
AMP
SP1
SPEAKER
AF
OUT
COMP IN
L01 L02
RF
IN
MIX
IN
MIX
OUT
MIX
OUT
CONTR TVCOIN RSSI
D COMP OUT
RSSI COMP
PD OUT
PD OUT
RV101
RSSI H
D501
CN202
D203
D202
CN201
TALK/BATT LOW
MODULATION
D51
PRE
AMP
PRE
IN
MUTE
EXP OUT
EXPANDER
IC101(2/3)
FIL
OUT
LPF
CLK DATA STB
BATT LOW
SIG
OUT
BATT LOW
SWITCH
Q502
BUZZER
DRIVE
Q301
BZ301
BUZZER
MIC
AMP
MIC1
MIC
COMPRESSOR
IC101(3/3)
KEY MATRIX
D502
D504
CHARGE
TERMINAL
BT901
RECHARGEABLE
BATTERY
BP-T16
3.6V
B+
(+4V)
B+(+2.4V)
B+
(+4V)
B+
(+3.6V)
GND
SWITCH
Q202
HOLD
Q501
TX B+ CTRL
LED
TX DATA
RSSI
H/L
RX
DATA
TX DATA
PLL CLK
PLL DATA
PLL STB
BATT LOW
SIG IN
MIC
BEEP
KEY LED
ROW 1-5
COL 0-3
H • MUTE
CHG DET
RESET
HOLD
ACT3
ACT4
L101
LOCAL
OSC
OSC1 OSC2
MUTE
COMP
OUT
MIX,IF AMP,DET
IC101(1/3)
DATA
COMP
SYSTEM
CONTROL
IC501
FL101
DET

SPP-Q123
– 19 – – 20 –
THIS NOTE IS COMMON FOR PRINTEDWIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this,the necessary note is printed
in each block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
For printed wiring boards.
Note:
•X: parts extracted from the component side
•: carbon pattern.
•r:Through hole.
•b: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•U: B+ Line.
•H: adjustment for repair.
• Power voltage is dc 9V and fed with regulated dc power
supply from external power voltage jack. (base unit)
• Power voltage is dc 12V and fed with regulated dc power
supply from MJ201 with 100Ωin series.(base unit)
• Power voltage is dc 4V and fed with regulated dc power
supply from external battery terminal (CN201). (handset)
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark :TALK
• Voltages are takenwith aVOM(Inputimpedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
Signal path.
P: bell
WAVEFORMS
– BASE UNIT SECTION –
1
2
IC501 9
IC101 3
– HANDSET SECTION –
1
2
IC501 @º
IC101 3
Note: The components identified by mark !or dotted line
with mark !are critical for safety.
Replace only with part number specified.
Caution:
Pattern face side: Partsonthe patternfaceside seenfrom
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
6.8 Vp-p
4.048 MHz
1.2 Vp-p
10.22 MHz
4.1 Vp-p
4.048 MHz
1.1 Vp-p
10.2 MHz

SPP-Q123
– 21 – – 22 –
5-2. PRINTEDWIRING BOARD – BASE UNIT SECTION –
Ref.No. Location
• Semiconductor
Location
D1 C-2
D51 G-2
D101 D-8
D201 B-9
D203 B-8
D204 B-8
D205 B-7
D301 C-8
D401 B-5
D601 G-7
D602 C-8
D701 F-4
D702 F-3
D703 F-4
IC101 E-4
IC301 G-10
IC501 F-8
Q51 E-1
Q52 F-2
Q54 E-2
Q201 B-6
Q202 D-6
Q301 C-8
Q302 F-10
Q401 A-2
Q402 B-4
Q403 B-4
Q601 G-6
Q701 G-4
Q702 G-4

SPP-Q123
– 23 – – 24 –
5-3. SCHEMATIC DIAGRAM – BASE UNIT SECTION –
• See page 20 forWaveforms.
Note:
Signal path.
N: RX
O: TX

SPP-Q123
5-4. SCHEMATIC DIAGRAM – HANDSET SECTION –
• See page 20 forWaveforms.
– 25 – – 26 –
Note:
Signal path.
N: RX (From Tel Line)
O:TX (To Tel Line)
