Sony SSP-SS964 User manual

3-862-955-11 (1)
©1998 by Sony Corporation
ES
Operating Instructions
Manual de instrucciones
Manual de instruções
SPP-SS964
EN
Cordless
Telephone
P

2EN
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.

3EN
Table of contents
Table of contents
Getting Started
4 Read this first
5 Step 1: Checking the package
contents
6Step 2: Setting up the base phone
9 Step 3: Preparing the battery
pack
Basics
11 Making calls
13 Redialing
14 Receiving calls
Telephone Features
16 One-touch dialing
16 Storing phone numbers
17 Making calls with one-touch
dialing
18 Speed dialing
18 Storing phone numbers
19 Making calls with speed
dialing
20 Phone Directory
20 Storing phone numbers and
names
21 Changing a stored name
and/or phone number
22 Erasing a memory location
23 Making calls from the Phone
Directory
24 Switching the phones during a
call
24 To switch from the base
phone to the handset
24 To switch from the handset
to the base phone
25 Talking between the phones
(Intercom)
25 To talk from the handset to
the base phone
25 To talk from the base phone
to the handset
26 Voice paging
26 To page with voice
27 Transferring a call
27 To transfer from the base
phone to the handset
28 To transfer from the handset
to the base phone
Additional Information
29 Mounting the base phone on a
wall
31 Notes on power sources/
Maintenance
32 Troubleshooting
35 Specifications
36 Index
EN

Getting Started
4EN
Getting Started
Base phone
Read this first

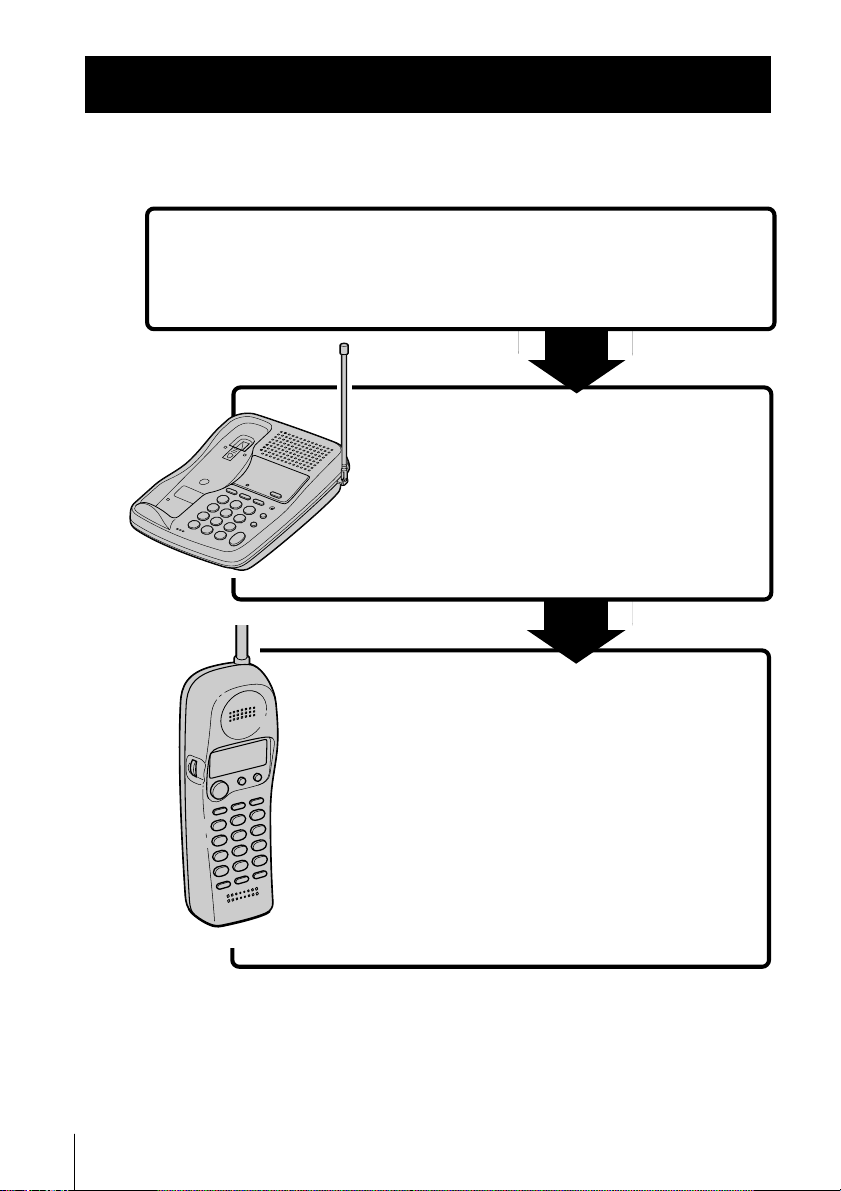

Before you use your phone, you must first set it up. Here’s a quick way
to set up your phone: Steps 1, 2 and 3.
Step 2 (pages 6 to 8)
Next, you need to do three things to set
up the base phone, including finding the
best location for the base phone.
Step 3 (pages 9 to 10)
Then, insert the battery pack into the
handset and charge it for more than 12
hours.
First, unpack the phone and the supplied
accessories.
Step 1 (page 5)
That’s it!
Handset

Getting Started
5EN
Getting Started
Telephone line cord
HandsetAC power adaptor (AC-T46)
Wall bracket/stand for base
phone
Base phone
Rechargeable battery
pack (BP-T24)
Step 1
Checking the package contents

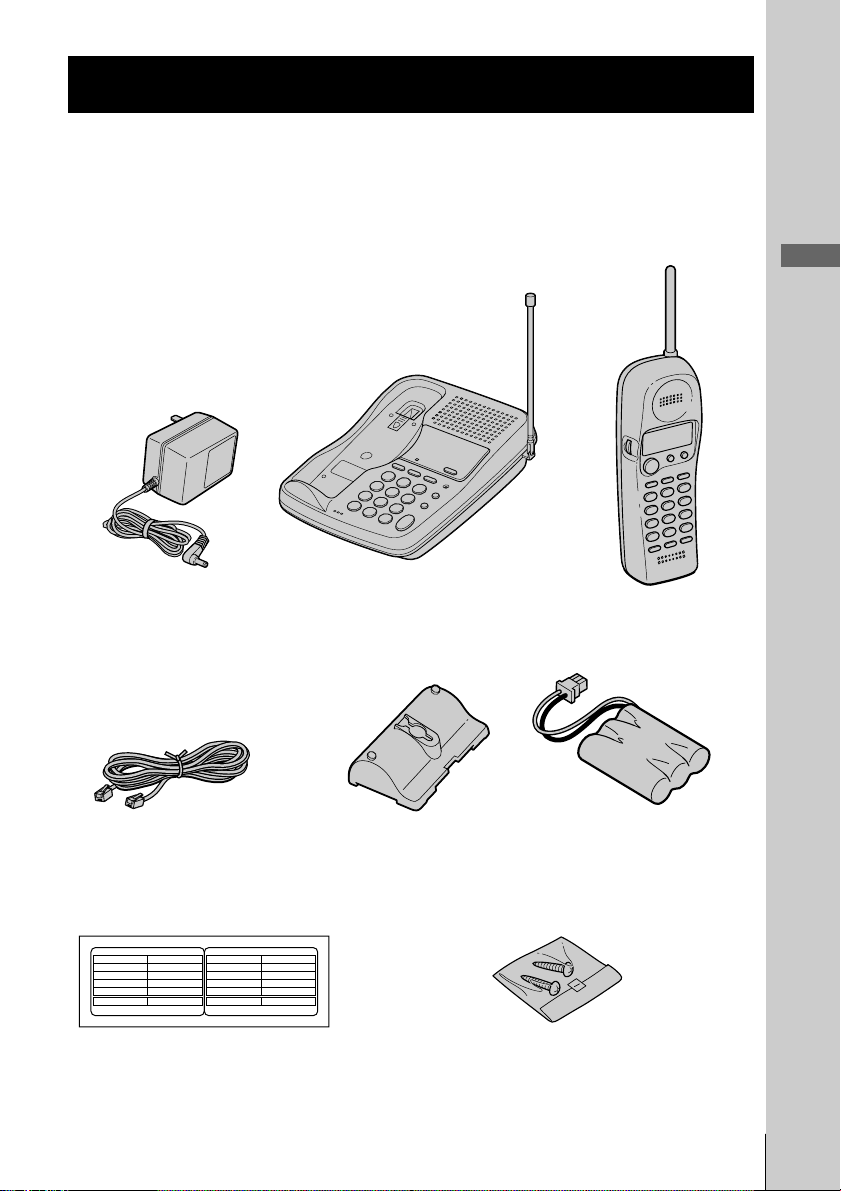

Make sure you have received the following items in the package.
If anything is missing, contact your local Sony dealer.
Directories
SPEED DIALING
1
2
3
4
5
6
7
8
9
0
SPEED DIALING
1
2
3
4
5
6
7
8
9
0
Screws (2)

Getting Started
6EN
Step 2

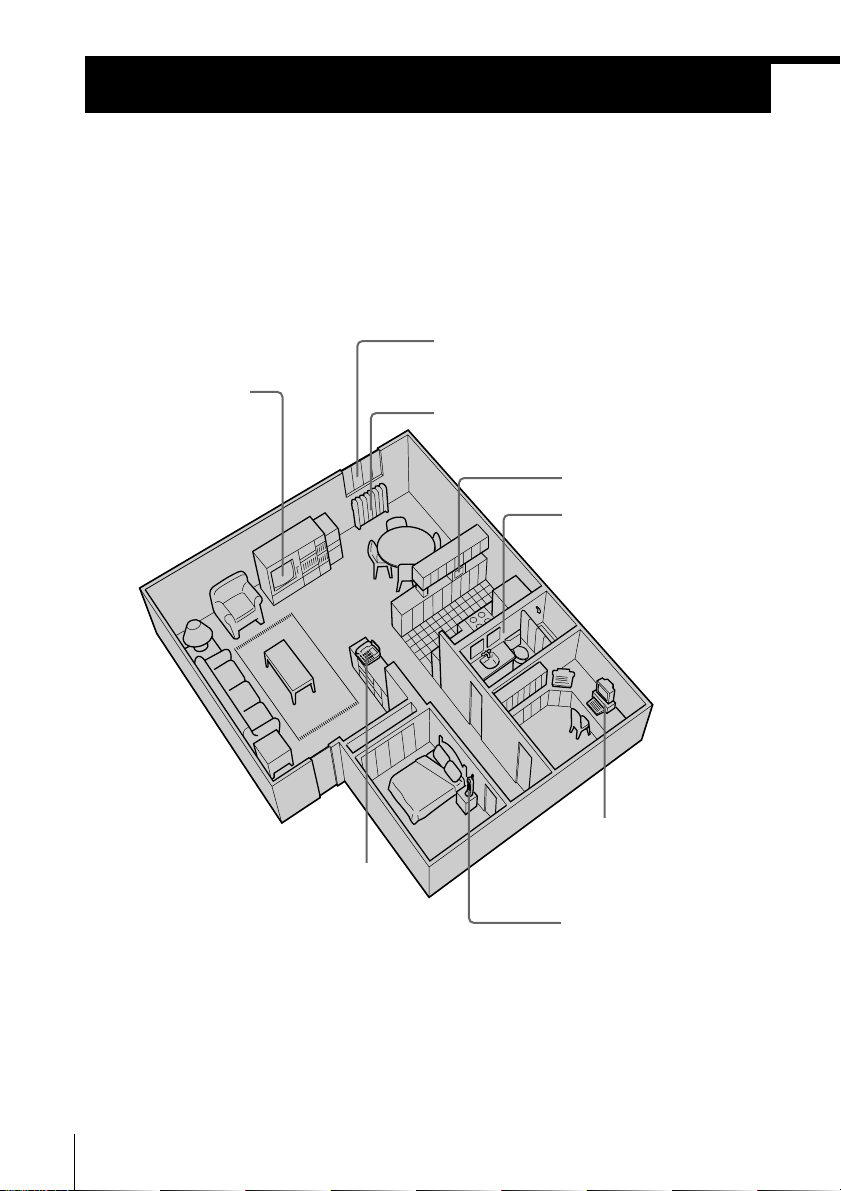

Away from television
sets and other
electronic equipment
Away from a microwave
oven
Away from excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
shock
Away from a personal
computer
Away from another
cordless telephone
Near a central location
and on a level surface
Away from heat sources, such as radiators,
airducts, and sunlight
Away from noise sources such as a window
by a street with heavy traffic
CAUTION: • Should you experience intermittent loss of audio during a conversation, try
moving closer to the base or move base phone away from other noise sources.
• The cordless telephone operates at a frequency that may cause interference to
nearby TVs and VCRs; the base phone should not be placed near or on the top
of a TV or VCR; and, if interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
Setting up the base phone
Do the following steps:
• Choose the best location
• Connect the base phone
• Choose the dialing mode
Choose the best location
Where you place the base phone affects the reception quality of the
handset.

Getting Started
7EN
Getting Started
2
1
continued

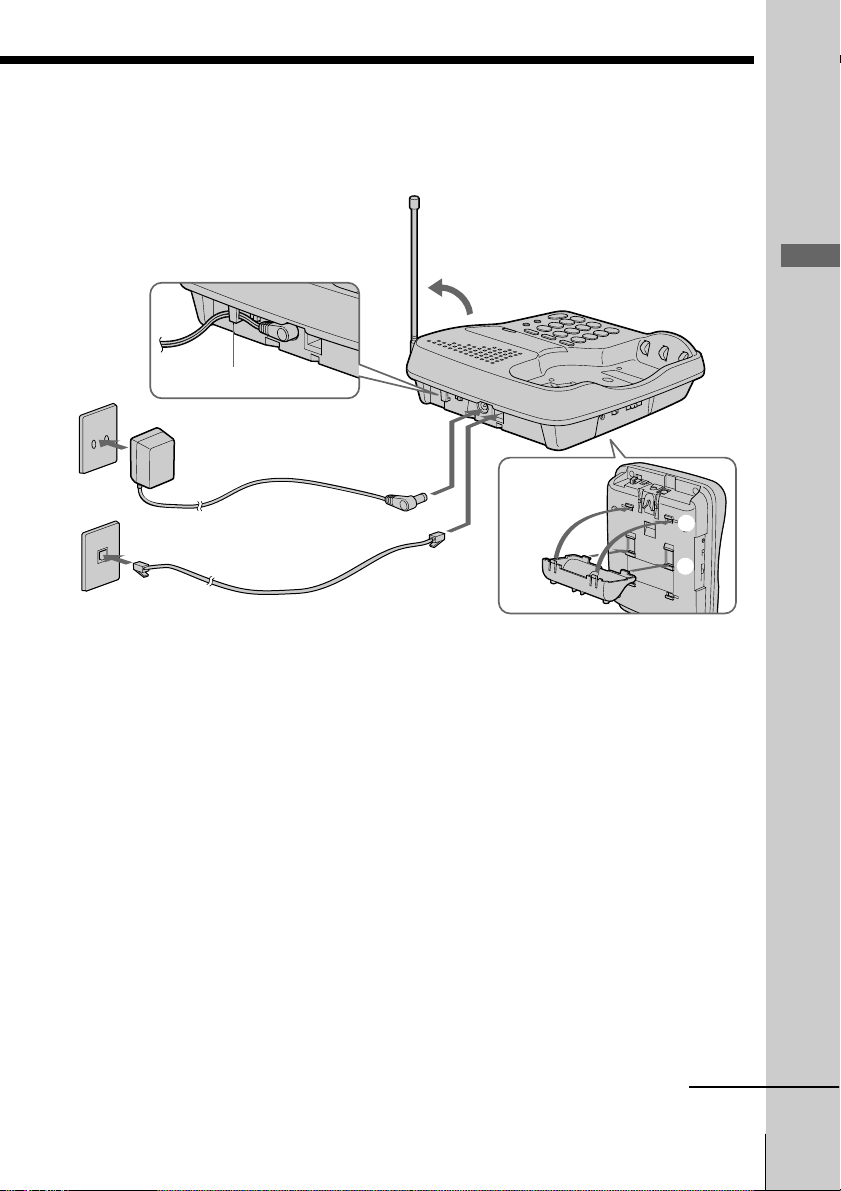

1Attach the wall bracket to the
bottom of the base phone as
illustrated to use it as a stand.
2Connect the telephone line cord
to the LINE jack and to a
telephone outlet.
3Connect the AC power adaptor
to the DC IN 9V jack and to an
AC outlet.
4Raise the antenna. Make sure it
points towards the ceiling.
Hook the cord.
To DC IN 9V
To LINE
1
AC power adaptor
(supplied)
Telephone line cord
(supplied)
4
To an AC outlet
3
To the
telephone
outlet
2
Connect the base phone
If you want to hang the base phone on the wall, see page 29.
Align the ¢
marks.

Getting Started
8EN
Notes
• Use only the supplied AC-T46 AC power adaptor.
Do not use any other AC power adaptor.
• Connect the AC power adaptor to a continuous power
supply.
• Place the base phone close to the AC outlet so that
you can unplug the AC power adaptor easily.
Tips
• If your telephone outlet isn’t modular, contact your
telephone service company for assistance.
• To remove the wall bracket, press in the upper tab.

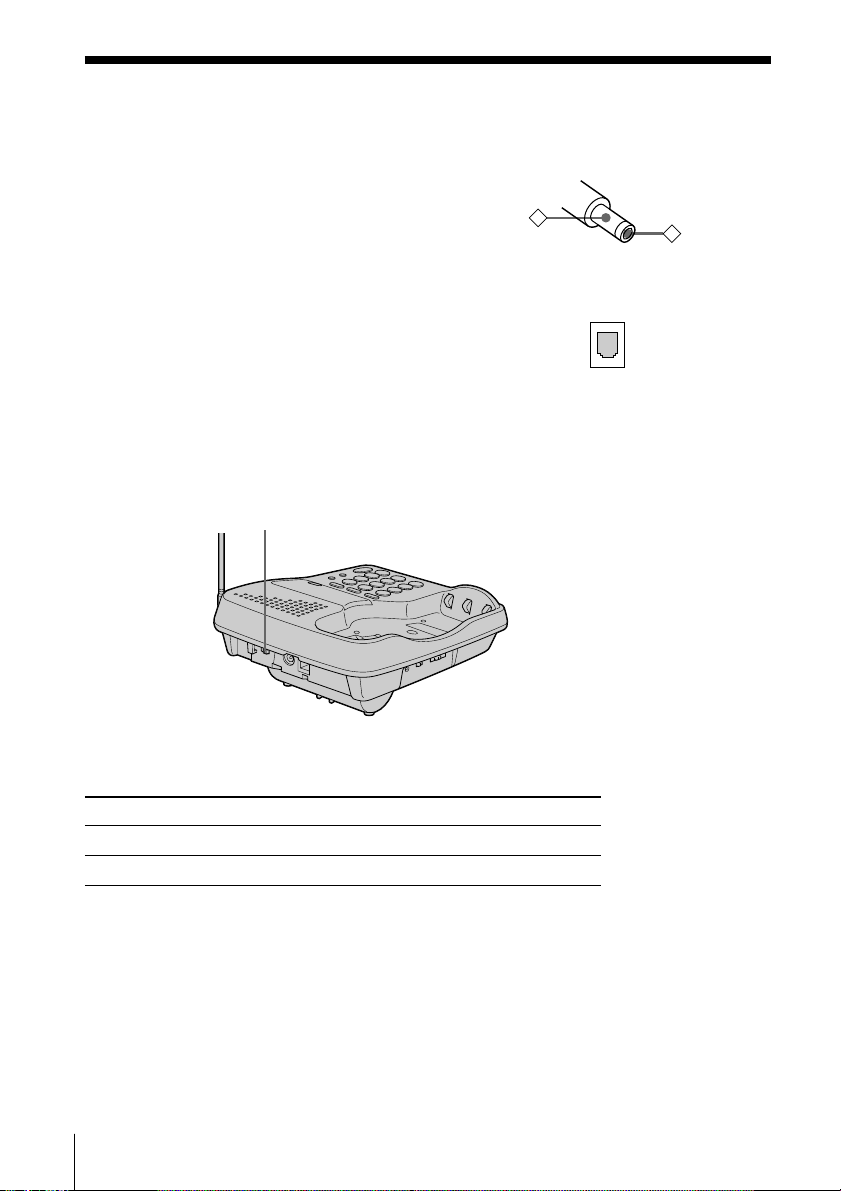

Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode
(tone or pulse).
Depending on your dialing system, set the DIAL MODE switch as
follows:
If your dialing system is Set the switch to
Tone T
Pulse P
If you aren't sure of your dialing system
Make a trial call with the DIAL MODE switch set to T.
If the call connects, leave the switch as is; otherwise, set to P.
Polarity of the plug
Step 2: Setting up the base phone (continued)
DIAL MODE switch
Modular
–
+

Getting Started
9EN
Getting Started
Preparing the battery pack
Charge the battery pack for more than 12 hours before you start using
your phone.
1Slide open the battery
compartment lid of the handset.
2Connect the battery connector
with correct polarity (black and
red cords).
3Hook the cords and insert the
battery pack. Then close the lid.
4Place the handset on the base
phone.
You can place it with either side
facing up.
The CHARGE lamp lights up
when the handset is properly
seated on the charge terminals
of the base phone. Charge the
battery pack for more than 12
hours so that the battery is fully
charged. The CHARGE lamp
remains lit even after charging
is completed.
continued
Step 3
Hook
Black
CHARGE lamp
Red
BP-T24

Getting Started
10EN
Battery duration
A fully charged battery pack lasts for about:
• 6 hours when you use the handset continuously
• 10 days (RING ON mode) or a month (RING OFF mode) when the
handset is in standby mode.
Notes
• The battery pack will gradually discharge over a long period of time, even
when not in use.
• To obtain the best handset performance, place the handset on the base phone
for charging after several calls.
• If you leave the battery pack in the handset without charging it, the battery
pack will be completely discharged.
It may require several times of charging to recover to its full capacity.
• While charging, the battery pack warms up. This is not a malfunction.
When to purchase a new battery pack
If the battery lasts only a few minutes even after 12 hours of charging,
the usable life of the battery has expired and needs replacement.
Contact your local Sony authorized dealer or service center, and ask
for a Sony BP-T24 rechargeable battery pack.
Note
Battery life may vary depending on usage condition and ambient temperature.
Step 3: Preparing the battery pack (continued)

Basics
Basics 11EN
Do this
During phone conversations, press (VOL/PGM).
Each press of (VOL/PGM) switches the speaker
volume by one of four levels.
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Press (*TONE) after you’re connected.
The line will remain in tone dialing until
disconnected.

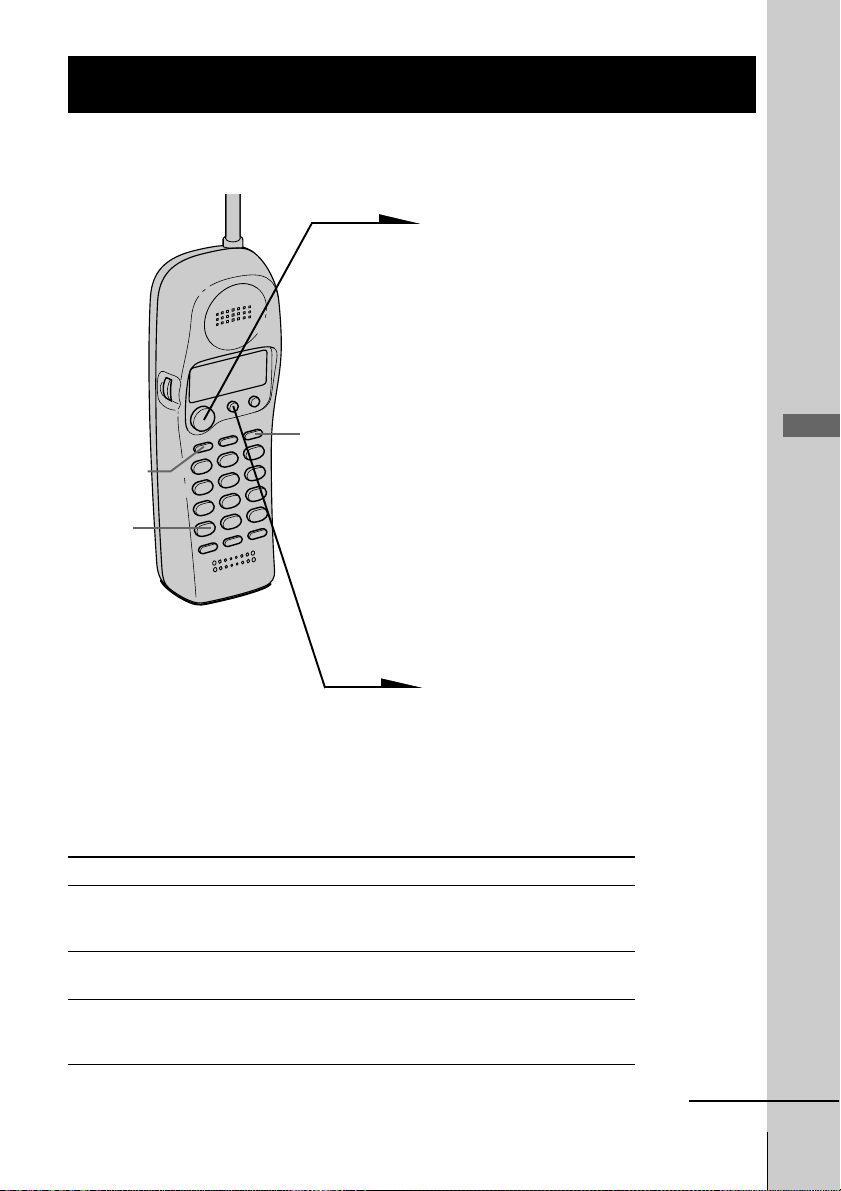

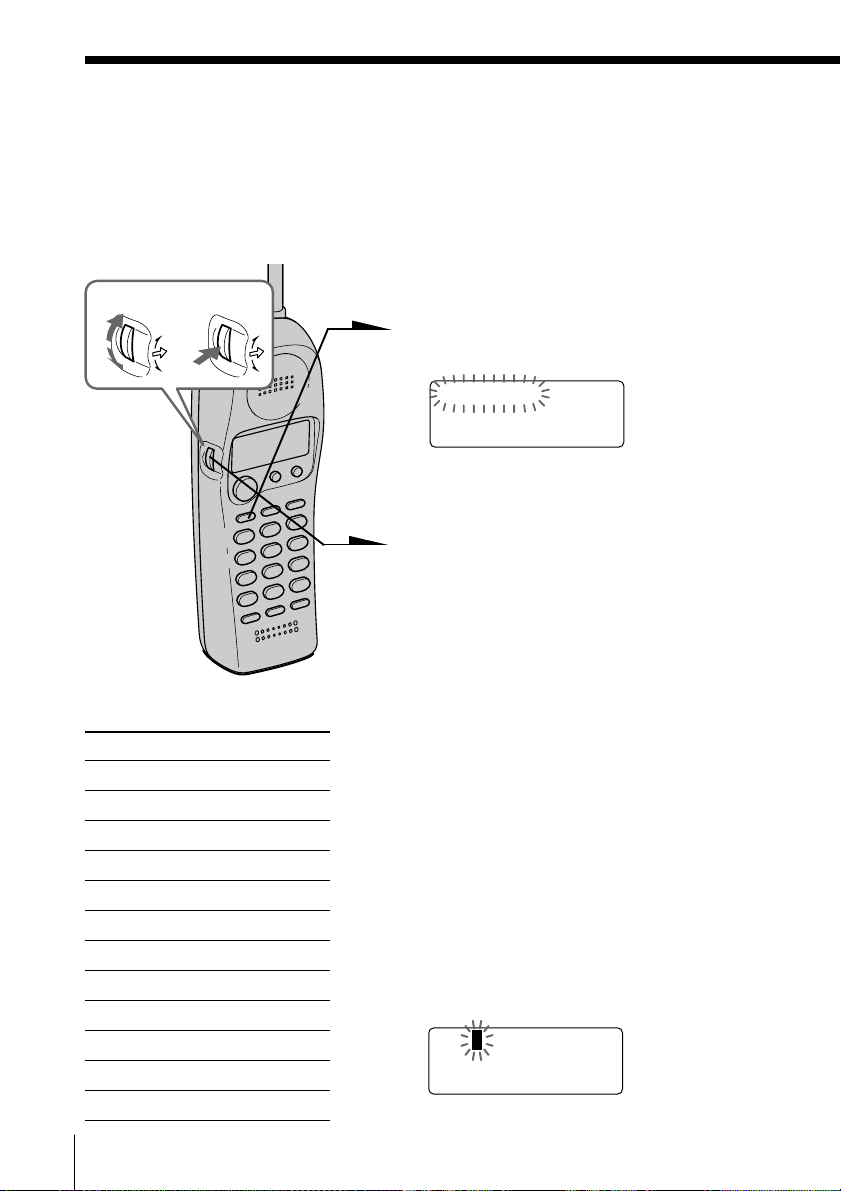

1Pick up the handset from the
base phone.
2Press (TALK/FLASH) and wait
until “TALK” appears on the
display and the display also
shows the operation duration in
hours, minutes and seconds.
You’ll then hear a dial tone.
The LINE lamp on the base
phone lights up.
If you hear five short error
beeps and “OUT OF RANGE”
appears on the display, move
closer to the base phone.
3Dial the phone number.
During a conversation, you can
adjust the handset volume.
Follow the procedure described
in the following table.
4When you’re done talking, press
(OFF) or place the handset on
the base phone.
The display and the LINE lamp
on the base phone go off.
(REDIAL/PAUSE)
(*TONE)
(VOL/PGM)
Basics
Making calls
To
Adjust the handset volume
Put a call on hold
Switch to tone dialing
temporarily
Additional tasks
continued

Basics
12EN
Making calls (continued)
Notes
• When you increase the sound volume, in some cases the back ground noise
may be increased as well. You should adjust the volume accordingly.
• If the handset beeps every second during conversation and “OUT OF
RANGE” appears on the display, move closer to the base phone; otherwise,
the call will be disconnected after one minute.
• While conversing with an outside caller via the base phone, you can’t make a
call with the handset and “BASEPHONE IN USE” appears on the display. If
you press (TALK/FLASH), you will hear a busy tone.
• When the operation duration exceeds 9:59’59, the display counts from 0:00’00
again.
If the battery becomes weak during a call
The handset will beep every three seconds five times and iand
“BATTERY LOW” appears on the display. Finish your call and charge
the battery pack.
For optimum performance, charge the battery for a full 12 hours.
Note that during the first 10 - 15 minutes of charging, the phone will be
inactive, i.e., unable to make or receive a call.
After this initial 10 - 15 minutes, you may be able to use the phone, but
the battery duration will be very short; thus it is recommended that
you fully charge the battery before the next usage.

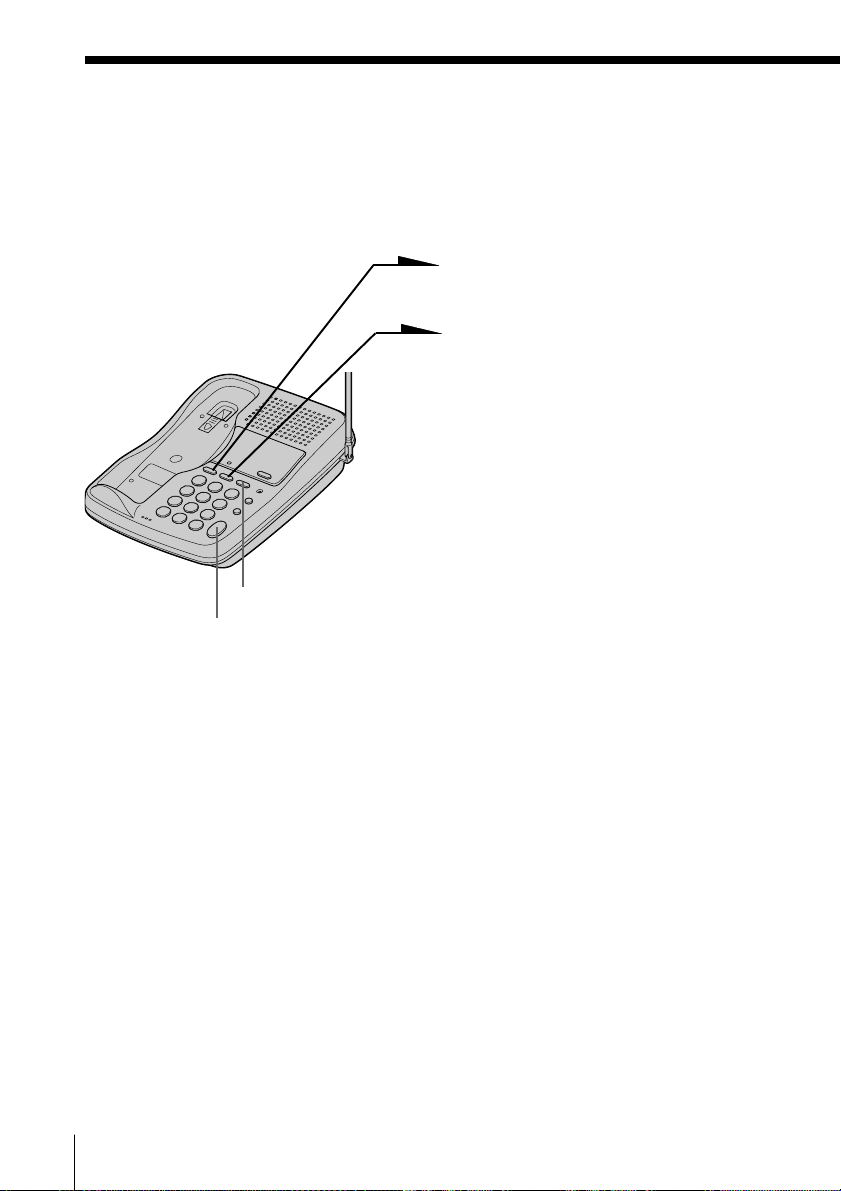

Making calls through the speakerphone
Press (SPEAKERPHONE) on the base
phone.
The LINE lamp lights up.
Dial the phone number.
To adjust the speaker volume, slide the
SPEAKER VOLUME control.
When you’re done talking, press
(SPEAKERPHONE) again.
Note
While conversing with an outside caller via the handset, you can’t make a call
through the speakerphone. If you press (SPEAKERPHONE), you will hear a busy
tone.
(SPEAKERPHONE)
SPEAKER VOLUME control
LINE lamp

Basics
Basics 13EN

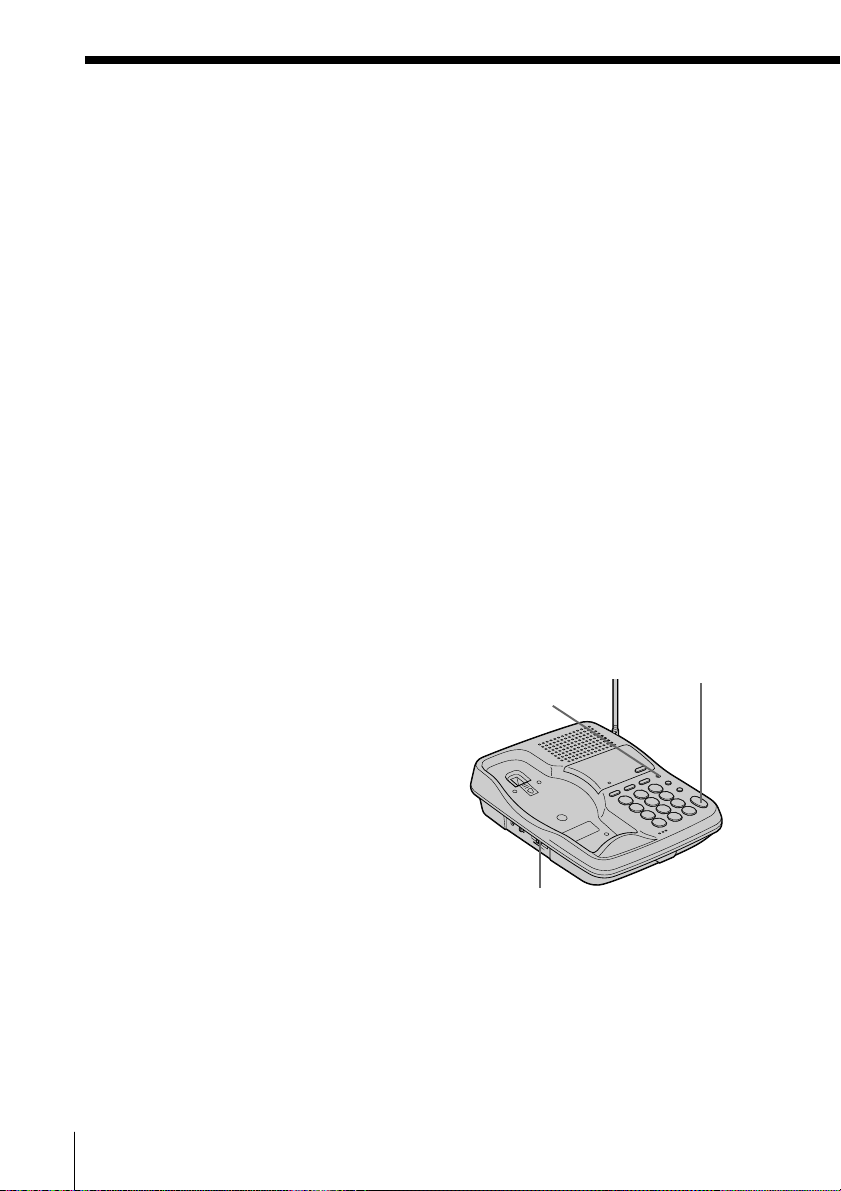

To obtain the best speakerphone performance
• You may not be able to hear the other party’s voice in a noisy place.
Therefore, use the speakerphone in a quiet room.
• Do not bring your hand or other object too close to the microphone
or you will hear a shrill noise (“feedback”).
• When the speaker volume is loud, or the base phone has been placed
close to a wall, you may find that the volume drops suddenly. This is
due to a circuit in the telephone designed to protect against
feedback. In such cases, lower the speaker volume slightly.
Redialing
1Press (TALK/FLASH) and wait until “TALK” appears on the
display.
The LINE lamp on the base phone lights up.
If you’re at the base phone, press (SPEAKERPHONE).
The LINE lamp lights up.
2Press (REDIAL/PAUSE) to redial the last number dialed.
Note
If the number exceeds 32 digits or if it is erased, five short error beeps will alert
you that the number can’t be redialed.
Tip
The number to be redialed is the last number dialed either on the handset or on
the base phone.
To check the phone number before redialing (handset only)
When not making a call with either the handset or base phone, press
(REDIAL/PAUSE).
The last number dialed is displayed for five seconds.
To dial the number, press (TALK/FLASH) while the number is
displayed.
Notes
• The number will not be displayed if the last number dialed exceeds 32 digits
or if it is erased.
• You can‘t check the last number dialed on the base phone.
To erase the last phone number dialed
When not conversing with an outside caller with either the handset or
base phone, press (REDIAL/PAUSE) twice within five seconds.
The number will be erased from the memory, and you’ll hear a long
confirmation beep.

Basics
14EN
Do this
During phone conversations, press (VOL/PGM).
Each press of (VOL/PGM) switches the speaker
volume by one of four levels.
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Press (TALK/FLASH).
Press (TALK/FLASH) again to return to the first
caller.
To
Adjust the handset volume
Put a call on hold
Switch to another call
(“call waiting” service*)
* You need to subscribe to this service from your telephone company.
1When you hear the phone ring:
• Press (TALK/FLASH).
or
• Pick up the handset from the base
phone when the handset is placed
on the base phone.
“TALK” appears on the display and
the display also shows the operation
duration in hours, minutes and
seconds.
The LINE lamp on the base phone
lights up.
During a conversation, you can adjust
the handset volume. Follow the
procedure described in the following
table.
2When you’re done talking, press
(OFF) or place the handset on the base
phone.
The display and the LINE lamp on the
base phone go off.
Receiving calls
Additional tasks
Tip
To inform you of an incoming call, the display shows “** RINGING **” when
ringing.
(HOLD)
(VOL/PGM)

Basics
Basics 15EN
Do this
Press (HOLD). The LINE lamp on the base phone
flashes.
Press (HOLD) again to resume the conversation.
Press (FLASH).
Press (FLASH) again to return to the first caller.
Slide the SPEAKER VOLUME control.
Set the RINGER switch on the base phone to ON to
turn the ringer on, or OFF to turn it off.
To
Put a call on hold
Switch to another call
(“call waiting” service*)
Adjust the speakerphone
volume
Turn on/off the ringer of
the base phone
* You need to subscribe to this service from your telephone company.
To turn the ringer off
Set the RING switch on the bottom to OFF.
You can save battery power.
The handset won’t ring. You can still make calls, and
also receive calls if another telephone connected to
the same line rings to inform you on incoming calls,
but you cannot receive an intercom call.
Receiving calls through the speakerphone
When you hear the phone ring, press
(SPEAKERPHONE) on the base phone.
The LINE lamp lights up.
When you’re done talking; press
(SPEAKERPHONE) again.
To obtain the best speakerphone
performance, see page 13.
RING switch
Note
Even when you set the RINGER switch on the base phone to OFF, the handset
will ring when the RING switch on the handset is set to ON.
Tips
• To inform you of an incoming call, the LINE lamp lights on and off according
to the ring signal even when you set the RINGER switch on the base phone to
OFF.
• If there is an incoming call while on the intercom, the base phone will ring
even when the RINGER switch on the base phone is set to OFF.
Additional tasks
(SPEAKERPHONE)
SPEAKER VOLUME control
(HOLD)
(FLASH)
RINGER switch
LINE lamp

16EN Telephone Features
One-touch dialing
You can dial with one touch of a key by storing a phone number on a
one-touch dial button.
Storing phone numbers
1Press (VOL/PGM).
2Press one of the three
ONE-TOUCH DIAL buttons
((A) to (C)).
You’ll hear a confirmation beep.
If a number is stored, it appears
on the display. To store a new
number, turn Jog Dial to erase it.
3Enter the phone number you
want to store.
You can enter up to 16 digits,
including a tone and a pause,
each of which is counted as one
digit.
4Press (VOL/PGM).
You’ll hear a long confirmation
beep, and the number is stored.
The display goes off.
Telephone Features
DIRECTORY

Jog Dial
(REDIAL/PAUSE)
A=
ENTER NUMBER

Telephone Features
17EN
Telephone Features
Note
Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tips
• If you have entered a wrong number in step 3 and have not pressed
(VOL/PGM) (step 4) yet, just turn Jog Dial down to erase it. Then, enter the
correct number.
• You may press Jog Dial instead of (VOL/PGM) in step 4.
To store a number to be dialed via Private Branch Exchange
(PBX)
Before entering a phone number in step 3 on page 16, do as follows:
1Enter the outside line access digit (e.g., 9).
2Press (REDIAL/PAUSE).
To change a stored number
1Press (VOL/PGM).
2Press one of the ONE-TOUCH DIAL buttons ((A) to (C)).
The current number appears on the display.
3Turn Jog Dial down to erase the current number.
4Enter a new number.
5Press (VOL/PGM).
Note
You can replace the stored number with a new number, but you can’t just erase
it.
Making calls with one-touch dialing
1Press (TALK/FLASH) and wait until “TALK” appears on the
display.
2Press one of the ONE-TOUCH DIAL buttons ((A) to (C)).
The phone number stored on the one-touch dialing button
will appear on the display and will be dialed.
To check the phone number before one-touch dialing
When not conversing with an outside caller with the handset, press
one of the ONE-TOUCH DIAL buttons ((A) to (C)).
The number stored for that button appears on the display for five
seconds. To dial the number, press (TALK/FLASH) while the number is
displayed.

18EN Telephone Features
Speed dialing
You can dial with a touch of a few keys by storing a phone number on
a dialing key.
Storing phone numbers 1Press (PGM).
2Press (SPEEDDIAL).
3Press one of the dialing keys
((0) to (9)) to store a phone
number on.
You’ll hear a confirmation beep.
4Enter the phone number you
want to store.
You can enter up to 16 digits,
including a tone and a pause,
each of which is counted as one
digit.
5Press (PGM).
You’ll hear a long confirmation
beep, and the number is stored.
Note
Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tips
• If you enter a wrong number in step 4, press (PGM), then start from the
beginning.
• Use the supplied directory to write down what you stored on the speed
dialing numbers.
(REDIAL/PAUSE)
(SPEAKERPHONE)

Telephone Features
19EN
Telephone Features
To store a number to be dialed via Private Branch Exchange
(PBX)
Before entering a phone number in step 4 on page 18, do as follows:
1Enter the outside line access digit (e.g., 9).
2Press (REDIAL/PAUSE).
To change a stored number
Store a new number, as described previously.
Making calls with speed dialing
1Press (SPEAKERPHONE).
2Press (SPEEDDIAL).
3Enter the desired speed dialing number ((0) to (9)).
The phone number stored as the speed dialing number will
be dialed.

20EN Telephone Features
You can dial a number by scrolling through the Phone Directory, in
which up to 50 phone numbers can be stored.
Storing phone numbers and names
Example: to store “SONY” “123-4567”.
1Press (VOL/PGM).
(Be sure not to press (TALK/FLASH).)
If “DIRECTORY” is not flashing, turn
Jog Dial down to make it flash.
2Press Jog Dial.
“ENTER NAME” appears.
3Enter the name using the dialing keys.
You can enter up to 15 characters.
Press a dialing key until the desired
character appears. (See the character
table for details.)
Enter successive characters in the same
way.
To enter two characters assigned to the
same key, or to enter a “space”, turn
Jog Dial up to move the cursor to the
right.
Example: to enter “SONY”, press (7)
four times (S), press (6) three times
(O), turn Jog Dial up to move the
cursor, press (6) twice (N), and press
(9) three times (Y).
Character table
Key Character
(1) 1
(2) A nB nC n2
(3) D nE nF n3
(4) G nH nI n4
(5) J nK nL n5
(6) M nN nO n6
(7) P nQ nR nS n7
(8) T nU nV n8
(9) W nX nY nZ n9
(0) 0
(*) *
(#) #
Phone Directory
DIRECTORY

SON

Y
Turn Press
