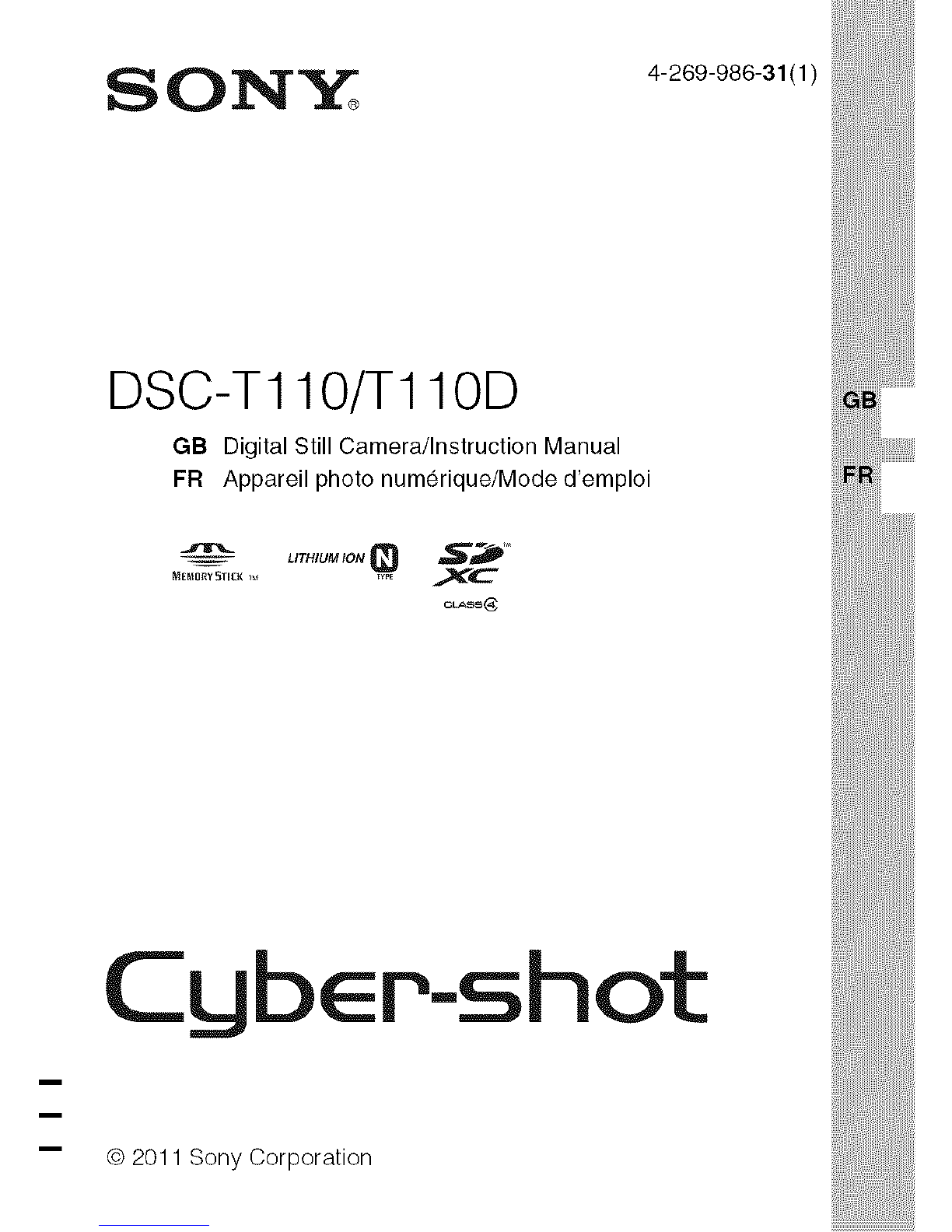

Sony Cyber-shot DSC-T110 User manual

DSC-T 110/T 110D
GB Digital Still Camera/Instruction Manual
FIR Appareil photo numerique/Mode d'emploi
L,T,,,UM,ONQ ,_,_°
CLA_@
Cyb r-shot
© 2011 Sony Corporation

Owner's Record
The model and serial numbers are located on the bottom. Record the serial number in the
space provided below. Refer to these numbers whenever you call your Sony dealer
regarding this product.
Model No. DSC-T110/T110D
Serial No.
To reduce fire or shock hazard, do not expose the unit to rain or
moisture.
IMPORTANTSAFETY
|HSTRUCTiONS
-SAVETHESEINSTRUCTIONS
DANGER
TO REDUCE THE RISKOF FIREOR
ELECTRICSHOCK,CAREFULLY FOLLOW
THESEiNSTRUCTIONS
If the shape of the plug does not fit the po\x.er outlet, use an attachment plug adaptor of the
proper configuration for the power outlet.
Battery pack
If the batlcry pack is mishandled, the baltery pack can bursL cause a fire or c',en chemical
burns. Obserxe Ihe following caulk)ns.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as
hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery
GB terminals.
2

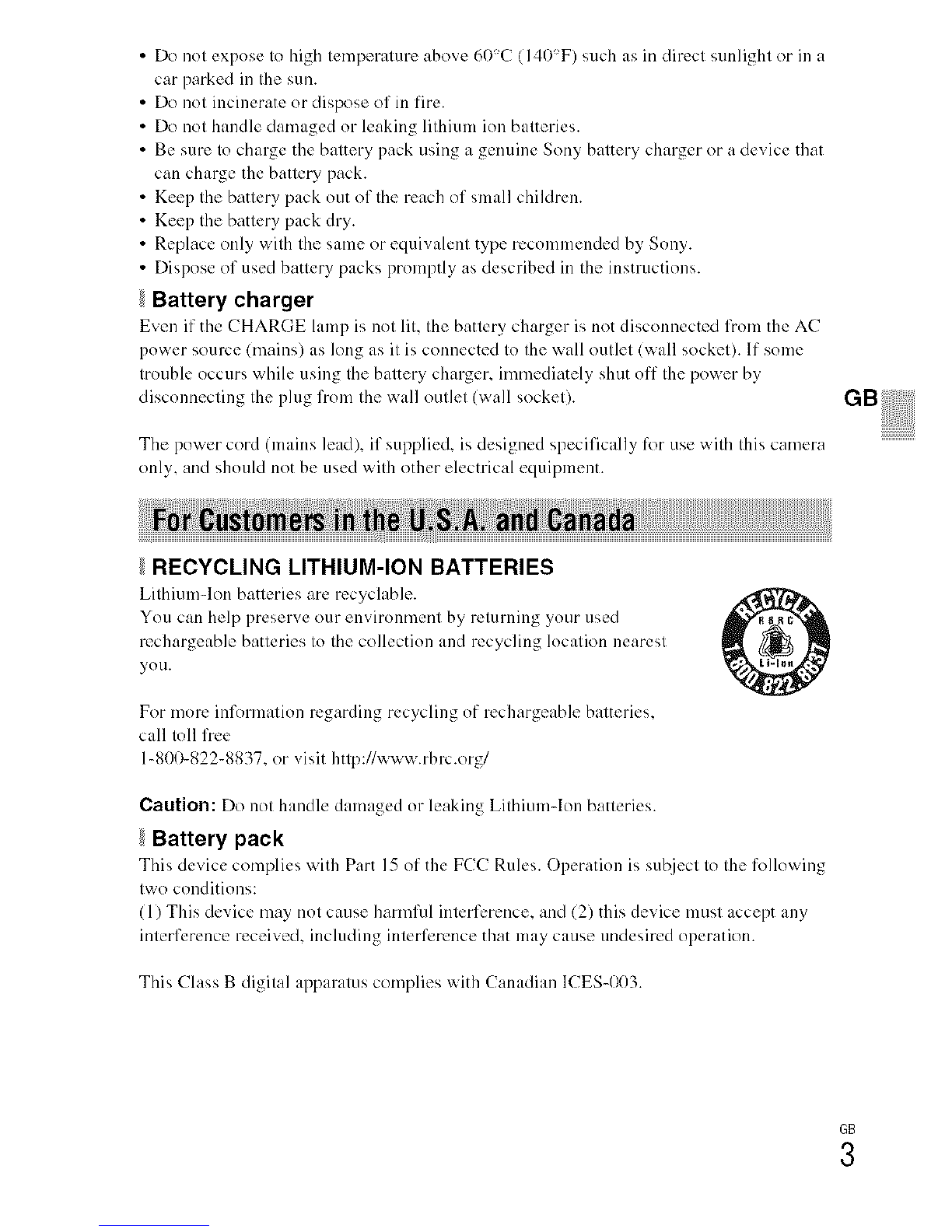

• Do not expose to high temperature above 60C (I 411F) such as in direct sunlight or in a
car parked in tile sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that
can charge the battery pack.
• Keep tile battery pack out of tile roach of small children.
• Keep tile battery pack dry.
• Replace only with tile same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in tile instructions.
Battery charger
Exen if the (HARGE lamp is not lit. the battery charger is not disconnected from the AC
power source (mains) as long as it is connected to tile wall outlet (wall socket). If some
trouble occurs while using tile battery charger, immediately shut off tile power by
disconnecting tile plug from tile wall outlet (wall socket).
The power cord (mains lead), if supplied, is designed specifically for use with this camera
only. and should not be used with other electrical equipment.
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion battcric's arc lc'cyclablc'.
You can help preserve our environment by returning your used
rechargeable batteries to tile collection and recycling location nearest
you.
For li/Ol-t.?inlk)rmation regarding recycling of rechargeable batteries.
call toll free
1_80t)-822-8837. or visit http://www.rbrc.org/
O
Caution: Do not handle damaged or leaking Lithiumqon batteries.
Battery pack
This dcxicc complies with Part 15 of the FCC Rules. Operation is s/ll!i_.Tctto the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian 1CES4)03.
GB
3

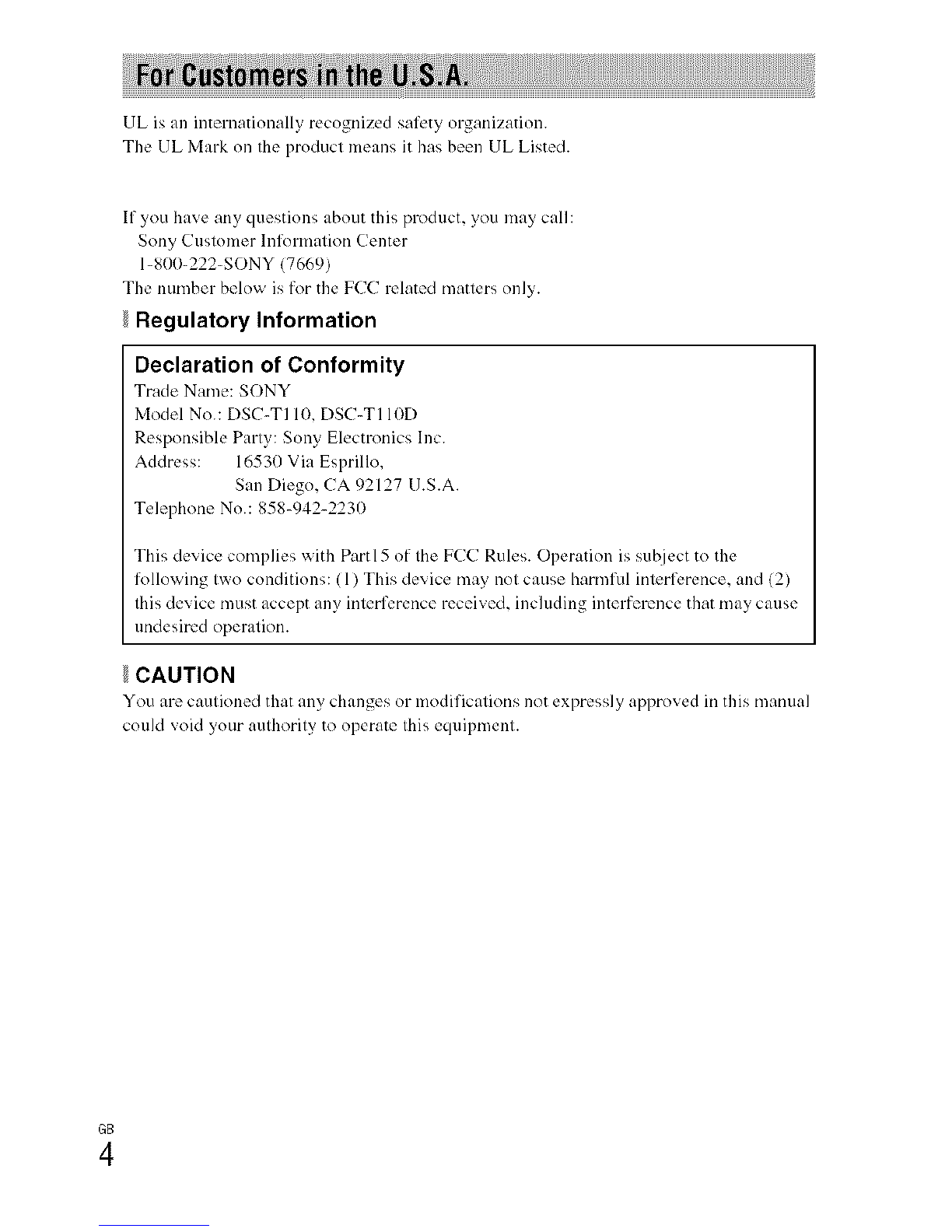

UL is an internationally recognized safety organization.
The UL Mark oll the product means it has been UL Listed.
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-T110. DSC-T110D
Responsible Party: Sony Electronics lnc.
Address: 16530 Via Esprillo.
San Diego. CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Partl 5 of the FCC Rules. Operation is sut_ject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interfurence received, including interference that may cause
undesired operation.
CAUTION
You art.)cautioned that an_ changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
GB
4

Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interforonce in
a residential installation. This equipment generates, uses. and can radiate radio frequency
energy and. if not installed and used ill accordance with the instructions, may cause
harmfid interference to radio communications. However. there is no guarantee that
interference will not occur ill a particular installation. If this equipment does cause harmfid
interference to radio or television reception, which can be determined by turning the
equipment off and on. the user is encouraged to try to con-ect the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase tile separation between the equipment and receiver.
Connect tile equipment into all outlet on a circuit different from that to which the
receiver is connected.
Consult tile dealer or an experienced radio/TV technician for help.
Tile supplied imerface cable must be used with tile equipment in order to comply with the
limits lk_r a digital device pursuant to Subpart B of Part 15 of F(( Rules.
G B
Notice for the customers in the countries applying EU Directives
The lniln/ifact/ll-er of this product is Sony Corporation. I-7=1 Konan Minato=ku Tokyo.
108_0075 Japan. The Authorized Representative for EM( and product safety is Sony
Deutschhmd GmbH. Hedelfinger Strasse 61. 70327 Stuttgart, Germany. For ally service or
guarantee matters please refer to tile addresses given ill separate service or guarantee
documents.
This product has been tested and lkmnd compliant with tile limits set out ill tile EMC
Directive l\)r using connection cables shorter than 3 meters (9.8 feet).
Attention
The electromagnetic ficMs at the specific frequencies may influence the picture and SO/llld
of this unit.
Notice
If static elc'ctricity or electronlagnetisnl causes datu trilnsft._r to discontinue midwa_ (fail),
restart the application or disconnect and connect tile communication cable (USB, etc./
again.
GB
5

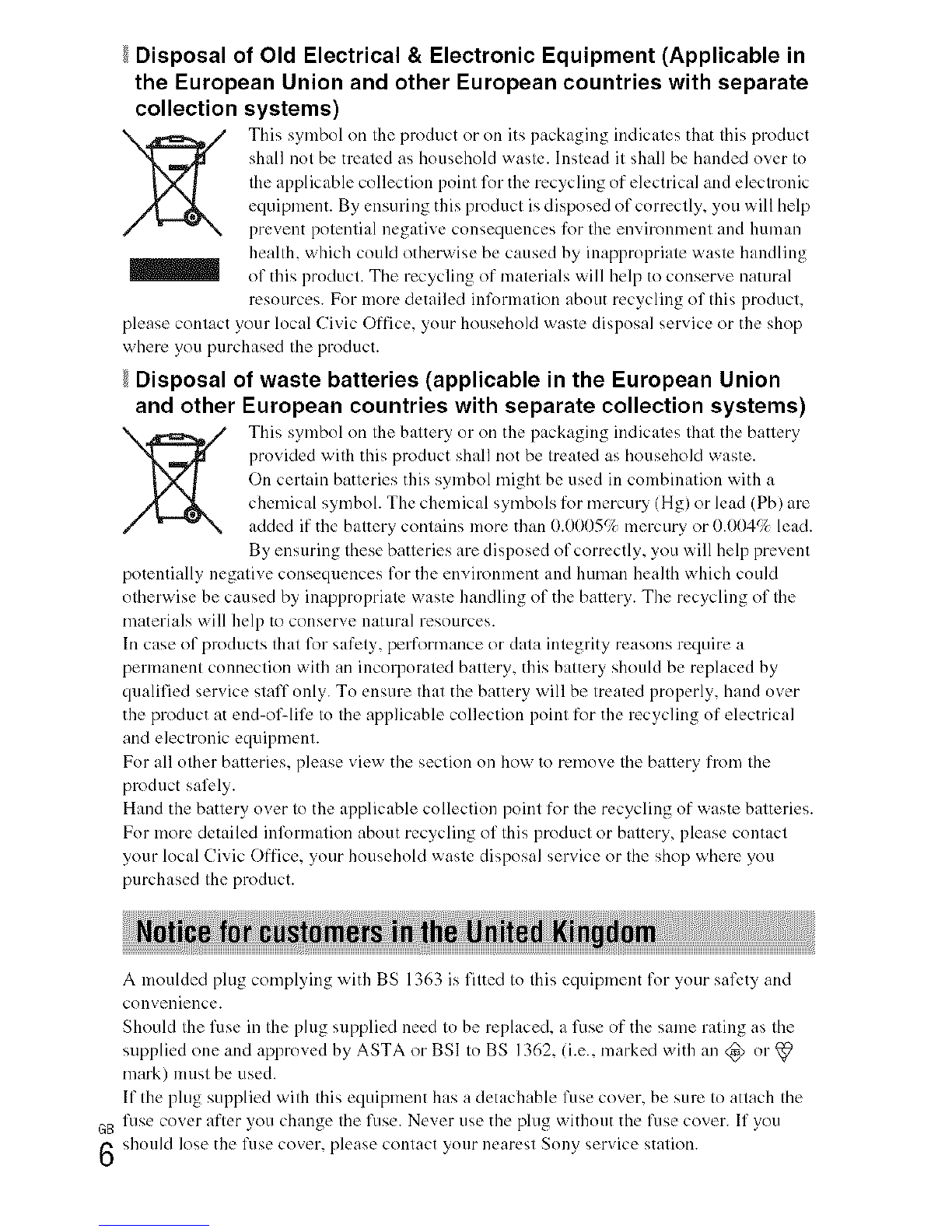

Disposal of Old Electrical & Electronic Equipment (Applicable in
the European Union and other European countries with separate
collection systems)
This symbol on lilt`-product or on its packaging indicates that this product
shall not be treated as household wasle. Instead it shall be handed over to
tile applicable collection point for the recycling of electrical and eleclronic
equipment. By ensuring this product is disposed of correctly, you will help
prexent potential negative consequences for tile en,,ironn/enl and hulnan
health, which could otherwise be caused by inappropriate waste handling
of this product. Tile recycling of materials will help to conserve natural
resources. For more detailed inl\_rmation about recycling of this product,
please contact your local Civic Office, your household waste disposal service or the shop
where you purchased tile product.
Disposal of waste batteries (applicable in the European Union
and other European countries with separate collection systems)
This symbol on tilt', hattery or on the packaging indicates that the battery
provided with this product shall not be treated as household waste.
On certain batteries this symbol might be used in combination with a
chemical symboh The chemical symbols for mercury (Hg) or lead (Pb) are
added if the battery contains more than ().00()5cA mercury or ().O()4cA lead.
By ensuring these batteries are disposed of correctly, you will help prevent
potentially negative consequences for the environment and human health which could
otherwise be caused by inappropriate waste handling of the battery. The recycling of tile
materials will help to conserve natural resources.
hi case of products that l\_r safety, pertormance or data integrity reasons require a
permanent connection with an incorporated battery, this battery should be replaced by
qualified service stall" only. To ensure that the battery will be treated properly, hand over
the product at end-of-life to tile applicable collection point for the recycling of electrical
and electronic equipment.
For all other batteries, please view the section on how to remove tile battery from tile
product salZ,ly.
Hand the battery over to the applicable collection point for tile recycling of waste batteries.
For more detailed inl\_rmation about recycling of this product or battery, please contact
your local (?ivic Office, your household waste disposal service or tile shop where you
purchased tile product.
A moulded plug complying with BS 1363 is fitted to this equipment lk_r your salk, ty and
convenience.
Should tile fuse in tile plug supplied need to be replaced, a fuse of the same rating as tile
supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an @ or
mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach tile
GB fuse cover after you change tile fuse. Never use the plug without the fuse cover. If you
6 should lose the fuse co_er, please contact your nearest Sony service station.

Table of contents
Getting started
Refer to "Cyber-shot Handbook" (PDF) on supplied
CD-ROM ..................................................................................... 8
Checking the accessories supplied ........................................... 8
Notes on using the camera ........................................................ 8
Identifying parts ....................................................................... 11
Battery charging and the number of images/time that can be
recorded .................................................................................. 12

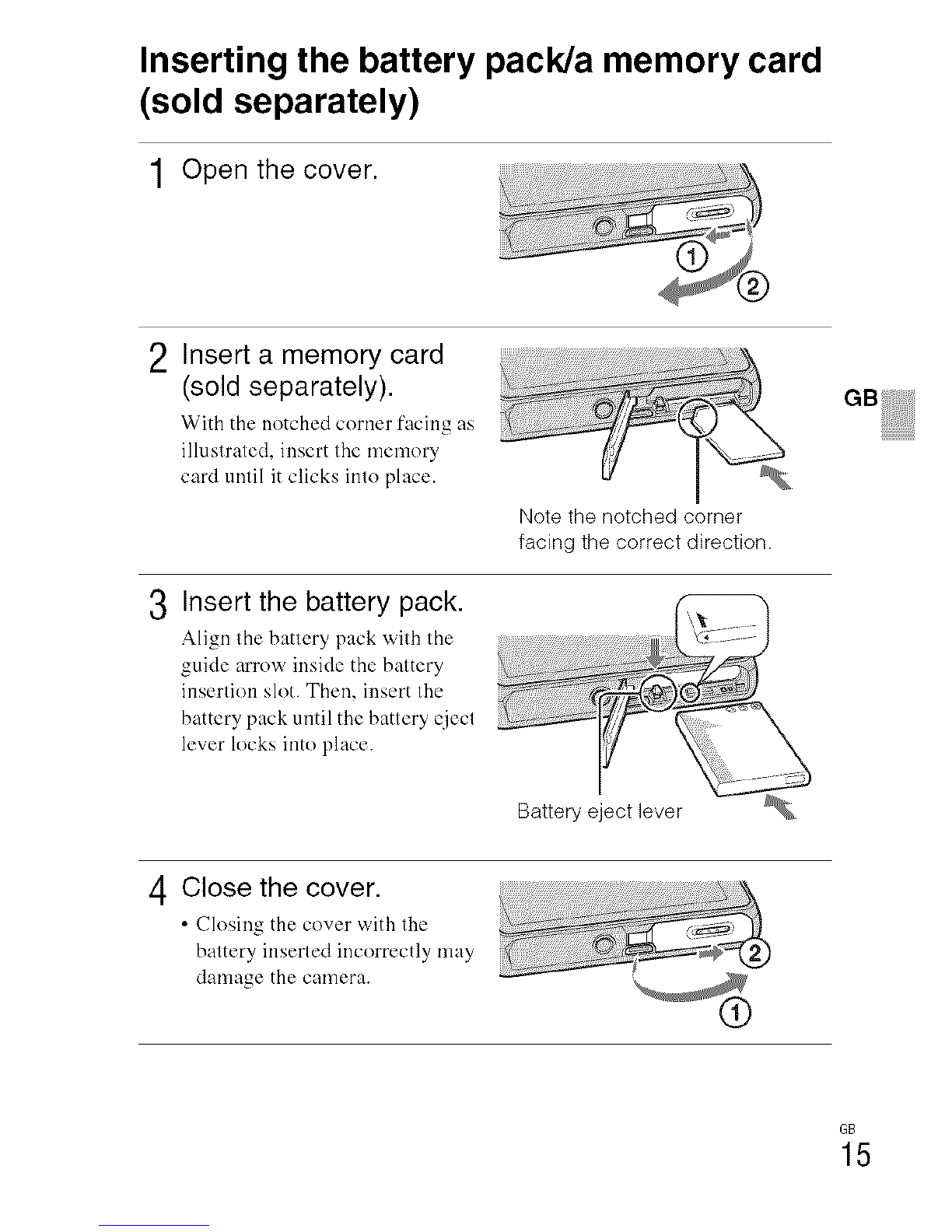

Inserting the battery pack/a memory card (sold separately)_, 15
Setting the date and time/display color ................................... 18 GB
Shooting/viewing images
Shooting still images ................................. 20
Shooting movies ....................................................................... 21
Viewing images ........................................................................ 22
In-Camera Guide ..................................................................... 23
"Cyber-shot Handbook" (PDF)
Learning more about the camera ("Cyber-shot
Handbook") .............................................................................. 24
GB
7

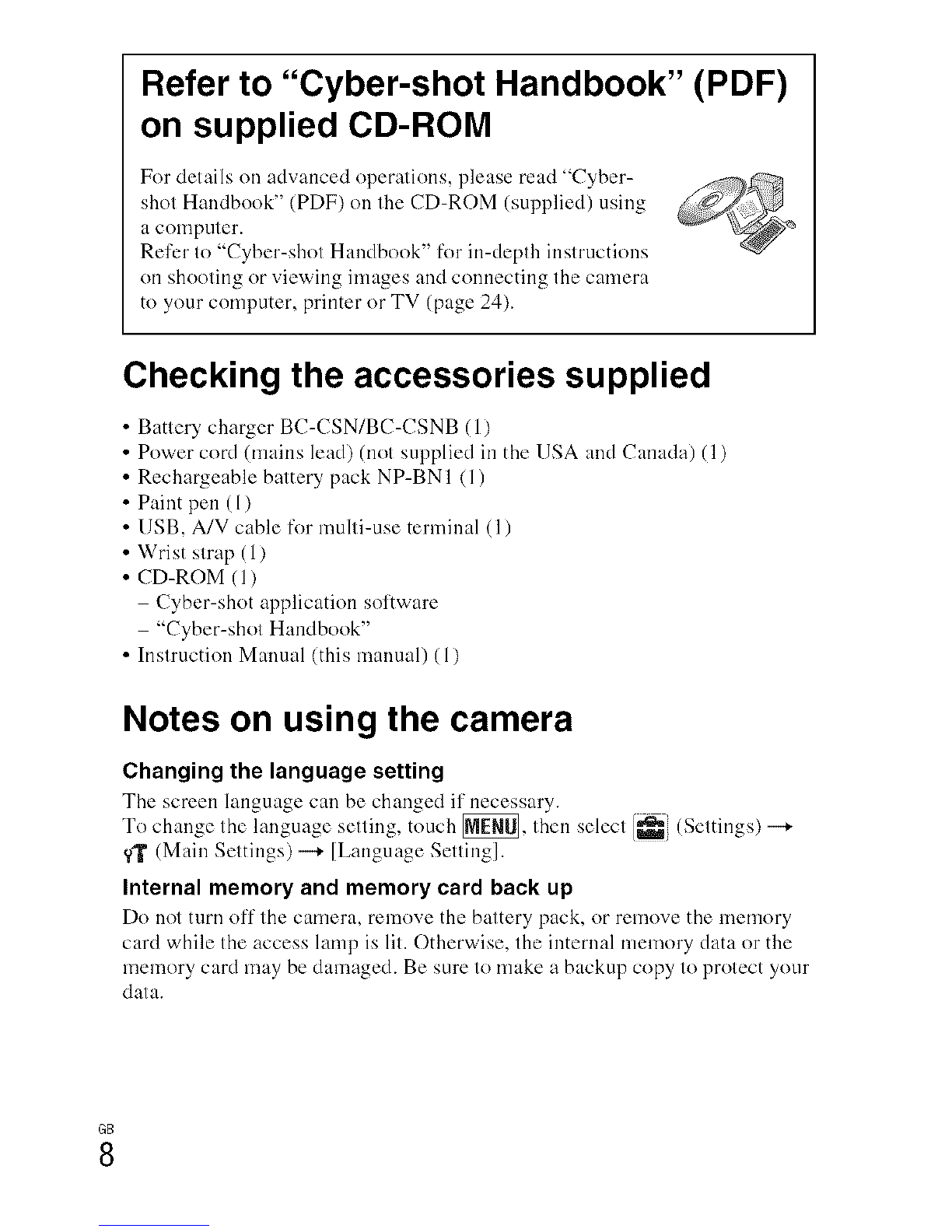

Refer to "Cyber-shot Handbook" (PDF)
on supplied CD-ROM
For details on advanced operations, please read "Cyber-
shot Handbook" (PDF) on the CD-ROM (supplied) using
a compilter.
Refer to "Cyber-shot Handbook" for in-depth instructions
on shooting or viewing images and connecting the camera
to your computer, printer or TV (page 24).
Checking the accessories supplied
Battery charger BC-CSN/BC-CSNB (1)
Power cord (mains lead) (not supplied in the USA and Canada) (1)
Rechargeable battery pack NP-BN1 (1)
Paint pen (1)
USB, A/V cable for multi-use terminal (1)
Wrist strap (1)
CD-ROM (1)
Cyber-shot application software
"Cyber-shot Handbook"
• Instruction Manual (this manual) (1)
Notes on using the camera
Changing the language setting
The screen language can be changed if necessary.
To change the language setting, touch _, then select [_, (Settings) -....+
f[ (Main Settings) -"'+ [Language Setting].
Internal memory and memory card back up
Do not turn off the camera, remove the battery pack, or remove the memory
card while the access hunp is lit. Otherwise, the internal memory data or the
memory card may be damaged. Be sure to make a backup copy to protect your
data.
G[I
8

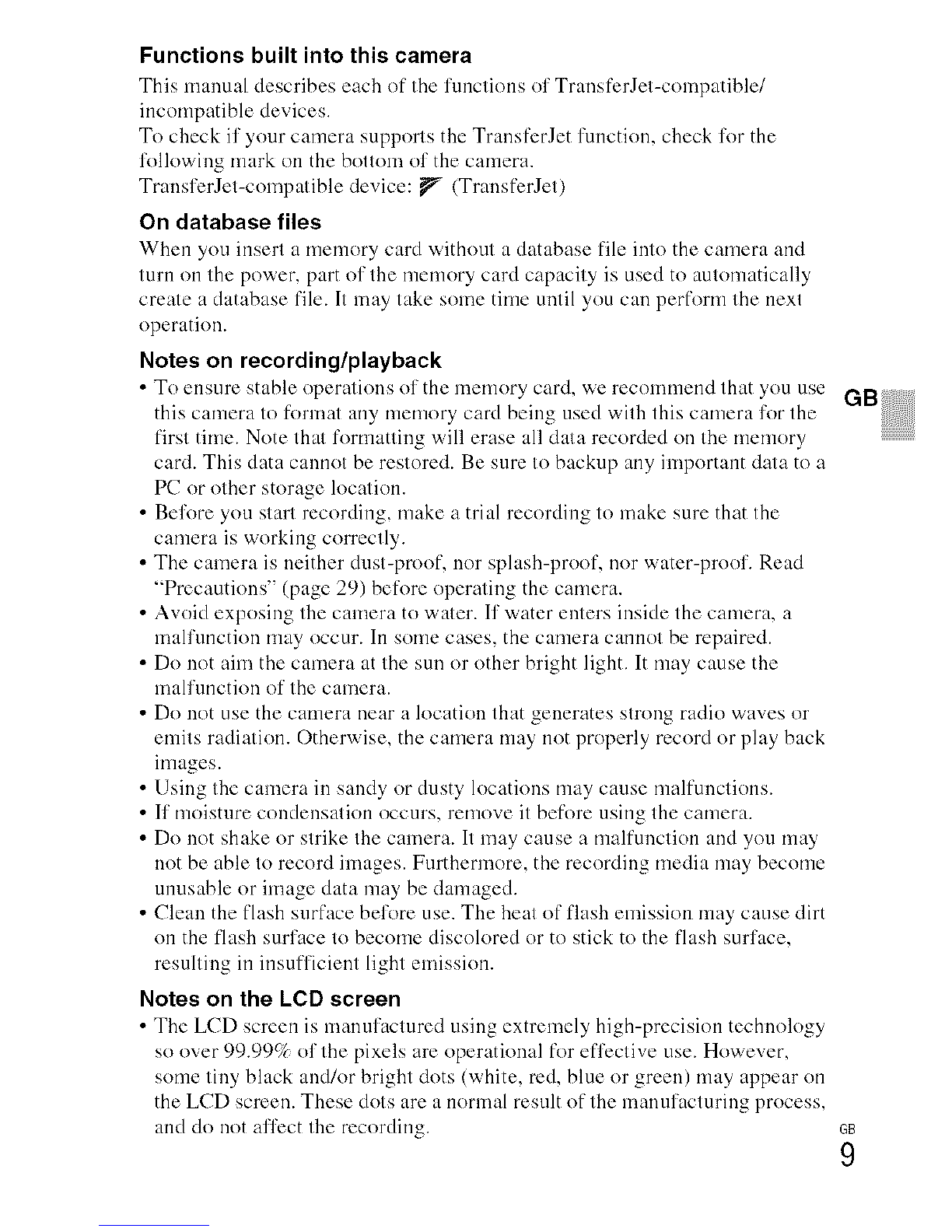

Functions built into this camera
This manual describes each of the functions of Transfer Jet-compatible/
incompatible devices.
To check if your camera supports the TransfcrJet function, check for the
following mark on the bottom of the camera.
TransferJet-compatible device: _ (TransfcrJet)
On database files
When you insert a memory card v, ithout a database file into the camera and
turn on the power, part of the memory card capacity is used to automatically
create a database file. It may take some time until you can perform the next
operation.
Notes on recording/playback
• To ensure stable operations ol' the memory card, we recommend that you use GB
this camera Io formal any memor'y card being used with this camera for the
first time. Note thai formatting will erase all data recorded on the memory
card. This data cannot be restored. Be sure to backup any important data to a
PC or other storage location.
• Before you start recording, make a trial recording to make sure that the
camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof. Read
"Precautions" (page 29) before operating the camera.
• Avoid exposing the camera to water, ff water enters inside the camera, a
malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the
malfunction of the camera.
• Do not use the camera near a location that generates strong radio waves or
emits radiation. Otherwise, the camera may not properly record or play back
images.
• Using the camera in sandy or dusty locations may cause malfunctions.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may
not be able to record images. Furthermore, the recording media may become
unusable or image data may be damaged.
• Clean the flash surface before use. The heat of flash emission may cause dirt
on the flash surface to become discolored or to stick to the flash surface,
resulting in insufl'icient light emission.
Notes on the LCD screen
• The LCD screen is manufactured using extremely high-precision technology
so over 99.99% of the pixels are operational for effective use. However,
some tiny black and/or bright dots (white, red, blue or green) may appear on
the LCD screen. These dots are a normal result of the manufacturing process,
and do not affect the recording. GB
9

• If water droplets or other liquids splash on the LCD screen and make it wet,
immediately wipe off the screen with a soft cloth. Leaving liquids on the
LCD screen surface can harm the quality and cause a malfunction.
• Do not press against the LCD screen. The screen may be discolored and that
may cause a malfunction.
Please use Sony genuine accessories
If you use accessories manufactured by companies other than Sony, this could
cause a callrlera trouble.
• Using other manufacturers' camera cases with magnets could cause a power
supply trouble.
On camera's temperature
Your camera and battery may get hot due to continuous use, but it is not a
malfunction.
On the overheat protection
Dependiug on the camera and battery temperature, you may be unable to
record movies or the power may turn off automatically to protect the camera.
A message will be displayed on the LCD screen before the power turns off or
you can no longer record movies. In such a case, wait until the camera and
battery completely cool down, with the power turned off. If you turn the power
on before they completely cool down, the power may turn off again or you
may be unable to record movies.
On battery charging
In rare cases, a battery that has not been used fk)r a hmg time may not be
charged optimally. This is due to characteristics of the battery and not a
malfunction. Charge the battery again.
On image data compatibility
• The camera conforms with DCF (Design rule for Camera File system)
universal standard established by JEITA (Japan Electronics and Information
Technology Industries Association).
• Sony does not guarantee that the camera will play back images recorded or
edited with other equipment, or that other equipment will play back images
recorded with the camera.
Warning on copyright
Television programs, fihns, videotapes, and other materials may be
copyrighted. Unauthorized recording of such materials may be contrary to the
provisions of the copyright laws.
No compensation for damaged content or recording failure
Sony cannot compensate for failure to record or loss or damage of recorded
GBcontent due to a malfunction of the camera or recording media, etc.
10

Identifying parts
Cover panel 1
[]
[] Zoom (W/T) lever
[] Shutter button
[] Microphone
[] ON/OFF (Power) button/
Power lamp
[] Flash
[] Self-timer lamp/Smile Shutter
lamp/AF illumim_tor
[] Lens
]Lens cover
[_ LCD screen/Touch panel
[] Speaker
[] _i (Playback) button
[] Hook for wrist strap
[] Battery insertion slot
[] Tripod receptacle
• Use a tripod with a screw less
than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly
secure tile camera, and damage to
tile camera may occur.
[] Battery/Memory card cover
[] Multi-connector (Type3a)
[] Battery eject lever
[] Memory card slot
[] Access lamp
[] _ (TransferJed _) mark
13B
GB
11

Battery charging and the number of
images/time that can be recorded
Insert the battery pack into the
battery charger.
•You can charge the battery even when it is
partially charged.
_ Battery
pack
2Connect the battery
charger to the wall
outlet (wall socket).
If you continue charging
the battery pack for about
one more hour after the
CHARGE lamp turns off,
the charge will last slightly
longer (full charge).
For customers in the USA and
Canada Plug
CHARGE lamp
Lit: Charging
Off: Charging finished
(nomml charge)
CHARGE lamp
For customers in countries/regions
other than the USA and Canada
3When charging is finished, disconnect the battery
charger.
GB
12

Charging time
• The table above shows the time required to charge a tkdly depleted battery pack at
a temperature of 25°C (77°F). Charging may take longer depending on conditions
of use and circumstances.
• Connect the battery charger to the nearest wall outlet (wall socket).
• When charging is finished, disconnect the power cord (mains lead) and the battery
charger fl'om the wall outlet (wall socket), and remove the battery pack fl'om the
battery charger.
• Be sure to use the battery pack or the battery charger of the genuine Sony brand.
Battery life and number of images you can record/
view
Shooting still Approx. 115 Approx. 230
images
Viewing still Approx. 250 Approx. 5000
images
Shooting movies Approx. 90
• The number of images that can be recorded is an approximate nmnber when
shooting with a flflly charged battery pack. The number may be less depending on
the circumstances.
• The number of images that can be recorded is when shooting under the following
conditions:
Using Sony "Memory Stick PRO Duo" (Mark2) media (sold separately).
When a fully charged battery pack (supplied) is used at an ambient temperature
of 25°C (77°F).
GB
13

• The number of still images that can be recorded is based nn tile C1PA standard,
and is lot shooting under the following cnnditions.
(CIPA: Camera & hnaging Products Association)
[LCD Brighmess] is set to [Normal].
-Shooting once every 30 secnnds.
Tile zoom is switched alternately between the W and T ends.
Tile flash strobes once every two times.
The power turns on and off once every ten times.
• The battery life fnr movies is when shooting under the following conditions:
- Recnrding mode: 720 FINE
When continuous shooting ends because of set limits (page 28), press tile shutter
button down again and continue shooting. Shooting lhnctinns such as the zoom
do not operate.
GB
14

Inserting the battery pack/a memory card
(sold separately)
1Open the cover.
2Insert a memory card
(sold separately).
With the notched corner facing as
illustrated, insert the memo W
card until it clicks into place.
Note the notched corner
facing the correct direction.
3Insert the battery pack.
Align the battery pack with the
guide arrow inside the battery
insertion slot. Then, insert the
battery pack until the battery eject
lever locks into place.
Battery eject lever
4Close the cover.
• Closing the cover with the
battery inserled incorrectly may
damage the camera.
GB
15

Memory card that you can use
The following memery cards are compatible with this camera: "Memory Stick
PRO Due" media_ "Memory Stick PRO-HG Due" media, "Memory Stick
Due" media, SD memory card, SDHC memory card and SDXC memory card.
Hewever_ all memory cards are not guaranteed te werk with this camera.
MultiMediaCard cannot be used.
•In this manual, the term "Memory Stick Duo" media is used to relier to "Memory
Stick PRO Duo" media, "Memory Stick PRO-HG Duo" media and "Memory
Stick Duo" media, and the term "SD card" is used to reli:r to SD memory card.
SDHC memo Ucard and SDXC memory card.
• When recording movies, it is recommended that you use the following memory
cards:
MEMORY5TIEK PR[} DUO (Mark2) ("Memory Stick PRO Duo" (Mark2) media)
M[MllrlYSTI[I(PR0-HGBtl0 ("Memory Stick PRO-HG Duo" media)
SD memory card, SDHC memory card or SDXC memory card (Class 4 or f, ster)
For details on the number of images/lime that can be recorded, see page 27.
• hnages recorded on an SDXC memory card cannot be transferred or played back
on computers or AV devices that are not exFAT-compatible, even when the
camera is connected to the computer or AV device using a USB cable. Before
connecting, make sure that the device is exFAT-compatible. If connected to a
device that is not exFAT-compatible, a format drive request may appear. Do not
lormat the drive, or all data will be lost. (exFAT is the file system used by SDXC
memory cards.)
To remove the memory card
Access lamp Make sure that the access lamp is net lit,
then push the memory card in once.
m
• Never remove the memory card/the battery pack when the access lamp is lit. This
may cause damage to data or Ihe memory card.
GB
16

When there is no memory card inserted
Images are stored in the camera's internal memory (approxinmtely 23 MB).
To copy images from the internal memory to a memory card. insert a memory
card in the camera, then touch _ -"'+ [_] (Settings) -"'+ _ (Memory
Card Tool) _ [Copy].
To remove the battery pack
Battery eject lever Slide the battery eject lever. Be sure not
to drop the battery pack.
Checking the remaining battery charge
A remaining charge indicator appears on the LCD screen.
High _ _ _ _ Low
• It takes about one minute until the correct remaining charge indicator appears.
• The remaining charge indicator may not be correct under certain circumstances.
• When [Power Save] is set to IStandard] or [Stamina], if you do not operate the
camera for a certain period of time while the power is on, the LCD screen becomes
dark, then the camera turns off automatically (Auto power-off function).
• To keep clean battery pack terminal and prevent short-circuiting, place the battery
pack in a plastic bag, etc. when carrying and storing to isolate it from other metal
objects, etc.
GB
17

Setting the date and time/display color
Lower the lens cover.
The camera is turned oil. The
power lamp lights up only when
the camera starts up.
• Youcall alsotllrI1 (Ill thecamera
by pressing theON/OFF
(Power)button.
•Itmaytaketimefor thepowerto
turn on and allow operation.
Lens cover
2 Select the desired date display format, then touch
[OK].
3Select Daylight Savings [On]/[Off], then touch [OK].
4Select the item to be set, then set the value with JdV
and touch [OK].
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
5 Select your desired area with _/1_, then touch [OK]
--* [OK],
6Follow the instructions on the screen to select a
desired display color and display resolution mode.
7 When the introductory message for the In-Camera
Guide appears, touch [OK].
Superimposing the date on the images
Tile camera does no1 have a feature for superimposing dates on images. By
using "PMB" in the CD-ROM (supplied), you can print or save images with
the date. For details, see the "PMB Help".
GB
18

Setting the date and time again
The date and time setup screen appears automatically only when the power is
turned on the first time. To reset the date and time. display the date and time
setup screen by touching _ _ _ (Settings) _ O (Clock Settings)
[Date & Time Setting].
GB
19

Shooting still images
1Lower the lens cover.
2Hold the camera steady as
illustrated.
•Slide the zoom (W/T) lever to the T side to
ZOOl]f].
Slide to the W side to return.
3Press the shutter button
halfway down to focus.
When the image is in l_ocus, a beep
sounds and the • indicator lights.
Shutter button
4Press the shutter button
fully down.
AE/AF lock
GB
20
