Sony VSP-BZ10 User manual

4-277-823-11 (1)
© 2011 Sony Corporation
Digital Signage
Player
Operating Instructions
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
VSP-BZ10

2
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed
wiring, or connect the power plug to an easily
accessible socket-outlet near the unit. If a fault
should occur during operation of the unit,
operate the disconnect device to switch the
power supply off, or disconnect the power
plug.
WARNING: THIS WARNING IS
APPLICABLE FOR USA ONLY.
If used in USA, use the UL LISTED power
cord specified below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade
(NEMA 1-15P Configuration)
Cord Type NISPT-2 or SPT-2, two 16 or
18 AWG wires
Length Minimum 1.5m (4 ft .11in.), Less
than 2.5 m (8 ft .3 in.)
Rating Minimum 7A, 125V
Using this unit at a voltage other than 120V
may require the use of a different line cord or
attachment plug, or both. To reduce the risk of
fire or electric shock, refer servicing to
qualified service personnel.
WARNING: THIS WARNING IS
APPLICABLE FOR OTHER COUNTRIES.
1.Use the approved Power Cord (2-core mains
lead) / Appliance Connector / Plug that
conforms to the safety regulations of each
country if applicable.
2.Use the Power Cord (2-core mains lead) /
Appliance Connector / Plug conforming to
the proper ratings (Voltage, Ampere).
If you have questions on the use of the above
Power Cord / Appliance Connector / Plug,
please consult a qualified service personnel.
Do not install the appliance in a confined
space, such as book case or built-in cabinet.
IMPORTANT
The nameplate is located on the bottom.
For the customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
All interface cables used to connect peripherals
must be shielded in order to comply with the
limits for a digital device pursuant to Subpart B
of Part 15 of FCC Rules.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
WARNING

3
For the customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
For the customers in Europe
This product with the CE marking complies
with the EMC Directive issued by the
Commission of the European Community.
Compliance with this directive implies
conformity to the following European
standards:
• EN55103-1: Electromagnetic Interference
(Emission)
• EN55103-2: Electromagnetic Susceptibility
(Immunity)
This product is intended for use in the
following Electromagnetic Environments: E1
(residential), E2 (commercial and light
industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio).
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku, Tokyo,
Japan.
The Authorized Representative for EMC and
product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters
please refer to the addresses given in separate
service or guarantee documents.

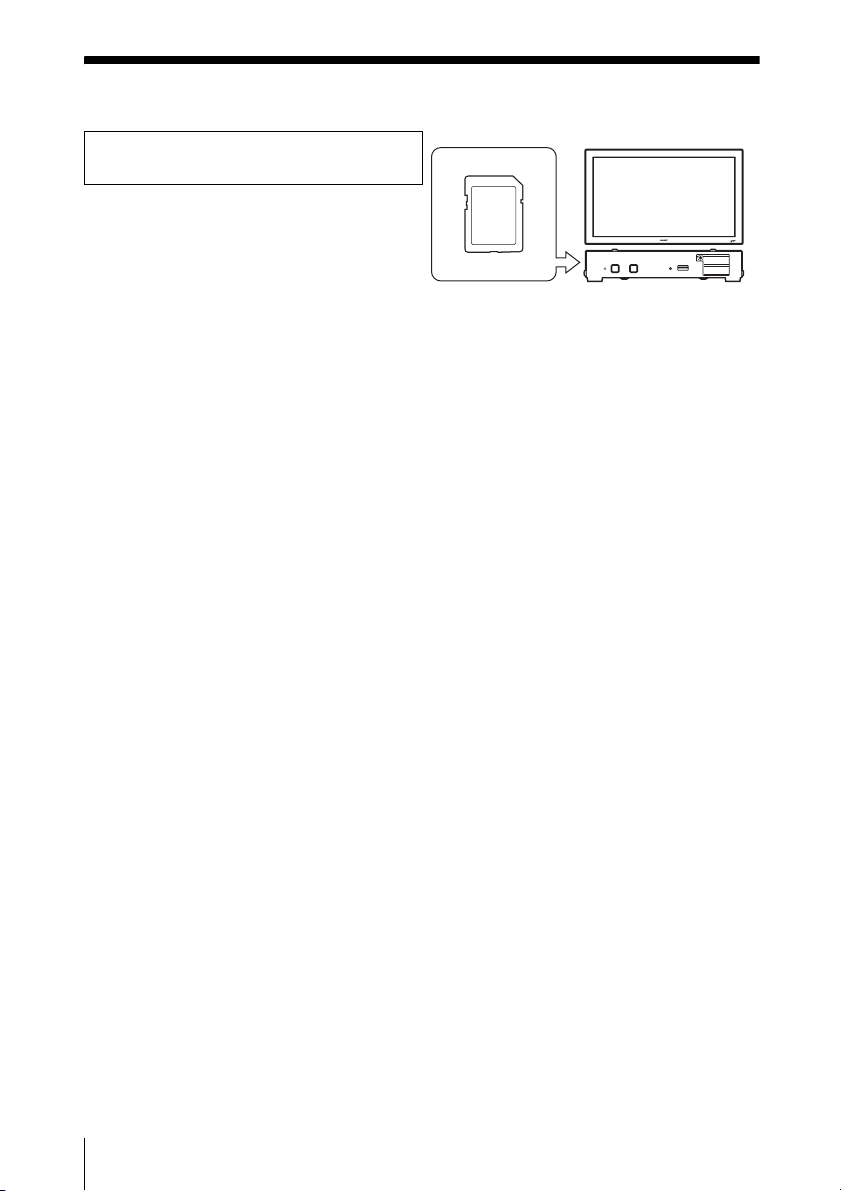

4Uses for the Digital Signage Player
Uses for the Digital Signage Player
Simply insert an SDHC Memory Card into
the player to playout the content.
,This manual “Playing Content”
“Copying Content”
• To control the playout of content on an SDHC Memory Card from a computer, see “Using
the Signage Web Manager.”
To quickly get started with digital
signage

5
Table of Contents
Table of Contents
Uses for the Digital Signage Player ........ 4
Precautions ............................................... 6
About This Manual ................................... 7
Names and Functions of Parts and
Controls ................................................. 8
Front ............................................................. 8
Rear .............................................................. 9
Playing Content ...................................... 10
Copying Content .................................... 10
Preparations for Using the Network
Functions ............................................. 11
Assigning a Fixed IP Address to the
VSP-BZ10 ...................................... 11
Automatically Obtaining the
IP Addresses ................................... 12

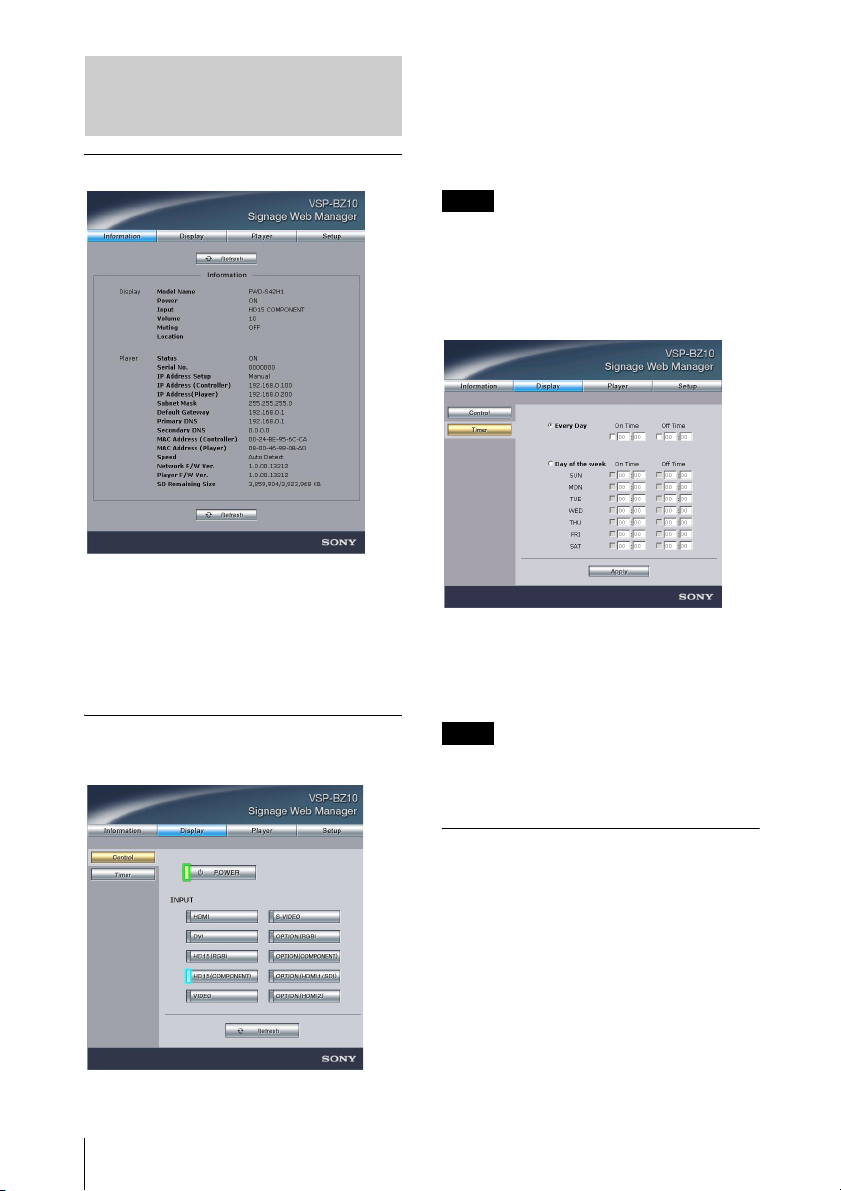

Using the Signage Web Manager ......... 13
Configuring Content Playout Settings ....... 13
Configuring Status Display, Control, and
Setup for the Display and Player .... 18
Returning to Default Settings .................... 21
Other Information ................................... 22
Compatible Media and File Formats ......... 22
List of Compatible Playout Formats .......... 22
List of Media Directories ........................... 23

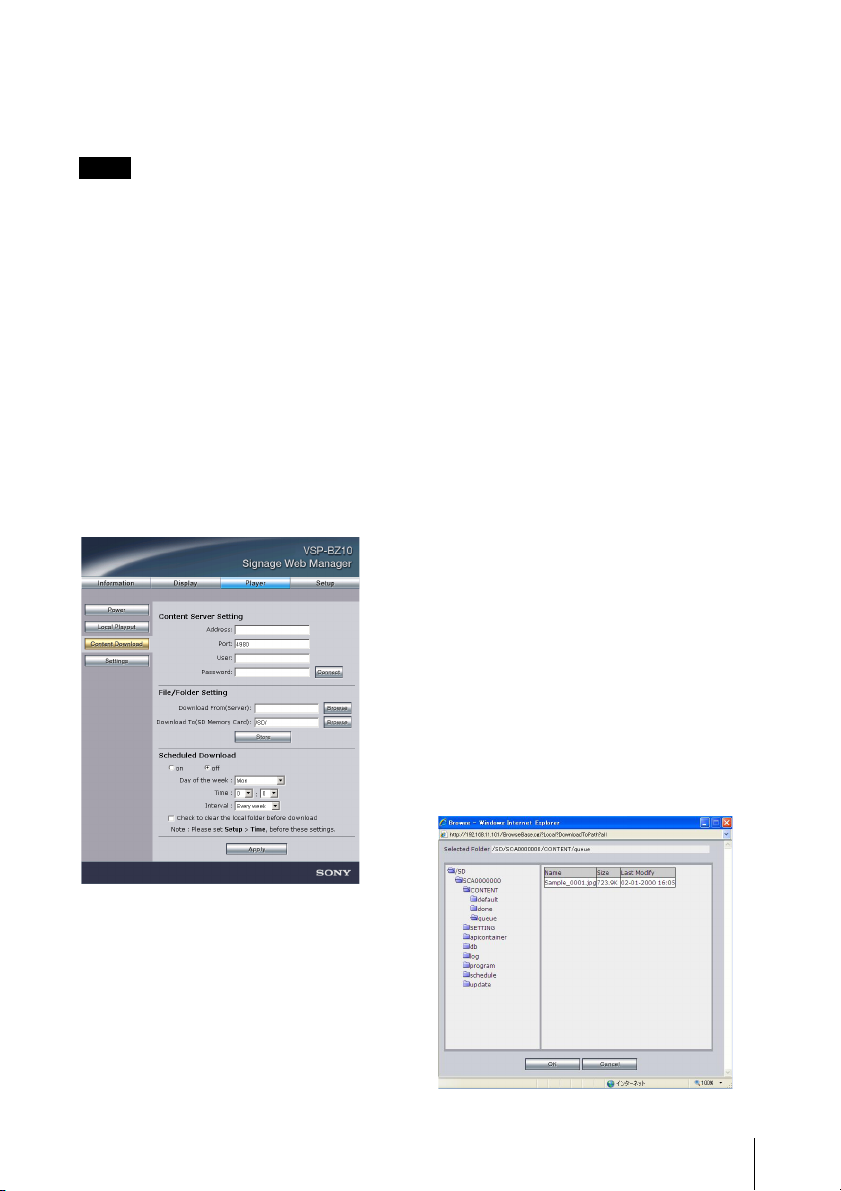

Configuring the Content Server ................. 24
List of Network Ports Used ....................... 25
Troubleshooting ..................................... 28
List of Error Codes .................................... 28
Specifications ......................................... 38

6Precautions
Precautions
• The specifications of this player are
subject to change for improvements
without notice.
• Screens shown by application software
may differ slightly from the illustrations
shown in this manual.
• For safety, connect the port of this player
only to a network where there is no danger
of excessive voltage or voltage surges.
• The steps described in this manual are
guaranteed only for use under the
following environment conditions.
Operating system:
– Windows XP Professional Service Pack
3 (32-bit) Japanese/English edition
– Windows Vista Business Service Pack 2
(32-bit/64-bit) Japanese/English edition
– Windows 7 Professional Service Pack 1
(32-bit/64-bit) Japanese/English edition
Browser:
Microsoft Internet Explorer 7.0, 8.0
Web server:
– Apache HTTP Server 2.2.17
– Microsoft Internet Information Services
7.5
• This player supports only SDHC Memory
Cards that are formatted with FAT32 file
systems.
• When the ACCESS indicator is lit or
flashing green, the player is reading or
writing data. Ejecting a USB flash drive
while it is being accessed may result in
damage to data or damage to the USB
flash drive.
• When you remove or insert an SDHC
Memory Card, make sure that the power
cord is disconnected.
• To ensure security on the network, setting
a user name and password is
recommended. For information on how to
make these settings, see “Setup screen” in
the “Using the Signage Web Manager”
section.
• Operations that can be performed via a
browser are functions of Signage Web
Manager.
• The current date and time must be set on
the player beforehand. You can use one of
the following two methods to perform the
configuration.
– Configure the NTP server and time
zone settings in the Signage Web
Manager.
cFor details on configuration, see
the “NTP Server” and “Time
Zone” settings under the
“Settings” section of “Player
screen” in the “Using the Signage
Web Manager” section.
– Configure the date and time settings in
the Signage Web Manager.
cFor details on configuration, see
the “Time” setting under the
“Setup screen” section in the
“Using the Signage Web
Manager” section.
• Microsoft, Windows, Windows Vista and Internet Explorer are registered trademarks of
Microsoft Corporation in the United States and other countries.
• The SD logo is a trademark.
• The SDHC logo is a trademark.
• All other product names, company names, etc. mentioned in this manual are trademarks or
registered trademarks of their respective owners.

7
About This Manual
About This Manual
This manual describes use and operation of
the VSP-BZ10 when it is connected to a flat
panel display.
For information on connecting the player,
refer to the Installation Manual supplied
with the player.
For information on supported media (SDHC
Memory Cards and USB flash drives), refer
to the supplied Media List document or the
Media List file (Media_List.pdf) on the CD-
ROM (Software & Manuals for Digital
Signage Player).

8Names and Functions of Parts and Controls
Names and Functions of Parts and Controls
aStandby indicator
This indicator lights or flashes in the
following colors in accordance with the state
of the player.
b1(standby) button
Hold this button for at least three seconds to
set the player to the standby state. Press the
button again to start the player.
cINFO button
Displays the firmware version, IP address,
current time, and serial number on the
display.
Press the INFO button when the standby
indicator is lit green.
dACCESS indicator
This indicator lights green when the USB
flash drive is being accessed.
e(USB) port
When sending data from a USB flash drive
using the Signage Player Management
Software, insert the USB flash drive here.
fSDHC Memory Card slot
Accepts SDHC Memory Cards.
Before inserting an SDHC Memory Card,
make sure to see “Precautions” on page 6.
This is referred to as the “memory card slot”
in this document.
Front
Indicator state Meaning
Lit orange Powering on
Flashing red Entering the standby state
after powering on
Lit red Currently in the standby
state
Flashing green Readying player operation,
or entering the standby
state from an operating
state
Lit green Player is operating

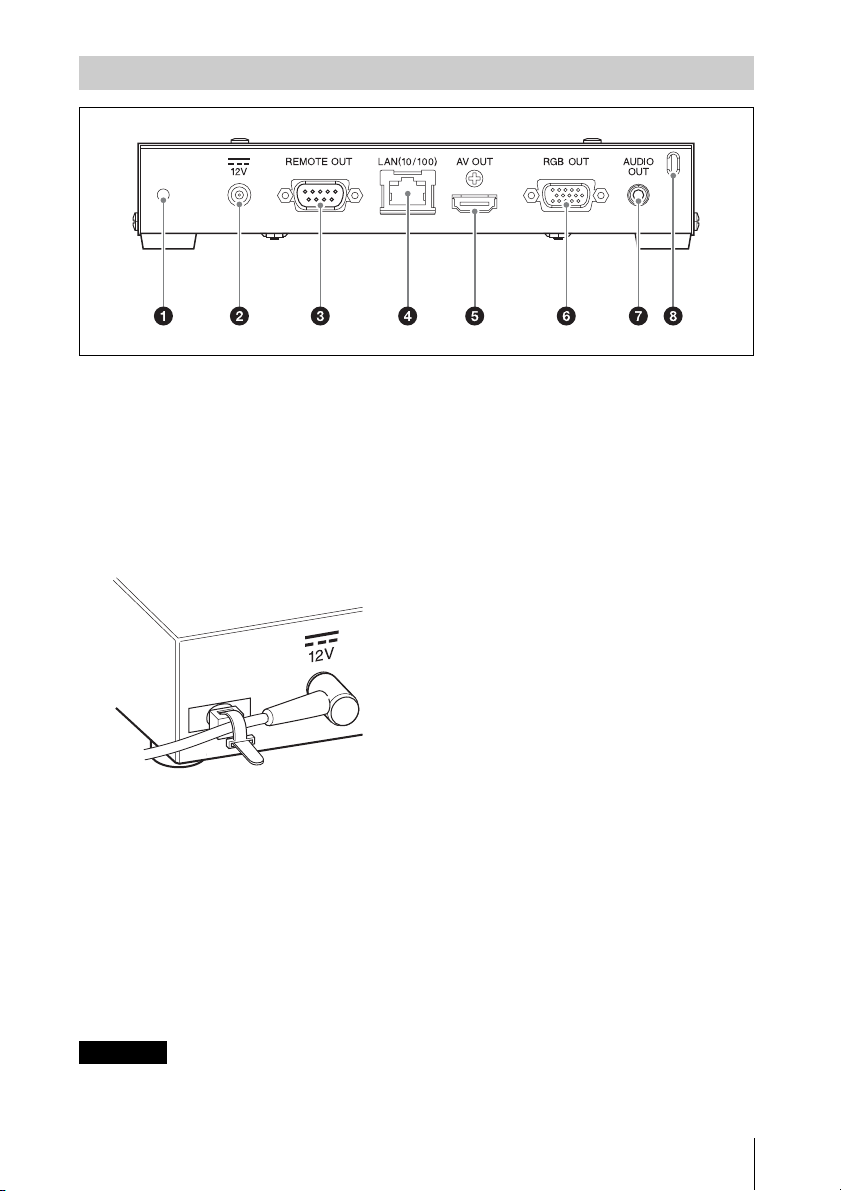

9
Names and Functions of Parts and Controls
aCable tie holder attachment hole
Attach the cable tie holder here when you
want to secure the power cord, HDMI cable,
and other cables to the player. Attach a
commercially available cable tie as
illustrated, and secure it to the cable tie
holder.
Use a cable tie that is 1.9 mm or less in
thickness, and 3.8 mm or less in width.
b12V connector
Connects to a power cord.
cREMOTE OUT connector
Connects to a display with RS-232C
interface via an RS-232C cable.
dLAN (10/100) (network) connector
(10BASE-T/100BASE-TX)
Connects the player to a network via a
10BASE-T/100BASE-TX LAN cable.
For safety, do not connect the connector for
peripheral device wiring that might have
excessive voltage to this port. Follow the
instructions for this port.
eAV OUT connector
Connects to a display via an HDMI cable.
fRGB OUT (analog) connector
Connects to a display via an RGB cable.
gAUDIO OUT connector
Connects to audio equipment via a stereo
mini plug cable.
hSecurity slot
Attach a commercially available security
cable here.
For details on how to use security cable,
refer to the operating instructions supplied
with the security cable.
Rear
CAUTION

10 Playing Content / Copying Content
Playing Content
Content such as still images, video, and
audio from an SDHC Memory Card can be
played on the display simply by inserting the
card into the memory card slot on the
VSP-BZ10.
To make advanced settings for content
playout, see “Using the Signage Web
Manager.”
Content stored on a USB flash drive cannot be
played.
1Insert an SDHC Memory Card into the
player.
2Connect the power cord.
By default, playout of the content stored
on the SDHC Memory Card starts
automatically once the player starts up.
About playout order
The VSP-BZ10 searches the data on the
SDHC Memory Card, and plays files
compatible with the player in ASCII code
order. When content is stored in folders,
playout of folders is also according to ASCII
code order.
• We recommend using ASCII characters
when naming folders and files.
• Before inserting and removing SDHC
Memory Cards, be sure to read the
“Precautions” section.
Copying Content
The VSP-BZ10 uses an SDHC Memory
Card as the recording media for playout
content. Content can be copied from a
computer onto an SDHC Memory Card.
To save content stored on a computer to the
SDHC Memory Card used with the player,
we recommend creating folders and saving
content on the SDHC Memory Card. You
can use any name when creating the folders.
1Use a new SDHC Memory Card, or
eject the SDHC Memory Card in the
player, and insert it into the memory
card slot on the computer.
2Save the desired content to the SDHC
Memory Card.
When creating subfolders within the
SDHC Memory Card, make sure to
create no more than 32 folder sublevels.
3Insert the SDHC Memory Card on
which the content was copied into the
unit.
The SCAnnnnnnn folder (where “nnnnnnn” is
the serial number of the player) is
automatically created on any SDHC Memory
Card that has been inserted in the player. Make
sure not to delete this folder.
Note
Notes
Note

11
Preparations for Using the Network Functions
Preparations for
Using the Network
Functions
The VSP-BZ10 can be connected to a
network. When connected to a network, the
IP addresses of the VSP-BZ10 can be set
using one of the following two methods.
Consult your network administrator
regarding details about IP address selection.
• Assigning a fixed IP address to the
VSP-BZ10
Normally this method should be used.
• Automatically obtaining an IP
address
If the network to which the VSP-BZ10 is
connected has a DHCP server, you can
have the DHCP server automatically
assign an IP address.
You can display the IP addresses that were
assigned by pressing the INFO button.
The VSP-BZ10 requires two IP addresses:
IP Address 1 (Controller), for the Signage
Web Manager, and IP Address 2 (Player),
for the content playout function.
Under factory default settings, IP addresses
1 and 2 are set to be automatically assigned
by DHCP.
If you want to restore the default conditions
after changing the DHCP and IP address
settings, reset the player settings.
Setting IP Address 1 (Controller)
for the Signage Web Manager
First, assign IP Address 1. The IP address
assigned in this procedure is used for calling
the Signage Web Manager from a computer
on the network.
1Connect the player and computer to a
network.
2Connect the power cord, and wait for
about three minutes.
Depending on the network environment,
you may have to wait longer than three
minutes.
3Start the browser of the computer.
4Enter “ xxx.xxx.xxx.xxx (IP
Address 1 (Controller))” into the
address field, and press the Enter key
on the keyboard.
You can check the configured IP address
by pressing the INFO button on the player.
5Click the “Setup” tab.
The “Setup” screen appears. This screen
lets you set up the Network Password.
For details, see “Setup screen” in the
“Using the Signage Web Manager”
section.
6Click the “Network” button.
7Under “Internet Protocol (TCP/IP),”
click “Specify IP addresses.” Then
enter the IP Address 1 in the “IP
Address 1” input fields.
8Click the “Apply” button.
If you change IP Address 1, an error will
appear in the browser. Enter the newly
assigned IP Address 1 into the browser’s
address field.
Next, assign IP Address 2.
Setting IP Address 2 (Player) for
the content playout function
1Start the browser of the computer.
2Enter “ xxx.xxx.xxx.xxx (IP
Address 1 (Controller))” into the
address field, and press the Enter key
on the keyboard.
Assigning a Fixed IP Address
to the VSP-BZ10
Tip

12 Preparations for Using the Network Functions
3Click the “Setup” tab.
The “Setup” screen appears. This screen
lets you set up the Network Password.
For details, see “Setup screen” in the
“Using the Signage Web Manager”
section.
4Click the “Network” button.
5Under “Internet Protocol (TCP/IP),”
click “Specify IP addresses.” Then
enter the IP Address 2 in the “IP
Address 2” input fields.
6Click the “Apply” button.
If you set up the player as described below,
an IP address can be assigned automatically
by a DHCP server on the network.
1Connect the player and computer to a
network.
2Connect the power cord, and wait for
about three minutes.
Depending on the network environment,
you may have to wait longer than three
minutes.
3Start the browser of the computer.
4Enter “ xxx.xxx.xxx.xxx (IP
Address 1 (Controller))” into the
address field, and press the Enter key
on the keyboard.
You can check the configured IP address
by pressing the INFO button on the player.
5Click the “Setup” tab.
The “Setup” screen appears. This screen
lets you set up the Network Password.
For details, see “Setup screen” in the
“Using the Signage Web Manager”
section.
6Click the “Network” button.
7Under “Internet Protocol (TCP/IP),”
click “Obtain IP addresses
automatically (DHCP).”
8Click the “Apply” button.
Depending on your router, the IP address may
not be obtained correctly. (In this case, the
Auto IP Address is set in IP Address 1. An
Auto IP Address is an IP address assigned to a
device automatically so as not to overlap with
those of other devices on networks without a
DHCP server.) Confirm the specifications and
operations of the router before use.
Checking the automatically
assigned IP address
When an IP address has been automatically
assigned, you can call up the Signage Web
Manager as follows and check which IP
address has been assigned. The IP address
may change each time the player is turned
on. Therefore you must check the IP address
as described here every time you turn the
player off and on again.
1Connect the player to the display.
2Press the 1button, and press the
INFO button after the player starts up.
3Check the IP address that is displayed
in the dialog box on the display.
Automatically Obtaining the
IP Addresses
Tip
Note

13
Using the Signage Web Manager
Using the Signage
Web Manager
Make sure that the VSP-BZ10 is properly
connected to the display, and that the
VSP-BZ10, the computer, and the router or
hub are properly connected with network
cables. Then turn on power to the display,
the computer, and the router or hub. The
Signage Web Manager functions are divided
by tab.
1Start the browser of the computer.
2Enter “ xxx.xxx.xxx.xxx (IP
Address 1 (Controller))” into the
address field, and press the Enter key
on the keyboard.
3Click the function tab at the top of the
screen and select the desired screen.
Do not access the Signage Web Manager
(identical IP Address 1) from multiple
computers.
Player screen
This screen lets you make settings for
content playout.
POWER
POWER
Switches the Player on or off.
Refresh
Updates the screen with the latest
information.
Local Playout
This screen lets you make display settings
for playout of content stored on an SDHC
Memory Card inserted in the memory card
slot on the player.
Note
Configuring Content Playout
Settings

14 Using the Signage Web Manager
A maximum of 1,000 files can be played with
Local Playout. Each file can be no larger than
2 GB in size. If a folder containing more than
1,000 files is specified, content will not
playout.
Play
Starts playout of the selected content or of
the content files in the folder specified in
“Play file/folder name.” The “Play” button
lights green during playout. However, the
light does not turn off automatically when
content playout ends. If you want to play
content again, click the “Stop” button before
clicking the “Play” button again.
The “Play” button is disabled during content
download.
Stop
Stops content playout that was initiated by
clicking the “Play” button.
Play file/folder name
Specifies the playout location for content
files stored on an SDHC Memory Card
inserted in the memory card slot on the
player. You can either enter the location in
the text box or click the “Browse” button
and select the file or folder location on the
screen that appears. If a folder is specified,
the content in any subfolders is also played.
Only still images and videos can be
specified. If a folder containing more than
1,000 files is specified with the “Browse”
button, only 1,000 files will be displayed in
the list, and an error code will appear at the
bottom right.
Always include a slash (/) at the end of a
folder location specification.
Names that are identical to file names that
exist in the folder cannot be used for the
folder name.
Files are played in ASCII code order. We
recommend using ASCII characters when
naming files and folders.
Recognition of file names and folder names is
guaranteed for ASCII characters only.
Repeat
Select this check box to repeatedly play the
content specified in “Play file/folder name.”
Auto Start
This setting specifies whether content
playout should start automatically when you
connect the power cord. In combination with
the ON timer of the display, this also allows
automatic playout at a scheduled time.
To enable the function, select this check box.
Content files stored on an SDHC Memory
Card inserted in the memory card slot on the
player will play automatically.
Still Image Duration
Specifies the time interval before switching
to the next content.
This setting is active only for still images;
the playout duration takes priority for video.
Audio
Lets you specify audio (background music)
to be played during content playout. Only
music files (or folders containing music
files) stored on an SDHC Memory Card
inserted in the memory card slot on the
player can be used for this function. If a
folder is specified, the music files stored in
any subfolders are also played.
You can either enter the file name in the text
box, or enter the folder name, click the
“Browse” button, and specify the file on the
screen that appears. Audio is automatically
played in repeat mode. You can leave “Play
file/folder name” blank to play only audio
content.
The display will remain black during audio-
only playout from the player.
If a folder containing more than 1,000 files is
specified with the “Browse” button, only
1,000 files will be displayed in the list, and
an error code will appear at the bottom right.
Always include a slash (/) at the end of a
folder location specification.
Names that are identical to file names that
exist in the folder cannot be used for the
folder name.
Check to use background music during
video playback (video audio will be
muted)
When this check box is selected, audio
(background music) will be applied during
sequential playout to any existing video
files, and the original audio included in the
video files will be muted.
Note
Note

15
Using the Signage Web Manager
Audio (background music) is also applied
when this check box is selected and audio
(background music) is specified for video
files that do not include audio.
When a folder has been specified, pay careful
attention to the following points.
• A maximum of 1,000 files can be played.
Each file can be no larger than 2 GB in size.
If a folder containing more than 1,000 files is
specified, content will not playout. If a folder
that consists of 33 levels of subfolders or
more is specified, content will not playout.
• Files are played in ASCII code order. We
recommend using ASCII characters when
naming files and folders.
Recognition of file names and folder names
is guaranteed for ASCII characters only.
Apply
Saves the settings made on this screen.
Content Download
Content Server Setting
Lets you download content stored on the
Web/HTTP server and save it to an SDHC
Memory Card inserted in the memory card
slot on the player.
A maximum of 1,000 files can be
downloaded. Each file can be no larger than
2 GB in size. If a folder that consists of 33
levels of subfolders or more is specified,
download is disabled.
Address
Enter the address of the Web/HTTP server.
Be sure to include “http://” at the beginning
of the Web/HTTP server address.
Example: http://192.168.0.11
Port
Enter the port number of the Web/HTTP
server.
User
When accessing the Web/HTTP server,
enter the user name required for
authorization if necessary.
Password
When accessing the Web/HTTP server,
enter the password required for
authorization if necessary.
File/Folder Setting
Specifies the download source and save
location for the content files on the Web/
HTTP server specified in the “Address”
field.
Download From (Server)
You can either enter the location in the text
box or click the “Browse” button and select
the file or folder location on the screen that
appears. If a folder containing more than
1,000 files is specified with the “Browse”
button, only 1,000 files will be displayed in
the list, and an error code will appear at the
bottom right.
Always include a slash (/) at the end of a
folder location specification.
Names that are identical to file names that
exist in the folder cannot be used for the
folder name.
Note

16 Using the Signage Web Manager
If an “index.html” file is stored in the folder,
other files and folders contained in the folder
are not displayed. Folders with names that end
in number signs (#) or tildes (~) are not
displayed.
Download To (SD Memory Card)
Specifies the save location on the SDHC
Memory Card inserted in the memory card
slot on the player.
You can either enter the location in the text
box or click the “Browse” button and select
the file or folder location on the screen that
appears. If a folder containing more than
1,000 files is specified with the “Browse”
button, only 1,000 files will be displayed in
the list, and an error code will appear at the
bottom right.
Always include a slash (/) at the end of a
folder location specification.
Names that are identical to file names that
exist in the folder cannot be used for the
folder name.
Store
Starts content download.
As the “Store” button is disabled during
content playout, stop playout before
performing this operation.
Scheduled Download
This function lets you periodically download
content files from a Web/HTTP server to an
SDHC Memory Card inserted in the player.
You can select the day of the week, the time,
and the interval for downloads.
Content playout will be stopped during
scheduled downloads.
Check to clear the local folder before
download
When you select this check box, all files in
the folder on the SDHC Memory Card
(specified in “Download To (SD Memory
Card)”) are deleted before downloading
starts from the Web/HTTP server. When this
check box is not selected, any files on the
SDHC Memory Card with the same name as
content downloaded from the Web/HTTP
server will be overwritten.
• Before setting the “Scheduled Download”
function, make sure to configure the time
setting on the Setup screen.
• Do not turn off the power to the player while
a file is in the process of being downloaded.
Doing so may prevent the file from
downloading properly.
• When there is no space left on the SDHC
Memory Card, an error will occur in the
Scheduled Download function, and
automatic downloading of new content will
stop. For more on how to display errors, see
“Display Message” in the “Player screen”
section and “Mail Report” in the “Setup
screen” section.
Settings
Play Select
Lets you select a playout method.
• Local Playout
This method plays content on an SDHC
Memory Card using the Signage Web
Manager.
Note Notes

17
Using the Signage Web Manager
• Scheduled Local Playout
This method is used when using external
software to operate the player.
Start Screen
Lets you select a landscape or portrait
orientation for the player startup screen
display.
Display Message
Display (Info only)
Status information appears on the display
when a USB flash drive is connected.
Off
Status information does not appear on the
display.
USB Port Activate
Lets you set whether or not the player
recognizes a USB flash drive when one is
plugged into the player.
Note that when this option is set to Off, no
USB flash drives will be recognized.
Proxy Server
Lets you set a proxy server for the player to
access.
Address
Enter the proxy server address as eight
digits or as an address beginning with “http.”
Port
Enter the port number of the proxy server.
User
Enter the user name that allows access to
the proxy server.
Password
Enter the password required for
authorization by the proxy server, if
necessary.
Connect
Click this button to communicate with the
proxy server.
A dialog box appears while connecting
which allows you to check the connection
status.
Player Access
This is intended for use by service
representatives.
NTP Server
Lets you set an NTP server for the player to
access.
Be sure to restart the player after changing
these settings.
Address
Enter the NTP server address as eight
digits or as an address beginning with
“http.”
Interval
Enter the interval, in minutes, at which to
perform time synchronization with the
NTP server.
Time Zone
Lets you set the time zone for the player.
Use the drop-down box to select the time
zone of the region where the player is
installed.
Daylight Saving Time
Lets you select whether to use Daylight
Saving Time (On), or not (Off).
Daylight Saving Time will only be applied
to the player’s clock setting.
Connect
Click this button to start communication
with the NTP server. A dialog box appears
while connecting which allows you to
check the connection status.
Playout Mode
Lets you select the output mode.
You can select from HDMI Auto, HD15
1080p60, HD15 1080p50, HD15 720p60, or
HD15 720p50.

18 Using the Signage Web Manager
Information screen
This screen shows the model name, serial
number, and other display and player
information, as well as the power status and
the input signal selection.
The screen is for information only. There are
no items that can be set.
Display screen
Control
POWER
Switches the display on or off.
INPUT
Lets you select the input signal.
Refresh
Updates the screen with the latest
information.
For information on display models with power
control functions, refer to the specification
document on the CD-ROM (Software &
Manuals for Digital Signage Player).
Timer
Timer
Lets you make settings for the timer
function.
Click the “Apply” button when done.
Before setting the “Timer” function, make sure
to configure the time setting on the Setup
screen.
Setup screen
The “Setup” screen appears. This screen lets
you set up the Network Password. The
factory default settings are as follows:
Name: root
Password: bz10ad
After you have made any changes or entered
information, click the “Apply” button at the
bottom of each screen to enable the settings.
Special characters cannot be used in the text
fields.
To prevent access to the player from the
Signage Player Management Software, we
recommend changing not only these settings
Configuring Status Display,
Control, and Setup for the
Display and Player
Note
Note

19
Using the Signage Web Manager
but also the Player Access user ID and
password on the Player screen.
Owner Information
Owner
Enter owner information here.
Display
Enter information about the display
installation location here.
Do not use spaces when entering the
information. Doing so may cause the
information to display incorrectly.
Memo
You can enter auxiliary information here.
Time
Time
Set the current date and time.
Power
Turn on with Display
If the display has a power control function,
this links the power of the display with that
of the player.
Power on Playout
When you connect the power cord, the
player will automatically start up and be
ready to play without you having to press the
1button.
Network
Internet Protocol (TCP/IP)
Select “Specify IP addresses” to enter each
value in the IP address’ numeric string.
To acquire an IP address automatically from
the DHCP server, select “Obtain IP
addresses automatically (DHCP).” Note that
in this case the IP address will change every
time the VSP-BZ10 is turned on.
Note

20 Using the Signage Web Manager
The VSP-BZ10 requires a separate IP address
for the Signage Web Manager and the content
playout function. For details, see “Setting IP
Address 1 (Controller) for the Signage Web
Manager.”
Password
The administrator name and password
information can be set here. The default
administrator name is set to “root.” Once a
user name and password are set, the
“Network Password” screen appears
whenever the Signage Web Manager is
called up. To ensure security on the network,
we recommend setting a unique user name
and password.
Mail Report
When the “Email Address” field is set and
the check boxes that follow are selected, a
status report is sent by email (status
notification) whenever an error or other such
event occurs.
Address
Enter the target e-mail address here. Up to
four addresses can be specified, for
simultaneous sending of an error report.
Mail Account
Mail Address:
Enter the allocated e-mail address here.
Outgoing Mail Server (SMTP):
Enter the outgoing mail server address
here.
The default port number for the SMTP
server is 25.
If the default port number of the SMTP
server you are using is not 25, enter the
address as follows.
<mail server address>:<port number>
Example: 192.168.0.15:4649
Note
