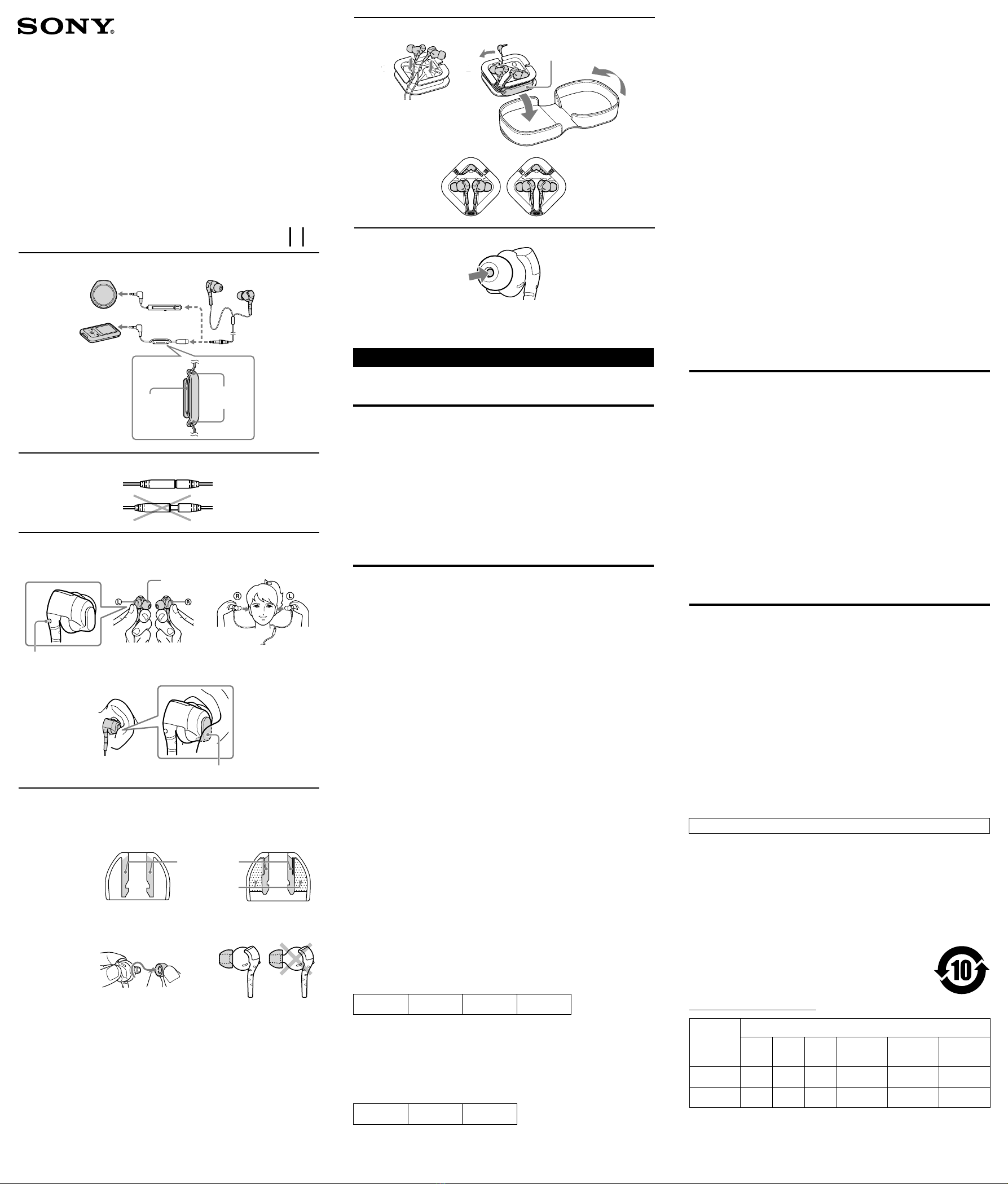

Sony MDR-EX510SL User manual

立体声耳机
Stereo
Headphones
MDR-EX510SL
4-260-425-21(1)
使用说明书
Operating Instructions
©2010
索尼公司 泰国印刷
Sony Corporation Printed in Thailand
简体中文
立体声耳机
操作本机之前，请仔细阅读本手册并妥善保管以备将来参考。
特点
13.5mm 动态类型驱动单元可再现生动、清晰的歌声和乐器声
多层膜片驱动单元可防止共振而实现高分辨率声音
特殊 ABS 塑料外罩可防止不必要的震动，从而确保了流畅的低音
响应以及清晰的中高频声音
手动调节声音
新研发的入耳式设计使佩戴更服贴
封闭型垂直入耳式耳机，佩戴舒适
4 种尺寸混合硅胶耳塞，适合长时间稳固舒适佩戴（SS，S，M，L）
3 种尺寸噪音隔离耳塞，实现环境噪音的有效衰减（S，M，L）
随机提供真皮携带盒
附带使用方便的导线长度调节器
如何使用
如何使用附带的导线长度调节器（见图 ）
您可通过将导线卷绕到导线长度调节器来调节导线长度。
（导线最多可绕到导线长度调节器上达 50cm。如果在达到最大长度
下继续卷绕，则导线会很容易从导线长度调节器中滑出。）
1卷绕导线。
2将导线推入槽孔以固定到位。
注意
请勿卷绕插头或导线的分叉部分，否则可能会拉伤导线并造成线芯
断裂。
如何使用延长线（见图 ）
将立体声迷你插头完全插入插孔，并听见咔哒声。
佩戴耳机（见图 ）
1确定左右耳机，并如图所示拿着。
标有 的耳机上有一个触觉点，表示左边。
2如图所示，将耳机舒适地塞入您的耳朵。
3调整耳机使其舒适地贴合您的耳朵。
提示
入耳式设计采用柔韧的热塑性弹性体，可贴合耳道。如果不稳固，
请调节其位置。
正确安装耳塞（见图）
如果耳塞不适合您的耳朵，则可能听不到低音。为了欣赏更佳音质，
请更换耳塞尺寸或类型，或调节耳塞位置以舒适贴合您的耳朵。如
果耳塞不适合您的耳朵，请尝试其他尺寸或类型的耳塞。通过查看
内部颜色确认耳塞尺寸（混合硅胶耳塞见图-，噪音隔离耳塞
见图-）。
更换耳塞时，请将其牢牢安装在耳机上，以防止耳塞脱落在您耳朵内。
关于混合硅胶耳塞（见图-）
耳塞尺寸（内部颜色）
小  大
SS（红色） S（橙色） M（绿色） L（浅蓝色）
清洁混合硅胶耳塞
从耳机上拆下耳塞，用中性清洁剂溶液清洗。
关于噪音隔离耳塞（见图-）
附带的噪音隔离耳塞紧贴耳朵并有效减少环境噪音。
耳塞尺寸（内部颜色）
小  大
S（橙色） M（绿色） L（浅蓝色）
注意
长时间使用噪音隔离耳塞可能会因为其紧贴耳朵而使耳朵受伤。如
果您的耳朵感到不适或疼痛，请停止继续使用。
ForChinaMarketOnly:
制造商 : 索尼公司
地址 : 日本国东京都港区港南 1-7-1
总经销商 :索尼（中国）有限公司
地址 : 北京市朝阳区东三环北路霞光里 18 号佳程
大厦A座25层
原产地 : 泰国
出版日期 :2010 年 8 月
产品中有毒有害物质或元素的名称及含量
使用环境条件：5 度-35 度 （∶不含有，× ∶含有）
部件名称
有毒有害物质或元素
铅
（Pb）
汞
（Hg）
镉
（Cd）
六价铬
（Cr（VI））
多溴联苯
（PBB）
多溴二苯
醚（PBDE）
外壳 ×     
附件 ×     
：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T11363-2006标准规定的限量要求以下。
×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超
出SJ/T11363-2006标准规定的限量要求。
氨基甲酸酯释压衬垫非常柔软。因此，请勿捏拉氨基甲酸酯衬垫。
如果氨基甲酸酯衬垫破损或从耳塞上脱落，则耳塞位置会不正确并
失去噪音隔离功能。
氨基甲酸酯衬垫可能由于长期存放或使用而老化。如果没有释压能
力且氨基甲酸酯衬垫变硬，则耳塞可能失去噪音隔离功能。
请勿清洗噪音隔离耳塞。使耳塞保持干燥，避免氨基甲酸酯释压衬
垫积水。否则可能会导致过早老化。
取下耳塞（见图 -）
握住耳机的同时，转动耳塞内侧部件将其拔下。
提示
如果耳塞较滑无法拆下，请用柔软干布将其包住。
装上耳塞（见图 -）
将耳塞内侧部件推入耳机，直至完全盖住耳机的突出部分。
如何携带耳机（见图）
使用导线滑动器捆绑导线。
1将耳机放入内盒。
2
将导线绕在内盒的周围并放入插头，然后将内盒放入携带盒。
注意
请勿在未卷绕导线的情况下强行关闭携带盒。否则，导线可能损坏。
关于携带盒的注意事项
-携带盒由天然材料制成，其颜色可能会由于发油或润肤油而褪
色，也可能着色于其他材料。另外，皮革的样式和颜色可能会有
所不同。
-请勿使用酒精、苯或稀释剂，因为可能会损坏携带盒。
-如果携带盒被弄湿，请用干毛巾擦拭，否则可能会褪色。
-请勿将携带盒放在易受阳光直射的地方，例如车内。
规格
类型： 封闭式，动态
驱动单元： 13.5 mm，圆顶型（采用 CCAW）
功率处理容量： 200 mW（IEC*）
阻抗： 1kHz时16Ω
灵敏度： 106 dB/mW
频率响应： 5 – 27000 Hz
导线： 0.6 m，OFC 颈链式绞合线
插头： 镀金立体声迷你插头
质量： 约 7 g 不包括导线
附件
混合硅胶耳塞（SS(2)，S(2)，M(2)，L(2)）/噪音隔离耳塞（S
(2)，M(2)，L(2)）/携带盒(1)/导线长度调节器(1)/延长
线（90cm，镀金立体声迷你插孔镀金L形立体声迷你插头）(1)
/使用说明书(1)
*IEC=国际电工委员会
设计和规格如有变更，恕不另行通知。
注意事项
请始终保持耳机清洁，尤其是橡胶耳塞内部（见图 ）。
如果灰尘或耳垢进入耳塞，聆听效果可能不佳。
戴着耳机以高音量收听可能会影响您的听力。为了交通安全，请
勿在驾车或骑车时使用。
请小心操作驱动单元。
请勿在耳机上放置重物或对其施加压力，否则在长期存放过程中
可能会造成耳机变形。
耳塞可能会由于长期存放或使用而老化。
将耳塞牢固安装在耳机上。如果耳塞意外脱落在您的耳内，可能
会造成伤害。
请将耳塞存放在儿童无法拿到的地方，以免意外吞入或窒息。
静电注意事项
在特别干燥的空气条件下，耳朵可能会感到轻微刺痛。这是由于体
内积聚的静电所致，而非耳机故障。穿着天然材料制成的衣服可将
此影响减到最少。
您最近的 Sony 代理商能提供选配的替换耳塞。

12


1
耳塞
触觉点
2
3
入耳式设计

 
截面图 涂色部分
氨基甲酸酯
释压衬垫
 

12
导线长度调节器



12


1
Earbud
Tactile dot
2
3
Stay-in design

 
Sectional View Coloured parts
Pressure-relieving
urethane cushion
 

12
Cord adjuster


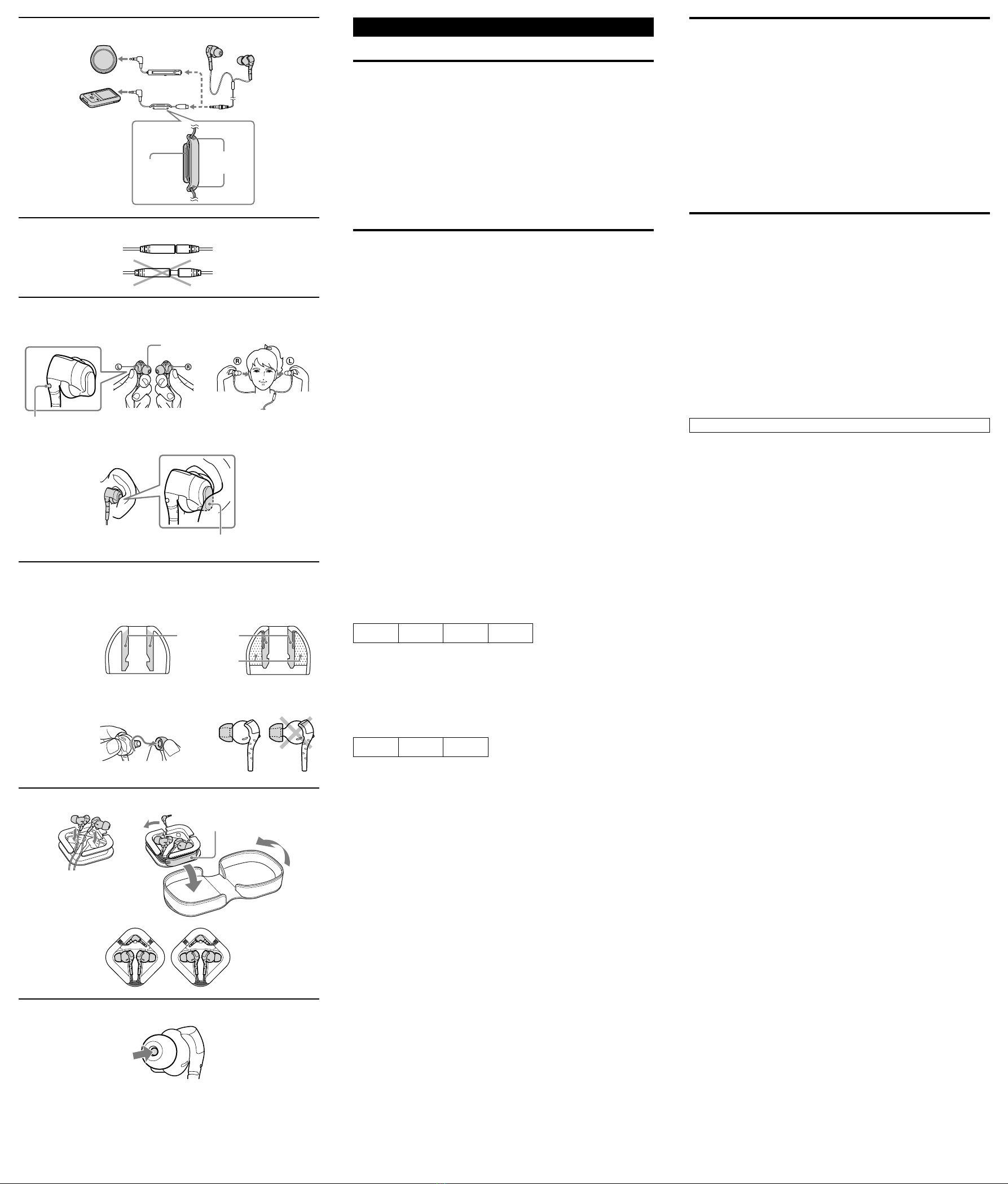

English
Stereo headphones
Features
13.5mm dynamic type driver units reproduce vocal and instrumental sound with vivid
clarity
Multiple Layer diaphragm for the driver unit prevents resonance for high-resolution
sound
Special ABS plastic housing to prevent unnecessary vibration for smooth bass response
and clear mid-high range sound
Acoustically adjusted by hand
Newly developed stay-in design for a more secure fit
Closed type vertical in-the-ear headphones for wearing comfort
4 sizes of hybrid silicone rubber earbuds for secure fit and long-term wearing comfort
(SS, S, M, L)
3 sizes of noise isolation earbuds for effective attenuation of ambient noise (S, M, L)
Genuine leather carrying case supplied
Convenient cord adjuster supplied
How to use
Using the supplied cord adjuster (see fig. )
You can adjust the cord length by winding the cord on the cord adjuster.
(The cord can be wound to the cord adjuster up to 50 cm. If you wind more, the cord
comes off from the cord adjuster easily.)
1 Wind the cord.
2 Push cord into slot hole to secure in place.
Note
Do not wind the plug or split section of the cord, as it will strain the cord and may cause a wire break.
Using the extension cord (see fig. )
Insert the stereo mini plug fully into the jack until you hear a click.
Wearing the headphones (see fig. )
1 Determine right and left headphone and hold them as in the illustration.
There is a tactile dot on the unit marked to distinguish the left side.
2 Fit the headphones into your ears snugly, as in the illustration.
3 Adjust the headphone to fit snugly in your ear.
Tip
The stay-in design uses a thermoplastic elastomer that is pliable to fit the hollow of your
ear. If it does not stabilize, adjust its position.
Installing the earbuds correctly (see fig. )
If the earbuds do not fit your ears correctly, low-bass sound may not be heard. To enjoy
better sound quality, change the earbuds to another size or type, or adjust the earbuds
position to sit on your ears comfortably and fit your ears snugly. If the earbuds do not fit
your ears, try another size or type. Confirm the size of the earbuds by checking the
colour inside (see fig. -for hybrid silicone rubber earbuds and -for noise
isolation earbuds).
When you change the earbuds, install them firmly on the headphones to prevent the
earbud from detaching and remaining in your ear.
About hybrid silicone rubber earbuds (see fig. -)
Earbud sizes (inside colour)
Small
Large 
SS
(Red)
S
(Orange)
M
(Green)
L
(Light blue)
To clean the hybrid silicone rubber earbuds
Remove the earbuds from the headphones, and wash them with a mild detergent
solution.
About noise isolation earbuds (see fig. -)
Supplied noise isolation earbuds provides a snug fit for effective attenuation of ambient
noise.
Earbud sizes (inside colour)
Small
Large 
S
(Orange)
M
(Green)
L
(Light blue)
Notes
Prolonged use of the noise isolation earbuds may strain your ears due to their snug fit. If you have
experience discomfort or pain in your ears, discontinue use.
The pressure-relieving urethane cushion is extremely soft. Therefore, do not pinch or pull the
urethane cushion. If the urethane cushion is broken or detached from the earbuds, it will not take its
correct position and the earbuds will lose their noise isolation function.
The pressure-relieving urethane cushion may deteriorate due to long-term storage or use. If the
pressure-relieving power is lost and the urethane cushion becomes hard, the earbuds may lose their
noise isolation function.
Do not wash the noise isolation earbuds. Keep them dry, and avoid accumulation of water in the
pressure-relieving urethane-cushions. Not doing so may cause early deterioration.
To detach an earbud (see fig. -)
While holding the headphone, twist the parts inside of the earbud and pull the earbud
off.
Tip
If the earbud slips and cannot be detached, wrap it in a dry soft cloth.
To attach an earbud (see fig. -)
Push the parts inside of the earbud into the headphone until the projecting part of the
headphone is fully covered.
Carrying the headphones (see fig. )
Bundle the cord first by using cord slider.
1 Place the headphones in the inner case.
2 Wind the cord around the side of the inner case and store the plug, and then
put the inner case in the carrying case.
Notes
Do not close the case forcibly without winding up the cord. Otherwise, the cord may break.
Caution regarding the carrying case
– The carrying case is made of natural materials and its colour may fade due to hair dressing or skin
oil, and could also cause stains to other materials. Also, the pattern and colour of the leather may
vary.
– Do not use alcohol, benzene, or thinner, as the carrying case may be damaged.
– Wipe the carrying case with a dry towel if it becomes wet, otherwise it may discolour.
– Do not leave the carrying case in a location subject to direct sunlight, such as in a car.
Specifications
Type: Closed, dynamic
Driver unit: 13.5 mm, dome type (CCAW adopted)
Power handling capacity: 200 mW (IEC*)
Impedance: 16 Ω at 1 kHz
Sensitivity: 106 dB/mW
Frequency response: 5 – 27,000 Hz
Cord: 0.6 m, OFC litz cord neck-chain
Plug: Gold-plated stereo mini plug
Mass: Approx. 7 g with out cord
Supplied accessories
Hybrid silicone rubber earbuds (SS (2), S (2), M (2), L (2)) / Noise isolation earbuds
(S (2), M (2), L (2)) / Carrying case (1) / Cord adjuster (1) / Extension cord (90 cm,
Gold-plated stereo mini jack Gold-plated L-type stereo mini plug) (1) /
Operating Instructions (1)
* IEC = International Electrotechnical Commission
Design and specifications are subject to change without notice.
Precautions
Please keep your headphones clean at all times especially inside the rubber earbud.
(see fig. )
If any dust or ear wax is inside the earbud, you may experience some listening
difficulties.
Listening with headphones at high volume may affect your hearing. For traffic safety,
do not use while driving or cycling.
Handle the driver units carefully.
Do not put weight or pressure on the headphones as it may cause the headphones to
deform during long storage.
The earbuds may deteriorate due to long-term storage or use.
Install the earbuds firmly onto the headphones. If an earbud accidentally detaches and
is left in your ear, it may cause injury.
Store the earbuds where children cannot reach in order to prevent from accidental
ingestion or choking.
Note on static electricity
In particularly dry air conditions, mild tingling may be felt on your ears. This is a result
of static electricity accumulated in the body, and not a malfunction of the headphones.
The effect can be minimized by wearing clothes made from natural materials.
Optional replacement earbuds can be ordered from your nearest Sony dealer.
