Sony MDR-IF630R User manual

MDR-IF630R
US Model
AEP Model
UK Model
E Model
Tourist Model
SERVICE MANUAL
HEADPHONES
Headphones MDR-IF630R
Transmitter TMR-IF630R
MDR-IF630R is the component model block one in the MDR-IF630RK.
COMPONENT MODEL NAME FOR MDR-IF630RK
SPECIFICATIONS
Built-in rechargeable batteries
Model name NH-AAC
Type Ni-MH
Voltage 1.2 V
Capacity 1000 mAh
Headphones
Type Closed, dynamic
Driver unit 30 mm dia. with neodymium
magnet
Frequency response
12 – 24,000 Hz
Power source DC 2.4 V: Built-in rechargeable
batteries
Mass Approx. 310 g (10.9 oz)
Design and specifications are subject to change without
notice.
Ver 1.0 2000. 12

— 2 —
SECTION 1
GENERAL
This section is extracted
from instruction manual.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.

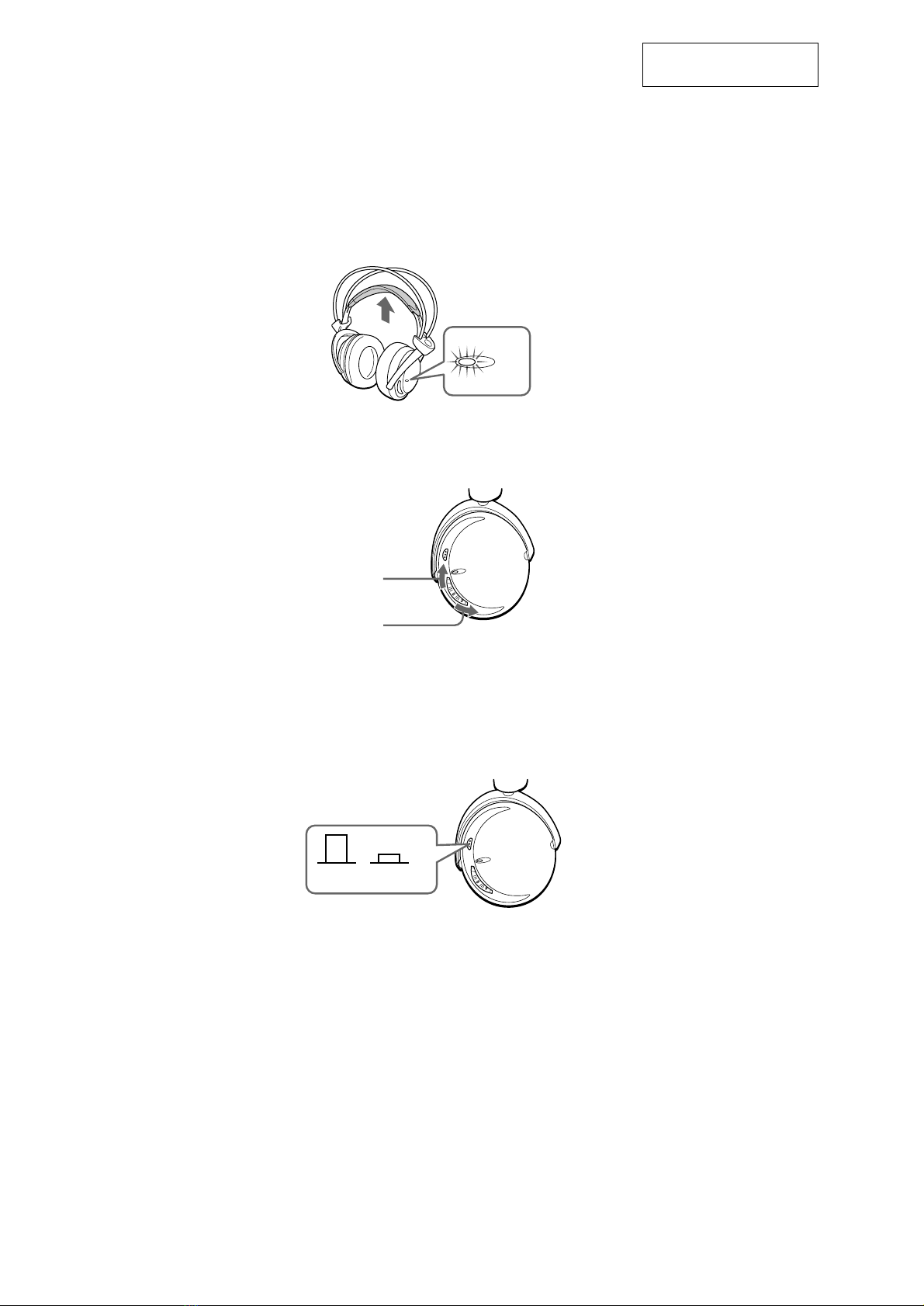

Check the remaining power of the
headphone batteries
Pull up the suspender, and check that the
headphones’power indicator lights in red. You
can now use the headphones.
Charge the batteries or install new batteries, if the
power indicator light is weak or turned off and
the sound become distorted or has a lot of noise.
POWER
3Adjust the volume.
High
Low
Audio mode switch
Depress the audio mode switch (VOICE mode) to
emphasize the human voice. Press to release it
(NORMAL mode) for normal tone quality.
Audio mode switch
NORMAL VOICE

—3 —
SECTION 2
DISASSEMBLY
2-2. RX BASE BOARD
Note : Follow the disassembly procedure in the numerical order given.
•The equipment can be removed using the following procedure.
Driver (R side) RX BASE board
Driver (L side) RX CHR board
Set Lid (R), holder Hanger (R) RX SW board, Holder (R)
Lid (L), holder Hanger (L) Holder (L)
2-1. DRIVER (R SIDE)
Driver (R side)
Driver (R side)
From RX BASE board
2 Four screws
(+P2
× 6)
Solder the each lead wires
directly to the position as
shown while being
cautions of colors
Precaution for installation
1 Pad, ear
3 Plate (R) assy, front
4 Remove the two solderings
Natural
Red
from RX SW board (–) (natural)
Head band (rear) (natural)
Driver (natural)
Driver (red) Head band (front) (green)
Head band (front) (natural)
Head band (front) (natural)
Head band (front) (black)
Head band (rear) (red)
from RX SW board (+) (black)
RX BASE board
RX BASE board
3 Button, sound selection
4 Knob, volume
1 Two screws (+P2 × 6)
2 Remove the ten solderings
Solder the each lead wires directly to the position as
shown while being cautions of colors
Precaution for installation

—4 —
2-3. LID (R), HOLDER
2-4. HANGER (R)
2 Housing (R) assy
6 Claw
1
1
5
4
Lid (R), holder
3 Two screws (+P2 × 6)
2 Lid (R) hange
r
Hanger (R)
HANGER (R)
Groove
Groove
Groove
Groove
Groove
Groove
From head band (rear)
From RX SW board
From head band
(front)
1
Solder the each lead wires directly to the position as
shown while being cautions of colors
Precaution for installation

—5 —

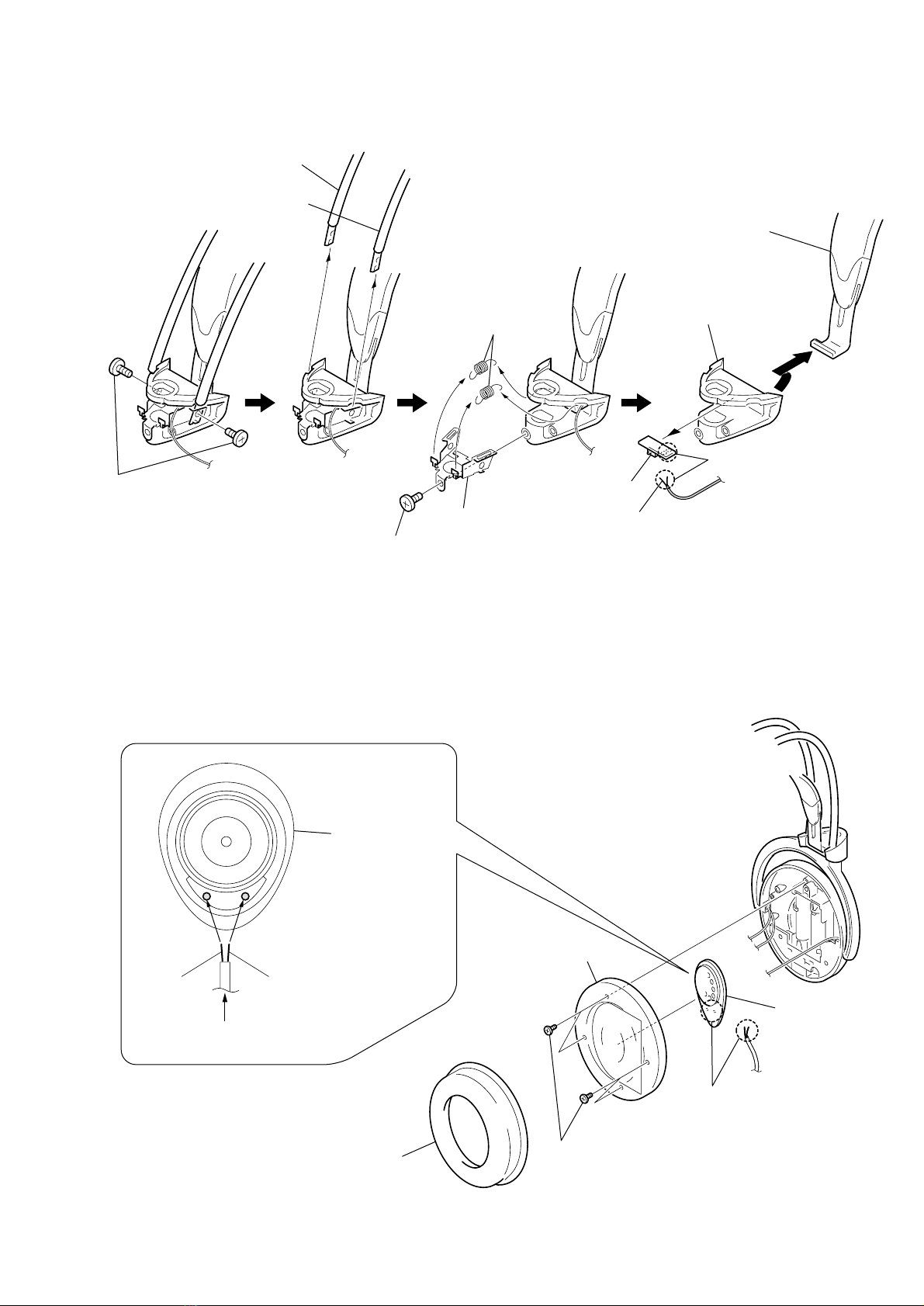

2-5. RX SW BOARD, HOLDER (R)
2-6. DRIVER (L SIDE)
Holder (R)
Natural
RX SW board
8 Remove the two solderings
q; Cushion assy, head
9
1
Two screws (+P2 × 2.5)
2 Head band (front)
3 Head band (rear)
5 Chassis
4 Screw (+P2 × 5)
6 Two springs
7
Driver (L side)
Driver (L side)
From head band (rear)
Natural
Green
2 Four screws (P2 × 6)
1 Pad, ear
3 Plate (L) assy, front
4 Remove the two solderings
Solder the each lead wires
directly to the position as
shown while being
cautions of colors
Precaution for installation

—6 —
2-8. LID (L), HOLDER
2-7. RX CHR BOARD
1 Two screws (+P2 × 6)
7 Screw
(+P2 × 6)
5 Terminal (–), battery
6 RX CHR board
Terminal (–), battery
RX CHR board
3 Terminal (+), batter
y
Terminal (+), battery
2 Remobe the eight soderings
Two batteries, nickel hydrogen
Box assy, battery
4 Two terminals, charge
Two terminals, charge
Head band (front) (natural)
Head band (front) (black)
Head band (rear) (natural)
Head band (rear) (red)
Solder the each lead wires directly to the position as
shown while being cautions of colors
Precaution for installation
6 Claw
5
1
1
2 Housing (L) ssy
4 Lid (L), holder
3 Two screws
(+P2 × 6)

—7 —

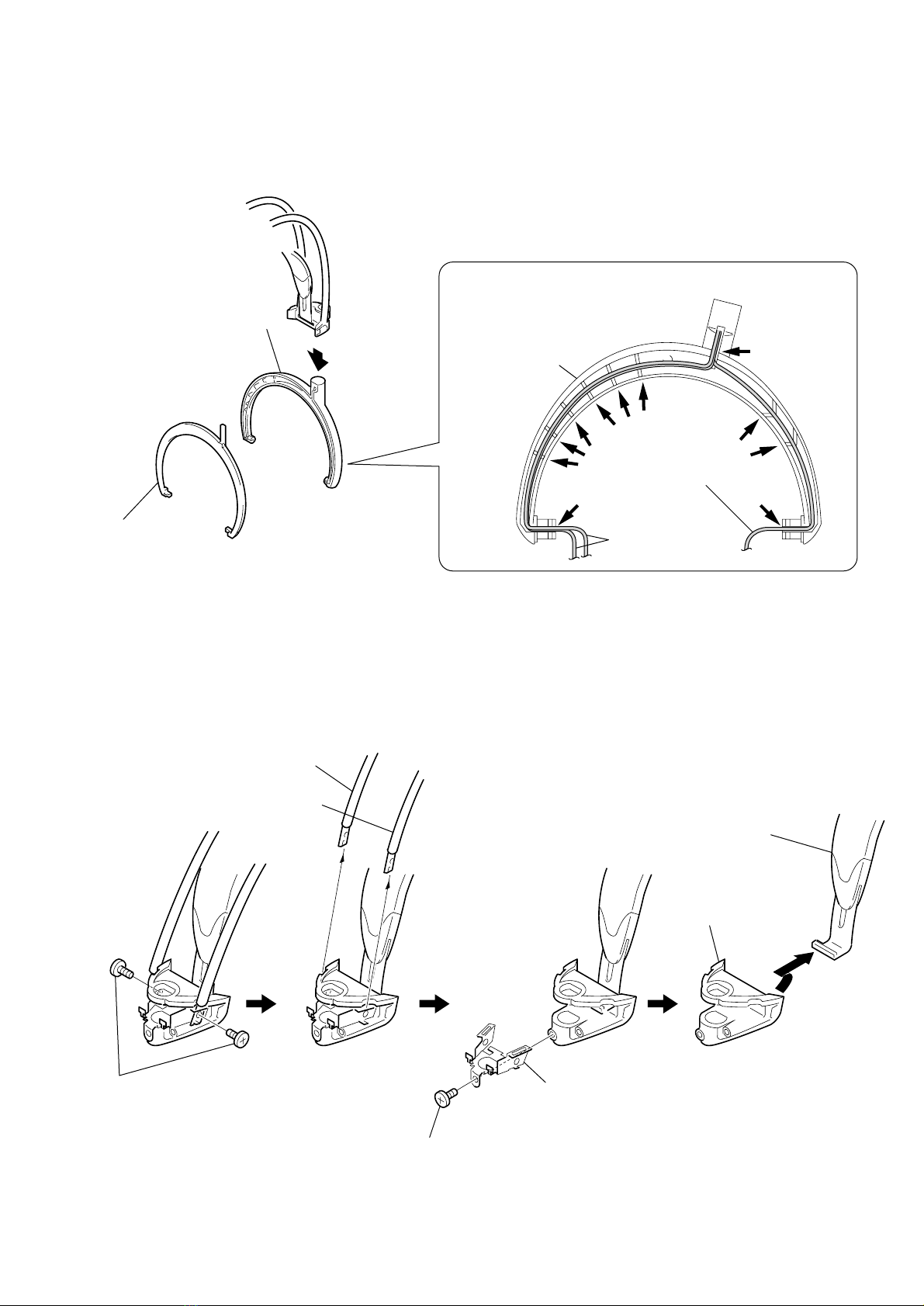

2-9. HANGER (L)
2-10. HOLDER (L)
2 Lid (L), hanger
Hanger (L)
Hanger (L)
Groove
Groove
Groove
Groove
Groove
Groove
From head band (rear)
From head band (front)
1
Solder the each lead wires directly to the position as
shown while being cautions of colors
Precaution for installation
6
Holder (L)
7 Cushion assy, head
1 Two screws (+P2 × 2.5)
2 Head band (front)
3 Head band (rear)
5 Chassis
4 Screw (+P2 × 5)

—8 —
SECTION 3
ELECTRICAL ADJUSTMENTS
Notes:
1. The adjustments should be performed in the order given. (As a
generalrulethetransmittersection(TMR-IF630R)adjustments
shouldbe completed before performing the headphones section
(MDR-IF630R) adjustment.)
2. The adjustment and measurements should be performed for both
L-ch and R-ch unless otherwise indicated.
3. L-ch adjustment should be completed before performing R-ch
adjustment
4. Supply 9V dc to the transmitter section (TMR-IF630R) and 2.4 V
dcto theheadphonessection (MDR-IF630R)asthe powervoltage.
HEADPHONES SECTION 0 dBV=315 mVrms
Note:
1. On adjusting the headphones section (MDR-IF630R), use the
transmitter (TMR-IF630R) as a jig.
[ TUNING ADJUSTMENT ]
Preparation:
1. Feed a signal to jig (TMR-IF630R) and connect a power supply
to DC IN jack (J4).
2. Supply DC 2.4 V between VCC and GND on the RX BASE
board.
3. Set RV301 (VOL) on the RX BASE board to the maximum
positon.
4. Set SW301 on the RX BASE board to OFF (NORMAL).
Connection:
Adjustment Procedure:
1. Connect the distortion meter to L+/L–(L-ch) and R+/R–(R-ch).
2. Adjust with L204 (L-ch) and L104 (R-ch) on the RX BASE
board to minimize the reading on the distortion meter.
L-ch L204 minimum
R-ch L104 minimum
AUDIO IN B
jack (J1)
1kHz 315mV (
| 10dBV)
600 ¶
Trans-
mitter
jig
AT T
AF OSC
RX BASE board
L+/L–
R+/R–
+
+
–
100 µ F/16V
distortion mete
r
Adjustment Location :
–RX BASE BOARD (Conductor side)–
L204
Tuning adjustment
(L-ch)
R+
(R-ch)
R-
L+
(L-ch)
L-
(VCC)
(GND)
L104
Tuning adjustment
(R-ch)

MDR-IF630R

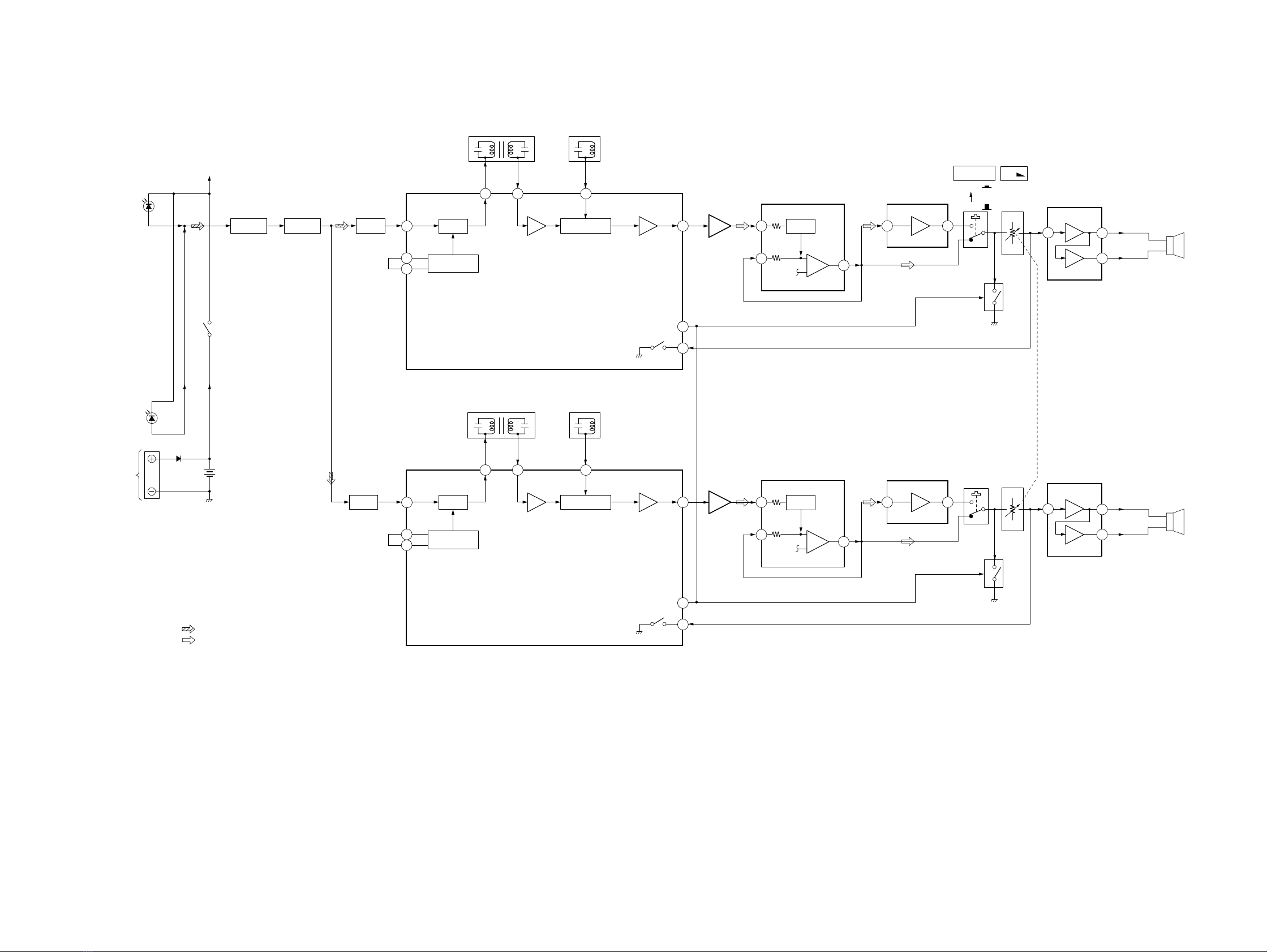

4-1. BLOCK DIAGRAM
—9 — — 10 —
SECTION 4
DIAGRAMS
(IR
SENSOR) D301,
D302
(IR
SENSOR) D303,
D304
D306
16
NI-MH
1.2Vx2
+B
Q301-Q303
RF AMP
Q304
BUFFER
(POWER) S10
SW301(1/2)
VOLSOUND MODE
RV301(1/2)
LPF MIXER
L203 2.3 MHz B.P.F L204 2.3MHz DET. COIL
MIXER
IN
16
OSCILLATOR
DEMODULATOR
LIMITER
1
2
MIXER
OUT AF
OUT
3LIMITER
IN
5QUAD COIL 8
9 6
2
7
1
35
8
3
SCAN
CONTROL 13
MUTE
14
AF AMP.
IC201
MIXER / LIMITER / DEMODULATOR
-
+
IC202
EXPANDER
IC203
VOICE ENHANCER IC204
POWER AMP
SP201
SPEAKER
(L-CH)
OUT
Q201
-1
VREF
IN
21 G.CELL
LPF MIXER
L103 2.8MHz B.P.F L104 2.8MHz DET. COIL
MIXER
IN
16
OSCILLATOR
DEMODULATOR
LIMITER
1
2
MIXER
OUT AF
OUT
3LIMITER
IN
5QUAD COIL 8
9 6
2
7
1
35
8
3
SCAN
CONTROL 13
MUTE
14
AF AMP.
IC101
MIXER / LIMITER / DEMODULATOR
-
+
IC301(2/2)
AMP.
IC102
EXPANDER
IC103
VOICE ENHANCER IC104
POWER AMP
SP101
SPEAKER
(R-CH)
OUT
Q101
-1
VREF
IN
67 G.CELL
Signal path.
: RF
: ANALOG
TO
TMR-IF630R
(BATTERY CHARGER)
f
ff
fff
SW301(2/2) RV301(2/2)
VOICE
NORMAL
+
–
+
–
IC301(1/2)
AMP.

MDR-IF630R
4-2. SCHEMATIC DIAGRAM
—11 — — 12 —
•See page 15 for IC Block Diagrams.
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted.
pF: µµF 50 WV or less are not indicated except
for electrolytics and tantalums.
•All resistors are in Ωand 1/4W or less unless
otherwise specified.
•A: B+ Line.
•Power voltage is dc 2.4 V and fed with regu-
lated dc power supply from battery terminal.
•Voltages are taken with a VOM (Input imped-
ance 10 MΩ).
Voltage variations may be noted due to normal
production tolerances.
•Signal path.
F: ANALOG
J:RF
SOUND MODE
VOICE
NORMAL
1
2
636 mVp-p
434 nsec
2 IC201 3
1 IC101 3
600 mVp-p
358 nsec
VOLT/DIV : 200 mV
TIME/DIV : 200 ns
VOLT/DIV : 200 mV
TIME/DIV : 200 ns
•Waveforms

MDR-IF630R

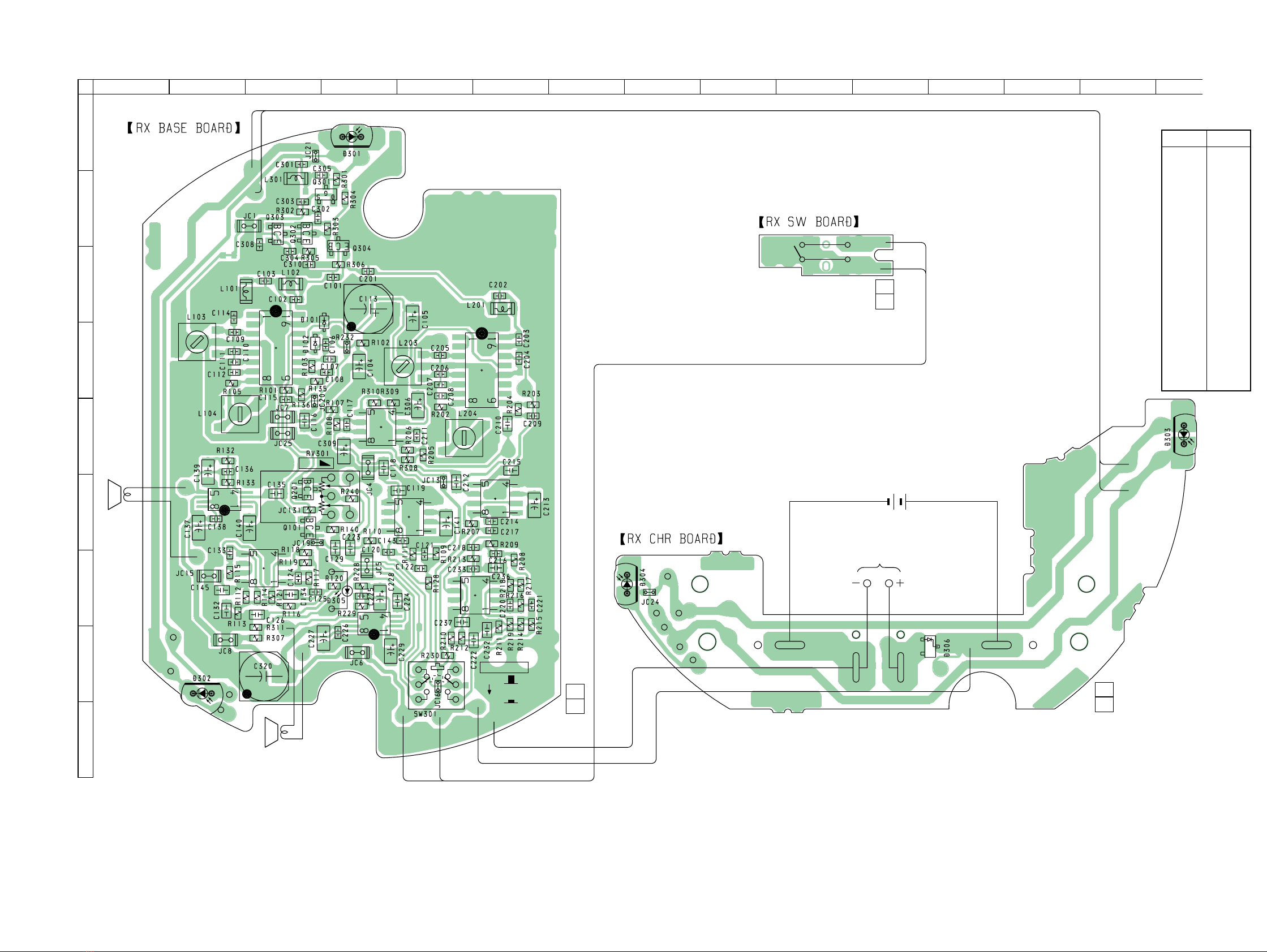

4-3. PRINTED WIRING BOARD
—13 — — 14 —
Ref. No. Location
D101 C-3
D102 D-3
D301 A-4
D302 H-2
D305 G-4
IC101 D-3
IC102 F-5
IC103 G-3
IC104 F-2
IC201 D-6
IC202 F-6
IC203 G-6
IC204 H-4
IC301 E-4
Q101 F-3
Q201 F-3
Q301 B-4
Q302 B-3
Q303 B-3
Q304 B-4
•Semiconductor
Location
Note on Printed Wiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•b: Pattern from the side which enables seeing.
(IR SENSOR)
(IR SENSOR)
(IR SENSOR)
(IR SENSOR)
TO
TMR-IF630R
(BATTERY CHAGER)
RECHARGEABLE
BATTERY
Ni-cd NC-AA (HJ)
2pcs, 2.4V
1-679-553-
11
(11)
1-679-552- 11
(11)
1-679-551
11
(11)
B+
SIG
B+
SIG
16
(POWER)
R+
L+
VCC
R–
L–
SP101
SPEAKER
(R-CH)
SP201
SPEAKER
(L-CH)
SOUND MODE
VOL
NORMAL
VOICE
SW+
SW–
SW+
SW–
S10
(POWER)
GND
IC102
IC104
IC301
IC103
IC203
IC204
IC101
IC201
IC202
12
A
B
C
D
E
F
G
H
I
3456789101112131415

—15 — — 16 —
SECTION 5
EXPLODED VIEWS
NOTE:
•-XX, -X mean standardized parts, so they may
have some differences from the original one.
•Items marked “*”are not stocked since they
are seldom required for routine service. Some
delayshould be anticipatedwhen ordering these
items.
•Themechanical parts with no referencenumber
in the exploded views are not supplied.
•Accessories and packing materials are given in
the last of this parts list.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
• IC BLOCK DIAGRAMS
IC101, IC201 SC111711DR2
IC104, IC204 MC34119DTBR2
+
87 6 5
4321
_
+
_
VO2
CD
FC 2 FC 1
V in
GND Vcc VO1
BIAS
CIRCUIT
+
–
SQUELCH TRIGGER WITH
HYSTERESIS
MIXER
OSCILLATOR
CRYSTAL
OSC
MIXER
OUTPUT
VCC
SCAN
CONTROL
SQUELCH
IN
FILTER
OUTPUT
FILTER
INPUT
RECOVERD
AUDIO
MIXER
INPUT GND MUTE
QUAD
COIL
LIMITER
INPUT DECOUPLING
FILTER
AMP
LIMITER
AMP
AF
AMP
DEMODULATOR
+
1 2 3 4 7 865
1516 14 13 12 11 10 9
1
2
#1
#1
#1
#3
#2
#3
#3
#3
#3
#3
#1
#3
#3
a
a
b
b
e
e
#3
#2
not
supplied
not
supplied
not
supplied
not
supplied
3
19
4
59
8
6
10
714
13
12
15
16
17
18
15
20 21
22
23
24
25
26
11
5
27
3
c
c
d
d
#4
28
1 X-3380-048-1 CUSHION ASSY, HEAD
2 3-224-569-01 SPRING (ON/OFF)
3 3-046-718-01 PAD, EAR
4 X-3380-049-1 PLATE (L) ASSY, FRONT
5 X-3380-120-1 DRIVER ASSY
6 3-222-516-01 TERMINAL (+), BATTERY
7 1-756-109-11 BATTERY, NICKEL HYDROGEN
*8 1-679-553-11 RX CHR BOARD
9 3-223-778-01 TERMINAL (-), BATTERY
10 3-222-514-01 TERMINAL, CHARGE
11 3-222-513-01 BUTTON, SOUND SELECTION
12 X-3380-053-1 BOX ASSY, BATTERY
13 X-3380-051-1 HOUSING (L) ASSY
14 3-046-696-11 HOLDER (L)
15 3-046-695-01 CHASSIS
16 3-046-698-11 LID (L), HOLDER
17 3-049-953-11 LID (L), HANGER
18 3-046-705-11 HANGER (L)
19 3-046-699-11 LID (R), HOLDER
*20 1-679-551-11 RX SW BOARD
21 3-046-697-11 HOLDER (R)
22 3-046-706-11 HANGER (R)
23 3-049-954-11 LID (R), HANGER
24 X-3380-457-1 HOUSING (R) ASSY
25 3-222-519-01 KNOB, VOLUME
*26 A-4542-663-A RX BASE BOARD, COMPLETE
27 X-3380-050-1 PLATE (R) ASSY, FRONT
28 3-227-270-01 CUSHION, VOLUME
#1 7-627-553-28 SCREW,PRECISION +P2X2.5
#2 3-223-909-01 SCREW (B2)
#3 7-685-104-19 SCREW +P2X6 TYPE2 NON-SLIT
#4 3-713-791-01 SCREW (M1.7X4), TAPPING, P2

—15 — — 16 —
SECTION 5
EXPLODED VIEWS
NOTE:
•-XX, -X mean standardized parts, so they may
have some differences from the original one.
•Items marked “*”are not stocked since they
are seldom required for routine service. Some
delayshould be anticipatedwhen ordering these
items.
•Themechanical parts with no referencenumber
in the exploded views are not supplied.
•Accessories and packing materials are given in
the last of this parts list.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
• IC BLOCK DIAGRAMS
IC101, IC201 SC111711DR2
IC104, IC204 MC34119DTBR2
+
87 6 5
4321
_
+
_
VO2
CD
FC 2 FC 1
V in
GND Vcc VO1
BIAS
CIRCUIT
+
–
SQUELCH TRIGGER WITH
HYSTERESIS
MIXER
OSCILLATOR
CRYSTAL
OSC
MIXER
OUTPUT
VCC
SCAN
CONTROL
SQUELCH
IN
FILTER
OUTPUT
FILTER
INPUT
RECOVERD
AUDIO
MIXER
INPUT GND MUTE
QUAD
COIL
LIMITER
INPUT DECOUPLING
FILTER
AMP
LIMITER
AMP
AF
AMP
DEMODULATOR
+
1 2 3 4 7 865
1516 14 13 12 11 10 9
1
2
#1
#1
#1
#3
#2
#3
#3
#3
#3
#3
#1
#3
#3
a
a
b
b
e
e
#3
#2
not
supplied
not
supplied
not
supplied
not
supplied
3
19
4
59
8
6
10
714
13
12
15
16
17
18
15
20 21
22
23
24
25
26
11
5
27
3
c
c
d
d
#4
28
1 X-3380-048-1 CUSHION ASSY, HEAD
2 3-224-569-01 SPRING (ON/OFF)
3 3-046-718-01 PAD, EAR
4 X-3380-049-1 PLATE (L) ASSY, FRONT
5 X-3380-120-1 DRIVER ASSY
6 3-222-516-01 TERMINAL (+), BATTERY
7 1-756-109-11 BATTERY, NICKEL HYDROGEN
*8 1-679-553-11 RX CHR BOARD
9 3-223-778-01 TERMINAL (-), BATTERY
10 3-222-514-01 TERMINAL, CHARGE
11 3-222-513-01 BUTTON, SOUND SELECTION
12 X-3380-053-1 BOX ASSY, BATTERY
13 X-3380-051-1 HOUSING (L) ASSY
14 3-046-696-11 HOLDER (L)
15 3-046-695-01 CHASSIS
16 3-046-698-11 LID (L), HOLDER
17 3-049-953-11 LID (L), HANGER
18 3-046-705-11 HANGER (L)
19 3-046-699-11 LID (R), HOLDER
*20 1-679-551-11 RX SW BOARD
21 3-046-697-11 HOLDER (R)
22 3-046-706-11 HANGER (R)
23 3-049-954-11 LID (R), HANGER
24 X-3380-457-1 HOUSING (R) ASSY
25 3-222-519-01 KNOB, VOLUME
*26 A-4542-663-A RX BASE BOARD, COMPLETE
27 X-3380-050-1 PLATE (R) ASSY, FRONT
28 3-227-270-01 CUSHION, VOLUME
#1 7-627-553-28 SCREW,PRECISION +P2X2.5
#2 3-223-909-01 SCREW (B2)
#3 7-685-104-19 SCREW +P2X6 TYPE2 NON-SLIT
#4 3-713-791-01 SCREW (M1.7X4), TAPPING, P2

—17 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specifiedinthe diagrams orthe components
used on the set.
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*”are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS:
uF: µF
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•COILS
uH: µH
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
RX BASE
*A-4542-663-A RX BASE BOARD, COMPLETE
************************
< CAPACITOR >
C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C102 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V
C103 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C104 1-104-915-11 TANTALUM CHIP 2.2uF 20% 10V
C105 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C106 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C107 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V
C108 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V
C109 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C110 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C111 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C112 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C113 1-126-246-11 ELECT CHIP 220uF 20% 4V
C114 1-115-156-11 CERAMIC CHIP 1uF 10V
C115 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C116 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C117 1-162-928-11 CERAMIC CHIP 120PF 5% 50V
C118 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C119 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C120 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C121 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V
C122 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C124 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C125 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C126 1-164-343-11 CERAMIC CHIP 0.056uF 10.00% 25V
C129 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C132 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C133 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V
C134 1-164-343-11 CERAMIC CHIP 0.056uF 10.00% 25V
C135 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C136 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C137 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C138 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C139 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C140 1-104-912-11 TANTAL. CHIP 3.3uF 20.00% 4V
C141 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C145 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C201 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C202 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C203 1-164-238-11 CERAMIC CHIP 36PF 5.00% 50V
C204 1-115-156-11 CERAMIC CHIP 1uF 10V
C205 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C206 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C207 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C208 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C209 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C210 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C211 1-162-928-11 CERAMIC CHIP 120PF 5% 50V
C212 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C213 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C214 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C215 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C216 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C217 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V
C218 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C220 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C221 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C222 1-164-343-11 CERAMIC CHIP 0.056uF 10.00% 25V
C223 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C224 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C225 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C226 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C227 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C228 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C229 1-104-912-11 TANTAL. CHIP 3.3uF 20.00% 4V
C232 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C233 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V
C236 1-164-343-11 CERAMIC CHIP 0.056uF 10.00% 25V
C237 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C301 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C302 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C303 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C304 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C305 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C306 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C308 1-115-156-11 CERAMIC CHIP 1uF 10V
C309 1-135-201-11 TANTALUM CHIP 10uF 20% 4V
C310 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C320 1-126-246-11 ELECT CHIP 220uF 20% 4V
< DIODE >
D101 8-719-421-40 DIODE MA77
D102 8-719-421-40 DIODE MA77
D301 8-719-058-49 DIODE PP508 (IR SENSOR)
D302 8-719-058-49 DIODE PP508 (IR SENSOR)
D305 8-719-059-98 DIODE SLR-342VC3F (POWER)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
—18 —
RX BASE
< IC >
IC101 8-759-473-72 IC SC111711DR2
IC102 8-759-384-90 IC TK10691MTL
IC103 8-759-344-00 IC NJM2100E(TE2)
IC104 8-759-648-66 IC MC34119DTBR2
IC201 8-759-473-72 IC SC111711DR2
IC202 8-759-384-90 IC TK10691MTL
IC203 8-759-344-00 IC NJM2100E(TE2)
IC204 8-759-648-66 IC MC34119DTBR2
IC301 8-759-344-00 IC NJM2100E(TE2)
< JUMPER RESISTOR >
JC1 1-216-296-11 SHORT 0
JC4 1-216-296-11 SHORT 0
JC5 1-216-296-11 SHORT 0
JC6 1-216-296-11 SHORT 0
JC7 1-216-296-11 SHORT 0
JC8 1-216-296-11 SHORT 0
JC13 1-216-864-11 SHORT 0
JC15 1-216-296-11 SHORT 0
JC16 1-216-864-91 SHORT 0
JC19 1-216-864-11 SHORT 0
JC20 1-216-864-11 SHORT 0
JC21 1-216-864-11 SHORT 0
JC25 1-216-296-11 SHORT 0
< COIL >
L101 1-412-959-11 INDUCTOR 47uH
L102 1-412-957-11 INDUCTOR 33uH
L103 1-239-763-11 FILTER, BAND PASS
L104 1-419-865-21 COIL (DET)
L201 1-412-957-11 INDUCTOR 33uH
L203 1-239-762-11 FILTER, BAND PASS
L204 1-419-864-21 COIL (DET)
L301 1-412-956-21 INDUCTOR 27uH
< TRANSISTOR >
Q101 8-729-920-31 TRANSISTOR DTC343TK
Q201 8-729-920-31 TRANSISTOR DTC343TK
Q301 8-729-220-93 TRANSISTOR 2SK209-G
Q302 8-729-024-13 TRANSISTOR 2SA1256E4
Q303 8-729-809-77 TRANSISTOR 2SC3142-J4
Q304 8-729-216-22 TRANSISTOR 2SA1162-G
< RESISTOR >
R101 1-216-815-11 METAL CHIP 330 5% 1/16W
R102 1-216-845-11 METAL CHIP 100K 5% 1/16W
R103 1-216-852-11 METAL CHIP 390K 5% 1/16W
R105 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R107 1-216-838-11 METAL CHIP 27K 5% 1/16W
R108 1-216-839-11 METAL CHIP 33K 5% 1/16W
R109 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R110 1-216-826-11 METAL CHIP 2.7K 5% 1/16W
R111 1-216-833-11 METAL CHIP 10K 5% 1/16W
R112 1-216-833-11 METAL CHIP 10K 5% 1/16W
R113 1-216-833-11 METAL CHIP 10K 5% 1/16W
R114 1-216-841-11 METAL CHIP 47K 5% 1/16W
R115 1-216-818-11 METAL CHIP 560 5% 1/16W
R116 1-216-833-11 METAL CHIP 10K 5% 1/16W
R117 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R118 1-216-837-11 METAL CHIP 22K 5% 1/16W
R119 1-216-821-11 METAL CHIP 1K 5% 1/16W
R120 1-216-818-11 METAL CHIP 560 5% 1/16W
R121 1-216-841-11 METAL CHIP 47K 5% 1/16W
R128 1-216-838-11 METAL CHIP 27K 5% 1/16W
R132 1-216-833-11 METAL CHIP 10K 5% 1/16W
R133 1-216-841-11 METAL CHIP 47K 5% 1/16W
R135 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R136 1-216-821-11 METAL CHIP 1K 5% 1/16W
R140 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R202 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R203 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R204 1-216-821-11 METAL CHIP 1K 5% 1/16W
R205 1-216-838-11 METAL CHIP 27K 5% 1/16W
R206 1-216-839-11 METAL CHIP 33K 5% 1/16W
R207 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R208 1-216-826-11 METAL CHIP 2.7K 5% 1/16W
R209 1-216-833-11 METAL CHIP 10K 5% 1/16W
R210 1-216-833-11 METAL CHIP 10K 5% 1/16W
R211 1-216-833-11 METAL CHIP 10K 5% 1/16W
R212 1-216-841-11 METAL CHIP 47K 5% 1/16W
R213 1-216-818-11 METAL CHIP 560 5% 1/16W
R214 1-216-833-11 METAL CHIP 10K 5% 1/16W
R215 1-216-818-11 METAL CHIP 560 5% 1/16W
R216 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R217 1-216-821-11 METAL CHIP 1K 5% 1/16W
R218 1-216-837-11 METAL CHIP 22K 5% 1/16W
R219 1-216-841-11 METAL CHIP 47K 5% 1/16W
R228 1-216-833-11 METAL CHIP 10K 5% 1/16W
R229 1-216-841-11 METAL CHIP 47K 5% 1/16W
R230 1-216-838-11 METAL CHIP 27K 5% 1/16W
R232 1-216-833-11 METAL CHIP 10K 5% 1/16W
R232 1-216-864-11 SHORT 0
R240 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R301 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R302 1-216-821-11 METAL CHIP 1K 5% 1/16W
R303 1-216-845-11 METAL CHIP 100K 5% 1/16W
R304 1-216-843-11 METAL CHIP 68K 5% 1/16W
R305 1-216-821-11 METAL CHIP 1K 5% 1/16W
R306 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R307 1-216-815-11 METAL CHIP 330 5% 1/16W
R308 1-216-797-11 METAL CHIP 10 5% 1/16W
R309 1-216-833-11 METAL CHIP 10K 5% 1/16W
R310 1-216-833-11 METAL CHIP 10K 5% 1/16W
R311 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
< VARIABLE RESISTOR >
RV301 1-227-250-11 RES, VAR, CARBON 50K/50K (VOL)
< SWITCH >
SW301 1-786-060-11 SWITCH, PUSH (SOUND MODE)
**************************************************************

Ref. No. Part No. Description Remarks
—19 —
RX CHR
*1-679-553-11 RX CHR BOARD
*************
3-222-514-01 TERMINAL, CHARGE
3-222-516-01 TERMINAL (+), BATTERY
3-223-778-01 TERMINAL (-), BATTERY
< DIODE >
D303 8-719-058-49 DIODE PP508 (IR SENSOR)
D304 8-719-058-49 DIODE PP508 (IR SENSOR)
D306 8-719-975-40 DIODE RB411D
< JUMPER RESISTOR >
JC24 1-216-864-11 SHORT 0
**************************************************************
*1-679-551-11 RX SW BOARD
************
< SWITCH >
S10 1-572-467-61 SWITCH, PUSH (1 KEY)(POWER)
**************************************************************
MISCELLANEOUS
**************
7 1-756-109-11 BATTERY, NICKEL HYDROGEN
**************************************************************
RX SW

—20 —
MDR-IF630R
Sony Corporation
Audio Entertainment Group 2000L16023-1
Printed in Japan © 2000.12
Published by General Engineering Dept.
9-873-017-11
