Sony SHR-M1 User manual

SHR-M1
E Model
Tourist Model
SERVICE MANUAL
PLL SYNTHESIZER
FM STEREO HEADPHONE RADIO
MICROFILM
SPECIFICATIONS
Radio segment
Frequency range: FM 76 – 108 MHz
Channel Step: 0.1 MHz
Power output: 3.5 mW + 3.5 mW
Headphone segment
Headphone type: Open-air Dynamic
Driver unit: ø 30 mm Dome type
Input: ø 3.5 mm stereo mini-jack
Maximum input: 100 mW
Impedance: 24 Ω(at 1 kHz)
Frequency characteristic: 14 to 24,000 Hz
Others
Power requirements 1.5 V DC, one R03 (size AAA) battery
Mass Approx. 99.5 g (3.5 oz) incl. a battery, not
incl. cord
Accessories supplied Sony R03 (sizeAAA) battery (1)
Connecting cord (1)
Design and specifications are subject to change without notice
Ver 1.0 1999.10

— 2 —
TABLE OF CONTENTS
1. GENERAL ·········································································· 3
2. DISASSEMBLY
2-1. Driver (030F023A)(L) ························································· 4
2-2. Jack Board············································································· 4
2-3. Driver (030F023A)(R) ························································· 5
2-4. Main Board ··········································································· 5
2-5. Key Board ············································································· 6
2-6. Belt ························································································ 6
3. ELECTRICAL ADJUSTMENT ···································· 7
4. DIAGRAMS
4-1. Block Diagram ······································································ 9
4-2. Printed Wiring Board — Main Board — ······················· 11
4-3. Schematic Diagram ·························································· 13
4-4. Printed Wiring Board — Key Board — ························· 15
4-5. Ic Pin Function Description ················································ 17
5. EXPLODED VIEWS ······················································ 18
6. ELECTRICAL PARTS LIST ······································· 19
SERVICE NOTE
In order to repair themachine while the main power is on, connecting
tool the MAIN board with the KEY board with a dedicated tool (J-
2503-012-A), is convenient.
KEY boar
d
CN201
CN1
MAIN board
Tool (J-2503-012-A)

— 3 —
SECTION 1
GENERAL This section is extracted
from instruction manual.

— 4 —

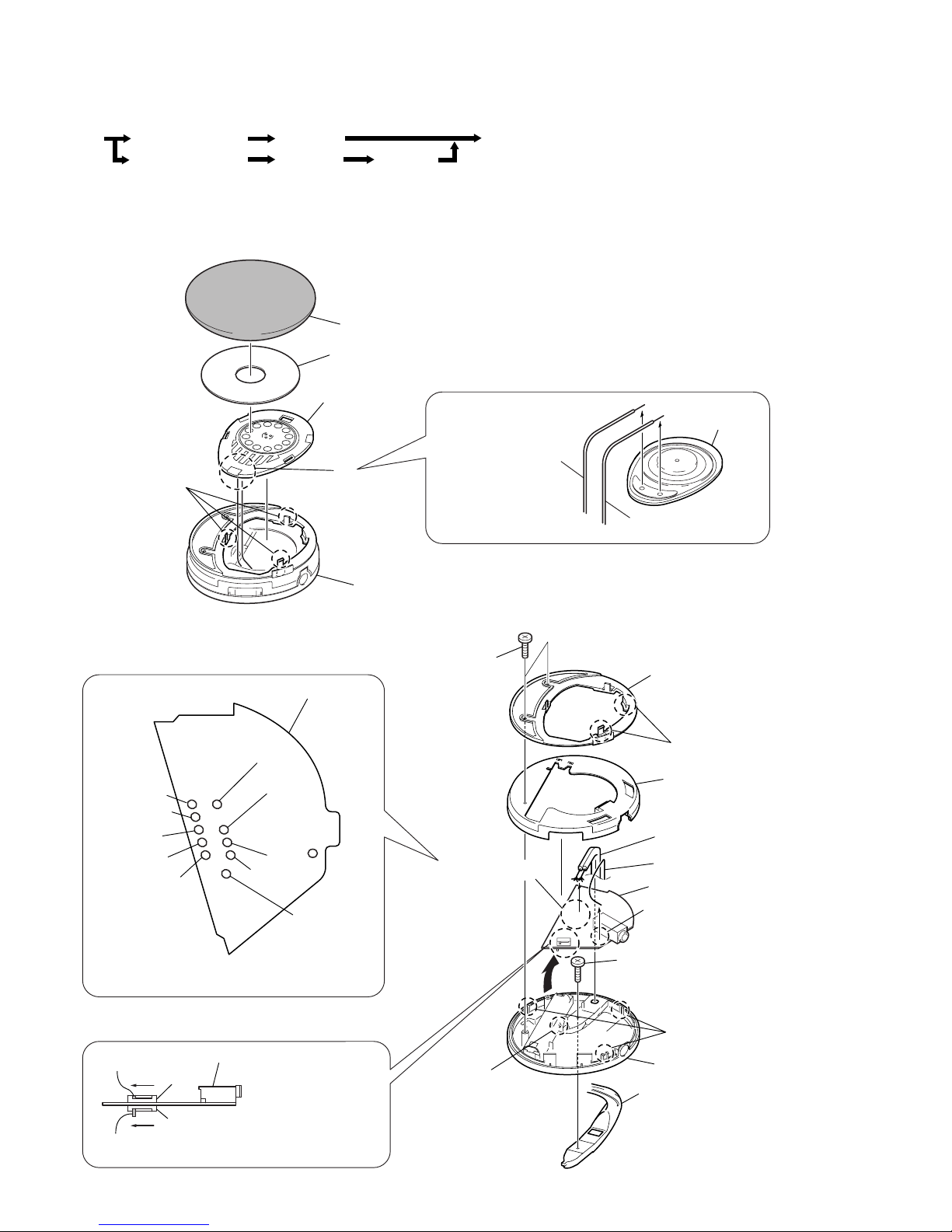

SECTION 2
DISASSEMBLY
Note : Disassemble the unit in the order as shown below.
Note : Follow the disassembly procedure in the numerical order given.
Set Driver (030F023A) (L)
Driver (030F023A) (R)
JACK Board
MAIN Board KEY Board
Belt
2-1. DRIVER (030F023A)(L)
2-2. JACK BOARD
Lead wire (white)
Lead wire (red)
Rear side (Remove the two solderings.)
3 Release the
three claws.
Driver
(030F023A)
2 Cushion
1 Pad, ear
4
5 Driver
(030F023A)
Cabinet assy
Green + Natural
Natural
Green + Natural
Green
Red
Green + Natural
Natural
4 Release the three claws.
Green + Red
Green
Red
Precaution for installation
Precaution for installation
7 Wire (10 arbor), lead
9 Lead wire (A)
qd Cabinet (upper)(L)
Belt
0 Release the claw.
S302
J302
Knob
Slide the S301 and S302 in the direction of the arrows.
Knob S301
qs Screw (+P2 × 6)
qa Remove the JACK board
in the direction of the arrow.
JACK board
5 Cabinet (main)(L)
6 Remove the ten solderings.
8 Remove the soldering.
3 Cabinet (lower)(L)
2 Release the
two claws.
1 Two screws (+P2 × 8)
Solder the lead wires (10 arbor) directly to the
position as shown while being cautious of colors.
Solder the lead wire (A) to ANT terminal directly.
ANT

— 5 —
2-3. DRIVER (030F023A)(R)
2-4. MAIN BOARD
Lead wire (red)
Lead wire (white)
Rrear side (Remove the two solderings.)
3 Release the
three claws.
Driver (030F023A)
2 Cushion
1 Pad, ear
4
5
Driver
(030F023A)
Cabinet assy
Green + Natural
Solder the lead wires (10 arbor) directly to the
position as shown while being cautious of colors.
Solder the lead wire (A) to ANT terminal directly.
Natural
Green + Red
Green
Red
Green + Natural
Natural
Green + Red
Green
Red
8 Wire (10 arbor), lead
6 Remove the connector.
(CN1)
q; Lead wire (A)
qa MAIN board
JACK board
5 Cabinet (main)(R)
7 Remove the ten solderings
from the rear side.
9 Remove the soldering
from the rear side.
3 Cabinet (lower)(R)
2 Release the
three claws.
4 Release the three claws.
1 Two screws (+P2 × 8)
Rear side
Precaution for installation
ANT

— 6 —
2-5. KEY BOARD
2-6. BELT
4 KEY board
2 Holder (button)
5 Cabinet upper (R) ass
y
Belt
3 Release the three claws.
1 Screw (+P2 × 8)
Tip
Tip
5 Wire (10 arbor), lea
d
6 Lead wire (A)
7 Belt
1 Cap (L)
2 Hook (L)
4 Hook (R)
3 Cap (R)
Mark at the 9.5 cm position
from the tip of the lead wire
and align the marking with
the center position as shown
in the illustration.
Attach the Cap (L) and leads
with adhesive agent.
Center
9.5cm
Marking
Left side Wire (10 arbor), lead
Lead wire (A)
Lead wire
(ten conductors)
Precaution for installation
Lead wire (A)
Lead wire (A)
Mark at the 5.5 cm position from the tip of the lead
wire and align the marking with the center position
as shown in the illustration.
Attach the Cap (R) and leads with adhesive agent.
Center
5.5cm
Marking
Right side Wire (10 arbor), lead
Precaution for installation
Precaution for installation
Precaution for installation

— 7 —
• Repeat the procedures in each adjustment several times.
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 76.0MHz
CT1 108.0MHz
FMVCO Adjustment
Procedure :
1. Connect frequency counter to the positions shown below.
2. Tune the set to 98 MHz.
3. Adjust RV1 so that the value of the frequency counter reading
becomes 19 kHz.
Specification Value :
Frequency counter
18,500 – 19,500 Hz
0dB=1µV
Adjustment Location: MAIN board
FM IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T1 10.7MHz
SECTION 3
ELECTRICAL ADJUSTMENT
0.01 µ F
FM RF signal
generator
to ANT (TP6)
75kHz (100%) amplitude modulation
by 1kHz signal.
Output level : as low as possible
16 Ω
Set +
–
Level mete
r
Speaker terminal (SP+/SP–)
0.01 µ F
FM RF signal
generator
to ANT (TP6
)
Carrier frequency : 98MHz
Modulation : no modulation
Output level : 0.1V (100dB)
Frequency counte
r
1 µ F+
–
100k Ω
IC2 Pin qs
IC2 Pin 9
— Side A — — Side B —
RV1
FM VCO adjustment
T1
FM IF freg. adjustment
CT1
FM tracking
adjustment
L1
FM tracking
adjustment
12 1
IC2
13 24
TP6 (ANT)
SP (+)
SP (–)

— 8 —
SECTION 4
DIAGRAMS

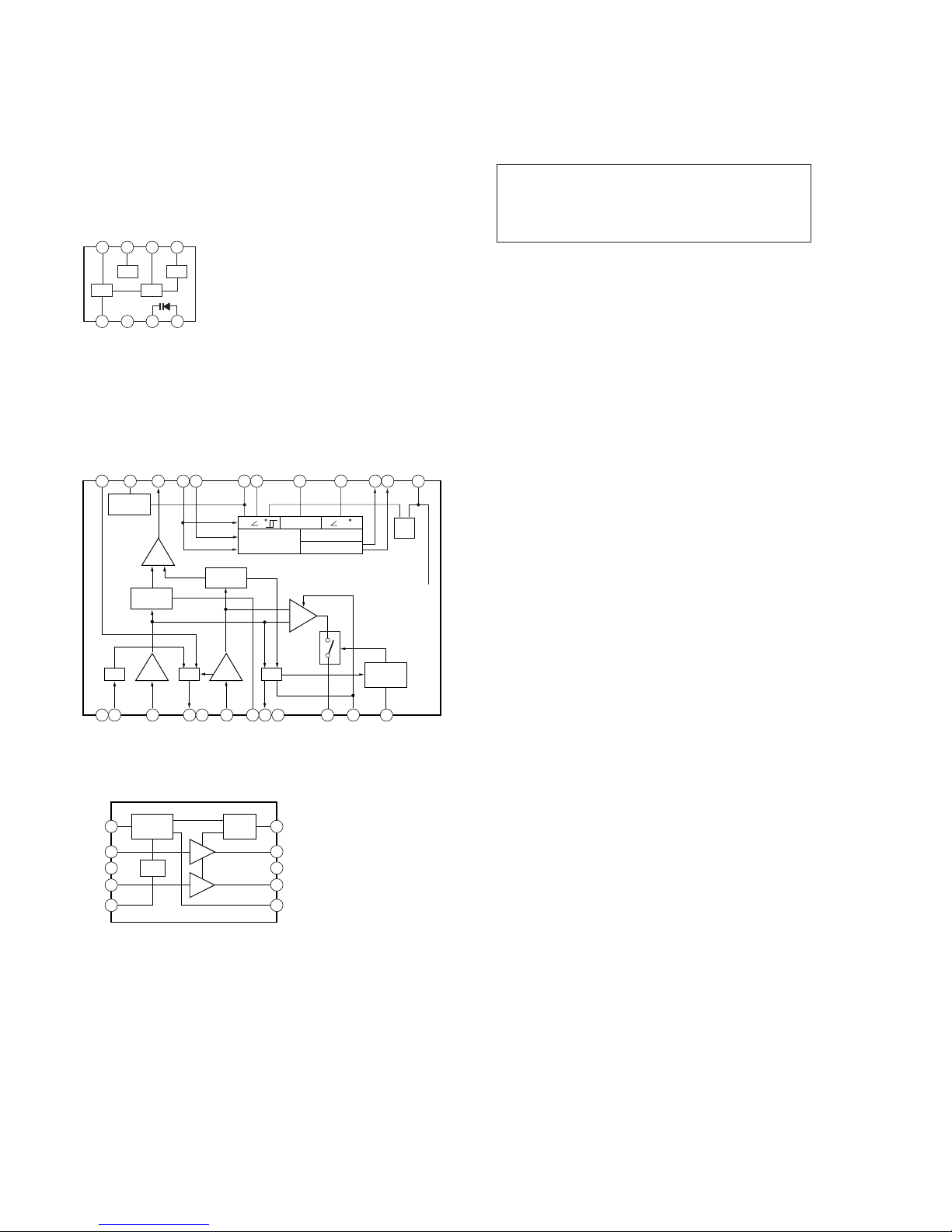

• IC BLOCK DIAGRAMS
IC1 TA7371AF-EL
IC2 TA2022AFN-EL
IC102 LA4537M
GND
AFC DIODE(A)
RF IN
OFC DIODE(C) MIX OUT
VCC OSC RF OUT
1 2 3 4
5678
RF
REG
MIX
OSC
VREF
OSC
VCC
GND
IF OUT IF REQ
SP OUT
1 2
FM IF IN
MIX
3 4 5
AM IF IN
QUAD
AGC
6 7 8 9
10 11 12
ROUT LOUT ST IND
13 14 15
MPX IN PILOT IN DET OUT IN SW AM RF IN
20 21 22 23 24
LPF 2A LPF 2B
18 19
LPF1 VCO
16 17
STOP
PULSE
OSC AGCMIX
FM
IF
FM
IF
AM
IF
AM
IF
FM DET
SWITCH
AM DET
DEVIDE
DECODE
PRE
VCO090
FM
AM
PILOT ST
IND
øø
POWER
SWITCH MUTE
BIAS
AMP
AMP
1
2
3
4
5 6
7
8
9
10 MUTE
R-OUT
GND
L-OUT
VCC
PWR
R-IN
GND
L-IN
REG
Note on Printed Wiring Board:
•X: parts extracted from the conductor side.
•a:Through hole.
•b: Pattern from the side which enables seeing.
Caution:
Pattern face side: Partsonthepattern facesideseen from
(SIDE A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE B) the parts face are indicated.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•C: panel designation.
•U: B+ Line.
•H: adjustment for repair.
• Powervoltageisdc1.5 Vandfedwith regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
• Voltagesaretakenwith aVOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F: FM
J: AUDIO IN
• Abbreviation
JE :Tourist model.

SHR-M1
4-1. BLOCK DIAGRAM
— 9 — — 10 —
L1
L2
TU+1.5V
TU+1.5V
CT1
D1
FM TRACKING
1 6
12
21
24
25
9
11
23
19
52
RF IN MIX OUT
8FM RF
5OSC
RF MIX
OSC
D2
FM VCO
AMP
Q1
3
1
22
20
4
CF1
FM IF IN
VREF
BATTERY
DETECT
Q203
LED
DRIVE
Q204
+2.5V SW
Q303,304
DET OUT
FM IF FM DET
MUTE
BIAS
AGC
STOP
PULSE
7
21
FM IF
AMP
Q2
PLL LPF
Q201,202
TU+1.5V
T1
FM IF
S201
S202
S203
SYSTEM CONTROL
LCD DRIVE
IC201
VCOH
XOUT
TEST
16
LED
XIN
KSI
UP
EO
BEEP
3
MUTE
31
|
34
COM0-3
35
|
43
LCD0-8
13
|
10
9
|
1
VDD
17
BATT DET
4
TUNE ON
50
15
CE
FM FRONT END
IC1
FM STEREO DECODER
IC2
VOLTAGE
DETECT
IC202
TU+1.5V
SW
Q101,102
DC/DC
CONVERTER
L304, Q301,302
DC/DC
CONVERTER
IC301
LCD
LCD201
BT201
LITHIUM BATTERY
PAS621L
DRY BATTERY
SIZE "AA"
(IEC DESIGNATION R03)
1PCS, 1.5V
SP1
S301
J301
16
X201
75kHz
TU+1.5V
• Signal path
: FM
: AUDIO IN
TP6
ANT
RV1
RV101
POWER AMP
IC102
TP3
VCO
TP2
VT
TP202
VT
TP201
VCO
TP212
TEST
TP213
KS
TP214
UP
TP215
DOWN
TP216
PRESET
TP7
IF IN
TP305
L-CH
TP304
R-CH
TP11
MUTE TP10
BEEP
TP211
MUTE
TP207
2.5V
TP205
T-ON
TP101
1.5V
TP206
13V
TP210
1.5V
TP12
1.5V
TP209
BEEP
53
POWER TP208
POWER
TP1
MPX
TUNE+
TUNE-
PRESET
L1, CT1
TP8
DET OUT
FM VCO
RADIO ON
OFF i
AUDIO IN
L
R
SP2
4
2
7
9
5
10
AMP
AMP
FM IF
X1
TU+1.5V
DEVIDE
DECODE
PRE
VCO090
MPX IN
PILOT IN
14
L OUT
15
R OUT
øø
VOL
TP301
TP302
TP303
S302
12 ENTER
13 PRESET
D201
D202-204
(LCD BACK LIGHT)
TP4
VT
MAIN BOARD (2/2)
MAIN BOARD (1/2)
JACK BOARD
JACK BOARD
KEY BOARD

SHR-M1
4-2. PRINTEDWIRING BOARD — MAIN SECTION —
— 11 — — 12 —
JACK BOARD (SIDE B)
MAIN BOARD (SIDE B)
MAIN BOARD (SIDE A)
JACK BOARD (SIDE A)
A
TO KEY BOARD
CN201
AUDIO
IN
RV101
VOL
S302
RADIO ON/OFF
J301
AUDIO IN
RADIO
S301
OFF
ON
S1
SENS
DX
LOCAL
SP1
SPEAKER
LCH
SP2
SPEAKER
RCH
EC
1
34
5
EC
B
B
C
C
B
B
E
C
C
B
C
C
E
E
B
B
B
E
E
E
GND
RCH
LCH
SP+
1.5V
SP+
SP–
POWER 2V
13V
T-ON
GND RCH
LCH
SP+
SP–
SP+
POWER
2V
13V
15V
T-ON
1
1
1
56
10
151012
13 15 20 24
4
85
19 20
2
ANT
RV101-2
RV101-1
1-675-125- 11
(11)
1-675-124- 11
(11)
1-675-124- 11
(11)
1-675-125- 11
(11)
E MODEL
JE MODEL
E MODEL
R22
16
12
A
B
C
D
E
3456
Ref. No. Location
D1 B-2
D2 B-3
D301 D-2
D302 D-2
D303 E-5
D304 E-4
IC1 B-2
IC2 A-2
IC102 B-1
IC301 D-4
Q1 B-3
Q2 A-2
Q101 B-5
Q102 B-5
Q301 D-3
Q302 D-3
Q303 D-5
Q304 D-5
• Semiconductor
Location
• Refer to page 8 for Note on PrintedWiring Board.

SHR-M1
4-3. SCHEMATIC DIAGRAM
— 13 — — 14 —
1.7Vp-p
75kHz
TOTAL CURRENT
SEGMENT ON: 56 mA
SEGMENT OFF: 40 mA
D202 - 204
(LCD BACK LIGHT)
• Refer to page 8 for Note on Schematic Diagram and IC block diagrams.

SHR-M1
4-4. PRINTEDWIRING BOARD — KEY BOARD —
— 15 — — 16 —
KEY BOARD (SIDE A) KEY BOARD (SIDE B)
A
TO MAIN BOARD
CN1
1
12
34
2
1920
C
BE
CB
E
E
C
C
E
B
B
S203
PRESET
S201
TUNE+
S202
TUNE–
1
5
10
14
15 20 25 28
29
30
35
40
42
4345505655
1
5
10
LCD201
(LIQUID CRYSTAL DISPLAY)
13
1-675-125- 11
(11) 1-675-125- 11 (11)
E MODEL
JE MODEL
16
12
A
B
C
D
34567
• Refer to page 8 for Note on Printed Wiring Board.
Ref. No. Location
D201 C-2
D204 C-7
IC201 B-5
IC202 B-3
Q201 B-3
Q202 B-3
Q203 C-3
Q204 C-1
• Semiconductor
Location

— 17 —
Pin No.
1 to 2
3
4
5 to 8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31 to 34
35 to 49
50
51
52
53
54 to 56
I/O
—
O
O
—
O
—
I
I
I
—
O
I
I
—
O
I
I
O
—
O
I
O
—
—
—
—
O
O
I
O
I
—
Description
Not used (open)
Low when radio muting (no sound)
High when radio is turned on
Not used (open)s
Low when OFF HOLD = HI
Not used (open)
Key input
Key input
Key input
Not used (open)
High when LED is turned on
Test mode when initial high
BATT LOW = High
GND terminal
Output to the charge pump of PLL synthesizer
VCO input
VCO input form FM local oscillating circuit
2-regulator output
Power terminal
System clock output (75 kHz)
System clock input (75 kHz)
Regulator output
LCD drive power terminal
Capacitor ground terminal
2-capacitor ground terminal
LCD drive power terminal
Common signal output to LCD
Segment signal output to LCD
Low when back-up
Initial setting
Beep sound signal output
Power ON/OFF control signal “H” = ON, “L” = OFF
Not used (open)
Pin Name
NC
MUTE
TUNE ON
NC
KSI
NC
UP
ENTER
RESET
NC
LED
TEST
BATT DET
GND
EO
VCOL
VCOH
REG0
VDD
XOUT
XIN
REG1
REG LCD0
CAP LCD0
CAP LCD1
REG LCD1
COM0-3
LCD0-14
CE
INT
BEEP
POWER
NC
4-5. IC PIN FUNCTION DESCRIPTION
•IC201 (uPD17072GB-563-1A7) SYSTEM CONTROL, LCD DRIVE

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delayshould beanticipated when orderingthese
items.
• Themechanical parts withno reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
SECTION 5
EXPLODEDVIEWS
— 18 —
• Abbreviation
JE : Tourist model.
#1
LCD201
#2
#2
#2
a
c
c
a
b
b
2
3
4
5
6
7
8
9
27
10
29
28
31
32
30
11
12
13
14
15
17
16
18
19
20
2
22 21
23 24
26
25
1
133
33
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-040-773-01 PAD,EAR
2 1-505-322-11 DRIVER (030F023A)
3 3-040-281-01 CABINET (LOWER) (R)
4 3-040-285-01 CABINET (MAIN) (R) (JE)
4 3-040-285-11 CABINET (MAIN) (R) (E)
5 3-040-291-01 BUTTON (-)
6 3-040-289-01 BUTTON (+)
7 3-040-290-01 BUTTON (PRESET)
8 A-3663-410-A MAIN BOARD, COMPLETE (JE)
8 A-3663-434-A MAIN BOARD, COMPLETE (E)
9 3-040-301-01 HOLDER (BUTTON)
10 A-3663-408-A KEY BOARD, COMPLETE (JE)
10 A-3663-436-A KEY BOARD, COMPLETE (E)
11 X-3378-016-1 CABINET (UPPER) (R) ASSY (SILVER)
11 X-3378-059-1 CABINET (UPPER) (R) ASSY (BLUE)
12 3-040-284-01 LID,BATTERY CASE
13 3-040-292-01 BUTTON (BATTERY CASE LID)
14 3-040-280-01 CABINET (UPPER) (L) (JE) (SILVER)
14 3-040-280-11 CABINET (UPPER) (L) (JE) (BLUE)
14 3-040-280-31 CABINET (UPPER) (L) (E) (SILVER)
14 3-040-280-41 CABINET (UPPER) (L) (E) (BLUE)
15 3-040-303-01 TERMINAL (+), BATTERY
16 3-040-304-01 TERMINAL (-), BATTERY
17 A-3663-412-A JACK BOARD, COMPLETE (JE)
17 A-3663-438-A JACK BOARD, COMPLETE (E)
18 3-040-287-01 KNOB(POWER)
19 3-040-286-01 CABINET (MAIN) (L)
20 3-040-282-01 CABINET (LOWER) (L)
21 1-791-740-11 WIRE(10 ARBOR), LEAD
22 3-040-297-01 HOOK(L)
23 3-040-296-01 HOOK(R)
24 3-040-295-01 CAP(L)
25 3-040-294-01 CAP(R)
26 3-040-293-01 BELT
27 1-528-412-11 BATTERY, PAS SECONDARY
28 1-694-633-11 CONDUCTIVE BOARD, CONNECTION
29 3-040-300-01 HOLDER (LCD)
*30 3-040-302-01 CASE (LCD), SHIELD
31 3-040-305-01 ILLUMINATOR (A)
32 3-040-306-01 ILLUMINATOR (B)
33 3-040-307-01 CUSHION
LCD201 1-803-780-11 DISPLAY PANEL, LIQUID CRYSTAL
#1 7-621-255-40 SCREW +P 2X6
#2 7-621-255-52 SCREW +P 2X8

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 19 —
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specifiedin thediagrams orthe components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS:
uF: µF
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• Abbreviation
JE : Tourist model.
A-3663-434-A MAIN BOARD, COMPLETE (E)
***********************
A-3663-410-A MAIN BOARD, COMPLETE (JE)
************************
< CAPACITOR >
C1 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C2 1-162-955-11 CERAMIC CHIP 150PF 5% 50V
C4 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C5 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C7 1-110-569-11 TANTAL. CHIP 47uF 20% 2.5V
C9 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C10 1-162-926-11 CERAMIC CHIP 82PF 5% 50V
C11 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V
C12 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C13 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C14 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C15 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C19 1-115-156-11 CERAMIC CHIP 1uF 10V
C20 1-115-156-11 CERAMIC CHIP 1uF 10V
C21 1-110-569-11 TANTAL. CHIP 47uF 20% 2.5V
C22 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C23 1-115-414-11 CERAMIC CHIP 820PF 5% 25V
C24 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C25 1-135-180-21 TANTALUM CHIP 3.3uF 20% 6.3V
C26 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C27 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C28 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C29 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C30 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C31 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C32 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C33 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C101 1-115-156-11 CERAMIC CHIP 1uF 10V
C102 1-115-156-11 CERAMIC CHIP 1uF 10V
C111 1-135-316-11 TANTAL. CHIP 22uF 20% 2.5V
C112 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C114 1-109-930-11 TANTAL. CHIP 220uF 20% 2.5V
C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C116 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C117 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C118 1-110-569-11 TANTAL. CHIP 47uF 20% 2.5V
C119 1-110-569-11 TANTAL. CHIP 47uF 20% 2.5V
C120 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
< FILTER >
CF1 1-767-313-11 FILTER, CERAMIC
< CONNECTOR >
*CN1 1-793-567-21 CONNECTOR, BOARD TO BOARD 20P
< TRIMMER >
CT1 1-141-615-21 CAP, ADJ
< DIODE >
D1 8-713-102-94 DIODE 1T402-M20-T8A (E)
D1 8-713-102-96 DIODE 1T403-M20-T8A (JE)
D2 8-713-102-94 DIODE 1T402-M20-T8A (E)
D2 8-713-102-96 DIODE 1T403-M20-T8A (JE)
< IC >
IC1 8-759-362-23 IC TA7371AF-EL
IC2 8-759-362-25 IC TA-2022AFN-EL
IC102 8-759-822-48 IC LA4537M
< COIL >
L1 1-416-903-41 COIL (WITH CORE)
L2 1-414-691-21 INDUCTOR 100nH (E)
L2 1-414-693-11 INDUCTOR 150nH (JE)
L101 1-412-969-31 INDUCTOR 0.15uH
< TRANSISTOR >
Q1 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q2 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q101 8-729-922-10 TRANSISTOR 2SA1577-QR
Q102 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
< RESISTOR >
R1 1-216-845-11 METAL CHIP 100K 5% 1/16W
R2 1-216-845-11 METAL CHIP 100K 5% 1/16W
R3 1-216-845-11 METAL CHIP 100K 5% 1/16W
R4 1-216-845-11 METAL CHIP 100K 5% 1/16W
R5 1-216-833-91 RES,CHIP 10K 5% 1/16W
R6 1-216-845-11 METAL CHIP 100K 5% 1/16W
R7 1-216-797-11 METAL CHIP 10 5% 1/16W
R8 1-216-815-11 METAL CHIP 330 5% 1/16W
R9 1-216-797-11 METAL CHIP 10 5% 1/16W
R10 1-216-813-11 METAL CHIP 220 5% 1/16W
MAIN

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 20 —
R11 1-216-797-11 METAL CHIP 10 5% 1/16W
R12 1-216-835-11 METAL CHIP 15K 5% 1/16W
R13 1-216-837-11 METAL CHIP 22K 5% 1/16W
R14 1-216-797-11 METAL CHIP 10 5% 1/16W
R15 1-216-833-91 RES,CHIP 10K 5% 1/16W
R16 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R17 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R18 1-216-837-11 METAL CHIP 22K 5% 1/16W
R19 1-216-837-11 METAL CHIP 22K 5% 1/16W
R20 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
(E)
R21 1-216-864-11 METAL CHIP 0 5% 1/16W
R22 1-216-864-11 METAL CHIP 0 5% 1/16W
(JE)
R23 1-216-821-11 METAL CHIP 1K 5% 1/16W
R24 1-216-813-11 METAL CHIP 220 5% 1/16W
R28 1-216-864-11 METAL CHIP 0 5% 1/16W
R105 1-216-821-11 METAL CHIP 1K 5% 1/16W
R106 1-216-821-11 METAL CHIP 1K 5% 1/16W
R107 1-216-797-11 METAL CHIP 10 5% 1/16W
R108 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R109 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R110 1-216-817-11 METAL CHIP 470 5% 1/16W
R113 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
< VARIABLE RESISTOR >
RV1 1-223-587-11 RES, ADJ, CARBON 22K
RV101 1-227-153-21 RES, VAR (VOL w)
< SWITCH >
S1 1-771-790-21 SWITCH, SLIDE (SENS) (E)
< TRANSFORMER >
T1 1-416-020-41 TRANSFORMER, IF (TV IFT)
< VIBRATOR >
X1 1-767-414-71 FILTER, CERAMIC 10.7MHz
**************************************************************
A-3663-438-A JACK BOARD, COMPLETE (E)
***********************
A-3663-412-A JACK BOARD, COMPLETE (JE)
************************
< CAPACITOR >
C301 1-115-156-11 CERAMIC CHIP 1uF 10V
C302 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C303 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C305 1-107-983-11 TANTAL. CHIP 10uF 20% 2.5V
C306 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C308 1-127-569-91 TANTAL. CHIP 100uF 20% 4V
C309 1-110-569-11 TANTAL. CHIP 47uF 20% 4V
C311 1-117-977-11 TANTAL. CHIP 100uF 20% 2.5V
C312 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< DIODE >
D301 8-719-046-91 DIODE MA2S111
D302 8-719-420-87 DIODE MA8130
D303 8-719-800-76 DIODE 1SS226
D304 8-719-069-29 DIODE RB520S-30TE61
< IC >
IC301 8-759-652-77 IC RN5RK251A-TR
< JACK >
J301 1-764-624-11 JACK (AUDIO IN)
< COIL >
L301 1-412-056-11 INDUCTOR CHIP 4.7uH
L303 1-419-403-21 INDUCTOR 0uH
L304 1-435-090-21 TRANSFORMER, DC-DC CONVERTER
L306 1-412-064-11 INDUCTOR CHIP 100uH
< TRANSISTOR >
Q301 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q302 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q303 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q304 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
< RESISTOR >
R301 1-216-821-11 METAL CHIP 1K 5% 1/16W
R302 1-216-845-11 METAL CHIP 100K 5% 1/16W
R303 1-216-845-11 METAL CHIP 100K 5% 1/16W
R304 1-216-841-11 METAL CHIP 47K 5% 1/16W
R306 1-216-805-11 METAL CHIP 47 5% 1/16W
R307 1-216-833-91 RES,CHIP 10K 5% 1/16W
R309 1-216-845-11 METAL CHIP 100K 5% 1/16W
R311 1-216-864-11 METAL CHIP 0 5% 1/16W
R312 1-216-308-00 METAL CHIP 4.7 5% 1/10W
< SWITCH >
S301 1-771-337-21 SWITCH, SLIDE (AUDIO IN/RADIO)
S302 1-762-741-11 SWITCH, SLIDE (POWER)
*************************************************************
A-3663-436-A KEY BOARD, COMPLETE (E)
**********************
A-3663-408-A KEY BOARD, COMPLETE (JE)
***********************
1-528-412-11 BATTERY, PAS SECONDARY
1-694-633-11 CONDUCTIVE BOARD, CONNECTION
3-040-300-01 HOLDER (LCD)
*3-040-302-01 CASE (LCD), SHIELD
3-040-305-01 ILLUMINATOR (A)
3-040-306-01 ILLUMINATOR (B)
< CAPACITOR >
C201 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C202 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C203 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C204 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C205 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
MAIN JACK KEY

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 21 —
C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C212 1-115-156-11 CERAMIC CHIP 1uF 10V
C213 1-162-922-11 CERAMIC CHIP 39PF 5% 50V
C214 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C215 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C216 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C221 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C222 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
*CN201 1-793-568-21 CONNECTOR, BOARD TO BOARD 20P
< DIODE >
D201 8-719-069-29 DIODE RB520S-30TE61
D202 8-719-077-82 LED SML-210JTT86PQ (BACK LIGHT)
D203 8-719-077-82 LED SML-210JTT86PQ (BACK LIGHT)
D204 8-719-077-82 LED SML-210JTT86PQ (BACK LIGHT)
< IC >
IC201 8-759-640-08 IC uPD17072GB-563-1A7
IC202 8-759-530-11 IC S-80812ANNP-E72-T2
< LIQUID CRYSTAL DISPLAY >
LCD201 1-803-780-11 DISPLAY PANEL, LIQUID CRYSTAL
< TRANSISTOR >
Q201 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q202 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q203 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q204 8-729-030-20 TRANSISTOR 2SC4097-T106PQR
< RESISTOR >
R201 1-216-833-91 RES,CHIP 10K 5% 1/16W
R202 1-216-845-11 METAL CHIP 100K 5% 1/16W
R203 1-216-833-91 RES,CHIP 10K 5% 1/16W
R204 1-216-833-91 RES,CHIP 10K 5% 1/16W
R205 1-216-833-91 RES,CHIP 10K 5% 1/16W
(E)
R206 1-216-833-91 RES,CHIP 10K 5% 1/16W
(JE)
R208 1-216-833-91 RES,CHIP 10K 5% 1/16W
R209 1-216-821-11 METAL CHIP 1K 5% 1/16W
R210 1-216-821-11 METAL CHIP 1K 5% 1/16W
R211 1-216-821-11 METAL CHIP 1K 5% 1/16W
R213 1-216-821-11 METAL CHIP 1K 5% 1/16W
R214 1-216-821-11 METAL CHIP 1K 5% 1/16W
R215 1-216-821-11 METAL CHIP 1K 5% 1/16W
R216 1-216-851-11 METAL CHIP 330K 5% 1/16W
R217 1-216-857-11 METAL CHIP 1M 5% 1/16W
R218 1-216-845-11 METAL CHIP 100K 5% 1/16W
R219 1-216-821-11 METAL CHIP 1K 5% 1/16W
R220 1-216-821-11 METAL CHIP 1K 5% 1/16W
R221 1-216-833-91 RES,CHIP 10K 5% 1/16W
R222 1-216-797-11 METAL CHIP 10 5% 1/16W
R223 1-216-813-11 METAL CHIP 220 5% 1/16W
R224 1-216-813-11 METAL CHIP 220 5% 1/16W
R225 1-216-857-11 METAL CHIP 1M 5% 1/16W
R226 1-216-843-11 METAL CHIP 68K 5% 1/16W
R227 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R228 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R229 1-216-845-11 METAL CHIP 100K 5% 1/16W
R230 1-216-857-11 METAL CHIP 1M 5% 1/16W
R231 1-216-857-11 METAL CHIP 1M 5% 1/16W
R232 1-216-813-11 METAL CHIP 220 5% 1/16W
R233 1-216-857-11 METAL CHIP 1M 5% 1/16W
< SWITCH >
S201 1-692-088-11 SWITCH, TACTILE (UP)
S202 1-692-088-11 SWITCH, TACTILE (ENTER)
S203 1-692-088-11 SWITCH, TACTILE (PRESET)
< VIBRATOR >
X201 1-767-718-31 VIBRATOR, CRYSTAL 75KHz
*************************************************************
MISCELLANEOUS
*************
2 1-505-322-11 DRIVER (030F023A) (JE)
21 1-791-740-11 WIRE (10 ARBOR), LEAD
*************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-791-766-11 CORD (WITH PLUG) (SP-SP)
3-867-924-11 MANUAL, INSTRUCTION (ENGLISH)
KEY

SHR-M1
— 22 —
Sony Corporation
Personal Audio Company 99J1625-1
Printed in Japan ©1999.10
Published by General Engineering Dept.
9-927-179-11
