Sony HT-CT150 User manual

SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
Audio&Video Business Group
HT-CT150/CT350
HOME THEATRE SYSTEM
9-889-813-01
2010C05-1
© 2010.03
US Model
Canadian Model
HT-CT150/CT350
AEP Model
UK Model
HT-CT350
Ver. 1.0 2010.03
• HT-CT150/CT350 are composed of following models.
As service manuals are issued for each component model, please
refer to them.
SPECIFICATIONS
COMPONENT MODEL NAME
HT-CT150 HT-CT350
Active Subwoofer SA-WCT150 SA-WCT350
Speaker System SS-CT150 SS-CT350
Speaker Bracket Package – WS-CT350EB
Unpacking
• Subwoofer (SA-WCT150) (1) (For HT-CT150)
• Subwoofer (SA-WCT350) (1) (For HT-CT350)
• Speaker (SS-CT150) (1) (For HT-CT150)
• Speaker (SS-CT350) (1) (For HT-CT350)
• AM loop antenna (aerial) (1) (For HT-CT350)
• FM wire antenna (aerial) (1) (For HT-CT350)
• Speaker cord (1)
• Digital optical cord for a TV (2.5 m) (1)
• Remote commander (RM-AAU072) (1) (For HT-CT150)
• Remote commander (RM-AAU071) (1) (For HT-CT350: US, Canadian
models)
• Remote commander (RM-AAU074) (1) (For HT-CT350: AEP, UK
models)
• R6 (size AA) batteries (2)
• WS-CT350EB (For HT-CT350)
• Extension bracket (1)
• Rear cover A (1)
• Rear cover B (1)
• Rear cover C (1)
• Cover for the TV (1)
• Screws for the extension bracket (large, +PSW5 x 16 mm) (6) (For HT-
CT350)
• Screws for the rear cover (small, M3 x 8 mm) (1) (For HT-CT350)
• Support belt (1) (For HT-CT350)
• Screws for the support belt (+PSW4 x 20 mm) (1) (For HT-CT350)
• Wood screw for the support belt (M3.8 x 20 mm) (1) (For HT-CT350)
• Clamp screw (2) (For HT-CT350)
• Warranty (1)
• Operating Instructions (1)
WS-CT350EB (HT-CT350 only)
Extension bracket
Dimensions (approx.) 180 mm × 147 mm × 26
mm (w/h/d)
Mass (approx.) 555 g
Rear cover A
Dimensions (approx.) 80 mm × 85 mm × 14 mm
(w/h/d)
Mass (approx.) 25 g
Rear cover B
Dimensions (approx.) 80 mm × 82 mm × 47 mm
(w/h/d)
Mass (approx.) 35 g
Rear cover C
Dimensions (approx.) 80 mm × 82 mm × 47 mm
(w/h/d)
Mass (approx.) 35 g
Cover for the TV
Dimensions (approx.) 273 mm × 245 mm × 31
mm (w/h/d)
Mass (approx.) 165 g
General
Power requirements 120 V AC, 60 Hz
(US, Canadian models)
Power consumption
220 V – 240 V AC, 50/60 Hz
(Other models)
On: 75 W (CT150)
On: 80 W (CT350)
Standby mode: 0.3 W or less (Control for HDMI
is off.)
Power output
(DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA
Design and specifications are subject to change without
notice.
sStandby power consumption 0.3 W or less.
sHalogenated flame retardants are not used in the
certain printed wiring boards.
sOver 85 % power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
– Refer to next page for accessories list –
Note: As for WS-CT350EB, the part number has been described to this service manual.

HT-CT150/CT350
2
• Abbreviation
CND : Canadian model
ACCESSORIES
4-174-097-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH) (CT150)
4-181-486-12 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH) (CT350: US, CND)
4-181-486-22 MANUAL, INSTRUCTION
(ENGLISH) (CT350: AEP, UK)
4-181-486-32 MANUAL, INSTRUCTION (FRENCH, GERMAN,
SPANISH, ITALIAN, DUTCH) (CT350: AEP)
4-181-486-42 MANUAL, INSTRUCTION (DANISH, FINNISH,
NORWEGIAN, SWEDISH) (CT350: AEP)
4-181-486-52 MANUAL, INSTRUCTION (CZECH, GREEK,
HUNGARIAN, TURKISH) (CT350: AEP)
4-181-486-62 MANUAL, INSTRUCTION (BULGARIAN, POLISH,
ROMANIC, SLOVAKIAN) (CT350: AEP)
1 1-837-245-11 CORD WITH PLUG (Speaker cord)
2 1-757-988-12 CORD, LIGHT PLUG
(Digital optical cord for a TV (2.5 m))
3 1-487-611-11 REMOTE COMMANDER (RM-AAU071)
(CT350: US, CND)
3 1-487-612-11 REMOTE COMMANDER (RM-AAU072) (CT150)
3 1-487-614-11 REMOTE COMMANDER (RM-AAU074)
(CT350: AEP, UK)
4 1-754-059-12 ANTENNA, LOOP (AM loop antenna (aerial))
(CT350)
5 1-793-184-51 CONNECTOR (F TYPE ADAPTOR)
(FM wire antenna (aerial)) (CT350)
6 2-580-608-01 SCREW, +PSW M5 x 16 (for the extension bracket
(large, +PSW5 x 16 mm)) (1 piece) (CT350)
7 7-685-646-79 SCREW +BVTP 3 x 8 TYPE2 IT-3
(for the rear cover (small, M3 x 8 mm)) (CT350)
8 X-2342-530-3 BAG ASSY, FALL LOCK BELT
(Including Support belt and Screws) (CT350)
9 2-580-604-01 SCREW, +PSW M4 x 20
(for the support belt (+PSW4 x 20 mm)) (CT350)
10 2-580-663-02 SCREW, WOOD 3.8 x 20 (Wood screw for the
support belt (M3.8 x 20 mm)) (CT350)
11 4-099-720-02 HOOK (Clamp screw) (1 piece) (CT350)
12 X-2546-583-1 BRACKET (NECK) ASSY (Extension bracket)
(CT350)
13 4-173-054-01 COVER (NECK R-A) (Rear cover A) (CT350)
14 4-173-055-01 COVER (NECK R-B) (Rear cover B) (CT350)
15 4-173-056-01 COVER (NECK R-C) (Rear cover C) (CT350)
16 4-173-057-01 COVER (TV R) (Cover for the TV) (CT350)

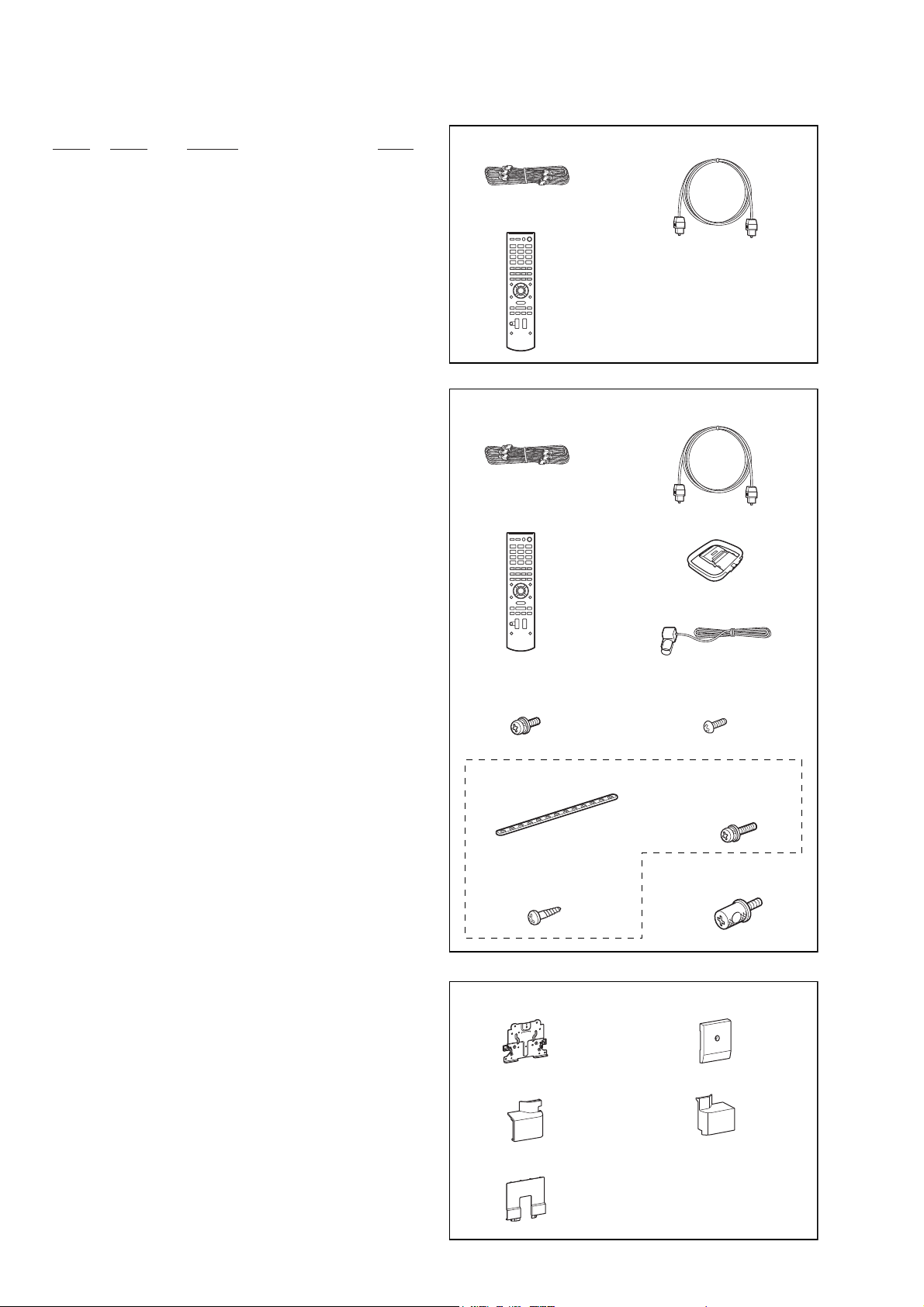

Ref. No. Part No. Description Remark 2 Digital optical cord for a TV (2.5 m) (1)
1 Speaker cord (1)
For HT-CT150
For HT-CT350
3 Remote commander (1)
For WS-CT350EB (HT-CT350 only)
2 Digital optical cord for a TV (2.5 m) (1)
4 AM loop antenna (aerial) (1)
5 FM wire antenna (aerial) (1)
7
Screws for the rear cover
(small, M3 × 8 mm) (1)
6
Screws for the extension bracket
(large, +PSW5 × 16 mm) (6)
1 Speaker cord (1)
3 Remote commander (1)
12 Extension bracket (1)
14 Rear cover B (1)
13 Rear cover A (1)
15 Rear cover C (1)
16 Cover for the TV (1)
Support belt (1) 9
Screw for the support belt
(+PSW4 × 20 mm) (1)
10
Wood screw for the support belt
(M3.8 × 20 mm) (1)
11 Clamp screw (2)
8

HT-CT150/CT350
3
MEMO

HT-CT150/CT350
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2010.03 New
