Sony MVS8000SF-C User manual

SWITCHER PROCESSOR PACK
MVS8000SF-C
INSTALLATION MANUAL
1st Edition (Revised 2)
HK-PSU04
MKS-8110HD
MKS-8160HD
MKS-8170HD
MKS-8210HD
MKS-8440HD
MKS-8210K1
MVS-8000SF
MULTI FORMAT SWITCHER PROCESSOR
MKS-8110SD
MKS-8160SD
MKS-8170SD
MKS-8210SD
MKS-8440SD
MKS-8440K1
MKS-8110M
MKS-8160M
MKS-8170M
MKS-8210M
MKS-8440M
MKS-8420M

MVS-8000SF
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
MVS-8000SF Serial No. 10001 and Higher
MKS-8110HD Serial No. 10001 and Higher
MKS-8110SD Serial No. 10001 and Higher
MKS-8110M Serial No. 10001 and Higher
MKS-8160HD Serial No. 10001 and Higher
MKS-8160SD Serial No. 10001 and Higher
MKS-8160M Serial No. 10001 and Higher
MKS-8170HD Serial No. 10001 and Higher
MKS-8170SD Serial No. 10001 and Higher
MKS-8170M Serial No. 10001 and Higher
MKS-8210HD Serial No. 10001 and Higher
MKS-8210SD Serial No. 10001 and Higher
MKS-8210M Serial No. 10001 and Higher
MKS-8420M Serial No. 10001 and Higher
MKS-8440HD Serial No. 10001 and Higher
MKS-8440SD Serial No. 10001 and Higher
MKS-8440M Serial No. 10001 and Higher
MKS-8210K1 Serial No. 10001 and Higher
MKS-8440K1 Serial No. 10001 and Higher
HK-PSU04 Serial No. 10001 and Higher

MVS-8000SF
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.
5. Install the equipment while taking the operating
temperature of the equipment into consideration
For the operating temperature of the equipment, refer
to the specifications of the Operation Manual.
6. When performing the installation, keep the rear of
the unit 10 cm (4 inches) or more away from walls
in order to obtain proper exhaust and radiation of
heat.
When using a LAN cable:
For safety,do not connect to the connector for
peripheral device wiring that might have excessive
voltage.
1 (P)

1
MVS-8000SF
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 3
Related manuals ......................................................................................................... 3
Contents ..................................................................................................................... 3
1. Installation
1-1. Operating Environment ............................................................................... 1-1
1-2. Power Supply .............................................................................................. 1-1
1-2-1. Power Specifications .................................................................. 1-1
1-2-2. Recommended Power Cord ........................................................ 1-1
1-3. Installation Space (External dimensions) .................................................... 1-2
1-3-1. MVS8000SF-C ........................................................................... 1-2
1-4. Installing the Options .................................................................................. 1-3
1-4-1. Installing the Plug-in Boards ...................................................... 1-3
1-4-2. Installing the Connector Board .................................................. 1-6
1-4-3. Installing the HK-PSU04 ........................................................... 1-7
1-4-4. Upgrade ...................................................................................... 1-7
1-4-5. Installing the MKS-8420M ........................................................ 1-8
1-5. Rack Mounting ............................................................................................ 1-9
1-6. Matching Connectors ................................................................................ 1-11
1-7. Input/Output Signals of Connectors .......................................................... 1-12
1-8. Checks on Completion of Installation ....................................................... 1-14
1-8-1. Description of On-board Switches and LEDs .......................... 1-14
1-8-2. Checks on the Switch Setting the Number of
Power Supply Units.................................................................. 1-57
1-9. System Connection.................................................................................... 1-58
2. Service Overview
2-1. Troubleshooting .......................................................................................... 2-1
2-2. Periodic Inspection and Maintenance ......................................................... 2-2
2-2-1. Cleaning ..................................................................................... 2-2
2-3. About the Data Backup Capacitor ............................................................... 2-2

3
MVS-8000SF
Purpose of this manual
This manual is the installation manual of Switcher Processor Pack MVS8000SF-C
and their optional boards and units.
This manual is intended for use by trained system and service engineers, and
describes the information on installing the MVS8000SF-C.
Related manuals
The following manuals are prepared for MVS8000SF-C and their optional boards
and units.
..
..
.Operation Manual (Supplied with MVS8000SF-C)
This manual describes the application and operation of MVS8000SF-C.
..
..
.System Setup Manual (Available on request)
This manual describes the information that is required to connect the MVS-8xxx/
MVE-8000/DCU-8000/CCP-8000 to the MVS-8000 system, and to start up the
system.
If this manual is required, please contact your local Sony Sales Office/Service
Center.
..
..
.Maintenance Manual (Available on request)
This manual describes the detailed service information.
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents
This manual is organized by following sections.
Section 1 Installation
This section describes the operating environment, power supply, installation space,
installation of optional boards and units, rack mounting, connectors, input and
output signals of connectors, checking upon completion of installation, and system
configuration.
Section 2 Service Overview
This section describes the troubleshooting and periodic inspection and maintenance.
Manual Structure

1-1
MVS-8000SF
Section 1
Installation
1-1. Operating Environment
Operating guaranteed temperature : +5 dC to +40 dC
Performance guaranteed temperature : +10 dC to +35 dC
Operating humidity : 10 % to 90 %
(relative humidity)
Storage temperature : _20 dC to +60 dC
Mass : Approx. 45 kg
(when all options
are installed)
Prohibited locations for installation
.Areas where the unit will be exposed do direct sunlight
or any other strong lights.
.Dusty areas
.Areas subject to vibration.
.Areas with strong electric or magnetic fields.
.Areas near heat sources.
.Areas subject to electrical noise.
.Areas subject where is subjected to static electricity.
Ventilation
The inside of the MVS8000SF-C is cooled by a fan (on
both sides).
The power supply can be damaged if the exhaust vent (on
both sides) and air intake (front panel) are blocked or the
fan is stopped.
Therefore, leave a blank space of more than 10 cm in the
front and back of the MVS8000SF-C.
1-2. Power Supply
1-2-1. Power Specifications
A switching regulator is used for the power supply of this
unit. The voltage within the range of 100 V to 240 V can
be used without changing the supply voltage.
Power requirements : AC 100 to 240 V ±10 %
Power frequency : 50/60 Hz
Current consumption : 100 V : 10 A, 240 V : 4.2 A
(with all options installed)
m
.As the inrush current at turn-on is a maximum 60 A (at
100 V)/110 A (at 230 V), the capacity of the AC power
source must be commensurate with this load.
If the capacity of the AC power is not adequately large,
the AC power source braker will operate or the unit will
abnormally operate.
.This system contains the two power supply units as the
standard configuration. A fourth, redundant, power
supply may be installed as an option.
When starting up this system, be sure to turn on the
power of all the power supply units.
1-2-2. Recommended Power Cord
w
.The power cord is not supplied with the MVS8000SF-C.
Be sure to use the power cord that is applicable to places
in the area.
To avoid a fire or an electric shock, be sure to use the
designated power cord.
.Do not damage the power cord otherwise a fire or
electric shock may result.

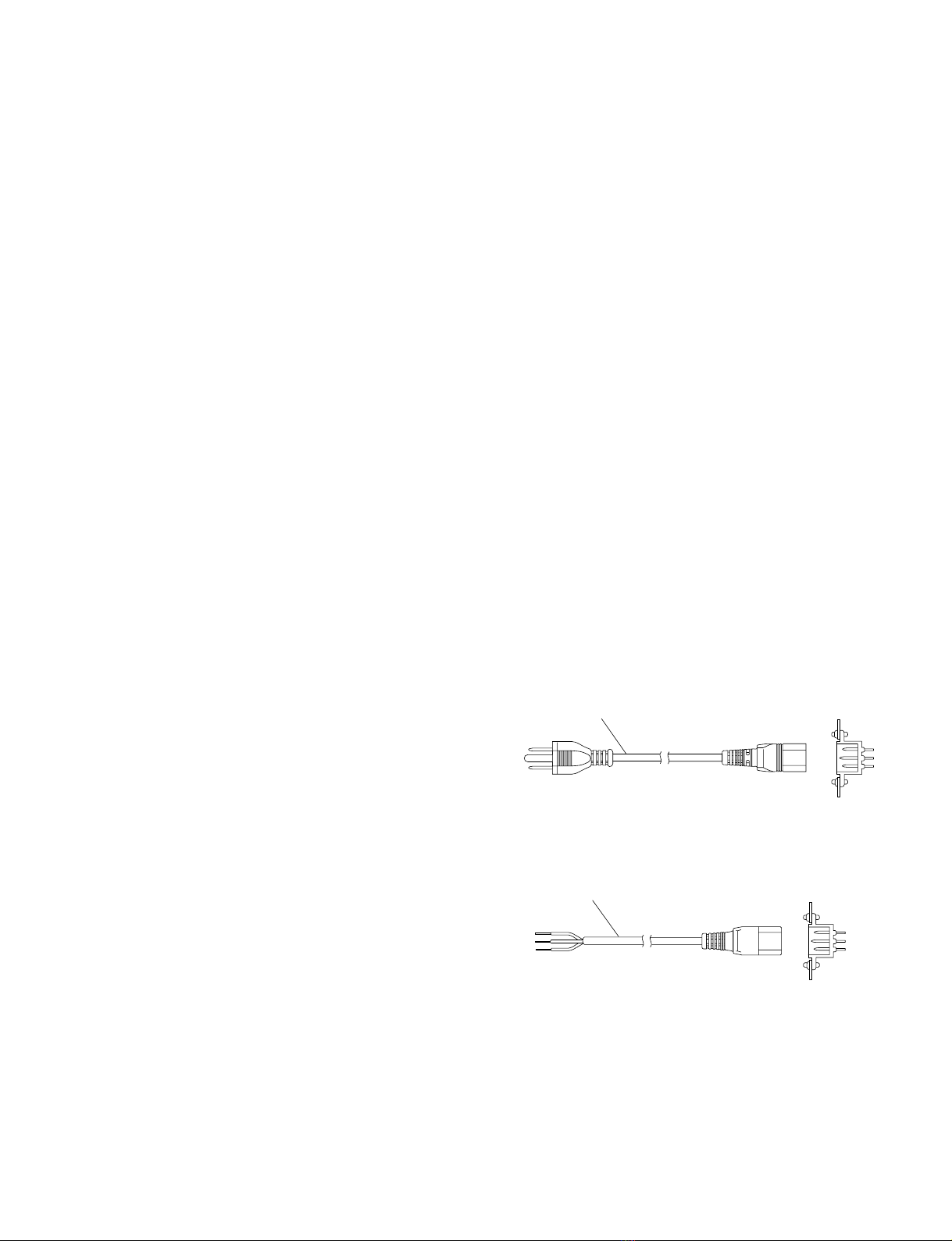

For customers in the U.S.A. and Canada
1Power cord, 125 V 10 A (2.4 m) : !1-557-377-11
AC inlet
1
For customers in the all European countries
1Power cord, 250 V 10 A (2.4 m) : !1-782-929-21
1
AC inlet

1-2 MVS-8000SF
1-3. Installation Space (External dimensions)
Unit : mm
1-3. Installation Space (External dimensions)
1-3-1. MVS8000SF-C
35
7
520
375
61 370
144.5 115.5 115.5
35
279.4
354(8U)
37.6
17.5
482
339
465
440

1-3
MVS-8000SF
1-4. Installing the Options
The MVS8000SF-C is shipped from the factory with the
necessary option boards (refer to the following table)
already installed in accordance with the specified system
configuration.
The following options are available for the MVS-8000SF.
MVS-8000SF Option List
Model name Board Structure
Plug-in board Connector board
MKS-8110HD _CNI-9 board
17 Input Board
MKS-8110SD _CNI-10 board
17 Input Board
MKS-8110M _CNI-22 board
17 Input Board
MKS-8160HD OUT-23 board CNO-11 board
8 Output Board
MKS-8160SD OUT-24 board CNO-17B board
8 Output Board
MKS-8160M OUT-27 board CNO-23 board
8 Output Board
MKS-8170HD DIF-119 board _
DME Interface Board
MKS-8170SD DIF-122 board _
DME Interface Board
MKS-8170M DIF-141 board _
DME Interface Board
MKS-8210HD DI-40 board _
Mix/Effect Board Set DO-41 board _
MIX-45 board _
KPC-16 board _
MKS-8210SD DI-41 board _
Mix/Effect Board Set DO-42 board _
MIX-45 board _
KPC-16 board _
MKS-8210M DI-43 board _
Mix/Effect Board Set DO-44 board _
MIX-45 board _
KPC-16 board _
MKS-8420M CC-90 board _
Color Corrector Board
MKS-8440HD DIO-62 board _
Frame Memory Board Set MY-102 board _
MKS-8440SD DIO-63 board _
Frame Memory Board Set MY-102 board _
Model name Board Structure
Plug-in board Connector board
MKS-8440M DIO-74 board _
Frame Memory Board Set MY-102 board _
MKS-8210K1 DI-43 board _
1 M/E Upgrade Kit DO-44 board _
MKS-8440K1 DIO-74 board _
Frame Memory Upgrade Kit
HK-PSU04 __
Power Supply Unit
1-4-1. Installing the Plug-in Boards
Each plug-in board of the Multi Format Switcher MVS-
8000SF is allocated to a specific slot into which they must
be installed. Check to see that the respective plug-in boards
are installed in their respective slots.
The name of the board is shown near the eject lever at the
right-most end of each plug-in board.
The respective slot numbers to which plug-in boards that
are allocated are shown inside the front panel of the MVS-
8000SF. Install the respective plug-in board according to
this instruction.
n
Check to see that connectors of the plug-in boards are
securely into the MB-974 board of the MVS-8000SF
without loose contact.
If any plug-in board is inserted into the incorrect slot, it
causes a system error and the system will not work correct-
ly.
c
Be sure to turn off the POWER switch before starting
installation work.
If installation work is started with the POWER switch left
on, it may cause electrical shock or damage to printed
circuit boards.
1-4. Installing the Options

1-4 MVS-8000SF
Installation Procedure
1. Turn off the main power of the MVS-8000SF and
disconnect the AC power cord from the wall outlet.
2. Loosen the four screws (with drop-safe) and remove
the front panel to the arrow.
3. Remove the six screws and remove the plug-in board
loose-proof assembly.
Screws (with drop-safe)
Front panel
Screws
(with drop-safe)
4. While the eject levers are opened as shown in the
illustration, insert the plug-in board into the board
guide rail.
B3 x 5
B3 x 5
Extract PWB stopper
assembly
Eject levers
1-4. Installing the Options

1-5
MVS-8000SF
Name of option Name of board Slot on the
front side
MKS-8210HD/SD/M*1DO-41/DO-42/ 3, 8
DO-44 board
MIX-45 board 4, 9
KPC-16 board 5, 10
DI-40/DI-41/ 6, 11
DI-43 board
MKS-8170HD/SD/M DIF-119/DIF-122/ 7
DIF-141 board
MKS-8420M CC-90 board 12
MKS-8160HD/SD/M*2OUT-23/OUT-24/ 14 , 15
OUT-27 board
MKS-8440HD/SD/M DIO-62/DIO-63/ 16
DIO-74 board
MY-102 board 17
*1 : Note when installing the MKS-8210HD/8210SD/8210M
The MKS-8210HD/8210SD/8210M must be inserted into the specified
slot only for M/E. Be sure to insert it into the correct slot without fail.
The slots into which the MKS-8210HD/8210SD/8210M can be inserted
are determined in accordance with the configuration of M/Es as shown
in the following table.
Slot M/E
SLOT 3 to 6 M/E 1
SLOT 8 to 11 PGM/PST
*2 : Relation between the slots in which OUT-23/OUT-24/OUT-27 boards
(MKS-8160HD/8160SD/8160M) are installed and OUTPUT is shown
below.
Slot OUTPUT
SLOT 14 1 to 8
SLOT 15 9 to 16
5. While closing the eject levers in the direction of arrow
1, push in the plug-in board.
6. Attach the plug-in board loose-proof assembly and the
front panel by reversing the installation steps of 2, 3.
1
1
Eject lever Eject lever
1-4. Installing the Options

1-6 MVS-8000SF
1-4-2. Installing the Connector Board
1. Remove the two screws and remove the blank panel.
n
To install the connector board into the slot in which
the other board is installed already, loosen the two
fixing screws and remove the connector board that is
installed already.
n
Store the removed blank panel in a safe place.
2. Insert the connector board horizontally level and
secure it with the two fixing screws.
Name of option Name of board Slot on the rear side
MKS-8110HD CNI-9 board IN 1 to 17
MKS-8110SD CNI-10 board 18 to 34
MKS-8110M CNI-22 board
MKS-8160HD CNO-11 board Insert into the slot on the
MKS-8160SD CNO-17B board rear that corresponds to
MKS-8160 M CNO-23 board the slot on the front side.
B3 x 5
B3 x 5
Blank panel
Connector board
Fixing screw
Fixing screw
1-4. Installing the Options

1-7
MVS-8000SF
1-4-3. Installing the HK-PSU04
The HK-PSU04 is used after it is installed in the MVS-
8000SF.
n
Before installing the HK-PSU04, be sure to turn off the
main power. If the HK-PSU04 is installed while the main
power is turned on, it can result in electrical shock or
damage to printed circuit boards.
Installation procedure
1. Remove the front panel of the MVS-8000SF.
(Refer to Section 1-4-1.)
2. Remove the two screws (B3 x5) fixing the power
supply cover, and remove the power supply cover.
3. Remove the two screws (PSW3 x6) fixing the blank
panel to the location where the HK-PSU04 is going to
be installed. Then remove the blank panel.
n
Store the removed blank panel in a safe place.
4. Push the portion of the HK-PSU04 marked by the
arrow and insert the HK-PSU04 into deep end as far as
it will go.
5. Secure the HK-PSU04 with the two screws removed in
step 3.
6. Attach the power supply cover and the front panel by
reversing the installation steps of 1, 2.
1-4-4. Upgrade
The MVS-8000 system can be upgraded by the use of the
following upgrade kit.
Name of upgrade Name of board Slot on the
kit front side
MKS-8210K1 DO-44 board 3, 8
DI-43 board 6, 11
MKS-8440K1 DIO-74 board 16
1. When MKS-8210K1 is used
Exchange the DO-41/42 boards of the M/E unit that
you want to upgrade, with the DO-44 board of the
upgrade kit. Also, exchange the DI-40/41 boards that
you want to upgrade, with the DI-43 board of the
upgrade kit.
2. When MKS-8440K1 is used
Exchange the DIO-62/63 boards in the slot 16 with the
DIO-74 board of the upgrade kit.
PSW
3 x6
B3 x5
B3 x5
Blank panel
PS cover
1-4. Installing the Options
HK-PSU04
PSW3 x6
PSW3 x6

1-8 MVS-8000SF
1-4-5. Installing the MKS-8420M
MKS-8420M consists of the following boards.
.CC-90 board : 1 piece
.CPU-DK module : 3 pieces
CC-90 board installation
Refer to “1-4-1. Installing the Plug-in Boards”.
CPU-DK module installation
Replace a CPU-DK module on the following boards with
each CPU-DK module of MKS-8420M.
Replacement procedure of the CPU-DK module is de-
scribed as follows using the OUT-23 board as an example.
Other boards (DIF-119, DIF-122, DIF-141, OUT-24,
OUT-27, XPT-21) can also be replaced in the same way.
Front side slot No. Board name (The installed boards are
different depending on the system
configuration.)
7 DIF-119 or DIF-122 or DIF-141(*1)
13 XPT-21
14 OUT-23 or OUT-24 or OUT-27
(*1) : MKS-8170HD, MKS-8170SD, MKS-8170M
Depending on the system configuration, above DME Interface Board
is not installed in slot 7.
c
Be sure to turn off the POWER switch before starting
installation work.
If installation work is started with the POWER switch left
on, it may cause electrical shock or damage to printed
circuit boards.
Removal
1. Remove the OUT-23 board from the MVS-8000SF.
2. Remove the two screws and washers. Remove the
bracket (K).
3. Remove the CPU-DK module from the connector of
the board.
4. Peel off the heat conduction sheet 1 (SDI) from the
removed CPU-DK module.
n
The heat conduction sheet 1 (SDI) will be reused.
Installation
1. Attach the heat conduction sheet 1 (SDI) that is
removed in step 4 of removal procedure to the new
CPU-DK module.
2. Insert the CPU-DK module connector (PN1) to the
connector (CN1501) on the OUT-23 board.
n
Confirm that the connector is securely inserted to its
root.
3. Install the OUT-23 board by reversing the steps of
removal.
W3,
MIDDLE
CPU-DK
module
Bracket (K)
CN1501
PN1
Heat conduction
sheet 1 (SDI)
B3 x6
The illustration shows the OUT-23 board.
1-4. Installing the Options

1-9
MVS-8000SF
1-5. Rack Mounting
1-5. Rack Mounting
The MVS-8000SF is mounted in the 19-inch standard rack.
To mount the MVS-8000SF in the rack, use the specified
rack mount kit and follow the procedure described below.
Specified rack mount kit : RMM-10
n
If other than the specified rack mount kit is used, the unit
may not be mounted in the 19-inch standard rack.
Parts of the RMM-10
.Rack tool 2 pcs
.Right rack mount adapter 1 pc
.Left rack mount adapter 1 pc
.Rack tool attaching screw 6 pcs
(B4 x6 : 7-682-560-09)
.Rack tool attaching screw 6 pcs
(B4 x10 : 7-682-560-10)
Other required parts
To mount in the rack, the rack mount kit RMM-10 and the
following part are required.
.Screw for rack mounting 4 pcs
(B5 x12 : 7-682-576-04)
1. Precautions for Rack Mounting
w
.To prevent the rack from falling or moving, fix the rack
on a flat and steady floor using bolt or others.
If the rack falls due to the weight of the equipment, it
may cause death or injury.
.Be sure to use the specified rack mount kit.
If not, injury may result and the equipment may fall due
to insufficient strength.
.After rack mounting, be sure to tighten the screws on the
rack angle and fix the unit in the rack.
If the screws on the rack angle are not tightened, the unit
may slip from the rack and fall, causing injury.
c
When mounting the unit in the rack, note the following:
.Be sure to mount in the rack with two persons or more.
.Be careful not to catch your fingers or hands in the rack
mount rail or others.
.Mount in the rack in a stable position.
n
If several units are mounted in a rack, it is recommended to
install a ventilation fan to prevent temperature rise inside
the rack.
2. Rack Mounting Procedure
This section describes the rack mounting procedure using
the RMM-10 rack mount kit.
n
Tighten the screws to the following torque.
Tightening torque : 120 x10_2N.m {12.2 kgf.cm}
1. Attach the rack tool to the side of the equipment using
the specified six screws.
n
Use B4 x6 screws.
B4 x6
B4 x6
Rack tool
Rack tool

1-10 MVS-8000SF
1-5. Rack Mounting
2. Loosen the screws on the rear of the right and left
adapters and adjust the length of the adapter according
to the depth of the rack.
(The illustration below shows the left adapter.)
n
Maximum depth of adapter : 750 mm
Minimum depth of adapter : 595 mm
3. Attach the right and left adapters to the rack complete-
ly using the specified six screws.
(The illustration below shows the left adapter.)
4. Tighten the screws (B4 x6 : two screws each on the
right and left) for adjusting the length of the adapter
completely (the screws that were loosened in step 2).
5. Remove the front panel of the equipment.
(Refer to Section 1-4-1.)
B4 x6
B4 x6
Portion of
the rail
Adapter
B4 x10
B4 x10
31.75
31.75
1U
4U
8U
Unit : mm
6. Align the groove of the rack tool at the side of the
equipment with the rail, and slide the equipment to the
rear.
n
The rack tools are hooked on the rails as shown below.
7. Fix the rack angle in the rack using the specified
screws.
8. Attach the front panel to the equipment.
(Refer to Section 1-4-1.)
Rack tool Rack tool
Rail Rail
B5 x12
B5 x12

1-11
MVS-8000SF
1-6. Matching Connectors
1-6. Matching Connectors
Use the following connectors, cables or equivalents when connecting cables to the unit.
Model name Panel indication Connector name Matching connector and cable
Name Sony part No.
MKS-8110SD/HD/M PRIMARY INPUTS BNC, 75 ZBelden 8281 coaxial _
1 to 17 cable (SDTV system)
MKS-8160SD/HD/M OUTPUTS 1 to 8 or
Belden 1694 coaxial
cable (HDTV system)
MVS-8000SF REF IN BNC, 75 ZBelden 8281 coaxial _
REF OUT cable
EXT
REMOTE 1 to 4 D-sub 9-pin, Female D-sub 9-pin, Male
TERMINAL Connector 9-pin, Male 1-560-651-00*1
Junction Shell 9-pin 1-561-749-00
GPI D-sub 25-pin, Female D-sub 25-pin, Male
Connector 25-pin, Male 1-560-904-11*1
Junction Shell 25-pin 1-563-377-11
DATA RJ-45 modular jack*2__
CTRL
DME 1A, 1B, 2A, 2B MDR 68-pin, Female Dedicated cable _
(supplied with the
MVE-8000)
*1 : The following crimp contact is required for the plug.
AWG#18 to #22 : 1-566-493-21
AWG#22 to #24 : 1-564-774-11
AWG#24 to #30 : 1-564-775-11
*2 : Conforms to the IEEE 802.3 Ethernet 100BASE-TX standards.

1-12 MVS-8000SF
_ EXT VIEW _
1
5
69
1
13
14
25
EXT VIEW
+V
GPI OUT xB
GPI OUT xA
GPI OUT 5-8
GPI OUT COM
x: 1-4
<Relay>
<Open collector output>
(*3)
(*4)
1-7. Input/Output Signals of Connectors
1-7. Input/Output Signals of Connectors
The input/output signals of the connectors at the rear panel
are as follows.
TERMINAL : RS-232C (D-sub 9-pin, Female)
to Terminal
Pin No. Signal Name Function
1 DCD Data Carrier detect (*1)
2 RXD Received data
3 TXD Transmitted data
4 DTR Data terminal ready (*1)
5 GND Ground
6 DSR Data set ready (*1)
7 RTS Request to send (*2)
8 CTS Clear to send (*2)
9__
(*1) :Pins 1, 4 and 6 are internally connected together on the CN-2133
board.
(*2) :Pins 7 and 8 are internally connected together on the CN-2133 board.
GPI : (D-sub 25-pin, Female)
INPUT x8, TTL
OUTPUT x4, relay contacts 30 V 0.1 A
(resistive load)
OUTPUT x4, open collector, 30 V rated voltage
Pin No. Signal Name Function
1 GND Ground
2 GND Ground
3 GPI IN 2 General-purpose input
4 GPI IN 4
5 GPI IN 6
6 GPI IN 8
7 GPI OUT 1B General-purpose open
8 GPI OUT 2B collector output (B) (*3)
9 GPI OUT 3B
10 GPI OUT 4B
Pin No. Signal Name Function
11 GPI OUT 6 General-purpose relay
12 GPI OUT 8 output (B) (*4)
13 GPI OUT COM Ground for open collector
output
14 GND Ground
15 GPI IN 1 General-purpose input
16 GPI IN 3
17 GPI IN 5
18 GPI IN 7
19 GPI OUT 1A General-purpose relay
20 GPI OUT 2A output (A) (*3)
21 GPI OUT 3A
22 GPI OUT 4A
23 GPI OUT 5 General-purpose open
24 GPI OUT 7 collector output (*4)
25 GPI OUT COM Ground for open collector
output
n
A and B of the same number constitute a pair of relay
contacts.
