REPAIR MANUAL
Self Diagnosis
Supported model
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
LCD Digital Color TV
9-883-586-01
ITC3 Chassis
Segment: ME
Version Date Subject
1.0 02/20/2014 Original Manual Release Date.
MODEL COMMANDER DESTINATION
KDL-32R420B RM-YD092 US/CND
KDL-40R470B RM-YD092 US/CND
KDL-40R470B

KDL-32R420B/40R470B i
TABLE OF CONTENTS
Cautions and Warnings...................................................................................ii
Section 1 - Specications and Layouts .........................................................1
Specications ................................................................................................1
Checking the Accessories......................................................................................1
Board Layout .................................................................................................2
KDL-32R420B/40R470B........................................................................................2
Wire Dressing................................................................................................3
KDL-32R420B/40R470B........................................................................................3
Section 2 - Troubleshooting ...........................................................................4
Diagnosing the Error .....................................................................................4
Viewing the Self Check Diagnosis History.............................................................4
Triage Chart...................................................................................................5
Flowcharts and Diagrams..............................................................................6
Overall Block Diagram...........................................................................................6
Power and Control Block Diagram.........................................................................7
KDL-32R420B........................................................................................................7
KDL-40R470B........................................................................................................8
No Power Flowchart ..............................................................................................9
Standby LED Blinking Flowchart .........................................................................10
Video Distortion Flowchart................................................................................... 11
Section 3 - Repair Information......................................................................12
Repairing the TV..........................................................................................12

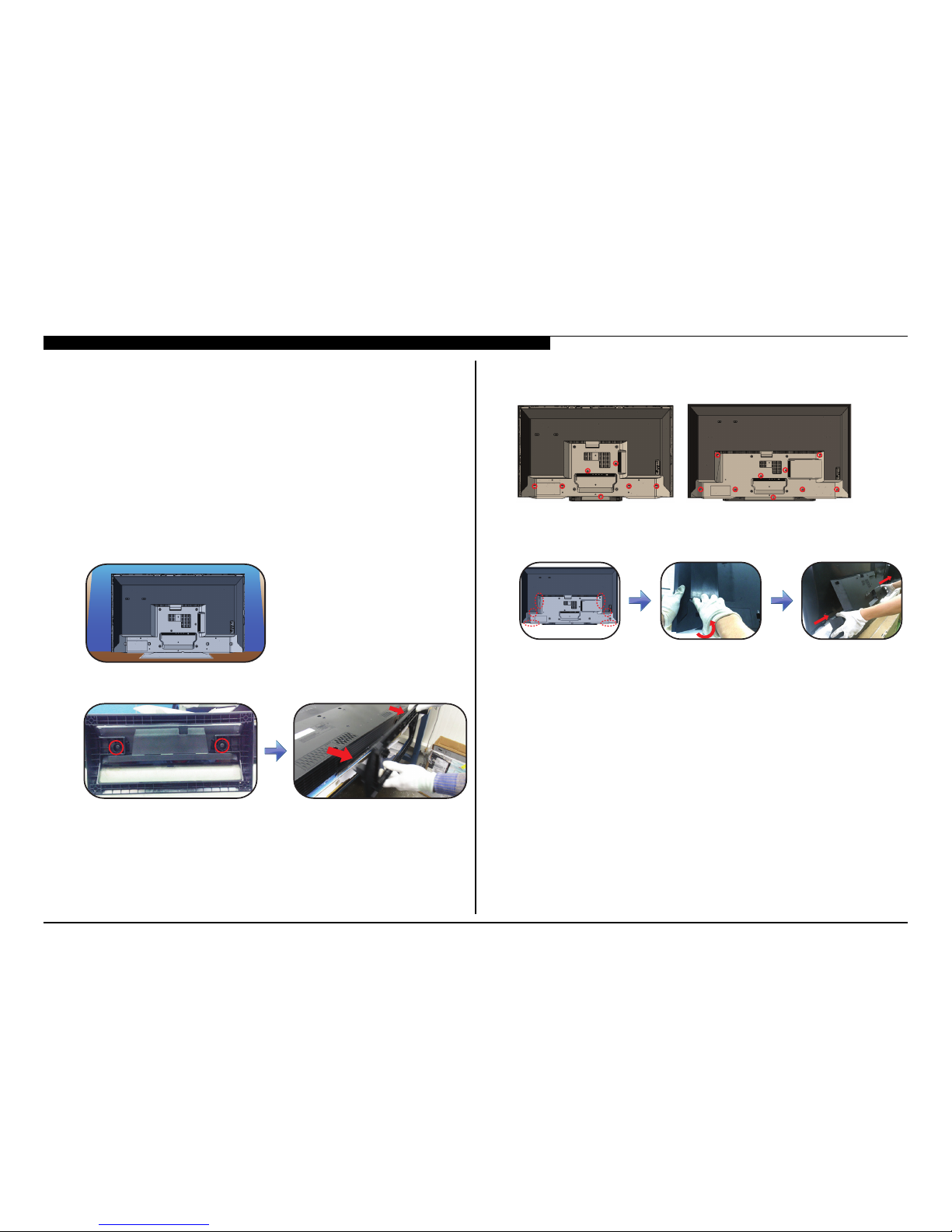

Removing the Table Top Stand............................................................................12
Removing the Lower Cover .................................................................................12
Replacing the Main Board ...........................................................................13
Removing the Speakers ..............................................................................16
Replacing the Switch Unit ...........................................................................16
Section 4 - Exploded View/Part Number Information.................................17
Table Top Stand...........................................................................................17
KDL-32R420B/40R470B .............................................................................18
Connectors ..................................................................................................20
Screws.........................................................................................................21
Section 5 - Accessories/Part Number Information .....................................22
Accessories and Packaging ........................................................................22
Miscellaneous..............................................................................................22
Optional Accessories...................................................................................22
Remote Commander ...................................................................................22
Appendix A: Encryption Key Components ............................................... A-1

KDL-32R420B/40R470B ii
CAUTION!!
These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
WARNING!!
An isolation transformer should be used during any service to avoid possible
shock hazard, in case of live chassis.
!
SAFETY-RELATED COMPONENT WARNING!!
There are critical components used in LCD color TVs that are important for
safety. These components are identied with shading and
!
mark on the
schematic diagrams and the parts list. It is essential that these critical parts
be replaced only with the part number specied in the parts list to prevent
electric shock, re or other hazard.
NOTE: Do not modify the original design without obtaining written permission
from the manufacturer or you will void the original parts and labor warranty.
ATTENTION!!
For safety reasons, component level repair of the Power Supply Boards
and/or the Inverter Boards is prohibited.
CAUTIONS AND WARNINGS
ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualié
seulement. Pour prévenir le risque de choc électrique, ne pas faire l’entretien
autre que celui contenu dans le Mode d’emploi à moins que vous soyez
qualié faire ainsi.
ALERTE!!
An d’eviter tout risque d’electrocution provenant d’un chássis sous tension,
un transformateur d’isolement doit etre utilisé lors de tout dépannage.
!
ATTENTION AUX COMPOSANTS
RELATIFS A LA SECURITE!!
Les composants identies par une trame et par une marque
!
sur les
schemas de principe, les vues explosees et les listes de pieces sont d’une
importance critique pour la securite du fonctionnement. Ne les remplacer
que par des composants Sony dont le numero de piece est indique dans le
present manuel ou dans des supplements publies par Sony. Les reglages
de circuit dont l’importance est critique pour la securite du fonctionnement
sont identies dans le present manuel. Suivre ces procedures lors de
chaque remplacement de composants critiques, ou lorsqu’un mauvais
fonctionnement suspecte.
ATTENTION!!
Pour des raisons de sécurité, Interdire de réparer ou remplacer les
composantes dans les blocs d’alimentation et/ou sur les modules d’inverseur.

KDL-32R420B/40R470B iii
CAUTIONS AND WARNINGS
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety
checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or
touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps and
mounting hardware have been replaced. Be absolutely certain that
you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws
and all other exposed metal parts for AC leakage. Check leakage
as described in “Leakage Test”.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and from all
exposed metal parts to any exposed metal part having a return to chassis,
must not exceed 0.5 mA (500 microamperes). Leakage current can be
measured by any one of three methods.
1. A commercial leakage tester.
Follow the manufacturers’ instructions provided with the tester.
2. A battery-operated AC milliammeter.
3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low voltage scale. Nearly all
battery-operated digital multimeters that have a 2 VAC range are
suitable. (see Figure A)
To Exposed Metal
Parts on Set
0.15 µF
Earth Ground
AC
Voltmete
r
(0.75V)

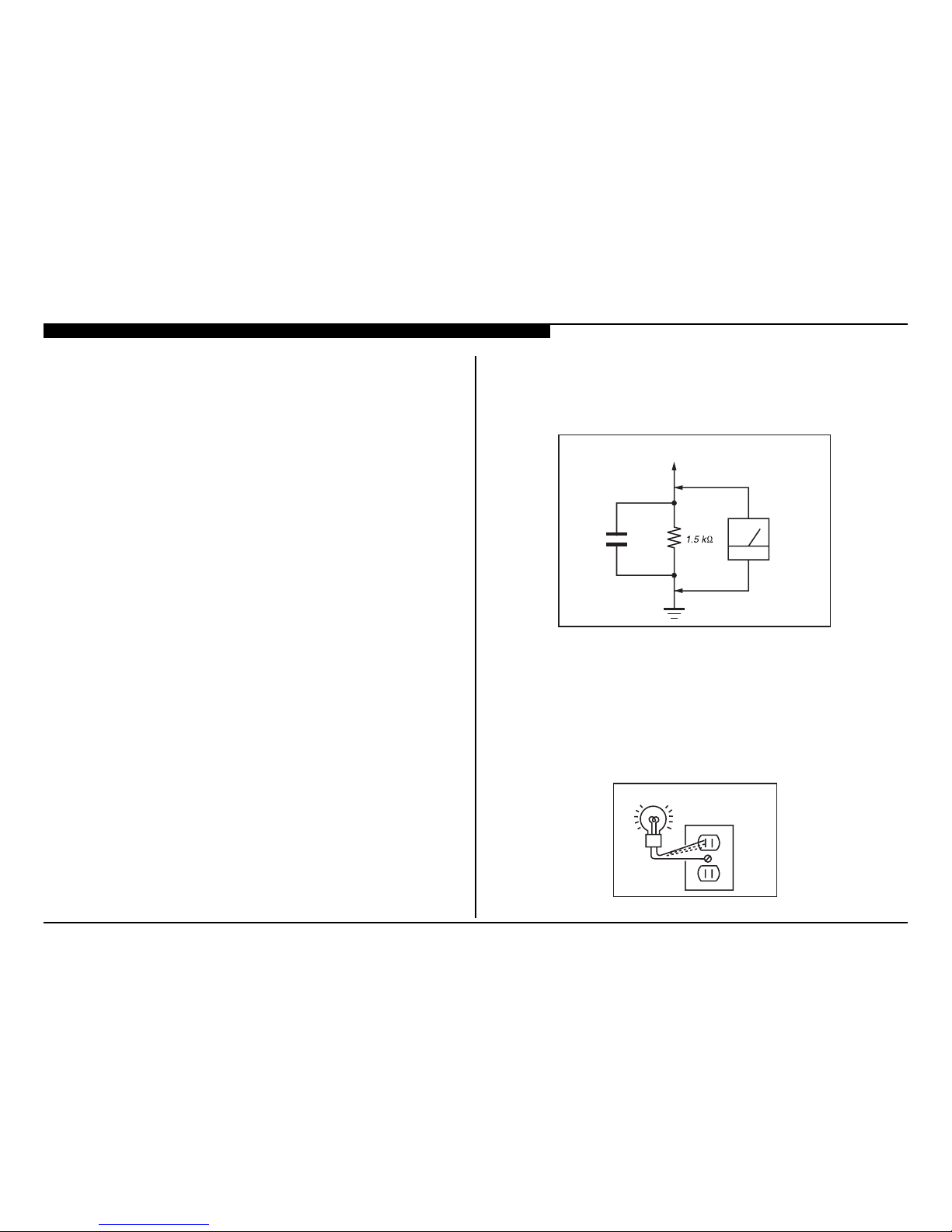

Figure A. Use an AC voltmeter to check AC leakage.
HOW TO FIND A GOOD EARTH GROUND
The cover-plate retaining screw on most AC outlet boxes is at earth ground.
Verify the AC outlet box retaining screw ground by connecting a 60W to
100W incandescent (not a neon or uorescent lamp) between the hot side of
the receptacle and the retaining screw. Try both slots, if necessary, to locate
the hot side on the line; the lamp should light at normal brilliance if the screw
is at ground potential. (see Figure B)
Figure B. Checking for earth ground.
Trouble Light
AC Outlet Box

KDL-32R420B/40R470B 1
SPECIFICATIONS
System
Television system
ATSC (8VSB terrestrial): ATSC Compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system
Speaker output
Input/Output jacks
CABLE/ANTENNA
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negativeVIDEO IN
PB: 0.7 Vp-p, 75 ohms / PR: 0.7 Vp-p, 75 ohms
COMPONENT IN
VIDEO IN
Supported formats: 1080p (60 Hz), 1080i (60 Hz), 720p (60 Hz), 480p, 480i
Audio Input (phono jacks)
Video Input (phono jacks)
HDMI IN 1/MHL
AUDIO
HDMI IN 2 (ARC)
For KDL-40R470B
AUDIO OUT
(Headphone)
Audio output, Headphone (minijack), Subwoofer
NTSC: American TV Standard
Analog Terrestrial: 2 - 69 / Digital Terrestrial: 2 - 69
LCD (Liquid Crystal Display) Panel, LED Backlight
5 W + 5 W (KDL-32R420B), 8 W + 8 W (KDL-40R470B)
75-ohm external terminal for RF inputs
Two channel linear PCM 32, 44.1 and 48 kHz,16, 20 and 24bits, Dolby Digital
HDMI Video: 1080/24p, 1080p (30, 60 Hz), 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i
MHL Video: 1080/24p, 1080p (30 Hz), 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i,
PC input
640 x 480, 31.5 kHz, 60 Hz, 800 x 600, 37.9 kHz, 60 Hz, 1,024 x 768, 48.4 kHz, 60 Hz,
1,280 x 768, 47.4 kHz, 60 Hz, 1,280 x 768, 47.8 kHz, 60 Hz, 1,360 x 768, 47.7 kHz, 60 Hz
1,280 x 1024, 64.0 kHz, 60 Hz, *1,920 x 1080, 67.5 kHz, 60 Hz
For KDL-32R420B 640 x 480, 31.5 kHz, 60 Hz, 800 x 600, 37.9 kHz, 60 Hz, 1,024 x 768, 48.4 kHz, 60 Hz
1,280 x 768, 47.4 kHz, 60 Hz, 1,280 x 768, 47.8 kHz, 60 Hz, 1,360 x 768, 47.7 kHz, 60 Hz
* The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC timing
DC IN 19.5 V AC adapter input
•Optional accessories availability depends on its stock.
•Design and specications are subject to change without notice.
•This TV set incorporates MHL 2.
*Dimensions and mass are approximate values.
Model name
KDL-32R420B
Power and others
Others
Power requirement
Power consumption 75 W
45 W
in use
in standby
Screen size*
40
200 x 100 100 x 100
31.5
(32 Class)
(measured diagonally)
(inches)
Display resolution
Dimensions* with stand
(inches)
926 × 584 × 175
926 × 556 × 89
36 × 23 × 7
1
/2
36 × 22 × 3
1
/2
736 × 473 × 144
29 × 18 5
/8 × 5
without stand (mm)
(inches)
wall-mount hole pattern
(mm)
wall-mount screw size
(mm)
Mass*
(lb)
7,4
16,3
4,9
10,8
(kg)
(lb)
7,0
15,4
4,7
10,4
Optional accessories
Operating temperature
19.5 V DC with AC adapter, Rating: Input 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Less than 0.4 W with 120 V AC and less than 0.5 W with 240 V AC
1,920 dots (horizontal) × 1,080 lines (vertical) 1,366 dots (horizontal) × 768 lines (vertical)
(mm)
(kg)with stand
without stand
M6 (8~12 mm)
MHL Cable: DLC-MB10/DLC-MB20/DLC-MC20
32 ºF – 104 ºF (0 ºC – 40 ºC)
KDL-40R470B
3
/4
736 × 451 × 80
29 × 17 7
/8 × 31 /4
5
/8
SECTION 1 - SPECIFICATIONS AND LAYOUTS
CHECKING THE ACCESSORIES
- Remo
te Control (1)*
- S
ize AAA Batteries (2)
- Software License (1)
- Stand Installation Guide (1)
- AC Adapter
- F
ixing screws for Table-Top Stand
(M5
× 20) (2)
- Cable holder (3)
- Operating Instructions (1)
- Quick Setup Guide (1)
- Safety Regulatory Booklet (1)
* Please refer to the model name printed
on the remote control.

KDL-32R420B/40R470B 2

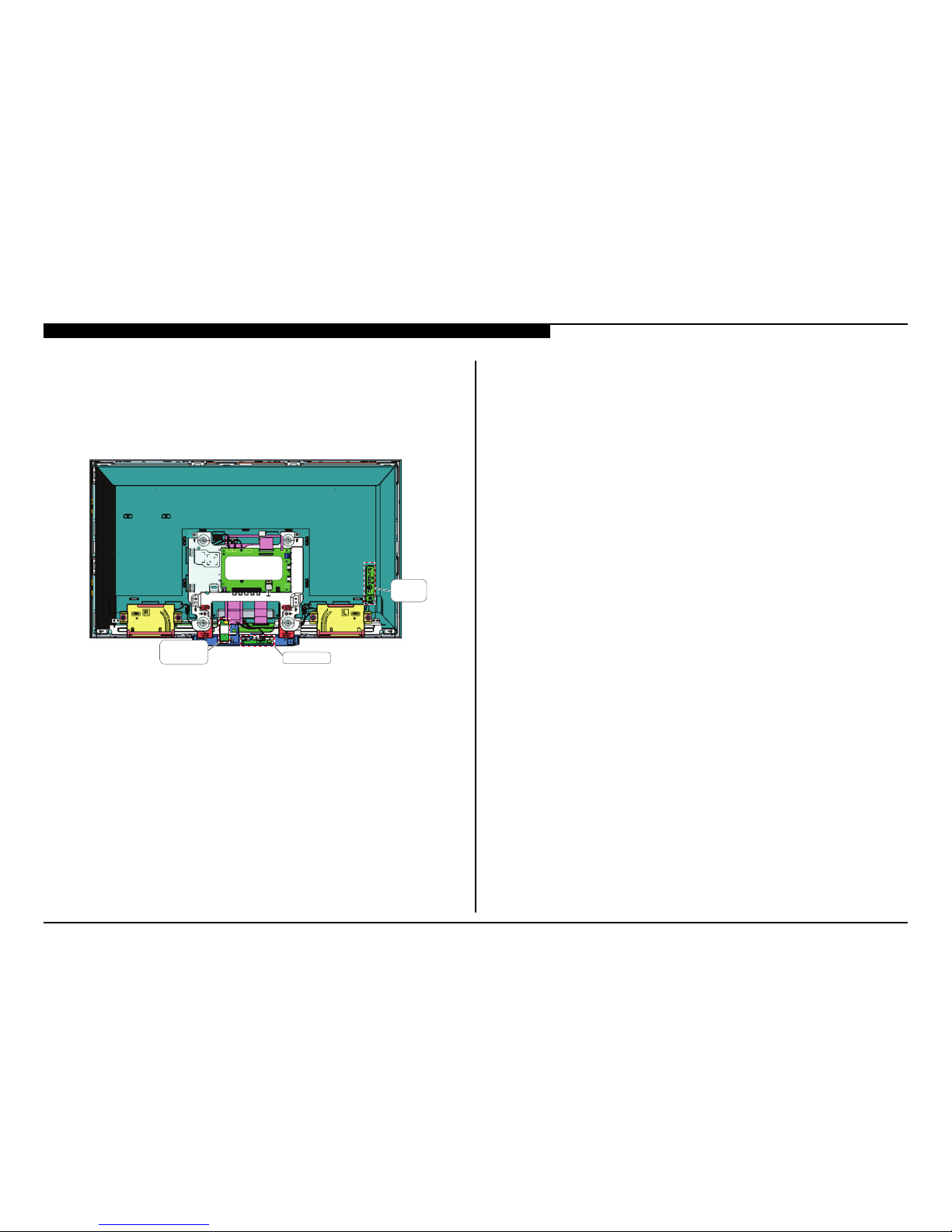

BOARD LAYOUT
SWITCH
UNIT
MAIN BOARD
(BIS BOARD)
HIL BOARD
WIRELESS
LAN CARD
SECTION 1 - SPECIFICATIONS AND LAYOUTS
KDL-32R420B/40R470B

KDL-32R420B/40R470B 3
WIRE DRESSING
KDL-32R420B/40R470B
SECTION 1 - SPECIFICATIONS AND LAYOUTS

KDL-32R420B/40R470B 4
DIAGNOSING THE ERROR
Before servicing the Television:
1. Verify the TV has the symptom the customer indicated.
2. Check to see if the latest Software is installed.
a. If not, install the latest version.
3. Determine the replacement part required.
VIEWING THE SELF CHECK DIAGNOSIS HISTORY
When an error is detected, the Self Check screen records the number of
times the error occurred. This is helpful in conrming past occurrences of an
error and for determining if an error is intermittent when the customer is not
sure what is causing the television to shut down. If the screen displays a “0”,
no error has occurred.
1. Press
POWER
to turn on the TV and then turn it off again.
2. Press the following buttons on the Remote Commander within 1
second of each other:
Info
i +
Channel 5 Volume
-
POWER
NOTE: This differs from accessing Service Adjustments Mode (Volume +).
SECTION 2 - TROUBLESHOOTING
Self Diagnosis
Supported model
Back <<
002 MAIN_ POWER 001
003 DC_ALERT1 000
003 AUDIO_PROT
000R_ERRECNALAB400
000
000
000RRE_NOCT500
005 PANEL_ID_NVM_ERR
000TILKCAB600
000RRE_PMET700
[Home] Exit
SELF CHEC
K
Indicates
an error
has occurred
Indicates
no error
has occurred
00116 00024 00115
SAMPLE SELF CHECK DIAGNOSIS PAGE

KDL-32R420B/40R470B 5
SECTION 2 - TROUBLESHOOTING
TRIAGE CHART
Use this general Triage Chart to determine what may possibly be causing the error before going out to the customers location.
User
Interface
NG
No Picture
(UI OK) Audio
2X 3X 4X
5X
6X USB
Tuner Tuner
Video SCART
MAIN BOARD
▲ ▲ ▲ ▲ ▲ ▲▲
▲
▲
▲
▲
▲
▲
▲
▲
LIGHT SOURCE BOARD
OPEN CELL
AC ADAPTOR
SPEAKERS
LS HARNESS
SPEAKER HARNESS
Board
Reference
Symptoms - Shutdown.
Power LED blinking
red diagnostics sequences
MAIN HARNESS
FFC CABLE

       
      
   



Component HDMI MHL HP
Main
Speaker Video SCART USBComponent HDMI
*NOTE: REFER TO LCD PANEL SERVICE MANUAL IN REFERENCE LIBRARY DATABASE
FOR CORRECT REPLACEMENT PARTS BASED ON SERIAL NUMBER.
1. Confirm the symptom from the customer. Red Dot: (Primary) Most likely defective part.
2. Select that symptom from the chart. Blue Triangle: (Secondary) Possible defective part.
3. Bring the primary component listed for that symptom.
5. Chart Color Code.
4. Follow the associated flowcharts in the Training Manual to isolate the board.
To access the most recent version of the Triage documents for the models listed in this manual, login into the Sony Authorized Service Portal at
http://www.sony.com/asp.

KDL-32R420B/40R470B 6
SECTION 2 - TROUBLESHOOTING
FLOWCHARTS AND DIAGRAMS
OVERALL BLOCK DIAGRAM
COMPONENT/
COMPOSITE
RF
AUDIO IN (ANALOG)
HDMI 1 (ARC)
AC ADAPTER
LED
IR RX
LCD PANEL, TCON
LED BACKLIGHTS
BIS
H
L
R
OPTICAL AUDIO OUT
MT5560
A/V DECODER
A/V PROCESS
TUNER
USB
HDMI 2 (MHL)
LVDS
AC IN
AUDIO
AMP
AUDIO OUT
MAIN BOARD
&
CONTROL
KEYS Wi-Fi
LD
BOARD
DEMOD

KDL-32R420B/40R470B 7
SECTION 2 - TROUBLESHOOTING

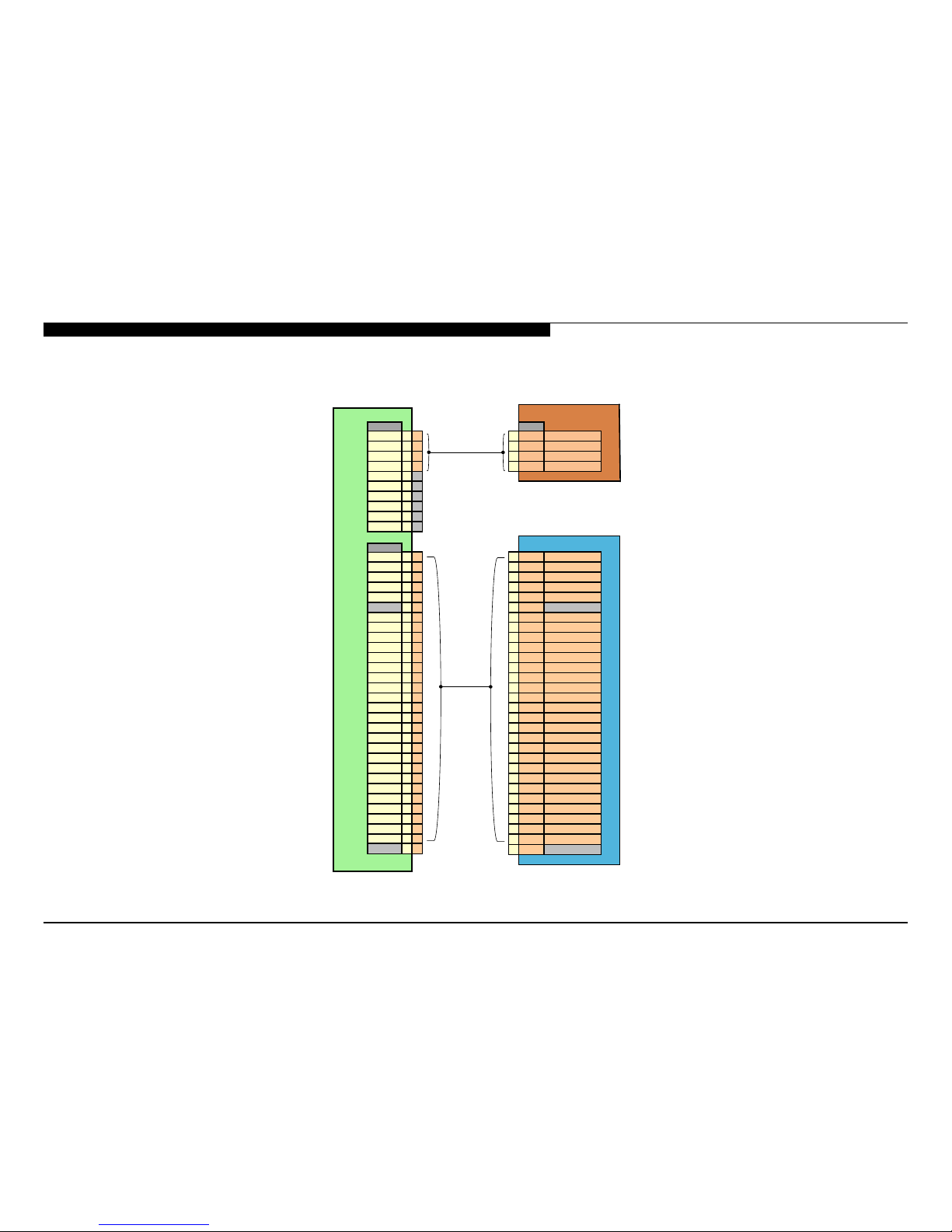

POWER AND CONTROL BLOCK DIAGRAM
BL_VCC03 3 13 1 LED_VCC
BL_LED01 5 25 2 LED1-
BL_LED02 6 36 3 LED2-
BL_LED03 7 47 4 LED3-
BL_VCC01 1 NC
BL_VCC02 2 NC
BL_VCC04 4 NC
BL_LED04 8 NC
BL_LED05 9 NC
BL_LED06 10 NC
POWER 1 30 130 PANEL_VCC
POWER 2 29 229 PANEL_VCC
POWER 3 28 328 PANEL_VCC
POWER 4 27 427 PANEL_VCC
POWER 5 26 526 PANEL_VCC
NC 625 625 NC
GND 7 24 724 GND
GND 8 23 823 GND
BUS-SW 9 22 922 B-INT / WP
LVDS_SEL 10 21 10 21 LVDS_SEL
NC 11 20 11 20 TV SET RESERVED
GND 12 19 12 19 GND
RX3P_ODD 13 18 13 18 RX3+
RX3N_ODD 14 17 14 17 RX3-
GND 15 16 15 16 GND
RXCLKP_ODD 16 15 16 15 RXCLK+
RXCLKN_ODD 17 14 17 14 RXCLK-
GND 18 13 18 13 GND
RX2P_ODD 19 12 19 12 RX2+
RX2N_ODD 20 11 20 11 RX2-
GND 21 10 21 10 GND
RX1P_ODD 22 922 9 RX1+
RX1N_ODD 23 823 8 RX1-
GND 24 724 7 GND
RX0P_ODD 25 625 6 RX0+
RX0N_ODD 26 526 5 RX0-
GND 27 427 4 GND
SDA 28 328 3 I2CC_SDA
SCL 29 229 2 I2CC_SCL
NC 30 130 1NC
AC ADAPTOR
CN9000 CN100
CN8601
(LED BACKLIGHTS)
SOURCE BOARD
KDL-32R420B

KDL-32R420B/40R470B 8
SECTION 2 - TROUBLESHOOTING
BL_VCC01 3 13 1 VCC
BL_LED01 5 25 2 LED1-
BL_LED02 6 36 3 LED2-
BL_LED03 7 47 4 LED3-
BL_LED04 8 18 1 LED4-
BL_VCC02 4 24 2 LED_VCC
BL_LED05 9 39 3 LED5-
BL_VCC01 1 NC
BL_VCC02 2 NC
BL_LED06 10 NC
LVDS_SEL 1 51 151 SEL1/LVDS
NC 250 250 TCON_RDY
NC 349 349 NC
LUT_SEL2 4 48 448 LUT_SEL2
LUT_SEL1 5 47 547 LUT_SEL1
LUT_SEL0 6 46 646 LUT_SEL0
NC 745 745 NC
NC 844 844 PANEL_SEL
BUS-SW 9 43 943 BUS_SW
NC 10 42 10 42 NC
SDA 11 41 11 41 SDA_C
SCL 12 40 12 40 SCL_C
GND 13 39 13 39 GND
RX4P_EVEN 14 38 14 38 RX1_EP_I
RX4N_EVEN 15 37 15 37 RX1_EN_I
RX3P_EVEN 16 36 16 36 RX1_DP_I
RX3N_EVEN 17 35 17 35 RX1_DN_I
GND 18 34 18 34 GND
RXCLKP_EVEN 19 33 19 33 RX1_CLKP_I
RXCLKN_EVEN 20 32 20 32 RX1_CLKN_I
GND 21 31 21 31 GND
RX2P_EVEN 22 30 22 30 RX1_CP_I
RX2N_EVEN 23 29 23 29 RX1_CN_I
RX1P_EVEN 24 28 24 28 RX1_BP_I
RX1N_EVEN 25 27 25 27 RX1_BN_I
RX0P_EVEN 26 26 26 26 RX1_AP_I
RX0N_EVEN 27 25 27 25 RX1_AN_I
GND 28 24 28 24 GND
RX4P_ODD 29 23 29 23 RX0_EP_I
RX4N_ODD 30 22 30 22 RX0_EN_I
RX3P_ODD 31 21 31 21 RX0_DP_I
RX3N_ODD 32 20 32 20 RX0_DN_I
GND 33 19 33 19 GND
RXCLKP_ODD 34 18 34 18 RX0_CLKP_I
RXCLKN_ODD 35 17 35 17 RX0_CLKN_I
GND 36 16 36 16 GND
RX2P_ODD 37 15 37 15 RX0_CP_I
RX2N_ODD 38 14 38 14 RX0_CN_I
RX1P_ODD 39 13 39 13 RX0_BP_I
RX1N_ODD 40 12 40 12 RX0_BN_I
RX0P_ODD 41 11 41 11 RX0_AP_I
RX0N_ODD 42 10 42 10 RX0_AN_I
GND 43 943 9 GND
GND 44 844 8 GND
GND 45 745 7 GND
NC 46 646 6NC
POWER 47 547 5 VIN
POWER 48 448 4 VIN
POWER 49 349 3 VIN
POWER 50 250 2 VIN
POWER 51 151 1 VIN
LED BACKLIGHTS
AC ADAPTOR
CN9000CN200
CN300
CN8600SOURCE BOARD
KDL-40R470B

KDL-32R420B/40R470B 9
SECTION 2 - TROUBLESHOOTING
NO POWER FLOWCHART
No power
No
See Standby
LED Blinking
flowchart
Yes
No
AC Adaptor*
Replace the
19.5V AC Adaptor
Main Board*
Does the
TV turn
ON?
Yes
Is red standby
LED on front panel
blinking?
*For Part Number information, refer to “Section 4 - Exploded View/Part Number Information” on page 17.

KDL-32R420B/40R470B 10
SECTION 2 - TROUBLESHOOTING
STANDBY LED BLINKING FLOWCHART
No
Yes
Fuente de Poder*
Yes
Yes
2X
3X
5X
No
Yes
4X
No
LCD Panel*
6X
“SONY” logo
appears before
shutdown?
No
Main Board*
Yes
Light Source
Board*
AC Adaptor /
Main Board*
Main Board*
Main Board*
Protect Shutdown.
Standby LED
Blinking
Yes
*For Part Number information, refer to “Section 4 - Exploded View/Part Number Information” on page 17.

KDL-32R420B/40R470B 11
SECTION 2 - TROUBLESHOOTING
VIDEO DISTORTION FLOWCHART
Video Distortion
Is distortion
across entire
screen?
Any horizontal
lines?
No
No
Yes
Yes
Improper or
missing
colors?
Yes
Main Board*
No Vertical lines
or bars?
No
Yes
Lines
move when
wide-mode
changed?
Yes
No
TCON*
(LCD Panel)
Main Board*
LCD Panel*
Any single or
isolated vertical
lines?
YesLCD Panel*
More than 1
vertical band?
No
YesTCON*
(LCD Panel)
*For Part Number information, refer to “Section 4 - Exploded View/Part Number Information” on page 17.

KDL-32R420B/40R470B 12
SECTION 3 - REPAIR INFORMATION
REPAIRING THE TV
If the latest Software does not correct the issue, complete the following:
1. Verify the television has the symptom the customer indicated.
2. Replace part causing the symptom.
3. Install the latest version of Software (Required for ALL repairs).
4. Perform the required service adjustments and checks.
5. Verify the repair resolved the issue.
REMOVING THE TABLE TOP STAND
1. Place TV face down on a at and steady surface.
2. Remove all screws and grasp as shown to detach the Table Top Stand.
REMOVING THE LOWER COVER
1. Locate and remove all screws from the Lower Cover.
KDL-32R420B KDL-40R470B
2. Locate the areas shown in the illustration and detach the Lower Cover
from the TV.

KDL-32R420B/40R470B 13
SECTION 3 - REPAIR INFORMATION
REPLACING THE MAIN BOARD
The Main Board used in these models is available for repair. For Part
Number information refer to Section 4 - Exploded View/Part Number
Information on page 17.
1. Slide the Side Bracket and Under Bracket to detach from Main Board.
Side
Bracket
Side
Bracket
Under Bracket
Under Bracket
2. Locate and disconnect the connectors. Then remove all screws from
the Main Board and lift to detach.
3. Install the new Main Board, connectors and screws.
4. Update the Software.
After ALL repairs UPDATE the SOFTWARE to the latest version.
Instructions are included with the Software package on the Sony
Authorized Service Portal website.
a. Insert the USB device with the latest Software into one of the TVs’
USB ports.
b. Connect TV to AC power.
c. Wait at least 20 seconds.
d. Press
POWER
on the remote to turn ON the TV.
e. Wait until the Software update is completed.
5. To access Service Mode, turn TV ON and OFF again then press the
following buttons within 1 second of each other:
Info
i +
Channel 5Volume
+
POWER
>>
Self diagnosis history >>
Panel Selection
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
SERIAL NUMBER EDIT
MODEL NAME EDIT
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off

KDL-32R420B/40R470B 14
SECTION 3 - REPAIR INFORMATION
6. Press until Panel Selection is selected.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
SERIAL NUMBER EDIT
MODEL NAME EDIT
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
7. Press or to select the correct Panel Code for the TV model.
(Use the table below for reference).
Model Name Panel Code
KDL-32R420B IS4S320DNG0101
KDL-40R470B NS4S400DND0101
CAUTION: Select ONLY the correct Panel Code.
8. Locate the Serial Number for the TV on the side of the Rear Cover.
MODEL NO
KDL-40R470B
SERIAL NO
5000001
9. Press until SERIAL NUMBER EDIT is selected.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
MODEL NAME EDIT
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT
10. Press to be able to select the rst digit.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
MODEL NAME EDIT
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
_ _ _ _ _ _ _
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT

KDL-32R420B/40R470B 15
SECTION 3 - REPAIR INFORMATION
11. Press or to select numbers and then to move to the next
digit until Serial Number is complete.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
MODEL NAME EDIT
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT 5000001
CAUTION: The Serial Number can only be selected once. Be sure
to verify the information is correct before saving the changes.
12. When the complete Serial Number displays, press .
13. On the conrmation screen, press to select YES and then .
Input Data Correct?
Yes No
Selected text displays in black
14. Press until MODEL NAME EDIT is selected.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT
MODEL NAME EDIT
5000001
15. Press to be able to select the rst character.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT
MODEL NAME EDIT _ _ _ _ _ _ _ _ _ _ _
5000001

KDL-32R420B/40R470B 16
SECTION 3 - REPAIR INFORMATION
16. Press or to select characters and then to move to the next
space until Model Name is complete.
NOTE: Make sure to include dash in Model Name.
>>
Self diagnosis history >>
Wide Band Tuning >>
LVDS Spectrum (%) 29
Tuning System Auto
Status Digital RF Information Off
Off
Low of HPD 5
UART Selection Factory
TEST RESET
[</>]Set [Home] Exit
Service Mode
NS4S400DND0101
Status Information
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
<[ ]>
Off
Panel Selection
SERIAL NUMBER EDIT
MODEL NAME EDIT KDL-40R470B
5000001
CAUTION: The Model Name can only be selected once. Be sure
to verify the information is correct before saving the changes.
17. When the complete Model Name displays, press .
18. On the conrmation screen, press to select YES and then .
Input Data Correct?
Yes No
Selected text displays in black
19. Press
POWER
to exit Service Mode.
REMOVING THE SPEAKERS
1. Disconnect the connector from Speakers and lift as shown to detach.
REPLACING THE SWITCH UNIT
1. Disconnect the connector from the Switch Unit and lift as
shown to remove.
2. Install the new Switch Unit and its connector.
