Sony KDL-22E5300 Installation instructions manual

1/119
Table of Contents
Remote and TV Controls/Indicators
Remote and TV controls.................................................................................................................................(4)
Indicators.....................................................................................................................................................(16)
About the operation guide on the TV screen................................................................................................(18)
Watching TV
Watching TV..................................................................................................................................................(19)
Using the Digital Electronic Programme Guide (EPG)..................................................................................(28)
Using the Favourite List...............................................................................................................................(31)
Using Optional Equipment
Connecting Optional Equipment..................................................................................................................(35)
Viewing Pictures from Connected Equipment..............................................................................................(42)
Playing back Photo/Music/Video via USB.....................................................................................................(45)
Using BRAVIA Sync with Control for HDMI...................................................................................................(52)

2/119
Table of Contents
Using Home Network Features
Connecting to the Network ..........................................................................................................................(54)
Enjoying AppliCast.......................................................................................................................................(56)
Enjoying Photo/Music/Video Files via the Network......................................................................................(58)
Checking the Network Connection................................................................................................................(61)
Adjusting the Server Display Settings..........................................................................................................(63)
Using Menu Functions
Navigating through TV Home Menu on XMB™............................................................................................(65)
TV Settings Menu
System Update......................................................................................................................................(68)
Bravia Tips.............................................................................................................................................(69)
Clock/Timers.........................................................................................................................................(70)
Eco.........................................................................................................................................................(71)

3/119
Table of Contents
Picture...................................................................................................................................................(72)
Sound....................................................................................................................................................(78)
Screen (for inputs other than a PC)......................................................................................................(82)
Screen (for PC input).............................................................................................................................(84)
Video Settings.......................................................................................................................................(86)
Audio Settings.......................................................................................................................................(87)
Set-up...................................................................................................................................................(89)
Analogue Set-up...................................................................................................................................(95)
Digital Set-up......................................................................................................................................(100)
Network Settings................................................................................................................................(106)
Additional Information
Troubleshooting.........................................................................................................................................(108)

4/119

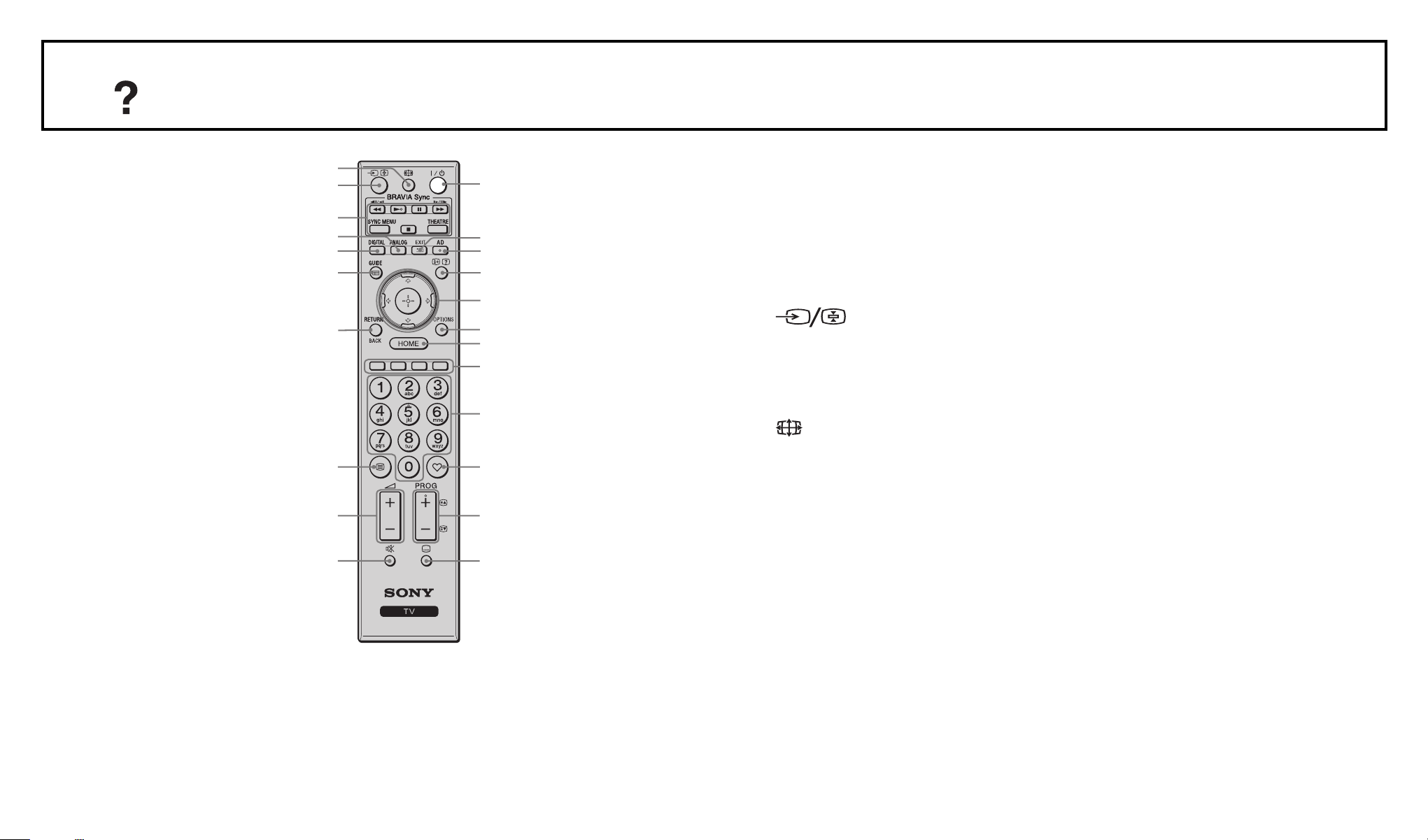

Remote and TV Controls
In case of KDL-46/40/37/32W5820/5830/5840,
please refer to the separate leaflet.
1 (TV standby)
Press to turn the TV on and off from standby
mode.
• The number 5, , PROG + and AUDIO buttons
on the remote have a tactile dot. Use the tactile
dots as a reference when operating the TV.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

5/119
Remote and TV Controls
Buttons on the TV will work the same as those on
the remote.
*In the TV menu, these buttons will work as
.

6/119
Remote and TV Controls
2 (Power)
Press to turn the TV on or off.
• To turn the TV completely off (0 W, no power
consumption), turn off the TV, then unplug the
mains lead/AC power cord from the mains/AC
power.

7/119
Remote and TV Controls
3 EXIT
Exit from the current application and go back to
normal TV mode.
4 AD
Press to set Audio Description to "On" or "Off".
5 / (Info/Text reveal)
Each time you press the button, the display
changes as follows:
• In digital mode: Details of the current
programme Details of the next programme
(only for Sony Guide)
• In analogue mode: Current channel number
and screen mode Clock information
• In Text mode: Reveals hidden information (e.g.
answers to a quiz) (22).
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

8/119

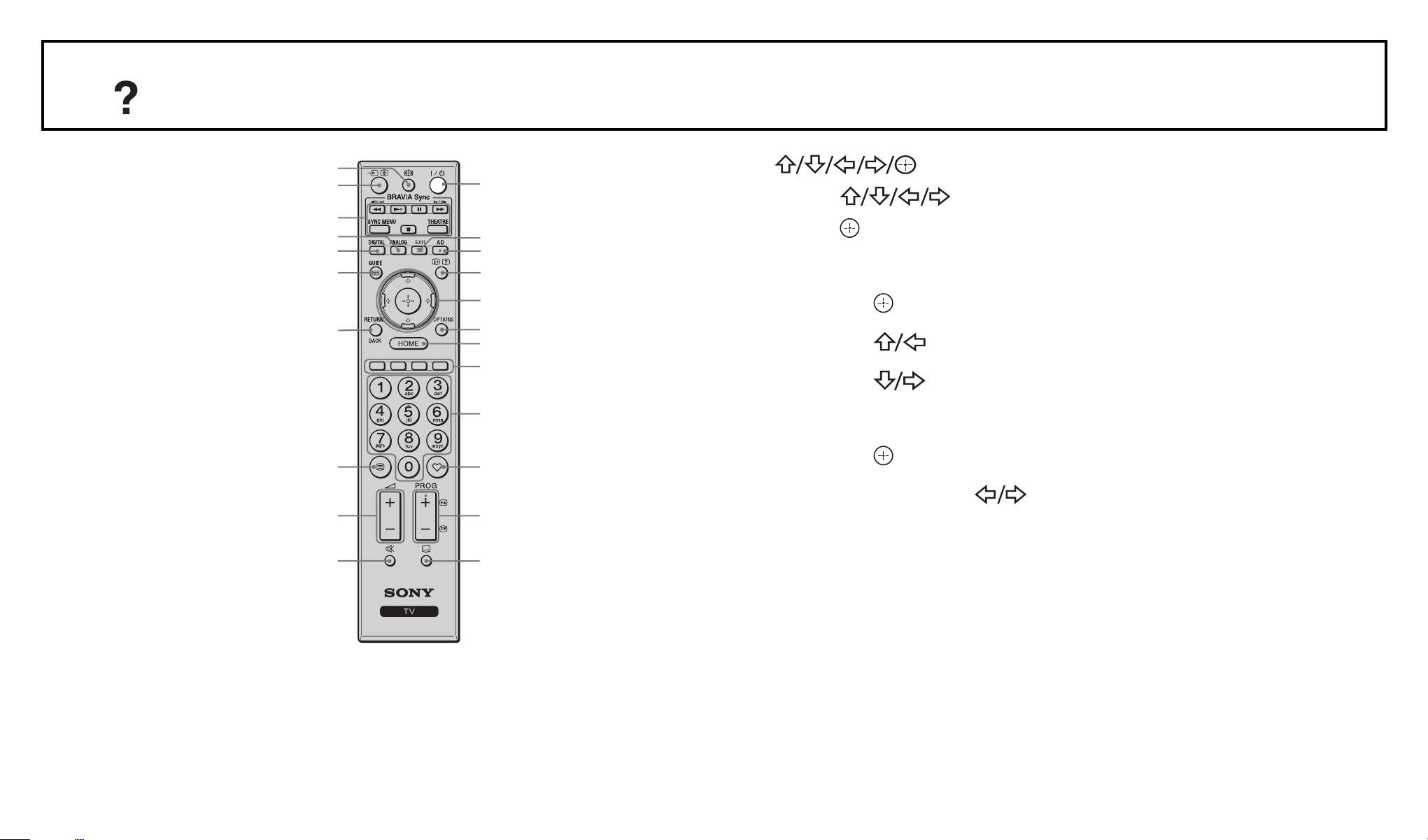

Remote and TV Controls
6
Press to move the on-screen cursor.
Press to select/confirm the highlighted item.
• When playing a photo file:
- Press to pause/start a slideshow.
- Press to select the previous file.
- Press to select the next file.
• When playing a music/video file:
- Press to pause/start the playback.
- Press and hold to fast forward/fast
reverse, then release the button at the point
where you want to resume playback.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

9/119
Remote and TV Controls
- Press to start playback from the beginning
of the current file.
- Press to go to the next file.
7 OPTIONS
Press to display a list that contains “Device
Control” or shortcuts to some setting menus.
Use the “Device Control” menu to operate
equipment that is compatible with Control for
HDMI.
The listed options vary depending on the input
source.
8 HOME
Press to display the TV Home Menu (65).
9 Coloured buttons
When the coloured buttons are available, an
operation guide appears on the screen.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

10/119

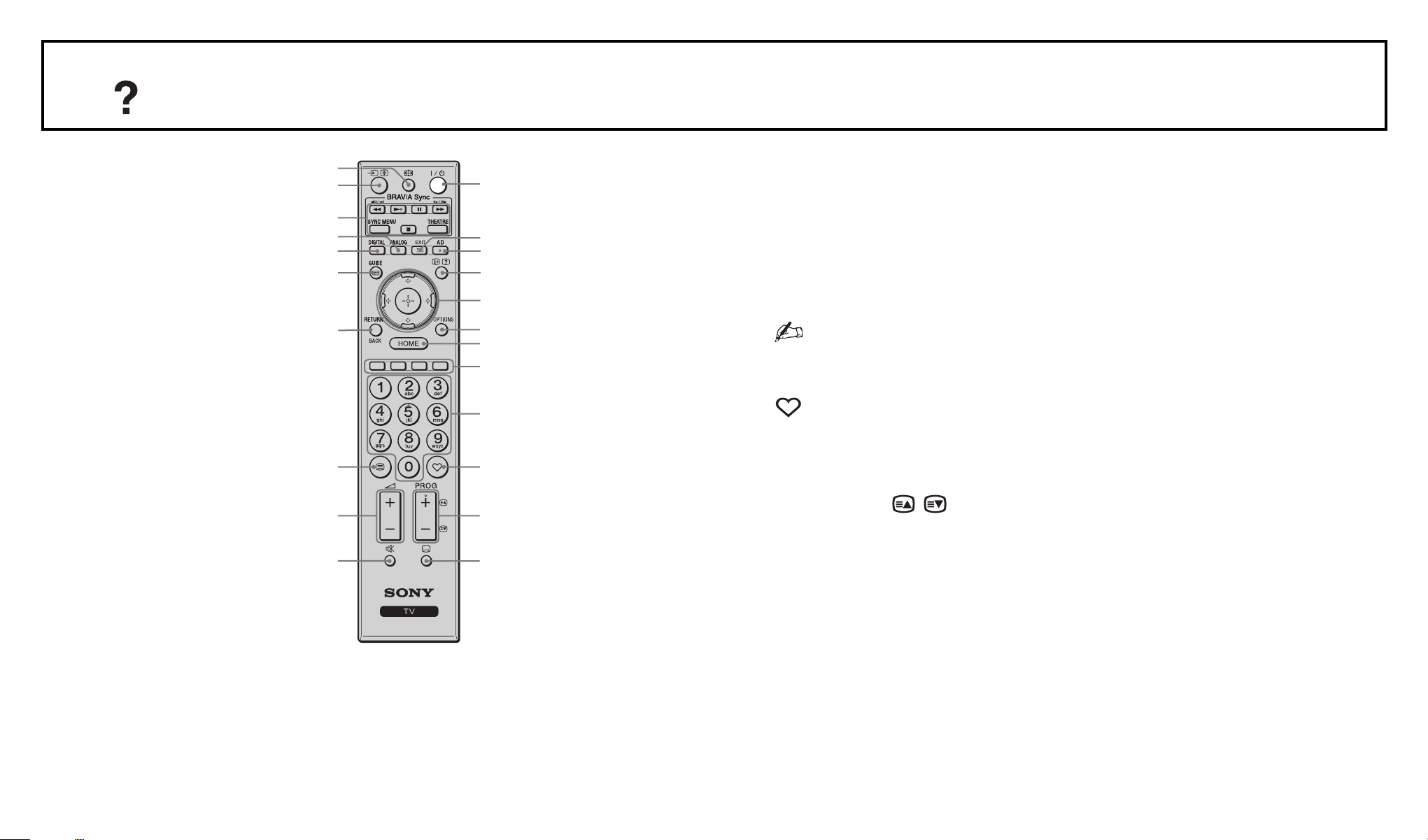

Remote and TV Controls
10 Number buttons
• In TV mode: Press to select channels. For
channel numbers 10 and above, press the next
digit quickly.
• In Text mode: Press to enter a page number.
• Use alphanumeric buttons when needed.
11 (Favourite)
Press to display the Favourite List that you have
specified (31).
12 PROG +/–/ /
• In TV mode: Press to select the next (+) or
previous (–) channel.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

11/119

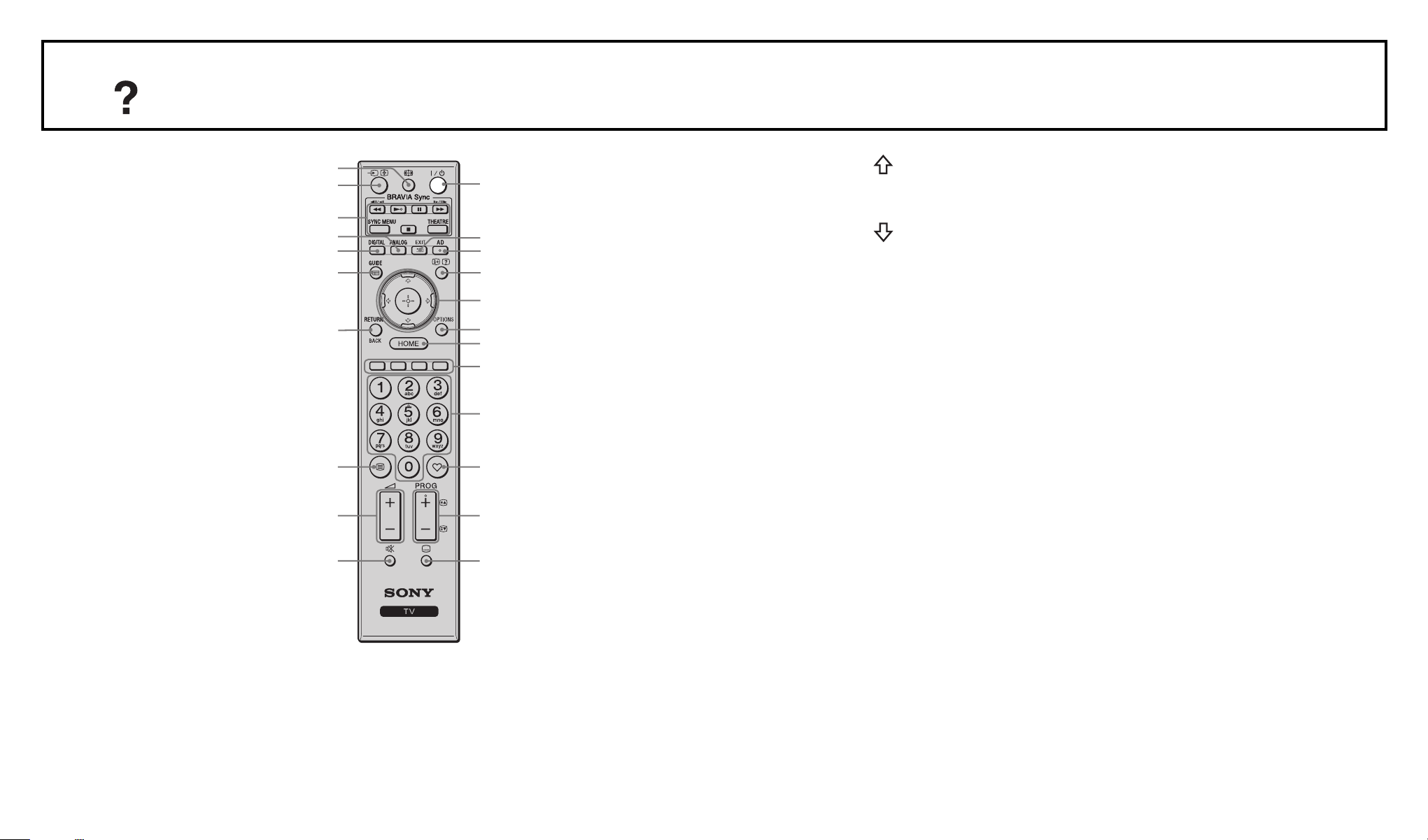

Remote and TV Controls
• In Text mode: Press to select the next ( )or
previous ( ) page.
13 (Subtitle setting)
Press to change the subtitle language (100) (in
digital mode only).
14 (Mute)
Press to mute the sound. Press again to restore
the sound.
• In standby mode, if you want to turn on the TV
without sound, press this button.
15 +/– (Volume)
Press to adjust the volume.
16 (Text)
Press to display text information (22).
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

12/119
Remote and TV Controls
17 RETURN/BACK
Press to return to the previous screen of the
displayed menu.
When playing a photo/music/video file: Press to
stop the playback. (The display returns to the
file or folder list.)
18 GUIDE (EPG)
Press to display the Digital Electronic
Programme Guide (EPG) (28).
19 DIGITAL
Switches from analogue mode to the last
selected digital mode (DVB-S or Antenna/Cable).
Toggles between two digital modes (DVB-S and
Digital (Antenna/Cable)) when the TV set
operates in Digital mode.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

13/119
Remote and TV Controls
When viewing pictures from connected
equipment: Press to return to normal TV mode.
20 ANALOG
Press to display the analogue channel that was
last viewed.
When viewing pictures from connected
equipment: Press to return to normal TV mode.
21 BRAVIA Sync
• : You can operate the BRAVIA
Sync-compatible equipment that is connected
to the TV.
• SYNC MENU: Displays the menu of connected
HDMI equipment. While viewing other input
screens or TV programmes, “HDMI Device
Selection” is displayed when the button is
pressed.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

14/119
Remote and TV Controls
• THEATRE: You can set Theatre Mode to on or
off. When Theatre Mode is set to on, the
optimum sound quality (if the TV is connected
with an audio system using an HDMI cable)
and picture quality for film-based contents are
automatically set.
• If you turn the TV off, Theatre Mode is also
turned off.
• When you change the “Scene Select” setting,
Theatre Mode turns off automatically.
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

15/119
Remote and TV Controls
• “Control for HDMI” (BRAVIA Sync) is only
available with the connected Sony equipment
that has the BRAVIA Sync or BRAVIA Theatre
Sync logo or is compatible with Control for
HDMI.
22 (Input select / Text hold)
• In TV mode: Press to display a list of inputs.
• In Text mode: Press to hold the current page.
23 (Screen mode)
Press to change the screen format (24).
10
9
8
7
6
1
4
5
11
12
13
14
15
16
17
18
19
20
21
22
23
3

16/119

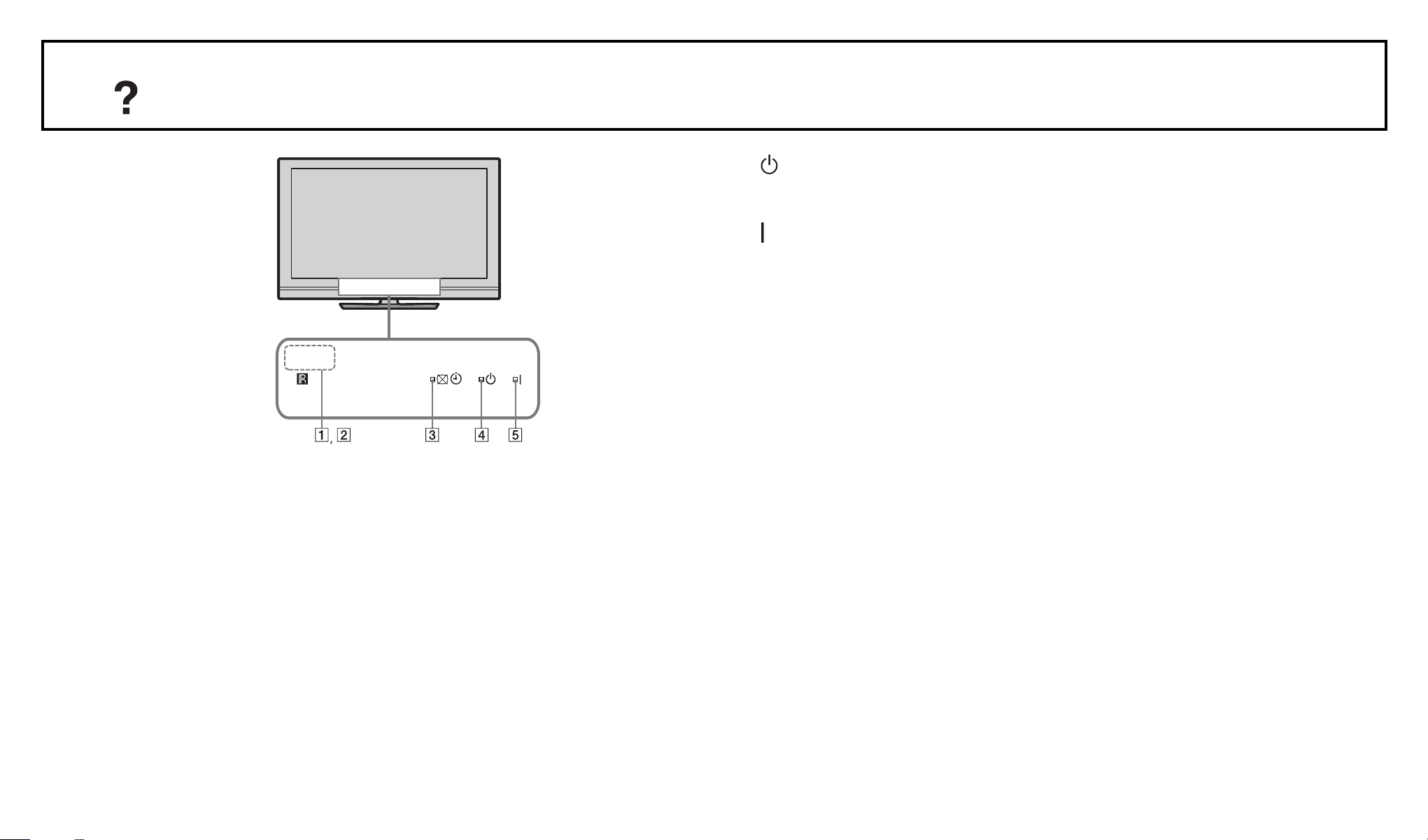

Indicators
1 Light sensor
Do not put anything over the sensor, doing so
may affect its function (71).
2 Remote control sensor
Receives signals from the remote.
Do not put anything over the sensor. The sensor
may not work properly.
3 (Picture Off / Timer)
• Lights up in green when you select “Picture
Off” (71).
• Lights up in orange when you set the timer
(29), (70).

17/119
Indicators
4 (Standby)
Lights up in red when the TV is in standby mode.
5 (Power)
Lights up in green when the TV is on.

18/119
About the operation guide on the TV screen
Operation Guide
Example: Press or RETURN/BACK (see (8) or
(12)).
The operation guide provides help on how to operate
the TV using the remote, and is displayed at the
bottom of the screen. Use the remote buttons
shown on the operation guide.

19/119
Watching TV
1 Press on the TV to turn on the TV.
When the TV is in standby mode (the
(standby) indicator on the TV front panel is red),
press on the remote to turn on the TV.
2 Press DIGITAL to switch to digital or satellite
mode, or press ANALOG to switch to analogue
mode.
The available channels vary depending on the
mode.
2
3
3

20/119
Watching TV
3 Press the number buttons or PROG +/– to select a
TV channel.
To select a digital programme using the Digital
Electronic Programme Guide (EPG) (28).
2
3
3
