KDL-32BX310
4-297-517-14(1)
4-297-517-14(1)
LCD
Digital Color TV
Operating Instructions
Introducing Your New BRAVIA®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States
1.800.222.SONY
Canada
1.877.899.SONY
Please Do Not Return
the Product to the Store
KDL-32BX310
G:\#sagyou\Sony\1208\4297517141\4297517141KDL32BX310UC\COV_E
N\00USBCO.fm
masterpage:Left
© 2011 Sony Corporation Printed in Mexico
KDL-32BX310
4-297-517-14(1)
4-297-517-14(1)
For Your Convenience
Online
Registration:
Be sure to register your TV.
United States
Canada
http://productregistration.sony.com
http://www.SonyStyle.ca/registration

KDL-32BX310
4-297-517-11(1)
E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US10IX.fm masterpage:Right
G:\#sagyou\Sony\1208\4297517141\4297517141KDL32BX310UC\01US0
2WAR.fm
masterpage:Left
2
KDL-32BX310
4-297-517-14(1)
CAUTION
To prevent electric shock and blade exposure, do not use
this AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted.
❑Operating on 120 V AC.
❑Avoid operating the TV at temperatures below 41°F
(5°C).
Licensing Information
Macintosh is a trademark of Apple Inc., registered in the U.S. and
other countries.
HDMI, the HDMI logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing, LLC
in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
Blu-ray Disc is a trademark.
“BRAVIA” and and are trademarks or registered
marks of Sony Corporation.
“PlayStation” is a registered trademark and “PS3” is a trademark of
Sony Computer Entertainment Inc.
Cleaning
When cleaning, be sure to unplug the power cord to avoid
any chance of electric shock.
• Wipe the LCD screen gently with a soft cloth.
• Stubborn stains may be removed with a cloth slightly
moistened with a solution of mild soap and warm water.
• If using a chemically pretreated cloth, please follow the
instruction provided on the package.
• Never use strong solvents such as a thinner, alcohol or
benzine for cleaning.
• See the supplied Safety Booklet for additional
information.
Owner’s Record
The model and serial numbers are located at the side and rear of
the TV. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your Sony dealer
regarding this TV.
Model Name
Serial No.
The 32 class has a 31.5 inch viewable image size (measured diagonally).

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US03TOC.fm masterpage:Right
3
KDL-32BX310
4-297-517-11(1)
Customer Support
United States
http://www.sony.com/tvsupport
Canada
http://www.sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.SonyStyle.ca/registration
Contents
Introducing Your New BRAVIA
®
Welcome to the World of BRAVIA®. . . . . . . .4
Experiencing Stunning HD with Your
BRAVIA . . . . . . . . . . . . . . . . . . . . . . . . . . .4
The Four Steps to a Stunning HD
Experience . . . . . . . . . . . . . . . . . . . . . . . . .5
Getting Started
Setting Up Your TV . . . . . . . . . . . . . . . . . . . . .6
Attaching the Table-Top Stand . . . . . . . . . . . .7
Locating Inputs and Outputs . . . . . . . . . . . . . .8
Connecting the TV . . . . . . . . . . . . . . . . . . . .10
Connecting Other Equipment . . . . . . . . . . . .14
When Installing the TV Against a Wall or
Enclosed Area . . . . . . . . . . . . . . . . . . . . . 15
Securing the TV . . . . . . . . . . . . . . . . . . . . . .16
Running Initial Setup. . . . . . . . . . . . . . . . . . .18
Operating the TV
Using the Remote Control. . . . . . . . . . . . . . .19
Remote Control Button Description . . . . . . .20
TV Controls and Indicators . . . . . . . . . . . . . .22
Using Features
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Wide Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wide Mode with PC . . . . . . . . . . . . . . . . . . . 24
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Playing back Photo via USB . . . . . . . . . . . . . 25
Using the Menus
Navigating through TV Menus . . . . . . . . . . . 26
Using the Picture Settings. . . . . . . . . . . . . . .27
Using the Sound Settings . . . . . . . . . . . . . . .28
Using the Screen Settings . . . . . . . . . . . . . .29
Using the Channel Settings . . . . . . . . . . . . .30
Using the Parental Lock Settings . . . . . . . . .31
Using the Setup Settings . . . . . . . . . . . . . . . 34
Other Information
PC Input Signal Reference Chart for
PC and HDMI IN. . . . . . . . . . . . . . . . . . . .36
Using a Wall-Mount Bracket . . . . . . . . . . . . . 37
Installing the Wall-Mount Bracket . . . . . . . . .38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .43
Important Notices . . . . . . . . . . . . . . . . . . . . . 47
Specifications . . . . . . . . . . . . . . . . . . . . . . . .48
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
01US0 Cov-UC.book Page 3 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US04XXX.fm masterpage:Left
4
KDL-32BX310
4-297-517-11(1)
Introducing Your New BRAVIA®
Welcome to the World of BRAVIA
®
Thank you for choosing this Sony BRAVIA
®
high-definition television. Use the
documentation listed below to get the most out of your TV.
Experiencing Stunning HD with Your BRAVIA
The quality of the image you see on your BRAVIA TV is only as good as the quality of the
signal it receives. To experience the stunning detail of your new
BRAVIA TV, you need
access to HD programming. Your
BRAVIA TV can receive and display HD programming
from:
• Over-the-air broadcasting via HD-quality antenna
• HD cable subscription
• HD satellite subscription
• Blu-ray Disc™ player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
Safety Booklet
Contains precautionary
measures to keep you and
your TV safe. Read this
information prior to setting up
your TV.
Quick Setup Guide
Provides TV setup information with sample
connection diagrams.
Operating Instructions
Provides the most detailed
information to operate your
TV.
01US0 Cov-UC.book Page 4 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US04XXX.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
5
Introducing Your New BRAVIA®
The Four Steps to a Stunning HD Experience
Set, Source, Sound, and Setup
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.

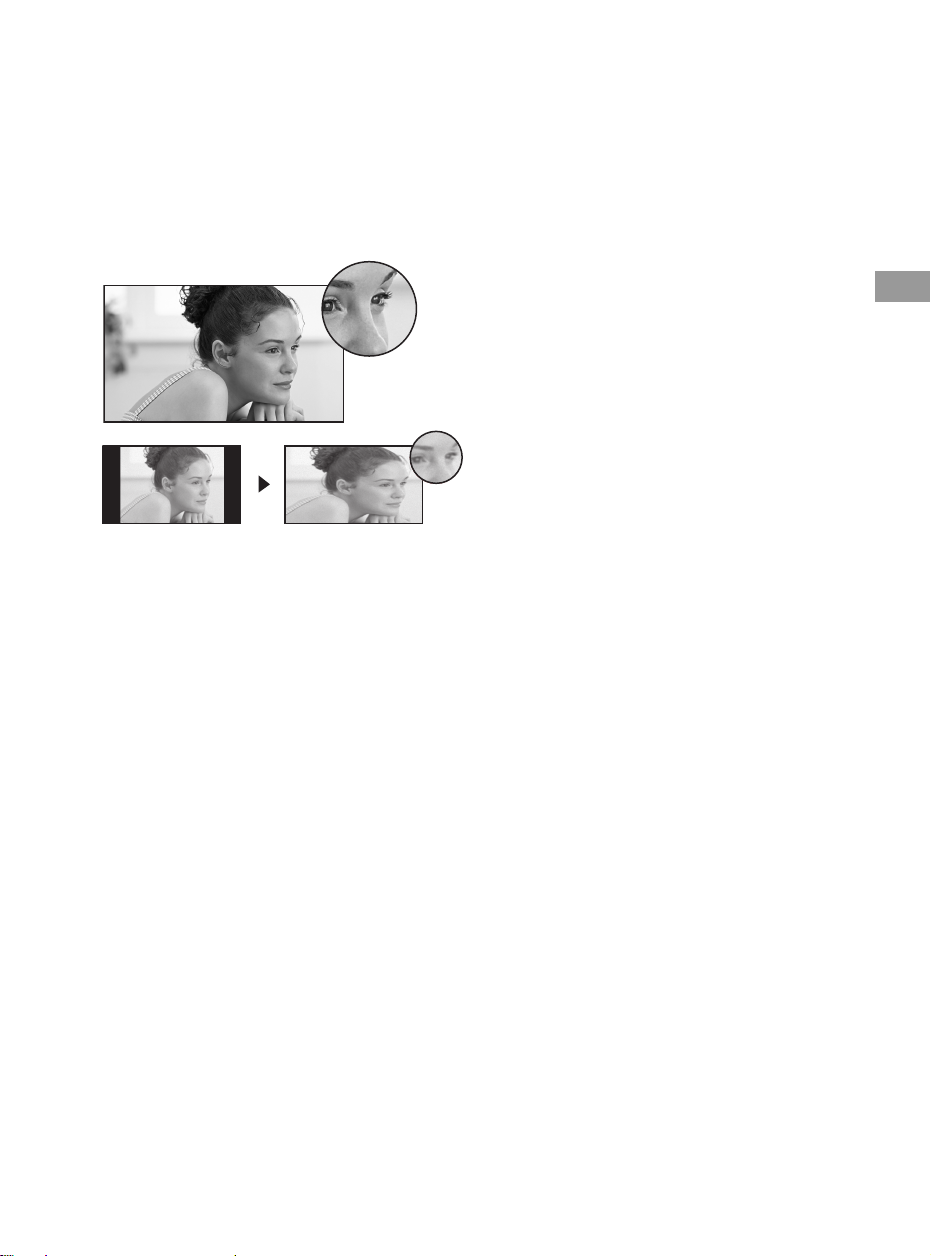

You can enjoy crisp, clear images, smooth
movement, and high-impact visuals from
1080 HD signals as shown here.
When you compare a high-definition signal
to a standard analog signal, you will notice
a big difference in picture quality. If black
bars appear as shown here, press WIDE
on the remote control to fill the screen.
01US0 Cov-UC.book Page 5 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
6
KDL-32BX310
4-297-517-11(1)
Getting Started
Setting Up Your TV
Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a
wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top
Stand. You will need a Phillips screwdriver and the supplied screws to complete the task. Look for
the attachment instructions provided with the TV.
Be sure to consider the following while setting up your TV:

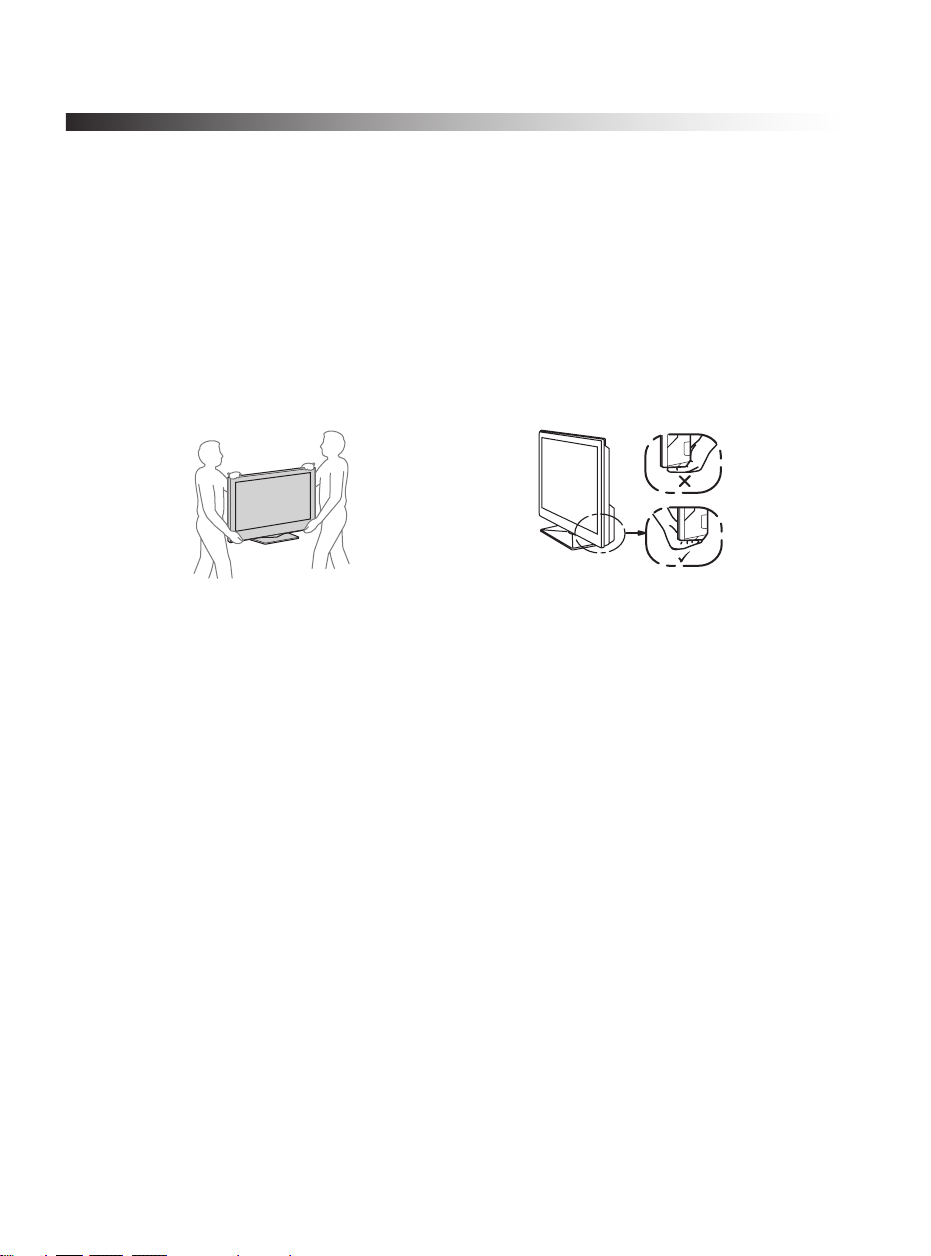

• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid
damage.
• Ensure your TV has adequate ventilation, see page 15.
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and floor materials.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
01US0 Cov-UC.book Page 6 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
7
Getting Started
Attaching the Table-Top Stand
1Release the AC power cord from the TV.
2Place the TV with its screen facing up on a level and stable surface covered with a thick and
soft cloth. Use the supplied three screws to attach the Table-Top Stand to the TV. Make sure
that you carry out this task with at least two or three people (see page 6 for details).
Thick and soft cloth
Screw (+PSW 5 x 16)
(Supplied)
• To detach the Table-Top Stand from the TV, remove the three screws guided by the allow mark
on the Table-Top Stand. Do not remove any other screws.
Two of removed screws are needed to install the Wall-Mount Bracket (see page 40 for details).
01US0 Cov-UC.book Page 7 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
8
KDL-32BX310
4-297-517-11(1)
Locating Inputs and Outputs

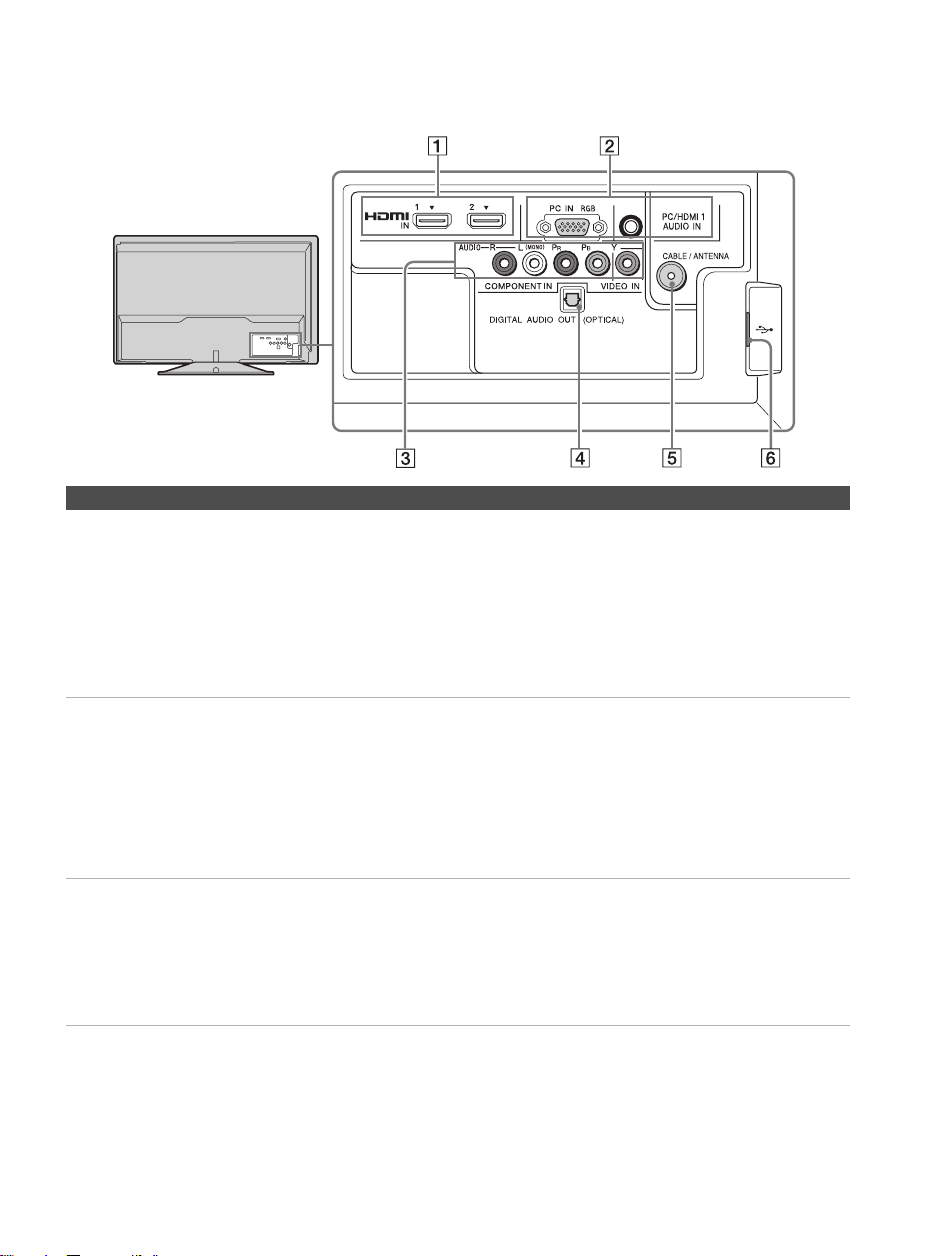

Item Description
1HDMI IN 1/2 HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-
digital audio/video interface between this TV and any HDMI-equipped audio/video
equipment, such as a set-top box, DVD player, and A/V receiver. HDMI supports
enhanced, or high-definition video, plus digital audio. Be sure to use only an HDMI
cable that bears the HDMI logo.
Use the HDMI IN 1 port when connecting DVI equipment. Use a DVI-to-HDMI
cable or adapter (not supplied). Equipment using a DVI connection also requires an
additional audio connection using an audio cable connected to PC/HDMI 1 AUDIO
IN of PC IN.
2PC IN (RGB) Connects to a personal computer’s video and audio output connector. Can also be
connected to other analog RGB equipment. See “PC Input Signal Reference Chart”
on page 36 for the signals that can be displayed.
For some Apple Macintosh computers, it may be necessary to use an adapter (not
supplied). If an adapter is used, connect the adapter to the computer before
connecting the HD15-HD15 cable.
You may need to adjust the TV settings or your PC’s resolution and timing. See
page 13 for information on how to setup your PC to this TV.
3
VIDEO IN/
COMPONENT
IN/R-AUDIO-L
(MONO)
This input port can be used as a composite video input (VIDEO) or as a component
video input (COMPONENT). For composite use, connect the yellow jack to Y for
video and use audio L (mono) and R for audio signal. For component connection,
use Y, PB, PRfor video signals and also connect the audio L (mono) and R for audio
signal.
This TV can auto detect and switch between the VIDEO and COMPONENT when
VIDEO or COMPONENT is connected.
Rear Panel
01US0 Cov-UC.book Page 8 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
9
Getting Started
*1Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
4DIGITAL AUDIO
OUT (OPTICAL)
Connects to the optical audio input of digital audio equipment that is PCM/Dolby*1
Digital compatible.
5CABLE/
ANTENNA
RF input that connects to your Cable or VHF/UHF antenna.
6USB Connects to USB equipment to access photo files.
Item Description
• An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i
and 1080p video formats. 1080/24p is available only with HDMI connection.
01US0 Cov-UC.book Page 9 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
10
KDL-32BX310
4-297-517-11(1)
Connecting the TV
Cable System or VHF/UHF Antenna System
You can enjoy high-definition and standard-definition digital programming (if available in your
area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM and
8VSB) and external VHF/UHF antenna (ATSC).
Cable or VHF/UHF (or VHF only)
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-air antenna
programming, as indicated below.
75-ohm coaxial cable Rear of TV
CABLE/ANTENNA
• It is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm
coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be affected
by radio frequency interference, resulting in signal degradation.
B
A
Cable
Antenna
A/B RF Switch
Rear of TV
CABLE/ANTENNA
• Be sure to set the Signal Type setting to Cable or Antenna found under the Channel settings
for your input signal (page 30).
01US0 Cov-UC.book Page 10 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
11
Getting Started
HD Cable Box/HD Satellite Box
You can enjoy high-definition programming by subscribing to a high-definition cable service or a
high-definition satellite service. For the best possible picture, make sure you connect this equipment
to your TV via the HDMI or component video (with audio) input located on the back of your TV.
Shown with HDMI Connection
Shown with DVI Connection
Rear of TV
HDMI cable
HD cable box/
HD satellite box
CATV/Satellite antenna cable
Rear of TV DVI-to-HDMI cable
HD cable box/
HD satellite box
CATV/Satellite
antenna cable
Audio cable
(stereo mini plugs)
(Continued)
01US0 Cov-UC.book Page 11 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
12
KDL-32BX310
4-297-517-11(1)
Shown with Component Connection

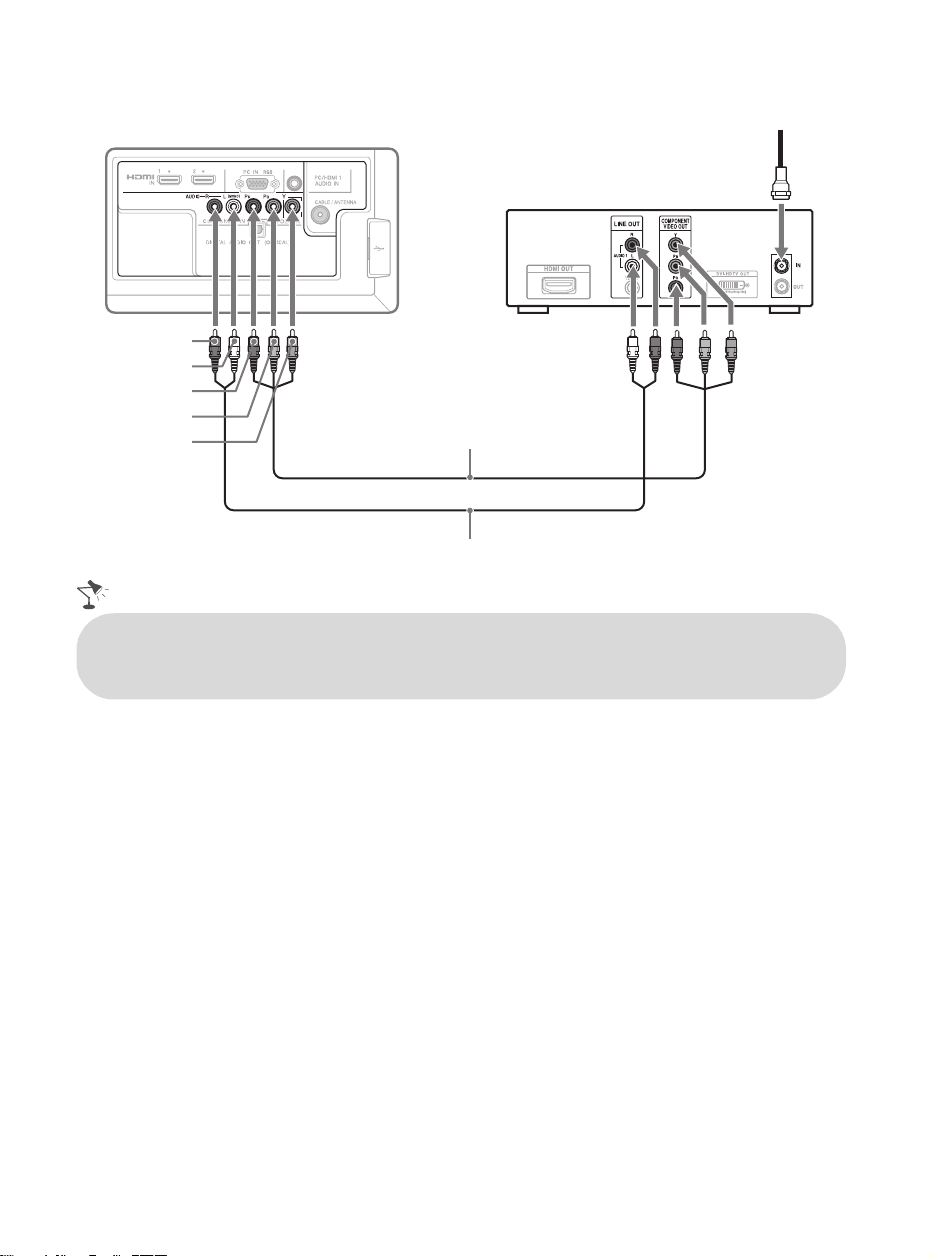

Rear of TV CATV/Satellite antenna cable
AUDIO-R (red)
AUDIO-L (white)
Component video cable
Audio cable
PR(red)
PB(blue)
Y (green)
HD cable box/
HD satellite box
• If your equipment has a DVI output and not an HDMI output, connect the DVI output to the
HDMI IN 1 (with DVI-to-HDMI cable or adapter) and connect the audio output to the AUDIO
IN of PC IN. For details, see page 8.
01US0 Cov-UC.book Page 12 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
13
Getting Started
PC
Use the TV as a monitor for your PC by connecting an HD15-HD15 cable connection as shown
below. This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the separate
Quick Setup Guide.)
Rear of TV
HD15-HD15 cable
(analog RGB)
Audio cable (stereo mini plugs)
• Connect the PC IN jack to the PC using an HD15-HD15 cable with ferrite core (analog RGB) and
audio cable (page 8).
01US0 Cov-UC.book Page 13 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
14
KDL-32BX310
4-297-517-11(1)
Connecting Other Equipment
Personal
computer
Blu-ray Disc Player/
“PS3”
DVD
player
Digital satellite
receiver
Digital
cable box
Audio
system
Digital audio
equipment
(A/V Receiver/
Home Theater)
Digital
recorder
USBCABLE/
ANTENNA
VCR/Game
system/
Camcorder
or
• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
01US0 Cov-UC.book Page 14 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
15
Getting Started
When Installing the TV Against a Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown
below. Avoid operating the TV at temperatures below 41 °F (5 °C).
(30 cm)
11 7/8 inches
(6 cm)
inches
4 inches
(10 cm)
4 inches
(10 cm) 23/8
Leave at least this much space around the set.
Installed with stand
inches
11 7/8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
Installed on the wall
Leave at least
this much space
around the set.

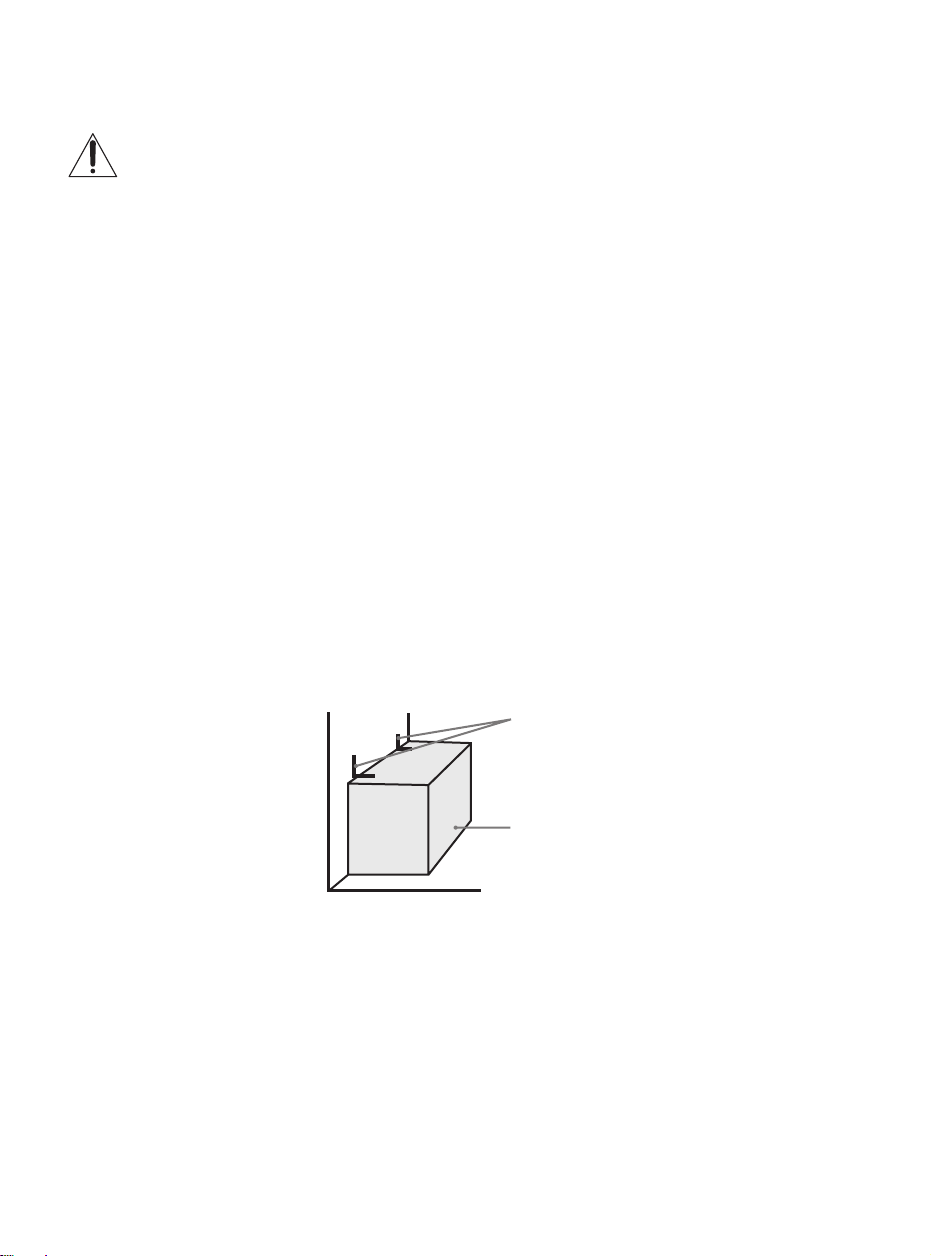

Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
• Inadequate ventilation can lead to overheating of the TV and may cause TV damage or cause
a fire.
01US0 Cov-UC.book Page 15 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
16
KDL-32BX310
4-297-517-11(1)
Securing the TV
Sony strongly recommends taking measures to prevent the TV from toppling over.
Unsecured TVs may topple and result in property damage, serious bodily injury or even
death.
Preventing the TV from Toppling
❑Secure the TV to a wall and/or stand.
❑Do not allow children to play or climb on furniture and TV sets.
❑Avoid placing or hanging items on the TV.
❑Never install the TV on:
• slippery, unstable and/or uneven surfaces.
• furniture that can easily be used as steps, such as a chest of drawers.
❑Install the TV where it cannot be pulled, pushed, or knocked over.
❑Route all AC power cords and connecting cables so that they are not accessible to curious children.
Recommended Measures to Secure the TV
Consider the following measures when securing your TV to a TV stand (not supplied).
1Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle braces
(not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
• attach one side of the angle brace to the wall stud.
• attach the other side to the TV stand.
Angle braces
Stand
01US0 Cov-UC.book Page 16 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
17
Getting Started

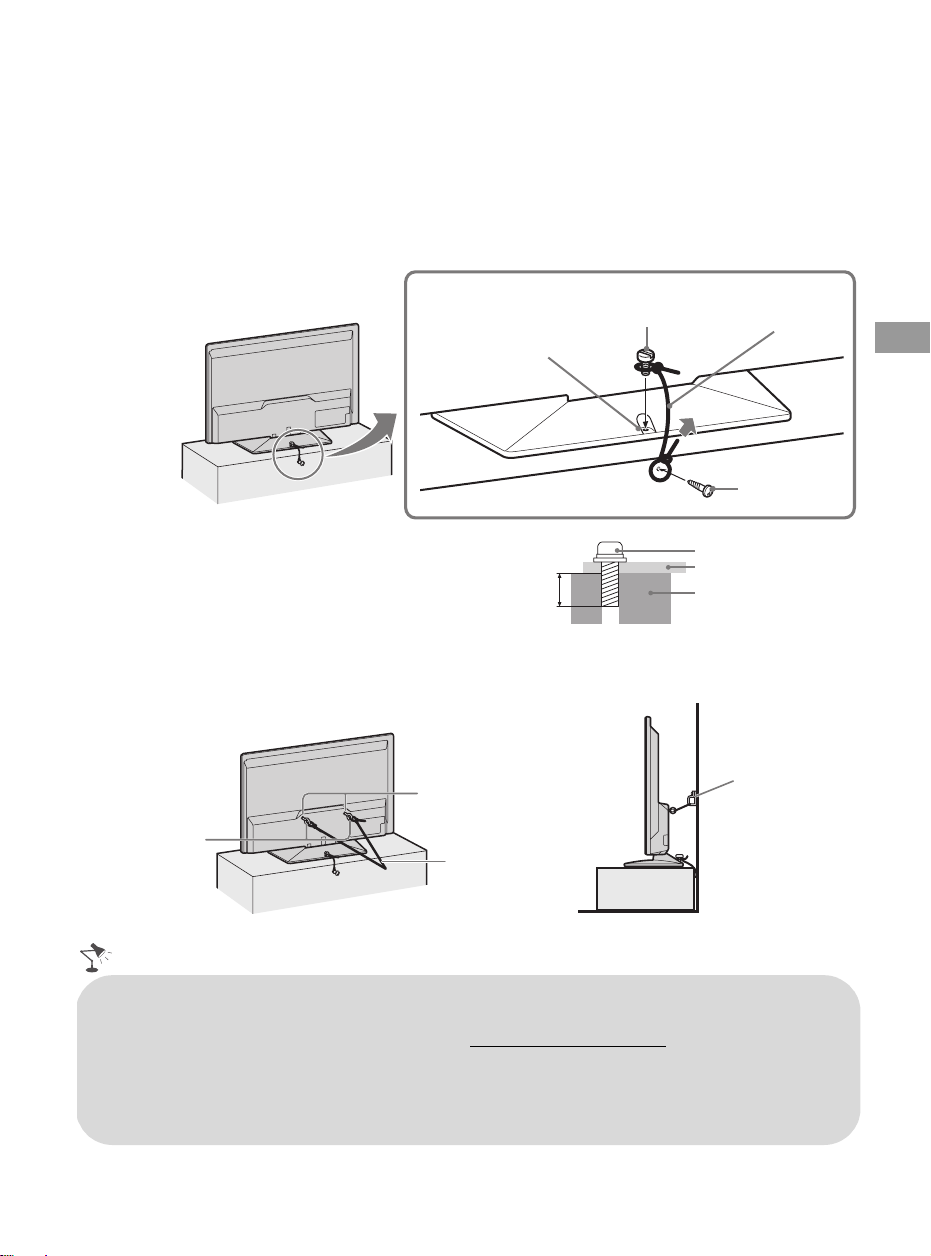

2Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
• M4 machine screw (screwed into the TV’s Table-Top Stand).
• A screw or similar (attach it to the TV stand).
• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no
excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support Belt Kit.
The length of the M4 machine screw differs
depending on the rope or chain diameter.
Please refer to right illustration.
3Anchor the TV to the wall.
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
Screw hole on the
Table-Top Stand
M4 machine screw
(not supplied)
Screw
(not supplied)
Rope or chain
(not supplied)
5-6 mm
Screw M4
Rope or chain
TV’s Table-Top Stand
Anchor bolts
(not supplied)
Wall-anchor
(not supplied)
Rope or chain
(not supplied)
Wall-mount holes
• Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV
model name.
For United States call: 1-800-488-7669 or visit: www.sony.com/accessories
For Canada call: 1-877-899-7669
• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum
protection against the TV toppling over. For further protection, be sure to follow the three
measures recommended.
01US0 Cov-UC.book Page 17 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US05INS.fm masterpage:Left
18
KDL-32BX310
4-297-517-11(1)
Running Initial Setup
During initial setup, you will perform the following:
• Set the language for the On Screen Display (OSD) text
• Scan for digital and analog channels
Complete your cable connections before beginning the Initial Setup. Refer to the Quick Setup
Guide (supplied) for sample connection diagrams.
3Auto Program will scan for available channels from the signal source directly connected to
the TV’s CABLE/ANTENNA input. Follow the help text provided on the screen to run the
Auto Program.

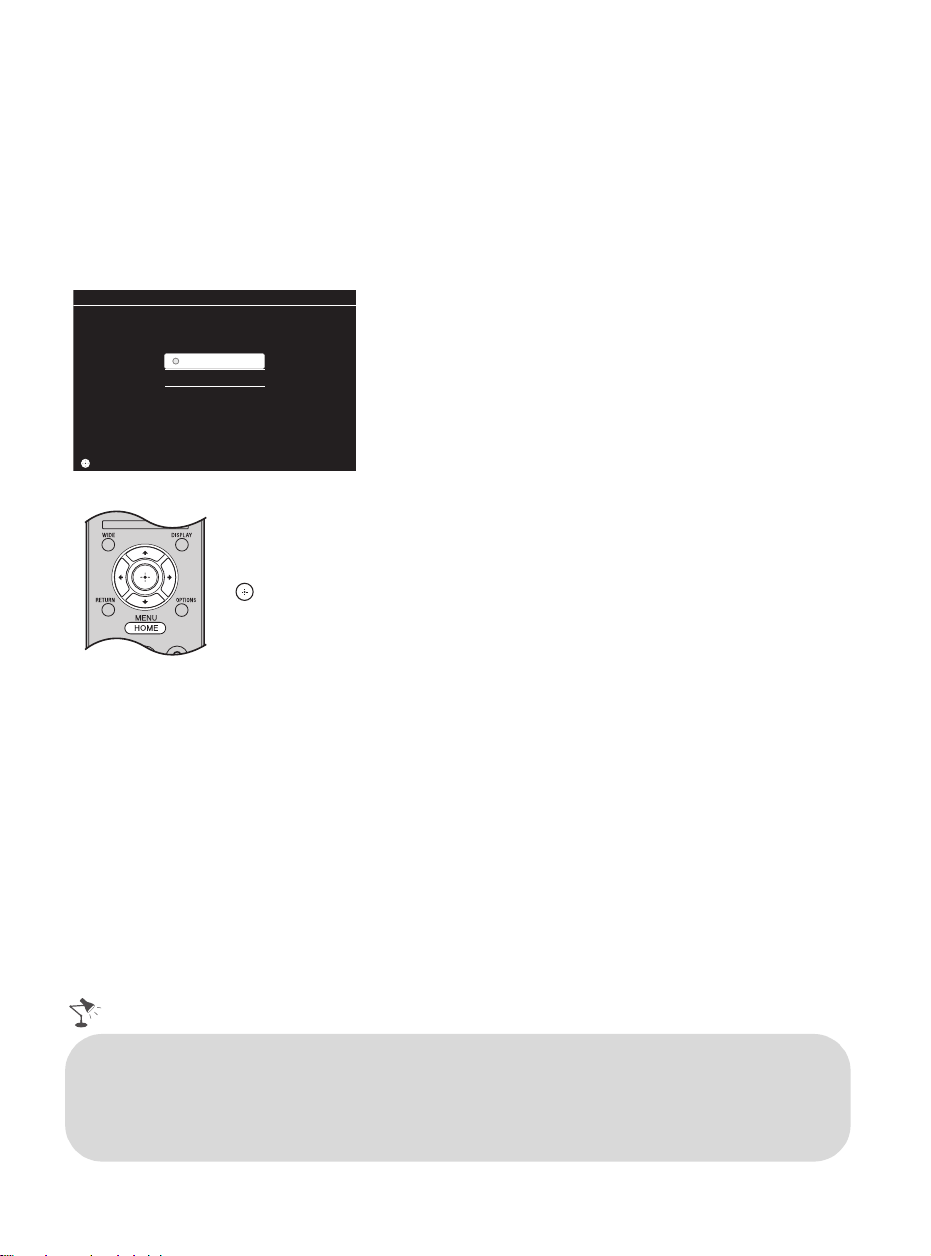

1Turn on the TV. The Initial Setup screen will
appear.
2Use the remote control buttons described below to
navigate through the Initial Setup.
V/v/B/bbuttons:
Allow you to navigate and highlight options where applicable.
button:
Allows you to select the highlighted option and advance to the next screen.
ConfirmConfirm
Please select your language:
English
Español
Français
Initial Setup
ConfirmConfirm
• Select Cancel to stop or cancel the Auto Program. The Auto Program can be done at later
time. To run Auto Program at a later time, press HOME and select Auto Program under
Channel settings.
• Connect either your cable or antenna to the TV (you can connect both using an A-B RF switch (not
supplied)); for more details see page 10.
01US0 Cov-UC.book Page 18 Wednesday, July 13, 2011 11:08 AM

E:\DATA\4297517111\4297517111_KDL32BX310_EN\01US06WEL.fm masterpage:Right
KDL-32BX310
4-297-517-11(1)
19
Operating the TV
Operating the TV
Using the Remote Control
To Insert Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching eand Eon the batteries to the diagram
inside the battery compartment of the remote control.
Guidelines to follow
Push to open
• Point your remote control directly at the IR sensor
located on your TV.
• Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
• Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
• If you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
01US0 Cov-UC.book Page 19 Wednesday, July 13, 2011 11:08 AM

G:\#sagyou\Sony\1208\4297517141\4297517141KDL32BX310UC\01US0
6WEL.fm
masterpage:Left
20
KDL-32BX310
4-297-517-14(1)

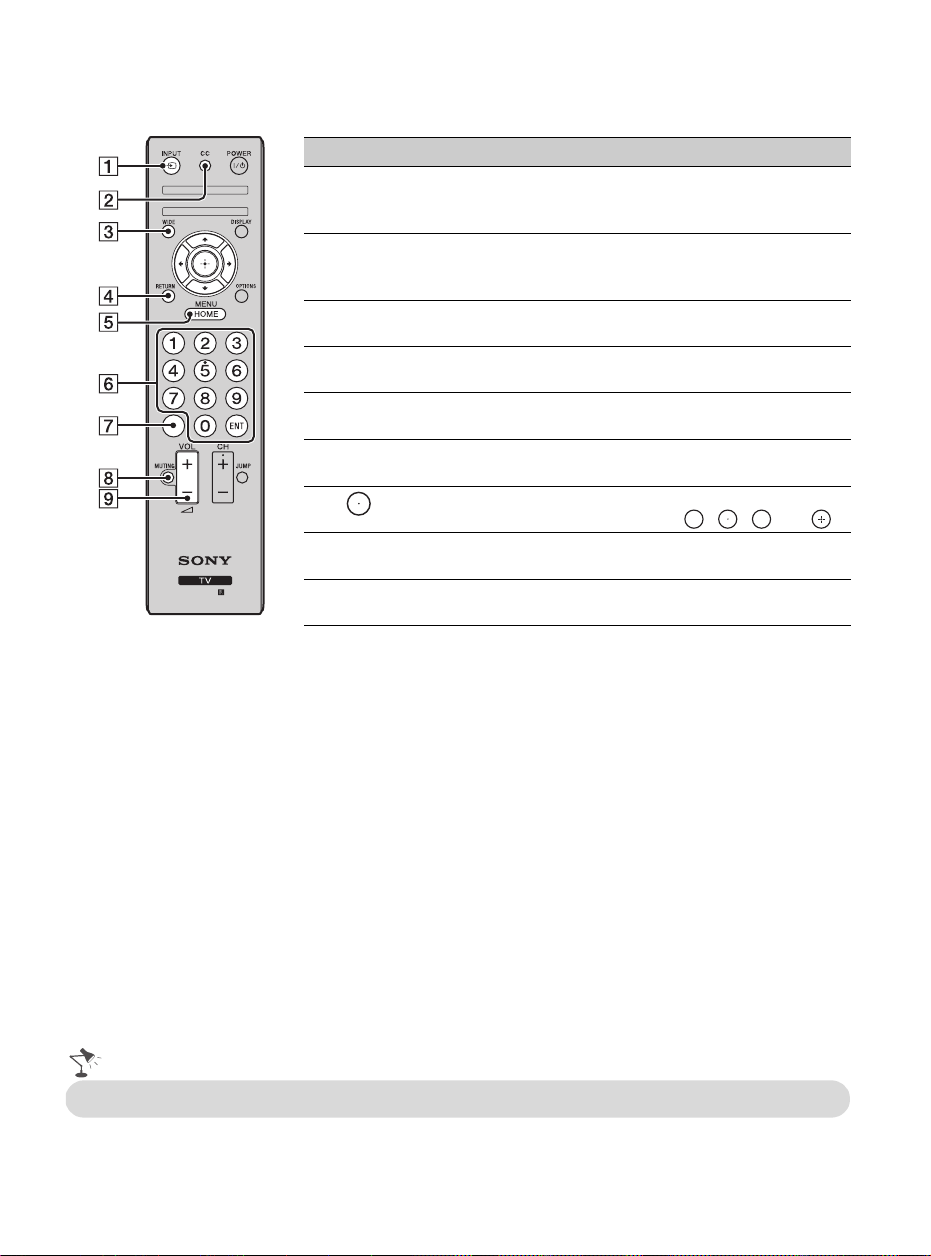

Remote Control Button Description
Button Description
1INPUT Press to display the list of External Inputs and TV
mode. Press repeatedly to toggle through the inputs.
See page 24.
2CC Press to cycle through the available settings for
Closed Captions (CC) : On , Off , and On when
Muting
.
3WIDE Press repeatedly to cycle through the available Wide
Mode settings. See page 23.
4RETURN Press to go back to the previous screen or exit from the
screen when displaying menu items and settings.
5HOME/
MENU
Press to display the menu with TV functions and
settings. See “Using the Menus” on page 26.
60-9 ENT Press 0-9 to select a channel. Press ENT to change
channels immediately.
7Use with 0-9 to select digital channels.
For example, to enter 2.1, press , , and .
8MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
9VOL (2)
+/–
Press to adjust the volume.
2 1
•The5and CH + buttons have a tactile dot. Use them as a reference when operating the TV.
01US0 Cov-UC.book Page 20 Thursday, December 8, 2011 5:43 PM
