Sony GXDL52H1 - 52" LCD Flat Panel Display User manual

GXD-L52H1
Public Display
SONY54184_GXD 3/20/08 5:59 PM Page 1

2
Bringing a New Level of Robustness to Full HD Digital Signage -
the GXD-L52H1 52” Public LCD Display
As the use of digital signage becomes more widespread, there is a
growing demand for content to be delivered quickly and presented
effectively in full high definition (HD).
To fulfill this demand, Sony introduces the GXD-L52H1 full HD 52”* public
LCD display.
Adopting a newly developed professional 52” LCD panel, the GXD-L52H1
offers excellent picture quality in full HD (1920 x 1080) resolution.
In addition to high-quality images, the GXD-L52H1 offers a range of
features and functions for operational reliability and installation flexibility.
Combining an aluminum frame bezel and an LCD protection panel made
of tempered glass, the GXD-L52H1 is extremely robust. It has a unique
cooling system that does not use air suction, but circulates air inside the
unit and then effectively dissipates all heat generated through an
advanced heat sink situated at the rear of the display.
Plus, Sony’s original backlight system eliminates the common problem of a
complete display failure when just a single cold cathode fluorescent lamp
malfunctions.
Furthermore, when used together with the VSP-NS7 Digital Signage Player,
the GXD-L52H1 offers a very simple full HD digital signage system.
With all the unique features and functionality of Sony’s professional public
displays, the GXD-L52H1 offers dynamic and brilliant full HD digital signage
in locations ranging from retail shops, enterprises, schools, and hospitals to
shopping mall entrances, train stations, and factories.
* Viewable area measured diagonally
SONY54184_GXD 3/20/08 5:59 PM Page 2

3
FEATURES
Excellent Picture Quality in
Full HD (1920 x 1080) Resolution
The GXD-L52H1 incorporates a newly developed professional
full HD 52” LCD panel with a 16:9 aspect ratio.
This high-quality LCD panel offers excellent picture quality
thanks to a native resolution of 1920 x 1080 and a high
contrast ratio. In addition, it provides a wide viewing angle of
178 degrees, horizontally and vertically, with minimal
reduction in picture contrast. Furthermore, the display
achieves a high color depth using a precise 10-bit driver.
Robust Aluminum Frame Bezel
The adoption of an aluminum frame bezel makes the
GXD-L52H1 extremely robust, and also provides a
sophisticated appearance that will not fade away even
after many years of use.
Exchangeable Protection Panel
The GXD-L52H1 is equipped with a protection panel made of
tempered glass that is situated in front of the LCD panel to
protect the surface from being damaged. This protection
panel can be conveniently replaced* with a new one, if
required, without having to dismount** the whole display unit.
In addition, anti-reflection (AR) coating on the glass
protection panel reduces light reflection for clear,
high-contrast picture viewing.
* If a protection panel does need to be replaced, please contact your nearest
Sony office or authorized dealer.
** The possibility for the dismount of the whole display unit depends on the
situation that the display is placed.
Unique Cooling System
The GXD-L52H1 adopts a unique cooling system that
increases its reliability and versatility. Whereas conventional
systems bring cold air in from outside to cool the unit, and
then feed warm air back out, the GXD-L52H1 uses multiple
fans to circulate air inside the processor unit, so that all heat
generated in the unit is effectively dissipated through an
advanced heat sink situated at the rear of the display.
Because the unit is completely sealed from external air and
there are no air intake filters to be cleaned, the life of the
LCD display is greatly extended. This allows the GXD-L52H1 to
be deployed in dusty environments - such as train stations,
shopping mall entrances, and factories - where conventional
displays can often malfunction due to a build-up of dust on
their cooling fans.
This feature also opens up additional installation
opportunities. For example, the GXD-L52H1 display can be
tilted - something that is not possible with conventional
displays, as tilting reduces the suction efficiency needed for
effective cooling.
Conventional System
Sony System
SONY54184_GXD 3/20/08 5:59 PM Page 3

Reliable Backlight System
Conventional backlight systems comprised of multiple cold
cathode fluorescent lamps (CCFL) have a weakness that the
whole system stops operating, even if just one CCFL has
blown out. The backlight system of the GXD-L52H1 solves this
problem with an advanced CCFL control function. Even if
two CCFLs have blown out, Sony’s backlight system allows
the GXD-L52H1 to maintain stable operation. And if such a
malfunction occurs, it can be easily detected by a PC that
monitors the status of the GXD-L52H1 via a network - or by a
control device connected to the GXD-L52H1 via an RS-232C
interface.
Installation Flexibility
The GXD-L52H1 can be mounted horizontally or vertically.
The Sony logo can be shown on the inner frame of the
GXD-L52H1 by illuminating a built-in LED. The position of the
logo can be automatically selected from two positions,
thanks to a built-in position sensor. This allows the logo to be
properly oriented, depending on whether it is mounted
horizontally or vertically.
Full HD Digital Signage with
the VSP-NS7 Digital Signage Player
The VSP-NS7 Digital Signage Player can be easily attached to
the rear panel of the GXD-L52H1 to form a space-saving and
simple digital signage system. The VSP-NS7 supports a range
of features and functions to meet various digital signage
needs.
When used in combination, the VSP-NS7 and GXD-L52H1
enable dynamic and brilliant full HD digital signage.
Multiple Inputs and
High-performance Scalar
The GXD-L52H1 accepts a variety of signals ranging from
SDTV to HDTV, and RGB computer signals with resolutions up
to WUXGA (1920 x 1200).
As standard, the GXD-L52H1 can support a range of
interfaces such as RGB/component (D-sub 15-pin
connector), DVI (Digital Visual Interface), and HDMI
(High-definition Multimedia Interface). In addition, a range of
optional input adaptors is available, providing convenient
system flexibility. The BKM-FW16 accepts HD-SDI/SD-SDI
signals, the BKM-FW15 supports two additional HDMI
interfaces, and the BKM-FW11 accepts component and RGB
signals via BNC connectors.
Furthermore, the GXD-L52H1 integrates a high-performance
scalar that can provide accurate pixel-by-pixel image
reproduction, offering optimum image quality whatever the
signal format.
■Preset Video Signals
4
FEATURES
Input Signal Available Interfaces
Formats Composite/S-Video Component/RGB DVI HDMI HD-SDI/SD-SDI
NTSC ●● ●
PAL ●● ●
NTSC4.43 ●● ●
PAL60 ●● ●
PAL-M ●● ●
PAL-N ●● ●
575/50i ●● ●
480/60i ●● ●
576/50P ●●●●
480/60P ●●●●
1080/50i ●●●●
1080/60i ●●●●
720/50P ●●●●
720/60P ●●●●
1080/50P ●●
1080/60P ●●
1080/24PSF ●
•
•
•
SS-SPG01 Speaker System
SS-SPG01 Speaker System
VSP-NS7 Digital Signage Player
SONY54184_GXD 3/20/08 5:59 PM Page 4

5
Multi-display Function
The multi-display function can present one dynamic
large-screen image by combining up to 16 GXD-L52H1
display units. There are two display modes to choose from:
Window Mode
When making one large image using multiple displays in this
mode, each display unit calculates the image part that is
hidden by its frame bezel, and then displays each
segmented portion of the image. As a result, the one large
image looks to be partially masked with multiple frame
bezels.
Tile Mode
When making one large image using multiple displays in this
mode, each display unit does not calculate the image part
that is hidden by its frame bezel, but rather displays each
segmented portion of the image, as it is. As a result, the one
large image looks to be split by multiple frame bezels.
■Preset Computer Signals
Input Signal Formats (RGB) fH (kHz) fV (Hz) Resolution (Active Pixels)
VGA-1 (VGA 350) 31.5 70 640 x 350
640 x 480 @60Hz (VESA STD) 31.5 60 640 x 480
Mac 13” 35.0 67 640 x 480
VGA (VGA TEXT) 31.5 70 720 x 400
800 x 600 @60Hz (VESA STD) 37.9 60 800 x 600
Mac 16” 49.7 75 832 x 624
1024 x 768 @60Hz (VESA STD) 48.4 60 1024 x 768
1024 x 768 @75Hz (VESA STD) 60.0 75 1024 x 768
1024 x 768 @85Hz (VESA STD) 68.7 85 1024 x 768
1152 x 864 @75Hz (VESA STD) 67.5 75 1152 x 864
Mac 21” 68.7 75 1152 x 870
1280 x 960 @60Hz (VESA STD) 60.0 60 1280 x 960
1280 x 1024 @60Hz (VESA STD) 64.0 60 1280 x 1024
1600 x 1200 @60Hz (VESA STD) 75.0 60 1600 x 1200
1920 x 1200 @60Hz (VESA, Reduced Blanking) 74.0 60 1920 x 1200
800 x 600 @60Hz (CVT) 37.4 60 800 x 600
848 x 480 @60Hz (CVT) 29.8 60 848 x 480
848 x 480 @75Hz (CVT) 37.7 75 848 x 480
848 x 480 @85Hz (CVT) 43.0 85 848 x 480
1280 x 720 @60Hz (CVT) 44.8 60 1280 x 720
1280 x 768 @60Hz (CVT) 47.8 60 1280 x 768
1280 x 768 @75Hz (CVT) 60.3 75 1280 x 768
1280 x 960 @60Hz (CVT) 59.7 60 1280 x 960
1360 x 768 @60Hz (CVT) 47.7 60 1360 x 768
1024 x 768 @60Hz (CVT) 47.8 60 1024 x 768
1280 x 1024 @60Hz (CVT) 63.7 60 1280 x 1024
1400 x 1050 @60Hz (CVT) 65.3 60 1400 x 1050
1600 x 1200 @60Hz (CVT) 74.5 60 1600 x 1200
1920 x 1080 @60Hz (CVT, Reduced Blanking) 66.6 60 1920 x 1080
SONY54184_GXD 3/20/08 5:59 PM Page 5

Simultaneous Display of Two Separate Pictures
The GXD-L52H1 can simultaneously display two pictures that are originated from separate sources.
Picture and Picture Function
This function allows the pictures from separate sources to be displayed side by side.
Each picture is variable in size.
Picture in Picture Function
This function allows the picture from a secondary source to be displayed within the main picture.
The secondary picture is variable in size and position.
■Signal Combinations
6
FEATURES
VIDEO HD 15 DVI HDMI OPTION
S-Video Compsite RGB Component RGB Component HDMI HD-SDI/SD-SDI
VIDEO S-Video ●●●● ● ● ● ●
Composite ●●●● ● ● ● ●
HD 15 RGB ●● ●● ● ● ●
Component ●● ●● ● ● ●
DVI ●●●● ● ●
HDMI ●●●● ● ●
Conference Mode
The GXD-L52H1 allows operators to select a conference
mode in the picture mode menu that is suitable mainly for
videoconferencing. This mode highlights the facial
expressions of videoconference participants more clearly by
reducing the green ingredient of office fluorescent lights for
more natural color reproduction.
Remote Display Setting and
Monitoring via Network
The display settings of the GXD-L52H1, such as power ON/OFF
and selection of input signals, can be controlled remotely via
a network. In addition, the display status, including these
settings, can be monitored remotely via a network.
SONY54184_GXD 3/20/08 5:59 PM Page 6

7
OPTIONAL ACCESSORIES
CONNECTORS
IN
OPTION slot
BKM-FW11
Component/RGB Input Adaptor
•Component/RGB In (BNC x5)
•Audio In (Stereo mini jack x1)
BKM-FW50
Streaming Receiver Adaptor
SS-SPG01
Speaker System
VSP-NS7
Digital Signage Player
BKM-FW15
HDMI Input Adaptor
•HDMI x2
BKM-FW16
HD-SDI Input Adaptor
•HD-SDI/SD-SDI In x1
•HD-SDI/SD-SDI Out x1
BKM-FW21
Monitor Control Adaptor
•RS-232C (D-sub 9 pin) x1
•Control-S In/Out (Mini jack x2)
GXD-L52H1 Connector Panel
BKM-FW11 Component/RGB Input Adaptor
BKM-FW16 HD-SDI Input Adaptor
BKM-FW15 HDMI Input Adaptor
BKM-FW21 Monitor Control Adaptor
SONY54184_GXD 3/20/08 5:59 PM Page 7

50 1/2 (1,281) or 50 3/8 (1,278)*
45 3/8 (1,152)
30 1/8 (764) or 30 1/8 (761)*
6 (152) or 6 (150)*
25 5/8 (648)
3 3/4 (93.5)
2 1/8 (51)
1 15/16 (48)*
26 5/8 (674)
2 5/8 (64.7)1 (25)
SPECIFICATIONS
GXD-L52H1
Picture Performance
Panel Resolution (H/V) 1920 x 1080 pixels, Full HD
Pixel pitch 1/40 x 1/40 inches (0.6 x 0.6 mm)
Picture size (H/V) 45 1/2 x 25 5/8 inches (1,152 x 648 mm)
Panel size (diagonal) 1,322 mm (52-inch)*
Panel drive RGB 10 bit
Type a-Si TFT Active Matrix LCD
Acceptable signals Refer to “Preset Video Signals” and “Preset Computer Signals”
Color system NTSC / PAL / PAL-M / PAL-N / NTSC4.43 / PAL60
Sampling rate 13.5 to 140 MHz
Input and Output
REMOTE Network port 10BASE-T/100BASE-TX
AUDIO Audio out Stereo mini jack (x1), 500 mV rms, high impedance
VIDEO S-Video in Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ±2 dB, sync negative, 75 Ωterminated
C: 0.286 (NTSC)/ 0.3 (PAL) Vp-p ±2 dB, sync negative, 75 Ωterminated
Video in/out BNC (x2), composite video, 1.0 Vp-p ±2 dB, sync negative, 75 Ω, loop-through (automatic termination)
Audio in Stereo mini jack (x1), 500 mV rms, high impedance
HD15 (RGB/COMPONENT) Video in/out D-sub 15-pin (female, x2)
Audio in Stereo mini jack (x1), 500 mV rms, high impedance
DVI DVI in DVI Specification Rev. 1.0 compliant
Audio in Stereo mini jack (x1), 500 mV rms, high impedance
HDMI HDMI in HDMI (1,080p, Deep Color)
SPEAKER Speaker out (L/R) 7W + 7W, 6Ω
General
Power requirements AC 100 to 240 V, 50 / 60 Hz
Power consumption 380 W (typical) / 460 W (maximum)
Operating temperature 32 to 95 °F (0 to 35 °C)
Storage temperature 14 to 104 °F (-10 to 40 °C)
Humidity 20 to 90%, no condensation
Dimensions (W/H/D) Approx. 50 5/8 x 30 1/8 x 6 inches (1,281 x 764 x 152 mm) (excluding protruding parts)
Weight Approx. 143.3 lb (65 kg)
Supplied Accessories
AC power cord (1), AC plug holder (2), Cable holder (8), Remote Commander RM-FW002 (1), Size AA (R6) batteries (2), Operating instructions (1)
Regulation Compliance
UL1950, CSA No.950 (c-UL), CE LVD (EN60950), Den-anho, FCC Class-B, IC Class-B, VCCI Class-B, CE EMC (EN55022 Class-B, EN55024, EN61000-3-2, EN61000-3-3),
C-Tick, JEITA, IP30
Unit: inches (mm)
*Excluding corner protection covers

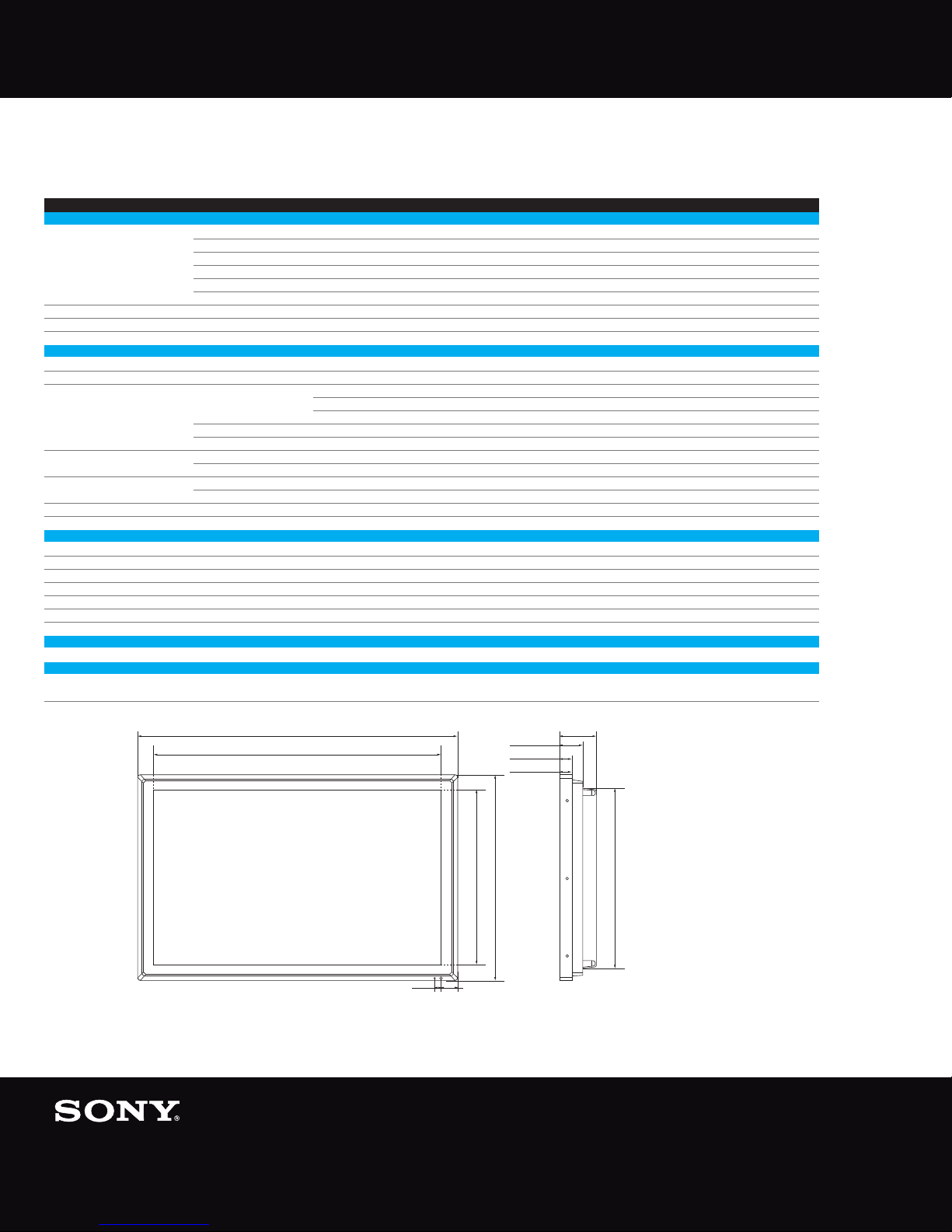

Dimensions
* Viewable area measured diagonally.
Printed in USA (4/08)
©2008 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony is a trademark of Sony.
DI-0136 (MK10462V1)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/publicdisplays
SONY54184_GXD 3/20/08 5:59 PM Page 2
