Sony SS-M125CE User manual

SSM-125CE
© 1997 by Sony Corporation
3-709-345-21 (1)
Black andWhite Monitor
D
F
EN
S
I
Operating Instructions Page 2 _______________________________________________
Mode d’emploi Page 10 _______________________________________________________
Bedienungsanleitung Seite 18 _______________________________________________
Manual de instrucciones Página 26 __________________________________________
Bruksanvisning Sid 34 _______________________________________________________
Istruzioni per l’uso Pagina 42_________________________________________________
ES

2
English
For the customers in the United Kingdom
WARNING
THIS APPARATUS MUST BE EARTHED
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Yor coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Ensure that your equipment is connected correctly – If you
are in any doubt consult a qualified electrician.
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Dangerously high voltages are present inside the
unit.
Do not open the cabinet. Refer servicing to
qualified personnel only.
This unit is not intended to be used with computer work
stations.

3
Table of Contents
Features .............................................................................. 3
Precautions ......................................................................... 4
Location and Function of Controls .................................. 5
Front Panel ...................................................................... 5
Rear Panel ....................................................................... 6
Connections ........................................................................ 7
Connecting a Video Camera or a VCR ........................... 7
Connecting the Monitors................................................. 8
Specifications...................................................................... 9
Features
•This unit can be used as a closed circuit television monitor
or a video preview/playback monitor.
•Loop through connection allows up to three monitors to
display the same picture.
•Electronic circuits provide safeguards against interference,
noise and change of signal strength to maintain a clear and
stable picture.
English
EN

4
Precautions
Cleaning
Clean the unit with a lightly damp soft cloth. Use a mild
household detergent. Never use strong solvents such as
thinner or benzine as they might damage the finish of the
unit.
If you have any question or problem concerning your unit
that is not covered in this manual, please consult your
nearest Sony dealer.
Safety
•The unit operates on 230 VAC, 50/60 Hz.
•Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by qualified personnel
before operating it any further.
•Unplug the unit from the wall outlet if it is not going to be
used for several days or more. To disconnect the cord,
pull it out by the plug. Never pull the cord itself.
•Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies) that
may block the ventilation holes.
•Height and vertical linearity controls located at the rear
panel are for special adjustments by qualified personnel
only.
Installation
•Do not install the unit in an extremely hot or humid place
or in a place subject to excessive dust or mechanical
vibration.
•The unit is not designed to be waterproof. Exposure to
rain or water may damage the unit.

5
1INPUT select switch
Keep this switch released (øA) to monitor the signal from
the VIDEO A IN connector.
Depress this switch (ØB) to monitor the signal from the
VIDEO B IN connector.
2H-HOLD (horizontal hold) control
When the picture does not appear in the centre of the screen,
or some of the letters are missing on the screen, turn the H-
HOLD control to move the picture horizontally.
3V-HOLD (vertical hold) control
When the picture rolls up or down on the screen, turn the V-
HOLD control until a single stationary picture is obtained.
4POWER switch and indicator
To turn on the monitor, depress this switch. The green
indicator lights up.
To turn off the monitor, press the switch again.
5CONTRAST control
Turn clockwise to increase picture contrast and
counterclockwise to decrease it.
6BRIGHT (brightness) control
Turn clockwise for a brighter picture and counterclockwise
for a darker picture.

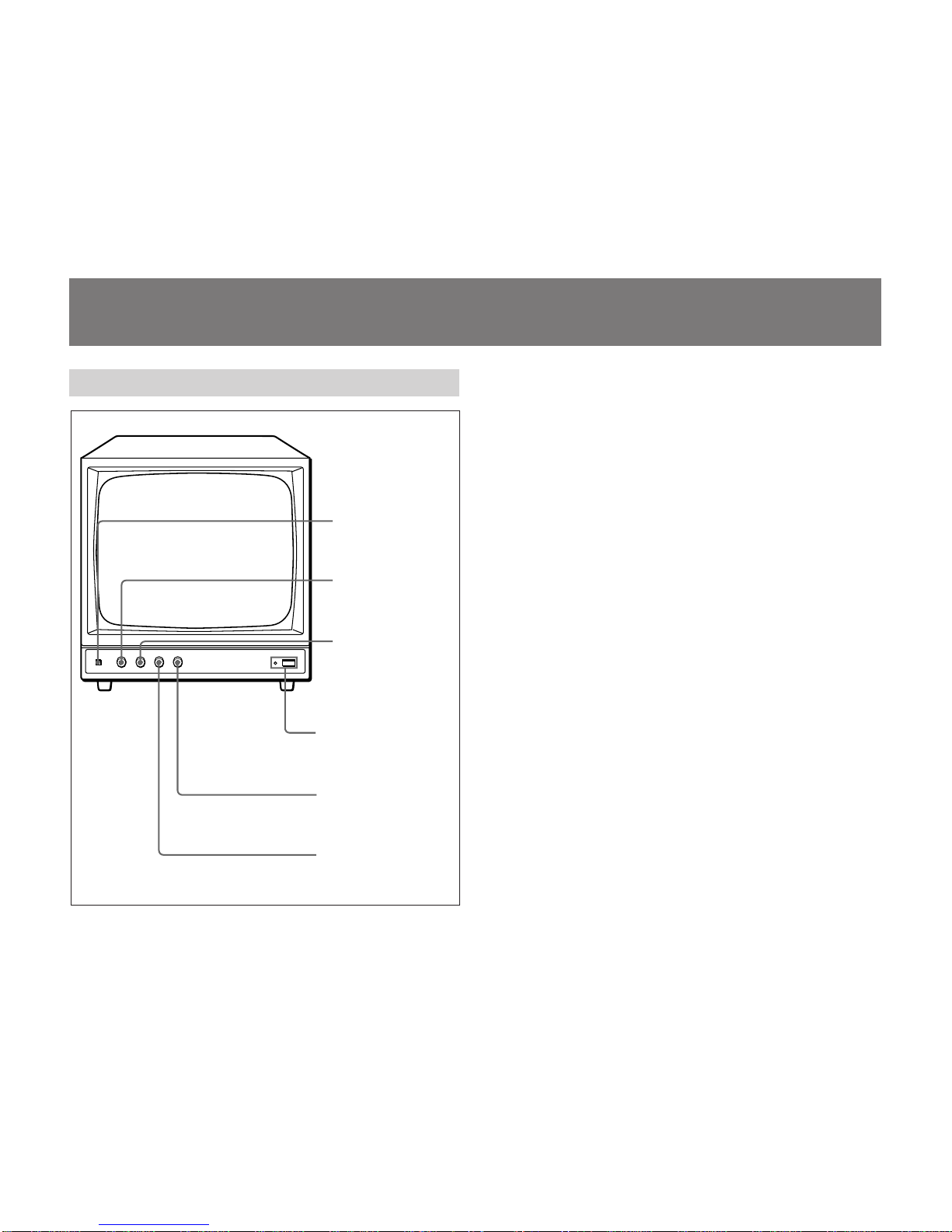

Location and Function of Controls
Front Panel
CONTRAST
control
POWER switch
and indicator
BRIGHT control
1
2
3
4
5
6
INPUT select
switch
H-Hold
control
V-HOLD
control

6
0
ON OFF
IN OUT
ON OFF
ON OFF
IN OUT
ON OFF
IN OUT IN OUT
VIDEO BVIDEO A DC CLAMP
ON OFF
ON OFF
9
78
7VIDEO A connectors and 75ΩON/OFF switch
8VIDEO B connectors and 75ΩON/OFF switch
Two video input connectors (VIDEO A and VIDEO B) for
the composite video signals and their loop-through output
connectors.
To monitor the signals input to the VIDEO A IN connector,
keep the INPUT select switch released (øA).
To monitor the signals input to the VIDEO B IN connector,
keep the INPUT select switch released (ØB).
IN connector (BNC type)
Connect the video output of a VCR, video camera, or
another monitor for loop-through connection.
OUT connector (BNC type)
Connect the video input of a VCR, video camera, or another
monitor for loop-through connection.
75ΩON/OFF switch
Set this switch to ON when only the IN connector is used.
Set this switch to OFF, when both the IN and OUT
connectors are used together for a loop-through connection.
9DC CLAMP ON/OFF switch
When the switch is set to OFF, the black and white areas
may become slightly gray.
To reproduce clear black and white definition, set this switch
to ON.
0V-LIN (vertical linearity) and HEIGHT controls
For special adjustments by qualified personnel only.
Rear Panel
Location and Function of Controls
V-LIN (vertical linearity)
and HEIGHT controls
VIDEO A connectors and
75ΩON/OFF switch VIDEO B connectors and
75ΩON/OFF switch
DC CLAMP ON/OFF switch

7
ON OFF
IN OUT IN OUT
VIDEO BVIDEO A DC CLAMP
ON OFF
ON OFF
Connections
Connecting a Video Camera or a VCR
Connect the VIDEO IN connector to the video output of a
video camera or a VCR.
to video output
to video output
ONON
Video camera
VCR
Video camera
VCR

8
ON OFF
IN OUT IN OUT
VIDEO BVIDEO A DC CLAMP
ON OFF
ON OFF ON OFF
IN OUT IN OUT
VIDEO BVIDEO A DC CLAMP
ON OFF
ON OFF ON OFF
IN OUT IN OUT
VIDEO BVIDEO A DC CLAMP
ON OFF
ON OFF
Connections
Connecting the Monitors
Using the loop-through feature of this unit, the same picture
can be obtained on all the monitors connected. You can
connect up to three monitors.
Adjust the picture contrast and brightness of each monitor.
to video output
Video camera
OFF OFF ON
First monitor Second monitor Third monitor

9
General
System CCIR standard
Picture tube 12-inch picture measured
diagonally
90-degree deflection
Resolution More than 750 TV line
(horizontal)
Video input Composite: 0.5 – 2 Vp-p, sync
negative (×2)
Video input impedance High impedance for loop-
through; 75Ωterminated
Video output Composite: 0.5 – 2 Vp–p, sync
negative (×2)
Power requirements 230 V AC, 50/60 Hz
Power consumption Approximately 30W
Operating temperature 0°C to +35°C (32°F to 95°F)
Storage temperature –10°C to +40°C (14°F to 104°F)
Dimensions 296 ×303 ×301 mm (w/h/d)
(11 3/4×12 ×11 7/8inches)
Mass Approx. 9.2 kg (20 lb 5 oz)
Supplied Accessory Operating Instructions (1)
Specifications
Design and specifications are subject to change without
notice.

10
Table des matières
Fonctionnalités ................................................................. 10
Précautions....................................................................... 11
Localisation des commandes .......................................... 12
Panneau avant ............................................................... 12
Panneau arrière.............................................................. 13
Raccordements................................................................. 14
Raccordement avec une caméra vidéo ou un
magnétoscope................................................................ 14
Raccordement de plusieurs moniteurs .......................... 15
Caractéristiques techniques............................................ 16
Fonctionnalités
•Ce moniteur peut être utilisé en circuit fermé, comme un
écran de télévision, ou comme moniteur vidéo pour
visualiser des images en direct et visionner des images
enregistrées.
•Le branchement en boucle permet à trois moniteurs
d’afficher la même image simultanément.
•Les circuits électroniques filtrent les interférences, le bruit
et s’adaptent au niveau du signal pour fournir une image
stable de qualité constante.
Avant d’utiliser le moniteur, veuillez lire attentivement ce
manuel et le conserver à titre de référence ultérieure.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou
d’électrocution, ne pas exposer cet appareil à la
pluie ou à l’humidité.
Des courants de hautes tensions dangereuses
sont présents à l’intérieur de cet appareil. Ne pas
ouvrir le coffret. Se reporter à un personnel
qualifié uniquement.
Cet appareil n’est pas conçu pour être utilisé avec un
ordinateur.
Français
