LMD-1530MD 15" HD
Widescreen Medical LCD Monitor
The LMD-1530MD is a widescreen medical grade 15-inch monitor
incorporating a WXGA panel that provides 1280 x 768 pixel resolution. It is equipped
with a 10-bit signal processor to reproduce lifelike images with smooth gradation and accurate
color consistency. The monitor accepts a wide variety of SD signal inputs and features an HD signal
input via either HDMI interface or analog component connectors. Its outstanding picture quality,
versatile inputs, and lightweight compact design make it an ideal cost-effective choice for easy
integration into a variety of applications such as a doctor's office or operating room.
• Built-in HD input via HDMI interface or analog component interface
• Accepts SD inputs including analog composite, Y/C (S-Video), 525i/625i component and RGB
• Features a variety of image scan modes providing flexibility for any medical application
• Selectable color temperature settings
• On screen display (OSD)for seven languages
• Built-in tally lamp to identify when images are captured or recorded
• Parallel remote control interface
• Scratch resistant AR-coated protection layer
• VESA mounting standard compliance (100 mm spacing)
• Built-in desktop stand

©2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and specifications are subject
to change without notice. All non-metric weights and measurements are approximate. Image on monitor is simulated.
Sony and Sony logo are trademarks of Sony. VESA is a trademark of the Video Electronics Standards Association.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications,contraindications, warnings, cautions and directions for use.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/medical
ME-LMD1530MD

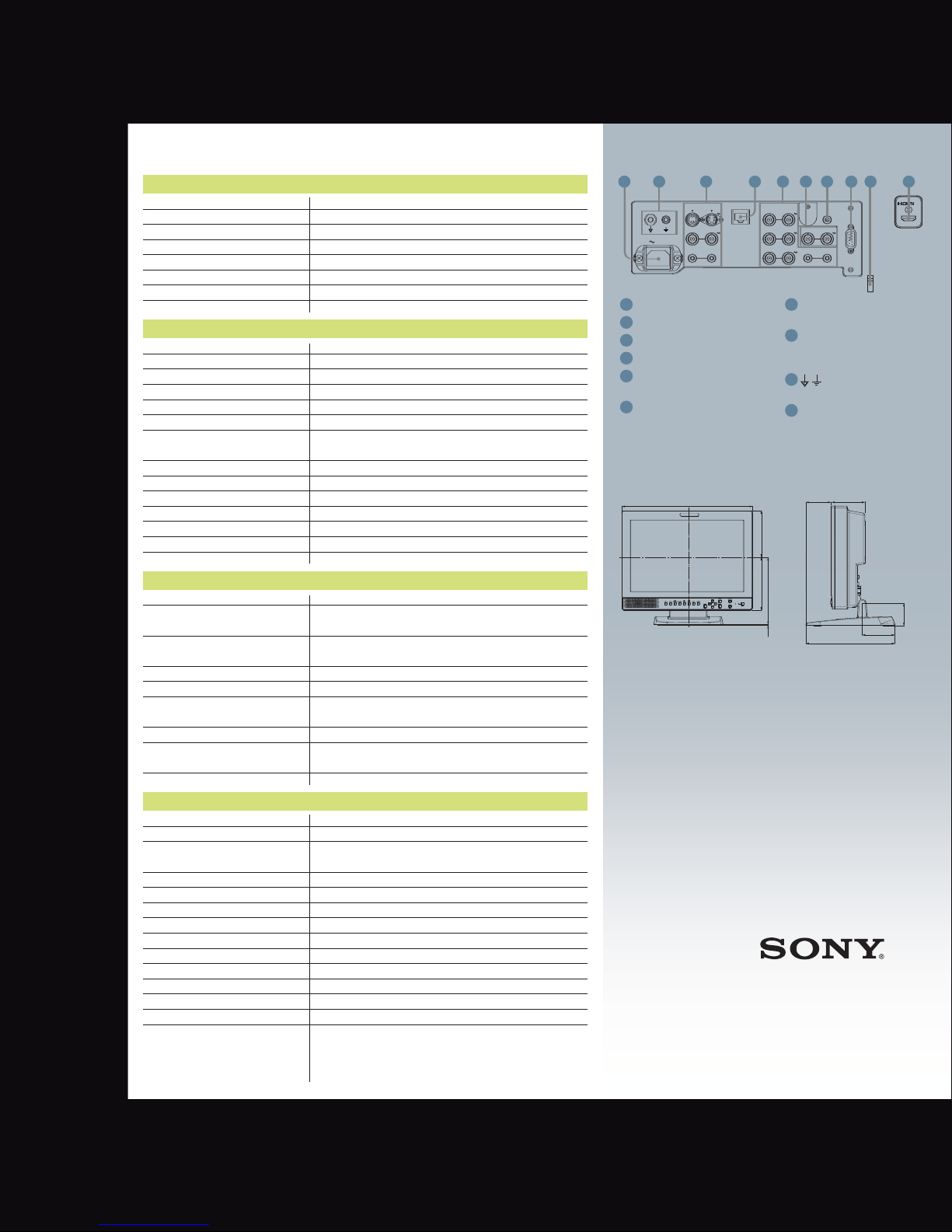

Specifications
Picture Performance
LCD panel a-Si TFT Active Matrix
Picture size 334, 200, 390 mm (W/H, Diagonal)
(13 1/4 x 7 7/8, 15 3/8 inches)
Resolution 1280 x 768 (WXGA)
Viewing angle 88°/ 88°/ 88°/ 88° (typical)
Scan Normal 0%, Over 5%
Aspect 15:9
Display color 16,770,000
Input Connectors
LINE A input connectors
Y/C input Mini DIN 4-pin (X1)
VIDEO input BNC (X1), 1 Vp-p ±3 dB, negative synchronization
AUDIO input Phono jack (X1), –5 dBu 47 kilo ohms or higher
RGB/COMPONENT input connectors BNC (X3)
RGB input 0.7 Vp-p ±3 dB, (Sync On Green, 0.3 Vp-p negative sync)
Component input 0.7 Vp-p ±3 dB, (75% chrominance standard color
bar signal)
AUDIO input Phono jack (X1), –5 dBu 47 kilo ohms or higher
OPTION IN connector D-sub 9-pin (X1), female
OPTION AUDIO IN connector Phono jack (X1), –5 dBu 47 kilo ohms or higher
External synchronized input connector BNC (X1), 0.3 to 4 Vp-p negative polarity binary
HDMI IN connector HDMI (X1)
PARALLEL REMOTE input connector
Parallel remote Modular connector 8-pin (X1)
Output Connectors
LINE A output connectors
Y/C output Mini DIN 4-pin (X1), Loop-through, with 75 ohms
automatic terminal function
VIDEO output BNC (X1), Loop-through, with 75 ohms automatic
terminal function
AUDIO output Phono jack (X1), Loop-through
RGB/COMPONENT output connectors
RGB/Component output BNC (X3), Loop-through, with 75 ohms automatic
terminal function
AUDIO output Phono jack (X1), Loop-through
External synchronized output connector BNC (X1), Loop-through, with 75 ohms automatic
terminal function
Built-in speaker output 0.5 W (mono)
General
Power AC 100 V to 240 V, 50/60 Hz
Power consumption Maximum: approx. 40 W, 0.6 A to 0.4 A
Dimensions (W/H/D) Approx. 372 x 336 x 264 mm (14 3/4 x 13 1/4 x 10
1/2 inches)
Mass Approx. 6.2 kg (13 lb 11 oz)
Operating conditions
Temperature 0 °C to 35 °C (32 °F to 95 °F)
Recommended temperature 20 °C to 30 °C (68 °F to 86 °F)
Humidity 30 % to 85 % (no condensation)
Pressure 700 hPa to 1060 hPa
Storage and transport conditions
Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Humidity 0 % to 90 %
Pressure 700 hPa to 1060 hPa
Accessories supplied AC power cord (1), AC plug holder (2), Instruction for Use (1),
CD-ROM (1), Using the CD-ROM Manual (1), Quick reference
(1), When you First Use the Monitor (1), Sales Companied
Guide (1), Warranty book (1)
HDMI IN connector
HDMI cable holder
OPTION In connector
OPTION AUDIO In (Phono jack)
EXT SYNC In/Out
(external sync) (BNC)
RGB/COMPONENT (BNC),
Audio (Phono jack)
PARALLEL REMOTE
(modular connector)
LINE A [composite (BNC),
Y/C (Mini DIN 4-pin),
Audio (Phono jack)]
/(Equipotential/Ground)
terminal
AC In
10
9
8
7
6
5
4
3
2
1
LINE A
PARALLEL REMOTE RGB/COMPONENT
VIDEO
IN OUT
IN OUT
IN OUT
G/Y
IN OUT
B/P
B
IN OUT
EXT
SYNC
IN OUT
R/P
R
IN OUT
AUDIO AUDIO
IN
IN
OUT
AC IN
OPTION
AUDIO IN
OPTION IN
Connector Panel
Front Panel
TCEPSANACSNOITPOIMDHAENIL
RESET
MENU VOLUME
ENTER
RGB/
COMPONENT
EXT
SYNC
BLUE
ONLY
1
1
-
-
111213
10 98 7 6 5 4 3 2 1
Connector Panel
Dimensions
1
-
372 (14
3
/ 4 )
203.7 (8
1
/
8
)
158.8 (6
3
/
8
)129.5 (5
1
/
8
)
2.5 (
1
/
8
)
75.2 (3)
264.4 (10
1
/ 2 )
96.8 (3
7
/ 8 )
100 (4)
67.7
(2
3
/
4
)
Unit: mm (inches)
