Sony SDM-V72W User manual

Welcome to the future of display technology, where vast connectivity and wide screens
expand the possibilities and enhance your enjoyment. Now, DVDs, videogames, PC
applications and more come alive with legendary Sony technology and multifunctional ease.
No complicated wires. No bulky components. It’s the simplest way to see wide.
®
PERSONAL
ENTERTAINMENT
DISPLAY
WATCH DVDs
Perfect for letter-boxed movies.
PLAY VIDEOGAMES
Stretch the limits of games.
SEE VIDEO AND DIGITAL PHOTOS
Savor memories—virtually anywhere.
MAXIMIZE HDTV
Wide format creates brilliant images.
WATCH TV
See all of your favorite shows.
CONNECT TO PCs
Get wide with work and the Web.

17"LCD SCREEN
Enjoy dynamic side-to-side viewing.
SRS WOW™ AUDIO TECHNOLOGY
Hear what you’ve been missing.

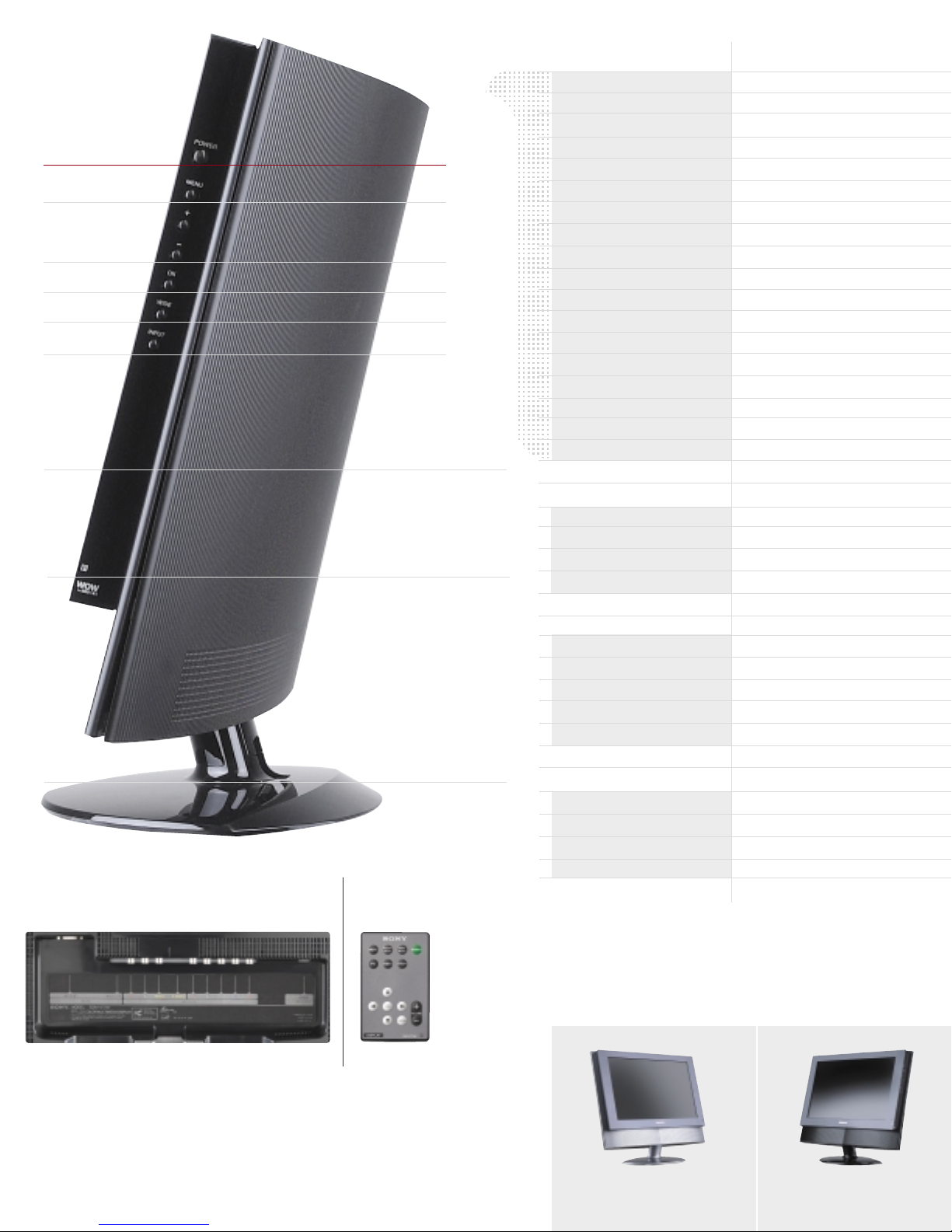

TILTING BASE
Adjust for maximum viewing comfort.
POWER BUTTON Turn the display on/off.
MENU BUTTON Access the menu screen.
WIDE BUTTON View images in different sizes.
INPUT BUTTON Switch between sources.
OK BUTTON Activate the selected menu item.
+ /–BUTTONS Select items–make adjustments.
SPECIFICATIONS
SDM-V72W Dark Pearl Blue & Metallic Silver
SDM-V72W/B High-gloss Black
LCD Panel Size 17.1"
LCD Panel Type TFT Active Matrix
Maximum Resolution WXGA (1280 x 768)
Pixel Pitch 0.291 mm
Colors 16.2 million (Approx.)
Luminance 450 cd/m
Contrast Ratio 500:1 (Max.)
Horizontal Scan Range 28 – 70 kHz
Vertical Refresh 48 – 85 Hz
Viewing Angle Horizontal: 150° Vertical: 120°
Response Time (Rise/Fall) 22ms
Tilt Range -3° to + 15°
Video Input Connectors Component (Y, Pb, Pr)
S-Video / Composite
PC (HD15)
Audio Speaker Power 3 W x 2
Product Measurements (approx):
With Stand Base Without Stand Base
Height 15.9 in 13.7 in
Width 18.6 in 18.6 in
Depth 7.2 in 2.9 in
Weight 13.0 lbs 11.2 lbs
Power Management:
Normal Operation 49 W (Max.)
Deep Sleep Mode 2 W (typical)
Remote Off 2 W (typical)
Power Off 1 W (typical)
Shipping Measurements (approx):
Height 19.8 in
Width 22.9 in
Depth 10.4 in
Weight 19.1 lbs
Supplied Accessories
•Remote Control •AC Power Cord •AC Adapter •Quick Set-up Guide
•CD-ROM with Set-up Tour and Instruction Manual (in English, French and
Spanish) •Utility Files and Macintosh Utility Files •HD15 Video Signal
Cable •Composite Video Extension Cable •S-Video Extension Cable
• Audio Cable with Stereo Mini Plugs •Limited Warranty Card (3 years)
The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This product is not
manufactured to work with any specific software, and Sony does not and cannot make any warranty or representation with respect to the performance of this
product with any particular software packages and/or add-on hardware. Sony hereby disclaims any representations or warranties that this product is compatible
with any combination of products a consumer may choose to connect to it. While Sony representatives or Sony authorized dealers may be able to assist
distributors, resellers, dealers, and consumers and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must
determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
Not all video graphic cards will support 1280 x 768 wide aspect resolution. Use with some devices may require an updated driver. Most popular drivers are
available on included CD-ROM.
©2002 Sony Electronics Inc. Sony is a registered trademark of Sony. Screen Images are simulated. D278 - 1.0
REMOTE CONTROL
Put control into the palm of your hand.
SUPERB CONNECTIVITY
Component, S-video / Composite and PC
Manufacturer’s Limited Warranty /Three years (Parts, Labor, Backlight)
SDM-V72W
Dark Pearl Blue & Metallic Silver SDM-V72W/B
High-gloss Black
.
