Sony Trinitron PVM-9044QM User manual

SONYY.
Trinitrone
Color
Video
Monitor
3-754-506-21 (1)
PVM-9044QM/9041QM
PVM-9040ME
Operating Instructions
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
The illustration shows the PVM-9044QM/90410M.
Lillustration présente le PVM-9044QM/9041QM.
Die
Abbildung
zeigt
den
PVM-9044QM/9041
QM.
L'illustrazione mostra il PVM-9044QM/90410M.
©1992 by Sony Corporation
La ilustraci6n corresponde al PVM-9044QM/90410M.

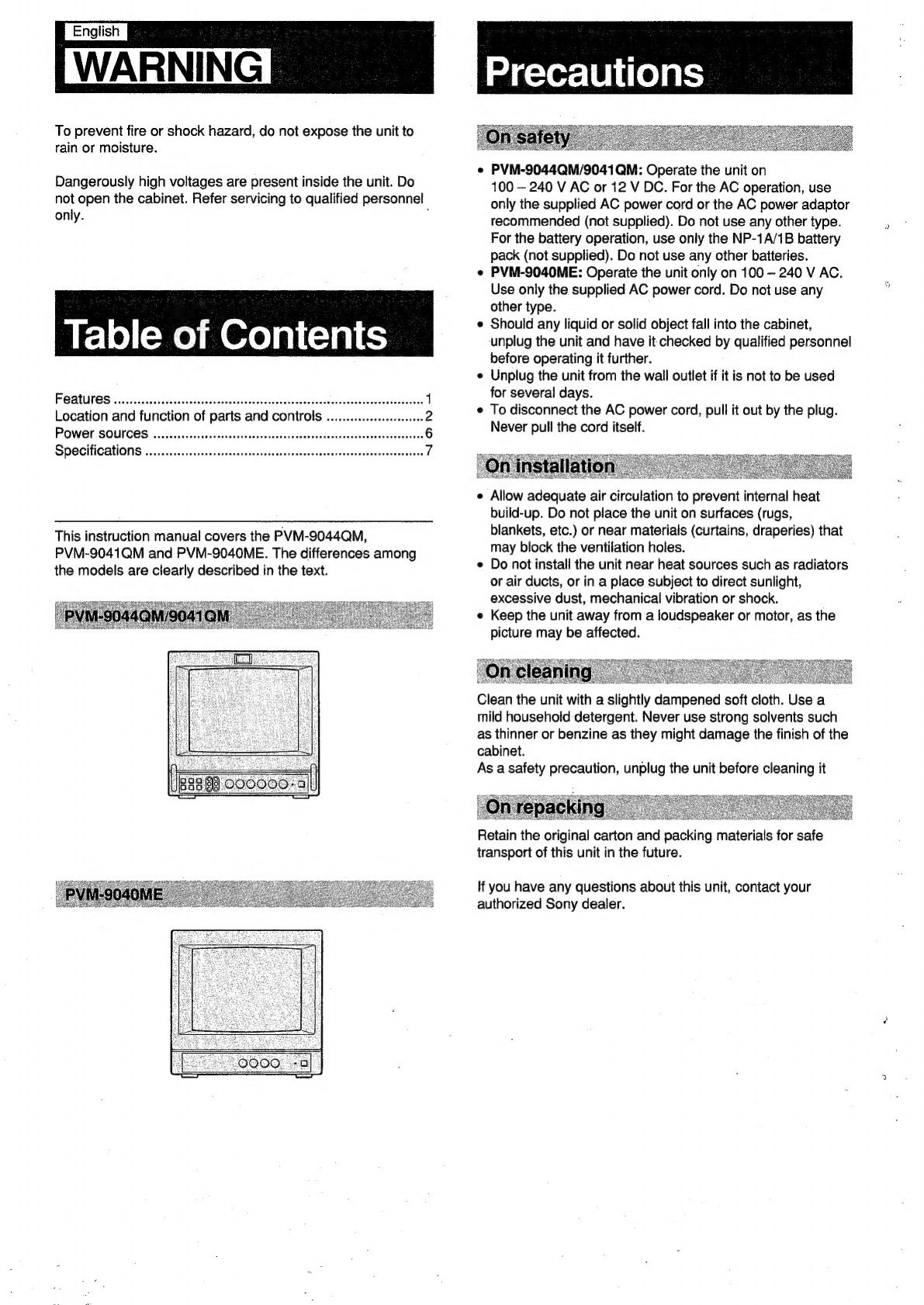

To prevent fire or shock hazard, do not expose the unit to
rain or moisture.
Dangerously high voltages are present inside the unit. Do
not open the cabinet. Refer servicing to qualified personnel
only. ;
A Fzle)(= of eon
FOALUTES§ iutecestes esesecuslstictiseleavebacvectecsestsnasteccteeaneeeeteenm cries 1
Location and function of parts and controls ........... esc 2
POWGRSOUICES fe cecssesictbtvctivesadctasiddescsecsascdyatiestevedvenevecteesdize 6
SPeCifCAtiONS eis .zecesesiesec chogendeasstennedecescuesesbnessusensedetsesecescupes 7
This instruction manual covers the PVM-90440M,
PVM-9041QM and PVM-9040ME. The differences among
the models are clearly described in the text.
Precautions
100 — 240 V AC or 12 V DC. For the AC operation, use
only the supplied AC power cord or the AC power adaptor
recommended (not supplied). Do not use any other type.
For the battery operation, use only the NP-1A/1B battery
pack (not supplied). Do not use any other baiteries.
e PVM-9040ME: Operate the unit only on 100 ~ 240 V AC.
Use only the supplied AC power cord. Do not use any
other type.
¢ Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by qualified personnel
before operating it further.
e Unplug the unit from the wall outlet if it is not to be used
for several days.
¢ To disconnect the AC power cord, pull it out by the plug.
Never pull the cord itself.
Ee Se nee
e Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies) that
may block the ventilation holes.
¢ Do not install the unit near heat sources such as radiators
or air ducts, or in a place subject to direct sunlight,
excessive dust, mechanical vibration or shock.
e Keep the unit away from a loudspeaker or motor, as the
picture may be affected.
eaning
ee Noein SEL MEANS
Clean the unit with a slightly dampened soft cloth. Use a
mild household detergent. Never use strong solvents such
as thinner or benzine as they might damage the finish of the
cabinet.
As a safety precaution, unplug the unit before cleaning it
Retain the original carton and packing materials for safe
transport of this unit in the future.
If you have any questions about this unit, contact your
authorized Sony dealer.

Features
(PvM-9044aMo041 QM only}
The monitor can display PAL, SECAM, NTSCa.se and
NTSC«.43* signals. The appropriate color system is selected
automatically.
* A signal of NTSCa.3 is used for playing back NTSC recorded
video cassettes with a video tape recorder/player especially
designed for use with this system.
(PVM -90440M only)
The Super Fine Pitch Trinitron picture tube provides a high
resolution picture. Horizontal resolution is more than 450 TV
lines at the center of the picture.
‘eva o0aAGuaeoal QM only)
The picture can be displayed in blue and black only. This
facilitates hue adjustment and the observation of video
noise.
(PVM-9044QM/9041 QM only)
Analog RGB or component (Y, R-Y and B-Y) signals from
video equipment can be input through these connectors.
The video signal, split into the chrominance selon (C) and
the luminance signal (Y), can be input through this
connector, eliminating the interference between the two
signals, which tends to occur in a composite video signal,
assuring video quality.
The built-in — current feedback circuit assures Batic
white balance.
When NTSC video signals are received, a comb filter
activates to increase the resolution, resulting in fine picture
detail without color spill or color noise.
The Y/C, VIDEO IN and EXT SYNC IN* connectors are
terminated at 75 ohms inside, when no cable is connected
to the loop-through output connectors. When a cable is
connected to an output connector, the 75-ohm termination is
automatically released.
* The EXT SYNC IN connector is provided with the
PVM-9044QM/9041QM only.
By using an n MB- 507 7 iutrg packet trot supplied), the
monitor can be mounted in an EIA standard 19-inch rack.
For details on mounting, see the instruction manual of the
MB-507.

Location
and
Function
of
Parts
and
Controls
PVM-9044QM/9041QM
[9] SYNC INT/EXT (sync internal/
external) selector
LINE/RGB input selector
A/B, RGB/Y R-Y B-Y input
selector
BLUE ONLY selector
UNDER SCAN selector
H/V DELAY selector
R/G/B BIAS and GAIN adjustment controls
[1] Tally lamp
[2] POWER switch and indicator
Depress to turn the monitor on. The indicator will light
up in green.
The POWER indicator also functions as the battery
indicator. When the internal battery becomes weak or
the power supplied through the DC12V IN jack
decreases, the indicator flashes.
[3] VOLUME control
Turn this control clockwise or counterclockwise to obtain
the desired volume.
[4] CONTR (contrast) control
Turn clockwise to make the conirast stronger and
counterclockwise to make it weaker.
[5] PHASE control
This control is effective only for the NTSCa.ss and
NTSC«.43 color systems. Turn clockwise to make the skin
tones greenish and counterclockwise to make them
purplish. ‘
Tally lamp
2| POWER switch and
indicator
[3| VOLUME control
4| CONTR (contrast) control
5] PHASE control
[6] CHROMA conirol
7| BRIGHT (brightness) contro!
8] APER (aperture) control
e The PHASE and APER control settings have no effect on
an analog RGB signal.
The APER control has an effect on component signals,
but the PHASE does not.
e The PHASE control setting is effective only for the NTSC
system.
[6] CHROMA control
Turn clockwise to make the color intensity stronger and
counterclockwise to make it weaker.
BRIGHT (brightness) control
Turn clockwise for more brightness and
counterclockwise for less.
APER (aperture) control
Turn clockwise for more sharpness and
counterclockwise for less.
[9] SYNC INT/EXT (sync internal/external) selector
Keep this button released (INT) to operate the monitor )
on the sync signal from the displayed composite video
signal.
Depress this button (EXT) to operate the monitor on an
external sync signal fed through the EXT SYNC
connector on the rear panel.

PVM-9040ME -
[2] POWER switch and indicator
LINE/RGB input selector
Select the program to be monitored. Keep this button
released (LINE) for a signal fed through the LINE A or
LINE B connectors. Depress this button (RGB) for a
signal fed through the RGB connectors.
A/B, RGB/Y R-Y B-Y input selector
When the LINE/RGB input selector is set to LINE,
keep this button released (A) for a signal fed through the
LINE A connectors. Depress this button (B) for a signal
fed through the LINE B connectors.
When the LINE/RGB input selector is set to RGB,
select the RGB signal or the component signal which is
fed through the RGB input connectors. Keep this button
released (RGB) for the RGB signal. Depress this button
(Y R-Y B-Y) for the component signal.
BLUE ONLY selector
Depress this button to turn off the red and green signals.
A blue signal is displayed as an apparent monochrome
picture on the screen. This facilitates “chroma” and
“phase” contro! adjustments and the observation of video
noise.
[13]
{3] VOLUME control
[4] CONTR (contrast) control
[6] CHROMA control
BRIGHT (brightness) control
UNDER SCAN selector
Depress this button for underscanning. The display size
is reduced by approximately 3% so that four corners of
the raster are visible.
H/V DELAY selector
Depress this button to observe the horizontal and
vertical sync signals at the same time. The horizontal
sync signal is displayed in the left quarter of the screen;
the vertical sync signal is displayed near the center of
the screen.
R/G/B BIAS and GAIN adjustment controls
Used for white balance fine adjustment.
BIAS and GAIN controls are provided for the R (red),
G (green) and B (blue) screens.
BIAS: Adjust the white balance and brightness of the
screen at the lowlight.
GAIN: Adjust the white balance and brightness of the
screen at the highlight.

| Location and Function of Parts and Controls
PVM-9044QM/9041QM
LINE A connectors
LINE B connectors
[18] TALLY/REMOTE
connector
[22] RGB/COMPONENT
connectors
[23] AC IN socket
EJECT buttons
EXT SYNC (external sync)
connectors
[20] V HOLD (vertical hold) control
i] DC 12V IN jack
[25] BATTERY compartments
LINE A connectors (PVM-9044QM/9041 QM) | Note |
To monitor the signal fed through these connectors,
keep the LINE/RGB selector and the A/B, RGB/Y R-Y
B-Y selector on the front panel released (LINE and A). connector.
When a plug is connected to the Y/C IN connector, the
VIDEO IN connector is automatically disconnected.
The Y/C IN connector has a priority over the VIDEO IN
LINE connectors (PVM-9040ME)
Y/C IN (4-pin mini DIN): Connect to the Y/C separate LINE B connectors
output of a video camera, VCR or other video
equipment.
Y/C OUT (4-pin mini DIN): Loop-through output of the
Y/C iN connector. Connect to the Y/C separate input
of a VCR or another monitor.
VIDEO IN (BNC): Connect to the video output of a video
camera, VCR or other video equipment.
VIDEO OUT (BNC): Loop-through output of the VIDEO
IN connector. Connect to the video input of a VCR or
another monitor.
AUDIO IN (phono jack): Connect to the audio. output of
a VCR or a microphone (through a suitable
microphone amplifier).
AUDIO OUT (phono jack): Loop-through output of the -
AUDIO IN connector. Connect to the audio input of a
VCR or another monitor.
To monitor the signal fed through these connectors,
keep the LINE/RGB selector released (LINE) and
depress the A/B, RGB/Y R-Y B-Y selector on the front
panel (B).
VIDEO IN (BNC): Connect to the video output of a video
camera, VCR or other video equipment.
VIDEO OUT (BNC): Loop-through output of the VIDEO
IN connector. Connect to the video input of a VCR or
another monitor.
AUDIO IN (phono jack): Connect to the audio output of
a VCR or a microphone (through a suitable
microphone amplifier).
AUDIO OUT (phono jack): Loop-through output of the
AUDIO IN connector. Connect to the audio input of a
VCR or another monitor.

PVM-S040ME -
[23] AC IN socket
TALLY/REMOTE connector (8-pin mini DIN)
Connect to the tally output of a control console,
special-effect generator, etc. The tally lamp on the front
panei will be turned on and off by the connected
equipment. This connector can be used for connecting a
remote controller. For the pin assignment of this
connector, see “Specifications” on page 8.
EXT SYNC (external sync) connectors
IN (BNC): When this monitor operates on an external
sync signal, connect the reference signal from a sync
generator to this connector. In this case, depress the
SYNC INT/EXT selector on the front panel (EXT).
OUT (BNC): Loop-through output of the EXT SYNC IN
connector. Connect to the external sync input of video
equipment to be synchronized with this monitor.
V HOLD (vertical hold) control
Turn to stabilize the picture if it rolls vertically.
[21] DC 12V IN jack (XLR, 4 pin)
Connect the Sony AC-500/500CE AC power adaptor
(not supplied).
16] LINE connectors
20] V HOLD (vertical hold)
control
22] RGB/COMPONENT input connectors
R/R-Y, G/Y, B/B-Y (BNC), AUDIO (phono):
To monitor a signal fed through these connectors,
depress the LINE/RGB selector on the front panel
(RGB). When the SYNC INT/EXT selector on the front
panel is released (INT), the monitor operates on the
sync signal from the G/Y channel.
To monitor the analog RGB signal
_ Connect to the analog RGB signal outputs of a video
camera. Keep the A/B, RGB/Y R-Y B-Y selector on the
front panel released (RGB).
To monitor the component signal
Connect to the R-Y/Y/B-Y component signal outputs of a
Sony BetaCam video camera. Depress the A/B, RGB/Y
R-Y B-Y selector on the front panel (Y R-Y B-Y).
[23] AC IN socket
Connect the supplied AC power cord to this socket and
to a wall outlet.
EJECT buttons
Press the EJECT button upwards to remove the battery
pack.
[25] BATTERY compartments
Insert the NP-1A/1B battery pack (not supplied).

Power Sources
House Current (for-all models) —
Connect the supplied AC power cord to the AC IN socket For the PVM-9044QM/9041QM
and to a wail outlet. When the AC power cord is plugged into the AC IN socket,
. the battery pack (if installed) or the AC power adaptor
(if connected) is automatically disconnected.
[| to AC IN
|
to a wall outlet
Rechargeable Battery (PVM-9044QM/9041QM only)
The monitor can operate with one or two battery packs. To remove the battery pack, press the EJECT button
For extended use, two battery packs are recommended. upwards.
For charging, use the BC-1WA battery charger (not
supplied) for the NP-1A or the BC-1WB for the NP-1B.
Make sure that the AC power cord and the AC power
adaptor are disconnected from the monitor. Otherwise, the
monitor cannot operate on the battery pack(s).
EJECT
buttons
SONY mark downwards
NP-1A/1B
(not supplied)

Color system PVM-9044QM/9041QM:
PAL, SECAM, NTSC3.58, NTSC4.43
PVM-9040ME: PAL, SECAM
Resolution PVM-9044QM: 450 TV lines
PVM-9041QM/9040ME: 250 TV lines
Aperture correction 4.0 dB — +6.0 dB (at 3.0 MHz)
Frequency response 6.0 MHz (—3.0 dB) at all inputs
Synchronization
AFC time constant 1.0 msec.
Pines A ay
Normal scan 6% over scan of CRT effective screen
area
Underscan 3% underscan of CRT effective screen
area
H. linearity Less than 7.0% (typical)
V. linearity Less than 7.0% (typical)
Convergence Central area: 0.43 mm (typical)
Peripheral area: 0.53 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.0%
Color temperature D65
| PVM-90440M |.
| PVM-90410M
Y/C OUT
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO OUT
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO OUT
R/R-Y IN
COMPONENT | G/Y IN
B/B-Y IN
AUDIO IN
EXT SYNC IN
OUT
TALLY/REMOTE yes
Inputs Y/C IN: 4-pin mini DIN connector
(See the pin assignment on page 8.)
VIDEO IN: BNC connector
1Vp-p + 6 dB, sync negative
AUDIO IN: phono jack, —5 dBs, less
than 47 kohms
R/R-Y, G/Y, B/B-Y: BNC connector
R, G, B channels: 0.7 Vp-p, +6 dB
Sync on green: 0.3 Vp-p, negative,
75 ohms terminated
R-Y, Y, B-Y channels: 0.7 Vp-p, +6 dB
(Standard color bar signal of 100%
chrominance)
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p, +6 dB,
negative
Loop-through outputs Y/C OUT: 4-pin mini DIN connector
VIDEO OUT: BNC connector,
75 ohms terminated
AUDIO OUT: phono jack
Output level 0.5 W
EXT SYNC OUT: BNC connector,
75 ohms terminated
Tally/remote input © TALLY/REMOTE: 8-pin mini DIN
connector (See the pin assignment
on page 8.)
Power consumption PVM-9044QM/9041QM
2 43 W at AC operation
40 W at DC operation
PVM-9040ME
39 W at AC operation
Power requirements 100 — 240 V AC, 50/60 Hz (for all
models)
12 V DC, with the Sony (NP-1A/1B)
battery pack (not supplied) or
AC-500/500CE AC power adaptor
(not supplied)
(PVM-9044QM/9041QM only)
Operating temperature range
0 — 35°C
Storage temperature range
—10-—+40°C
Humidity 0-90%
Dimensions Approx. 217 x 217 x 352.5 mm (w/h/d)
(8°/s x 85/8 x 14 inches)
not incl. projecting parts and controls
Weight Approx. 7.8 kg (17 Ib 3 oz)
not incl. battery packs
Accessory supplied AC power cord (1)
Cable with |an 8-pin connector
(PVM-8044QM/9041QM only)
Design and specifications are subject to change without
notice.

Specifications
Pin Assignment
Y/C IN connector (4-pin mini DIN) TALLY/REMOTE connector (8-pin mini DIN)
(PVM-9044QM/9041QM only)
fe Sign Description PinNo. 25 ee gnal
25 ohms H/V delay
A. | oe eae
CHROMA sub-carrier- Delay time between Y INT/EXT SYNC
input
and
C:
within
0+100
nsec.,
Tall
75 ohms epee ees ie) ee en ee
GND for Y-input ae oe roca no scan
*
GND
for
CHROMA-
A/B
or
RGB/Y
R-Y
B-Y
input | 8 RGBILINE
For remote control, connect the pin of the desired function to
pin 3 (GND).
