Sony STR-DA5400ES User manual

STR-DA5400ES
Key Features
120W x 7 (8 Ohm 20-20kHz 0.09%THD)
2nd Room HD Video via CAT5e cable
2nd Room Simple Icon Driven GUI
2nd Room Faroudja DCDi Cinema 1080i
Upscaling Technology
2 HDMI Outputs1 for BRAVIA® LCD TV and Front
PJ
6 HDMI Inputs1 with Active Intelligence
Sony ’ s D.L.L. Audio Scaler
Auto A/V Sync
HDMI GUI blending
2 DIGITAL MEDIA PORT5 Inputs
Key Technologies
120W x 7 (8 Ohm 20-20kHz 0.09%THD)
2nd Room HD Video via CAT5e cable
2nd Room Simple Icon Driven GUI
2nd Room Faroudja DCDi Cinema 1080i Upscaling Technology
2 HDMI Outputs1 for BRAVIA® LCD TV and Front PJ
6 HDMI Inputs1 with Active Intelligence
Sony ’s D.L.L. Audio Scaler
Auto A/V Sync
HDMI GUI blending
Xross Media Bar™Inspired GUI
2 DIGITAL MEDIA PORT Inputs
5
Faroudja DCDi Cinema® 1080p Upscaling Technology
2
Multi -Room HD (up to 2) and Audio (up to 3 rooms)
Custom Control: RS-232C, 12V Triggers, IR Repeaters
Direct Stream Digital (DSD) Decoding
Compatible with 1080/60p and 24p HD Video Signals
2
Supports x.v.Color3 and Deep Color Video Signals
Custom Control: RS-232C, 12V Triggers, IR Repeaters
Decodes Latest Audio Formats: Linear PCM, DD+, Dolby® TrueHD, dts®-HD Master Audio and
dts-HD High Resolution Audio

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 04/10/2009

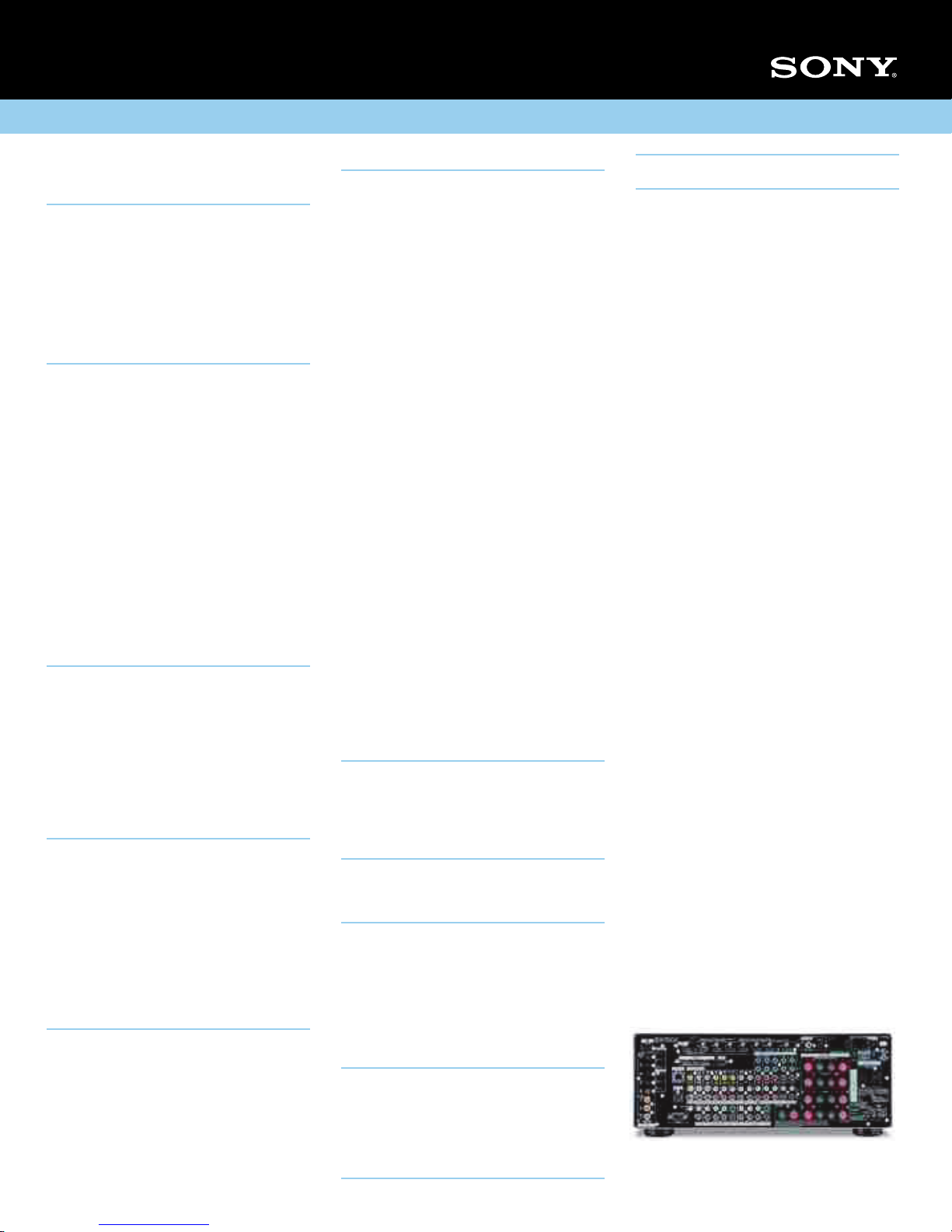

STR-DA5400ES
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
Video
UpConversion: Yes (HDMI Up Conversion
from Component, S - Video and Composite
to 1080p)
UpScaling: Yes (HDMI Up Scaling up to
1080p)
x.v.Color ™ Technology: Yes
AutoMode: Yes
Time: 300msec
Audio
dts ® Decoding: Yes (dts ® HD Master
Audio)
Dolby ® TrueHDDecoding: Yes
Dolby ® DigitalDecoding: Yes
Dolby ® Digital plus Decoding: Yes
Dolby ® Digital EX Decoding: Yes
dts ® - ES Decoding: Yes
dts ® 96/24Decoding: Yes
dts ® NEO:6Decoding: Yes
Dolby ® Pro Logic ® Decoding: Yes
Dolby ® Pro Logic ® IIDecoding: Yes
Dolby ® Pro Logic ® IIX Decoding: Yes
Dolby ® Digital Dual Mono: Yes
THXSurround: Yes
AmplificationRelocation: Yes
Digital Cinema Sound™ Technology: Yes
Convenience
A/B Speaker Switch: Yes (A / B / A+B)
Digital Cinema Auto Calibration: Yes (Mic -
Stereo)
HDMI™ Technology: Intelligent A/V Selector
On - ScreenDisplay: Yes
BRAVIA ® Sync ™ : Yes
Specifications
Audio
Impedance: 8 Ohms
Channel Power Rating: 7.1 Channel Power
Rating: 120W x 7 ( Amp Power( 8 Ohm
20 - 20kHz THD 0.09%)
SoundFields: Yes (with Lock)
Zones: GUI for Zone2
TunerType: Auto Tuning, Direct Tuning,
Station Name, Presets 30/30/30
(XM/FM/AM)
FrequencyRange: 192kHz
Convenience
PresetMemory: 30 Sirius ® Presets
XM ® Connect and Play™Compatible: Yes
(Neural 5.1 Surround Sound Decoding)
XM ® MemoryPresets: 30
AM/FM Memory Presets: 30 FM - 30 AM
TimerClock: Yes (Sleep)
Inputs and Outputs
Analog Audio Input(s) (Total): 5 (Rear)
Analog Audio Output(s): 2 (Rear)
Component Video (Y/Pb/Pr ) Input(s): 3
(Rear)
PhonoInput(s): 1 (Rear)
Multi - ChannelInput(s): 1 (Rear, 7.1
Channel)
Digital Media Port: 2 (Rear)
HDMI™ConnectionOutput(s): 2 (Rear)
HDMI™ConnectionInput(s): 6 (Rear)
Optical Audio Input(s): 5 (1 Front/4 Rear)
Optical Audio Output(s): 2 (Rear)
Coaxial Audio Digital Input(s): 3 (Rear)
Component Video (Y/Pb/Pr) Output(s): 2
(Rear)
HD Component Video Input(s): 3 (Rear)
HD Component Video Output(s): 1 (Rear)
Composite Video Input(s): 5 (Rear)
Composite Video Output(s): 3 (Rear - 1
Monitor Output, 2 Video Outputs)
SubwooferOutput(s): 17 points (40 - 200Hz)
ACOutlet: Yes
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
HeadphoneOutput(s): 1 (Front - Gold)
RS232Control: 1 (Rear)
12V Trigger Output(s): 3 (Rear)
IRInput(s): 2 (Rear)
IROutput(s): 1 (Rear)
Multi - ChannelOutput(s): 1 (Rear, 5.1 Pre -
out)
Cat5eConnection: 1 Cat5e Cable for video
output to CAV - CVB1 (not supplied) -
(rear)
Power
PowerRequirements: 120 V 60Hz
Power Consumption (in Operation):
480W/580VA
Power Consumption (in Standby): 0.7W
Hardware
RemoteControl: Yes (Remote
Commander)
Speaker
Front Speaker Terminal: Screw (Ni)
Center Speaker Terminal: Yes
Surround Back Speakers: Screw Binding
Posts
Surround Speaker Terminal: Yes
Speaker Terminal Type: Screw Binding
Posts
Dimensions
Weight: 34.5 lbs (16.5Kg)
Measurements: 16 15/16 x 6 3/4 x
16.15/16: (430x175x430mm)
General
Other
A/V SYNC (Lip Sync): Yes(Variable)
UPC Code: 027242732117
1.RequiresHDMIconnector(soldseparately).
2.1080/60prequiresHDMIconnector(soldseparately) and compatible
HDTVwith1080/60p display capability, and 24pTrueCinema requires
24p - capable HDTV. Upscaled image quality may vary.
3. When used with supporting video sources.
4.BRAVIA Sync forTheatre feature workswithselect SonyHDTVsand
hometheater products. Please refer toowner ’ smanualfor
compatibility.
5.DIGITALMEDIAPORTandaccessoriesrequired(soldseparately).
6.Requiressatelliteradiosubscription and radio antenna (both sold
separately).Antennaplacementrestrictionsapply.
7. Playback depends on recording conditions.
