Sony STR-GX49ES User manual
FM
Stereo/FM-AM
Receiver
_L
!
i
“
i
I
1
Operating
Instructions
STR-GX49ES
I
l
©
1992
by
Sony
Corporation
m
WARNING
To
prevent
fire
or
shock
hazard,
do
not
expose
the
unit
to
rain
or
moisture.
CAUTION
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
'
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
This
symbol
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
‘dangerous
voltage"
within
the
product's
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
This
symbol
in
intended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
Note
to
CATV
system
installer
This
reminder
is
provided
to
call
the
CATV
system
installer's
attention
to
Article
820-40
of
the
NEC
that
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
cable
entry
as
practical.
INFORMATION
This
equipment
generates
and
uses
radio
frequency
energy
and
if
not
installed
and
used
properly,
that
is,
in
strict
accordance
with
the
manufacturer's
instructions,
may
cause
interference
to
radio
and
television
reception.
It
has
been
type
tested
and
found
to
comply
with
the
limits
for
a
Class
B
computing
device
in
accordance
with
the
specifications
in
Subpart
J
of
Part
15
of
FCC
Rules,
which
are
designed
to
provide
reasonable
protection
against
such
interference
in
a
residential
installation.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
Reorient
the
receiving
antenna
Relocate
the
equipment
with
respect
to
the
receiver
Move
the
equipment
away
from
the
receiver
Plug
the
equipment
into
a
different
outlet
so
that
equipment
and
receiver
are
on
different
branch
circuits,
if
necessary,
the
user
should
consult
the
dealer
or
an
experienced
radio/television
technician
for
additional
suggestions.
The
user
may
find
the
following
booklet
prepared
by
the
Federal
Communications
Commission
helpful:
"How
to
identify
and
Resolve
Radio-TV
Interference
Problems".
This
booklet
is
available
from
the
U.S.
Government
Printing
Office,
Washington,
DC
20402,
Stock
No.
004-000-00345-4.
For
the
customers
in
Canada
r
CAUTION
:-
TO
PREVENT
ELECTRIC
SHOCK,
DO
NOT
USE
THIS
POLARIZED
AC
PLUG
WITH
AN
EXTENSION
CORD,
RECEPTACLE
OR
OTHER
OUTLET
UNLESS
THE
BLADES
CAN
BE
FULLY
INSERTED
TO
PREVENT
BLADE
EXPOSURE.
This
apparatus
complies
with
the
Class
B
limits
for
radio
noise
emissions
set
out
in
Radio
Interference
Regulations.
Owner's
Record
The
model
number
is
located
on
the
rear
exterior
and
serial
number
is
on
the
rear.
Record
the
serial
number
in
the
space
provided
below.
Refer
to
these
numbers
whenever
you
call
upon
your
Sony
dealer
regarding
this
product.
Model
No.
STR-GX49ES
Serial
No._
2
Introduction
Features.
Precautions.
4
4
j
Chapter
1
Getting
Started
Installing.
l.5
Notes
on
installing.[.5
Installing
batteries.i.5
Changing
the
AM
tuning
interval.i.5
Connecting
the
system.[.6
Notes
on
connection.6
Connection
diagram.6
Connecting
the
AM
antenna.7
Connecting
the
FM
antenna.7
Connecting
the
antenna
ground.7
Connecting
speaker
systems.8
Using
AC
outlets
.
..
.
.
8
Parts
Identification.
9
Front
panel.9
Remote
commander
RM-S103.10
Chapter
2
Using
Your
Receiver
Audio
adjustment...
Volume
adjustment.
Balance
adjustment.
Sound
quality
adjustment.
Receiving
FM/AM
broadcasts.
Tuning
in
an
FM
station
automatically
—
Automatic
Tuning.
Tuning
in
an
FM/AM
station
manually
—
Manual
Tuning...
Memorizing
a
station.
Tuning
in
a
preset
station.j.
Listening
to
program
source
other
than
broadcasts;
Recording
on
an
audio
tape
Recording.
Tape
dubbing.
Recording
on
a
VCR
Recording
audio
programs
11
11
11
11
12
12
13
13
14
15
16
16
16
17
17
Chapter
3
Other
Information
Troubleshooting..18
Specifications.20
Quick
reference.Back
cover
Precautions
The
STR-GX49ES
is
a
receiver
which
controls
audio/video
sources.
The
unit
allows
you
to
switch
easily
among
a
variety
of
audio/video
programs.
Amplifier
•
Optical
Legato
Linear
A
System
allows
the
receiver
to
operate
automatically
as
a
class
A
amplifier
when
the
level
is
low
and
as
a
class
B
amplifier
when
the
level
is
high
without
disturbing
the
sound
signal.
This
minimizes
total
harmonic
distortion
at
every
sound
stage.
•
These
receivers
have
a
spontaneous
twin
drive
power
circuit.
Condensers
having
large
capacity
are
used
independently
for
the
voltage
amplification
drive
stage
of
class
A
and
power
output
stage
of
class
B.
Thus,
a
stable
output
and
high
quality
sound
are
obtained,
resulting
in
exclusion
of
power
interferences.
The
class
A
stage
realizes
a
stable
operation
free
from
interference
of
the
power
stage
even
when
an
instantaneous
or
strong
output
is
received.
•
A
source
direct
switch
is
employed
to
reproduce
high
fidelity
sound.
Any
source
can
be
reproduced
without
passing
through
the
circuits
of
tone
control,
loudness
switch
and
balance
control.
Tuner
•
Precise
tuning
is
obtained
thanks
to
the
quartz-locked
digital
synthesizer
system.
•
A
total
of
30
FM/AM
stations
can
be
preset
in
3
memory
pages
(A,
B
and
C)
that
allow
you
to
classify
stations.
Remote
commander
•
The
remote
commander
allows
you
to
control
most
of
Sony’s
audio
equipment
from
a
distance.
On
safety
•
Operate
the
unit
only
on
120
V
AC,
60
Hz.
•
Should
any
solid
object
or
liquid
fall
into
the
cabinet,
unplug
the
unit
and
have
it
checked
by
qualified
personnel
before
operating
it
any
further.
•
Unplug
the
unit
from
the
wall
outlet
if
it
is
not
to
be
used
for
an
extended
period
of
time.
To
disconnect
the
cord,
pull
it
out
by
grasping
the
plug.
Never
pull
the
cord
itself.
•
One
blade
of
the
plug
is
wider
than
the
other
for
the
purpose
of
safety
and
will
fit
into
the
power
outlet
only
one
way.
If
you
are
unable
to
insert
the
plug
fully
into
the
outlet,
contact
your
dealer.
On
operation
•
Before
making
program
source
connections,
be
sure
to
turn
the
power
switch
off
and
unplug
the
unit.
m
When
the
unit
is
not
used,
turn
the
power
off,
to
conserve
energy
and
to
extend
the
useful
life
of
your
unit.
On
cleaning
the
cabinet
Clean
the
cabinet,
panel
and
controls
with
a
soft
cloth
lightly
moistened
with
mild
detergent
solution.
Do
not
use
any
type
of
abrasive
pad,
scouring
powder,
or
solvent
such
as
alcohol
or
benzine.
For
the
customers
in
the
U.S.A.
For
detailed
safety
precautions,
see
the
“IMPORTANT
SAFEGUARDS"
leaflet.
If
you
have
any
question
or
problem
concerning
your
unit,
please
consult
your
nearest
Sony
dealer.
4
Installing
Chapter
1
Getting
Started
The
AM
tuning
interval
is
preset
to
10
kHz.
To
use
the
receiver
where
the
frequency
allocation
system
is
based
on
a
9
kHz
interval,
make
the
following
adjustments.
To
prevent
internal
heat
buildup
in
the
unit,
place
the
unit
in
a
location
with
adequate
air
circi
Notes
on
Installation
j
Changing
the
AM
tuning
interval
Do
not
install
the
unit:
—
near
heat
sources
such
as
radiators
or
air
ducts.
—
in
a
place
subject
to
direct
sunlight,
excessive
dust,
mechanical
vibration
or
shock.
Do
not
place
anything
on
top
of
the
cabinet.
1
Turn
on
the
power
and
tune
in
any
AM
station.
2
Turn
off
the
power.
3
Press
POWER
while
pressing
the
“+"
TUNING
button.
The
top
ventilation
holes
must
be
unobstructed
for
the
proper
operation
of
the
unit
and
to
prolong
the
life;
of
its
components.
Installing
Batteries
To
reset
the
AM
tuning
interval,
repeat
the
above
steps.
Caution
When
the
interval
is
changed,
all
preset
stations
which
you
have
memorized
will
be
erased.
After
changing
the
interval,
be
sure
to
preset
the
stations
again.
Before
operating
remote
commander,
install
the
batteries
as
shown.
Do
not
throw
away
the
carton
and
packing
material!
It
will
be
an
ideal
container
when
transporting
the
system
for
repair
work,
etc.
To
avoid
damage
caused
by
battery
leakage
and
corrosion
When
the
commander
will
not
be
used
for
a
long
tine,
remove
the
batteries.
Normal
operation
can
be
expected
about
a
half
ye
;
ar
using
Sony
SUM-3
(NS),
and
a
year
using
Sony
AM-3
(NyV)
alkaline
batteries.
j
When
the
batteries
are
run
down,
the
remote
commander
will
not
operate
the
unit.
In
this
case,
replace
battej-ies
with
new
ones.
j
5
•
The
power
cord
should
be
connected
last
of
all,
after
making
sure
that
the
POWER
switch
is
turned
off.
•
The
cable
connectors
should
be
fully
inserted
into
the
jacks.
A
loose
connection
may
cause
hum
and
noise.
•
Cord
plugs
and
jacks
are
color
coded.
The
red
plugs
and
jacks
are
to
be
connected
to
the
right
channel(R)
and
white
ones
to
the
left-channel(L).

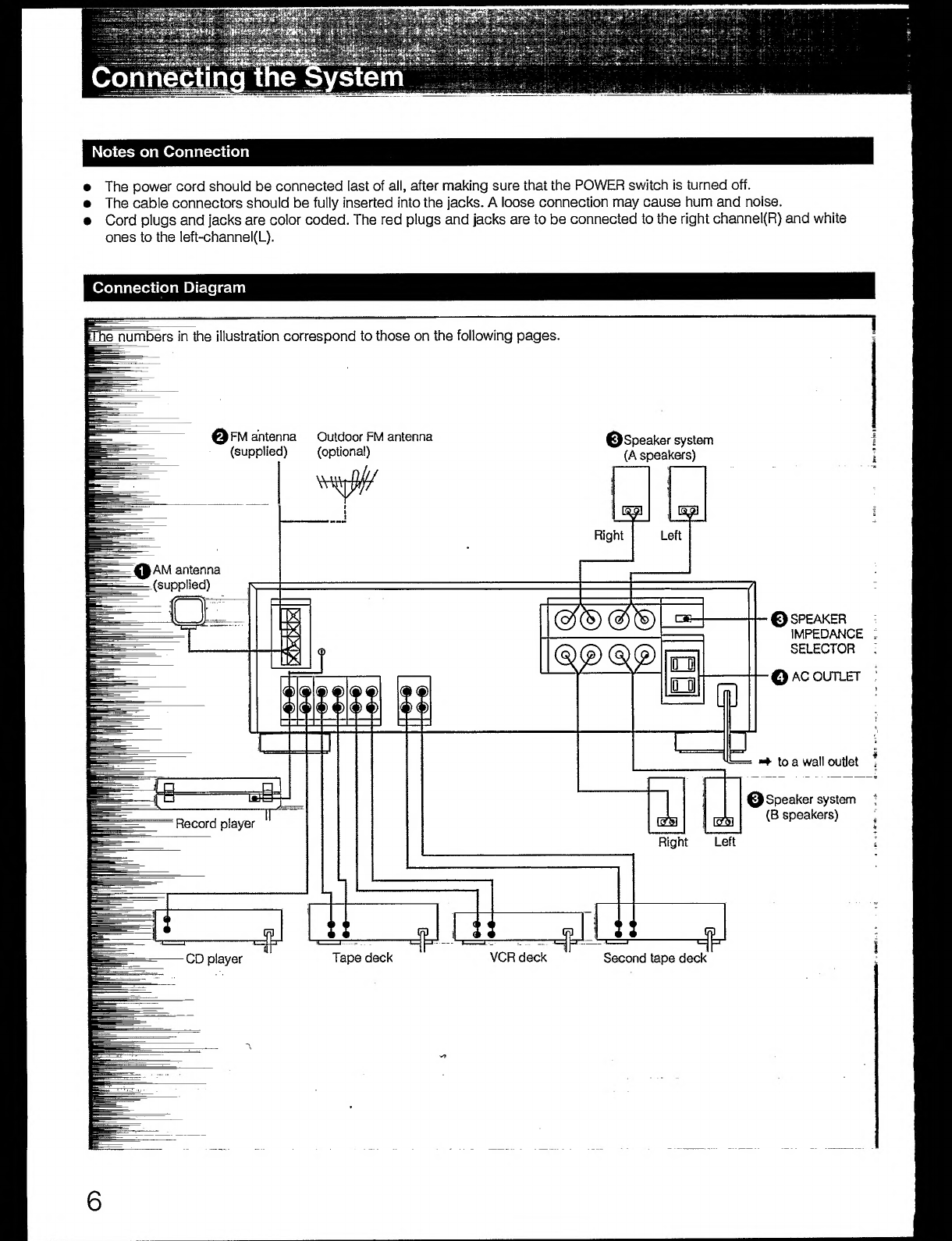

Connection
Diagram
e
numbers
in
the
illustration
correspond
to
those
on
the
following
pages.
©
FM
antenna
Outdoor
FM
antenna
(supplied)
(optional)
©Speaker
system
(A
speakers)
©AM
antenna
(supplied)
Right
Left
©
SPEAKER
IMPEDANCE
SELECTOR
-©AC
OUTLET
to
a
wall
outlet
Record
player
©
Speaker
system
(B
speakers)
Right
Left
-CD
player
Tape
deck
VCR
deck
Second
tape
deck
Connecting
the
AM
Antenna
Receiver
©@©@
@©
©©
urn
Adjust
the
direction.
Supplied
loop
antenna
For
areas
with
difficult
AM
reception
In
areas
with
troubled
reception,
connect
a
6
to
15-hieter
(20
to
50-foot)
insulated
wire
to
the
AM
antenna
terminal.
Extend
this
out
of
doors
if
possible,
keeping
the
greater
portion
horizontal.
(There
is
no
need
to
disconnect
the
supplied
antenna.)
Connecting
the
FM
Antenna
Connecting
the
Antenna
Ground
To
prevent
hum,
connect
the
ground
wire
to
ANTENNA
ground
terminal
(rk).
When
an
outdoor
antenna
is
installed,
be
sure
to
connect
the
ground
wire
for
lightning
protection.
7
ConhSctijiigthe
System
a

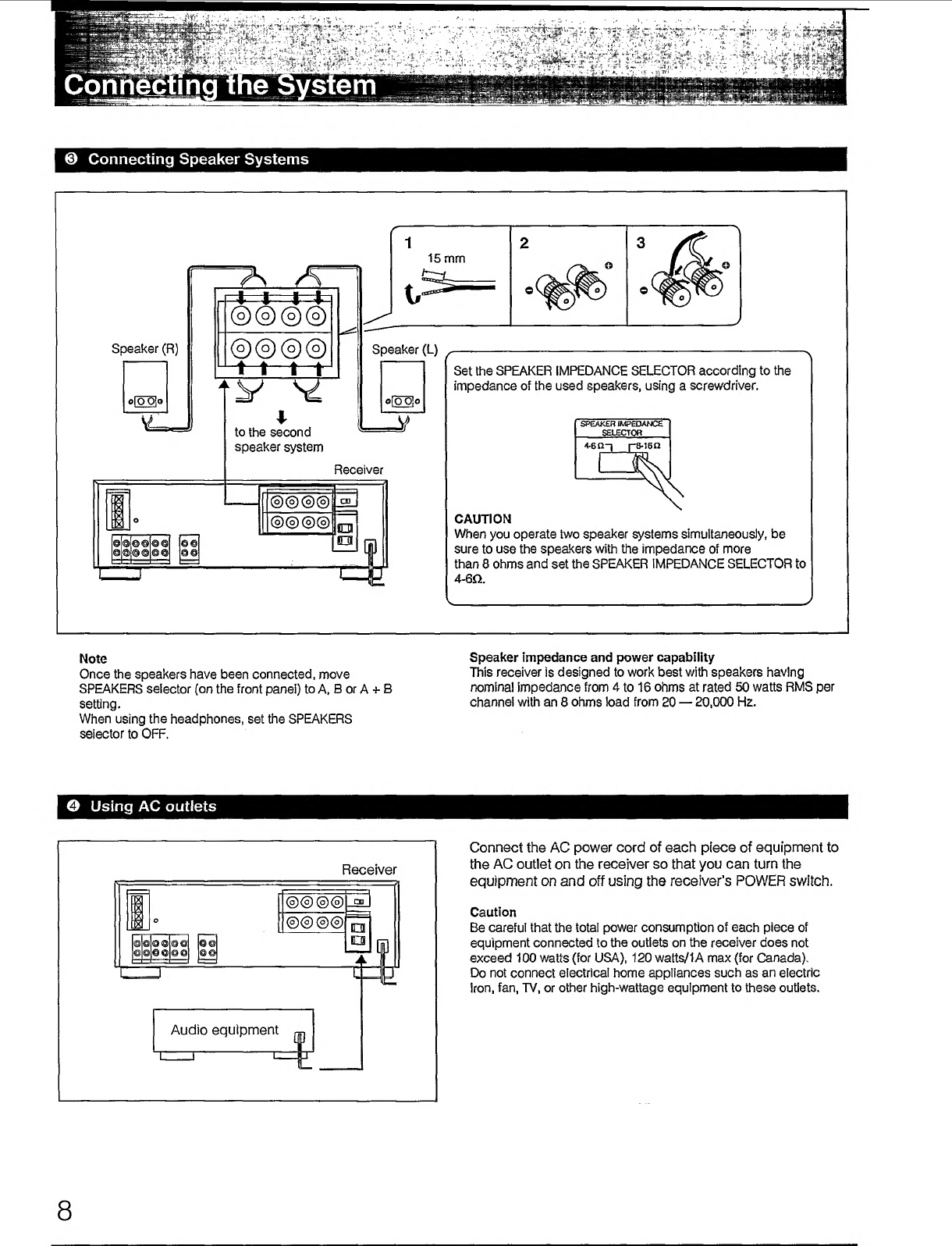

Connecting
Speaker
Systems
Note
Speaker
impedance
and
power
capability
Once
the
speakers
have
been
connected,
move
This
receiver
is
designed
to
work
best
with
speakers
having
SPEAKERS
selector
(on
the
front
panel)
to
A,
B
or
A
+
B
nominal
impedance
from
4
to
16
ohms
at
rated
50
watts
RMS
per
setting.
channel
with
an
8
ohms
load
from
20
—
20,000
Hz.
When
using
the
headphones,
set
the
SPEAKERS
selector
to
OFF.
8
jmuswm
mmmi’
n*h>mA
E

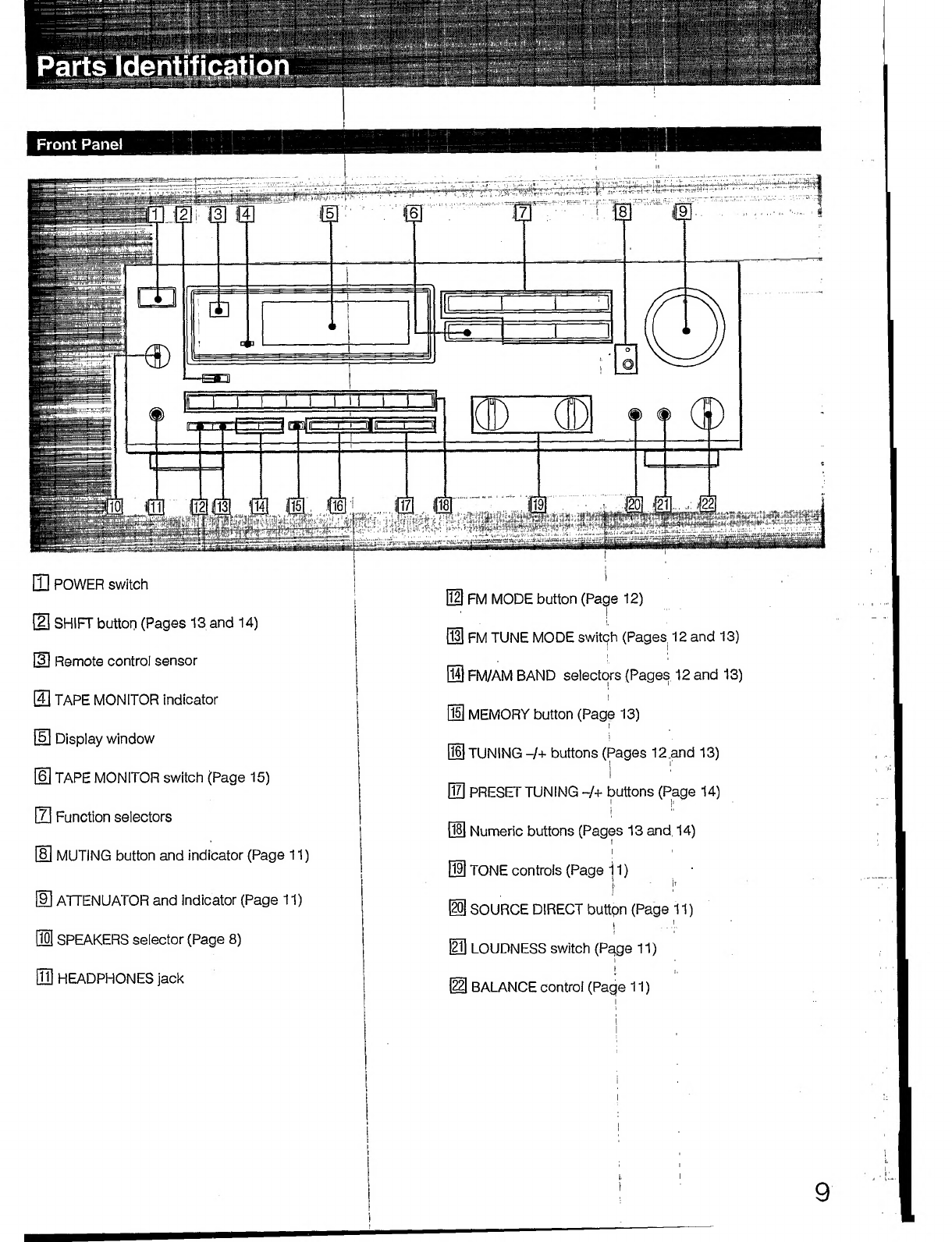

POWER
switch
E
SHIFT
button
(Pages
13
and
14)
[3]
Remote
control
sensor
\M
TAPE
MONITOR
indicator
[U
Display
window
HI
TAPE
MONITOR
switch
(Page
15)
[7]
Function
selectors
HD
MUTING
button
and
indicator
(Page
11)
HI
ATTENUATOR
and
indicator
(Page
11)
[13
SPEAKERS
selector
(Page
8)
HD
HEADPHONES
jack
;Ak«j
5
i
t
:*-!
hAM
s
ID
FM
MODE
button
(Page
12)
i
dl
FM
TUNE
MODE
switgh
(Pages
12
and
13)
ED
FM/AM
BAND
selectors
(Pages
12
and
13)
E
MEMORY
button
(Page
13)
QU
TUNING
-/+
buttons
(Pages
12.and
13)
I
DU
PRESET
TUNING
-/+
buttons
(Page
14)
OH
Numeric
buttons
(Pages
13
and
14)
t
I
OH
TONE
controls
(Page
1
1
)
}
■
!'
[U
SOURCE
DIRECT
buttpn
(Page
11)
1
..
-\-
HD
LOUDNESS
switch
(Page
11)
(22l
BALANCE
control
(Page
11)
o*o
a
o«0’0
o
o
HI
POWER
button
H
DBFB
button
This
button
does
not
operate
with
this
receiver.

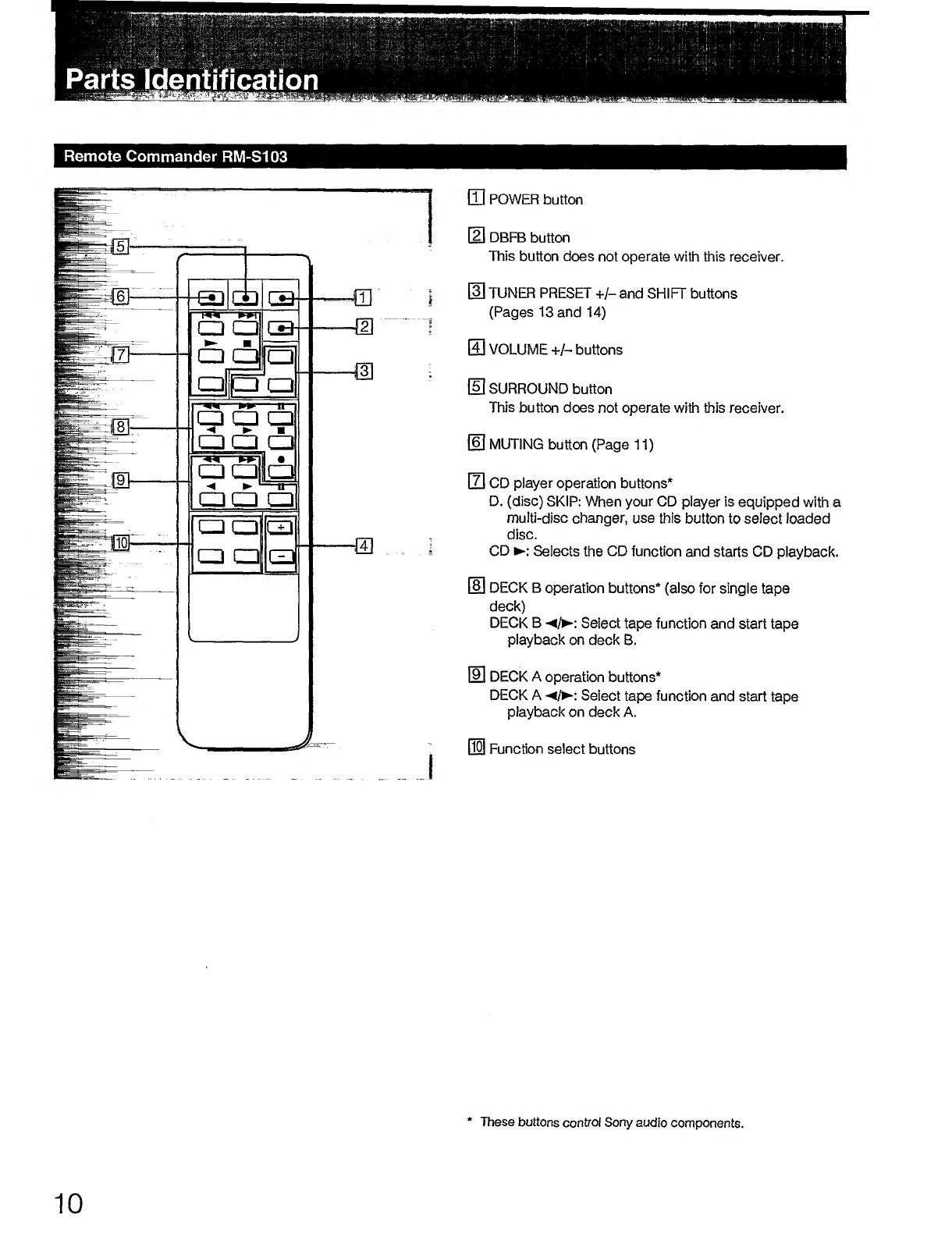

0
TUNER
PRESET
+/-
and
SHIFT
buttons
(Pages
13
and
14)
0
VOLUME
+/-
buttons
0
SURROUND
button
This
button
does
not
operate
with
this
receiver.
0
MUTING
button
(Page
11)
0
CD
player
operation
buttons*
D.
(disc)
SKIP:
When
your
CD
player
is
equipped
with
a
multi-disc
changer,
use
this
button
to
select
loaded
disc.
CD
►
:
Selects
the
CD
function
and
starts
CD
playback.
0
DECK
B
operation
buttons*
(also
for
single
tape
deck)
DECK
B
◄
/
►
:
Select
tape
function
and
start
tape
playback
on
deck
B.
0
DECK
A
operation
buttons*
DECK
A
◄
/
►
:
Select
tape
function
and
start
tape
playback
on
deck
A.
DS
Function
select
buttons
*
These
buttons
control
Sony
audio
components.
10
To
adjust
the
tone
quality
Adjust
BASS
or
TREBLE
for
the
optimum
sound.
To
reduce
the
sound
to
a
low
level
temporarily
(-20
dB
attenuation)
|
Press
MUTING.
Press
again
to
restore
the
same
listening
level
as
before.
Balance
Adjustment
To
change
the
relative
strength
ot
the
right
and
left
speaker
output
Adjust
BALANCE
to
correct
stereo
imaging,
when
the
speaker
position
is
not
symmetrical.
!
To
reinforce
the
bass
frequency
response
Press
LOUDNESS.
The
lower
the
speaker
output
level
is,
the
more
bass
frequency
sound
is
emphasized.
To
bypass
the
tone
control
circuit
Press
SOURCE
DIRECT.
BASS
and
TREBLE
tone
controls,
BALANCE
control
and
LOUDNESS
are
bypassed.
11
tmm&Mmmmiim
m
ttsmts*
-mi
mam
wm&m
1
m
!-k-
■
:
■
'
!’
*
■
^Ssfc-r**
v^.n*
■
•:
i:'r5?
?*>*-'•
■
•fi'KifsL*;:
»•*
•'
'
■
?•..
T.-.
<.:
Receiving
FM7AM
Broadcasts
.^.^-«.-.»s'3ier*s3v.w.
•
•
<».
«
■
-uai

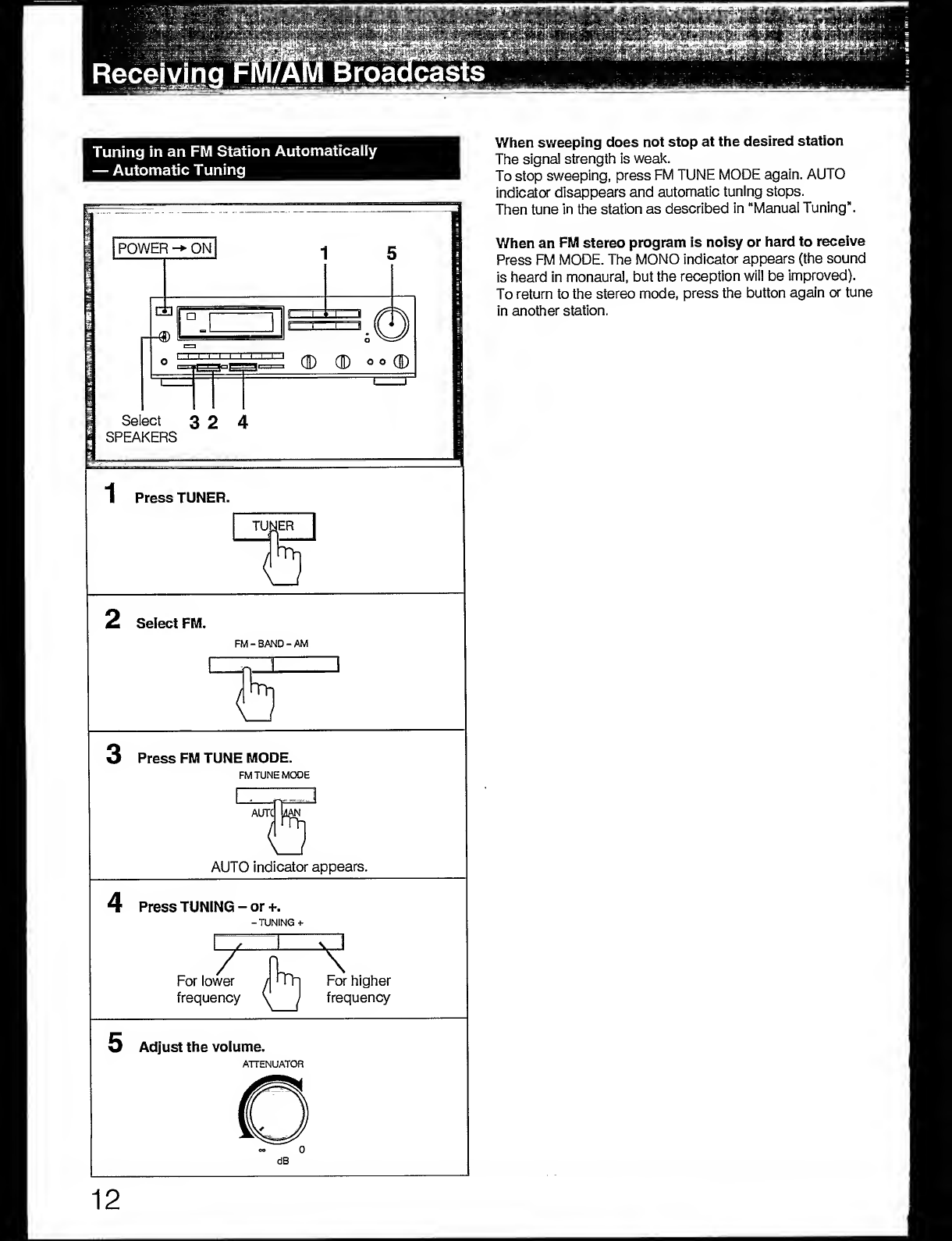

Tuning
in
an
FM
Station
Automatically
—
Automatic
Tuning
When
sweeping
does
not
stop
at
the
desired
station
The
signal
strength
is
weak.
To
stop
sweeping,
press
FM
TUNE
MODE
again.
AUTO
indicator
disappears
and
automatic
tuning
stops.
Then
tune
in
the
station
as
described
in
“Manual
Tuning".
When
an
FM
stereo
program
is
noisy
or
hard
to
receive
Press
FM
MODE.
The
MONO
indicator
appears
(the
sound
is
heard
in
monaural,
but
the
reception
will
be
improved).
To
return
to
the
stereo
mode,
press
the
button
again
or
tune
in
another
station.
Press
TUNER.
Select
FM.
FM-BAND-AM
Press
FM
TUNE
MODE.
FM
TUNE
MODE
AUTO
indicator
appears.
Press
TUNING
-
or
+.
For
lower
frequency
For
higher
frequency
Adjust
the
volume.
ATTENUATOR
dB
runing
in
an
FM/AM
Station
Manually

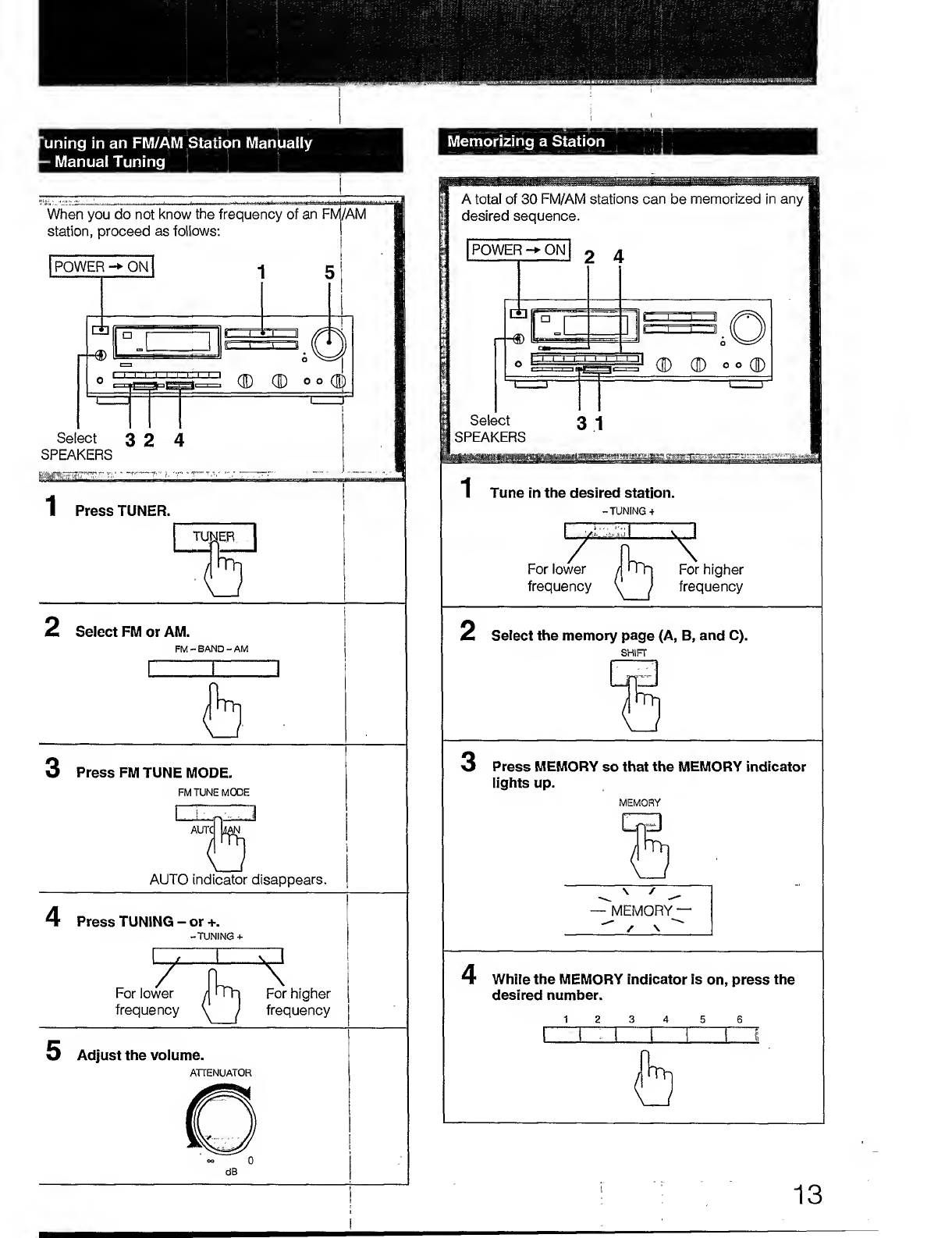

Manual
Tuning
When
you
do
not
know
the
frequency
of
an
FM/AM
station,
proceed
as
follows:
Memorizing
a
Station
Press
FM
TUNE
MODE.
FM
TUNE
MODE
AUTO
indicator
disappears.
4
Press
TUNING-or+.
-TUNING
^
For
lower
frequency
For
higher
frequency
3
Press
MEMORY
so
that
the
MEMORY
indicator
lights
up.
MEMORY
-
4
While
the
MEMORY
indicator
is
on,
press
the
desired
number.
Receiving
FM/AM
Broadcasts
■
;i-;-
n:..^
X-'.d
'
-uti
;.iferigiLi«aX'afesasa
i
feC»atf
Tuning
in
a
Preset
Station
Press
PRESET
TUNING
-
or
+.
-PRESETTUNING
i
For
lower
preset
number
For
higher
preset
number
Select
the
number.
1
2
3
4
5
6
Replacing
a
preset
station
Preset
another
station
on
the
number
of
the
station
to
be
replaced.
The
previously
preset
station
will
be
erased.
IMPORTANT
The
memorized
station
is
maintained
for
approximately
one
month
even
if
the
power
cord
is
disconnected
from
the
AC
power
source.
If
they
are
erased,
store
the
stations
again.
Listening
to
Program
Source
other
than
Broadcasts
Select
the
program
source.
funciton
IS&Sfll
PHONO
CD
lassai
VIDEO
Taped
programs
TAPE
or
TAPE
MONITOR
TUNER
PHONO
|
8WI
1
'
M
VIDEO
TAPE
ON/OFF
to
Note
on
TAPE
MONITOR
button
The
TAPE
MONITOR
button
has
priority
over
other
function
selectors.
Be
sure
to
release
the
TAPE
MONITOR
button
except
when
listening
to
taped
program.
Otherwise,
the
program
source
selected
with
the
function
selector
cannot
be
heard.
Start
the
program.
Recording
on
an
Audio
Tape
Recording
Tape
Dubbing
Turn
on
the
receiver
and
the
equipment
to
be
used.
Turn
on
the
receiver
and
the
equipment
to
be
used.
mL
Select
the
desired
program
source.
3
F
or
an
FM/AM
broadcast,
tune
in
the
desired
station.
4
s
Set
the
tape
deck
in
the
recording
mode.
5
Start
the
desired
program
source.
To
monitor
recorded
sound
while
recording
If
a
tape
recorder
with
three-head
system
is
connected
to
TAPE
MONITOR
jacks,
recorded
sound
can
be
monitored.
Select
recording
tape
recorder
using
the
TAPE
MONITOR
button.
The
recorded
sound
is
immediately
fed
back
to
the
amplifier
and
output
to
the
speakers.
2
Insert
the
recorded
tape
into
deck
connected
to
the
TAPE
jacks.
3
Insert
a
blank
tape
into
the
tape
deck
connected
to
the
TAPE
MONITOR
jacks
and
adjust
the
recording
level.
4
P
ress
TAPE.
5
S
tart
the
playback
of
the
tape
deck
for
playback.
Set
the
tape
deck
for
recording
in
the
recording
mode.
Note
on
recording
The
setting
of
the
volume.
BASS.
TREBLE,
and
BALANCE
controls
do
not
have
any
effect
on
recording.
16

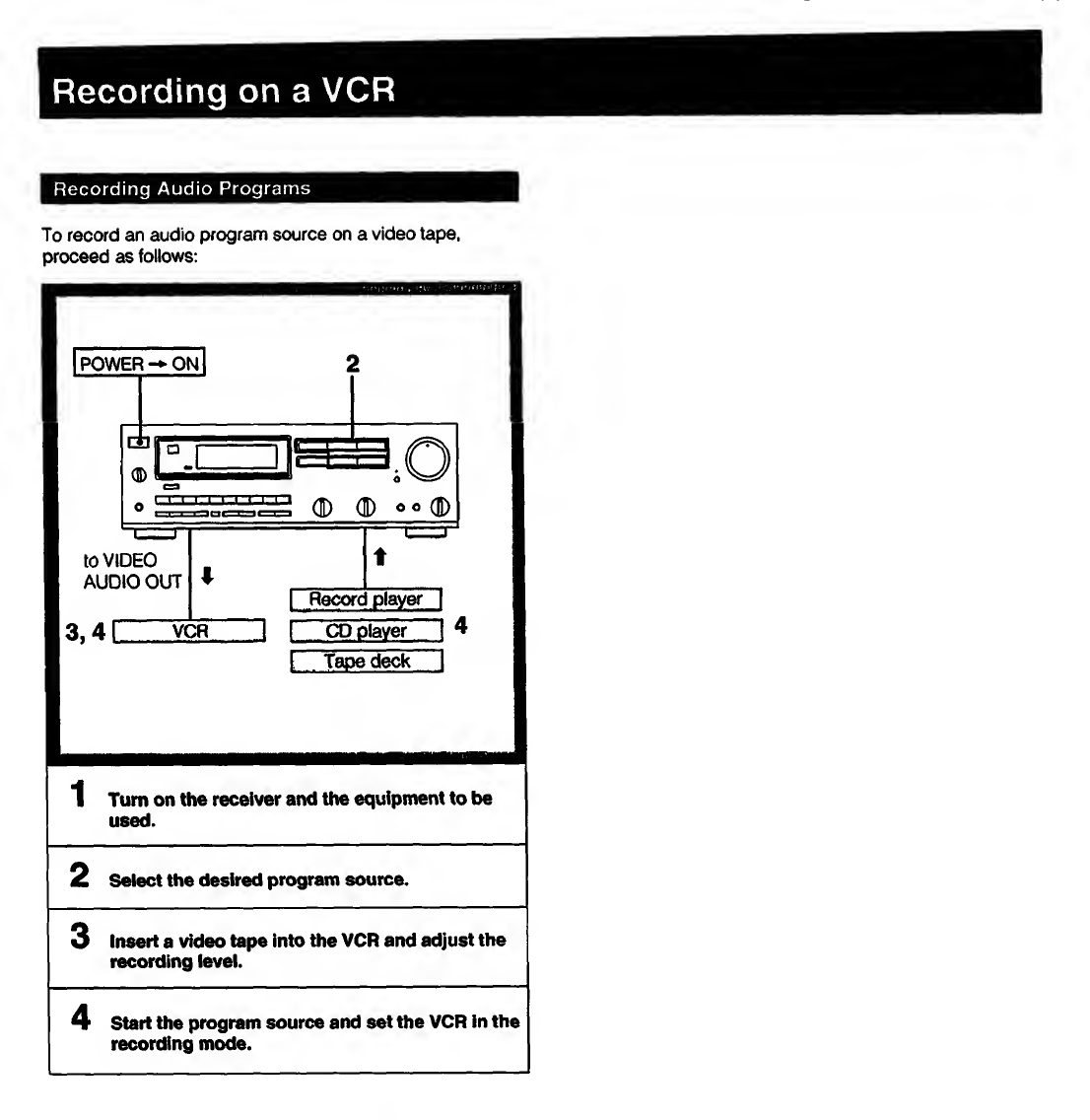

To
record
an
audio
program
source
on
a
video
tape,
proceed
as
follows:
I
Chapter
3
Other
Information
Troubleshooting
Before
proceeding
through
the
check
list
below,
examine
the
connections
and
the
procedures
outlined
the
manual.
Should
any
problem
persist
after
you
have
checked
the
following
items,
consult
your
nearest
Sony
dealer.
Problem
Cause
Remedy
!»/•»
•w.r
SBvr
&:
■
:
Sound
is
not
heard.
The
TAPE
MONITOR
jacks
are
not
in
use
and
the
TAPE
MONITOR
button
is
pressed
to
ON.
Press
the
TAPE
MONITOR
button
to
set
to
OFF.
The
speaker
or
program
source
equipment
is
not
connected
correctly.
Connect
the
equipment
correctly.
(See
pages
6
to
8.)
S£
:
m
The
correct
speakers
are
not
selected
with
SPEAKERS
selector.
Set
the
SPEAKERS
selector
correctly.
JC'
Wi*.
iSiin
EL
■
The
correct
FUNCTION
selector
is
not
pressed.
Press
the
correct
FUNCTION
selector.
§.
ts
The
volume
is
set
to
minimum.
Increase
the
volume.
One
channel
does
not
transmit
audio,
or
the
volume
from
the
left
and
right
speakers
is
unbalanced.
The
BALANCE
control
is
not
set
appropriately.
Adjust
the
BALANCE
control.
**•
“
5c*.
ft?
The
speaker
or
program
source
is
not
connected
correctly.
Connect
the
equipment
correctly.
(See
pages
6
to
8.)
t
i|-
There
is
an
abrupt
loss
of
sound
from
one
or
both
of
the
speakers,
and
the
PROTECTOR
indicator
flickers
in
the
display
window.
A
short-circuit
problem
activates
the
protective
circuit.
Turn
off
the
receiver,
eliminate
the
short-circuit
problem
and
turn
on
the
power
again.
If
there
is
no
short-circuit,
consult
your
nearest
Sony
dealer.
p
The
SPEAKER
IMPEDANCE
SELECTOR
on
the
rear
is
not
set
correctly.
Set
the
SPEAKER
IMPEDANCE
SELECTOR
correctly.
fET
tUmfr
%*
■
&.1
Sound
transmitted
from
the
speakers
is
reversed.
The
speakers
are
not
connected
correctly.
Connect
the
speaker
with
the
correct
©
©
polarities.
(See
page
8.)
Kr.r
Severe
hum
or
noise
is
heard.
The
connecting
cords
are
not
of
shielded
type.
Use
shielded
type
cords.
P
A
transformer,
motor,
TV
or
fluorescent
light
affects
the
connecting
cord.
Place
the
connecting
cords
in
a
location
away
from
a
transformer
or
motor,
and
at
least
3
meters
(10
feet)
from
a
TV
set
or
a
fluorescent
light.
TS;
sr~
:
Eg
|RS
ry
—
is_
£?"
:W£.
The
audio
components
are
too
close
to
a
TV
set.
If
both
are
used
at
the
same
time,
separate
the
TV
from
the
audio
components.
The
receiver
is
not
grounded.
Connect
the
ground
wire
to
the
antenna
ground
terminal.
fr*
The
connections
are
loose.
Make
secure
connections.
The
plugs
and
jacks
are
dirty.
Wipe
the
plugs
and
jacks
with
a
cloth
18
^
M
s
,
s
j
N-llJS
4
.
1
1
!
.
u
1
I
i

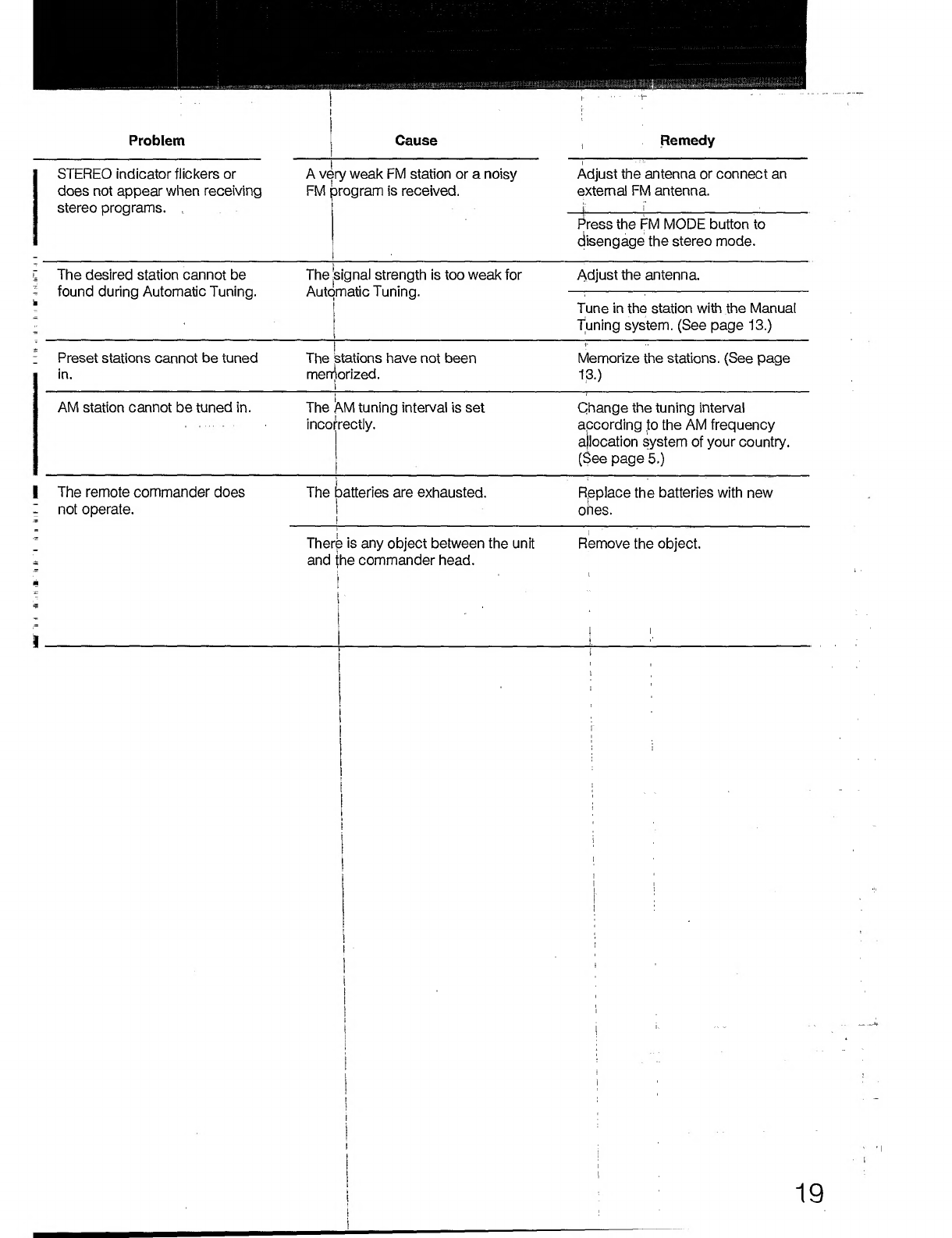

Problem
Cause
t
.i-
.
,
Remedy
STEREO
indicator
flickers
or
does
not
appear
when
receiving
stereo
programs.
A
very
weak
FM
station
or
a
noisy
FM
program
is
received.
Adjust
the
antenna
or
connect
an
external
FM
antenna.
Press
the
FM
MODE
button
to
disengage
the
stereo
mode.
:
The
desired
station
cannot
be
i
found
during
Automatic
Tuning.
The
^signal
strength
is
too
weak
for
Automatic
Tuning.
Adjust
the
antenna.
Tune
in
the
station
with
the
Manual
Tuning
system.
(See
page
13.)
:
Preset
stations
cannot
be
tuned
in.
!
The
stations
have
not
been
memorized.
i
Memorize
the
stations.
(See
page
13.)
AM
station
cannot
be
tuned
in.
The
AM
tuning
interval
is
set
incorrectly.
Change
the
tuning
interval
according
to
the
AM
frequency
allocation
system
of
your
country.
(See
page
5.)
I
The
remote
commander
does
:
not
operate.
The
batteries
are
exhausted.
I
i
Replace
the
batteries
with
new
ohes.
There
is
any
object
between
the
unit
and
the
commander
head.
Remove
the
object.
!
;
!
i
;
i
I
i
1
I
I
j
j
|
i
;
|
!
[
I
i
i
!
1
1
i
|
19
Specifications
Wf^f-
r
—'U-
«
/
rt
1
:
■
/
Audio
Power
Specifications
POWER
OUTPUT
AND
TOTAL
HARMONIC
DISTORTION
With
8-ohm
load,
both
channels
driven,
from
20
-
20,000
Hz,
rated
60
watts
per
channel
minimum
RMS
power,
with
no
more
than
0.08%
total
harmonic
distortion
from
250
milliwatts
to
rated
output.
With
4-ohm
load,
both
channels
driven,
from
20
-
20,000
Hz,
rated
60
watts
per
channel
minimum
RMS
power,
with
no
more
than
0.08%
total
harmonic
distortion
from
250
milliwatts
to
rated
output.
Outputs
Tone
controls
Muting
VIDEO
AUDIO
OUT
REC
OUT
Voltage
150
mV
Impedance
10
kiloohms
SPEAKER
A,
B
Accepts
speakers
of
4
-
16
ohms.
HEADPHONES
Accepts
low
and
high
impedance
headphones.
BASS:
±8
dB
at
100
Hz
TREBLE:
±8
dB
at
10
kHz
-20
dB
Other
Specifications
Amplifier
section
Dynamic
power
output
75
watts
+
75
watts
(8
ohms,
at
1
kHz
IHF)
100
watts
+
100
watts
(4
ohms,
at
1
kHz
IHF)
105
watts
+
105
watts
(2
ohms,
at
1
kHz
IHF)
Harmonic
distortion
Less
than
0.08%
at
rated
output
Frequency
response
PHONO:
RIAA
equalization
curve
±0.5
dB
CD,
TAPE
-i
VIDEO,
5
Hz
-50
kHz*,
0
dB
TAPE
MONITOR
J
Residual
noise
Less
than
70
uV
(8
ohms
Damping
factor
Inputs
J
5
Hz-50
kHz_,
dB
Less
than
70
p.V
(8
ohms,
network
A)
50
(8
ohms,
1
kHz)
Sensitivity
Impedance
S/N
(weighting
network,
input
level)
PHONO
2.5
mV
50
kilohms
87
dB
79
dB*
(A,
2.5
mV)
CD,
VIDEO
150
mV
50
kilohms
105
dB
TAPE,
TAPE
MONITOR
86
dB*
(A,
150
mV)
78
IHF
20
