Key Features
SNC-DH240
Network HD Camera—V series
High-Quality 1080p HD Security Camera
with View-DR Technology
Excellent 1080p HD picture quality, supporting H.264 at 30 fps
3 Megapixel (1920 × 1440) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and a dual streaming
capability
The “Exmor” CMOS sensor incorporated to realize high image
quality and low noise
•View-DR—Sony’s innovative Wide Dynamic Range technology—
to capture objects clearly and adaptively even under very harsh
severe backlight or highlight conditions.
•Visibility Enhancer to optimize the brightness and color reproduction
of an image dynamically on a pixel-by-pixel basis while continuously
adapting to the scene, within the given dynamic range.
•Easy Focus/Easy Zoom functions for easy installation.
•DEPA Advanced Intelligent Video and Audio
Analytics to trigger an alarm, based on
user-defined rules.
•Optical Day/Night function to switch to Day or Night
mode depending on the light level.
•XDNR (eXcellent Dynamic Noise Reduction)
technology for clear images without motion blur under
low illumination.
•Powered by either AC 24 V, DC 12 V, or PoE
(Power over Eithernet) for easy installation.
•Equipped with a BNC connector and a phono
jack to instantly monitor the video while installing
the camera.
•ONVIF (Open Network Video Interface Forum)
conformance that ensures greater interoperability
and more flexibility in building multiple-vendor
systems.
ON
OFF
Actual Images
Actual Images
OFF
ON

MK10699V1OHB10MAY
Distributed by © 2010 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.
Sony is a registered trademark of Sony Corporation.
IPELA and “Exmor” are trademarks of Sony Corporation.
Windows, XP, and Vista are trademarks of Microsoft Corporation.
Core is a trademark of Intel Corporation.
All other trademarks are the property of their respective owners

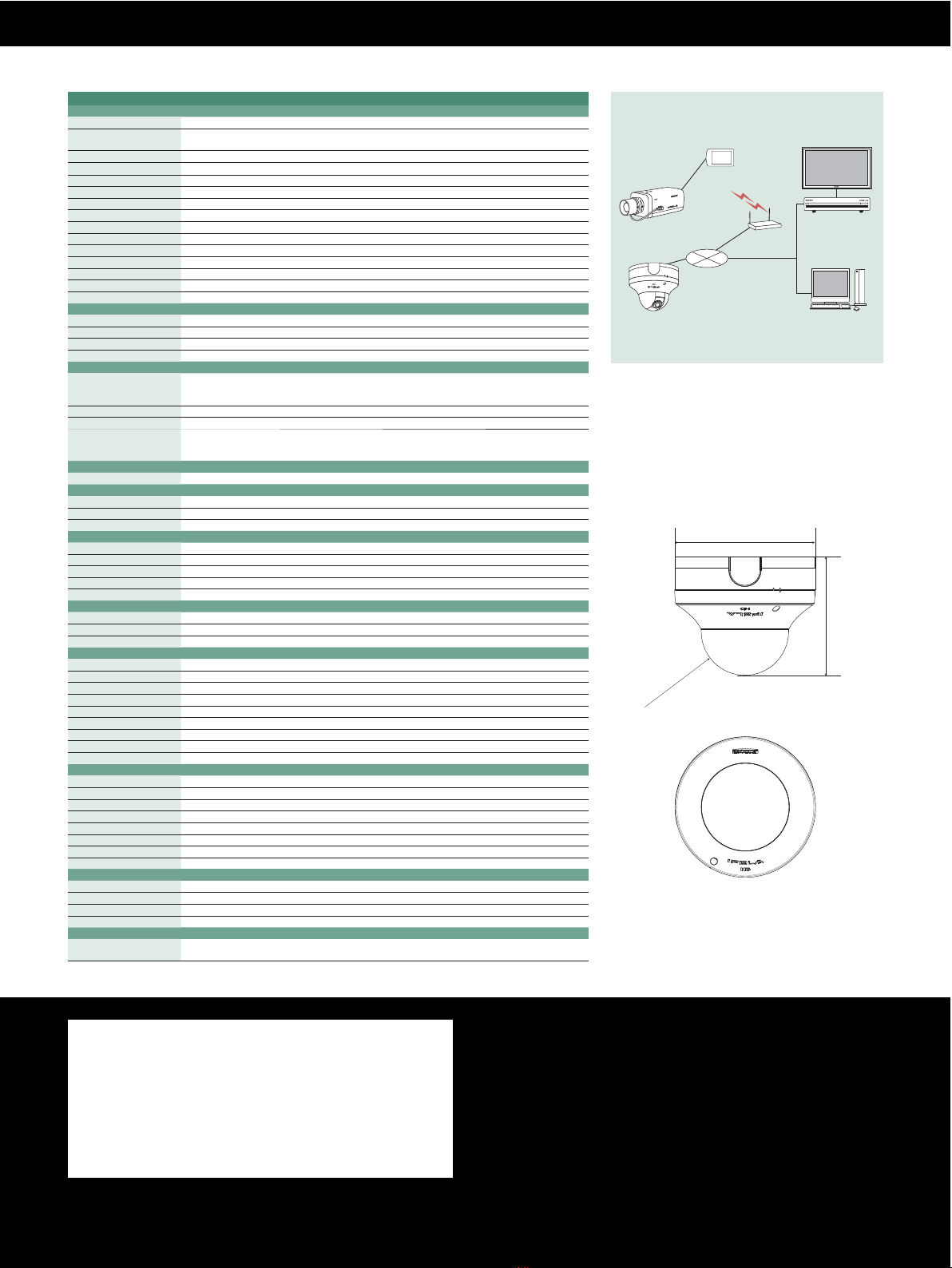

SPECIFICATIONS
DIMENSIONS
Network
Recording Software
IMZ-NS100 Series
Recording Server
NSR-1000 Series
Wireless
Access Point
PC
SNC-DH240
CF Wireless Card
SNCA-CFW5
(IEEE802.11g)
SNC-CH240
HD monitor
SYSTEM CONFIGURATION
ø140 (5 5/8)
118 (4 3/4)
R43.5 (1 3/4)
Unit: mm (inches)
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter.
*The SNC-DH240 include software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
SNC-DH240
Camera
Image device 1/2.8 type progressive scan“Exmor” CMOS sensor
Minimum illumination Color: 0.55 lx, B/W: 0.3 lx
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
Number of effective pixels (H ×V) 3.27 Megapixel (2096 × 1561)
Electronic shutter speed 1s to 1/10000s
Gain control Auto (3 levels)
Exposure control Auto, EV Compensation*1, Auto Slow Shutter *2
White balance mode Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens type Vari-focal lens
Zoom ratio Optical 2.9X (×2 Digital Zoom)
Horizontal viewing angle 88.5 to 32.3 degrees
Focal length f=3.1 to 8.9 mm
F-number F1.2 (Wide), F2.1 (Tele)
Minimum objects distance 300 mm
Powered focus Yes (Easy Focus)
Powered zoom Yes (Easy Zoom)
Camera Features
Day/Night*3Yes
Wide-D View-DR (84 dB:Theoretical)
Image enhancement Visibility Enhancer
Noise reduction XDNR
Codec image size (H × V) 1920 × 1440, 1600 × 1200,1680 × 1056, 1920 × 1080, 1440 × 912,1376 × 768,1280 × 960, 1280 × 800,
1280 × 720, 1280 × 1024,1024 × 768,1024 × 576, 800 × 480, 768 × 576, 720 × 576,704 × 576,720 × 480,
640 × 480, 640 × 368, 384 × 288, 320 × 240, 320 × 192 (H.264, MPEG-4, JPEG)
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate H264: 20 fps (1920 ×1440) / 30 fps (1920 ×1080)
MPEG-4: 15 fps (1920 ×1440) / 25 fps (1920 ×1080)
JPEG: 10 fps (1920 ×1440) / 15 fps (1920 ×1080)
Audio
Audio compression G.711/G.726
Scene Analytics
Intelligent motion detection Yes (with built-in Post Filter)
Intelligent object detection No
Rule filter Yes
Network
Protocols IPv4, IPv6,TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
ONVIF conformance Yes
Wireless network No
Number of clients 10
Authentication IEEE802.1X
Analog Video Output
Signal system NTSC / PAL
Horizontal resolution 600 TV lines
S/N ratio More than 50 dB
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Serial interface No
Card slots No
Analog video output BNC ×1
Analog monitor output Phono jack × 1
Sensor input × 1
Alarm output × 2
External microphone input Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Audio line output Mini-jack (Monaural), Max output level:1 Vrms
General
Mass 750 g (1 lb 10 oz)
Dimensions ø140 × 118 mm (5 5/8 × 4 3/4 inches)
Power requirements PoE,AC 24 V, DC 12 V
Power consumption 10.2 W max.
Starting temperature 0 to 50°C (32 to 122°F)
Working temperature –10 to +50°C (23 to 122°F)
Storage temperature –20 to +60°C (–4 to +140°F)
Safety regulation UL2044, FCC 15B Class A, IC Class A,IEC60950-1, EN55022(A)+EN55024+EN50130-4,VCCI Class A, C-Tick Class A
System Requirements
Operating system Windows XP, Windows Vista, Windows 7
Processor Intel Core2 Duo 2 GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer Ver6.0,7.0, or 8.0
Supplied Accessories
CD-ROM (User’s guides,SNC Toolbox),Installation manual,Template,Wire rope, Bracket, LAN cable,BNC cable, Power input cable,
I/O cable,Audio Cable,Warranty booklet, M4 shoulder screw, M4 screws (2)
