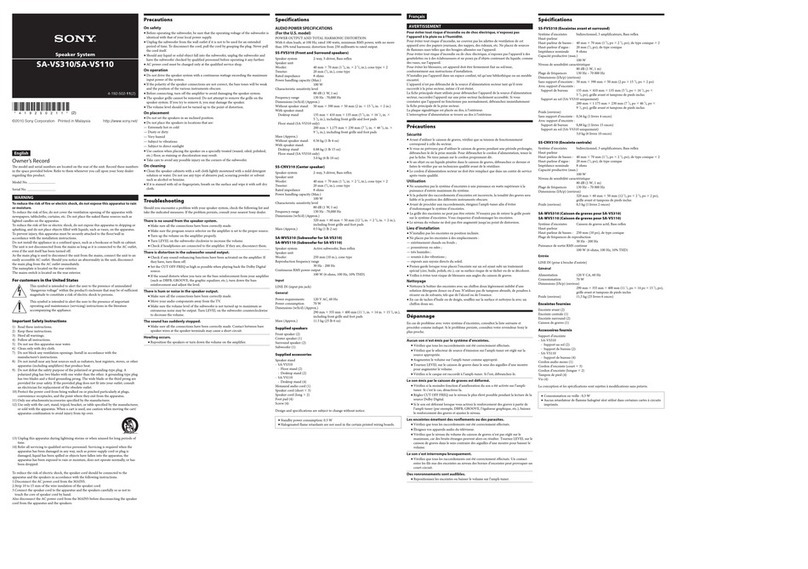

Sony SA-VS110 User manual

SA-VS110
Key Features
5.1ch speaker package
Dynamic sound with SLIM design
2 way 3 drivers speaker system
Sound Reproduction up to 70kHz 20mm tweeter
Deep base with 25cm active subwoofer
SONY Design matching wall mountable

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 10/07/2010
SA-VS110
Please visit the Dealer Source for current
information at www.sony.com/dealersource
Features
Center Speaker
General
CabinetMaterial: Plastic
EnclosureType: Bass Reflex
FrontGrille: Fixed Cloth
SpeakerType: 2 way 3 drivers speaker
system
Front Speaker
General
CabinetMaterial: Plastic
EnclosureType: Bass Reflex
FrontGrille: Fixed Cloth
SpeakerType: 2 way 3 drivers speaker
system (SS - FV310)
Surround Speaker
General
CabinetMaterial: Plastic
EnclosureType: Bass Reflex
FrontGrille: Fixed Cloth
SpeakerType: 2 way 3 drivers speaker
system
Subwoofer
General
CabinetMaterial: Particle Board
EnclosureType: Bass Reflex
Finishtype: PP Sheet
FrontGrille: Fixed Cloth
SpeakerType: Active Subwoofer
Convenience
LevelControl: Yes
PhaseSwitch: Yes
Power Save Mode: Yes
Specifications
Audio
FrequencyRange: 28Hz - 70kHz
Center Speaker
Audio Specs
Maximum Input Power: 100W
Output Sound Pressure Level: 81dB (1W,
1m)
RatedImpedance: 8 Ohms
Inputs and Outputs
InputType: Push type
Weight and Measurements
Dimensions(Approx.): 12 5/8" x 2 3/8" x
2" (320 mm x 60 mm x 50 mm)
Tweeter Unit Size: 20mm, cone type
Weight(Approx.): ( lb 2 oz (0.5 kg)
Woofer Unit Size: 40mm x 70mm, cone type
(x2)
Front Speaker
Audio Specs
Characteristic Sensitivity Level: 81dB (1W,
1m)
Maximum Input Power: 100W
RatedImpedance: 8 Ohms
Weight and Measurements
Dimensions(Approx.): Without stands: 2" x
15 3/8" x 2" (50 mm x390 mm x50 mm),
with desktop stands: 5 3/8" x 16 1/4" x 5
3/8" (135 mm x 410 mm x 135 mm)
Tweeter Unit Size: 20mm cone type
Weight(Approx.): Without stands: 1 lb 4 oz
(0.56 kg), with desktop stands: 1 lb 15 oz
(0.88 kg)
Woofer Unit Size: 40mm x 70mm, cone type
(x2)
Surround Speaker
Audio Specs
RatedImpedance: 8 Ohms
Inputs and Outputs
InputType: Push Type
Weight and Measurements
Dimensions(Approx.): Without stands: 2" x
15 3/8" x 2" (50 mm x390 mm x50 mm),
with desktop stands: 5 3/8" x 16 1/4" x 5
3/8" (135 mm x 410 mm x 135 mm)
Tweeter Unit Size: 20mm cone type
Weight(Approx.): Without stands: 1 lb 4 oz
(0.56 kg), with desktop stands: 1 lb 15 oz
(0.88 kg)
Woofer Unit Size: 40mm x 70mm, cone type
(x2)
Subwoofer
Inputs and Outputs
InputType: RCA Pin
Power
Power Requirements (frequency): 60Hz
Power Requirements (voltage): 120V
Weight and Measurements
Dimensions(Approx.): 11 1/2" x 14" x 15
3/4" (290 mm x 355 mm x 400 mm)
PowerOutput: 100W (6 ohms, 100 Hz, 10%
THD)
Speaker Unit Size: 250mm, cone type
Weight(Approx.): 25 lb 6 oz (11.5 kg)
Supplied Accessories
Desktop stand for 4 Speakers
Speaker Cord 8.2' x 3, 26.2' x 2 (2.5m x3,
8m x2)
RCA Pin Cord 6.5' (2m)
Foot (for Subwoofer) x4"
Color: Black
UPC Code: 027242798533
