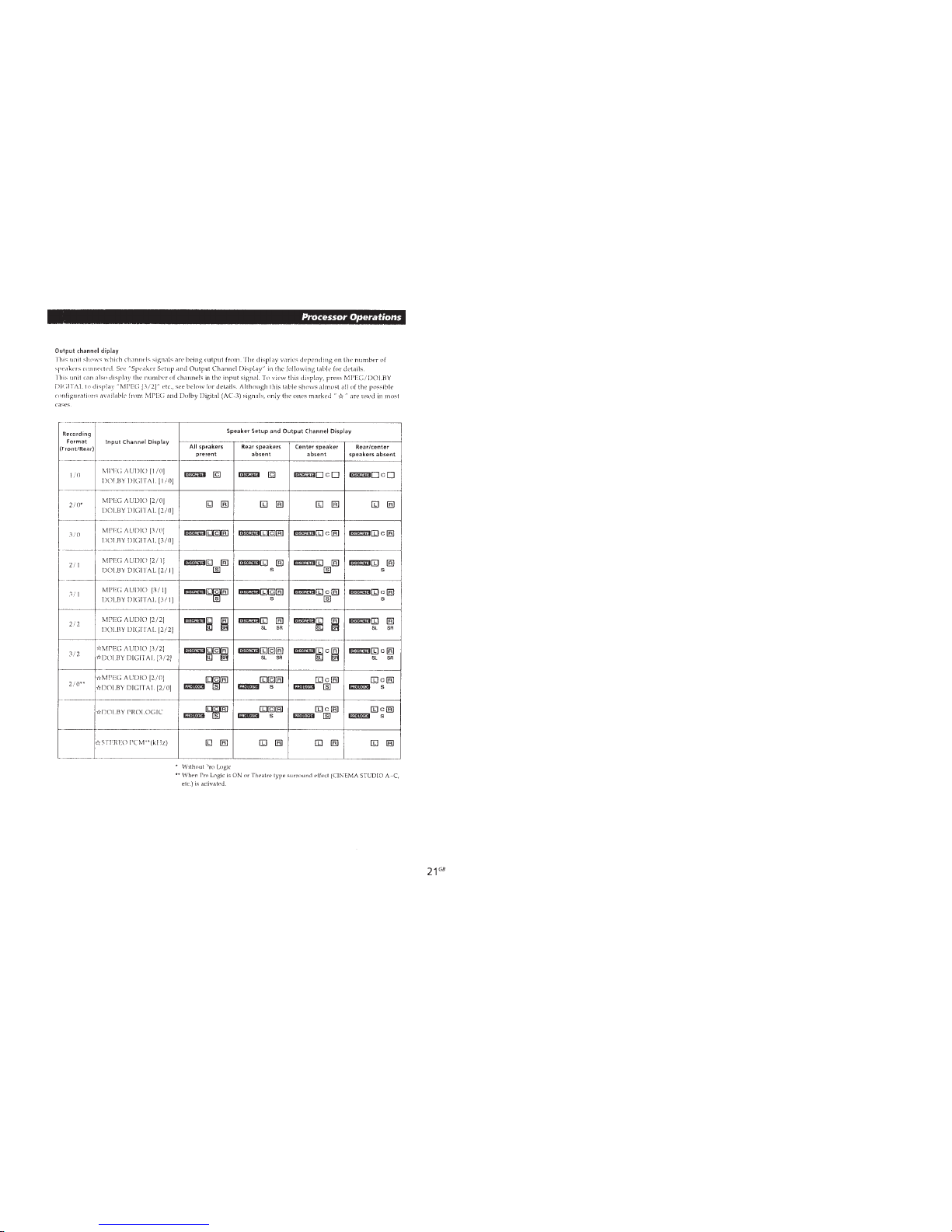

Sony SDP-EP70 User manual

– 1 –
MICROFILM
AEP Model
UK Model
Australian Model
SPECIFICATIONS
SERVICE MANUAL
DIGITAL SURROUND PROCESSOR
SDP-EP70/EP90ES
Photo: SDP-EP90ES (GOLD)

– 2 –
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
TABLE OF CONTENTS
1. SERVICING NOTE ..........................................................2
2. GENERAL ..........................................................................3
3.TEST MODE ..................................................................... 13
4. DIAGRAMS
4-1. Circuit Boards Location ......................................................16
4-2. Brock Diagrams
• DA Section....................................................................... 17
• AC-3 (RF) Section ...........................................................19
• Decoder Section ............................................................... 21
• Control Section ................................................................23
• Power Section .................................................................. 25
4-3. Schematic Diagram – Input Section – ................................ 29
4-4. Schematic Diagram – Dolby AC-3 Section – ..................... 31
4-5. Schematic Diagram — DA Converter Section –................. 33
4-6. Schematic Diagram – Output Section – .............................. 35
4-7. Printed Wiring Board – Main Section – (Side A) ............... 37
Printed Wiring Board – Main Section – (Side B) ............... 39
4-8. Schematic Diagram – Decoder Section –............................41
4-9. Printed Wiring Board – Decoder Section –......................... 43
4-10. Schematic Diagram – Display Section – ..........................45
4-11. Printed Wiring Board – Display Section – ....................... 47
4-12. Schematic Diagram – Power Section – ............................ 49
4-13. Printed Wiring Board – Power Section – ......................... 51
4-14. Schematic Diagram – Control SW Section – ................... 53
4-15. Printed Wiring Board – Control SW Section – ................ 54
4-16. IC Pin Functions ...............................................................55
4-17. IC Block Diagrams ...........................................................72
5. EXPLODEDVIEWS
5-1. Case and Front Panel Section ............................................. 76
5-2. Chassis Section ................................................................... 77
6. ELECTRICAL PARTS LIST ........................................78
SECTION 1
SERVICING NOTE
RV901 of Main Board
RV901 of the main board requires no adjustments. Please note that
it should be dixed to mechanical center position when you moved
and do not know origin position.
Parts Location:
[MAIN BOARD] – SIDE A –
Connection andTest Disc
Connection of this unit to a AC-3 Dolby surround equipment will
realize outstanding sound playback.
Check if the respective surround channel outputs are playing back
normally by the following method.
Jig :
Discription Part No.
AC-3 TEST LD J-2501-132-A
Connected Equipment:
AC-3 LD player
(This unit is also compatible with the digital versatile disc player
(DVD). The DVD must be checked with the LD player using all
the circuits of this unit.)
Connecting Method:
RV901
No Adjustment
AC-3 RF output terminal Coaxial digital
connecting cable VMC-10G, etc. (Optional)
AC-3 compatible
LD player
AC-3 RF
input terminal
Unit
AC-3 RF
output terminal
Checking Method:
Play back a test disc of the LD player, and check if the contents
recorded on the disc case (printed on the disc case) are played
back normally.

– 3 –
SECTION 2
GENERAL

– 4 –

– 5 –

– 6 –

– 7 –

– 8 –

– 9 –

– 10 –

– 11 –

– 12 –

– 13 –
SECTION 3
TEST MODE
Self-Diagnosis andTest Mode
This unit is provided with a “self-diagnosis and self-recovery func-
tion” which detects DSP errors and automatically recovers the unit,
and a test mode for performing operation checks during repairs.
1. Main Functions
• DSP self-diagnosis and self-recovery function
• Self-diagnosis for servicing and error message display
• Display of history of past DSP errors
• Various operation check mode
• SRAM, EEPROM check function
• Initialization (Differs according to country)
2. Entering the Test Mode
1. While pressing the AC-3 RF button and DIGITAL 2 button
simultaneously in the power OFF state, press the POWER but-
ton.
2. When theVOLUME LED starts blinking, release these buttons.
The self-diagnosis for servicing will be executed,and the opera-
tion check mode will be set.
(NOTE: Performing initialization will erase the error history.
Do not therefore press the wrong buttons. For details, refer to
“5. Initialization” on page 15.)
3. Self-diagnosis Mode for Servicing/Display of
History of DSP Errors
3-1. Self-diagnosis Mode for Servicing
Before entering the test mode, first the following self-diagnosis pro-
gram for servicing will be run.
1. Checks if unintended buttons are being pressed
2. Checks EEPROM (External memory device) operation
3. Read/write test of DSP external memory (1M SRAM)
4. Checks and displays history of various DSP abnormal operations
• When an error is detected:
The error message is displayed for about 8 seconds on the fluo-
rescent display tube,itis switchedto“MPEG/DOLBY DIGITAL”,
and the operation check mode is set. (See Table 1.)
When several errors occur at the same time, only the first error
detected will be displayed.
• When no error is detected:
“Ver. main X. X mpeg X. X” will be displayed, and the operation
check mode will be set. (X. X means its version No.)
Table-1:
Error Message/Fluo-
rescent Display Tube Possible Reasons
VOLUME LED blinks
and fluorescent display
tube is OFF*
An unintended button is pressed, or connec-
tion fault of flexible board between MAIN
board and DISPLAY board.
EEPROM read error! Soldering fault or malfunction between IC202
(MAIN board AT24C02) and IC201 (MAIN
board microprocessor).
Reached end of IC202 (MAIN board
AT24C02) writing life or incorrect insertion
of part.
*NOTE:
Refer to “6. Check of Pressing of Unintended Button” on page 15.
Solderingfaultbetween IC422(MAIN part1M
SRAM) and IC423 (MAIN board SSP424023)
When a DSP error is detected
(Referto “3-2.Display ofHistory ofAbnormal
DSP Operations”.)
VOLUME LED
EEPROM write error!
S-RAM access error!
DSP error detected!

– 14 –
3-2. Display of History of DSP Operations
• When “DSP error detected!” is displayed on the fluorescent dis-
playtube,thehistoryofDSPerrorswillbe displayed eight seconds
later. (See Fig. 1.)
• This history will be displayed if a DSP error has occurred in the
past. It helps the detection of malfunction parts by enabling past
problems of the unit to be checked.
• This history shows the “Cause of error” and “How many times
occurred” for the two DSPs. (See Fig. 1.)
Fig. 1
Corresponding DSP
Contents of fluores-
cent display tube
: 1st DSP (DSP56009) 2nd DSP (SSP424023)
: 123x0000 123x0000
↑↑
4
↑
3
↑
2
↑
1↑
4
↑
3
↑
2
↑
1
:
How to read the
display
4. Operation Check Mode
• During the operation check mode, functions can be set by press-
ing the corresponding button. (See Table-3.)
• Each time a button is pressed, the corresponding function will be
displayed for about 8 seconds.
• Buttons other than those displayed in Table-3 operate usually.
NOTE: Do not press the SET UP button during the operation
check mode. As this button is provided with a special
functionfordebugging,pressingitmay impede the normal
output of signals in the sub-woofer mode.
Table-3:
Button Function
Outputs the Lch DIGITAL-2 input signal
to the REAR Lch and the Rch to the REAR
Rch.
Fluorescent
DisplayTube
Display
Outputs the Lch DIGITAL-3 input signal
to the CENTER and the Rch only to the
WOOFER.
Outputs the Lch DIGITAL-4 input signal
to the FRONT Lch, REAR Lch, CENTER,
and the Rch to the FRONT Rch, REAR
Rch, and CENTER.
DIGITAL2
DIGITAL3
DIGITAL4
OFF
DIG-2
(L-SL, R-SR)
DIG-3
(L-C, R-SW)
DIG-4
(L, R-ALL)
Whole fluorescent display tube lit check
Each time the button is pressed, the fluorescent display tube
lights up as follows.
Lit totallynLit partially 1nLit partially 2nLit totally....
By pressing the MENU knob and displaying “<<< LEVELADJUST >>>”,
and rotating the +/– knob to the right, the input signal selected at that time
can be output to any Lch or Rch channel.
(See Table-4.)
Table-4:
Fluorescent Display
Tube Display Output Destination of Input Signal
Outputs the FRONT Lch/Rch signal only to
the REAR Lch/Rch.
Outputs the FRONT Lch signal only to the
REAR Lch, and FRONT Rch signal to the
REAR Rch.
Outputs the FRONT Lch/Rch signal to the
FRONT Lch/Rch, the REAR Lch/Rch signal
to the REAR Lch/Rch, the CENTER signal to
CENTER, and the WOOFER signal to
WOOFER as usual.
Outputs the FRONT Lch signal to the FRONT
Lch, REAR Lch, and CENTER, and the
FRONT Rch signal to the FRONT Rch, the
REAR Rch, WOOFER.
Exchange(L-SL, R=SR)
Exchange (L-C, R=SW)
Exchange (NORMAL)
Exchange (L, R-ALL)
Number of times the error has occurred
↑
How to read the display
• The left side shows the errors of the first DSP (DSP56009:MAIN
board IC424) and the right side shows the errors of the second
DSP (SSP424023:MAIN board IC423).
• The “How many times occurred” indicates the number of times
that the error has occurred. If an error has occurred more than
256 times, it will be displayed as 256.
• The 1234part shows 0 or 1 according to the cause of the
error. If an error has occurred, 1 will be displayed. If no error has
occurred, 0 will be displayed. (See Table-2.)
Table-2:
Cause of error Possible cause
Mostlydueto faultyconnection (soldering)be-
tween DSP and microprocessor
Faulty DSP clock (X401 and onwards), faulty
DSP part, etc.
Overrunning of DSP due to heat,microproces-
sor bugging, or IC301 (MAIN board PLL) is
faulty
Faulty DSP part, or faulty microprocessor part,
etc.
1Failed in initial
booting
2DSP does not
operate
3Communication
port malfunction
4No reply from DSP
NOTE: This history is memorized in the EEPROM until the unit
is initialized. (Refer to “5. Initialization” on page 15.)

– 15 –
5. Initialization (Differs according to destination)
After executing the test mode, be sure to perform initialization.
• For J/SP/AEP Version (Use this procedure)
While pressing the AC-3 RF button and DIGITAL3 buttons
simultaneously, press the POWER button. When theVOLUME
LED starts blinking, release the buttons. “initialized (J/SP/AEP)”
will be displayed on the fluorescent display tube, and all internal
settings will be returned to the initial values.
• For U/CA version (Do not use this procedure)
While pressing the AC-3 RF button and DIGITAL4 buttons
simultaneously, press the POWER button. When theVOLUME
LED starts blinking, release the buttons. “initialized (U/CA)” will
be displayed on the fluorescent display tube, and all internal set-
tings will be returned to the initial values.
NOTE: As all histories of abnormal DSP operations will be erased,
note down the contents of the history beforehand.
6. Check of Pressing of Unintended Button
• This check is always performed when the power is turned ON.
Therefore when an error occurs, it can be known without setting
the test mode because theVOLUME LED blinks and the fluores-
cent display tube stops displaying.
• When an unintended button is pressed during the test mode or
initialization, theVOLUME LED also blinks, and the fluorescent
display tube stops displaying, preventing no mode to be set.
7. Other Functions
In the personal use of the unit at home, if no sounds are produced
due to DSP problems, the DSP will be rebooted automatically to
attempt recovery. If no sounds are still produced after five retries,
“Turn POWERSW off!” will bedisplayed on the fluorescent display
tube.
If this problem occurs, it indicates that the DSP is faulty or the
user’s setting environment may be unsuitable. Refer to “3. Self-
Diagnosis Mode for Servicing/Display of History of DSP Errors”
on page 13 to identify the problems.

– 16 –
SECTION 4
DIAGRAMS
4-1. CIRCUIT BOARDS LOCATION
AC1 board
AC2 board
SW board
PS board
DISPLAY board
VOL board
MAIN board
TR board
DECODER board

4-2. BLOCK DIAGRAMS
– DA SECTION –
– 17 – – 18 –
SDP-EP70/EP90ES
3OUT
DIGITAL
INPUT
IC306
5
DIGITAL 1
3OUT
DIGITAL
INPUT
IC305
DIGITAL 2
4
3OUT
DIGITAL
INPUT
IC304
DIGITAL 3
3
DAO 6
SELECTOR
IC302
7
D1
D2
D3
D0
14 2
A0 A1
Y
DSELA0
DSELA1
D
CONTROL
SECTION
C
DOLBY
AC-3
SECTION
32
INPUT 4 BUFFER
IC307
14
15
16
17
24
10
DIRCLK
DIRLAT
DIWDAT
DIRDAT
DIRERR
DIRRST
E
CONTROL
SECTION
2
1
23
3
DIGITAL AUDIO
INTERFACE RECEIVER
IC301
DIN2
DIN1
DATAO
E/D OUT
10
1
DIGITAL
OUTPUT
IC303
VIN
B2 Y2
SELECTOR
IC404
(1/2)
9
A
DATA
CONTROL
SECTION
REC OUT
OUTPUT
B
CONTROL
SECTION
1
2
3
DATAI
LRCKI
BCKI
SAMPLING
RATE
CONVERTER
SAMPLING
RATE
COUNTER
7FI128
DATAO
LRCKO
BCKO
13
10
INIT
XI
SAMPLING RATE
CONVERTER
IC401
25
24
27
28
IN1+
IN1-
IN2+
IN2-
ECL
SW
VOLUME
CONTROL
IO1-
IO2+
IO2-
IO1+
4
5
2
1
DIGITAL VOLUME
IC410
VCNT
+
+
L.P.F.
L.P.F.
IC416 IC602
MIX
AMP H.P.F. BUFFER
IC607
12
15
D/A
CONVERTER
SHIFT
REGISTER
LEVEL
SHIFT
CK
2
1 3
DT
ST
D/A
CONVERTER
IC421
1
IC425
13
12
8
9
2
1
FILTER
F401
X401
49.152MHz
FILTER
F402
12
7
4
5
2
1
3
6
13
11
22
21
20
1
2
3
DATAI
SAMPLING
RATE
CONVERTER
DATAO
SAMPLING
RATE
COUNTER
FLAME
COUNTER
7
10
INIT
13
XI
SAMPLING RATE
CONVERTER
IC403
DATAI
LRCKI
BCKI
DIGITAL
FILTER
D/A
CONVERTER
R1(+)
R1(-)
R2(+)
R2(-)
21
23
18
16
MODE
CLOCK
GENERATOR
10
DIGITAL FILTER, D/A CONVERTER
IC405
FILTER
F404
DATAI
LRCKI
BCKI
DIGITAL
FILTER
D/A
CONVERTER
R1(+)
R1(-)
R2(+)
R2(-)
21
23
18
16
MODE
CLOCK
GENERATOR
DIGITAL FILTER, D/A CONVERTER
IC407
10
REAR
L-CH
ANADIG
EXTAL
SRCINI
DF-DAT
DF-CLK
DF-LAT
DF-INI
ATT
SHIFT
LATCH
INIT
DA-LAT
DA-CLK
DA-DAT
ST
CK
DT
F. 8DB
R. 8DB
C/S.8DB
F. 4DB
R. 4DB
C/S. 4DB
MUT
RY-OFF
F
CONTROL
SECTION
MUT
RY-OFF
3
RY607
5
4
1
3
RY608
5
4
1
F
J601
FRONT
L
RY609
1
RY610
1
R
J601
REAR
L
8
7
6
7
8
6
REAR L-CH
R.8DB R.4DB
RY611
1
RY612
1
C
J602
CENTER
7
8
6
7
8
6
CENTER
C/S.8DB C/S.4DB
MUT
RY-OFF
MUT
RY-OFF
F
R
C
FRONT
L
REAR
L
CENTER
BYPASS
J603
OUT
PUT
F.8DB F.4DB
AVOCK
LRCK
BCK
FS128
SCLK
XLAT
SWDT
SRDT
EROR
XMODE
SELECTOR
IC404 (2/2)
Y0
Y1
Y2
B0
B1
B3
SA0A1
BCK
LRCK
128FS
IC408
1
2
13
12
3
4
10 11
65
9
8
30
32
31
LRCKO
BCKO
40
39
38
45
34 35 36 37
SHIFT LATCH
INIT
ATT
XIN
512FSO
45 512FSO
34 35 36 37
XIN SHIFT LATCH INIT ATT
30
32
31
40
39
38
FLAME
COUNTER
INPUT
J301
BCKO
LRCKO
SOA
SOB
SOC
CENTER
DATA
128FS
LRCK
BCK
SUPER WOOFER
BUFFER
LRCKI
BCKI
FI128
R-CH, SUPER WOOFER is omitted.
REAR L-CH and CENTER part was omitted.
(Same as FRONT L-CH)
Signal path
:Digital in
:Digital out
:RF (AC-3)
•
•
•
09
(Page 24)
DECODER
SECTION
(Page 21)
(Page 23)
(Page 20)
(Page 23)
(Page 23)
(Page 24)
J

– 19 – – 20 –
SDP-EP70/EP90ES
– AC-3 (RF) SECTION –
AC-3
RF
INPUT
BUFFER
Q902
J901
3L.P.F.
IC902 1BUFFER
Q903 1
4
6
9
FILTER
FL902
BUFFER
Q904 +27
COMPARATOR
IC903
COMPARATOR
5
6
7
RV901
NO ADJUSTMENT
AMP
IC904
IC904
31
DIN DEMODULATION S/P ERROR
CORRECTOR
DAI
CONTROL
DIVIDER
DIGITAL
OUT DAO
65
DAOUT
DIGITAL
PLL
4
X902
46.08MHz
L.P.F.
IC905
PHASE
COMPARATOR
DIVIDER
V1
41
X901
18.432MHz INVERTER
IC906
55
57
78
X LOCK
MUTE SW
Q901
51 - 43
DB0 - DB8
21 - 24•26•27•30•31•37•38•42•39•33•34
A0 A14
ADDRESS
GENERATOR
27 22
S RAM
IC907
WE
OE
DB0 - 4
A0 - 14
27 22
WE
OE
11 - 13•15 - 19
I/O0 I/O7
11 - 13•15 - 19
I/O0 I/O7
10 - 3•25•24•21•23•2•26•1
A0 A14
10 - 3•25•24•21•23•2•26•1
A0 A14
S RAM
IC908
DB5 - 8
DB0 - 8
WE OE
A0 - 14
A0 - 14
DATA - BUS DB0 - DB8
35 41
ADDRESS - BUS A0 - A14
INTERFACE 8 AC. RST
RESET
59
MUTO MUTO
G
CONTROL
SECTION
C
D/A
SECTION
82
XIN
PDO
98
IC906
13 10
IC906
+
-
IC902
67
MUTI
09
DIGITAL SIGNAL PROCESSOR
(AC-3 RF DEMODULATOR)
IC901
• Signal path
:RF (AC-3)
(Page 17)
(Page 23)
CPU

– 21 –
– DECODER SECTION –
– 22 –
SDP-EP70/EP90ES
24
23
21
19
17
15
14
21
28
42
44
7
6
4
84
85
87
88
90
91
93
96
100
101
103
104
106
109
111
112
114
115
117
118
60 61 63 65 68 71 74 76 78 80
11 13 15 19 10 3 25 24 21 23 2 26 1
I/00 I/07 A0 A14
S-RAM
IC1003
OE WE
22 27
11 13 15 19 10 3 25 24 21 23 2 26 1
I/00 I/07 A0 A14
S-RAM
IC1004
OE WE
22 27
11 13 15 19 10 3 25 24 21 23 2 26 1
I/00 I/07 A0 A14
S-RAM
IC1005
OE WE
22 27
D0-D7 A0-A14
D8-D15 A0-A14
D16-D23 A0-A14
D0
D23
RD
WR
H0/PB0
H7/PB7
HA0/PB8
HA2/PB10
RESET
HEN/PB12
HR/W/PB11
EXTAL
HREQ/PB13
PLOCK
10
12
1
13
55
130
125
X/Y A0 A13
A1-A14
A0
47
46
33 29 35 32 38 31 26 25
46
41
40
14
39
45
77
78
7
4
11
10
1
55
41
30
37
26
9
8
4
3
38
42
43
12
13
14
15
16
1
36
23
P60
|
P67
P43
|
P45
P47
P41
P42
P96/16MHz
P40
P46
P20/A8
RESET
P51/RXD0
P50/TXD0
MD1
STBY/FVPP
P84/TXD1
P85/RXD1
X1001
16MHz
XTAL EXTAL
I
CONTROL
FOR
FLASH
WRITER
SECTION
(Page 23)
J
DA
SECTION
(Page 17)
DATA
BCK
LRCK
RESET
RESET
TX
RX
MD1
FVPP
TX
RX
SDIO
SCKR
GPIO0
WSR
SDIO
SCKR
GPIO0
WSR
RXD
SCO
SC1
SC2
SRD
SCK
TXD
DIN
BCKI
LRCK
LAC3
STD
DCK
MCK
FS128
SERIAL COMMUNICATION
FORMAT CONVERTER
IC1006
SYSYTEM CONTROL
IC1002
DIGITAL
SIGNAL
PROCESSOR
IC1001
H0 - H7
HA0 - HA2
D1001
• SIGNAL PATH
: DIGITAL IN
K
CONTROL
SECTION
(Page 23)
STD/PC8 SC0/PC3 SC1/PC4 SC2/PC5 SRD/PC7 SSK/PC6 TXD/PC1 PXD/PC0
SC0 SC1 SC2 SRD SSK TXD PXD
CLOCK
GENERATOR

– 23 – – 24 –
– CONTROL SECTION –
SDP-EP70/EP90ES
SDO0
SDO2
SDO1
AUDIO
I/F
SDI0
SDI1
27 26
DIGITAL SIGNAL
PROCESSOR
HOST
I/F
MEMORY
PLL
SCKR
WSR
35 41 42 43 36
EXTAL
SCK
MISO
MOSI
SS
HREQ
RESET
SDO0
SDO1
AUDIO
I/F
SDI1
27 26
BCKO
LRCKO
SDI0
GPIO0
DATA
DIGITAL SIGNAL
PROCESSOR
HOST
I/F
MEMORY
PLL
51
55
SCKR
WSR
SCKT
WST
GPIO0
47
•
46
35 41 42 43 36
EXTAL
SCK
MISO
MOSI
SS
HREQ
RESET
MEMORY
I/F
24 29 13 - 15•17 - 21
71•69 - 67•65 - 62 25 - 22•20 - 18•16•14 - 11•7•5 - 3
12 - 5•26•27•23•25•4•28•3•2
S RAM
IC422
15 16
56
SCL
SDA
EEP ROM
IC202
262728
17
2•3
1
OUT
X201
16MHz
SIRCS
RECEIVER
IC256
18 19 22 - 20
511 - 9
YA0 - A2
SELECT SWITCH
IC254,255
4 - 1•15 - 12
D0 D7
KEY ARRY
ROTARY
ENCODER
10139
11
29 5 430
3
26 - 17•16 - 7
FLUORESCENT INDICATOR TUBE
FL251
29
24 26
1 - 20•41 - 56
25 23 24
3
27
8M
DRIVER
RV251
CONTROL
SWITCH
Q601 - 616
+8DB SWITCH
Q617, 618, 621,
622,625,626
+4DB SWITCH
Q619, 620, 623,
624,627,628
MD0 MD7 DA0 MA15
SOA
SOB
SOC B
D/A
SECTION
EXTAL
ANADIG
SRCINI
DF-DAT
DF-CLK
DF-LAT
DF-INI
DA-LAT
DA-CLK
DA-DAT
F. 8DB
R. 8DB
C/S. 8DB
F. 4DB
R. 4DB
C/S. 4DB
MUT
RY-OFF
ANADIG
SRCINI
DF-DAT
DF-CLK
DF-LAT
DF-INI
DA-LAT
DA-CLK
DA-DAT
50
51
52
53
54
55
57
58
59
F
D/A
SECTION
MASTER VOLUME
LED DRIVE
Q251
VOLUME MOTOR DRIVE
IC253
34 37 35
CK
CL
(NC)
STB
(NC)
DI
OUT1
OUT36
FFROM
POWER TRANSFORMER
DOUT
DIN
CLK
CL LS
OUT0
OUT20
FL-DAT
FL-CLK
FL-CLR
FL-LAT DISPA0 DISPA2
FL DRIVER
IC251, 252
DISPD0
DISPD1
SIRCSI
XTAL
•
EXTAL
DIRERR
DIRCLK
DIRLAT
DIWDAT
DIRDAT
DSELA0
DSELA1
DIRRST
STOP
RESET
MUTO
AC. RST
G
DOLBY
AC-3
SECTION
POWER
SECTION
D
D/A
SECTION
E
D/A
SECTION
A
D/A
SECTION
41 40 39
M9SCLK
MISO
M9MOSI
M9MOSS
M9MORQ
M9MRES
ROMCLK
ROMDAT
48 46 44 43 42 45 31
M4SCLK
M4MISO M4MOSI
M4MOSS
M4MORQ
M4MRES
AN1
62
64
66
63
65
67
61
60
LR+8DB
SS+8DB
CS+8DB
LR+4DB
SS+4DB
CS+4DB
MUT
RY-OFF
30
VOLLED AN0 VOLUME+ VOLUME-
SYSTEM CONTROL
IC201
76
GPIO0
77 78 80
MRD
MWR
57
•
56
51
55
49
50
SCKT
WST
47
45
46
31
CE
R/W
A16
D0 D7 A0 A15
DIGITAL SIGNAL PROCESSOR
IC424
DIGITAL SIGNAL PROCESSOR
IC423
49
50
MCAS
H
• Signal path
:Digital in
09
(Page 17)
(Page 17)
(Page 17)
(Page 20)
(Page 25)
(Page 17)
(Page 17)
76
56
SDI0
57
K
DECODER
SECTION
(Page 22)
SCKR
WSR
1
68
69
70
71
72
74
75
77
76
80 STOP
RESET
TXD1
RXD1
RF-ERR
REF-RES
DSELA0
DSELA1
DIRERR
DIRCLK
DIRLAT
DIWDAT
DIRDAT
TX
RX
RESET
DECODER
SECTION I
(Page 21)
78
79
