Sven HT-400 User manual

you want - we can
5.1 Active Home Theater
Speaker System
OPERATION MANUAL
www.sven.
HT-400
you want - we can

you want - we can
ENG
5.1 Active Home Theater
Speaker System
2
CONTENTS
1. DESCRIPTION .....................................................................................................3
2. SAFETY PRECAUTIONS.........................................................................................3
3. PACKAGE CONTENT.............................................................................................3
4. SPECIAL FEATURES .............................................................................................3
5. CONTROL SIDE PANEL..........................................................................................4
6. REAR PANEL.......................................................................................................4
7. REMOTE CONTROL ..............................................................................................5
8. LOCATING ..........................................................................................................5
9. CONNECTION OF SATELLITES ................................................................................6
10. HTSS OPERATION ..............................................................................................8
11 . TROUBLESHOOTING ...........................................................................................8
12. TECHNICAL SPECIFICATIONS................................................................................9
Congratulations on the purchase of Sven speaker system!
Please read this Оperation Мanual before using the unit and retain this Оperation Мanual in safe place for future
reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Мanual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Мanual more exact, some discrepancies may occur. The information of this
Мanual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization
for loss or damage which has arisen from the information contained in this Мanual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the
product was damaged during transportation, address the firm which carried out the delivery; if the product functions
incorrectly, address the dealer at once.
ATTENTION!
Do not switch on the speaker system immediately after you bring it into a room from environment with negative
temperature! After unpacking, the speaker system should be kept in conditions of room temperature for at least 4 hours.
Technical support is on www.sven.fi.

Operation Manual
ENG
H T- 4 0 0
3
1. DESCRIPTION
The device is designed for music playback, sounding videogames, movies, etc. You can use it with a
computer, CD/DVD player and other audio signal sources.
2. SAFETY PRECAUTIONS
• To avoid electric shock, do not open the HTSS and do not perform repairs by yourself.
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplifier or the ground, for it causes damage to the power amplifier output stage.
• Do not put foreign objects inside the holes of the HTSS. Make sure that needles, hair pins, coins, insects
etc. do not get inside.
• Protect the HTSS from high humidit y, water and dust. Do not locate it in areas with high level of humidity
and dust.
• Protect the HTSS from heating: do not locate it near a heat source or expose to direct sunlight.
• Do not use gasoline, alcohol or other solvents when cleaning, since they may damage the paint-coated
surface of the HTSS. Clean it with dry soft cloth only.
• If the HTSS does not operate, unplug it and address your dealer.
3. PACKAGE CONTENTS
• Powered subwoofer — 1 pc
• Front channelspeakers — 2 pcs
• Center channel speaker — 1 pc
• Rear channel speakers — 2 pcs
• Remote control — 1 pc
• Remote control battery (AAA) — 2 pcs
• Audio cable — 5 pcs
• Signal cable — 3 pcs
• Operation manual — 1 pc
• Warranty card — 1 pc
4. SPECIAL FEATURES
• Built-in 6 channel amplifier
•Remote control
• Analog 5.1 inputs
• Additional stereo input
• 2.0 to 5.1 conversion
Caution! H igh voltage i nside! To avoid the risk of electric shock d o not
open or touch elements inside.
CONTENTS
1. DESCRIPTION .....................................................................................................3
2. SAFETY PRECAUTIONS.........................................................................................3
3. PACKAGE CONTENT.............................................................................................3
4. SPECIAL FEATURES .............................................................................................3
5. CONTROL SIDE PANEL..........................................................................................4
6. REAR PANEL.......................................................................................................4
7. REMOTE CONTROL ..............................................................................................5
8. LOCATING ..........................................................................................................5
9. CONNECTION OF SATELLITES ................................................................................6
10. HTSS OPERATION ..............................................................................................8
11 . TROUBLESHOOTING ...........................................................................................8
12. TECHNICAL SPECIFICATIONS................................................................................9

you want - we can
ENG
5.1 Active Home Theater
Speaker System
4
5. CONTROL SIDE PANEL
a VOLUME: master volume control knob
b CEN: center channel volume control knob
c SUB: subwoofer volume control knob
6. REAR PANEL
a SW: subwoofer channel input connector
b AUDIO INPUT AUX(L/R): PC, CD/MP3 player connection stereo
input (left/right)
DVD (5.1CH): input jacks for decoded 5.1 output signal (DVD player,
5.1 PC sound card):
c FL/FR: front left/right channel input
d CEN: center channel input
e SL/SR: rear left/right channel input
OUTPUT(5.1CH): speaker connection output jacks:
f FL/FR: front left/right channel output
g CEN: center channel output
h SL/SR: rear left/right channel output
iPOWER: power switch
jPower cord
Fig.1. Control
side panel
Fig. 2. Rear panel
_SUB +
_CEN +
_VOLUME +

Operation Manual
ENG
H T- 4 0 0
5
7. REMOTE CONTROL
a MUTE: sound on/o button
b RESET: return to default settings
c AUX: AUX input selection button
d DVD: 5.1 CH input selection button
e 2.1/5.1: output mode selection button
f CEN +/-: center channel volume up/down button
g REAR+/-: rear channels volume up/down button
h SUB+/-: subwoofer volume up/down button
i MASTER VOLUME +/-: master volume up/down button
Battery installation
Before using the remote control, insert two 1.5 V AAA batteries.
• Remove the battery compartment cover.
• Insert the batteries matching their polarity.
• Replace the battery compartment cover.
Notes:
• If the remote control does not work, check the batteries or
replace the discharged batteries with new ones.
• Direct the remote control at the IR receiver display on the
subwoofer.
• Use the remote control at an angle of no more than 30°, no more
than 7 meters away.
8. PLACEMENT OF THE SPEAKERS
Fig. 3. Remote control
Fig. 4. Placement of the speakers
• Place the speakers as shown in Fig. 4.
• The center channel speaker can be placed
under a TV set (a monitor).

you want - we can
ENG
5.1 Active Home Theater
Speaker System
6
WARNING! Switch off all the components before making any connections.
• Connect the satellites to the subwoofer (Fig. 5).
• Insert the signal cables into the output jacks of your PC sound card, audio/video player. Then connect
the RCA jacks of the signal cables to the corresponding subwoofer jacks. The left RCA jack should be
connected to the left (white) port of the amplifier, and the right RCA jack to the right (red) port of the
amplifier (Fig. 6).
• Insert the power cord plug into the mains outlet.
• Set the master volume control knob a to its minimum, turn the power on (Fig. 2).
• Adjust the master volume control knob aas desired.
9. CONNECTION OF SATELLITES
Right surround
speaker
Left surround
speaker
Left front speakerRight front speaker
Center speaker
Fig. 5. Connection of the speakers

Operation Manual
ENG
H T- 4 0 0
7

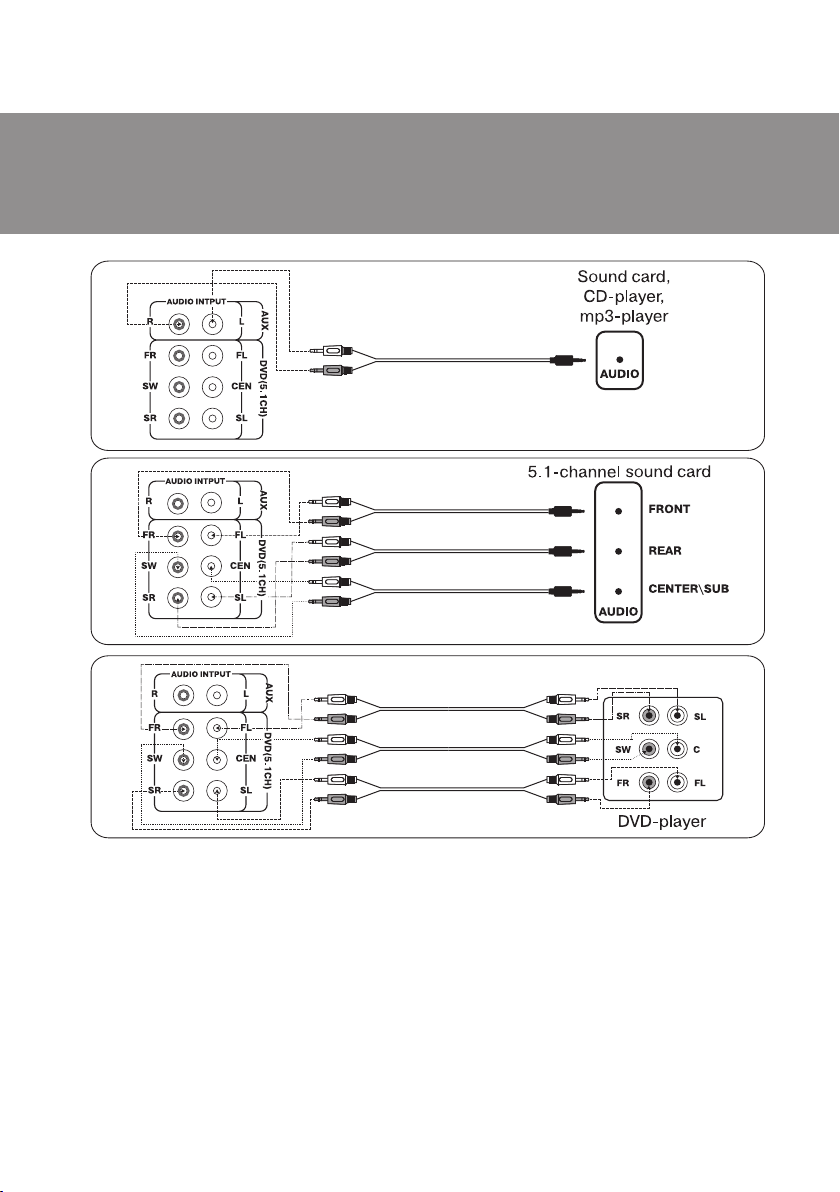

Fig. 6. Sound source installation diagram
Notes:
• To enhance sound quality, use the Line Out port of your sound card.
• When the cables are being connected, the signal sources and the speaker system must be
unplugged.
Connecting the subwoofer to audio sources:
AUX(L/R): stereo input (left/right) for PC, CD/MP3 stereo player connection.
DVD (5.1CH): input jacks for decoded 5.1 output signal connection.

you want - we can
ENG
5.1 Active Home Theater
Speaker System
8
Cause
The MSS is not connected to the mains outlet.
Power switch is o.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume and MSS
volume.
Problem
The MSS doesn’t
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of sound.
If none of the above methods can solve the problem, please seek professional advice at your nearest service center.
Never attempt to repair the product yourself.
11. TROUBLESHOOTING
10. HTSS OPERATION
• Turn the system on using the POWER switch i (ON position) on the subwoofer rear panel. The system
will turn on in the mode playing the audio from the DVD (5.1CH) input. The LED on the front panel will
light up. To switch to the additional AUX input, press the AUX button c on the remote control. Adjust
the volume as desired using the corresponding remote control buttons or side panel knobs:
• MASTER VOLUME (+ / -): master volume control;
• SUB (+ / -): subwoofer volume control;
• When listening to multichannel signal using the 5.1 input, you can adjust the center channel and rear
channels volume independently.
• CEN (+ / -): center channel volume control.
• REAR (+/-): rear channels volume control.
• The RESET button breturns you to the default settings.
• The 2.1/5.1 mode is used for transmitting a stereo signal using the AUX output, the signal reproduced
with all the satellite speakers.
• Subwoofer side panel controls: master volume (VOLUME -/+), center channel volume (CEN +/-),
subwoofer volume (SUB +/-).
Note. It is recommended that the POWER switch on the subwoofer rear panel be turned off and
the power cord be unplugged from the mains outlet if the system is left unused for a long period
of time.

Operation Manual
ENG
H T- 4 0 0
9
12. TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Output power (RMS), W:
subwoofer
satellites
Speaker diameter, mm / inch:
subwoofer
satellites
Magnetic shielding
Supply voltage, V/Hz
Frequency range, Hz:
subwoofer
satellites
Dimensions (one speaker), mm:
subwoofer
satellites
Weight, kg
Value
100 (30 + 5 × 14)
30
5 × 14
133 / 5,25
76 / 3
Yes (front and center satellites)
~220/50
40 – 150
150 – 20 000
215 × 215 × 250
125 ×125 ×140
8.4
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improve-
ment of SVEN production.

you want - we can
HT-400
Активная акустическая система
5.1 для домашнего кинотеатра
Модель: HT-400
Импортер в России: ООО «СКАНДИТРЕЛ», 111024, РФ,
г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России:
ООО «РТ-Ф», 105082, г. Москва,
ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
в гарантийном талоне или на сайте www.sven..
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед», 176
Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка, Котолахдентие,
15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the control
of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka,
Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
