Sony CX-J3000 User manual

SERVICE MANUAL
COMPACT DISC DECK RECEIVER
Russian Model
CX-J3000M
E Model
CX-J3000/J3000M
SPECIFICATIONS
CX-J3000/J3000M
Ver 1.0 2004.08
9-879-115-01
2004H0579-1
© 2004.08
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
•CX-J3000 is the amplifier, CD player, tape deck and
tuner section in RBT-3000.
•CX-J3000M is the amplifier, CD player, tape deck
and tuner section in RBT-3000M. photo: CX-J3000M
- Continued on next page -
Model Name Using Similar Mechanism NEW
Optical Pick-up Block Name KSM-213RDP
Optical Pick-up Name KSS-213R
TAPE Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type CWM43FR55
CD
Section
Amplifier section
CX-J3000
Continuous RMS power output (reference):
25 + 25 watts (6 ohms at 1
kHz, 10% THD) measured
at AC 240 V 50/60 Hz
2 + 2 watts (6 ohms at 1
kHz, 10% THD) measured
at DC 12 V
CX-J3000M
CX-J3000M
(Russian model)
Continuous RMS power output (reference):
25 + 25 watts (6 ohms at 1
kHz, 10% THD) measured
at AC 230 V 50/60 Hz
(Mexican model)
Continuous RMS power output (reference):
45 + 45 watts (6 ohms at 1
kHz, 10% THD) measured
at AC 127 V 60 Hz
CX-J3000M (Chilean and Peruvian models)
Continuous RMS power output (reference):
45 + 45 watts (6 ohms at 1
kHz, 10% THD) measured
at AC 240 V 50/60 Hz
Inputs
VIDEO/SAT IN (phono jacks):
Voltage 0.775 V,
impedance 47 kilohms
Outputs
PHONES (stereo mini jack):
Accepts headphones of 8
ohms or more
SPEAKER: Accepts impedance of 6 to
16 ohms
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=780 nm)
Emission duration:
continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 760 – 800 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
Tape deck section
Recording system 4-track 2-channel, stereo
Frequency response 50 – 13,000 Hz (±3 dB),
using Sony TYPE I
cassettes
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
(50-kHz step)
Antenna FM telescopic antenna
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
2 Band type:
Mexican, Chilean and Peruvian models:
530 – 1,710 kHz
(with the tuning interval
set at
10
kH
z
)
531 – 1,710 kHz
(with the tuning interval
set at 9 kHz)
Russian model: 531 – 1,602 kHz (with the
tuning interval set at 9
kHz)
3 Band type:
MW: 531 – 1,602 kHz
(with the tuning interval
set at 9 kHz)
SW1: 3.200 – 7.300 MHz
(with the tuning interval
set at 1 kHz)
SW2: 9.500 – 21.850 MHz
(with the tuning interval
set at 5 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
Indian and African 220 – 240 V AC, 50/60 Hz
12 V DC
Russian model: 230 V AC, 50/60 Hz
Mexican model: 127 V AC, 60 Hz
Chilean and Peruvian models:
models:
110 –120 V or 220 –240 V
AC, 50/60 Hz
Adjustable with voltage
selector
All manuals and user guides at all-guides.com
all-guides.com

2
CX-J3000/J3000M

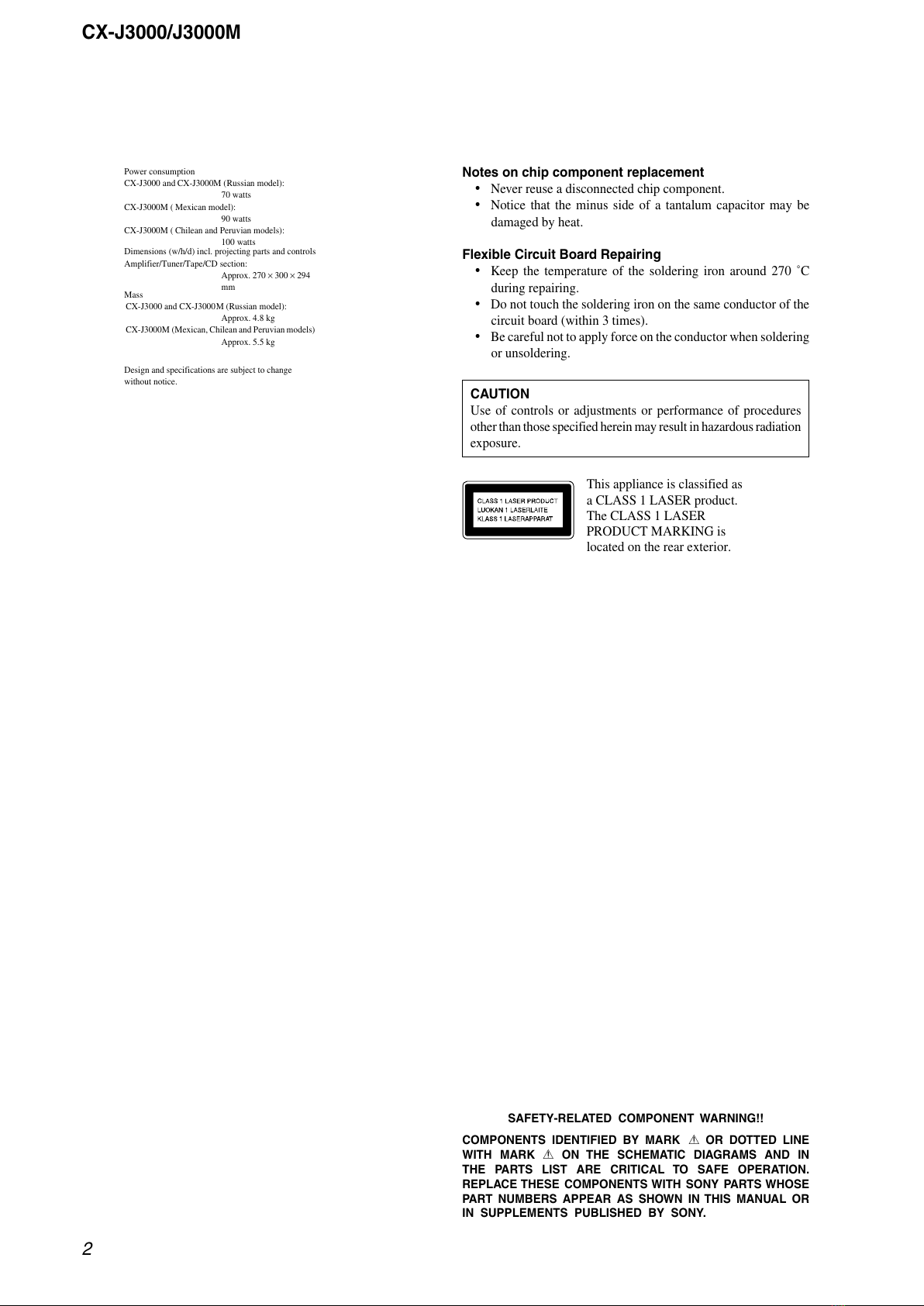

Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 ˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
Power consumption
nd CX-J3000M (
CX-J3000M (
CX-J3000M (
Russian model):
70 watts
Mexican model):
90 watts
Chilean and Peruvian models):
100 watts
CX-J3000 a
Dimensions (w/h/d) incl. projecting parts and controls
Amplifier/Tuner/Tape/CD section:
Approx. 270 ×300 ×294
mm
Mass
CX-J3000 and CX-J3000M (Russian model):
Approx. 4.8 kg
CX-J3000M (Mexican, Chilean and Peruvian models)
Approx. 5.5 kg
Design and specifications are subject to change
without notice.
All manuals and user guides at all-guides.com

3
CX-J3000/J3000M

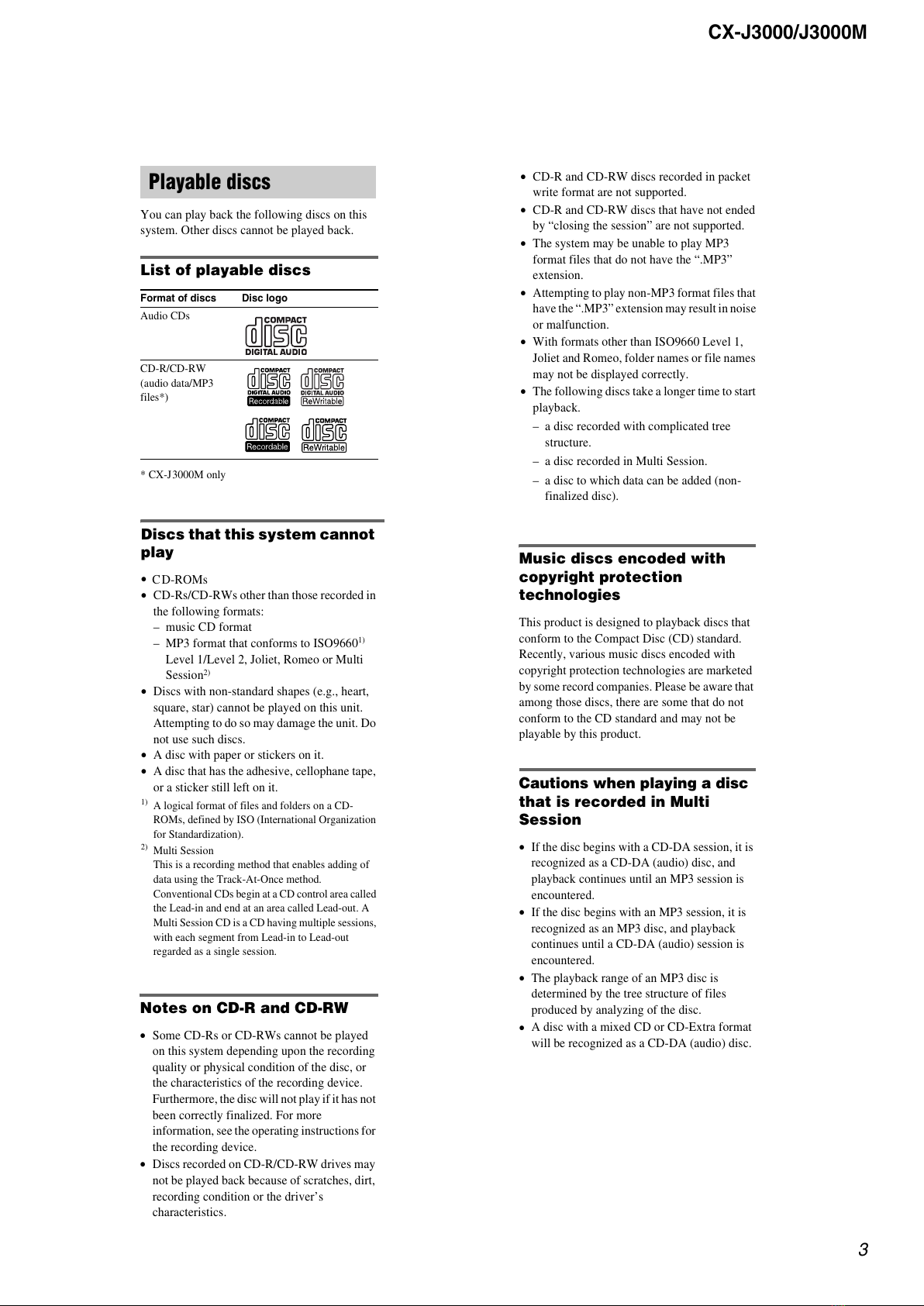

You can play back the following discs on this
system. Other discs cannot be played back.
List of playable discs
*CX-J3000M only
Playable discs
Format of discs Disc logo
Audio CDs
CD-R/CD-RW
(audio data/MP3
files*)
Discs that this system cannot
play
CD-ROMs
•
•
CD-Rs/CD-RWs other than those recorded in
the following formats:
–musicCDformat
–MP3format that conforms to ISO96601)
Level 1/Level 2, Joliet, Romeo or Multi
Session2)
•Discs with non-standard shapes (e.g., heart,
square, star) cannot be played on this unit.
Attempting to do so may damage the unit. Do
not use such discs.
•A disc with paper or stickers on it.
•A disc that has the adhesive, cellophane tape,
or a sticker still left on it.
1) A logical format of files and folders on a CD-
ROMs, defined by ISO (International Organization
for Standardization).
2) Multi Session
This is a recording method that enables adding of
data using the Track-At-Once method.
Conventional CDs begin at a CD control area called
the Lead-in and end at an area called Lead-out. A
Multi Session CD is a CD having multiple sessions,
with each segment from Lead-in to Lead-out
regarded as a single session.
Notes on CD-R and CD-RW
•Some CD-Rs or CD-RWs cannot be played
on this system depending upon the recording
quality or physical condition of the disc, or
the characteristics of the recording device.
Furthermore, the disc will not play if it has not
been correctly finalized. For more
information, see the operating instructions for
the recording device.
•Discs recorded on CD-R/CD-RW drives may
not be played back because of scratches, dirt,
recording condition or the driver’s
characteristics.
•CD-R and CD-RW discs recorded in packet
write format are not supported.
•CD-R and CD-RW discs that have not ended
by “closing the session” are not supported.
•The system may be unable to play MP3
format files that do not have the “.MP3”
extension.
•Attempting to play non-MP3 format files that
have the “.MP3” extension may result in noise
or malfunction.
•With formats other than ISO9660 Level 1,
Joliet and Romeo, folder names or file names
may not be displayed correctly.
•The following discs take a longer time to start
playback.
–adiscrecorded with complicated tree
structure.
–adisc recorded in Multi Session.
–adisctowhich data can be added (non-
finalized disc).
Music discs encoded with
copyright protection
technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware that
among those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
Cautions when playing a disc
that is recorded in Multi
Session
•If the disc begins with a CD-DA session, it is
recognized as a CD-DA (audio) disc, and
playback continues until an MP3 session is
encountered.
•If the disc begins with an MP3 session, it is
recognized as an MP3 disc, and playback
continues until a CD-DA (audio) session is
encountered.
•The playback range of an MP3 disc is
determined by the tree structure of files
produced by analyzing of the disc.
•A disc with a mixed CD or CD-Extra format
will be recognized as a CD-DA (audio) disc.
All manuals and user guides at all-guides.com

4
CX-J3000/J3000M
TABLE OF CONTENTS
1. SERVICING NOTES ................................................... 5
2. GENERAL ...................................................................... 6
3. DISASSEMBLY
3-1. DISASSEMBLY FLOW .................................................... 8
3-2. SIDE PANEL (L/R) ............................................................ 8
3-3. TOP PANEL SECTION ..................................................... 9
3-4. OPTICAL BLOCK SECTION ........................................... 9
3-5. OPTICAL PICK-UP (KSS-213R).................................... 10
3-6. FRONT PANEL SECTION .............................................. 10
3-7. MECHANICAL DECK (CWM43FR55) ......................... 11
3-8. MAIN BOARD ................................................................ 11
4. TEST MODE ................................................................ 12
5. MECHANICAL ADJUSTMENTS.......................... 13
6. ELECTRICAL ADJUSTMENTS ........................... 13
7. DIAGRAMS
7-1. BLOCK DIAGRAM – SERVO SECTION – ................... 17
7-2. BLOCK DIAGRAM – TUNER SECTION – .................. 18
7-3. BLOCK DIAGRAM – AUDIO SECTION – ................... 19
7-4. BLOCK DIAGRAM
– DISPLAY/POWER SUPPLY SECTION – .................. 20
7-5. PRINTED WIRING BOARD
– CD SECTION (J3000) – ............................................... 22
7-6. SCHEMATIC DIAGRAM
– CD SECTION (J3000) – ............................................... 23
7-7. PRINTED WIRING BOARD
– CD/MP3 SECTION (SIDE A) (J3000M) – ................... 24
7-8. PRINTED WIRING BOARD
– CD/MP3 SECTION (SIDE B) (J3000M) – ................... 25
7-9. SCHEMATIC DIAGRAM
– CD/MP3 SECTION (J3000M) – ................................... 26
7-10. PRINTED WIRING BOARDS
– PANEL SECTION –...................................................... 28
7-11. SCHEMATIC DIAGRAM – PANEL SECTION – .......... 29
7-12. PRINTED WIRING BOARD
– MAIN SECTION – ....................................................... 30
7-13. SCHEMATIC DIAGRAM
– MAIN SECTION (1/3) – ............................................... 31
7-14. SCHEMATIC DIAGRAM
– MAIN SECTION (2/3) – ............................................... 32
7-15. SCHEMATIC DIAGRAM
– MAIN SECTION (3/3) – ............................................... 33
7-16. PRINTED WIRING BOARD – AMP SECTION – ......... 34
7-17. SCHEMATIC DIAGRAM – AMP SECTION – .............. 35
7-18. PRINTED WIRING BOARDS
– POWER SUPPLY SECTION – ..................................... 36
7-19. SCHEMATIC DIAGRAM
– POWER SUPPLY SECTION – ..................................... 37
8. EXPLODED VIEWS
8-1. BACK/SIDE PANEL SECTION ...................................... 45
8-2. TOP PANEL SECTION ................................................... 46
8-3. FRONT PANEL (TAPE DECK) SECTION .................... 47
8-4. FRONT PANEL SECTION .............................................. 48
8-5. CHASSIS SECTION ........................................................ 49
8-6. OPTICAL PICK-UP SECTION (KSM-213RDP) ........... 50
9. ELECTRICAL PARTS LIST ................................... 51
All manuals and user guides at all-guides.com

5
CX-J3000/J3000M
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

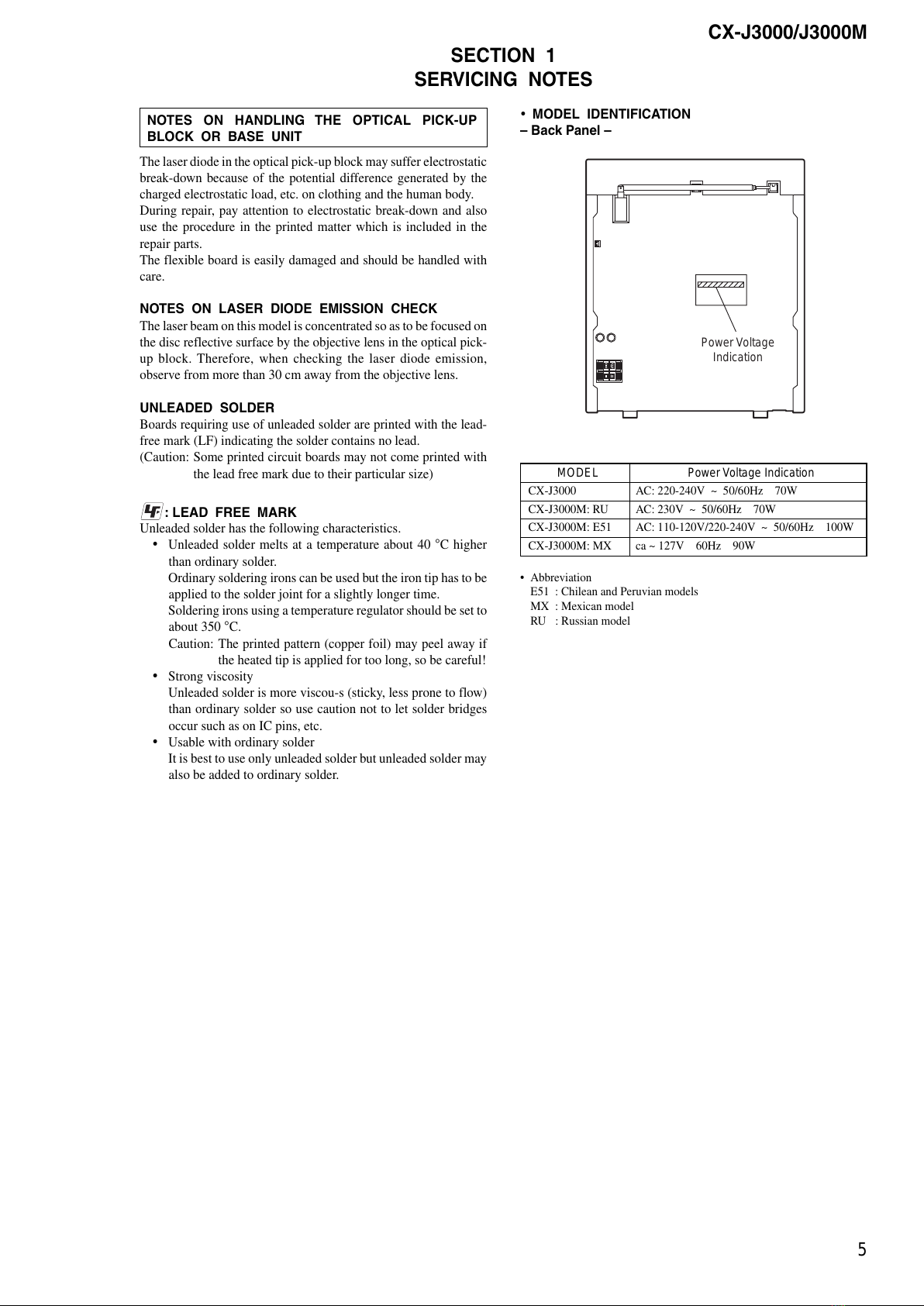

•MODEL IDENTIFICATION
– Back Panel –
MODEL Power Voltage Indication
CX-J3000 AC: 220-240V ~ 50/60Hz 70W
CX-J3000M: RU AC: 230V ~ 50/60Hz 70W
CX-J3000M: E51 AC: 110-120V/220-240V ~ 50/60Hz 100W
CX-J3000M: MX ca ~ 127V 60Hz 90W
Power Voltage
Indication
•Abbreviation
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
All manuals and user guides at all-guides.com

6
CX-J3000/J3000M
SECTION 2
GENERAL
This section is extracted from
instruction manual.
Main unit
ALBUM +/–
1) ql
CD 5
CD SYNC wd
DANCE qj
Deck A wa
Deck B qh
DISPLAY w;
Display window 8
FLAT qk
FM MODE
2) ql
i-Bass 0
PHONES jack qf
POP qs
POWER
3) 1
REC PAUSE/START wf
Remote sensor 3
REPEAT
2) ql
ROCK qa
STANDBY indicator 2
TAPE A/B 4
TUNER/BAND 6
TUNING MODE wg
VIDEO/SAT 7
VOLUME control qd
?/1
4)
(power) 1
./> (go back/go forward)
wg
m/M (rewind/fast forward)
wg
x(stop) wg
X(pause) wg
nN (play) wg
ZPUSH (deck A) (open/close)
ws
ZPUSH (deck B) (open/close)
qg
ZPUSH OPEN/CLOSE (open/
close) 9
+/– (tuning) wg
1)
CX-J3000M only
2)
Except for CX-J3000M
3)
Except for CX-J3000
4)
CX-J3000 only
ALPHABETICAL ORDER
A – O P – Z
BUTTON DESCRIPTIONS
134567
wa
ws
wd
wf
wg
289
qa
q;
qs
qd
qf
qh
qg
q
k
q
l
w
;
q
j
All manuals and user guides at all-guides.com
all-guides.com

7
CX-J3000/J3000M
Remote control
ALBUM +1) 0
ALBUM –1) qs
CD qj
CLEAR qf
DISC SKIP2) 9
DISPLAY w;
ENTER 8
EQ qd
FM MODE 3
FUNCTION 5
PLAY MODE ql
REPEAT 3
SELECT2) 1
SET2) 2
SLEEP wa
TAPE qh
TUNER BAND 4
TUNER MEMORY qk
TUNING MODE ql
VOLUME +/– qa
?/1 (power) ws
./> (go back/go forward)
qg
m/M (rewind/fast forward)
6
x(stop) 7
X(pause) 7
N(play) 7
+/– (tuning) qg
1) CX-J3000M only
2) This button cannot be used in
this system.
ALPHABETICAL ORDER
A – O P – Z
BUTTON DESCRIPTIONS
ws
qd
qg
qf
wa
w;
ql
qk
qj
qh
4
5
6
7
8
9
q;
1
qa
qs
3
2
All manuals and user guides at all-guides.com

8
CX-J3000/J3000M
Note: Follow the disassembly procedure in the numerical order given.
3-2. SIDE PANEL (L/R)
1 three screws
(case 3 TP2)
2 three screws
(BVTP 3
× 10)
3
4
5
side panel (L)
6 three screws
(case 3 TP2)
7 three screws
(BVTP 3
× 10)
8
9
0
side panel (R)
•This set can be disassembled in the order shown below.

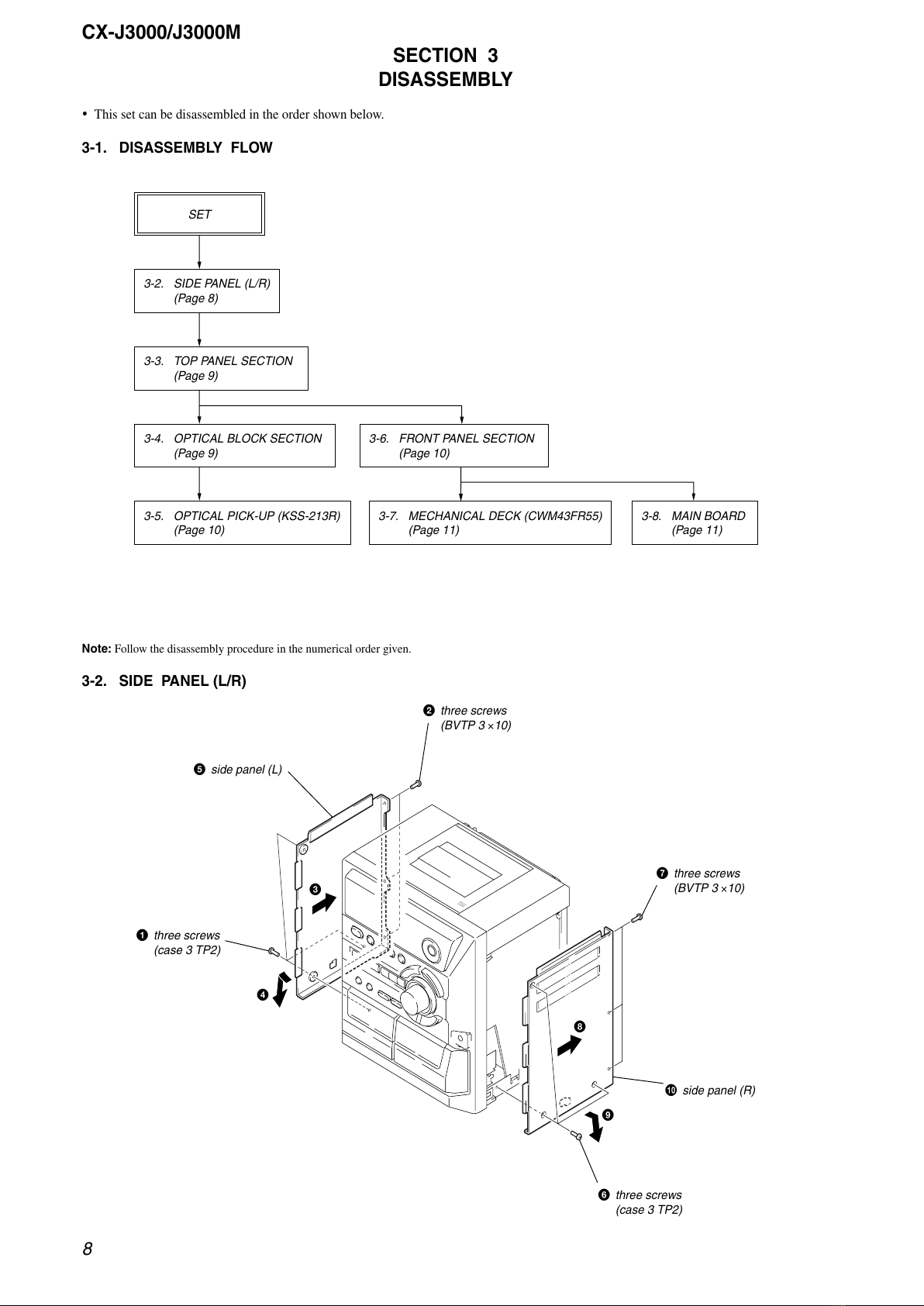

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
SET
3-2. SIDE PANEL (L/R)
(Page 8)
3-3. TOP PANEL SECTION
(Page 9)
3-8. MAIN BOARD
(Page 11)
3-4. OPTICAL BLOCK SECTION
(Page 9)
3-6. FRONT PANEL SECTION
(Page 10)
3-5. OPTICAL PICK-UP (KSS-213R)
(Page 10)
3-7. MECHANICAL DECK (CWM43FR55)
(Page 11)
All manuals and user guides at all-guides.com

9
CX-J3000/J3000M

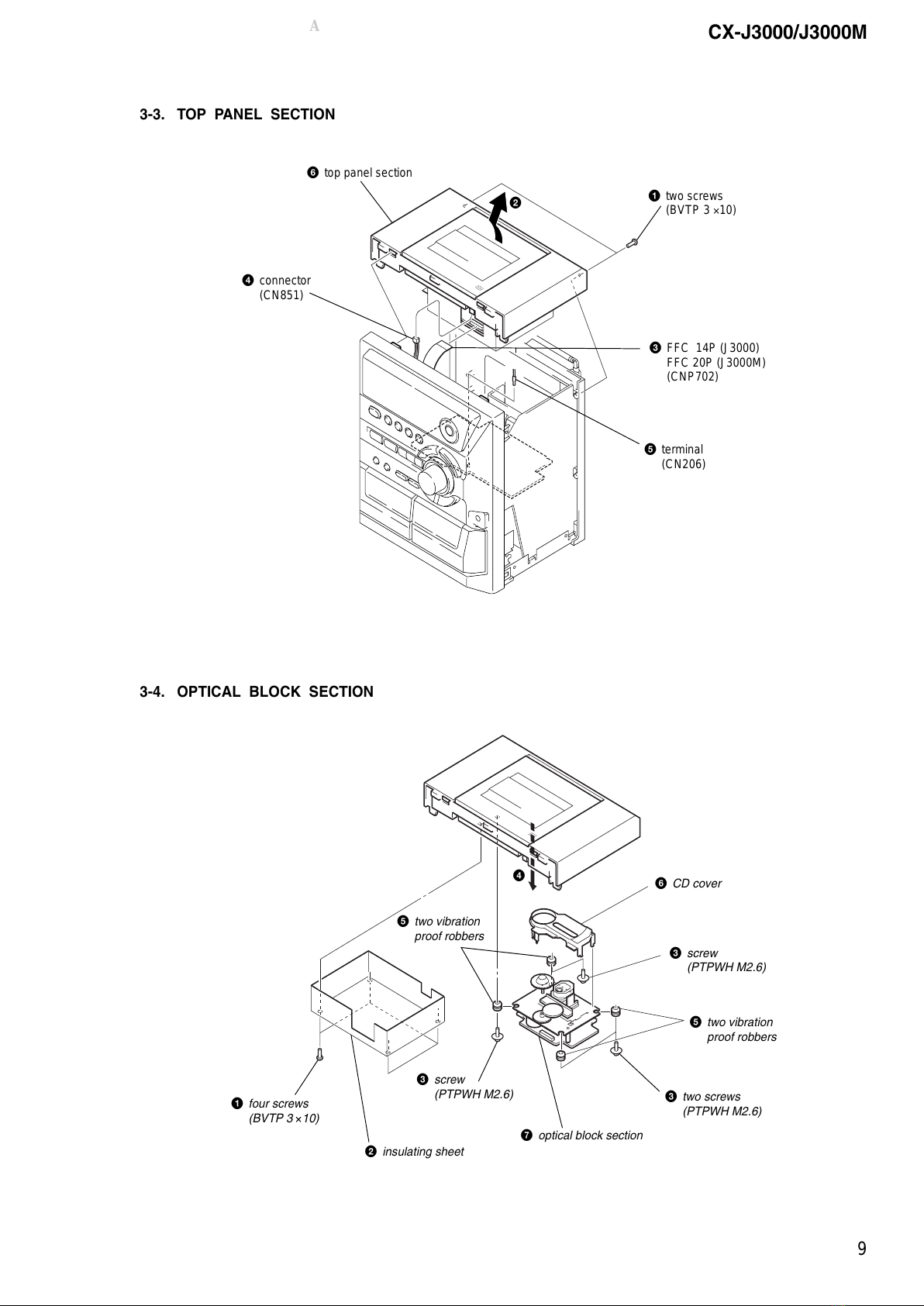

3-3. TOP PANEL SECTION
1 two screws
(BVTP 3
× 10)
2
3 FFC 14P (J3000
)
FFC 20P (J3000M
)
(CNP702)
4 connector
(CN851)
5 terminal
(CN206)
6 top panel section
3-4. OPTICAL BLOCK SECTION
1 four screws
(BVTP 3
´ 10)
3 two screws
(PTPWH M2.6)
3 screw
(PTPWH M2.6)
3 screw
(PTPWH M2.6)
2 insulating sheet
4
5
two vibration
proof robbers
5 two vibration
proof robber
s
6 CD cover
7 optical block section
All manuals and user guides at all-guides.com

10
CX-J3000/J3000M
3-6. FRONT PANEL SECTION
3-5. OPTICAL PICK-UP (KSS-213R)
4two screws (M2)
3gear (B)
6sled shaft
7flexible flat cable (16core) (CNP701)
8optical pick-up
(KSS-213R)
5
1two claws
1two claw
s
2CD cover
1 two screws
(BVTP 3
´ 10)
2 FFC15P
(CN105)
3 FFC13P (J3000M)
FFC15P (J3000)
(CN102)
4 connecto
r
(CN301)
5 connector
(CN003)
7
8
connector
6 claw
6 claw
9 front panel section
All manuals and user guides at all-guides.com
