Compact

Hi-Fi

Stereo

system

Operating

Instruction

LBT-D107

HST-D107

1992

by

Sony

Corporation

WW

Eldaliale)

Owner's

Record

The

model

and

serial

numbers

are

located

at

the

rear.

Record

these

numbers

in

the

space

provided

below.

Refer

to

these

numbers

whenever

you

call

upon

your

Sony

dealer

regarding

this

product.

Model

No.

Serial

No.

To

prevent

fire

or

shock

hazard,

do

not

expose

the

unit

to

rain

or

moisture.

CAUTION

:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

00

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL.

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

uninsulated

“dangerous

voltage”

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompanying

the

appliance.

Note

to

CATV

system

installer:

This

reminder

is

provided

to

call

the

CATV

system

installers

attention

to

Article

820-40

of

the

NEC

that

provides

guidelines

for

proper

grounding

and,

in

particular,

specifies

that

the

cable

ground

shall

be

connected

to

the

grounding

system

of

the

building,

as

close

to

the

point

of

cable

entry

as

practical.

INFORMATION

This

equipment

generates

and

uses

radio

frequency

energy

and

if

not

installed

and

used

property,

that

is,

in

strict

accordance

with

the

manufacturer's

instructions,

may

cause

interference

to

radio

and

television

reception.

It

has

been

type

tested

and

found

to

comply

with

the

limits

for

a

Class

B

computing

device

on

accordance

with

the

specifications

in

Subpart

J

of

Part

15

of

FCC

Rules,

which

are

designed

to

provide

reasonable

protection

against

such

interference

in

a

residential

installation.

However,

there

is

no

guarantee

that

interference

will

not

occur

in

a

particular

installation.

If

this

equipment

does

cause

interference

to

radio

or

television

reception,

which

can

be

determined

by

turning

the

equipment

off

and

on,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

the

following

measures:

Relocate

the

receiving

antenna

Relocate

the

equipment

with

respect

to

the

receiver

Move

the

equipment

away

from

the

receiver

Plug

the

equipment

into

a

different

outlet

so

that

equipment

and

receiver

are

on

different

branch

circuits.

If

necessary,

the

user

should

consult

the

dealer

or

an

experienced

radio/television

technician

for

additional

suggestions.

The

user

may

find

the

following

booklet

prepared

by

the

Federal

Communications

Commission

helpful:

“How

to

Identify

and

Resolve

Radio-TV

interference

Problems".

This

booklet

is

available

from

the

U.S.

Government

Printing

Office,

Washington,

DC

20402,

Stock

No.

004-000-00345-4.

ola

ifellesitrela)

This

manual

covers

the

system

in

the

chart

below.

The

system

number

is

shown

on

the

carton

box.

be

Component

System

number!

|

7.5107

|

HST-D107

p_Tumtabie

|

Ps-ixeor

|_|

[__eD

player__

|__|

0-caza

|

For

the

instructions

for

the

CDP-C322M,

refer

to

the

operating

instructions

supplied

with

it.

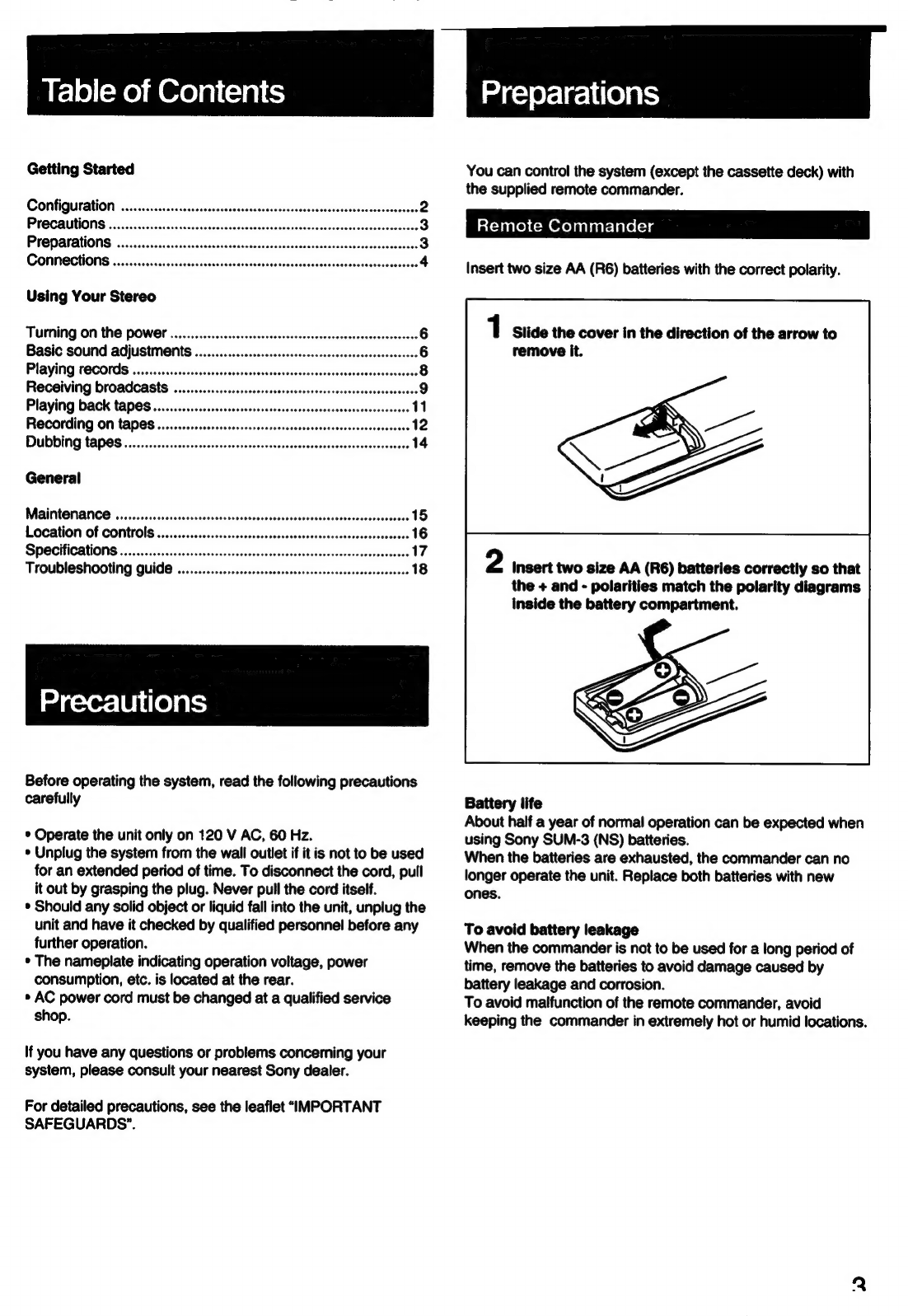

BF-le)(=Ke)m@re)ai(=al

Preparations

Getting

Started

Configuration

.csc..s.c.cieaccscsseosscsessscnenecassalaieedoivacosvssensosossdesesves

2

PHOCAURIONS

35n3

sisscsscccassscesscvesttessevecobceasveevenssesvarvesesosioseseotonsses

3

PROPAFAHIONS

...s.cscssccscscssatssecsicocessncessssretvscssdbeadeoedsécesnodesecsones

3

COMMOCHONS

5.

siisisassacsciccsssccsssccsceosetesoa

teutenssasnesdencoestesveonsoreose

4

Using

Your

Stereo

Turning

ON

the

POWET

...............csscsccsecercsrcsrsercsscsssesesccsecsscess

6

Basic

sound

adjustment

..............ccscssccsseresssssssesssesssesers

6

PLAYING

TECOMKS

|.

su

ssiicsccscssossecsiucusedsasssnsxseacenscvesbedasconsteseseielses

8

Receiving

broadcasts

............sscsscssecssesscescssccssessseesesceeecees

9

Playing

back

tapes

.............cscsscssscscesccesessssseceesssssescscees

11

ReCOrding

ON

tAPeS

..........scscssrccccscercerssesssecsssecsssescsceecersers

12

DUDDING

TAPES

sss.sccesssossessseccussssasiscacsenstevscocvensdsebeczedsescsecesese

14

General

Maintenance

.s.csicccvccsscessscescecsssnssarsssscesanoscossseasoesasoonvessvensed

16

Location

Of

CONHOMS

.............sssseccrsercsceccecsecerecsescsserseresseesers

16

SPOCHICANONS

5.5

suscuscinsedeccsielcsisvesschades

sasteseeascensnseasteatanersease

17

Troubleshooting

Quide

...............scccccsssccsscsserssscessesecerseeees

18

Precautions

Before

operating

the

system,

read

the

following

precautions

carefully

*

Operate

the

unit

only

on

120

V

AC,

60

Hz.

*

Unplug

the

system

from

the

wall

outlet

if it

is

not

to

be

used

for

an

extended

period

of

time.

To

disconnect

the

cord,

pull

it

out

by

grasping

the

plug.

Never

pull

the

cord

itself.

*

Should

any

solid

object

or

liquid

fall

into

the

unit,

unplug

the

unit

and

have

it

checked

by

qualified

personnel

before

any

further

operation.

*

The

nameplate

indicating

operation

voltage,

power

consumption,

etc.

is

located

at

the

rear.

»

AC

power

cord

must

be

changed

at

a

qualified

service

shop.

If

you

have

any

questions

or

problems

concerning

your

system,

please

consult

your

nearest

Sony

dealer.

For

detailed

precautions,

see

the

leaflet

“IMPORTANT

SAFEGUARDS”.

You

can

control

the

system

(except

the

cassette

deck)

with

the

supplied

remote

commander.

a

{ciaaleh(om

Orel

antaateiale(=i¢

Insert

two

size

AA

(R6)

batteries

with

the

correct

polarity.

1

Slide

the

cover

in

the

direction

of

the

arrow

to

remove

it.

2

Insert

two

size

AA

(R6)

batteries

correctly

so

that

the

+

and

-

polarities

match

the

polarity

diagrams

inside

the

battery

compartment.

Battery

life

About

half

a

year

of

normal

operation

can

be

expected

when

using

Sony

SUM-3

(NS)

batteries.

When

the

batteries

are

exhausted,

the

commander

can

no

longer

operate

the

unit.

Replace

both

batteries

with

new

ones.

To

avoid

battery

leakage

When

the

commander

is

not

to

be

used

for

a

long

period

of

time,

remove

the

batteries

to

avoid

damage

caused

by

battery

leakage

and

corrosion.

To

avoid

malfunction

of

the

remote

commander,

avoid

keeping

the

commander

in

extremely

hot

or

humid

locations.

Ore)

ay

ars.e4i(e)

ais

Turn

all

the

power

off

before

making

any

connections

The

diagram

below

shows

the

system

connection.

The

letters

in

the

diagram

correspond

to

those

in

the

text.

fo}

(tomo)

alm

Ore)

alatztoidiola

¢

Connect

the

AC

power

cord

last.

¢

Cord

plugs

and

jacks

are

color

coded.

Red

plugs

and

jacks

are

for

the

right

channel

(R)

and

white

ones

are

for

the

left

channel

(L).

Speaker

Cord

Connection

A

1

Strip

15

mm

of

the

speaker

cord

coating

from

the

end

of

the

cord.

2

Connect

the

right

speaker

to

the

R

(right)

speaker

terminal,

and

the

left

speaker

to

the

L

(left)

speaker

terminal.

saw

ValCclalatsm

Oxealatsvendloyal

'B

Connect

the

supplied

FM

wire

antenna

to

the

FM

75

Q

terminal

and

extend

horizontally.

How

to

attach

a

wire

to

the

terminal

a)

1

Press

down

on

the

button.

(

—

YY

Ys

(

=]

SEAN

artsy

U

1,

2

Insert

the

wire.

Supplied

wire

antenna

$

For

better

reception

Connect

to

an

outdoor

antenna.

3

Push

up

the

button.

eee

ss

we

-

PV

Nal

lalate

Orolalatsveniirole

iC

Connect

the

supplied

loop

antenna

to

the

AM

and

#

terminals.

You

can

attach

the

loop

antenna

on

the

wail

using

the

commercially

available

screws.

Lif

Lod

j

(=

=

TW)

HS

am

Yim

1=I

SS

[ad

/;

=

C7;

¥

For

better

reception

Connect

an

insulated

wire

of

6

to

15

meters

(20-

to

50-

feet)

to

the

AM

terminal.

a

avi

date-le)

(=)

iD)

Connect

the

turntable

(PS-LX49P)

to

the

HST-D107

stereo

deck

receiver.

To

listen

to

analog

discs,

press

the

PHONO

button.

HST-D107

CD

Player

'E|

Connect

the

CD

player

(supplied

only

HST-D107)

to

the

HST-D107

stereo

deck

receiver

with

a

connecting

cord.

To

listen

to

compact

discs,

press

the

CD

button.

HST-D107

LINE

OUT

yNofoliakem

Valo}

dal-1am

Oxelanl

slelal-1a]

ai

Com

(at=mch

2-3

(2104)

You

can

connect

a

VCR

to

the

VIDEO

jacks

respectively.

To

select

the

VCR,

press

the

VIDEO

button.

yX

Om

oTe)'

(=)

a

OF 0) ce

|

Connect

the

AC

power

cords

of

the

HST-D107

stereo

deck

receiver

and

CD

player

to

a

wall

outlet.

Turning

on

the

Power

Basic

Sound

Adjustments

Turn

on

the

power

after

completing

all

connections.

The

following

operations

apply

only

to

reproduced

sound.

The

letters

in

the

illustration

below

correspond

to

those

in

the

text.

Turn

on

the

stereo

deck

receiver.

Adjusting

the

Volume

Al

To

increase

the

volume,

turn

the

VOLUME

control

clockwise.

To

decrease

it,

turn

the

control

counterclockwise.

¢

Tum

down

the

volume

before

switching

on

the

unit.

This

prevents

damage

to

speakers.

Note

on

the

connected

CD

player

Turn

off

the

CD

player

when

you

listen

to

the

tuner;

otherwise,

you

may

hear

noise

while

receiving

radio

broadcast.

VOLUME

MIN

MAX

Adjusting

the

Sound

Quality

'B|

Adjust

the

following

5

BAND

GRAPHIC

EQUALIZER

controls.

100

Hz:

Boosts

or

cuts

heavy

bass.

330

Hz:

Adjusts

the

power,

spaciousness

and

warmth

of

the

sound.

1

kHz:

Accentuates

or

dims

vocals.

3.3

kHz:

Boosts

to

a

brighter

sound

or

reduces

stridency.

f

10

kHz:

Adjusts

tape

hiss

noise.

——

Adjusting

the

Balance

CG

When

the

position

of

the

speakers

is

not

symmetrical,

the

relative

strength

of

the

right

and

left

speaker

outputs

will

be

unbalanced.

Adjust

the

balance

with

the

BALANCE

control.

mG:

LEFT

RIGHT

Reinforcing

the

Bass

'D|

Adjust

the

DBFB

control.

DBFB

Pern

MIN

MAX

Enjoying

the

Surround

Effect

Adjust

the

SURROUND

control.

e

The

surround

effect

does

not

function

when

the

sound

source

is

monaural.

SURROUND

MIN

MAX

For

private

listening

Connect

a

pair

of

headphones

to

the

HEADPHONES

jack.

No

sound

is

heard

from

the

speakers

Playing

Records

You

can

listen

to

analog

discs

with

the

turntable

PS-LX49P

which

tums

on/off

when

you

turn

on/off

the

HST-D107.

1

Press

the

PHONO

button.

2

Place

a

record

on

the

turntable.

3

Select

the

speed

with

the

SPEED

button.

[SPEED]

4

Remove

the

stylus

cover

from

the

cartridge,

and

release

the

stopper

from

the

tone

arm.

Stylus

cover

5

Set

the

cuing

lever

to

¥.

6

Move

the

tone

arm

by

hand

to

the

desired

point

on

the

record.

7

Set

the

cuing

lever

to

¥.

a

When

the

record

is

played

to

the

end,

the

tone

arm

returns

to

the

armrest

and

the

turntable

stops.

To

stop

during

play,

press

the

REJECT

button.

To

play

a

different

part

of

the

record

Lift

the

tone

arm

by

setting

the

cuing

lever

to

¥,

move

the

tone

arm

by

hand

to

the

desired

point,

then

set

the

cuing

lever

to

¥.

To

play

a

17-cm

record

Use

the

supplied

adaptor.

if

the

tone

arm

moves

outward

when

you

move

it

close

to

the

centre

Do

not

resist

this

movement.

as

tt

may

damage

the

automatic

return

mechansm.

Receiving

Broadcasts

You

can

listen

to

FM

and

AM

stations.

AF

(ws

CO

1

Press

the

TUNER

button.

2

Press

the

BAND

SELECT

button

repeatedly

until

the

desired

band

appears.

BAND

SELECT

I

@

1

3

Keep

the

DUAL

MODE

TUNING

+

or

-

button

pressed

for

over

2

seconds

so

that

“AUTO”

blinks.

The

unit

starts

scanning

frequencies

and

stops

when

it

tunes

into

a

station.

Repeat

this

step

until

the

desired

station

is

tuned

in.

JAL

MODE

TUNING

U,

[=|

For

receiving

FM

stations

in

stereo

Press

the

ST/MUTE

button

as

many

times

as

“MUTING”

appears.

if

you

cannot

tune

in

a

desired

station

A

station

with

a

weak

signal

may

be

skipped.

In

this

case,

tune

in

the

station

manually.

¢

Press

the

DUAL

MODE

TUNING

+

or

-

button

again

to

stop

scanning.

¢

Press

the

DUAL

MODE

TUNING

+

or

-

button

repeatedly

and

tune

in

the

exact

frequency.

When

an

FM

stereo

program

is

noisy

or

hard

to

receive

Press

the

ST/MUTE

button

so

that

“MUTING’

disappears

from

the

display.

There

will

be

no

stereo

effect,

but

the

reception

will

be

improved.

Press

it

again

to

restore

the

stereo

effect.

The

“TUNED”

indication

appears

When

a

station

of

sufficient

signal

strength

is

tuned

in.

The

“STEREO”

indication

appears

When

an

FM

stereo

program

of

sufficient

signal

strength

is

tuned

in.

Receiving

Broadcasts

You

can

store

station

frequencies

in

the

unit's

memory

for

quick

recall

later

on.

Up

to

30

frequencies

in

any

band

can

be

stored

by

specifying

a

code

for

each

frequency.

The

code

is

a

combination

of

a

letter

-

A,

B

or

C

—

and

a

number

—

0

to

9:

A-1, A-2,

sy

A-9,

A-0,

B-1,

...,

C-1,

...,

C-0.

ro)

Co)

d

fare

meh

C1410)

fs)

4

Press

a

numeric

button

to

select

a

number

(0

-

9).

A

code

is

specified

and

the

setting

of

the

ST/MUTE

button

is

also

stored.

1

33

[in

Slen

8

250..63)

If

you

cannot

store

a

station

successfully

Be

sure

to

press

the

buttons

for

the

code

while

the

“MEMORY’

indication

is

displayed.

If

the

indication

has

gone

off,

press

the

MEMORY

button

again.

To

erase

a

stored

station

Storing

a

new

station

on

a

used

code

erases

the

previously

Stored

one.

Tuning

into

a

Stored

Station

Directly

Press

the

SHIFT

button

and

the

numeric

button

to

specify

the

code

for

the

desired

station.

1

Press

the

DUAL

MODE

TUNING

+

or

-

button

to

tune

in

the

desired

station.

DUAL

MODE

TUNING

PRESET

G1

Daf

2

Press

the

MEMORY

button.

“MEMORY”

appears

and

“~”

starts

blinking.

(hy

Gn

750.8

3

Press

the

SHIFT

button

to

select

a

letter

(A,

B

or

C).

SHIFT

jh,

len

6250.09]

Playing

Back Tapes

You

can

use

tapes

of

type

|

and

II

for

playback.

Playing

Deck

Aor

B

4

Press

the

TAPE

SELECT

button

to

select

tape

type.

TAPE

SELECT

5

Press

the

&

button.

Playback

starts.

|

1

Press

the

TAPE

button.

When

the

tape

is

played

to

the

end,

the

deck

stops.

A

To

stop

during

playback,

press

the

@

button.

To

fast

forward

or

rewind,

press

the

PP

or

<4

button.

To

pause,

press

the

if

PAUSE

button.

To

resume,

press

the

tt

PAUSE

button

again.

To

play

a

tape

recorded

with

the

Dolby

NR‘

effect.

Set

the

DOLBY

NR

switch

to

ON.

The

setting

is

operated

on

2

Press

the

@

4

button.

both

decks.

This

unit

is

provided

with

DOLBY

B

NR

system.

oe

|

When

both

decks

are

set

to

play

mode

cs

Only

the

sound

from

deck

B

will

be

heard.

*

Dolby

noise

reduction

manufactured

under

license

from

Dolby

Laboratories

Licensing

Corporation.

“DOLBY"and

the

double-D

symbol

00

are

trademarks

of

Dobly

Laboratories

Licensing

Corporation.

3

Insert

a

recorded

tape.

Playing

from

Deck

to

Deck—Relay

Play

1

Insert

tapes

into

deck

A

and

B.

2

Press

the

&

button

on

deck

B.

Deck

B

starts

playing.

3

Press

the

@

PAUSE

button

and

the

B

button

on

deck

A.

When

the

tape

in

deck

B

ends,

the

tape

in

deck

A

starts

playing.

ais

ee)celialeRelamm

fs]

e.

2.)

You

can

use

tape

type

|

and

II

for

recording.

Recording

a

Tape

4

Set

the

DOLBY

NR

switch

to

ON

or

OFF.

DOLBY

NR

The

Dolby

NR

(noise

reduction)

system

reduces

tape

hiss

noise

in

low-level,

high-frequency

signals

by

!

boosting

the

signals

during

recording

and

then

lowering

them

during

playback.

a

po

=

oe

.

5

Press

the

@

REC

button

and

start

the

selected

source.

Recording

starts.

fas

1

Select

a

source

(except

TAPE)

with

the

function

selectors.

You

can

also

select

the

audio

sources

of

equipment

connected

to

the

VIDEO

jacks.

When

the

tape

is

recorded

to

the

end,

the

deck

stops.

To

stop

during

recording,

press

the

HB

4

button.

|

cp

|

Tuner

|

PHONO

|

To

start

recording

more

precisely

1

After

steps

1

to

4

above,

press

the

if

PAUSE

button.

2

Press

the

@

REC

button.

3

Press

the

tt

PAUSE

button

again

to

start

recording.

2

Insert

a

blank

tape

into

deck

B.

‘ra¥ax]

3

Press

the

TAPE

SELECT

button

to

select

tape

type.

TAPE

SELECT

12

eage)(=re4

(ialem

Kolela

atlere)celiale|

Break

off

the tab

of

the

side

to

be

protected.

For

side

A,

break

off

the

right-hand

tab

facing

the

side

A

up.

This

prevents

further

recording

on

that

side.

°

Tab

of

side

B

Tab

of

side

A

To

record

on

a

protected

tape,

cover

the

opening

with

plastic

tape.

When

using

type

II

(CrOz)

tape,

take

care

not

to

cover

the

slots

used

for

tape

type

detection.

TYPE

It

Toon

of

Detector

slots

13

Dubbing

Tapes

You

can

dub

a

tape

in

deck

A

onto

a

tape

in

deck

B.

1

Insert

a

recorded

tape

into

deck

A

and

a

blank

tape

into

deck

B.

2

Press

the

TAPE

SELECT

button

to

select

tape

type.

TAPE

SELECT

3

Select

dubbing

speed

(NORMAL

or

HIGH)

with

the

DUBBING

SPEED

button.

DUBBING

SPEED

14

4

Press

the

if

PAUSE

button,

then

the

®

button

on

deck

A.

5

Press

the

@

REC

button

on

deck

B.

Dubbing

starts.

Fe

To

stop

dubbing,

press

the

B

4

button

on

deck

A,

then

press

the

B

4

button

on

deck

B.

You

need

not

designate

the

Dolby

NR

system

The

tape

in

deck

B

is

recorded

with

the

same

recording

level

and

Dolby

NR

system

as

the

original

tape

in

deck

A.

You

can

listen

to

other

program

sources

during

dubbing

Select

the

program

source

with

the

function

selectors.

Et

aicarelaes

Keeping

your

system

in

good

condition

will

allow

you

to

enjoy

good

sound.

Or

(<F-Tal

late

pe

delzm

Ore]

eli

etsy

Use

a

soft

cloth

lightly

moistened

with

a

mild

detergent

solution.

OF-TaaT-Tefal=a

(r4uatem

(alc

M

a

let-(e

b>

Remove

magnetism

built

up

on

the

heads

after

every

20

to

30

hours

of

use.

Turn

off

the

power

unit

before

demagnetizing

the

heads.

Use

any

commercially

available

demagnetizer.

Oa

=F

ToT

iale

Mal=r-lef-w-]

alo

mm

l-]

ol-

27-114)

Clean

after

every

10

hours

of

use

and

before

recording.

1

Press

the

@

4

button

to

open

the

cassette

holder.

Moisten

a

cotton

swab

slightly

with

cleaning

fluid

or

alcohol.

Wipe

heads,

pinch

rollers

and

capstans.

oe

Playback

Erasing

Pinch

roller

head

~

Playback/

recording

head

Do

not

insert

a

cassette

until

cleaned

areas

are

completely

drv.

|

Mores)

((e)

ake)

m

Ore

lalize)

Refer

to

the

pages

indicated

in

parentheses

for

details.

Stereo

Deck

Receiver

HST-D107

Al

Tuner

section

[1]

POWER

switch

(page

6)

[2]

Remote

sensor

(3]

MEMORY

button

(page

10)

[4]

ST/MUTE

button

(page

9)

[5]

Display

window

[6]

SHIFT

button

(page

10)

BAND

SELECT

button

(page

9)

Numeric

buttons

(page

10)

{9]

DUAL

MODE

TUNING

+/-

buttons

(pages

9,10)

Amplifier

section

5

BAND

GRAPHIC

EQUALIZER

controls

(page

7)

(1)

HEADPHONES

jack

(page

7)

(2]

FUNCTION

INDICATOR

[13]

Function

selectors

[14]

VOLUME

contro!

(page

6)

(1s)

BALANCE

control

(page

7)

DBFB

(dynamic

bass

feedback)

control

(page

7)

SURROUND

contro!

(page

7)

Cassette

deck

section

Cassette

holders

Tape

operating

buttons

>

(play)

button,

B

4

(stop

/

eject)

button,

Ph

(rightward

fast

winding)

button,

44

(leftward

fast

winding)

button,

if

PAUSE

button,

@REC

button

(only

for

deck

B)

TAPE

SELECT

button

(pages

11,12,

14)

[2)

DUBBING

SPEED

(HIGH

/

NORMAL)

button

(page

14)

DOLBY

NR

(noise

reduction)

switch

(pages

11,

12)

Turntable

PS-LX49P

(only

for

LBT-D107)

(1)

45-rpm

adaptor

(2]

Center

spindle

[3]

Cueing

lever

[4]

Tone

arm

(5]

Armrest

[6]

Cartridge

REJECT

button

SPEED

button

Remote

Commander

RM-S171

Ci

[1]

Function

selectors

(2]

CD

operating

buttons

The

DISC

skip

button

functions

only

on

a

CD

player

with

multiple

disc

trays.

[3)

SHIFT

button

(page

10)

[4]

Tuner

operating

buttons

and

numeric

buttons

for

CD

player

(5]

VOL

(volume)

+/—

buttons

(page

6)

16

Specifications

AUDIO

POWER

SPECIFICATIONS

POWER

OUTPUT

AND

TOTAL

HARMONIC

DISTORTION:

with

6

ohm

loads

both

channel

driven,

from

40

-

20,000

Hz;

rated

15

watts

per

channel

minimum

RMS

power,

with

no

more

than

0.5%

total

harmonic

distortion

from

250

milliwatts

to

rated

output.

Tuner

System

FM

stereo

FM/AM

superheterodyne

tuner

FM

tuner

section

Tuning

range

87.5

to

108

MHz

Antenna

300

ohms

balanced

75

ohms

unbalanced

Intermediate

frequency

10.7

MHz

AM

tuner

section

Tuning

range

530

to

1,710

kHz

Antenna

AM

loop

antenna

External

antenna

terminal

Intermediate

frequency

450 kHz

Amplifier

oe

ey

Cee

Oana

HEADPHONES

|

Stereo

phone

|

Accepts

headphones

of

8

ohms

or

more

Frequency

response

CD:

15

Hz

to

50

kHz

ue

dB

Cassette

deck

Recording

system

4-track

2-channel

stereo

Frequency

response

DOLBY

NR

OFF

With

Type

II

cassette

(Sony

UX-S)

40

Hz

to

14

kHz

(+3

dB)

With

Type

|

cassette

(Sony

HF-S)

40

Hz

to

13

kHz

(+3

dB)

Wow

and

flutter

0.1%

(WRMS)

General

Power

requirements

120

VAC,

60

Hz

Power

consumption

60W

Weight

Approx.

6.7

kg

(14

Ib

12

oz)

Dimensions

Approx.

355

x

290

x

325

mm

(14

x

11'/2

x

127/s

inches)

(w/h/d,

including

projections)

Turntable

(only

for

LBT-D107)

Platter

30

cm

Tone

arm

type

Dynamically

balanced

Cartridge

type

Moving

magnet

type

Stylus

CN-234

(0.6

mil

diamond)

Weight

Approx.

2.3

kg

(5

Ib

1

oz)

Dimensions

Approx.

355

X

95

X

345

mm

(14

x

3%,

x

13%/,

inches)

(w/h/d,

including

projections)

Speaker

systems

Speaker

system

3-way

Weight

Approx.

4.3

kg

(9

Ib

7

oz

),

per

speaker

Dimensions

Approx.

260

x

441

x

175

mm

(10'/s

x

17%/e

x

7

inches)(w/h/d)

Accessaries

supplied

45-rpm

adaptor

(1)

(only

for

LBT-D107)

Remote

commander

RM-S171

(1)

Batteries

Sony

SUM-3

(NS)

(2)

FM

wire

antenna

(1)

AM

loop

antenna

(1)

Design

and

specifications

are

subject

to

change

without

notice.

Hie)s/o)(-\jaleve)(ialemeleiie.=

Before

going

through

the

check

list

below,

first

refer

back

to

the

connections

and

operating

procedures.

Should

any

problem

persist

after

you

have

made

these

checks,

consult

your

nearest

General

Symptom

Cause

Remedy

No

power

AC

power

cord

is

not

connected

Connect

the

AC

power

cord

securely.

No

sound

The

VOLUME

control

is

not

turned

up.

Tum

up

the

volume.

Reversed

left

and

right

sound

Wrong

connection

Connect

the

speakers

correctly.

Severe

hum

and

noise

Wrong

connection

Connect

the

speakers

correctly.

Loose

connections

Make

connections

securely.

The

unit

is

located

near

TV/VCR.

Move

TV/VCR

away

from

the

unit.

Symptom

Cause

Remedy

blinks.

direction.

antenna.

Received

signals

are

weak.

Connect

to

an

external

antenna

if

the

indication

still

blinks

even

after

adjusting

the

antenna.

Severe

hum

or

noise

Antenna

is

not

aimed

in

the

right

Adjust

the

location

and

direction

of

the

direction.

antenna.

Received

signals

are

weak.

Connect

to

an

external

antenna

if

hum

or

noise

still

interferes

with

reception.

Cassette

Deck

Symptom

Cause

Remedy

|

You

can

not

record

on

a

tape.

The

tab

has

been

removed

from

the

Cover

it

with

a

piece

of

adhesive

tape.

cassette.

You

cannot

dub

tapes.

The

tab

of

the

cassette

in

deck

B

has

Cover

it

with

a

piece

of

adhesive

tape.

been

removed.

i

Unbalanced

tone

in

higher

frequencies

The

DOLBY

NR

switch

is

not

in

the

Set

the

DOLBY

NR

switch

to

ON

or

correct

position.

OFF

as

was

set

for

recording.

Unclear

recording

or

playback

Dirty

head

Clean

and

demagnetize

the

recording/

playback

heads.

Excessive

wow

or

flutter,

or

sound

Dirty

capstans

and

pinch

rollers

Clean

the

capstan

and

pinch

roller.

dropout

Incomplete

erasure.

Magnetized

erasing

head

Demagnetize

the

erasing

head.

is

{cnee)

(=m

Oxo)

aataar-lale(=14

Symptom

Cause

Remedy

The

remote

commander

does

not

The

batteries

are

run

down.

Replace

both

batteries.

function.

The

remote

commander

is

not

pointed

—

Point

the

remote

commander

at

the

at

the

remote

sensor.

There

is

an

obstacle

between

the

Remove

the

obstacle.

remote

commander

and

the

unit.

The

remote

commander

is

too

far

from

Move

closer.

the

unit.

BaUidaleclelizmcolalh

miela@

=

8

ia

OR

Lela)

Symptom

Cause

Remedy

Tone

arm

skips,

skates

or

does

not

Not

properly

positioned

Place

the

turntable

on

a

level

surface

advance

Poor

sound

quality

Dirty

stylus

Clean

or

repiace

the

stylus

Rumble

or

low

frequency

howl

Turntable

is

near

speakers

Move

speakers

away

from

the

turntable

The

tone

arm

does

not

return

to

its

_

Press

the

REJECT

button

armrest

19

Sony LBT-D107 User manual

Popular Stereo System manuals by other brands
