Table of
Contents
Features ........................... 4
How to use the unit.............. 5
GETTING STARTED
Unpacking ........................ 6
Location of Parts ............. 6
OPERATING THE
UNIT
Using the unit .................. 7
Preparation .......................... 7
Pairing ................................. 7
Connecting .......................... 9
Initializing ......................... 10
ADDITIONAL
INFORMATION
Precautions.................... 11
Troubleshooting ............ 13
What is BLUETOOTH
technology? ................... 14
Specifications ................ 15
GB

TDM-BT1 [GB] 3-095-404-11(1)
4
GB

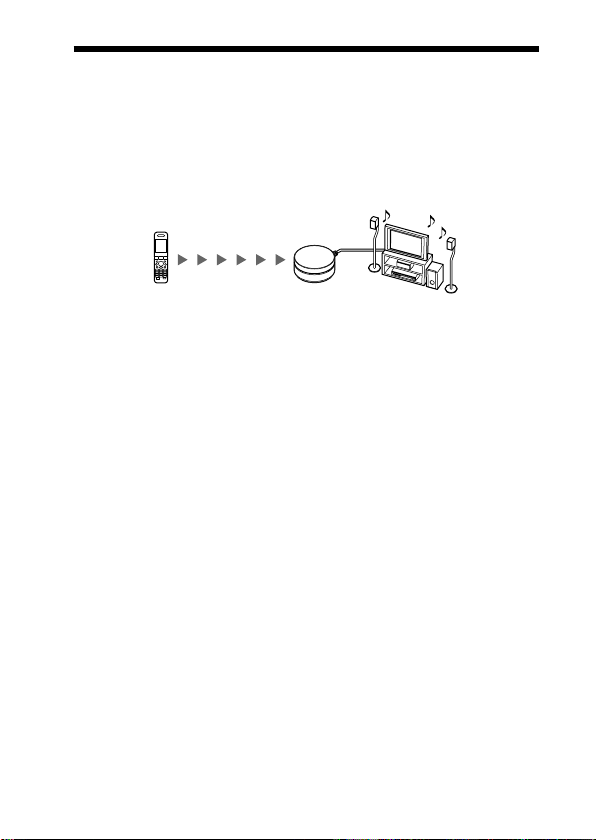

Features
You can enjoy listening to a BLUETOOTH stereo audio source device
(mobile phone, digital music player, etc.) *, with a DIGITAL MEDIA
PORT jack (Sony Home Theatre System, etc.) connected to this unit
using BLUETOOTH wireless technology, and convert digital wireless
audio signals to analog (analogue) audio signals.
RESET
*BLUETOOTH devices to be connected with this unit are required to support
A2DP (Advanced Audio Distribution Profile).
Notes
•DIGITAL MEDIA PORT is occasionally abbreviated as DMPORT.
•For details on how to operate the devices to be connected, refer to the operating
instructions supplied with each device.
•For details regarding compatible BLUETOOTH connectable devices, visit the
following URLs.
Customers in the U.S.A.
http://sony.com/support
Customers in Canada
http://www.sony.ca/support
Customers in Europe
http://support.sony-europe.com
This unit Stereo audio
output device
BLUETOOTH mobile phone
or other BLUETOOTH stereo
audio source device
Example

5
GB
TDM-BT1 [GB] 3-095-404-11(1)
RESET
v
v
RESET

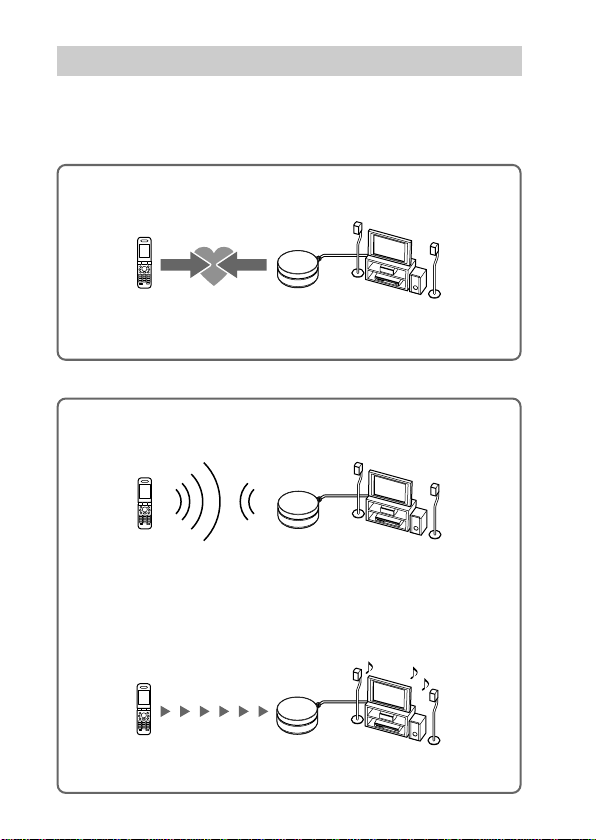

How to use the unit
In the example below, we will explain how to receive music played on a
BLUETOOTH mobile phone via the music playback function on this
unit, and listen to music on a stereo audio output device with a
DIGITAL MEDIA PORT jack (DAV series, etc.) connected to this unit.
1. Pairing
Enables a BLUETOOTH mobile phone and this unit to
recognize one another.
BLUETOOTH
mobile phone
This unit
2. BLUETOOTH connection
Operate the BLUETOOTH mobile phone to make the
BLUETOOTH connection.
Pairing
Connection
For more details, see pages 7and 9.
Stereo audio
output device
RESET
3. Receiving music
Enjoy listening to music played on a BLUETOOTH mobile
phone through a stereo audio output device (DAV series, etc.)
connected to this unit.
Stereo audio signal
(Streaming) For more details, see page 9.

TDM-BT1 [GB] 3-095-404-11(1)
6
GB
Unpacking
•BLUETOOTH Wireless Audio Adapter (1)
•Operating Instructions (1)
GETTING STARTED
Location of Parts
1OPR button (7)
2DIGITAL MEDIA PORT cable (7)
3RESET button (10)
4LED status indicator
Status LED status indicator
Ready Lights up for 2 seconds
Pairing mode Flashes very quickly
Connection possible Flashes slowly
Connect Constantly on
Disconnect Flashes quickly
RESET
OPR

TDM-BT1 [GB] 3-095-404-11(1)
7
GB
Using the unit
Preparation
1Connect the DIGITAL MEDIA PORT cable of this unit
to the DIGITAL MEDIA PORT jack of a stereo audio
output device (DAV series, etc.). Make sure the output
device is turned off before connecting.
RESET
DMPORT
2Turn on the stereo output device with a DIGITAL
MEDIA PORT jack (DAV series, etc.) connected to this
unit, and select the DIGITAL MEDIA PORT input.
The LED status indicator lights up for 2 seconds to indicate
“Ready.”
Pairing
What is pairing?
BLUETOOTH devices need to be “paired” with each other beforehand.
Once BLUETOOTH devices are paired, there is no need for pairing
again, except in the following cases:
•Pairing information is deleted after repair, etc.
•This unit can be paired with up to 8 BLUETOOTH stereo audio
source devices. If a new device is paired thereafter, the device with
the oldest registration among the 8 paired devices is replaced by the
new one.
To DIGITAL MEDIA
PORT jack
This unit Stereo audio
output device
OPERATING THE UNIT
Continued

8
GB
TDM-BT1 [GB] 3-095-404-11(1)
1Press and hold the OPR button for 3 seconds or more.
OPR
OPR
The LED status indicator starts flashing very quickly and this unit
enters pairing mode.
Note
Pairing mode is canceled automatically if pairing is not achieved within 5
minutes, or manually by pressing the OPR button. If pairing mode is canceled
midway, start over from step 1.
2Perform pairing procedure on the BLUETOOTH stereo
audio source device to detect this unit.
The list of detected devices appears on the display of the
BLUETOOTH stereo audio source device.
This unit is displayed as “TDM-BT1.”
If “TDM-BT1” is not displayed, repeat from step 1.
Notes
•When pairing, be sure to place both the BLUETOOTH devices within 1 m
of each other.
• Some devices cannot display the list of detected devices.
• To operate the BLUETOOTH stereo audio source device, refer to the
operation instructions of the device.
3Select “TDM-BT1” on the display of the BLUETOOTH
stereo audio source device.
4If Passcode*input is required on the BLUETOOTH
stereo audio source device, input “0000”.
When BLUETOOTH pairing is complete, the LED status indicator
flashes slowly and pairing information is memorized on this unit.
*Passcode may be called “Passkey,” “PIN code,” “PIN number,” or
“Password.”
Notes
•Some BLUETOOTH stereo audio source devices may connect with the
unit automatically when pairing is completed. For other devices, you will
have to connect to this device manually.
• If you disconnect this unit or the BLUETOOTH stereo audio source device,
before a connection is complete, pairing information is not memorized, and
pairing will not be completed.

TDM-BT1 [GB] 3-095-404-11(1)
9
GB
When pairing with a BLUETOOTH stereo audio source device that
cannot display a list of detected devices or that has no display
You may pair the device by setting both this unit and the BLUETOOTH stereo
audio source device to pairing mode. For details, refer to the operating instructions
supplied with the device.
Note
For devices without a display screen the device must have a default pin code of
“0000” to work with the TDM-BT1.
If pairing is not complete
Start over from step 1.
Note
Passcode of this unit is fixed to “0000”. This unit cannot be paired with a
BLUETOOTH stereo audio source device whose Passcode is not “0000”.
Tip
To pair with other BLUETOOTH stereo audio source devices, repeat steps 1to 5
for each device.
Connecting
Check “Preparation” (page 7) and “Pairing” (page 7) before operating
the unit.
1Check to see if the LED status indicator flashes
slowly, indicating connection is possible.
Note
If the LED status indicator turns off, perform the pairing procedure, or press
the OPR button momentarily.
2Start the BLUETOOTH connection from the
BLUETOOTH stereo audio source device.
3Start music playback on the BLUETOOTH stereo
audio source device.
Notes
•After connection is complete, the LED status indicator becomes constant.
•Turn off the bass boost function or equalizer function of the BLUETOOTH
stereo audio source device. If these functions are on, sound may be
distorted.
Continued

10
GB
TDM-BT1 [GB] 3-095-404-11(1)
To finish connecting
Terminate the BLUETOOTH connection by any of the operations
below.
–Operate the BLUETOOTH stereo audio source device to terminate the
connection. For details, refer to the operating instructions supplied with the
device.
–Turn off the BLUETOOTH stereo audio source device.
–Press the OPR button momentarily. Until the disconnection is complete, the
LED status indicator flashes.
Note
In the following cases, you need to make the BLUETOOTH connection
again.
– The BLUETOOTH connection is disconnected once.
–The power of the BLUETOOTH stereo audio source device does not turn on, or
the BLUETOOTH signal is off.
–The BLUETOOTH stereo source device is in sleep mode.
– The BLUETOOTH connection is not made.
To turn off the BLUETOOTH signal
Even if you stop BLUETOOTH communication with the BLUETOOTH
stereo audio device, this unit continues to send out signals. You can stop
the signal completely by the operations below.
–When the LED is on:
Press momentarily the OPR button to stop BLUETOOTH communication with
the BLUETOOTH stereo audio device. Then press momentarily the OPR
button again to turn off the signal from the unit.
–When the LED is flashing:
Press momentarily the OPR button to turn off the signal from the unit.
Initializing
You can reset this unit to its default setting and delete all pairing
information.
If this unit is turned on, use a thin pointed object
(such as a paper clip) to press the RESET button to
initialize this unit.
The LED status indicator flashes twice, and this unit is reset to the
default.
All pairing information is deleted.
Note
If this unit is connected to a BLUETOOTH device, you cannot reset this
unit.

11
GB
TDM-BT1 [GB] 3-095-404-11(1)
Precautions
•BLUETOOTH wireless technology
operates within a range of about 10
m. Maximum communication
range may vary depending on
obstacles (person, metal, wall, etc.)
or electromagnetic environment.
IDSET
RX
TX
OPR
•The following conditions may
affect the sensitivity of
BLUETOOTH communication.
–There is an obstacle such as a
person, metal, or wall between
this unit and BLUETOOTH
device.
–Adevice using 2.4 GHz
frequency, such as a wireless
LAN device, cordless telephone,
or microwave oven, is in use near
this unit.
–This unit is installed horizontally
on a desk made of steel.
•Because BLUETOOTH devices
and wireless LAN (IEEE802.11b/
g) use the same frequency,
microwave interference may occur
and resulting in communication
speed deterioration, noise, or
invalid connection if this unit is
used near a wireless LAN device.
In such a case, perform the
following.
–Use this unit at least 10 m away
from the wireless LAN device.
–If this unit is used within 10 m of
a wireless LAN device, turn off
the wireless LAN device.
–Install this unit and
BLUETOOTH device as near to
each other as possible.
•Microwaves emitting from a
BLUETOOTH device may affect
the operation of electronic medical
devices. Turn off this unit and other
BLUETOOTH devices in the
following locations, as it may cause
an accident.
–where inflammable gas is
present, in a hospital, train,
airplane, or a gas (petrol) station
–near automatic doors or a fire
alarm
•Refer to “To turn off the
BLUETOOTH signal” (page 10)
for further details regarding how to
quit BLUETOOTH connection of
this unit.
Limited performance
This unit
Steel cabinet
Optimal performance
ADDITIONAL INFORMATION
BLUETOOTH stereo
audio source device

TDM-BT1 [GB] 3-095-404-11(1)
12
GB
On safety
•Do not drop, hit, or otherwise
expose the unit to strong shock of
any kind. This could damage the
product.
•Do not disassemble or attempt to
open any parts of the unit.
On placement
•Do not place the unit in any of the
following locations.
–Direct sunlight, near a heater, or
other extremely high-temperature
location
– Dusty location
– An unsteady or inclined surface
–Location exposed to large
amounts of vibration
–Bathroom or other high-humidity
location
–In a car subject to the direct rays
of the sun.
Notes when using with a
mobile phone
•You cannot use this unit to talk
over the telephone, even if the
BLUETOOTH connection between
this unit and a mobile phone is
made.
•For details on operation of your
mobile phone when receiving a
telephone call while transmitting
music using the BLUETOOTH
connection, refer to the operating
instructions supplied with the
mobile phone.
Others
• If you have any questions or
problems concerning this unit that
are not covered in this manual,
please consult your nearest Sony
dealer.
•Should any problem persist, consult
your nearest Sony dealer.
•This unit supports security
capabilities that comply with the
BLUETOOTH standard to provide
a secure connection when the
BLUETOOTH wireless technology
is used, but security may not be
enough depending on the setting.
Be careful when communicating
using BLUETOOTH wireless
technology.
•We do not take any responsibility
for the leakage of information
during BLUETOOTH
communication.
•Connection with all BLUETOOTH
devices cannot be guaranteed.
–Adevice featuring
BLUETOOTH function is
required to conform to the
BLUETOOTH standard specified
by BLUETOOTH SIG, and be
authenticated.
–Even if the connected device
conforms to the above mentioned
BLUETOOTH standard, some
devices may not be connected or
work correctly, depending on the
features or specifications of the
device.
•Depending on the device to be
connected, it may require some
time to start communication.

13
GB
TDM-BT1 [GB] 3-095-404-11(1)
Troubleshooting
If you run into any problems using this unit, use the following checklist.
Should any problem persist, consult your nearest Sony dealer.
No sound
,Check the connection between
this unit and the stereo audio
output device connected to this
unit.
,Check that both this unit and the
BLUETOOTH stereo audio
source device are turned on.
,Ensure that this unit is not too far
from the BLUETOOTH stereo
audio source device, or this unit
is not receiving interference from
a wireless LAN, other 2.4 GHz
wireless device, or microwave
oven.
,Check that the BLUETOOTH
connection is made properly
between this unit and the
BLUETOOTH stereo audio
source device.
,Turn up the volume of the stereo
audio output device.
,Turn up the volume of the
BLUETOOTH stereo audio
source device as high as possible
to the extent that sound is not
distorted. For details on volume
adjustment, refer to the operating
instructions supplied with the
BLUETOOTH stereo audio
source device.
,Pair this unit and the
BLUETOOTH stereo audio
source device again.
Low sound level
,Turn up the volume of the
BLUETOOTH stereo audio
source device as high as possible
to the extent that sound is not
distorted. For details on volume
adjustment, refer to the operating
instructions supplied with the
BLUETOOTH stereo audio
source device.
,Turn up the volume of the stereo
audio output device.
Distorted sound
,Turn down the volume of the
BLUETOOTH stereo audio
source device to the point where
the sound is no longer distorted.
For details on volume
adjustment, refer to the operating
instructions supplied with the
BLUETOOTH stereo audio
source device.
Sound skips or the
correspondence
distance is short.
,If a device that generates
electromagnetic radiation, such
as a wireless LAN, other
BLUETOOTH device(s), or a
microwave oven is nearby, move
away from such sources.
,Remove any obstacle between
this unit and other BLUETOOTH
device or move away from the
obstacle.

TDM-BT1 [GB] 3-095-404-11(1)
14
GB
,Locate this unit and other
BLUETOOTH device(s) as near
as possible.
,Re-position this unit.
,Re-position other BLUETOOTH
device.
Pairing cannot be done.
,Bring this unit and the
BLUETOOTH device closer
together.
,Verify BLUETOOTH audio
source device has pin code of
“0000”.
,Turn off the BLUETOOTH
function of all other unused
BLUETOOTH device(s).
The BLUETOOTH
stereo audio source
device cannot connect
to this unit.
,Turn off the BLUETOOTH
function of all other unused
BLUETOOTH device(s).
Sound is delayed.
,If you watch a TV or a DVD
through BLUETOOTH
connection via this unit, sound
may lag behind the picture.
What is BLUETOOTH
technology?
BLUETOOTH wireless
technology is a short-range
wireless technology that enables
wireless data communication
between digital devices, such as
a computer or digital camera.
BLUETOOTH wireless
technology operates within a
range of about 10 m.
Connecting two devices as
necessary is common, but some
devices can be connected to
multiple devices at the same
time.*
You do not need to use a cable
for connection since
BLUETOOTH technology is a
wireless technology, nor is it
necessary for the devices to face
one another, such is the case
with infrared technology. For
example, you can use such a
device in a bag or pocket.
BLUETOOTH technology is an
international standard supported
by millions of companies all
over the world, and employed by
various companies worldwide.
*This unit cannot be connected to
multiple devices at the same time.
Communication System
and Compatible
BLUETOOTH Profile of
this unit
Profile is standardization of the
function for each BLUETOOTH
device specification. This unit
and the BLUETOOTH audio
source device needs to support
the following BLUETOOTH
version and profile to work
together:
Communication System:
BLUETOOTH Specification version
2.0
Compatible BLUETOOTH Profile:
– A2DP (Advanced Audio
Distribution Profile)

15
GB
TDM-BT1 [GB] 3-095-404-11(1)
Specifications
General
Communication System
BLUETOOTH Specification version
2.0
Output
BLUETOOTH Specification Power
Class 2
Maximum communication
range
Line of sight approx. 10 m*1
Frequency band
2.4 GHz band (2.4000 GHz – 2.4835
GHz)
Modulation method
FHSS
Compatible BLUETOOTH
Profile*2
A2DP (Advanced Audio Distribution
Profile)
Power requirements
DC 5 V, 0.1 A (via DIGITAL
MEDIA PORT)
Dimensions
Approx. dia. 44 ×16 mm high (cable
1 m)
Mass
Approx. 55 g
*1The actual range will vary
depending on factors such as
obstacles between devices,
magnetic fields around a
microwave oven, static electricity,
reception sensitivity, antenna’s
(aerial) performance, operating
system, software application, etc.
*2BLUETOOTH standard profiles
indicate the purpose of
BLUETOOTH communication
between devices.
Design and specifications are subject
to change without notice.

2
FR
Cette indication figure sur le
dessous de l’appareil, à
l’extérieur.
N’installez pas l’appareil dans un
espace confiné comme dans une
bibliothèque ou un meuble encastré.
Pour les clients de l’Europe
AVERTISSEMENT
Par la présente Sony Corporation
déclare que l’adaptateur audio sans fil
Bluetooth™ TDM-BT1 est conforme
aux exigences essentielles et aux
autres dispositions pertinentes de la
directive 1999/5/CE. Pour toute
information complémentaire, veuillez
consulter l’URL suivante :
http://www.compliance.sony.de/
La marque Bluetooth et les logos
appartiennent à Bluetooth SIG, Inc.
et sont utilisés sous licence
uniquement par Sony Corporation.
Les autres marques commerciales et
noms commerciaux appartiennent à
leurs propriétaires respectifs.
Traitement des
appareils
électriques et
électroniques en
fin de vie
(Applicable dans
les pays de
l’Union
Européenne et aux autres pays
européens disposant de
systèmes de collecte sélective)
Ce symbole, apposé sur le produit ou
sur son emballage, indique que ce
produit ne doit pas être traité avec les
déchets ménagers. Il doit être remis à
un point de collecte approprié pour le
recyclage des équipements
électriques et électroniques. En
s’assurant que ce produit est bien mis
au rebut de manière appropriée, vous
aiderez à prévenir les conséquences
négatives potentielles pour
l’environnement et la santé humaine.
Le recyclage des matériaux aidera à
préserver les ressources naturelles.
Pour toute information
supplémentaire au sujet du recyclage
de ce produit, vous pouvez contacter
votre municipalité, votre déchetterie
ou le magasin où vous avez acheté le
produit.
Pour les clients à Singapour
Complies with IDA
Standards
DB00353

TDM-BT1 [FR] 3-095-404-11(1)
3
FR
FR
Table des
matières
Caractéristiques .............. 4
Comment utiliser
l’appareil ......................... 5
PRÉPARATION
Déballage ......................... 6
Emplacement des
pièces ........................... 6
UTILISATION DE
L’APPAREIL
Utilisation de
l’appareil....................... 7
Préparation .......................... 7
Pairage ................................. 7
Connexion ........................... 9
Initialisation....................... 10
INFORMATIONS
COMPLÉMENTAIRES
Précautions.................... 11
Dépannage ..................... 13
Qu’est-ce que la technologie
BLUETOOTH ? ............ 14
Spécifications ................ 15

TDM-BT1 [FR] 3-095-404-11(1)
4
FR
Caractéristiques
Vous pouvez écouter une source audio stéréo BLUETOOTH (téléphone
mobile, lecteur audio numérique, etc.)*, en raccordant une prise
DIGITAL MEDIA PORT (d’un système Home Theatre Sony, par
exemple) à cet appareil à l’aide de la technologie sans fil
BLUETOOTH, et convertir les signaux audio numériques sans fil en
signaux audio analogiques.
RESET
*Les périphériques BLUETOOTH devant être raccordés à cet appareil doivent
être compatibles A2DP (Advanced Audio Distribution Profile).
Remarques
•DIGITAL MEDIA PORT est parfois désigné par sa forme abrégée, DMPORT.
• Pour obtenir plus d’informations sur le fonctionnement des périphériques à
raccorder, reportez-vous au mode d’emploi fourni avec chaque périphérique.
•Pour plus d’informations sur les périphériques BLUETOOTH compatibles
susceptibles d’être connectés, visitez les URL suivantes.
Clients aux Etats-Unis
http://sony.com/support
Clients au Canada
http://www.sony.ca/support
Clients en Europe
http://support.sony-europe.com
Cet appareil Appareil de sortie
audio stéréo
Téléphone mobile
BLUETOOTH ou autre
périphérique source audio
stéréo BLUETOOTH
Exemple

TDM-BT1 [FR] 3-095-404-11(1)
5
FR
v
Comment utiliser l’appareil
L’exemple ci-dessous explique comment recevoir de la musique lue sur un
téléphone mobile BLUETOOTH, via la fonction de lecture audio de cet appareil, et
l’écouter sur un périphérique de sortie audio stéréo équipé d’une prise DIGITAL
MEDIA PORT (appareil de la série DAV, etc.) connectée à cet appareil.
v
RESET
1. Pairage
Permet à un téléphone portable BLUETOOTH et à cet appareil
de se reconnaître.
Téléphone portable
BLUETOOTH Cet appareil
Pairage
Pour plus d’informations, reportez-vous aux pages 7et 9.
Appareil de sortie
audio stéréo
RESET
2. Connexion BLUETOOTH
Utilisez le téléphone portable BLUETOOTH pour établir la
connexion BLUETOOTH.
Connexion
RESET
3. Réception de musique
Ecoutez la musique lue sur un téléphone mobile
BLUETOOTH via un périphérique de sortie audio stéréo
(appareil de la série DAV, etc.) connecté à cet appareil.
Signal audio stéréo
(Lecture en transit)
Pour plus de détails, reportez-vous à la page 9.

TDM-BT1 [FR] 3-095-404-11(1)
6
FR
Déballage
•Adaptateur audio sans fil BLUETOOTH (1)
•Mode d’emploi (1)
PRÉPARATION
Emplacement des pièces
1Touche OPR (7)
2Câble DIGITAL MEDIA PORT (7)
3Touche RESET (10)
4Témoin DEL de statut
Statut Témoin DEL de statut
Prêt S’allume pendant 2 secondes
Mode de pairage Clignote très rapidement
Connexion possible Clignote lentement
Connexion Toujours allumé
Déconnexion Clignote rapidement
RESET
OPR
Other manuals for TDM-BT1 - Digital Media Port Bluetooth...
2
Table of contents
Languages:
Other Sony Stereo System manuals

Sony
Sony HCD-ZX50MD User manual

Sony
Sony FH-SR1D User manual

Sony
Sony MHC-D90AV User manual

Sony
Sony HCD-VX3A User manual

Sony
Sony MHC-LX10000 - High Power Mini Hi-fi System User manual

Sony
Sony MHC-EC55 User manual

Sony
Sony CMT-NEZ33 User manual

Sony
Sony MHC-501 User manual

Sony
Sony CX-JT9 User manual

Sony
Sony HCD-XGV6 User manual
Popular Stereo System manuals by other brands

Yamaha
Yamaha YST-99CD owner's manual

Philips
Philips MZ7/37 Specifications

Panasonic
Panasonic SCPM39D - MINI HES W/CD PLAYER operating instructions

Samsung
Samsung MAX-VB550 instruction manual

Panasonic
Panasonic SA-PM30MD Service manual

Panasonic
Panasonic RXDS28 - RADIO CASSETTE W/CD operating instructions
