Sony Bravia XBR-65X757D User manual

Television
Reference Guide
Sony Customer Support
http://esupport.sony.com/ES/LA/
Please Do Not Return the Product
to the Store
XBR-65X757D / 65X755D / 55X707D / 55X705D / 49X707D / 49X705D

2
Table of Contents
IMPORTANT NOTICE . . . . . . . . . . . . . . . . 2
Safety Information . . . . . . . . . . . . . . . . . 3
Precautions . . . . . . . . . . . . . . . . . . . . . . . 5
Parts and Controls . . . . . . . . . . . . . . . .7
Controls and Indicators . . . . . . . . . . . . . 7
Using Remote Control . . . . . . . . . . . . .8
Remote Control Parts Description. . . . . 8
Connection Diagram . . . . . . . . . . . . .10
Installing the TV to the Wall . . . . . . . 12
Detaching the Table-Top Stand from
the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the TV against a wall or
enclosed area . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . .14
Troubles and Solutions. . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . 15
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual
thoroughly and retain it for future reference.
Note
• Images and illustrations used in Setup Guide and this
manual are for reference only and may differ from actual
product.
Location of the Setup Guide
Setup Guide is placed on top of the cushion inside the TV
carton.
Help Guide
Help Guide explains the information on how to use the TV's
features. To display Help Guide on the TV, press HELP on
the remote control and select [Help Guide].
Location of the identification label
Labels for the TV Model No. and Power Supply rating are
located on the rear of the TV.
For models with supplied plug adaptor:
This plug adaptor is not for the use in Chile, Paraguay and
Uruguay. Please use this plug adaptor in the countries
where it is necessary.
The 65” class has a 64.5 inch (163.9 cm)
viewable image size, the 55” class has a 54.6
inch (138.8 cm) viewable image size and the
49” class has a 48.5 inch (123.2 cm) viewable
image size (measured diagonally).
IMPORTANT NOTICE
Owner’s Record
The model and serial numbers are located at the side
and rear of the TV. Record these numbers in the spaces
provided below. Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.

3

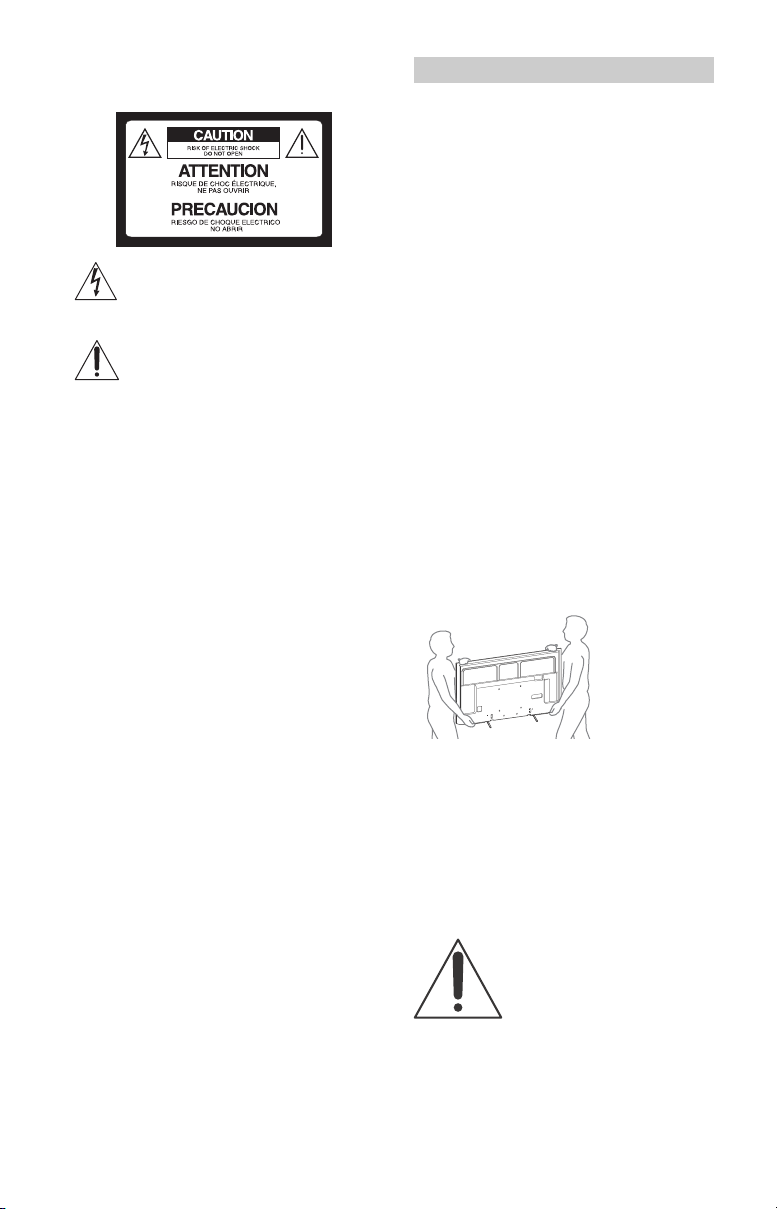

ADVERTENCIA
Para reducir el riesgo de incendio o descargas eléctricas, no
exponga este producto a la humedad ni a la lluvia.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
El producto no debe estar expuesto a goteos ni
salpicaduras, ni se deben colocar sobre él objetos con
líquidos como floreros.
PRECAUCIÓN
Para evitar descargas eléctricas y exposición a contactos
eléctricos, no utilice este enchufe de corriente alterna con
un cable de extensión, receptáculo u otro tomacorriente a
menos que los contactos eléctricos puedan ser
introducidos completamente.
• Operate the TV only on 110 V - 240 V AC
Seguridad
• Utilice el cable de alimentación de ca especificado por
Sony y que corresponda al voltaje de la zona donde vaya
a utilizarlo.
• Por razones de seguridad, el enchufe está diseñado de tal
forma que sólo puede conectarse en una dirección en los
tomacorrientes de pared. Si no puede introducir
completamente los contactos del enchufe en el
tomacorriente, póngase en contacto con su distribuidor.
• Si se introduce algún objeto sólido o cae líquido en la
unidad, desenchufe el televisor inmediatamente y haga
que sea revisado por personal especializado antes de
volver a operarlo.
• Desconecte el televisor si no va a utilizarlo durante
algunos días. Para ello, tire del enchufe, nunca del cable.
• Consulte la información sobre seguridad en Folleto de
instrucciones de seguridad.
WARNING
Never place a television set in an unstable location. A
television set may fall, causing serious personal injury or
death. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
Using cabinets or stands recommended by the
manufacturer of the television set.
Only using furniture that can safely support the television
set.
Ensuring the television set is not overhanging the edge
of the supporting furniture.
Not placing the television set on tall furniture (for
example, cupboards or bookcases) without anchoring
both the furniture and the television set to a suitable
support.
Not placing the television set on cloth or other materials
that may be located between the television set and
supporting furniture.
Educating children about the dangers of climbing on
furniture to reach the television set or its controls.
If your existing television set is being retained and
relocated, the same considerations as above should be
applied.
Before setting up your TV
Some TV models are packaged with a detached Table-Top
Stand so you can mount your TV to a wall right away. See
page 12 (Installing the TV to the Wall) if you want to mount
the TV to a wall. If you are not mounting the TV to a wall,
you will need to attach the Table-Top Stand. You will need a
Phillips screwdriver (not supplied) and the supplied screws
to complete the task. Look for the Setup Guide.
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of people; larger
size TVs require two or more people.
• Correct hand placement while carrying the TV is very
important for safety and to avoid damage.
• Ensure your TV has adequate ventilation, see page 13.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and
floor materials.
• Avoid moving the TV from a cold area to a warm area.
Sudden room temperature changes may cause moisture
condensation. This may cause the TV to show poor
picture and/or poor color. Should this occur, allow
moisture to evaporate completely before powering the TV
on.
Securing the TV
Sony strongly recommends taking
measures to prevent the TV from
toppling over.
Unsecured TVs may topple and result
in property damage, serious bodily
injury or even death.
Safety Information

4
Preventing the TV from Toppling
• Secure the TV to a wall and/or stand.
• Do not allow children to play or climb on furniture and TV
sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
slippery, unstable and/or uneven surfaces.
furniture that can easily be used as steps, such as a
chest of drawers.
• Install the TV where it cannot be pulled, pushed, or
knocked over.
• Route all AC power cords and connecting cables so that
they are not accessible to curious children.
Recommended Measures to Secure the
TV
Consider the following measures when securing your TV to
a Stand (not supplied).
1Secure the Stand for the TV.
Make sure the Stand can adequately support the weight
of the TV. Use two angle braces (not supplied) to secure
the stand. For each angle brace use the appropriate
hardware to:
• Attach one side of the angle brace to the wall stud.
• Attach the other side to the Stand.
2Secure the TV to the Stand.
Use the optional hardware listed as follows (not
supplied):
• M6 machine screw (screwed into the TV’s rear cover)
• A screw or similar (attach it to the Stand)
• Rope or chain (strong enough to support the weight of
the TV). Make sure that there is no excess slack in the
rope or chain.
The length of the M6 machine screw differs depending
on the rope or chain diameter. Please see below
illustration.
3Anchor the TV to the wall by using bolts, wall anchor and
chain (or rope).
Please see below illustration for M6 eye bolt length.
Note
• Securing the TV to the stand without securing the TV and
the stand to the wall provides minimum protection
against the TV toppling over. For further protection, be
sure to follow the three measures recommended.
Angle braces
(not supplied)
Stand
Screw hole on the rear cover
M6 machine screw
(not supplied)
Rope or chain (not supplied)
Screw (not supplied)
8-12 mm
Screw M6
TV’s rear cover
Rope or chain
2
1
M6 eye bolts (not supplied)
Wall-mount holes
Rope or
chain (not
supplied)
Wall-anchor
(not supplied)
8-12 mm
M6 eye bolt
TV’s rear cover

5
How to care for your BRAVIA TV
Safety is very important. Please read and follow the safety
documentation (Safety Booklet) separately provided.
Unplug the TV and other
connected equipment from
the wall outlet before you
begin cleaning your TV.
• Wipe the LCD screen gently
with a soft cloth.
• Stubborn stains may be
removed with a cloth
slightly moistened with a
solution of mild soap and
warm water.
• If using a chemically
pretreated cloth, please follow the instruction provided
on the package.
• Never spray water or detergent directly on the TV set. It
may drip to the bottom of the screen or exterior parts and
enter the TV set, and may cause damage to the TV set.
• Never use strong solvents such as a thinner, alcohol or
benzine for cleaning.
• Do not plug in the TV into the wall outlet until the
moisture from cleaning has evaporated.
• Do not touch the TV if your hand is covered in any
chemical substance such as hand cream or sunblock.
The TV should also be placed on a stable surface to prevent
it from toppling over (see page 4). If you have young
children or pets at home, check regularly to ensure the TV is
securely fastened.
Recommendation for an F type plug
Projection of the inner wire from the connection part must
be less than 1.5 mm.
(Reference drawing for an F type plug)
Precautions
7 mm max.
1.5 mm max.

6
The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV
inputs.
*1 For details of supported formats, refer to the “Specifications” in this manual.
*2 576i, 576p: Not available with X757D/X707D model series.
*3 For supported PC formats refer to the Help Guide.
La experiencia de TV BRAVIA® 4K
¡Gracias por elegir a Sony! Su nuevo TV BRAVIA® le
brinda una “Experiencia de TV 4K”. Este documento le
ayudará a aprovechar su TV al máximo.
Registre su TV en:
http://esupport.sony.com/LA/perl/registration.pl
Los cuatro pasos para una experiencia
de TV 4K
TV, fuente, sonido y configuración.
1TV
Ahora que ya hizo la mejor elección en tecnología LCD
TV con retroiluminación LED, retire todos los accesorios
del empaque antes de configurar su TV.
2Fuente
Para disfrutar los increibles detalles de su TV BRAVIA
debe tener acceso a programación HD, la cual se puede
obtener de las siguientes maneras:
• Solicitando a su proveedor servicio de alta definición
(4K).
• Recibiendo emisiones de HD por aire a través de una
antena para TV de alta definición (HD) conectada
directamente a la parte posterior del TV.
Visite http://www.antennaweb.org para recibir más
información sobre la selección y configuración de
antena.
• A través de los reproductores Blu-ray Disc™ de super
alta resolución ó demás equipos HD de Sony.
3Sonido
Complete la experiencia de alta definición con un
sistema de sonido envolvente BRAVIA Sync™ o un
receptor de audio/video de Sony.
4Ajustes
Instale su TV y conecte sus fuentes. Consulte la página
10 para ver ejemplos de diagramas de conexión. Para
obtener la más alta calidad de experiencia 4K, utilice los
cables de HDMI (Interfaz multimedia de alta definición)
de Sony.
Este TV muestra todas las señales de entrada de video en una resolución de 3 840 puntos × 2 160 líneas.
INPUT VIDEO AUDIO
SUPPORTED FORMATS
4K*1 1080/
24p/
30p
1080p*11080i 720/
24p/
30p
720p*1480p/
576p*2480i/ 576i*2PC*3
4K/
HD
HDMI
COMPONENT
Audio L/R
SD VIDEO Composite
video
connection
Audio L/R

7
Parts and Controls
Remote Control sensor* / Light
sensor* / Illumination LED
The illumination LED lights up or blinks
according to the status of the TV.
•White
When turning on the TV/picture off
mode/software update, etc.
•Cyan
When connecting with a mobile
device wirelessly.
•Amber
Timer is set.
(Power) / + / –
When the TV is off,
Press to power on.
When the TV is on,
Long press to power off.
Press repeatedly to change the
function, then press + or - button to:
•Adjustthevolume
• Select the channel
• Select the input source of TV
* Do not place anything near the sensor.
Controls and Indicators
2
1

8
Using Remote Control
The remote control shape, location, availability and function of remote control button may
vary depending on your region/country/TV model.
INPUT
Display and select the input source.
POWER
Turn on or turn off the TV (standby
mode).
ANT/DIGITAL/ANALOG
Switches to Cable and Antenna
channels.
Number buttons
Use with the 0-9 buttons to select
digital channels.
EXIT/SAIR SALIR
Return to the previous screen or exit
from the menu. When an Interactive
Application service is available, press to
exit from the service.
Color buttons
Execute corresponding function at that
time.
WIDE
Change the screen format.
NETFLIX (Only on limited region/
country/TV model)
Access the “NETFLIX” online service.
HELP
Display Help Menu. Help Guide can be
accessed from here.
Remote Control Parts Description
Ȫ
ȩ
ȫ
Ȭ
ȭ
Ȯ
ȯ

9
ACTION MENU
Display a list of contextual functions.
TV
• Switch to a TV channel or input from
other applications.
• Turn on the TV to display TV channel
or input.
GUIDE
Display the digital program guide.
BACK/VOLTAR VOLVER
Return to previous screen.
HOME
Display the TV Home Menu.
DISCOVER
Bring up the Content Bar to search for
content.
//// (Itemselect/Enter)
VOL +/– (Volume)
Adjust the volume.
JUMP
Jump back and forth between two
channels or inputs. The TV alternates
between the current channel or input
and the last channel or input that was
selected.
MUTING
Mute the sound. Press again to restore
the sound.
CH +/– (Channel)
Select the channel.
AUDIO
Change the language for the program
currently being viewed.
CC/SUBTITLE
Turn subtitles on or off (when the
feature is available).
//////
Operate media contents on TV and
connected BRAVIA Sync-compatible
device.
SYNC MENU
Display the BRAVIA Sync Menu.
DISPLAY
Display information about the channel/
program/input you are viewing.
Guidelines for IR Remote Control
• Point your remote control directly at
the IR sensor located on your TV.
• Make sure that no objects are blocking
the path between the remote control
and the IR sensor on your TV.
• Fluorescent lamps can interfere with
your remote control; try turning off the
fluorescent lamps.
• If you are having problems with the
remote control, reinsert or replace your
batteries and make sure that they are
correctly inserted.

10
Connection Diagram
For more information on connections, refer to the Help Guide (page 2).
Note
• When connecting the cable to the Cable/Antenna, input finger tighten only, over tightening the
connection can damage the TV.
*2
*1
*4
*1
*5
*1
*3
*3
*1
DVD player with
component output
HDMI
Device
VCR/Video game
equipment/DVD player/
Camcorder
Home Audio System
with Optical Audio
Input
Antenna
Router
VCR/Video game
equipment/DVD
player/Camcorder
Home Audio System
with ARC/HDMI
Device
HDMI Device
Digital still
camera/
Camcorder/USB
storage media
Headphone/Home
Audio System/
Subwoofer
HDMI Device
Conditional Access
Module
Cable

11
AUDIO OUT*5/
• To listen to the TV's sound through
the connected equipment, press
HOME. Select [Settings] [Sound]
[Headphone/Audio out] and then
select the desired item.
USB 1/2, USB 3
•ConnectingalargeUSBdevicemay
interfere with other connected
devices beside it.
• When connecting a large USB device,
connect to the USB 1 port.
HDMI IN 1/2/3/4
• If connecting a digital audio system
that is compatible with Audio Return
Channel (ARC) technology, use HDMI
IN 3. If not, an additional connection
with DIGITAL AUDIO OUT (OPTICAL) is
necessary.
/VIDEO IN 1
• For a composite connection, use the
supplied Analog Extension Cable*6.
CAM (Conditional Access
Module)*6
•ProvidesaccesstopayTVservices.
For details, refer to the instruction
manual supplied with your CAM.
• Do not insert the smart card directly
into the TV CAM slot. It must be fitted
into the Conditional Access Module
provided by your authorised dealer.
• CAM is not supported in some
countries/areas. Check with your
authorised dealer.
• A CAM message may appear when
you switch to a digital program after
using the Internet video.
*1
*2
*3
*4 When connecting mono equipment, connect
to the L (MONO) audio jack (socket).
*5 Supports 3-pole stereo mini jack only.
*6 Only on limited region/country/TV model.
< 21 mm
< 12 mm
3.5 mm
12 34
1: L
2: Video
3: Ground
4: R
< 14 mm

12
Installing the TV to the Wall
This TV’s instruction manual only shows the steps on preparing the installation of the TV
before installing to the wall.
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box
as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the
Table-Top Stand; see page 12 (Detaching the Table-Top Stand from the TV).
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that installation of
your TV on the wall be performed by qualified professionals. Do not attempt to install it
yourself.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing this TV, especially to determine the
strength of the wall for withstanding the TV’s weight.
• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount
Bracket thickness. Please see below illustration.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are
ready to attach the Table-Top Stand. Keep the screws away from small children.
Note
• Read the supplied Safety Booklet for additional safety information.
To detach the Table-Top Stand from the TV, remove the screws .
Note
• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the
TV.
• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV
with the LCD panel facing down.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the
original holes on the rear of the TV.
Detaching the Table-Top Stand from the TV
Wall-Mount Bracket
Screw
8 mm - 12 mm
TV’s rear cover

13
Installing the TV against a wall or enclosed area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as
shown in the illustration.
Note
• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a
fire.
Leave at least this much space around the set.
Installed with stand
30 cm
10 cm 10 cm 6 cm
Leave at least this much space around the set.
Installed on the wall
10 cm
30 cm
10 cm 10 cm
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall

14
Troubleshooting
In order to keep your TV software up-to-
date, it is necessary to download the latest
software information via the digital
broadcasting system or internet and to
update the software. Select [Update Now]
to start a software update. The illumination
LED flashes white while the software is
updating.
The following screen with [Updating…] will
appear while software is updating.
Do not unplug the AC power cord during
the software update. If you do, the software
update may not finish completely, and it
may cause a software malfunction.
Software updates can take up to 30
minutes. If you do not wish to update the
software automatically, press HOME and
select [Help] [System software update]
[Automatic software download] [Off].
When you plug in TV, the TV may not be
able to turn on for a while even if you press
the power button on the remote control or
the TV, because it takes time to initialize the
system. Wait for about one minute, then
operate it again. When you turn on by
pressing the power button on the remote
control or the TV, it takes some time to turn
on the illumination LED and for the remote
control to be functional.
When the illumination LED is flashing red,
count how many times it flashes (interval
time is three seconds).
If the illumination LED flashes red, reset the
TV by disconnecting the AC power cord for
two minutes, then turn on the TV.
If the problem persists, contact Sony
Customer Support (information provided
on the front cover) with the number of
times the illumination LED flashes red
(interval time is three seconds). Disconnect
the AC power cord, and contact Sony
Customer Support.
When the illumination LED is not
flashing, check the items as follows.
You can also refer to troubleshooting in the
Help Guide or perform self-diagnosis by
selecting [Help] [Self diagnostics]. If the
problem persists, contact Sony Customer
Support (information provided on the front
cover).
Troubles and Solutions
There is no picture (screen is dark) and no
sound.
Check the cable/antenna connection.
Connect the TV to AC power, and press the
button on the TV or POWER button on the
remote control.
Some programs cannot be tuned.
Check the cable/antenna connection.
The remote control does not function.
Replace the batteries.
The [Parental lock (Broadcast)] password
has been forgotten.
For X757D/X707D model series, enter 9999
for the PIN code. Update PIN code by
selecting [Settings] [Parental lock
(Broadcast)] [Change password].
For X755D/X705D model series, enter 4357
instead.
The TV and its surroundings become
warm.
When the TV is used for an extended period
of time, the TV and its surroundings may
become warm to the touch. This is not a
malfunction of the TV.
How to reset the TV to factory settings
Turn on the TV. You can reset the TV to
factory settings by pressing HOME, then
select [Settings] [Storage & reset] 
[Factory data reset].
WARNING: The reset will clear all of your
customized settings including the [Parental
lock (Broadcast)] setting.
For security purposes, be sure to remove all
personal and account information before
discarding, selling or passing your TV to
someone else by: unlinking/unregistering,
signing out of and deactivating all network
services as well as factory reset the TV.
Updating...

15
Frozen audio or video, a blank screen, or
the TV does not respond to TV or remote
control buttons.
Perform a simple reset of the TV by
unplugging the AC power cord for two
minutes, then plug it in again.
The , +, and – buttons cannot be located
on the TV.
See below illustration for location of the
buttons on the TV.
The illumination LED is turned on.
If you do not wish to light up the illumination
LED, you can turn it off.
Press HOME, then select [Settings] 
[Illumination LED] [Off].
Cannot connect to a wireless router by
WPS (Wi-Fi Protected Setup).
If you use WEP security, select [Easy] 
[Wi-Fi] [Connect by scan list]. Then, select
the network name (SSID) you want to
connect.
Cannot find the required network name
in network setup.
Select [[Manual entry]] and press to enter
network name.
Specifications
System
Television system
Analog:
Depending on your TV model
NTSC / PAL-M / PAL-N
Digital:
Depending on your TV model
DVB-T2/T
SBTVD
J.83B (Only on limited region/country.)
Channel coverage
Depending on your TV model
Analog: UHF/VHF/Cable
Digital: UHF/VHF/Cable
Panel system
LCD (Liquid Crystal Display) Panel, LED
Backlight
Speaker output
10 W + 10 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n
Bluetooth Version 4.1
Input/Output jacks
ANTENNA/CABLE
75-ohm external terminal for RF inputs
VIDEO IN 1
Video / Audio input (mini jack)
COMPONENT IN (for X755D/X705D
model series)
YPBPR(Component Video): 1080p (50, 60 Hz),
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p,
576i, 480p, 480i
Audio input (phono pin jack)
COMPONENT IN (for X757D/X707D
model series)
YPBPR(Component Video): 1080p (60 Hz),
1080i (60 Hz), 720p (60 Hz), 480p, 480i
Audio input (phono pin jack)
VIDEO IN 2
Video input (common phono pin with Y
input)
HDMI IN 1/2/3/4 (Support 4K resolution,
HDCP 2.2-compatible) (for X755D/X705D
model series)
Video:
4096 × 2160p (50, 60 Hz)*1, *2, 4096 × 2160p
(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2, 3840
× 2160p (24, 25, 30 Hz), 1080p (30, 50, 60
Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,
50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,
PC Formats
Rear of TV

16
HDMI IN 1/2/3/4 (Support 4K resolution,
HDCP 2.2-compatible) (for X757D/X707D
model series)
Video:
4096 × 2160p (60 Hz)*1, *2, 4096 × 2160p
(24 Hz)*1, 3840 × 2160p (60 Hz)*2,
3840 × 2160p (24, 30 Hz), 1080p (30, 60 Hz),
1080/24p, 1080i (60 Hz), 720p (30, 60 Hz),
720/24p, 480p, 480i,
PC Formats
*13840 × 2160p is displayed when
4096 × 2160p is input
*2HDMI IN 2 / 3 only.
Audio: 5.1 channel linear PCM: 32, 44.1, 48,
88.2, 96, 176.4 and 192 kHz, 16, 20 and 24
bits, Dolby Digital, Dolby Digital Plus and DTS
ARC (Audio Return Channel) (HDMI IN 3 only)
(Two channel linear PCM, Dolby Digital,
Dolby Digital Plus, DTS)
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM,
Dolby Digital, DTS)
AUDIO OUT /(Stereo mini jack)
Headphone, Audio output, Subwoofer
CAM (Conditional Access Module) slot
(Only on limited region/country.)
1, 2, 3
USB port 1 and 2 support High Speed USB
(USB2.0).
USB port 3 supports Super Speed USB
(USB3.0).
LAN
10BASE-T/100BASE-TX connector
(Connection speed may differ depending on
the network environment. 10BASE-T/
100BASE-TX communication rate and
communication quality are not guaranteed
for this TV.)
Home Network
Refer to the Help Guide for supported
formats.
Others
Optional accessories
Voice Remote Control: RMF-TX200B
Wireless Subwoofer: SWF-BR100 (Only on
limited region/country/TV model.)
Operating temperature
0 ºC – 40 ºC
Power and others
Power requirement
110 V - 240 V AC, 50/60 Hz
Power consumption
in use
XBR-65X757D/65X755D: 193 W
XBR-55X707D/55X705D: 171 W
XBR-49X707D/49X705D: 138 W
in standby*
Less than 0.50 W
Screen size (measured diagonally) (Approx.)
XBR-65X757D/65X755D: 163.9 cm /
64.5 inches (65” class)
XBR-55X707D/55X705D: 138.8 cm /
54.6 inches (55” class)
XBR-49X707D/49X705D: 123.2 cm /
48.5 inches (49” class)
Display resolution
3,840 dots (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1
5 V, , 500 mA MAX
USB 2
5 V, , 500 mA MAX
USB 3
5 V, , 900 mA MAX
Dimensions (Approx.)
with stand
XBR-65X757D: 1,463 × 901 × 295 mm
XBR-65X755D: 1,463 × 901 × 295 mm
XBR-55X707D: 1,245 × 770 × 235 mm
XBR-55X705D: 1,245 × 770 × 235 mm
XBR-49X707D: 1,107 × 690 × 235 mm
XBR-49X705D: 1,107 × 690 × 235 mm
without stand
XBR-65X757D: 1,463 × 852 × 80 mm
XBR-65X755D: 1,463 × 852 × 80 mm
XBR-55X707D: 1,245 × 730 × 78 mm
XBR-55X705D: 1,245 × 730 × 78 mm
XBR-49X707D: 1,107 × 651 × 78 mm
XBR-49X705D: 1,107 × 651 × 78 mm
wall-mount hole pattern
XBR-65X757D: 300 × 300 mm
XBR-65X755D: 300 × 300 mm
XBR-55X707D: 200 × 200 mm
XBR-55X705D: 200 × 200 mm
XBR-49X707D: 200 × 200 mm
XBR-49X705D: 200 × 200 mm
wall-mount screw size (mm)
M6 (length: see diagram on page 12.)

17
Mass (Approx.)
with stand
XBR-65X757D: 22.7 kg
XBR-65X755D: 22.7 kg
XBR-55X707D: 17.8 kg
XBR-55X705D: 17.8 kg
XBR-49X707D: 14.1 kg
XBR-49X705D: 14.1 kg
without stand
XBR-65X757D: 21.5 kg
XBR-65X755D: 21.5 kg
XBR-55X707D: 16.9 kg
XBR-55X705D: 16.9 kg
XBR-49X707D: 13.2 kg
XBR-49X705D: 13.2 kg
* Standby power consumption will increase
when your TV is connected to the network.
Note
• Do not remove the dummy card from TV CAM
(Conditional Access Module) slot other than to
insert a smart card fitted in CAM.
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
without notice.
Licensing Information
• The terms HDMI and HDMI High-
Definition Multimedia Interface, and
the HDMI Logo are trademarks or
registered trademarks of HDMI
Licensing LLC in the United States and
other countries.
• Manufactured under license from
Dolby Laboratories.
Dolby, Dolby Audio, and the double-D
symbol are trademarks of Dolby
Laboratories.
•“BRAVIA”and ,S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of
Sony Corporation.
• Gracenote, Gracenote eyeQ, Gracenote
VideoID, Gracenote Video Explore, the
Gracenote logo and logotype, and the
“Powered by Gracenote” logo are
either registered trademarks or
trademarks of Gracenote in the United
States and/or other countries.
• Opera® Devices SDK from Opera
Software ASA. Copyright 1995-2015
Opera Software ASA. All rights
reserved.
• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi
Protected Setup and Wi-Fi CERTIFIED
Logo are trademarks or registered
trademarks of Wi-Fi Alliance.
• For DTS patents, see
http://patents.dts.com. Manufactured
under license from DTS, Inc.
DTS, the Symbol, & DTS and the
Symbol together are registered
trademarks, and DTS Digital Surround
is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
• The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under
license. Other trademarks and trade
names are those of their respective
owners.
• TUXERA is a registered trademark of
Tuxera Inc. in the US and other
countries.
• USB-IF SuperSpeed USB Trident logo is
a registered trademark of USB
Implementers Forum, Inc.

18
