SERVICE MANUAL
DX-1A CHASSIS
MODEL COMMANDER DEST CHASSIS NO.
KV-32XBR400 RM-Y174 US SCC-S47A-A
KV-32XBR400 RM-Y174 CND SCC-S48A-A
KV-36XBR400 RM-Y174 US SCC-S47B-A
KV-36XBR400 RM-Y174 CND SCC-S48B-A
KV-38DRC1 RM-Y174 E SCC-S49A-A
KV-38DRC1C RM-Y174 E SCC-S49B-A
KV-36XBR400H RM-Y174 HAWAII SCC-S54A-A
TRINITRON®COLOR TV
RM-Y174KV-32XBR400

—2 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
SPECIFICATIONS
Design and specifications are su ject to change without notice.
Television system
American TV standard/NTSC
Channel coverage
VHF:2-13/UHF:14-69/CATV:1-125
Visible screen size
FD Trinitrontube
Visible screen size
32” picture measured diagonally (KV-32XBR400)
36” picture measured diagonally (KV-36XBR400/36XBR400H/38DRC1/38DRC1C)
Actual screen size
34” picture measured diagonally (KV-32XBR400)
38” picture measured diagonally (KV-36XBR400/36XBR400H/38DRC1/38DRC1C)
Antenna
75 ohm external antenna terminal for VHF/UHF
Supplied accessories
Remote Commander RM-Y174
Two Size AA (R6) batteries
Optional accessories
Connecting cables: RK-74A, VMC-810S/820/830HGS, VMC-720M,
VMC-810S/820S, YC-15V/30V, YC-15/30HG, RKG69HG, RKC-515HG
U/V mixer: EAC-66
TV Stand: SU-32XBR4A, SU-36XBR4A
1) 1 Vp-p 75 ohms unbalanced, sync negative
2) Y: 1 Vp-p 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
3) Y: 1.0 Vp-p, 75 ohms, sync negative;
PB: 0.7 Vp-p, 75 ohms;
PR: 0.7 Vp-p, 75 ohms
4) 500mVrms (100% modulation), impedance: 47kilohms
5) More than 408 mVrms at the maximum volume setting (variable)
More than 408 mVrms (fix)
KV-32XBR400
KV-38DRC1
KV-36XBR400
KV-36XBR400H KV-38DRC1C
Power requirements 120V, 60 Hz 120V, 60 Hz 220V, 50/60Hz
Number of inputs/outputs
Video 1)
S Video 2)
Y,PB,PR 3)
Audio 4)
Audio Out 5)
Monitor Out
Control-S (in/out)
Speaker output(W)
Power Consumption(W)
In use(Max)
In standb
y
Dimensions(W/H/D)
(mm) 898 x 678 x 579.5
(in) 35 3/8 x 26 3/4 x 27 7/8
Mass
(k
g
) 84k
g
(lbs) 185 lbs
15W x 2
2
1
YES
4
3
2
6
108k
g
238 lbs
245W
2W
994 x 754.5 x 622
39 9/64 x 29 45/64 x 24 1/2

—3 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Sectio Title Page
Warnings and Cautions ...................................................................................................................................... 4
Self-Diagnostic Function .................................................................................................................................... 4
Safety Check-Out Instructions ............................................................................................................................ 7
1. GENERAL ........................................................................................................................................................... 8
2. DISASSEMBLY
2-1. Rear Cover Removal ............................................................................................................................. 13
2-2. Chassis Assembly Removal .................................................................................................................. 13
2-3. Service Position ..................................................................................................................................... 13
2-4. Picture Tube Removal ............................................................................................................................ 14
3. SET-UP ADJUSTMENTS
3-1. Beam Landing ....................................................................................................................................... 15
3-2. V-Pin and V-Cen Adjustment .................................................................................................................. 16
3-3. Convergence ......................................................................................................................................... 16
3-4. Focus Adjustment .................................................................................................................................. 18
3-5. Screen (G2) ............................................................................................................................................ 18
3-6. Picture Quality Adjustments ................................................................................................................... 18
3-7. White Balance Adjustments ................................................................................................................... 20
3-8. Raster Center Adjustment ..................................................................................................................... 21
3-9. Picture Distortion Adjustments............................................................................................................... 21
3-9-1. NTSC (DRC) Full Mode Adjustment ...................................................................................................... 21
4. SAFETY RELATED ADJUSTMENTS
RV8001, 8002, 8003 Confirmation Method and HV Service Adjustments ....................................... 23
5. CIRCUIT ADJUSTMENTS
5-1. Setting the Service Adjustment Mode ................................................................................................... 24
5-2. Memory Write Confirmation Method ...................................................................................................... 24
5-3. Adjustment Buttons and Indicators ........................................................................................................ 24
5-4. Service Data Lists .................................................................................................................................. 25
6. DIAGRAMS
6-1. Block Diagram ....................................................................................................................................... 55
6-2. Circuit Board Location ........................................................................................................................... 55
6-3. Printed Wiring Boards and Schematic Diagrams .................................................................................. 55
• A Board .............................................................................................................................................. 58
• C Board .............................................................................................................................................. 60
• S Board .............................................................................................................................................. 61
• HA Board ........................................................................................................................................... 61
• BC Board ........................................................................................................................................... 62
• W Board ............................................................................................................................................. 62
• B Board .............................................................................................................................................. 63
• HB Board ........................................................................................................................................... 63
• D Board .............................................................................................................................................. 68
• U Board .............................................................................................................................................. 72
6-4. Semiconductors ..................................................................................................................................... 73
7. EXPLODED VIEW
7-1. Chassis .................................................................................................................................................. 76
7-2. Picture Tube ........................................................................................................................................... 78
8.ELECTRICAL PARTS LIST................................................................................................................................................ 81
TABLE OF CONTENTS

—4 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
WARNINGS AND CAUTIONS
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE
AND THE ANODE CAP TO THE METAL CHASSIS, CRT
SHIELD, OR CARBON PAINTED ON THE CRT, AFTER
REMOVING THE ANODE.
WARNING!!
AN ISOLATION TRANSFORMER SHOULD BE USED
DURING ANY SERVICE TO AVOID POSSIBLE SHOCK
HAZARD, BECAUSE OF LIVE CHASSIS. THE CHASSIS
OF THIS RECEIVER IS DIRECTLY CONNECTED TO THE
AC POWER LINE.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS,
AND IN THE PARTS LIST ARE CRITICAL FOR SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT
ARE CRITICAL FOR SAFE OPERATION ARE IDENTIFIED
IN THIS MANUAL. FOLLOW THESE PROCEDURES
WHENEVER CRITICAL COMPONENTS ARE REPLACED
OR IMPROPER OPERATION IS SUSPECTED.
ATTENTION!!
APRES AVOIR DECONNECTE LE CAP DE L'ANODE, COURT-CIRCUITER
L'ANODE DU TUBE CATHODIQUE ET CELUI DE L'ANODE DU CAP AU
CHASSIS METALLIQUE DE L'APPAREIL, OU AU COUCHE DE CARBONE
PEINTE SUR LE TUBE CATHODIQUE OU AU BLINDAGE DU TUBE
CATHODIQUE.
ATTENTION!!
AFIN D'EVITER TOUT RESQUE D'ELECTROCUTION PROVENANT D'UN
CHÁSSIS SOUS TENSION, UN TRANSFORMATEUR D'ISOLEMENT DOIT ETRE
UTILISÉLORS DE TOUT DÉPANNAGE. LE CHÁSSIS DE CE RÉCEPTEUR EST
DIRECTEMENT RACCORDÉÀL'ALIMENTATION SECTEUR.
ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR UNE MARQUE
SUR LES SCHEMAS DE PRINCIPE, LES VUES EXPLOSEES ET LES
LISTES DE PIECES SONT D'UNEIMPORTANCE CRITIQUE POUR LA
SECURITE DU FONCTIONNEMENT. NE LES REMPLACER QUE PAR DES
COMPOSANTS SONY DONT LE NUMERO DE PIECE EST INDIQUE DANS
LE PRESENT MANUEL OU DANS DES SUPPLEMENTS PUBLIES PAR SONY.
LES REGLAGES DE CIRCUIT DONT L'IMPORTANCE EST CRITIQUE POUR
LA SECURITE DU FONCTIONNEMENT SONT IDENTIFIES DANS LE
PRESENT MANUEL. SUIVRE CES PROCEDURES LORS DE CHAQUE
REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU'UN
MAUVAIS FONTIONNEMENT SUSPECTE.
SELF-DIAGNOSTIC FUNCTION
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/STEREO LED will automatically begin to
flash. The number of times the LED flashes translates to a probable source of the problem. A definition of the STANDBY/STEREO LED
flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the
Remote Commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these
problems occur.
Diagnostic Test Indicators
When an error occurs, the STANDBY/STEREO LED will flash a set number of times to indicate the possible cause of the problem. If
there is more than one error, the LED will identify the first of the problem areas. Due to a hardware upgrade, there is no LED flashing in
sets using Ver.1.0 system micros. This has been addressed in Ver.2.0 system micros.
Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “0”.
Diagnostic
Item/Description
No. of times
STANDBY/STEREO
LED flashes
Self-diagnostic
Display/
Diagnostic result
Probable Cause Location Detected Symptoms
Power does not turn on Does not light •Power cord is not plugged in.
•Fuse is burned out. (F5501)
•Power does not come on.
•No power is supplied to the TV.
•AC power supply is faulty.
+B overcurrent (OCP)
(see Note 1)
2 times 2:0 or 2:1 •H.OUT (Q5030) is shorted. (D board)
•+B PWM (Q5003) is shorted. (D board)
•IC9001,IC9002, IC9003 is shorted. (C board)
•Power does not come on.
•Load on power line is shorted.
Low B overvoltage (OVP) 3 times 3:0 or 3:1 •
IC6505 is faulty. (D Board) •Has entered standby mode.
Vertical deflection stopped 4 times 4:0 or 4:1 •+/-15V is not supplied. (D board)
•IC 5004 is faulty. (D board)
•Has entered standby state after
horizontal raster.
•Vertical deflection pulse is stopped.
•Power line is shorted or power
supply is stopped.
White balance failure
(not balanced)
5 times 5:0 or 5:1 •Video OUT (IC9001-IC9003) is faulty. (C
board)
•CRT Drive (IC201) is faulty. (A Board)
•G2 is improperly adjusted. (see Note 2)
•No raster is generated.
•CRT cathode current detection
reference pulse output is small

—5 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Diagnostic
Item/Description
No. of times
STANDBY/STEREO
LED flashes
Self-diagnostic
Display/
Diagnostic result
Probable Cause Location Detected Symptoms
LOW B OCP/OVP
(overcurrent/overvoltage)
(see Note 3)
6 times 6:0 or 6:1 •+5 line is overloaded. (A, B Boards)
•+5 line is shorted. (A, B Boards)
•IC6007 is faulty. (A Board)
•No picture
Horizontal Deflection
Stopped
7 times 7:0 or 7:1 •No picture
Display of Standby/Timer LED Flash Count
*One flash count is not used for self-diagnostic.
Stopping the STANDBY/STEREO LED Flash
Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/STEREO LED from
flashing.
Self-Diagnostic Screen Display
For errors with symptoms such as “power sometimes shuts off”or “screen sometimes goes out”that cannot be confirmed, it is
possible to bring up past occurrences of failure on the screen for confirmation.
To Bring Up Screen Test
In standby mode, press buttons on the Remote Commander sequentially, in rapid succession, as shown below:
Display Channel 5Sound volume
Note that this differs from entering the service mode (sound volume ).
Power ON
+
Self-Diagnostic Screen Display
SELF DIAGNOSTIC
2: +B OCP 0
3: +B OVP 0
4: V STOP 0
5: AKB 1
6: LOWB 0
7:H-STOP 0
101: WDT 0
Numeral “0” means that no fault was detected.
Numeral “1” means a fault was detected one time only.
Note 1: If a +B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.
The symptom that is diagnosed first by the microcontroller is displayed on screen.
Note 2: Refer to Screen (G2) Adjustment in Section 3-4 of this manual.
Note 3: If STANDBY/STEREO LED flashes 6 times, unplug unit and wait ten seconds before performing
adjustment.
STANDBY/STEREO LED

—6 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Handling of Self-Diagnostic Screen Display
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen during
repairs. When you have completed the repairs, clear the result display to “0”.
Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after completion
of the repairs.
Clearing the Result Display
To clear the result display to “0”, press buttons on the Remote Commander sequentially when the diagnostic screen is displayed,
as shown below:
ENTERChannel 8
Quitting the Self-Diagnostic Screen
To quit the entire self-diagnostic screen, turn off the power switch on the Remote Commander or the main unit.
Self-Diagnostic Circuit
+B overcurrent (OCP) Occurs when an overcurrent (more than 6A) on the +B (135V) line is detected by R6598/
R6591. It will cause Q6520 to turn on and force the AC relay to turn off through Q6532 and
Q6530.
+B overvoltage (OVP) Occurs when 1) overvoltage (more than +140V) on the +B (135V) line is detected by IC6505
or 2) an overvoltage (more than 7.5V) on the unreg 7V line is detected by D6014. The AC
Relay will turn off through Q6532 and Q6530.
Vertical Deflection Stopped Occurs when an absence of the vertical deflection pulse is detected by IC201. Power supply
will shut down when waveform interval exceeds 2 seconds.
White Balance Failure If the RGB levels do not balance within 2 seconds after the power is turned on, this error will
be detected by IC201. The unit will stay on, but there will be no picture.
*(Refers to the RGB levels of the AKB detection Ref pulse that detects 1K).
Low B Error Occurs when set 5V is out.
Horizontal Deflection Stopped Occurs when either 1) a +B overcurrent is detected (IC5007) or 2) overheating is detected
(Thermistor TH5002).

—7 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
After correcting the original service problem, perform the
following safety checks before releasing the set to the
customer:
1. Check the area of your repair for unsoldered or poorly
soldered connections. Check the entire board surface
for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched”or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground
straps, and mounting hardware have been replaced.
Be absolutely certain that you have replaced all the
insulators.
4. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair.
Point them out to the customer and recommend their
replacement.
5. Look for parts which, though functioning, show obvious
signs of deterioration. Point them out to the customer
and recommend their replacement.
6. Check the line cords for cracks and abrasion.
Recommend the replacement of any such line cord
to the customer.
7. Check the B+ and HV to see if they are specified
values. Make sure your instruments are accurate;
be suspicious of your HV meter if sets always have
low HV.
8. Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for AC
leakage. Check leakage as described below.
SAFETY CHECK-OUT
Leakage Test
The AC leakage from any exposed metal part to earth
ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5
mA (500 microamperes). Leakage current can be
measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229
or RCA WT-540A. Follow the manufacturers'
instructions to use these instructions.
2. A battery-operated AC milliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means
of a VOM or battery-operated AC voltmeter. The “limit”
indication is 0.75 V, so analog meters must have an
accurate low voltage scale. The Simpson’s 250 and
Sanwa SH-63TRD are examples of passive VOMs that
are suitable. Nearly all battery-operated digital
multimeters that have a 2 VAC range are suitable
(see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-
plate retaining screw on most AC outlet boxes is also at earth
ground. If the retaining screw is to be used as your earth
ground, verify that it is at ground by measuring the resistance
between it and a cold-water pipe with an ohmmeter. The
reading should be zero ohms. If a cold-water pipe is not
accessible, connect a 60- to 100-watt trouble- light (not a
neon lamp) between the hot side of the receptacle and the
retaining screw. Try both slots, if necessary, to locate the hot
side on the line; the lamp should light at normal brilliance if the
screw is at ground potential (see Figure B).
Figure B. Checking for earth ground.Figure A. Using an AC voltmeter to check AC leakage.
Trouble Light
AC Outlet Box Ohmmeter
Cold-water Pipe

—8 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
The instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers shown reflect
those of the Operating Instruction Manual.
SECTION 1 GENERAL
Introducing the FD Trinitron Wega
3

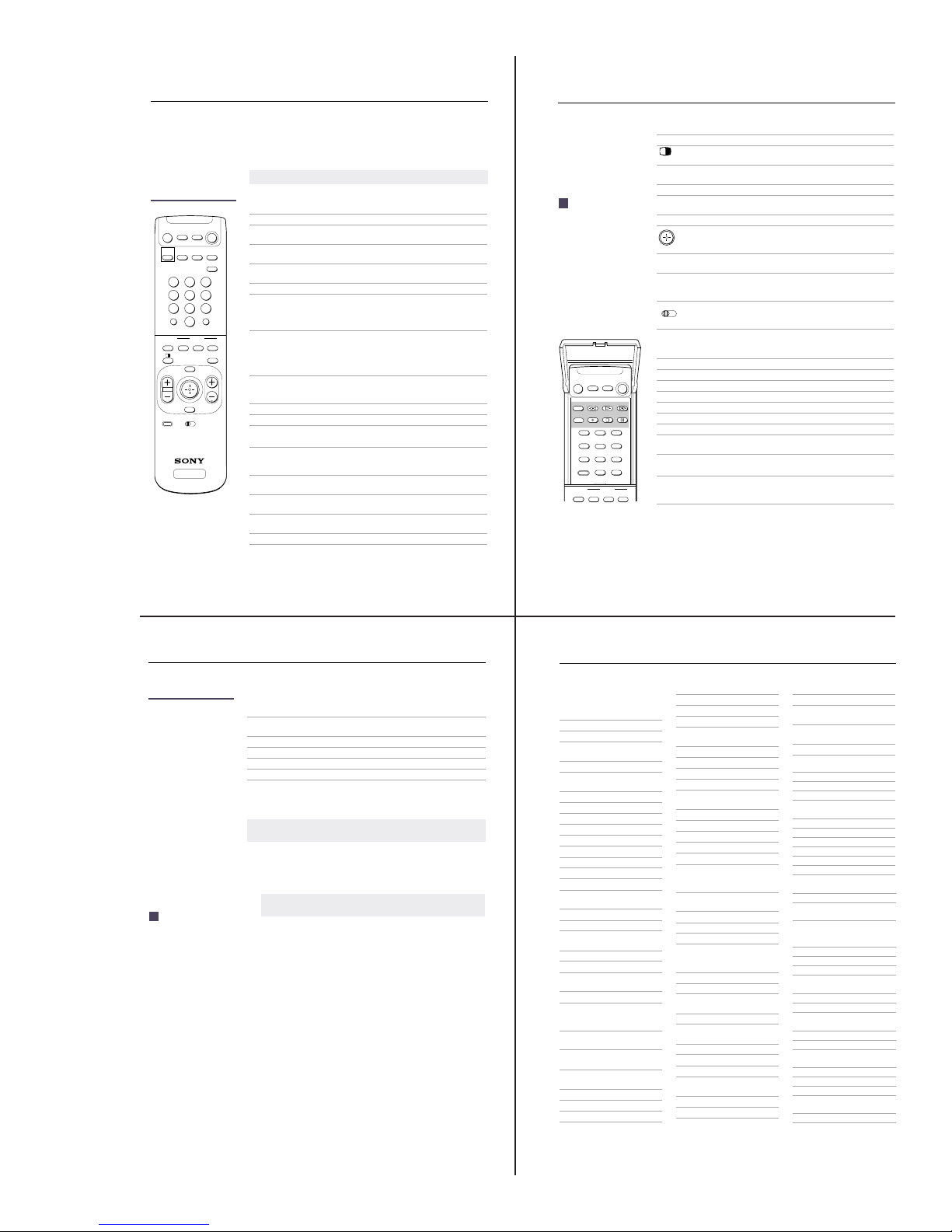

Using the Remote Control
Inserting Batteries Insert two size AA (R6) batteries (supplied) by matching the + and –
on the batteries to the diagram inside the battery compartment.
Remote Control
Overview
Here’s an overview of the buttons on the remote control you will
probably use most often. For a complete description of the remote
control, see “Using the Remote Control” on page 40.
✍Remove the batteries to avoid damage from possible battery leakage whenever you
anticipate that the remote control will not be used for an extended period.
Handle the remote control with care. Avoid dropping it, getting it wet, or placing it in
direct sunlight, near a heater, or where the humidity is high.
To Do This ... Use This Button
Turn the TV
on and off TV (POWER)
Select channels
directly 0 – 9 and ENTER
Press 0 – 9 to select a channel, the channel changes
after 2 seconds. Press ENTER for immediate selection.
Scan through
channels CH +/-
To scan rapidly through the channels, press and hold down
the CH+ or CH- button.
Adjust the volume VOL +/-
Switch video inputs
(such as a VCR) TV/VIDEO Press repeatedly to toggle through all video inputs.
Display the Menu to
make changes to the
TV
MENU
For details, see “Using the Menus” on page 25.
View the Favorite
Channels list FAVORITES
For details, see “Using Favorite Channels” on
page 20.
Using the on-screen
functions
TV
213
546
879
0
TV
VCR/DVD SAT/CABLE
POWER
SLEEP DISPLAY ANT
GUIDE
FAVORITES
VOL
MENU
CH
AV 1 2 3 DVDRESET
JUMP ENTER
RM-Y174
MODE
VCR/DVD SAT/CABLE
FUNCTION
TV
TV/VIDEO
MUTING
FREEZE
z
Move
Select
FAVORITES
VOL
MENU
CH
Installing the TV
7
Cable and Antenna If your cable provider does not feature local channels, you may find
this set up convenient.
Select CABLE or antenna (ANT) mode by pressing
ANT on the remote
control.
Cable Box
Connections
Some pay cable TV systems use scrambled or encoded signals that
require a cable box to view all channels.
Cable Box
1 Connect the coaxial connector from your cable service to the
cable box’s IN jack.
2 Using a coaxial cable, connect the cable box’s OUT jack to the
TV’s VHF/UHF jack.
✍ In order to receive channels with an antenna, you need to turn your Cable to OFF and
perform the Auto Program function (see page 30).
Rear of TV
AUX
TO CONVERTER
VHF/UHF
Antenna cable
(No connection to
CATV cable
TO CONVERTER)
✍ If you will be controlling all channel selection through your cable box, you should
consider using the Channel Fix feature (see page 30).
Rear of TV
OUT
Cable box
IN
Cable VHF/UHF
Installing the TV
8
Cable Box and Cable
For this set up, you can switch between scrambled channels (through
your cable box), and normal (CATV) channels by pressing ANT on the
remote control.
✍ Your Sony remote control can be programmed to operate your cable box (see
“Programming the Remote Control” on page 42).
When using Favorite Channel or Twin View, you cannot view the AUX input in the
window picture.
Pressing ANT switches between these inputs.
✍ If you are connecting a cable box through the AUX input and would like to switch
between the AUX and normal (CATV) input you should consider using the Channel Fix
feature (see page 30).
Rear of TV
OUT
75-ohm coaxial cable (not supplied)
IN
AUX
TO CONVERTER
VHF/UHF
CATV cable (unscrambled channels)
Cable box
Signal
z
Installing the TV
9
Connecting a VCR and Cable
1 Connect the cable TV cable to the VCR’s IN jack.
2 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s
VHF/UHF jack.
3 Using an A/V cable, connect the VCR’s A/V OUT jacks to the
TV’s A/V IN jacks.
✍ If your VCR has an S VIDEO jack: For best picture quality, use an S VIDEO connection
instead of the yellow video cable on your combined A/V cable. Using an S VIDEO cable,
connect the VCR’s S VIDEO OUT jack to the TV’s S VIDEO IN jack. S VIDEO does not
provide audio, so audio cables must still be connected to provide sound.
VCR
TV
Cable
Coaxial cable
A/V cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)

—9 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Installing the TV
10
Connecting a VCR and Cable Box
1Connect the single (input) jack of the splitter to your incoming
cable connection, and connect the other two (output) jacks (using
coaxial cable) to IN on your cable box and VHF/UHF on your TV.
2Using a coaxial cable, connect the cable box’s OUT jack to the
VCR’s VHF/UHF IN jack.
3Using an A/V cable, connect the VCR’s A/V OUT jacks to the
TV’s A/V IN jacks.
✍If your VCR has an S VIDEO jack: For best picture quality, use an S VIDEO connection
instead of the yellow video cable on your combined A/V cable. Using an S VIDEO cable,
connect the VCR’s S VIDEO OUT jack to the TV’s S VIDEO IN jack. S VIDEO does not
provide audio, so audio cables must still be connected to provide sound.
Cable
Coaxial
cable
A/V cable
Coaxial
cable
VCR
TV
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
box
Splitter
(not supplied)
Installing the TV
12
Connecting a Satellite Receiver
1Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2Using an A/V cable, connect the satellite receiver’s A/V OUT
jacks to the TV’s A/V IN jacks.
3Connect a coaxial cable from your cable or antenna to the TV’s
VHF/UHF jack.
✍If your satellite receiver has an S VIDEO jack: For best picture quality, use an S VIDEO
connection instead of the yellow video cable on your combined A/V cable. Using an S
VIDEO cable, connect the satellite receiver’s VIDEO OUT jack to the TV’s S VIDEO IN
jack. S VIDEO does not provide audio, so audio cables must still be connected to provide
sound.
TV
Satellite receiver
Satellite
cable
A/V cable
Coaxial
cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
antenna
Installing the TV
13
Connecting a Satellite Receiver with a VCR
1Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3Using a coaxial cable, connect the VCR’s OUT jack to the TV’s
VHF/UHF jack.
4Using an A/V cable, connect the satellite receiver’s A/V OUT
jacks to the VCR’s A/V IN jacks.
5Using an A/V cable, connect the VCR’s A/V OUT jacks to the
TV’s A/V IN jacks.
TV
Satellite receiver
VCR
A/V cable
Coaxial
cable
Coaxial
cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Installing the TV
14
Connecting an Audio Receiver
1 Using audio cables, connect the TV’s AUDIO OUT jacks to the
audio receiver’s audio LINE IN jacks.
AUDIO-R AUDIO-L
Line
(red) (white)
input
TV

—10 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Installing the TV
18
Using the CONTROL S Feature
CONTROL S allows you to control your TV system and other Sony
equipment with one remote control.
To control your other Sony equipment with your TV’s remote control,
use a CONTROL S cable (not supplied) to connect the equipment’s
CONTROL S IN jack to the TV’s CONTROL S OUT jack.
Setting Up the TV Automatically
After you finish connecting your TV, you need to run Auto Setup to
set up your channels.
Using Auto Setup 1 Press POWER to turn on the TV.
The first time you turn on the TV, the Auto Setup screen appears.
2 Press CH+ to run Auto Setup or press CH– to exit.
TV
✍The Auto Setup feature does not apply for installations that use a cable box for all
channel selection.
✍You can run Auto Program by selecting it in the Channel menu, as described on
page 30.
Installing the TV
15
Connecting a DVD Player with Component
Video Connectors
1Using three separate component video cables, connect the DVD
player’s Y, P
B , and P R jacks to the Y, P B , and P R jacks on the TV.
2Using an audio cable, connect the DVD player’s audio OUT jacks
to the TV’s audio IN jacks.
✍The Y, PB, and PRjacks on your DVD player are sometimes labeled Y, CB, and CR, or
Y, B-Y, and R-Y. If so, connect the cables to like colors.
The Y, PB, and PRjacks do not provide audio, so audio cables must be connected to
provide sound.
Component video cables
DVD player
TV
AUDIO-R (red)
AUDIO-L (white)
Audio cable
Installing the TV
16
Connecting a DVD Player with A/V Connectors
1 Using audio cables, connect the DVD player’s audio OUT jacks to
the TV’s audio IN jacks.
2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack
to the TV’s S VIDEO jack.
✍ If your DVD player has video component output connectors: for best picture quality use
the connection described on page 15.
Audio cable
DVD player
S VIDEO
cable
AUDIO-R (red)
AUDIO-L (white)
TV
Installing the TV
17
Connecting a Digital TV Receiver
1Using three separate component video cables, connect the Digital
TV Set-top box’s Y, P
B , and P R jacks to the TV.
2Using an audio cable, connect the DTV Set-top box’s audio OUT
jacks to the TV’s audio IN jacks.
Connecting a Camcorder
1Using A/V cables, connect the camcorder’s A/V OUT jacks to
the TV’s A/V IN jacks.
✍The Y, PB, and PRjacks do not provide audio, so audio cables must be connected to
provide sound.
Component input (Y, PB, and PR) is recommended for optimum picture quality. You
may also use component video or S Video connections.
Be sure to read the
manual for the Set-top box.
z
S VIDEO
VIDEO
VIDEO
P B
Y
P
R
AUDIO/VIDEO OUT
12 3
(MONO)
AUDIO-R (red)
AUDIO-L (white)
Component video cables
DTV Set-top box
TV
Audio cable
✍If you have a mono camcorder, connect its left audio output to the TV’s AUDIO L jack.
For easy connection of the camcorder, the TV has front A/V inputs (shown below).
However, if you prefer, you can also connect the camcorder to the TV’s rear A/V IN jacks.
MENU
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V output

—11 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Other Information
40
Using the Remote Control
The following table describes the buttons on the remote control that
are for more advanced functions.
Button Descriptions Outside Panel
✍Main Power button must be turned ON to activate the Remote Control.
Button Description
MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
VCR/DVD
(POWER)
Turns the DVD player, MDP player, or VTR (VCR) on
and off.
SAT/CABLE
(POWER)
Turns the satellite receiver or cable box on and off.
TV (POWER) Turns the TV on and off.
PICTURE MODE Press repeatedly to step through the available video
picture modes: Vivid,Standard, Pro, Movie. Also available
in the Video menu. For details, see “Selecting Video
Options”on page 26.
SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. Cancel by
pressing until SLEEP OFF appears. While Sleep feature is
set, press once to view remaining time
DISPLAY Press once to display the current time and channel label
(if set) and channel number. Press again to turn Display
off. See page 34 for details on setting the time.
ANT Changes the VHF/UHF input to the AUX input.
GUIDE Displays the program guide of your satellite antenna.
0 –9 and ENTER Press 0 –9 to select a channel, the channel changes after
2 seconds. Press ENTER for immediate selection.
JUMP Press to jump back and forth between two channels. The
TV alternates between the current channel and the last
channel that was selected.
TV/VIDEO
Cycles through available video inputs: TV , VIDEO 1 , VIDEO 2 ,
VIDEO 3 , VIDEO 4 , VIDEO 5 , VIDEO 6 .
VCR/DVD
(FUNCTION)
Activates the remote control for use with a DVD player,
MDP, or VTR (VCR).
SAT/CABLE
(FUNCTION)
Activates the remote control for use with a satellite
receiver or cable box.
TV (FUNCTION) Activates the remote control for use with the TV.
TV
213
546
879
0
TV
VCR/DVD SAT/CABLE
POWER
SLEEP DISPLAY ANT
GUIDE
FAVORITES
VOL
MENU
CH
AV 1 2 3 DVDRESET
JUMP ENTER
RM-Y174
MODE
VCR/DVD SAT/CABLE
FUNCTION
TV
TV/VIDEO
MUTING
FREEZE
Other Information
41
Inside Panel
Turns on/off Twin Mode. For details, see “Using Twin
View”on page 21.
FREEZE Freezes the window picture. Press again to restore the
picture.
VOL +/- Adjusts the volume.
FAVORITES Displays the Favorite Channels list. For details, see
“Using Favorite Channels”on page 20.
CH +/- Scan through channels.
Joystick allows for movement of the on-screen cursor.
Pressing down on the center of the joystick selects the
item.
MENU Press to display the TV menu. Press again to exit from
the menus.
RESET Resets the TV to the factory default settings for the
Video and Audio menus. (Clears setting on Channel
and Timer)
Use to switch control for connected video equipment.
You can program one video source for each switch
position (see page 42).
TV/VCR Changes the VHF/UHF output of the VCR.
mRewind
NPlay
MFast-forward
DVD MENU Displays the DVD menu.
REC Record
xDisplays the DVD menu.
X M or mduring playback
(release to resume normal playback)
0 –9 and ENTER Press 0 –9 to select a VCR channel, the channel changes
after 2 seconds. Press ENTER for immediate selection.
CODE SET Used for programming the remote control to operate
non-Sony video equipment. For details, see
“Programming the Remote Control”on page 42.
Button Description
To scan rapidly through the
channels, press and hold down the
CH+ or CH- button.
z
AV 1 2 3 DVD
MTS
TV
VCR/DVD SAT/CABLE
POWER
CODE SET ENTER
DVD MENU REC
GUIDE
TV/DBS
TV/VCR
123
456
789
0
MUTING
VCR/DVD SAT/CABLE
FUNCTION
TV
TV/VIDEO
Other Information
42
Programming the
Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to
control with the TV’s remote control, use the following procedures to
program the remote control.
1 Turn to “Programmable Codes”on page 43, and find the three-
digit code number for your equipment. If more than one code
number is listed, use the number listed first to complete the
following procedure.
2 Press CODE SET .
3 Move the slide switch to the desired input.
4 Enter the three-digit code number.
5 Press ENTER .
Tips
❑
If more than one code number is listed, try entering them one by
one until you come to the correct code for your equipment.
❑ If you enter a new code number, the code number you previously
entered at that setting is erased.
❑ In some rare cases, you may not be able to operate your
equipment with the supplied remote control. In this case, use the
equipment’s own remote control unit.
❑ Whenever you remove the batteries to replace them, the code
numbers may revert to the factory setting and must be reset.
Sony
Equipment
Switch Position
on Remote Control
Programmable
Code Number
Beta, ED Beta VCRs VTR1 303
8 mm VCR VTR2 302
VHS VCR VTR3 301
DVD Player DVD/MDP 751
✍The equipment must have infrared (IR) remote capability in order to be used with the
remote control.
✍You must perform step 3 within 10 seconds of step 2, or you must start again from
step 2.
To check if the code number
works, after step 5 aim the TV’s
remote control at the component
and press the POWER button that
corresponds with that component. If
it responds, you’re done. If not, try
using the other codes listed for your
component.
z
43
Programmable Codes
VCRs
Laserdisc Players
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 301
Admiral
(M. Ward) 327
Aiwa 338, 344
Audio
Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General
Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304,
305,338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN 304, 305, 308, 309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Shintom 315
Signature 2000
(M. Ward) 338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314. 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Manufacturer Code
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Panasonic 704, 710
Pioneer 702
Manufacturer Code
Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754
Manufacturer Code
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific
Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
General
Electric 802
Hitachi 805
Hughes 804
Panasonic 803
RCA/
PROSCAN 802, 808
Toshiba 806, 807
Manufacturer Code

—12 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
47
If, after reading these operating instructions, you have additional questions related to the use of your Sony
television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (U.S. residents
only) or (416) 499-SONY (7669) (Canadian residents only).
Cannot gain enough volume
when using a cable box
❏Increase the volume of the cable box using the cable box’s remote control.
Then press TV (FUNCTION) and adjust the TV’s volume.
Cannot receive channels ❏Use Auto Program in the Channel menu to add receivable TV channels that
are not presently in TV memory (see page 30).
Unable to select a channel ❏Use Auto Program in the Channel menu to add receivable TV channels that
are not presently in TV memory (see page 30).
Lost password ❏In the password screen (see page 31), enter the followingmaster password:
4357. The master password clears your previous password; it cannot be
used to temporarily unblock channels.
Problem Possible Remedies
44
Operating a VCR
Operating an MDP
(Laserdisc Player)
To Do This ... Press
Turn on/off VTR/DVD (POWER)
Change channels CH +/-
Record N and REC simultaneously.
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X (press again to resume normal playback)
Search the picture forward
or backward
Mor mduring playback
(release to resume normal playback)
Change input mode TV/VCR
To Do This ... Press
Turn on/off VCR/DVD (POWER)
Play N
Stop x
Pause X(press again to resume normal playback)
Search the picture forward
or backward
M or mduring playback
(release to resume normal playback)
Search a chapter forward or
backward CH +/-
45
Operating a Satellite
Receiver
Operating a DVD
Player
Operating a Cable
Box
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select a channel 0-9 buttons, ENTER
Change channels CH +/-
Back to previous channel JUMP
Display channel number DISPLAY
Display DBS guide GUIDE
Display DBS menu MENU
Move highlight (cursor) Joystick or arrows
Select item button
To Do This ... Press
Turn on/off VTR/DVD (POWER)
Play N
Stop x
Pause X(press again to resume normal playback)
Step through different tracks
of an audio disc
M to step forward or m to step backward
Step through different
chapters of a video disc CH+ to step forward or CH- to step backward
Display the DVD menu DVD MENU
Select tracks directly 0-9 buttons
Display the menu
(Setup) MENU
To Do This ... Press
Turn on/off SAT/CABLE (POWER)
Select a channel 0-9 buttons, ENTER
Change channels CH +/-
Back to previous channel JUMP
46
Troubleshooting
Problem Possible Remedies
No picture
(screen not lit), no sound
❏If your TV does not turn on, and a red light keeps flashing, your TV may
need service. Call your local Sony Service Center.
❏Make sure the power cord is plugged in.
❏Push the power button on the front of the TV.
❏Check to see if the TV/VIDEO setting is correct: when watching TV, set to
TV, and when watching connected equipment, set to VIDEO 1, 2, 3, 4, 5or 6.
❏Try another channel. It could be station trouble.
Remote control
does not operate
❏Batteries could be weak. Replace the batteries.
❏Press TV (FUNCTION) when operating your TV.
❏Make sure the TV’s power cord is connected securely to the wall outlet.
❏Locate the TV at least 3-4 feet away from fluorescent lights.
❏Check the orientation of the batteries.
Dark, poor or no
picture (screen lit),
good sound
❏Adjust the Picture setting in the Video menu (see page 26).
❏Adjust the Brightness setting in the Video menu (see page 26).
❏Check antenna/cable connections.
Good picture,
no sound
❏Press MUTING so that “MUTING”disappears from the screen (see page 40).
❏Make sure Speaker is set to ON in the Audio menu (see page 28).
Cannot receive upper
channels (UHF) when using
an antenna
❏Change Cable to OFF (see page 30).
❏Use Auto Program in the Channel menu to add receivable channels that are
not presently in TV memory (see page 30).
No color ❏Adjust the Color settings in the Video menu (see page 26).
Only snow and noise appear
on the screen
❏Check the antenna/cable connections.
❏Make sure the channel is broadcasting programs.
❏Press ANT to change the input mode (see page 40).
Dotted lines
or stripes
❏Adjust the antenna.
❏Move the TV away from noise sources such as cars, neon signs, or hair-
dryers.
TV is fixed to one channel ❏Use Auto Program in the Channel menu to add receivable channels that are
not presently in TV memory (see page 30).
❏Check your Channel Fix settings (see page 30).
Double images or ghosts ❏Use a highly directional outdoor antenna or a cable (when the problem is
caused by reflections from nearby mountains or tall buildings).
Cannot operate menu ❏If the item you want to choose appears in gray, you cannot select it.
Cannot receive any channels
when using cable TV
❏Use Auto Program in the Channel menu to add receivable channels that are
not presently in TV memory (see page 30).
❏Check your cable settings.
❏Make sure Cable is set to ON in the Channel menu (see page 30).

— 13 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
SECTION 2
DISASSEMBLY
2-1. REAR COVER REMOVAL
2-2. CHASSIS ASSEMBLY REMOVAL 2-3. SERVICE POSITION
Pull up and rotate A and D Boards
to service the set.
Remove +BVTP 4x16 screws from areas
indicated with a circle.
* = screws for 36" and 38" models only.
Lift lever up on right and left
sides of chassis bracket
and pull chassis assembly
gently away from bezel.
CAUTION!
Heat sink on IC5004 is -15V.
Care must be taken not to
allow heat sink to touch any
other components.
*
*
*
*

—14 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Coated
Earth
Ground
Strap
2-4. PICTURE TUBE REMOVAL
WARNING:
BEFORE REMOVING
THE ANODE CAP
High voltage remains in the CRT
even after the power is discon-
nected. To avoid electric shock,
discharge CRT before attempting
to remove the anode cap. Short
between anode and CRT coated
earth ground strap.
a
REMOVAL PROCEDURES
HOW TO HANDLE AN ANODE CAP
WARNING: High voltage remains in the CRT even after the power is disconnected. To avoid electrical shock, discharge the CRT before
attempting to remove the anode cap. Short between anode and coated earth ground strap of CRT.
NOTE: After removing the anode, short circuit the anode of the picture tube and the anode cap to either the metal chassis, CRT shield,
or carbon painted on the CRT.
1
Do not use sharp objects which may cause damage to the
surface of the anode cap.
3
Do not force turn the foot of the rubber cover. This may cause
the shatter-hook terminal to protrude and damage the rubber.
2
To avoid damaging the anode cap, do not squeeze the rubber
covering too hard. A material fitting called a shatter-hook terminal
is built into the rubber.
2
Use your thumb to pull the rubber
cap firmly in the direction indicated
by arrow
b .
3
When one side of the rubber cap
separates from the anode button,
the anode cap can be removed by
turning the rubber cap and pulling
it in the direction of arrow
c .
1
Turn up one side of the rubber cap in
the direction indicated by arrow
a .
b
Anode Button
c
ANODE CAP REMOVAL
1. Discharge the anode of the CRT and remove the anode cap.
2. Unplug all interconnecting leads from the deflection yoke, neck
assembly, degaussing coils and CRT grounding strap.
3. Remove speaker assemblies.
4. Remove the C Board from the CRT.
5. Remove the chassis assembly.
6. Loosen the neck assembly fixing screw and remove.
7. Loosen the deflection yoke fixing screw and remove.
8. Place the set with the CRT face down on a cushion and remove the
degaussing coil holders.
9. Remove the degaussing coils.
10. Remove the CRT grounding strap and spring tension devices.
11. Unscrew the four CRT fixing screws [located on each CRT corner] and
remove the CRT [Take care not to handle the CRT by the neck].
2
3
4
1
6
7
5
8
9
10
11

— 15 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
SECTION 3
SET-UP ADJUSTMENTS
3-1. BEAM LANDING
Before beginning adjustment procedure:
•Face the picture tube in East or West direction to reduce the
influence of geomagnetism.
NOTE: Do not use hand degausser because it magnetizes CRT.
1. Input white pattern from pattern generator. Set the
PICTURE control to maximum and BRIGHTNESS control
to standard.
2. Perform Focus, G2 and White Balance adjustments.
3. Loosen the deflection yoke mounting screw and set the
purity control to the center as shown below.
Purity Control
4. Input a green pattern from the pattern generator.
5. Move the deflection yoke backwards and adjust the purity
control so that green is in the center and red and blue are
even on both sides.
Blue Red
Green
6. Move the deflection yoke forward and adjust so that the
entire screen becomes green.
7. Switch over the raster signal to red and blue and confirm
the condition.
8. When the position of the deflection yoke is determined,
tighten it with the deflection yoke mounting screw.
9. If landing at the corner is not right, adjust by using the disk
magnets.
The following adjustments should be made when
a complete realignment is required or when a new
picture tube is installed.
These adjustments should be performed with rated
power supply voltage unless otherwise noted.
Set the controls as follows unless otherwise noted:
VIDEO MODE: STANDARD (RESET)
Perform the adjustments in order as follows:
1. Beam Landing
2. Convergence
3. Focus
4. Screen (G2)
5. White Balance
Note: Test equipment required:
•Color Bar Pattern Generator
•Degausser
•DC Power Supply
•Digital Multimeter

—16 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
3-2. V-PIN and V-CEN ADJUSTMENT
Before beginning adjustment procedure:
•Input a cross hatch pattern signal.
•Face the picture tube in North/South direction and correct
rotation.
•Video Mode: Standard (Reset)
1. Adjust service mode CXA2150D-1 04 VCEN so that top
pin and bottom pin are symmetrical from top to bottom.
2. Adjust service mode CXA2150D-1 05 VPIN so top and
bottom pin are symmetrical from top to bottom.
3. Lines should be straight from left to right. Check landing for
side effect.
3-3. CONVERGENCE ADJUSTMENT
Before starting convergence adjustments:
•Set CONTRAST AND BRIGHTNESS control to 50%.
•Input dot pattern signal.
Vertical and Horizontal Static Convergence
1. Disconnect dynamic convergence before adjusting static
convergence (CN5510), except for minor touch-up.
2. Adjust H.STAT convergence, RV 9001, to converge red,
green and blue dots in the center of the screen.
3. Adjust V.STAT magnet to converge red, green and blue
dots in the center of the screen.
4. Tilt the V.STAT magnet and adjust static convergence to
open or close the V.STAT magnet.
B
G
R
B
G
R
Operation of BMC (Hexapole) Magnet
The respective dot positions resulting from moving each
magnet interact, so perform the following adjustment while
tracking.
Use the V.STAT tabs to adjust the red, green, and blue dots
so they line up at the center of the screen (move the dots in
a horizontal direction.)
HMC Correction HMC Correction
RGB
A=B
AB
RGB
A=B
AB
RGB
A>B
AB
R
GB
A<B
AB
VMC Correction
R
G
B
C<D
C
D
R
G
B
C=D
VMC Correction
R
G
B
C<D
C
D
R
G
B
C=D
TLH Plate Adjustment
•Input crosshatch pattern.
•Adjust unbalanced horizontal convergence of red and blue
dots by adjusting TLH plate on the deflection yoke.
TLH Plate
RV9002
RV9001
W Board
C Board
TLV
XCV
1. Adjust XCV core to balance X axis.
2. Adjust vertical red and blue convergence with V.TILT
(TLV VR).
Note: Perform adjustments while tracking item 1.

—17 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
Screen-Corner Convergence
•Input crosshatch pattern.
1. Affix a permalloy assembly corresponding to the
misconverged areas.
Dynamic Convergence Adjustments
Set dynamic convergence using the following service mode
adjustment data:
CXA 8070 AP
NO. Register Function Data Length Initial Data
1 YBWU VCA9 0-63 31
2 YBWL VCA10 0-63 31
3 RSAP DC-AMP1 0-63 31
4 RUBW VCA5 0-63 31
5 RLBW VCA6 0-63 31
6 LSAP DC-AMP2 0-63 31
7 LUBW VCA10 0-63 31
8 LLBW VCA2 0-63 31
1. YBWU (UPPER Y-BOW)
BR BR
2. YBWL (BOTTOM BOW)
BR BR
3. RSAP (RIGHT AMP)
RB
4. RUBW (RIGHT SIDE UPPER C-BOW)
BR
5. RLBW (RIGHT SIDE BOTTOM C-BOW)
RB
6. LSAP (LEFT AMP)
BR
7. LUBW (LEFT SIDE UPPER C-BOW)
BR
8. LLBW (LEFT SIDE BOTTOM C-BOW)
BR

—18 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
3-4. FOCUS ADJUSTMENT
1. Input Monoscope signal.
2. Set VIDEO MODE: Standard (RESET).
3. Adjust focus VR counter-clockwise to confirm the dot's
shape is centered.
4. Confirm center focus with focus VR.
3-5. SCREEN (G2)
1. Input a monoscope pattern. (NTSC)
2. Set to service mode and adjust as follows:
CXA 2150P-2
No. Disp. Item Avg.
00 ALBK ALL_BLK 0
3. Adjust RV9002 on the C Board so that voltage on red, green
and blue cathodes is 170.0 +0.5V DC.
4. Adjust horizontal line at top of screen so it is cutoff.
Note: Never set ALBK to 1 when external power supply is
connected to cathode.
3-6. PICTURE QUALITY ADJUSTMENT
Initial set-up condition
1. Set PRO MODE (Picture : MAX, GAMMA :0)
2. Dynamic-color: Off (=Trinitone: MID).
3. Set the service mode to the following:
C2150P-4
No. Name Control Function Avg. Data
06 UDCL Dynamic Color: OFF 0
08 UGRAM GRAMMA 0
15 DCTR DC-TRAN 0
16 DPIC DYNAMIC PIC:OFF 0
4. Input Signal (480i):
Color Bar Video 75 IRE (White) 75% modulation
7.5% Set-up
Color Bar RF 75 IRE (White) 75% modulation
7.5% Set-up
3-6-1. VIDEO INPUT -Two Picture Sub
Contrast Adjustment
1. Input a Color Bar signal to VIDEO 1 (75 IRE 75%).
2. Set picture mode: P&P (PRO MODE).
3. Set to service mode and adjust as follows:
2150P-4
No. Name Control Function Avg. Data
00 UPIC PICTURE 63
02 UCOL COLOR 0
2150P-2
No. Name Control Function Avg. Data
01 RGBS R ON 4
INITIAL DATA (IMPORTANT)
2150P-4
No. Name Control Function Avg. Data
23 SCON SUB-CONT 9
2103-1
No. Name Control Function Avg. Data
00 YLEV Y-OUT 23
2103-2
No. Name Control Function Avg. Data
00 YLEV Y-OUT 23
4. Connect oscilloscope to Pin 1 of CN9001 (R. DRV) on C
Board.
5. Adjust MAIN (left) side contrast according to service mode
for SCON.
2103-1
No. Name Control Function
02 SCON SUB-CONT
6. Adjust SUB (right) side contrast according to service mode
for SCON.
2103-2
No. Name Control Function
02 SCON SUB-CONT
32”: VR1-VR2 = VR = 1.92 +0.05 Vp-p
36”/ 38”: VR1-VR2 = VR = 2.0 +0.05 Vp-p
7. Write data from 5 and 6 above into memory.

—19 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
3-6-2. VIDEO INPUT - Sub Hue/Sub Color
Adjustment
1. Input a Color Bar signal to VIDEO 1 (75 IRE 75%).
2. Set picture mode: P&P (PRO MODE).
3. Set to service mode and adjust as follows:
2150P-4
No. Name Control Function Avg. Data
00 UPIC PICTURE 63
02 UCOL COLOR 31
2150P-2
No. Name Control Function Avg. Data
01 RGBS R ON 7
4. Connect oscilloscope to Pin 5 of CN9001 (B. DRV) on C
Board.
5. Adjust MAIN (left) side color according to service mode for
SCOL.
6. Adjust MAIN (left) side color according to service mode for
SHUE.
2103-1
No. Name Control Function
03 SCOL SUB-COL
04 SHUE SUB-HUE
7. Adjust SUB (right) side color according to service mode for
SCOL.
8. Adjust SUB (right) side color according to service mode for
SHUE.
2103-2
No. Name Control Function
03 SCOL SUB-COL
04 SHUE SUB-HUE
COLOR: VB1<VB4 (=VB1 + 0~90mV)
HU : VB2<VB3 (=VB2 + 0~90mV)
(HU : Adjust data - 2 step)
9. Write data into memory.
3-6-3. RF INPUT Two Picture Sub Contrast
Adjustment
1. Input a Color Bar signal to RF (75 IRE 75%).
2. Set picture mode: P&P. (PRO MODE)
3. Set to service mode and adjust as follows:
2150P-4
No. Name Control Function Avg. Data
00 UPIC PICTURE 63
02 UCOL COLOR 0
2150P-2
No. Name Control Function Avg. Data
01 RGBS R ON 4
INITIAL DATA (IMPORTANT)
2150P-4
No. Name Control Function Avg. Data
23 SCON SUB-CONT 9
2103-1
No. Name Control Function Avg. Data
00 YLEV Y-OUT 23
2103-2
No. Name Control Function Avg. Data
00 YLEV Y-OUT 23
Note: Use the same average data as 3-6-1 items 5 and 6 after the
adjustment.
4. Connect oscilloscope to Pin 1 of CN9001 (R. DRV) on C Board.
5. Adjust MAIN (left) side contrast according to service mode for
SCON.
2103-1
No. Name Control Function
02 SCON SUB CONT

—20 —
KV-32XBR400/36XBR400/36XBR400H/38DRC1/38DRC1C
6. Adjust SUB (right) side contrast according to service mode
for SCON.
2103-2
No. Name Control Function
02 SCON SUB CONT
32”: VR1-VR2 = VR = 1.92 +0.05Vp-p
36”/38”: VR1-VR2 = VR = 2.0 +0.05Vp-p
7. Write data from 5 and 6 above into memory.
3-6-4. RF INPUT-Sub Hue/Sub Color
Adjustment
1. Input a Color Bar signal to RF (75 IRE 75%).
2. Set picture mode: P&P (PRO MODE).
3. Set to service mode and adjust as follows:
2150P-4
No. Name Control Function Avg. Data
00 UPIC PICTURE 63
02 UCOL COLOR 31
2150P-2
No. Name Control Function Avg. Data
01 RGBS R ON 7
INITIAL DATA (IMPORTANT)
2150P-4
No. Name Control Function Avg. Data
24 CLOF OFFSET for UCOL 8
25 HUOF OFFSET for UHUE 4
2103-1
No. Name Control Function Avg. Data
01 CLEV CB & CR-OUT 17
20 CBOF CB- OFFSET 31
21 CROF CR-OFFSET 31
2103-2
No. Name Control Function Avg. Data
01 CLEV CB & CR-OUT 17
20 CBOF CB- OFFSET 31
21 CROF CR-OFFSET 31
Note: Use the same average data as 3-6-2 items 5,6,7,8
after the adjustment.
4. Connect oscilloscope to Pin 5 of CN9001 (B. DRV) on C
Board.
5. Adjust MAIN (left) side color according to service mode for
SCOL.
6. Adjust MAIN (left) side color according to service mode for
SHUE.
2103-1
No. Name Control Function
03 SCOL SUB COLOR
04 SHUE SUB HUE
7. Adjust SUB (right) side color according to service mode for
SCOL.
8. Adjust SUB (right) side color according to service mode for
SHUE.
2103-2
No. Name Control Function
03 SCOL SUB COLOR
04 SHUE SUB HUE
COLOR: VB1 <VB4 (=VB1 + 0~90mV)
HU : VB2 < VB3 (=VB2 + 0~90mV)
(HU : Adjust data - 2 step)
8. Write data into memory.
3.7 WHITE BALANCE (CRT) AND SUB
BRIGHT ADJUSTMENT
White Balance
1. Input an all white 480I (15.734KHz) signal into the
VIDEO 1 input terminal to perform the white balance
(highlight, cut-off) adjustments. The parameters to adjust are
in the CXA2150P in service mode.
2. Set the following:
Picture: Full Mode
Pro Mode
Color: Center
