Trinitron Color TV
Mode d’emploi
• Avant de faire fonctionner cet appareil, lisez attentivement le présent
mode d’ emploi et conservez-le pour toute référence ultérieure.
ﺎﻤﻨﻫار ﻪﭼﺮﺘﻓد
•ﻗﺒﻞ از ﺗﻨﻈﻴﻢ ﻛﺮدن دﺳﺘﮕﺎه, ﻟﻄﻔﺎ دﻓﺘﺮﭼﻪ راﻫﻨﻤﺎ را ﺑﺎ دﻗ ﺑﺨﻮاﻧﻴﺪ وﺑﻪ ﻣﻨﻈﻮر ﻣﺮاﺟﻌﻪ ﺑﻌﺪى ان راﻧﮕﻪ دارﻳﺪ.
 
•  ,          
GB
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
AR
PR
FR
01AR+s01COV-STMME.p65ME 11/9/04, 9:30 AM1
Black

Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
2
Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
01GB02WAR-STMME.p65 11/9/04, 9:31 AM2
Black

Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
3

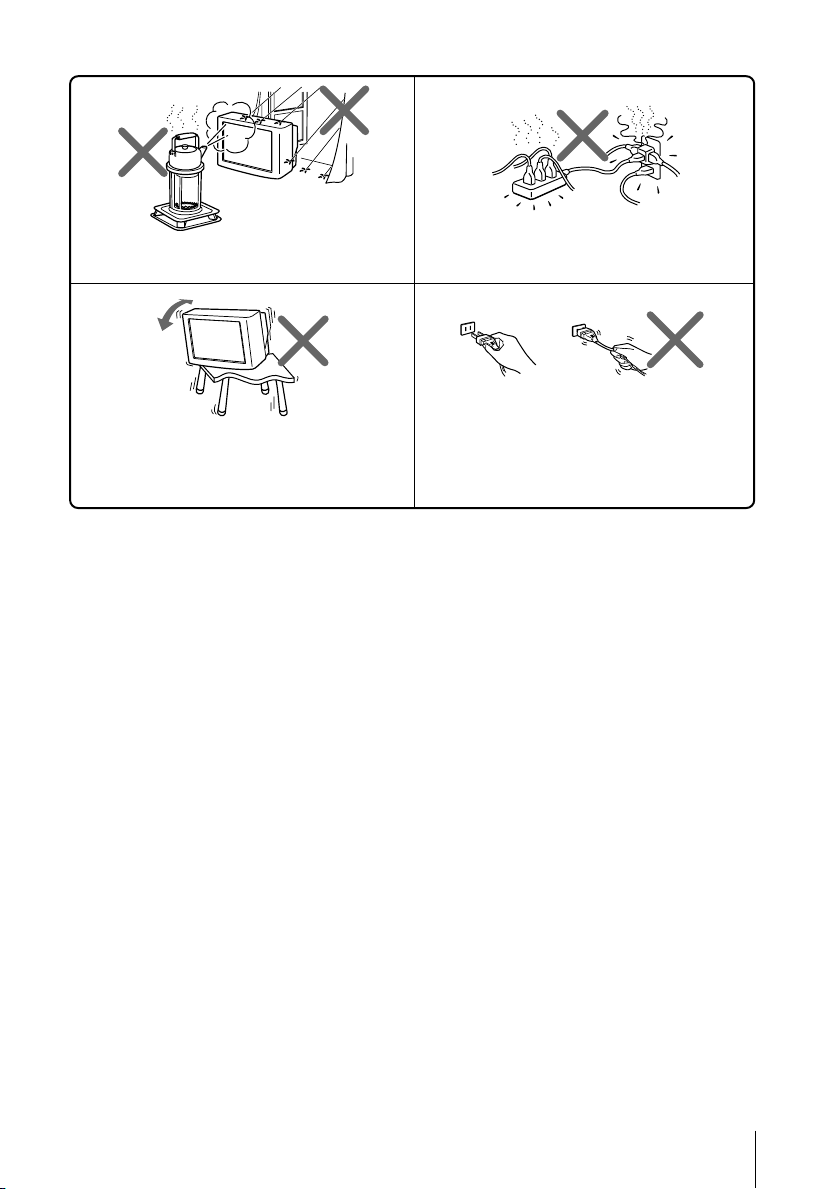

Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
01GB02WAR-STMME.p65 11/9/04, 9:31 AM3
Black

4
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of
your TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB02WAR-STMME.p65 11/9/04, 9:31 AM4
Black

5
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 9
Using the remote control and
basic functions .................................... 10
Advanced Operations
Selecting the picture and
sound modes ...................................... 12
Viewing higher quality pictures
with DRC-MF ..................................... 13
Enjoying the WEGA Theatre Mode
with center speaker ........................... 14
Viewing two programs at the same
time (KV-DA34M86/DA29M86
only) ..................................................... 15
Displaying multiple programs
(KV-DA34M86/DA29M86 only) ..... 16
Viewing Teletext ................................. 17
Operating optional components ...... 18
Menu Adjustment
Introducing the menu system .......... 19
Changing the “Picture”setting ........ 21
Changing the “Sound”setting ......... 23
Changing the “Wide Screen”setting ... 25
Changing the “Multi Picture”setting
(KV-DA34M86/DA29M86 only) ..... 26
Changing the “Channel Setup”
setting .................................................. 27
Changing the “Setup”setting .......... 29
Additional Information
Connecting optional components ... 31
Troubleshooting ................................. 34
Specifications ...................... Back cover
GB
01GB03TOC-STMME.p65 11/9/04, 9:31 AM5
Black

6Installation
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Installation
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
•Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.
Note
•The 1(standby) indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
•You can also connect your TV to other optional components
(see page 31).
xGetting Started
01GB04INS-STMME.p65 11/9/04, 9:31 AM6
Black

7
Installation
Installation
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
x Setting up your TV
(“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup”menu will appear.
You may change the menu language, preset the TV channels automatically, change the
order of TV channels that appear on the screen and adjust the picture position using
the buttons on the TV front panel.
Tip
•For menu operations, the MENU, t and 2+/–buttons on the TV front panel have the same
function with the MENU, and V/v buttons on the remote control.
1Press 2+/– to select the desired menu
language, then press t.
The selected menu language appears.
2Press 2+/– to select “Yes”, then press t
to preset the channels automatically.
The screen will indicate automatic
presetting in progress.
After all available channels have been tuned
and stored, the “Program Sorting”menu
appears automatically on the screen.
To skip automatic channel presetting, select
“No”, then press t.
If the message “No channel found. Please
connect cable/antenna”appears, check your
TV connections, then press t.
3The “Program Sorting” menu enables you
to change the order in which the channels
appear on the screen.
a) If you wish to keep the channels in the
tuned order, press MENU.
b) If you wish to store the channels in a
different order:
1) Press 2 +/– to select the program
number with the channel you wish to
rearrange, then press t.
Program:
TV System: Auto
01
VHF Low
Program Sorting
Program:
01
02
03
04
Select channel
continue
01GB04INS-STMME.p65 11/9/04, 9:31 AM7
Black

8Installation
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
The selected channel will appear on
the screen.
2) Press 2+/–to select the new
program number position for your
selected channel, then press t.
3) Repeat steps b) 1) and 2) if you wish
to change the order of the other
channels.
c) Press MENU to go to the next menu.
4Press 2+/– to adjust the bars on the top
and bottom of the menu if they are
slanted, then press t.
“Picture V-Position”menu appears.
5If the upper and lower bars are not
equally positioned to the top and
bottom of the screen, press 2+/– to
adjust them, then press t.
If no adjustment is necessary, then press t.
6Press 2+/– to select “No”, then press t.
This menu will not appear again the next
time you turn on the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press t.
Tips
•You can immediately go to the end of the ”Initial Setup”menu by pressing MENU.
•You can also set up your TV by using the menu system (see page 19).
•You can also preset the channels automatically by pressing the MENU (AUTO PROG) button
on the TV front panel for about five seconds.
Notes
•Before adjusting “Picture Rotation”and ”Picture V-Position”, keep external speakers or other
electrical equipment away from the TV. The magnetic disturbance from these equipments or
the direction of the earth’s magnetic field may affect the TV.
•You cannot adjust “Picture Rotation”and “Picture V-Position”when high-definition (1080i,
720p) signals are input.
01
Program Sorting
Program:
01
02
03
04
Select new position
continued
Picture V-Position
01GB04INS-STMME.p65 11/9/04, 9:31 AM8
Black

9
Overview of Controls
Overview of Controls
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
qa
1
1
2
23
C R
P R /
C
B
Y
Y
RL P
B /
C
R
P R /
C
B
P B /
R L
qs
qd qf qh qj
120W MAX 8
RG B
HD
VD
SYNC
32
09
4
L(MONO) R
PROG
MENU
(AUTO PROG)
SOUND
MODE
4
58 76
AUTO PROG:Press [MENU] for 5sec
1
C
4
L(MONO) R
PROG
MENU
(AUTOPROG)
SOUND
MODE
AUTOPROG:Press[MENU]for5sec
qg
Overview of Controls
TV front panel
TV rear panel

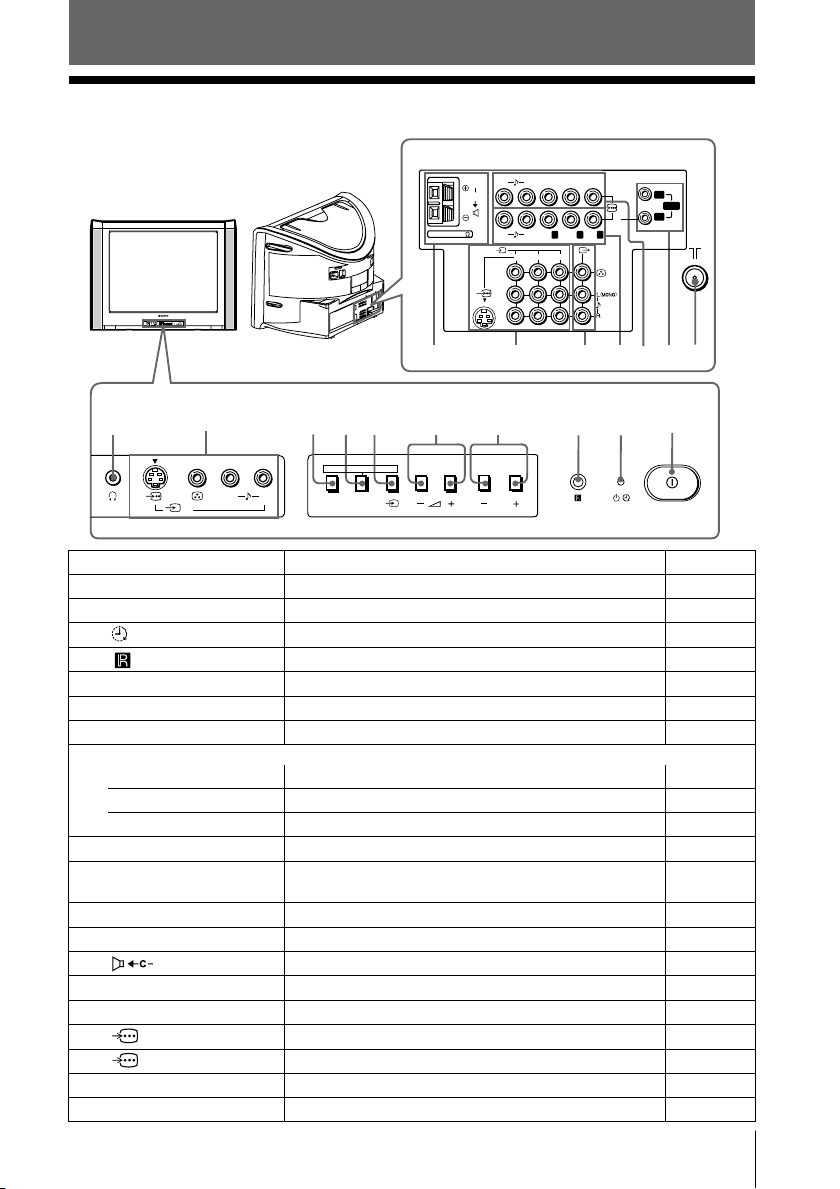

xTV front and rear panels
Button/Terminal Function Page
1!Turn off or turn on the TV. 6
21Standby indicator. 6
2Wake Up indicator. 10
3Remote control sensor. –
4PROG +/– Select program number. –
52+/– Adjust volume. –
6tSelect TV or video input. 31
Menu operations
52+/– Select and adjust items. –
6tConfirm selected items. –
7MENU Display or cancel the menu. –
7(AUTO PROG) Preset channels automatically. 8
8SOUND MODE Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
9t4 Video input terminal 4. 31
0iHeadphone jack. –
qa Center speaker input terminal. 33
qs t1, t2, t3 Video input terminal 1, 2, 3. 31
qd TMonitor output terminal. 31
qf 2 Component video input terminal 2. 32
qg 1 Component video input terminal 1. 32
qh SYNC HD/VD HD/VD input terminal. 32
qj 8Antenna input terminal. 31
01GB04INS-STMME.p65 11/9/04, 9:31 AM9
Black

10 Overview of Controls
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)

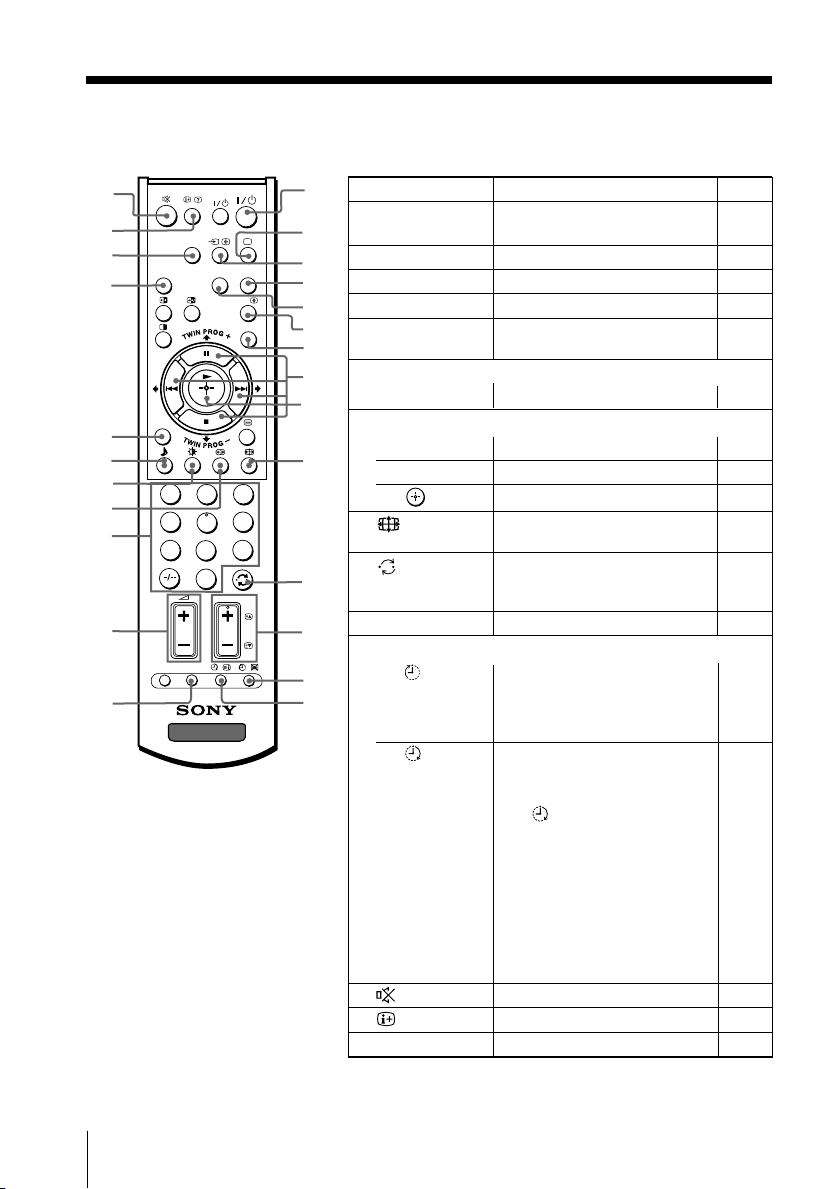

xUsing the remote control and basic
functions
123
46
789
0
5
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
OPTION RESET
TV
PROG
1
3
4
2
0
9
8
6
7
5
qg
qh
qj
qk
ws
w;
wg
wf
wd
wa
qf
qd
qs
qa
ql
Button Description Page
1?/1Turn off temporarily or –
turn on the TV.
2aDisplay the TV program. –
3tSelect video input. 31
4 WEGA THEATRE Select WEGA Theatre Mode. 14
5CENTER SP Select TV’s center speaker 14
mode.
Stereo/bilingual operations
6A/B Not function for your TV –
Menu operations
7MENU Display or cancel the menu. –
8V, v, B, b Select and adjust items. –
9Confirm selected items. –
0 Change the picture size: –
“4:3”, “16:9”(16:9 wide-mode).
qa Jump to last program number
that has been watched for at –
least five seconds.
qs PROG +/– Select program number. –
Timer operations
qd Set TV to turn off automatically
according to the desired period –
of time (max. of one hour and
30 min.).
qf Set TV to turn on automatically
according to the desired period
of time (max. of 12 hours). –
The indicator on TV lights
up amber once you set
the wake up timer.
If no buttons or controls are
pressed for more than one
hour after the TV is turned on
using the wake up timer, the
TV automatically goes into
standby mode.
qg Mute the sound. –
qh Display on-screen information. –
qj HD/DVD Select component video input. 32
(Sleep
Timer)
(Wake Up
Timer)
01GB04INS-STMME.p65 11/9/04, 9:31 AM10
Black

11
Overview of Controls
Overview of Controls
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Button Description Page
qk DRC-MF Select DRC-MF mode. 13
ql PROG INDEX Display all preset TV programs. 16
(KV-DA34M86/
DA29M86 only)
w; Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
wa Select picture mode options. 12
ws Select surround mode options:
“TruSurround”(surround sound that spreads out
to the rear of a room), “WOW”(full, –
deep bass sound), “Simulated”(stereo-like
monaural sound), “Off”.
wd 0 – 9, -Input numbers. –
wf 2+/– Adjust volume.
wg RESET Set TV to factory setting. 34
TWIN picture operations (KV-DA34M86/DA29M86 only)
, , , All yellow label buttons are used for Twin picture 15
TWIN PROG +/ operations.
TWIN PROG –
Teletext operations
, , , ,All green label buttons are used for Teletext 17
, , , , operations.
z(red, green,
yellow, blue)
Optional components operations
VIDEO ?/1, OPTION, For details, see “Operating optional components”.18
N, X, x, ., >,
%, 2 +/–
WOW, TruSurround, SRS and symbol are trademarks of SRS Labs, Inc.
WOW and TruSurround technologies are incorporated under license from SRS Labs,
Inc.
Licensed by BBE Sound, Inc. under USP4638258, 4482866.
“BBE”and BBE symbol are trademarks of BBE Sound, Inc.
01GB04INS-STMME.p65 11/9/04, 9:31 AM11
Black

12 Advanced Operations
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Advanced Operations

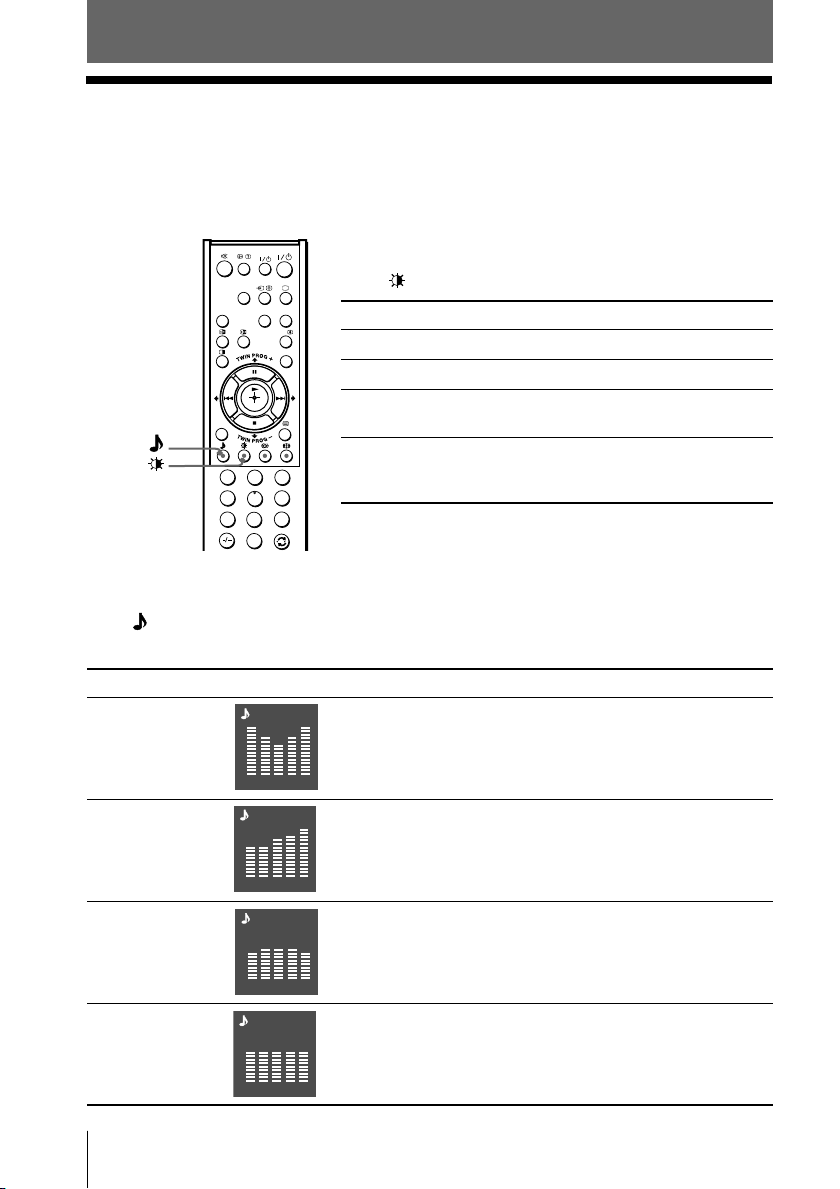

Selecting the sound mode
Press (or SOUND MODE on the front panel) to select the desired sound mode.
5-Band Graphic Equalizer display will appear.
Select To listen to
“Dynamic”dynamic and clear sound that emphasizes both the low
and high tones.
“Drama”sound that emphasizes voice and high tones.
“Soft”soft, natural and relaxing sounds.
“Personal”the last adjusted sound setting from the
“Sound Adjustment”option in the menu (see page 24).
xSelecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your
preference in the “Personal”option.
Selecting the picture mode
Press to select the desired picture mode.
Select To view
“Dynamic”high contrast pictures.
“Standard”normal pictures.
“Hi-Fine”higher density pictures with mild
contrast.
“Personal”the last adjusted picture setting
from the “Picture Adjustment”
option in the menu (see page 22).
Dynamic
100 300 1k 3k 8k
100 300 1k 3k 8k
Drama
100 300 1k 3k 8k
Soft
100 300 1k 3k 8k
Personal
123
46
789
0
5
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
01GB05AVD-STMME.p65 11/9/04, 9:31 AM12
Black

13
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Advanced Operations

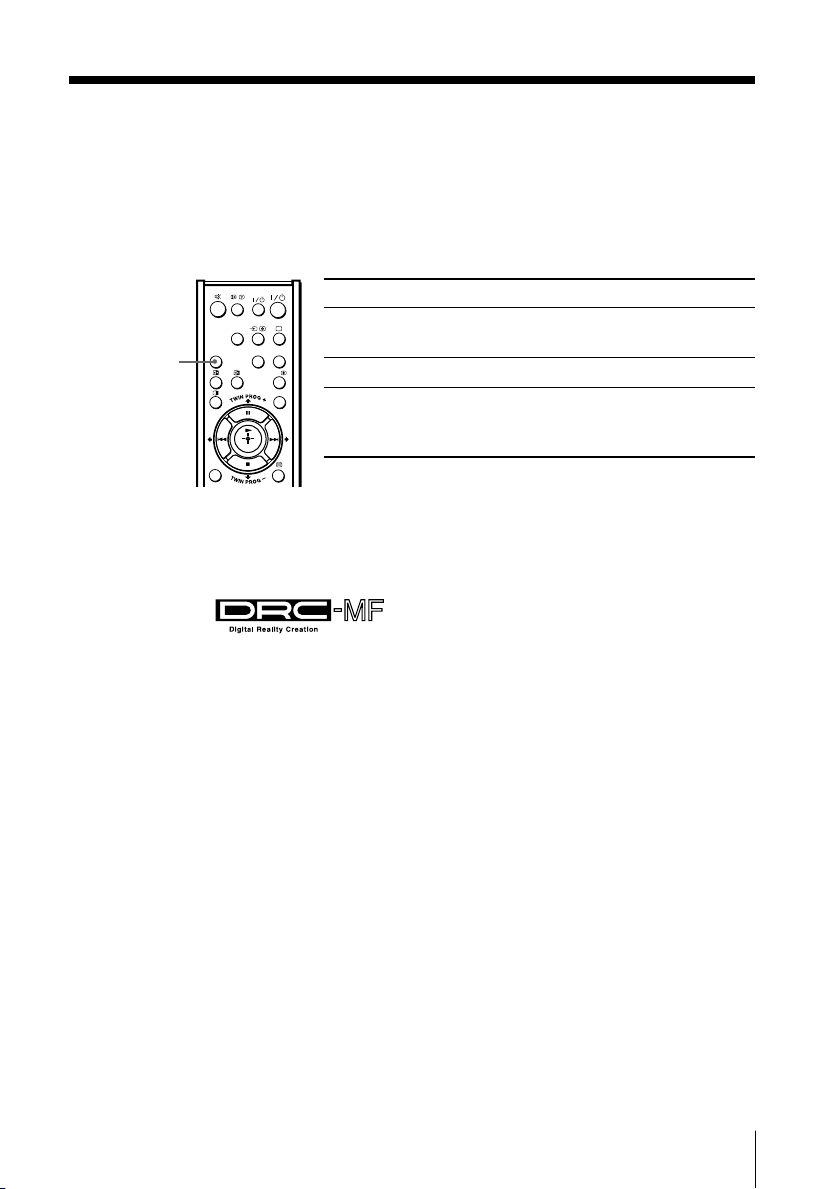

xViewing higher quality pictures
with DRC-MF
The Digital Reality Creation-Multi Function (DRC-MF) feature allows you to
enjoy higher quality pictures on your TV. You can use the DRC-MF button to
select “DRC1250”, “DRC100”or “Progressive”.
Select To
“DRC1250”view super real (higher density)
pictures.
“DRC100”reduce flicker on the screen.
“Progressive”reduce jitter of any small areas or
scanning lines (e.g., letters or the
edge of objects) on the screen.
Note
•The DRC-MF mode is not selectable when using the Program Index feature or when the
“Game Mode”or “Twin”mode is turned “On”. The mode is not available for HD (high-
definition) and progressive input signals.
The DRC-MF logo ( ) and “DRC-MF”are trademarks of Sony
Corporation.
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
DRC-MF
01GB05AVD-STMME.p65 11/9/04, 9:31 AM13
Black

14 Advanced Operations
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
x Enjoying the WEGA Theatre Mode
with center speaker
The WEGA Theatre Mode enables you to enjoy the best picture, sound and
surround effect of a cinema from a DVD source. You can use your TV speaker as
the center speaker of your audio system for optimum vocal enhancement and
control its sound volume from the remote of the TV.
Setting up WEGA Theatre Mode
1. Connect the center speaker terminals of the amplifier to the center speaker
input terminal on the TV (see page 33).
2. Select the proper video input from “WEGA Theatre Setup”menu and turn on
(main power) the connected equipment (see page 29).
3. Set up the remote to work with the connected equipment (see page 18).
To Press
switch to WEGA WEGA THEATRE.
Theatre Mode Be sure to aim the remote control
at the TV set and connected
equipment for about one second
after the button is pressed.
The connected equipment turns on
automatically from standby mode
and will start playing.
The “Picture Mode”and “Sound
Mode”will switch automatically
to “Personal”and you can adjust
the setting to your personal
preference (see pages 22 and 24).
switch to center CENTER SP repeatedly until
speaker mode “CENTER IN Speaker”appears.
To return to normal speaker
mode, press the button repeatedly
until “MAIN Speaker”appears.
adjust center 2 +/–.
speaker volume
Notes
•Be sure to place your TV and connected equipment adjacent to each other so that you can
control both the TV and the connected equipment by using the TV’s remote control at the
same time (see page 18).
•The WEGA Theatre and center speaker modes are automatically cancelled when you change
the program number, video input or turn the TV off and on again.
•When the TV is in the center speaker mode, you cannot use the Twin pictures feature,
change the surround sound and the “Intelligent Volume”mode.
•Some equipment might not respond properly when WEGA THEATRE button is pressed. In
this case, use the equipment’s own remote control.
123
46
789
0
5
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
OPTION RESET
TV
PROG
CENTER SP
2 +/–
WEGA THEATRE
01GB05AVD-STMME.p65 11/9/04, 9:31 AM14
Black

15
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Advanced Operations

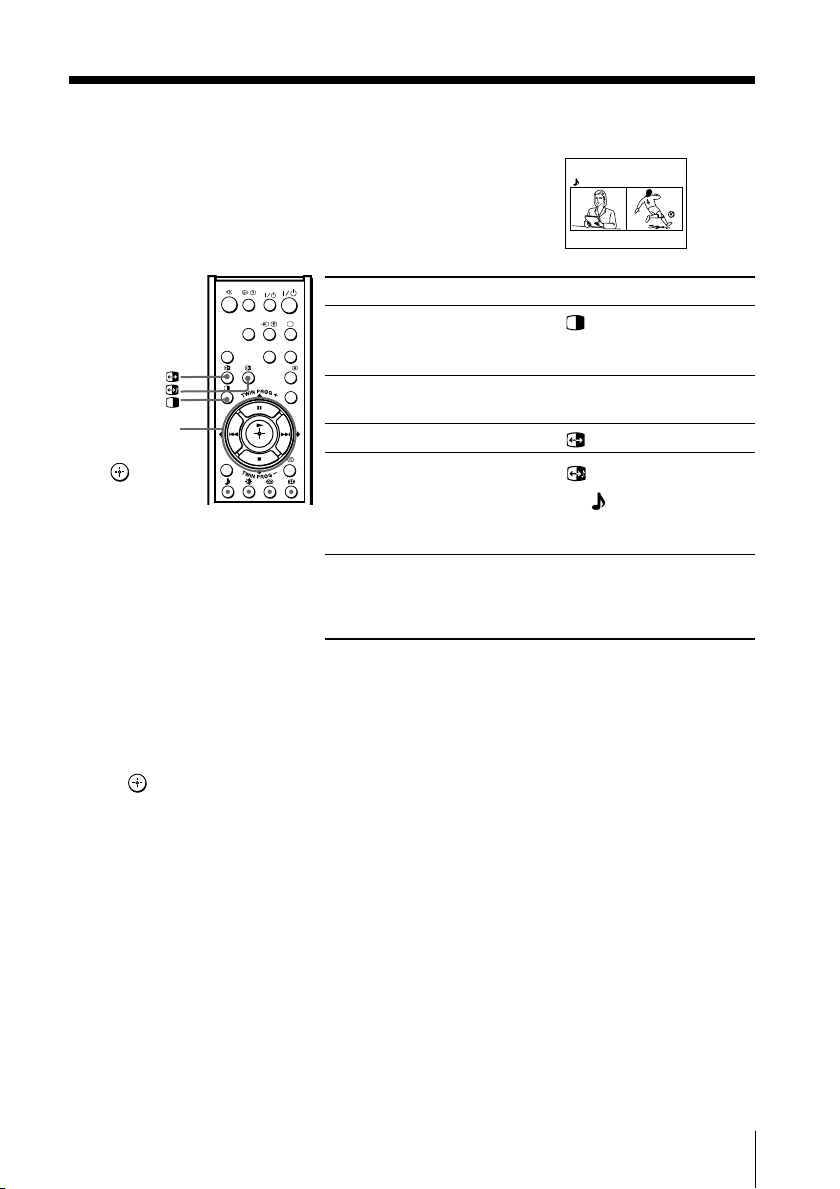

xViewing two programs at the same
time
BKV-DA34M86/DA29M86 only
With the Twin pictures feature, you can display two
different TV program or video input at the same time.
To
display Twin pictures
select a program number
in the right picture
swap the left and right pictures
swap sound between the
left and right pictures
change the screen size
of the Twin pictures
Selecting TV program using PAP (Picture And Picture)
You can select your desired TV program directly from the right picture by using
TWIN PROG +/–buttons.
1. Press TWIN PROG +/–until the desired program appears on the right picture.
2. Press to display the right picture in full screen.
Notes
•You cannot change the picture size or swap the two pictures in the PAP mode.
•Swapping the pictures is not available for HD (high-definition) and DVD input signals in
Twin mode.
•HD and DVD input signals are not available in the right picture.
•The Twin pictures feature is not available when the TV is in the center speaker mode (page 14)
and you cannot set the TV to the center speaker mode while viewing the Twin pictures.
•You can only enjoy stereo sound from the left picture.
•You cannot change the picture to a video input in the right picture. You can only display a
video input, except for HD and DVD input signals, in the right picture by swapping the
pictures when a video input is displayed in the left picture.
•For the T(monitor output) terminals, the video output signal will follow the left picture on
the screen and the audio output signal will follow the sound from your TV speaker.
•Due to different video processors used, it is normal that the picture quality of the right picture
might be slightly different from the left picture.
123
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
TWIN PROG +/
TWIN PROG –/
B/b/
10 8
Press
.
To cancel, press the button
again.
TWIN PROG + or
TWIN PROG –.
.
.
A “”symbol will appear
to indicate which screen
you are hearing.
B to increase the left
screen size.
b to increase the right
screen size.
01GB05AVD-STMME.p65 11/9/04, 9:32 AM15
Black

16 Advanced Operations
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU

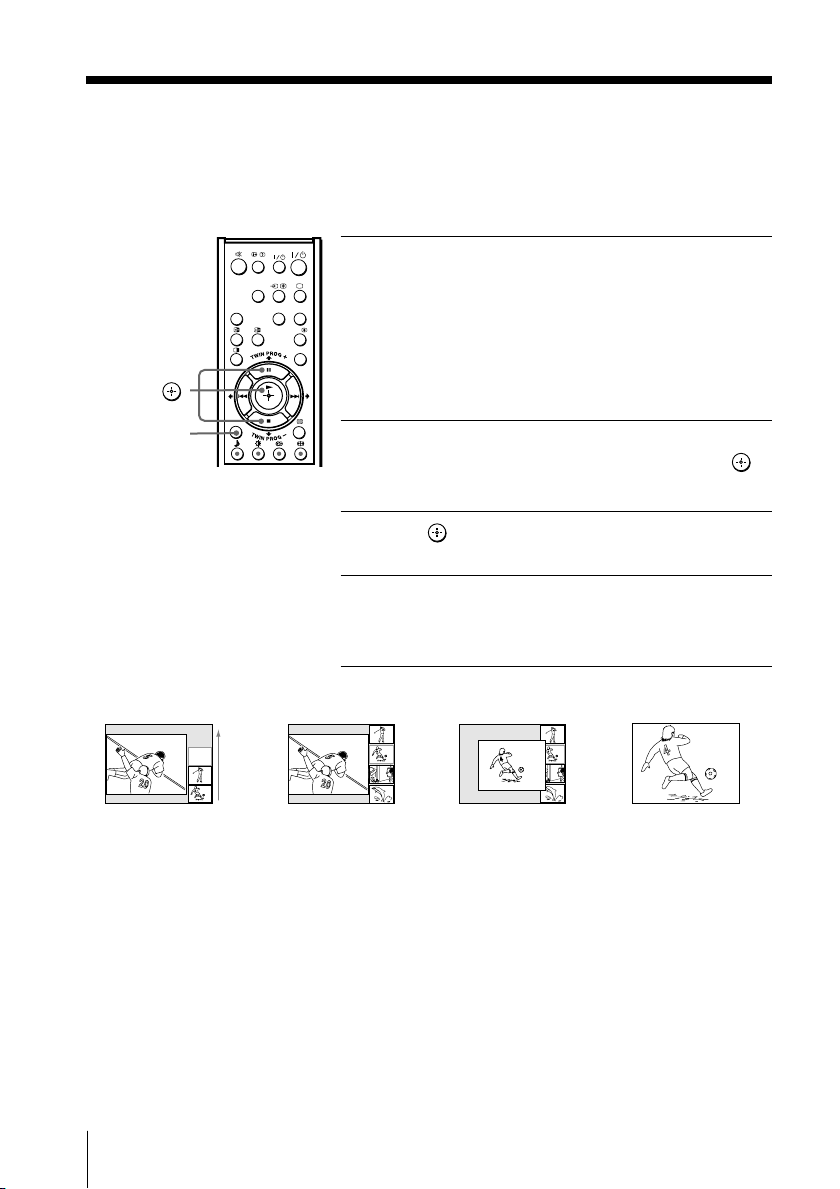

xDisplaying multiple programs
BKV-DA34M86/DA29M86 only
The Program Index feature displays all tuned TV programs scrolling on the
screen for direct selection.
1Press PROG INDEX.
The current program is displayed on the left.
The first tuned program is displayed on the
bottom right of the screen, then frozen.
It scrolls up and the next program appears on
the bottom-right until all tuned programs
appear one by one.
2Press Vor vuntil the program you want to
view is displayed in the frame, then press .
To return to scrolling, press Vor vagain.
3Press again to enlarge the selected
program into the left frame.
4Press PROG INDEX.
The selected program is displayed in full
screen.
Note
•When displaying multiple programs, only the sound of the left picture is heard.
V/v/
PROG INDEX
8
10
10
,,
8
,
1 432
01GB05AVD-STMME.p65 11/9/04, 9:32 AM16
Black

17
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Advanced Operations

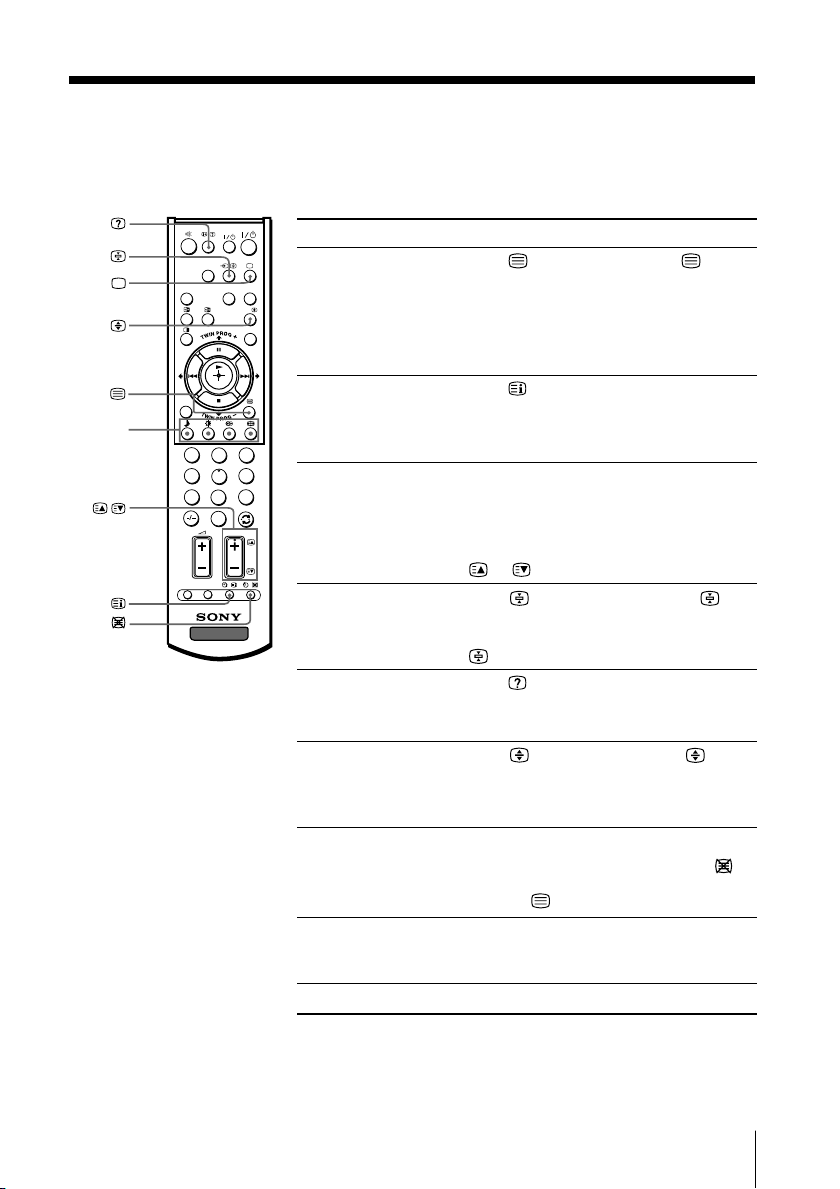

xViewing Teletext
Some TV stations broadcast an information service called Teletext which allows
you to receive various information, such as stock market reports and news.
You can use the buttons on the remote to view Teletext.
To Do this
display a Teletext Press . Each time you press , the
page on the screen changes as follows:
TV picture Teletext tTeletext and TV tTV.
If there is no Teletext broadcast, “100”is
displayed at the top left corner of the
screen.
check the contents Press .
of a Teletext service An overview of the Teletext contents,
including page numbers, appears on the
screen.
select a Teletext page Press the number buttons to enter the
three-digit page number of the desired
Teletext page. If you make a mistake,
reenter the correct page number. To
access the next or previous page, press
or .
hold (pause) a Press to display the symbol “ ” at
Teletext display the top left corner of the screen. To
resume normal Teletext viewing, press
.
reveal concealed Press .
information (e.g., To conceal the information, press the
an answer to a quiz) button again.
enlarge the Teletext Press . Each time you press , the
display Teletext display changes as follows:
Enlarge upper half tEnlarge lower
half tNormal size.
stand by for a Teletext (1) Enter the Teletext page number that
page while watching you want to refer to, then press .
a TV program (2) When the page number is displayed,
press to show the text.
select a FASTEXT Press z(red, green, yellow and blue)
menu or the colored that corresponds to the desired menu or
boxes page number.
turn off Teletext Press a.
Notes
•The FASTEXT feature can be used only when the FASTEXT broadcast is available.
•Teletext is automatically cancelled when there is no signal or the frequency of input signal is
not within the proper range.
z (red,
green,
yellow,
blue)
123
46
789
0
5
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
OPTION RESET
TV
PROG
,
01GB05AVD-STMME.p65 11/9/04, 9:32 AM17
Black

18 Advanced Operations
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
xOperating optional components
You can use the supplied remote to operate Sony audio/video equipment.
Setting up the remote to work with other connected equipment
While keeping VIDEO ?/1 For example, to operate a
pressed, press the corresponding Sony 8 mm VCR:
number button for the desired
equipment (see the chart
below).
To control Hold down VIDEO ?/1 and press
Audio System 1, 1x, 2 or 3 0, 1, 2, or 3
DVD 1, 2 or 3 4, 5 or 6
VTR1 (Beta), VTR2 (8 mm) or VTR3 (VHS) 7, 8 or 9
+
VIDEO
8
To Press
turn on/off VIDEO ?/1
play Nwhile keeping OPTION pressed.
stop xwhile keeping OPTION pressed.
fast forward/ step forward or rewind/ >or .while keeping OPTION
step backward pressed.
pause Xwhile keeping OPTION pressed.
Press again to resume normal playback.
mute the sound while keeping OPTION pressed.
(Audio System 1, 1x, 2 or 3 only)
adjust volume 2 +/–while keeping OPTION pressed.
(Audio System 1, 1x, 2 or 3 only)
Operating audio/video equipment
Press VIDEO ?/1 or while keeping OPTION pressed, press N, x, .,
>, X, or 2 +/–(see the chart below).
Notes
•If the equipment does not have a certain function, the corresponding button on the remote
will not operate.
•Some equipment might not respond properly to buttons on TV’s remote. In this case, use the
equipment’s own remote control.
01GB05AVD-STMME.p65 11/9/04, 9:32 AM18
Black

19
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Menu Adjustment
Menu Adjustment
xIntroducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
continue
Tip
•If you want to exit from Menu level 2 to Menu level 1, press Vor vuntil the return icon ( ) is
highlighted, then press .
Note
•When a feature is dimmed in the menu, it is not selectable.
Level 1
“Picture”
“Sound”
Level 2/Level 3
“DRC-MF”
“Picture Mode”
“Picture Adjustment”
“3D Intelligent
Picture”
“Sound Mode”
“Sound Adjustment”
“Balance”
“Intelligent Volume”
“Surround”
Level 3/Level 4/Function
Select the “DRC-MF”mode:
“DRC1250”t“DRC100”t“Progressive”
Select the picture mode:
“Dynamic”t“Standard”t“Hi-Fine”
t“Personal”
Adjust the “Personal”option:
“Picture”t“Brightness”t“Color”
t“Hue”t“Sharpness” t “Color Temperature”
t“Reset”
Optimize picture quality:
“On”t“Off”
Select the sound mode:
“Dynamic”t“Drama”t“Soft”t“Personal”
Adjust sound frequency settings of “Personal”
option:
“Adjust”t“Reset”
Select to emphasize the left and right speakers.
Adjust volume automatically:
“On”t“Off”
Select the surround mode:
“TruSurround”t “WOW”t“Simulated”
t“Off”
Page
21
23
Return icon
Channel Setup icon
Multi Picture icon
Wide Screen icon
Name of the current
menu
Picture icon
Menu level 3
Menu level 2
User Guidance
Menu level 1
Confirm End
Setup
WEGA Theatre Set
Game Mode :
Picture Position
Language:
Video Label
Select
Sound icon
Setup icon
01GB05AVD-STMME.p65 11/9/04, 9:32 AM19
Black

20 Menu Adjustment
Sony KV-DA34M81 Group E1 (GB, FR, PR, AR)_2-186-712-12 (1)
Level 1
“Wide Screen”
“Multi Picture”
(KV-DA34M86/
DA29M86 only)
“Channel Setup”
“Setup”
Level 2/Level 3
“Wide Mode”
“Auto Wide”
“Twin”
“Swap”
“Program Index”
“Auto Program”
“Manual Program”
“Program Label”
“Program Block”
“Program Sorting”
“Language”
“Picture Position”
“WEGA Theatre
Setup”
“Direct Input”
“Speaker”
“Game Mode”
“Video Label”
“Color System”
“Eco Mode”
Level 3/Level 4/Function
Change the picture size:
“16:9” t “4:3”
Optimize wide screen picture:
“On” t “Off”
Display a TV program beside the main screen:
“On” t “Off”
Swap the pictures between the left and right screens.
Scroll all tuned programs one by one for direct
selection.
Preset channels automatically.
Preset channels manually.
Label the program number.
Block unwanted programs.
Change the order in which the channels appear
on the screen.
Change the menu language:
“English”t “ ” (Chinese) t“ ” (Arabic)
t“ ”(Thai)
Adjust the picture position.
Select the WEGA Theatre Mode.
Select the input for connected equipment.
Select the speaker mode:
“MAIN” t “CENTER IN”
Adjust the picture settings for video games:
“On” t “Off”
Label the connected equipment.
Select the color system:
“Auto”t “PAL”t “SECAM”t “NTSC3.58”
t “NTSC4.43”
Reduce power consumption of your TV:
“On” t “Off”
Page
25
26
27
29
continued
01GB05AVD-STMME.p65 11/9/04, 9:32 AM20
Black
