Sony Wega KV-SW34 User manual

Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Trinitron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and
retain it for future reference.
KV-SW34
KV-SW29
KV-SW25
© 2004 Sony Corporation
2-186-471-11(2)
N60
GB
01GB01COV-PHI.p65 3/12/04, 16:141
Black

2
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

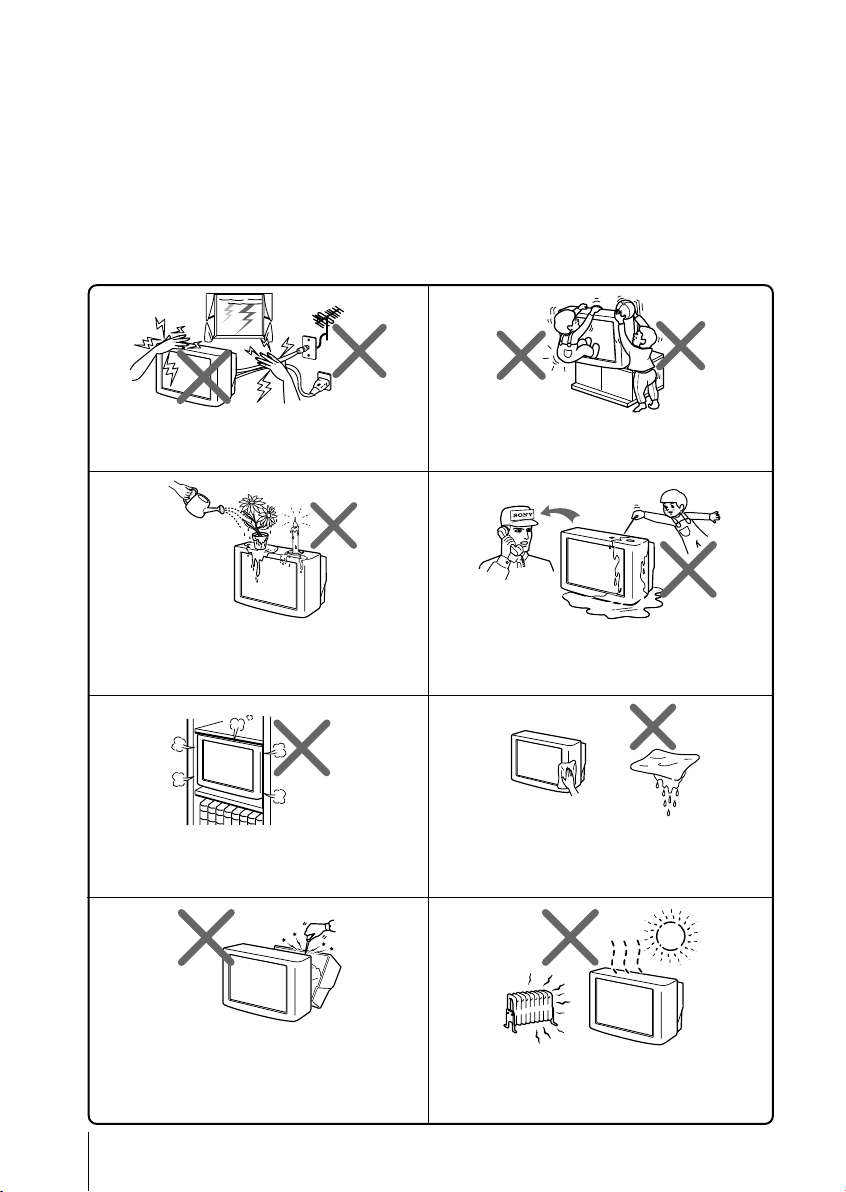

Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING
•Dangerously high voltages are present inside the TV.
•TV operating voltage: 110 - 240V AC.
•Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
01GB02WAR-PHI.p65 3/12/04, 16:142
Black

3
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

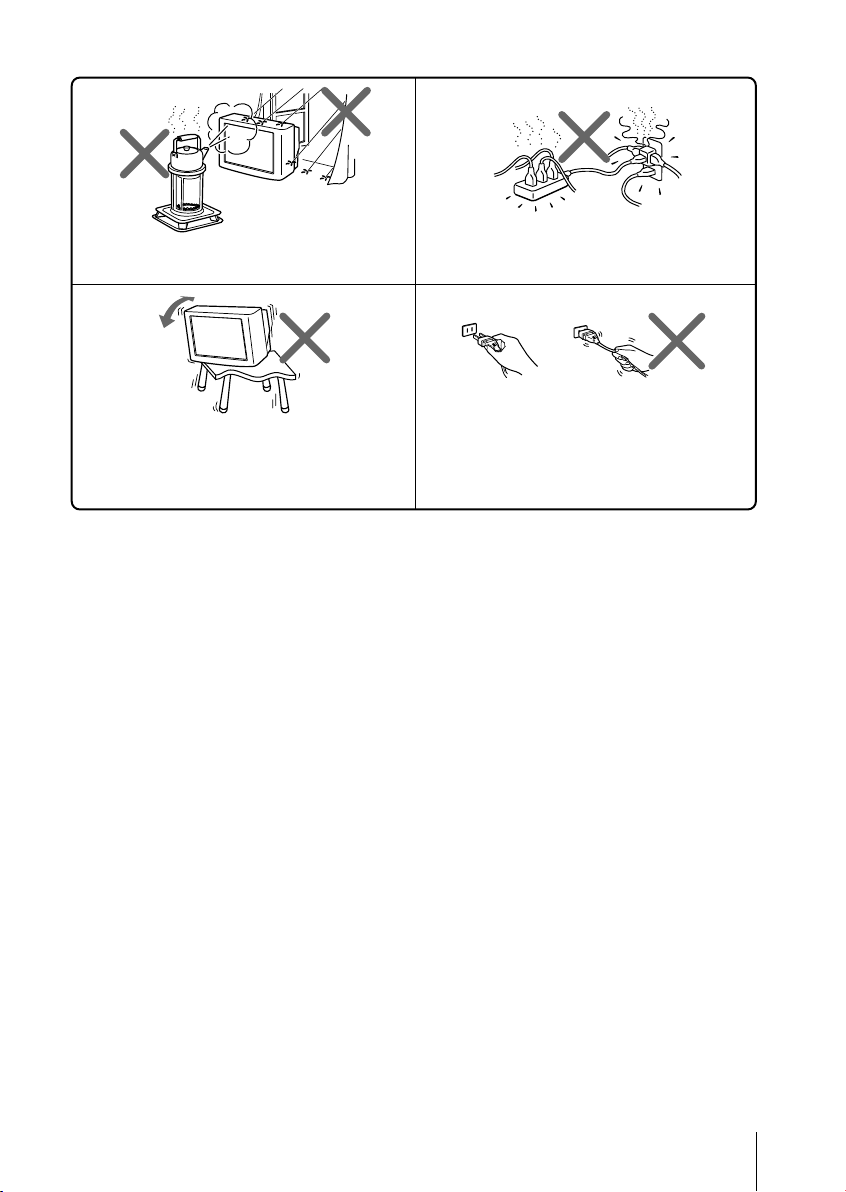

Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
01GB02WAR-PHI.p65 3/12/04, 16:143
Black

4
Sony KV-SW34N60 Group L4 (GB)_2-000-000-11 (2)

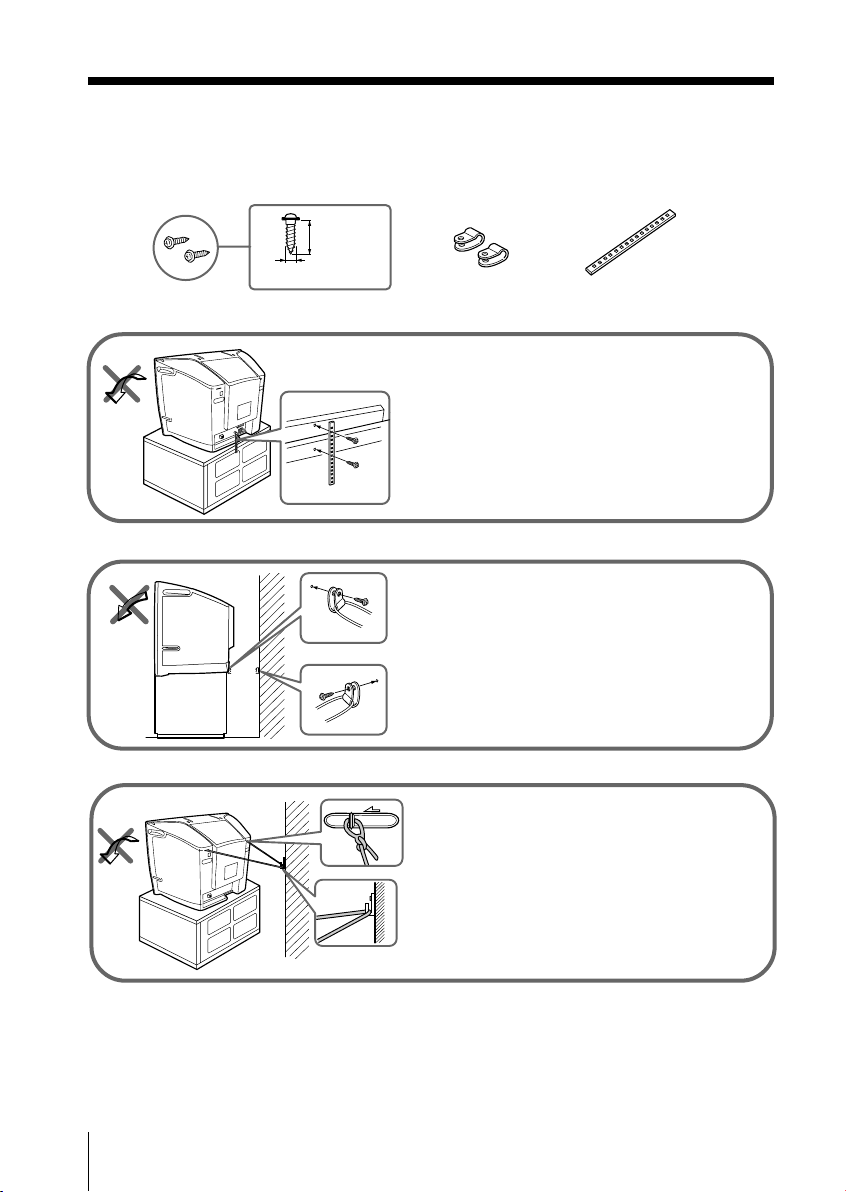

xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
•Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB02WAR-PHI.p65 3/12/04, 16:144
Black

5
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Menu Adjustment
Introducing the menu system .......... 14
Changing the “Video”setting .......... 17
Changing the “Audio”setting ......... 18
Changing the “Channel Setup”
setting .................................................. 20
Changing the “Timer”setting .......... 22
Changing the “Setup”setting .......... 23
Additional Information
Connecting optional components ... 24
Troubleshooting ................................. 26
Specifications ...................... Back cover
GB
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 9
Using the remote control and
basic functions .................................... 10
Advanced Operations
Selecting the picture and sound
modes .................................................. 12
Enjoying stereo or bilingual
programs ............................................. 13
01GB03TOC-PHI.p65 3/12/04, 16:155
Black

6Installation
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Installation

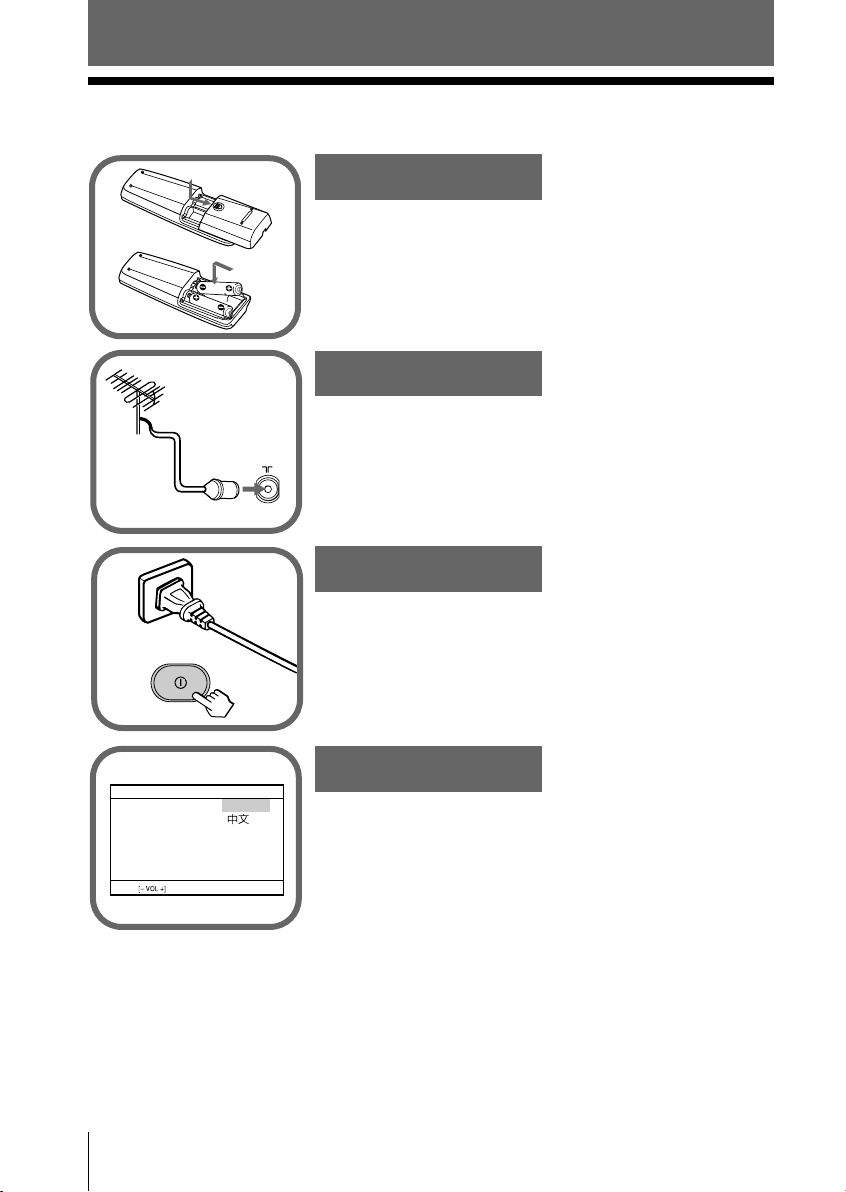

xGetting Started
Initial Setup
Language:
Move
English
Select [TV/VIDEO]
End [MENU]
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
•Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.
Note
•The STANDBY indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
•You can also connect your TV to other optional components
(see page 24).
01GB04INS-PHI.p65 3/12/04, 16:156
Black

7
Installation
Installation
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
When you turn on your TV for the first time, the “Initial Setup”menu will appear.
You may change the menu language, preset the TV channels automatically and adjust
the picture position using the buttons on the TV front panel.
Tip
•The MENU, and V/v/B/b buttons on the remote control can also be used for the
operations below.
1Press VOLUME +/– to select the desired
menu language, then press TV/VIDEO.
The selected menu language appears.
2Press VOLUME +/– to select “Yes”, then
press TV/VIDEO to preset the channels
automatically or select “No” to skip
automatic channel presetting.
Once you select “Yes”, your TV will start
searching for all the available channels.
If the message “No channel found. Please
connect cable/antenna”appears, check your
TV connections, then press TV/VIDEO.
3Press VOLUME +/– to adjust the bars on
the top and bottom of the menu if they
are slanted, then press TV/VIDEO.
“Picture V-Position”menu appears.
4If the upper and lower bars are not
equally positioned to the top and
bottom of the screen, press VOLUME +/–
to adjust them, then press TV/VIDEO.
If no adjustment is necessary, then press
TV/VIDEO.
Initial Setup
Language:
Move
English
Select [TV/VIDEO] End
[MENU]
Initial Setup
First please connect cable/
antenna
Start Auto Program now?
Yes
No
Move Select [TV/VIDEO] End [MENU]
Picture Rotation
[ — VOL ] [ VOL + ]
Move [— VOL +]
Select [TV/VIDEO] End [MENU]
Picture V-Position
Move [—VOL +]
Select [TV/VIDEO] End [MENU]
[ —VOL ]
[ VOL + ]
x Setting up your TV
(“Initial Setup”)
continue
01GB04INS-PHI.p65 3/12/04, 16:157
Black

8Installation
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
5Press VOLUME +/– to select “No”, then
press TV/VIDEO. This menu will not
appear again the next time you turn on
the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press TV/VIDEO.
Tips
•You can immediately go to the end of the ”Initial Setup”menu by pressing MENU.
•You can also set up your TV by using the menu system (see page 14) or by pressing the MENU
button on the TV front panel for about five seconds to reset your TV to the factory setting.
continued
Initial Setup
Display this menu next time?
Yes
No
Move
Select [TV/VIDEO]
01GB04INS-PHI.p65 3/12/04, 16:158
Black

9
Overview of Controls
Overview of Controls
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
qs
qa
qd
12
RLYC
B C R
COMPONENT VIDEO(DVD) IN
VIDEO
IN
MONITOR
OUT
AUDIO
VIDEO
qf
4
5
CHANNEL
SOUND
MODE VOLUME
TV/VIDEO
MENU
876
09321
VIDEO 3 INPUT
STANDBY/
WAKE UP
L ( MONO )
VIDEO
R
AUDIO

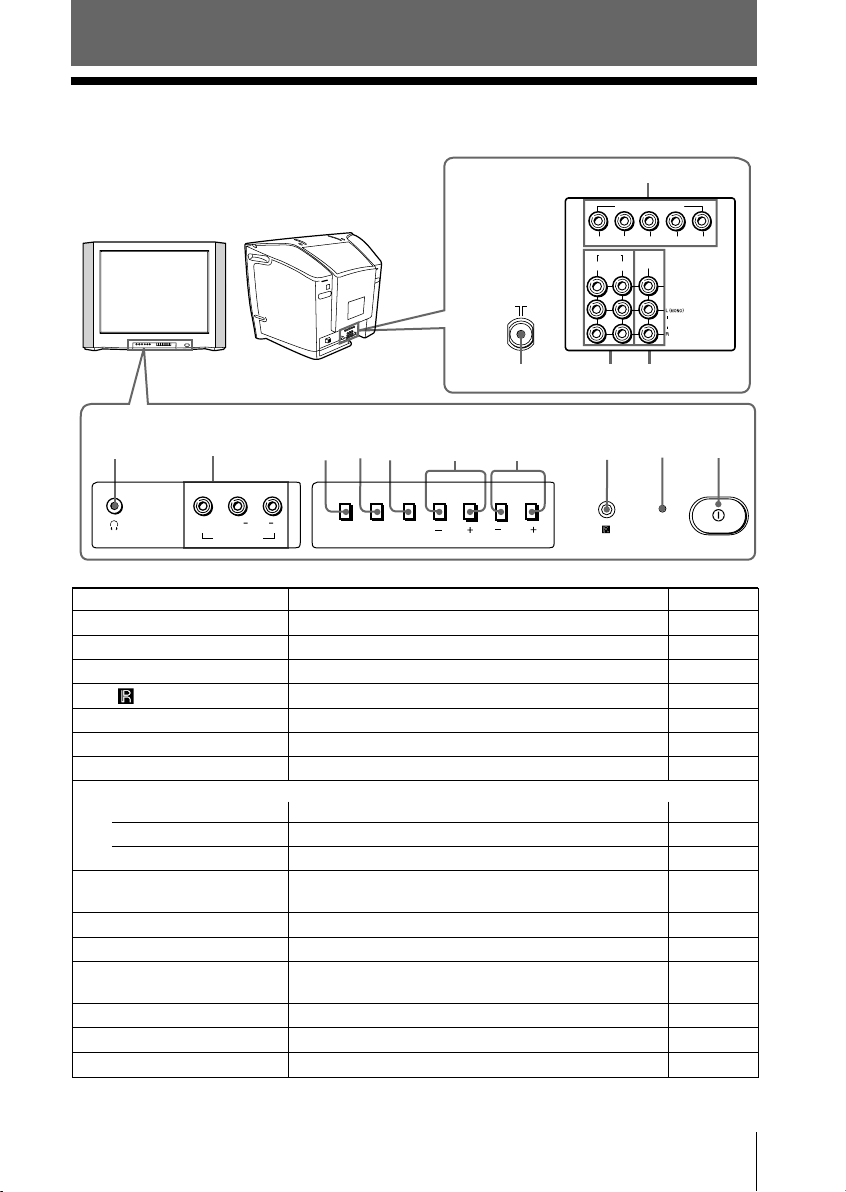

Overview of Controls
TV front panel
TV rear panel
xTV front and rear panels
Button/Terminal Function Page
1!Turn off or turn on the TV. 6
2STANDBY Standby indicator. 6
2WAKE UP Wake Up indicator. 22
3Remote control sensor. –
4CHANNEL +/– Select channel number. –
5VOLUME +/– Adjust volume. –
6TV/VIDEO Select TV or video input. 24
Menu operations
5VOLUME +/– Select and adjust items. –
6TV/VIDEO Confirm selected items. –
7MENU Display or cancel the menu. –
8SOUND MODE Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
9VIDEO 3 INPUT Video input terminal 3. 24
0iHeadphone jack. –
qa COMPONENT VIDEO Component video input terminal. 25
(DVD) IN
qs MONITOR OUT Monitor output terminal. 24
qd VIDEO IN 1, 2 Video input terminal 1, 2. 24
qf 8Antenna input terminal. 24
01GB04INS-PHI.p65 3/12/04, 16:159
Black

10 Overview of Controls
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

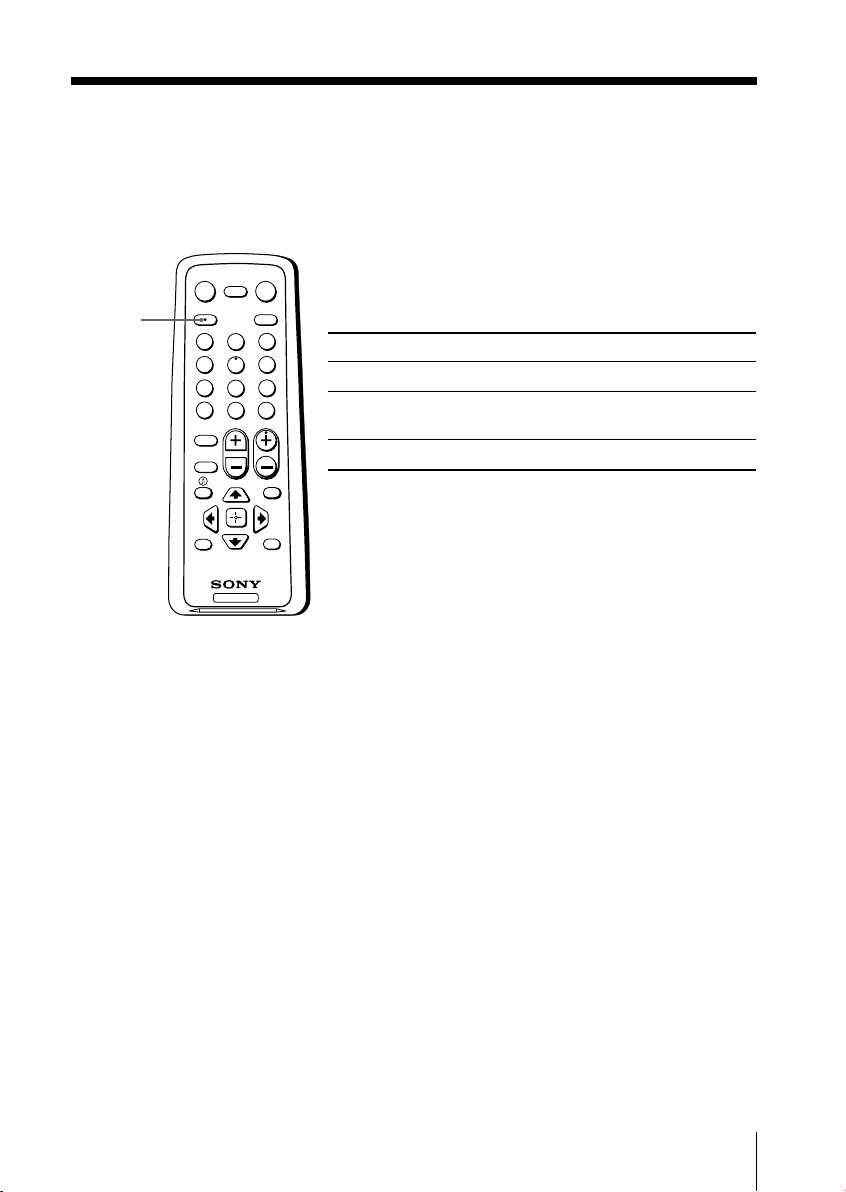

xUsing the remote control and basic
functions
TV
123
46
789
0
5
MENU
MUTING DISPLAY POWER
TV/VIDEOMTS/SAP
MODE
SOUND
MODE
SLEEP
RESET
CH
VOL
JUMP ENT
1
2
4
6
8
9
7
3
5
qj
qf
qd
qg
qh
0
qk
qa
qs
Button Description Page
1POWER Turn off temporarily or turn on the TV. –
2TV/VIDEO Select TV or video input. 24
30–9 Input numbers. –
4ENT Confirm input numbers. –
5CH +/– Select channel number. –
6VOL +/– Adjust volume. –
0MUTING Mute the sound. –
qa DISPLAY Display on-screen information. –
qd JUMP Jump to last channel number that has been –
watched for at least five seconds.
01GB04INS-PHI.p65 3/12/04, 16:1510
Black

11
Overview of Controls
Overview of Controls
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Button Description Page
qf PICTURE MODE Select picture mode options. 12
qg SOUND MODE Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
qh Select audio effect mode options:
“Effect Off”, “Simulated”(stereo-like monaural –
sound), “Surround”.
qk RESET Set TV to factory setting while adjusting items in –
an on-screen menu.
Menu operations
7MENU Display or cancel the menu. 16
8Confirm selected items. 16
qj V, v, B, b Select and adjust items. 16
Timer operations
9SLEEP Set TV to turn off automatically according to the –
desired period of time.
Stereo/bilingual operations
qs MTS/SAP Select stereo/bilingual mode. 13
01GB04INS-PHI.p65 3/12/04, 16:1511
Black

12 Advanced Operations
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

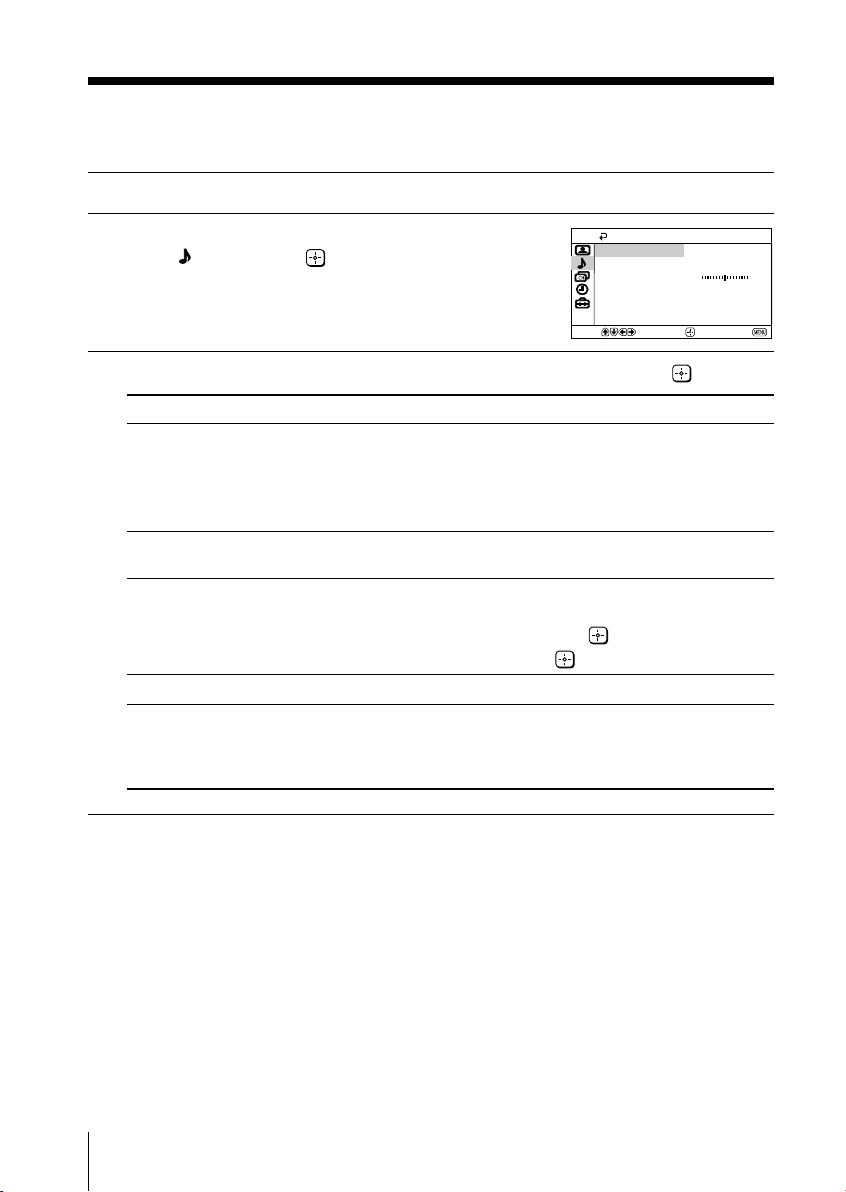

Advanced Operations
Selecting the sound mode
Press SOUND MODE on the remote control (or the front panel) to select the
desired sound mode. 5-Band Graphic Equalizer display will appear.
Select To listen to
“Movie”dynamic and clear sound that emphasizes the low and
high tones.
“News”sound that emphasizes vocals.
“Soft”soft, natural and relaxing sounds.
“Standard”standard flat sounds.
xSelecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your personal
preference.
Selecting the picture mode
Press PICTURE MODE to select the desired picture
mode.
Select To view
“Vivid”contrast and sharp pictures.
“Standard”standard pictures.
“Movie”finely detailed pictures.
“Sports”bright pictures.
TV
123
46
789
0
5
MENU
MUTING DISPLAY
POWER
TV/VIDEOMTS/SAP
MODE
SOUND
MODE
SLEEP
RESET
CH
VOL
JUMP ENT
Movie
100 300 1k 3k 8k
100 300 1k 3k 8k
News
100 300 1k 3k 8k
Soft
100 300 1k 3k 8k
Standard
MODE
SOUND
MODE
01GB05AVD-PHI.p65 3/12/04, 16:1512
Black

13
Advanced Operations
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
xEnjoying stereo or bilingual
programs
You can enjoy stereo sound or bilingual programs of MTS (Multi-Channel TV
Sound) stereo system by using MTS/SAP button.
MTS/SAP
TV
123
46
789
0
5
MENU
MUTING DISPLAY
POWER
TV/VIDEOMTS/SAP
MODE
SOUND
MODE
SLEEP
RESET
CH
VOL
JUMP ENT
Select stereo or bilingual programs
Press MTS/SAP until you receive the sound you
want.
Select To listen to
“Stereo”stereo broadcast sound.
“Auto SAP”SAP (Second Audio Program)
broadcast sound.
“Mono”monaural sound.
Notes
•When select “Auto SAP”, non-SAP program sound will be same as “Stereo”mode sound.
•If the stereo signal is very weak, the stereo broadcast sound may become noisy. To reduce the
noise select “Mono”.
01GB05AVD-PHI.p65 3/12/04, 16:1513
Black

14 Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Menu Adjustment
xIntroducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
Return icon
Setup icon
Channel Setup icon
Name of the current
menu
Video icon
Menu level 3
Menu level 2
User Guidance
Menu level 1
Level 1
“Video”
“Audio”
Level 2
“Mode”
“Picture Controls”
“Color Temp.”
“Intelligent Picture”
“Mode”
“Sound Controls”
“Balance”
“Steady Sound”
“Effect”
“MTS”
Level 3/Function
Select the picture mode:
“Vivid”t“Standard”t“Movie”t“Sports”
Adjust the picture mode option:
“Picture”t“Brightness”t“Color”t
“Hue”t“Sharpness”
Adjust white color tint:
“Cool”t“Neutral”t“Warm”
Optimize picture quality:
“On”t“Off”
Select the sound mode:
“Movie”t“News”t“Soft”t“Standard”
Adjust sound frequency settings.
Select to emphasize the left and right speakers.
Adjust volume automatically:
“On”t“Off”
Select audio effect mode:
“Off”t“Simulated”t“Surround”
Select stereo/bilingual mode:
“Stereo” t “Auto SAP”t“Mono”
Page
17
18
Select End
Setup
16:9 Enhanced:
Picture Position
Video Label
Language: English
Color System:
Move
Audio icon
Timer icon
01GB05AVD-PHI.p65 3/12/04, 16:1514
Black

15
Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Level 1
“Channel Setup”
“Timer”
“Setup”
Level 2
“Favorite Channels”
“Cable”
“Auto Program”
“Channel Skip/Add”
“Channel Label”
“Channel Block”
“Sleep”
“Wake Up Timer”
“Language”
“Picture Position”
“16:9 Enhanced”
“Video Label”
“Color System”
Level 3/Function
Quick access to favorite channels.
Watch cable TV programs:
“On”t“Off”
Preset channels automatically.
Skip unwanted channels or add new ones.
Label the channel number.
Block unwanted channels.
Set TV to turn off automatically.
Set TV to turn on automatically.
Change the menu language:
“English” t “”(Chinese)
Adjust the picture position.
Change the picture size:
“On”t “Off”
Label the connected equipment.
Select the color system (for video input only):
“Auto”t “PAL”t “SECAM”t
“NTSC 3.58”t “NTSC 4.43”
Page
20
22
23
continue
01GB05AVD-PHI.p65 3/12/04, 16:1515
Black

16 Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
How to use the menu
Other menu operations
Tips
•If you want to exit from Menu level 2 to Menu level 1, press Vor vuntil the return icon ( ) is
highlighted, then press .
•The MENU, TV/VIDEO and VOLUME +/–buttons on the TV front panel can also be used for
the operations above (see page 9).
Note
•When a feature is dimmed in the menu, it is not selectable.
To
Adjust the setting value
Move to the next/previous menu level
Cancel the menu
Press
V, v, B or b.
B or b.
MENU.
Press V or vto select
the desired item.
Press (or b) to
confirm your
selection and
go to the next
level.
Press MENU to
display the menu.
TV
0
MENU
MODE
SOUND
MODE
SLEEP
RESET
CH
VOL
JUMP ENT
Move End
Video
Color Temp.:
Intelligent Picture:
Vivid
On
Cool
Picture Controls
Select
Mode:
Move End
Channel Setup
Auto Program
Channel Skip/Add
Channel Label
Channel Block
On
Cable:
Select
Favorite Channels
Move End
Channel Setup
Auto Program
Channel Skip/Add
Channel Label
Channel Block
On
Cable:
Select
Favorite Channels
continued
01GB05AVD-PHI.p65 3/12/04, 16:1516
Black

17
Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

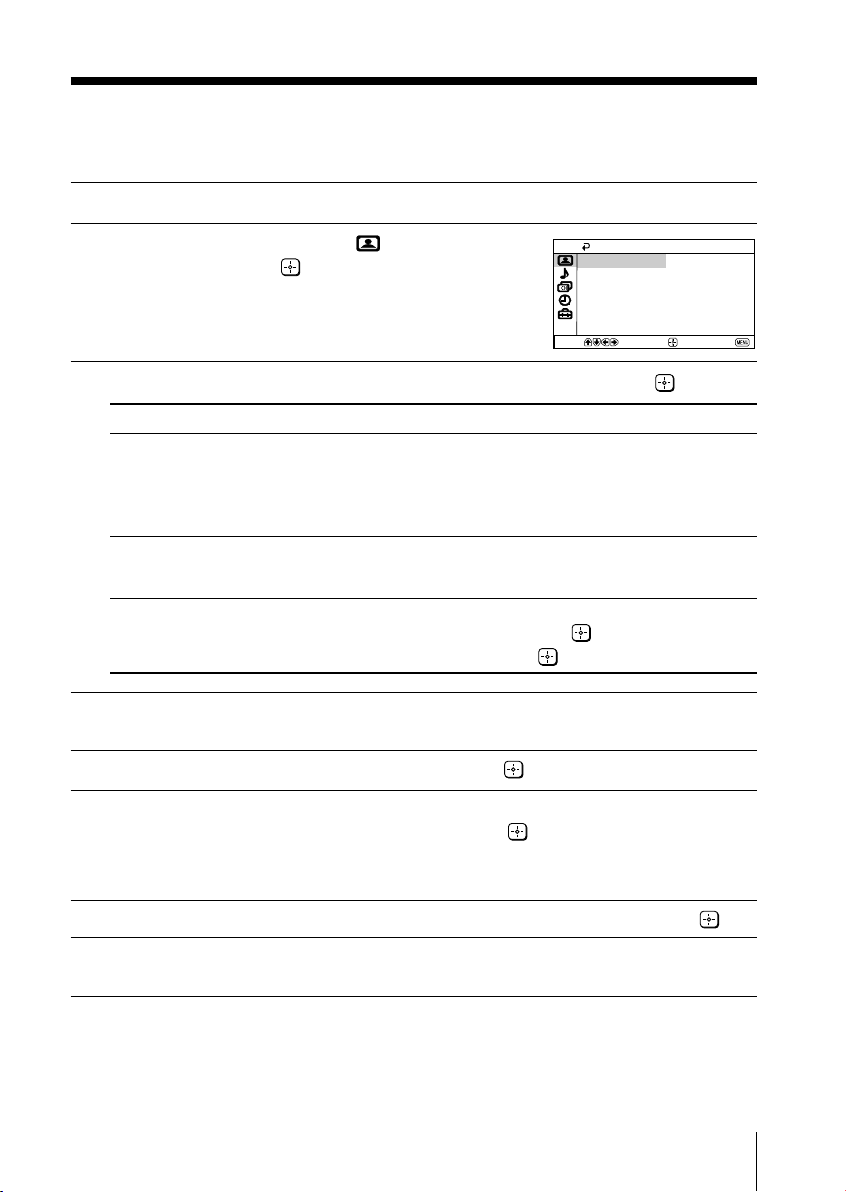

xChanging the “Video”setting
The “Video”menu allows you to adjust the picture settings.
1Press MENU.
2Make sure the “Video”icon ( ) is
selected, then press .
3Press Vor vto select the desired item (e.g., “Mode”), then press .
Select To
“Mode”choose either “Vivid”, “Standard”, “Movie”or “Sports”(see
page 12).
Tip
•You can adjust the setting to your personal preference in the
“Picture Controls”option.
“Color Temp.”adjust white color tint.
(Color Temperature) Choose either “Cool”(blue tint), “Neutral”(neutral tint) or
“Warm”(red tint).
“Intelligent Picture”optimize picture quality.
Press Vor vto select “On”, then press .
To cancel, select “Off”, then press .
Adjusting the “Picture Controls”items
1Press vto select “Picture Controls”, then press .
2Press V or v to select either “Picture”(contrast), “Brightness”, “Color”,
“Hue”(color tones) or “Sharpness”, then press .
Pressing RESET button on the remote control will set your TV to the factory
setting.
3Press V,v,B or bto adjust the setting of your selected item, then press .
4Repeat the above steps to adjust other items.
The adjusted settings will be memorized.
Note
•Reducing “Sharpness”can also reduce picture noise.
Color Temp.:
Intelligent Picture: On
Cool
Picture Controls
Vivid
Mode:
Video
Select End
Move
01GB05AVD-PHI.p65 3/12/04, 16:1517
Black

18 Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
xChanging the “Audio”setting
The “Audio”menu allows you to adjust the sound settings.
1Press MENU.
2Press Vor vto select the “Audio”
icon ( ), then press .
3Press Vor vto select the desired item (e.g., “Mode”), then press .
Select To
“Mode”choose either “Movie”, “News”, “Soft”or “Standard”(see
page 12).
Tip
•You can adjust the setting to your personal preference in the
“Sound Controls”option (see page 19).
“Balance”Press vor Bto emphasize the left speaker.
Press Vor bto emphasize the right speaker.
“Steady Sound”adjust the volume of all channel numbers and video inputs
automatically.
Press Vor vto select “On”, then press .
To cancel, select “Off”, then press .
“Effect”choose either “Off”, “Simulated”or “Surround”(see page 11).
“MTS”choose either “Stereo”, “Auto SAP”or “Mono”.
(Multi-Channel Tip
TV Sound) •You can also access the setting by pressing the MTS/SAP
button on the remote control (see page 13).
Balance
Steady Sound:
Effect: Off
Off
MTS: Stereo
Sound Controls
Movie
Mode:
Audio
Select End
Move
01GB06ADJ-PHI.p65 3/12/04, 16:1518
Black

19
Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)
Sound Controls
Select End
Move
Mode: Movie
100 300 1k 3k 8k
Adjusting the “Sound Controls”items
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
to your personal preference in the menu.
1Press vto select “Sound Controls”, then
press .
2Press b or Bto select the desired sound frequency, then press V or vto
adjust the setting and press .
The adjusted settings will be memorized.
Pressing RESET button on the remote control will set your TV to the factory
setting.
Notes
•Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency
will affect lower pitched sound.
•You may display the settings directly using the SOUND MODE button on the TV front panel
(see page 9) or the remote control (see page 11).
01GB06ADJ-PHI.p65 3/12/04, 16:1519
Black

20 Menu Adjustment
Sony KV-SW34N60 Group L4 (GB)_2-186-471-11 (2)

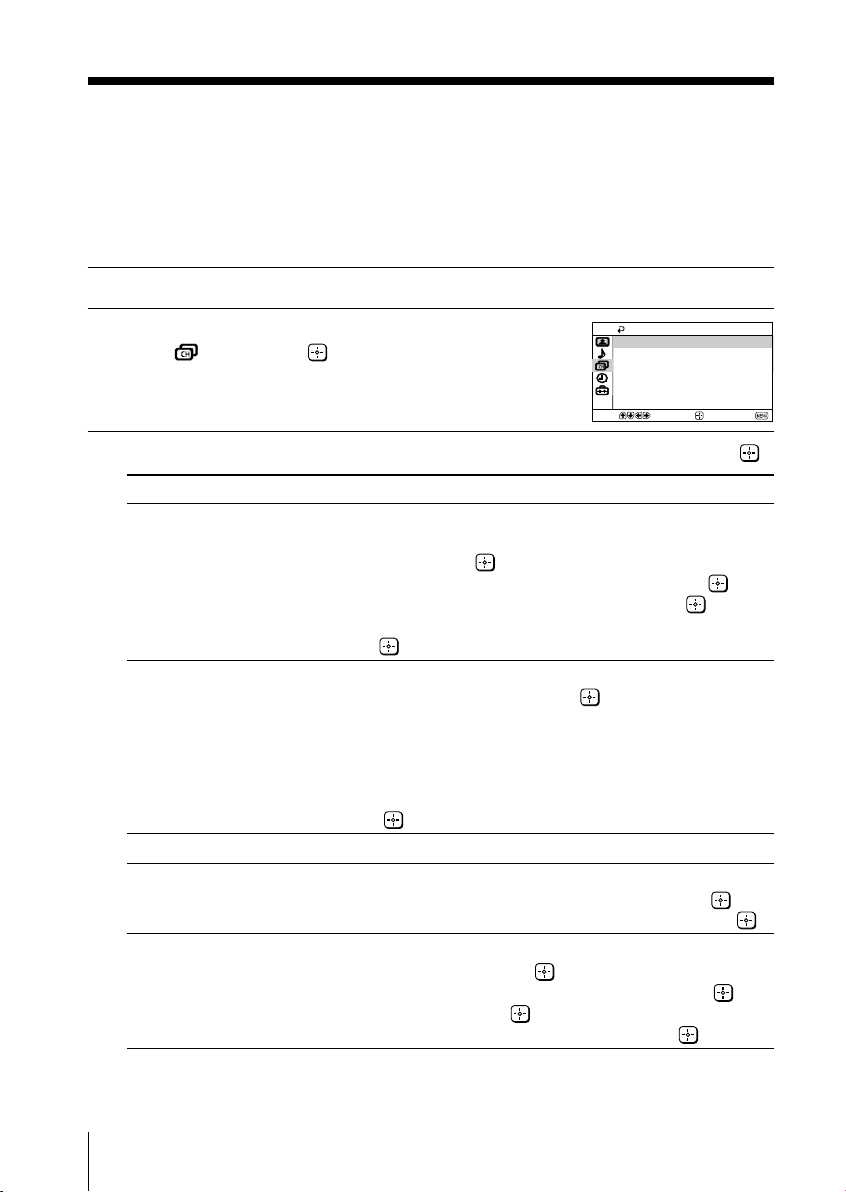

xChanging the “Channel Setup”
setting
The “Channel Setup”menu allows you to quickly access favorite channels,
receive cable TV programs, preset channels automatically, skip unwanted
channels or add new ones, label the channel number and block unwanted
channels.
1Press MENU.
2Press Vor vto select the “Channel Setup”
icon ( ), then press .
3
Press Vor vto select the desired item (e.g., “Favorite Channels”), then press .
Select To
“Favorite Channels”quickly access favorite channels.
(1) Press Vor vto select the position you want to set a favorite
channel, then press .
(2) Press Vor vto select the desired channel, then press .
To use “Favorite Channels”: Exit all menus and press .
Press Vor vto move the cursor to the desired channel number
and press .
“Cable”receive cable TV programs.
Press Vor vto select “On”, then press .
If you select “Cable: On”, you will be able to receive 125 cable
TV channels.
If there are no cable TV channels, you will receive VHF broadcast
channels only.
To receive only VHF and UHF broadcast channels, select “Off”,
then press .
“Auto Program”preset channels automatically.
“Channel Skip/Add”skip unwanted channels or add new ones.
(1) Press Vor vto select the desired channel, then press .
(2) Press Vor vto select either “Skip”or “Add”, then press .
“Channel Label”label the channel number.
(1) Select “Channel”and press .
Press Vor vto select the channel number, then press .
(2) Select “Label”and press . Press Vor vto select
alphanumeric characters for the label, then press .
Auto Program
Channel Skip/Add
Channel Label
Channel Block
On
Cable:
Favorite Channels
Channel Setup
Select End
Move
01GB06ADJ-PHI.p65 3/12/04, 16:1520
Black
