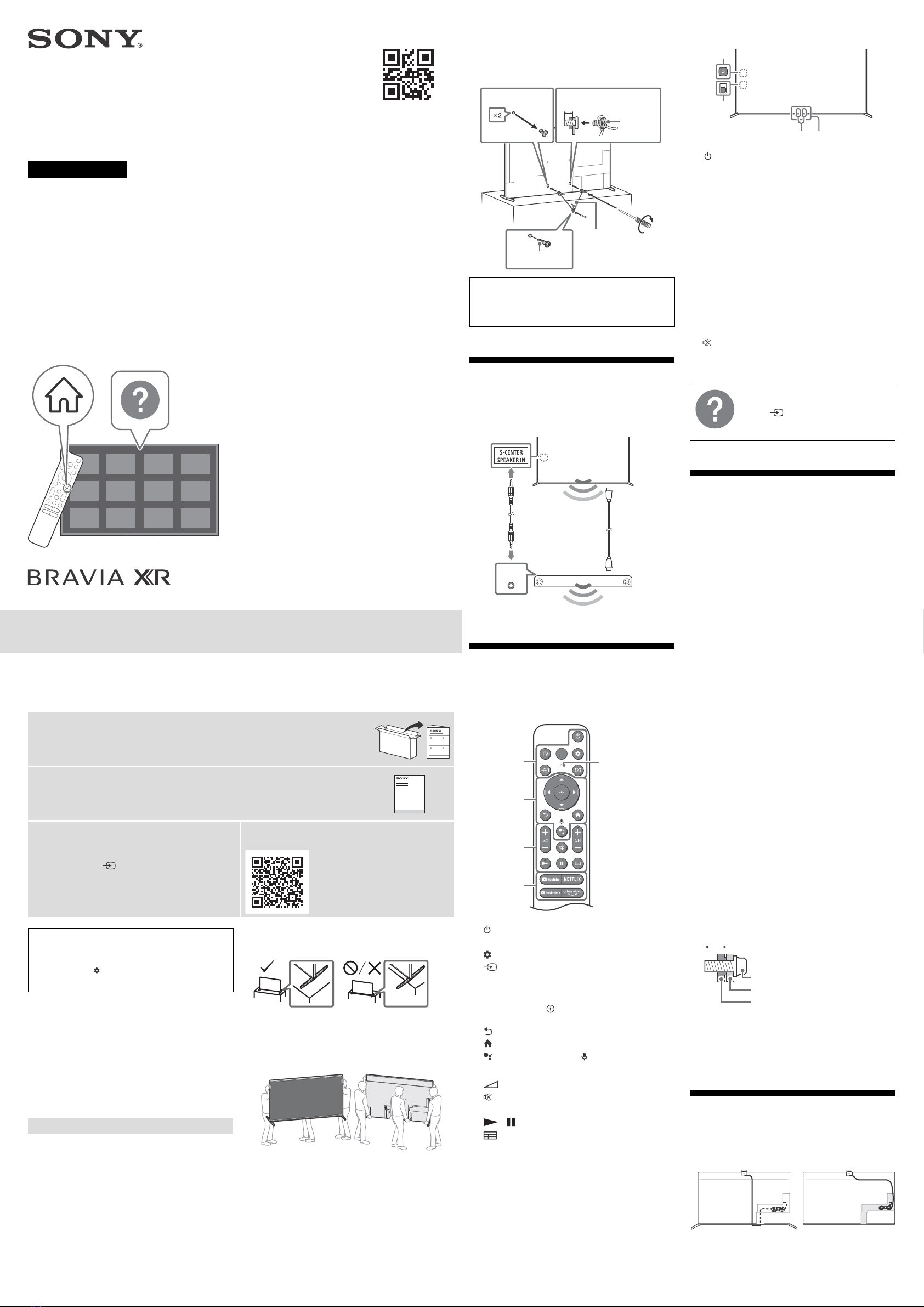

Sony XR-85X95K User manual

About Manuals
This TV comes with the following manuals. Please retain the manuals for future reference.
Note
• Before operating the TV, please read the “Safety Information”.
• Read the supplied safety documentation for additional safety
information.
• Instructions about “Installing the TV to the Wall” are included within this
TV’s instruction manual.
• Images and illustrations used in the Setup Guide and this manual are for
reference only and may differ from the actual product.
• Setting menus are subject to change without notice due to software
updates.
For latest information, visit Sony support website.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the
rear of the TV. They can be found by removing the terminal cover.
Installation/Set-up
Install and use the TV set in accordance with the instructions below in
order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC power outlet
(mains socket).
• Place the TV set on a stable, level surface to prevent it from falling over
and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV’s Table-Top Stand does not protrude out
from the TV stand (not supplied). If the Table-Top Stand protrudes out
from the TV stand, it may cause TV set to topple over, fall down, and
cause personal injury or damage to the TV.
Transporting
• Before transporting the TV set, disconnect all cables.
• Before transporting the TV set, remove the terminal covers.
• Three or more persons are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not
put stress on the panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.
• When transporting the TV set, do not subject it to jolts or excessive
vibration.
• When transporting the TV set for repairs or when moving, pack it using
the original carton and packing material.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting, wall-mount installation,
specification, etc.
Help Guide (On screen Manual)
• Settings, functions, Internet connection,
troubleshooting, etc.
• To open it, press (Input select) on the remote
control and select [Help]. If [Help] does not exist,
select [Edit] and add [Help].
• You can refer to the Help Guide with your
smartphone.
https://rd1.sony.net/help/tv/
jusltn1/h_usltn/
IMPORTANT – Read the End User Software License Agreement
before using your Sony product. Using your product indicates your
acceptance of the End User Software License Agreement. The software
license agreement between you and Sony is available online at Sony
website (https://www.sony.net/tv-software-licenses/) or on your
product screen. Press (Quick Settings) on the remote control and
select [Settings] [System] [About] [Legal information] [End
user license agreement].
Safety Information
Topple prevention
(Models with supplied support belt kit)
Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for affixing to a solid object made of
wood.
(Except models with supplied support belt kit)
Using TV as Part of Audio System
Note
• Before connecting cables, disconnect the AC power cord
(mains lead) of both TV and AV receiver.
• Refer to the instruction manual of the Audio system with
S-CENTER OUT terminal for detail.
Remote Control and TV
The remote control shape, layout, availability and
function of remote control buttons may vary
depending on your region/country/TV model/TV
settings*1.
(Power)
TV: Display TV channel list or switch to input.
(Quick settings): Display Quick Settings.
(Input select): Display and select the input
source, etc.
123 (Control menu): Display the Control menu.
/ / / / : On screen menu navigation
and selection.
(Back)
(Home)
(Google Assistant) / (Microphone): Use
Google Assistant*2*3or voice search*3.
+ / – (Volume)
(Mute)*4
CH + / – (Channel)
/
(Guide): Display the digital program guide of
TV or Cable/Satellite box*5.
App buttons
(Power): (It can be found by removing the side
cover)
BUILT-IN MIC SWITCH: Turn on/off the built-in
MIC. (It can be found by removing the side cover)
Built-in MIC*2*3*6:To enable the built-in MIC,
press the Google Assistant/microphone button on
the remote control and follow the on-screen
instructions.
Remote Control sensor / Ambient light
sensor / LED
*1 For other remote control models, refer to the online Help
Guide for details.
*2 Only for limited region/country/model/language.
*3 Google Assistant or voice search requires an Internet
connection.
*4 Accessibility shortcut is available by pressing and holding
(Mute).
*5 [Cable/Satellite box setup] setting is required.
*6 Power consumption will increase when the built-in MIC is
enabled as it is always listening.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket (SU-WL450)*
(not supplied)
To Customers:
For product protection and safety reasons, Sony
strongly recommends that installation of your TV be
performed by Sony dealers or licensed contractors. Do
not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation,
periodic maintenance and examination of this
product.
Wall-Mount Bracket Installation Information
For instructions on Wall-Mount Bracket installation,
see the Installation Information (Wall-Mount Bracket)
on the product page for your TV model.
https://www.sony-asia.com/support
• Follow the instruction guide provided with the Wall-
Mount Bracket for your model. Sufficient expertise is
required in installing this TV, especially to determine
the strength of the wall for withstanding the TV’s
weight.
• Sony is not liable for any damage or injury caused by
mishandling or improper installation.
• Only qualified service personnel should carry out
wall-mount installations.
• For safety reasons, it is strongly recommended that
you use Sony accessories, including:
—Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-
Mount Bracket when attaching the Wall-Mount
Bracket to the TV set. The supplied screws are
designed as indicated by illustration when measured
from the attaching surface of the Wall-Mount
Bracket.
The diameter and length of the screws differ
depending on the Wall-Mount Bracket model.
Use of screws other than those supplied may result
in internal damage to the TV set or cause it to fall,
etc.
• Be sure to store the unused screws and Table-Top
Stand in a safe place until you are ready to attach the
Table-Top Stand. Keep the screws away from small
children.
* Only for limited region/country/model.
Optional Camera and Microphone
Unit (not supplied) Cable
Management
This receiver complies with the minimum requirements as specified in
National Telecommunications Commission, Memorandum Circular
02-03-2016, Regarding the Sale and Labeling of ISDB-T Receivers,
including Memorandum Circular No. 01-0302017, Amending Certain
Provisions of Section 2 of NTC Memorandum Circular No. 02-03-2016
(Sale and Labeling of ISDB-T Receivers).
ʖ
3
12
9 mm - 13 mm M6 screw
(not
supplied)
Cord
(not supplied)
Screw
(not supplied)
1.5 N·m
{15 kgf·cm}
S-CENTER
OUT
TV center
speaker
mode
cable HDMI
(eARC/ARC)
connection
ȩ
Ȫ
ȫ
Ȭ
MIC
For more information, refer to the Help
Guide.
Press (Input select) on the remote
control and select [Help]. If [Help] does
not exist, select [Edit] and add [Help].



Screw (M6)
Wall-Mount Bracket
9 mm - 13 mm
TV’s rear cover
Table-Top Stand position Wall-mount position
Television
5-038-389-11(1)
XR-85X95K
Reference Guide

Troubleshooting
General troubleshooting for issues like: black screen,
no sound, frozen picture, TV does not respond, or
network is lost, do the following steps.
1Restart your TV by pressing the power button on
the remote control for about five seconds. The TV
will restart. If the TV does not recover, try
unplugging the AC power cord (mains lead) then
press the power button on the TV and release it.
Wait for two minutes, and plug in the AC power
cord (mains lead).
Or, press the power button on the TV for about
40 seconds until the TV turns off.
2Refer to the Help menu shown below.
3Connect your TV to the Internet and perform a
software update. Sony recommends you to keep
your TV software updated. Software updates
provide new features and performance
improvements.
4Visit Sony support website (information provided at
the end of this manual).
When you plug in the TV, the TV may not be able to
turn on for a while even if you press the power
button on the remote control or the TV.
It takes time to initialize the system. Wait for about one
minute, then operate it again.
The remote control does not function.
• Replace the batteries.
The parental lock password has been forgotten.
• Enter 4357 for the PIN and enter the new PIN.
Specifications
System
Panel system: LCD (Liquid Crystal Display) Panel, LED
Backlight
TV system
Analog: M
Digital: ISDB-T
Color system: NTSC/PAL N (Video only)/PAL M (Video
only)
Channel coverage
Analog: UHF/VHF/Cable
Digital: UHF/VHF
Sound output: 10 W + 10 W + 10 W + 10 W + 10 W +
10 W
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 4.2
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
VIDEO IN / S-CENTER SPEAKER IN
Video/Audio input (mini jack)
S-center speaker input (mini jack)
HDMI IN 1/2/3/4 (HDCP 2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p
(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p
(24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz),
1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz),
720/24p, 576p, 480p, PC Formats*3
3840 × 2160p (100, 120 Hz)*2*4
Audio:
In eARC (Enhanced Audio Return Channel) mode
Refer to the online Help Guide for details.
Except eARC mode
5.1 channel linear PCM: 32/44.1/48/88.2/96/
176.4/192 kHz 16/20/24 bits, Dolby Audio, Dolby
Atmos, DTS
eARC/ARC (Enhanced Audio Return Channel/Audio
Return Channel) (HDMI IN 3 only)*5
In eARC mode
Refer to the online Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits, Dolby
Audio, Dolby Atmos, DTS
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz
16 bits, Dolby Audio, DTS)
(Stereo mini jack)
Headphone
1, 2
USB port 1 supports High Speed USB (USB 2.0)
USB port 2 supports Super Speed USB (USB 3.2
Gen 1)
LAN
10BASE-T/100BASE-TX connector (Depending on the
operating environment of the network, connection
speed may differ. The communication rate and
quality are not guaranteed.)
Power and others
Power requirements
110 V – 240 V AC, 50/60 Hz
Screen size (measured diagonally) (Approx.)
85 inches / 214.8 cm
Power consumption
Indicated on the rear of the TV
Standby power consumption*6*7
0.5 W
Display resolution (horizontal × vertical) (pixels)
3840 × 2160
Output rating
500 mA (for USB 1), 900 mA (for USB 2)
Dimensions (Approx.) (w × h × d) (mm)
with Table-Top Stand
Standard position: 1889 × 1097 × 450
Narrow position: 1889 × 1110 × 450
Soundbar position: 1889 × 1158 × 450
without Table-Top Stand
1889 × 1086 × 56
Stand width (Approx.) (mm)
Standard position: 1888
Narrow position: 758
Soundbar position: 1888
Mass (Approx.) (kg)
with Table-Top Stand
54.7
without Table-Top Stand
53.2
Others
Optional accessories
Wall-Mount Bracket: SU-WL450
Camera and Microphone Unit: CMU-BC1
Operating temperature: 0 ºC – 40 ºC
*1 When 4096 × 2160p is input and [Wide mode] is set to
[Normal], the resolution is displayed as 3840 × 2160p.
To display 4096 × 2160p, set [Wide mode] setting to
[Full 1] or [Full 2].
*2 Refer to the on screen menu to set [HDMI signal format].
*3 Refer to the online Help Guide for details.
*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to
connect.
*5 Connect your audio system to the HDMI IN 3 to route TV
audio to your audio system.
*6 Specified standby power is reached after the TV finishes
necessary internal processes.
*7 Standby power consumption will increase when your TV is
connected to the network.
Note
• Optional accessories availability depends on countries/
region/TV model/stock.
• Design and specifications are subject to change without
notice.
• Subscriptions for services and applications may be required
and additional terms, conditions and/or charges may apply
when using Google Assistant.
Trademark Information
• The terms HDMI, HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and
the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation. Manufactured
under license from Dolby Laboratories. Confidential
unpublished works. Copyright © 1992-2021 Dolby
Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype,
“Powered by Gracenote” logo are either registered
trademarks or trademarks of Gracenote, Inc. in the
United States and/or other countries.
• Google TV is the name of this device’s software
experience and a trademark of Google LLC. Google,
YouTube and other marks are trademarks of Google
LLC.
• For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS, Inc. DTS,
Digital Surround, and the DTS logo are registered
trademarks or trademarks of DTS, Inc. in the United
States and other countries. © 2020 DTS, Inc. ALL
RIGHTS RESERVED.
• Netflix is a registered trademark of Netflix, Inc.
• TUXERA is a registered trademark of Tuxera Inc. in
the US and other countries.
• All other trademarks are the property of their
respective owners.
For more information on
troubleshooting, refer to the Help
Guide.
Press (Input select) on the remote
control and select [Help]. If [Help] does
not exist, select [Edit] and add [Help].
Support
https://www.sony-asia.com/support
© 2022 Sony Corporation Printed in Malaysia
