Sony EV-S7000 User manual
SONY.
3-758-350-21(1)
Video
Cassette
Recorder
Operating
Instructions
EV-S7000
©
1994
by
Sony
Corporation
WARNING
To
prevent
fire
or
shock
hazard,
do
not
expose
the
unit
to
rain
or
moisture.
RISK
OF
ELECTRIC
SHOCK
OO
NOT
OPEN
CAUTION
:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
00
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SEAVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
This
symbol
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
“dangerous
voltage”
within
the
product’s
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
This
symbol
is
intended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
CAUTION
To
prevent
electric
shock,
do
not
use
this
polarized
AC
plug
with
an
extension
cord,
receptacle
or
other
outlet
unless
the
blades
can
be
fully
inserted
to
prevent
blade
exposure.
Precautions
Safety
©
Operate
the
unit
only
on
120
V
AC,
60
Hz.
¢
If
anything
falls
into
the
cabinet,
unplug
the
unit
and
have
it
checked
by
qualified
personnel
before
operating
it
any
further.
©
One
blade
of
the
plug
is
wider
than
the
other
for
the
purpose
of
safety
and
will
fit
into
the
power
outlet
only
one
way.
If
you
are
unable
to
insert
the
plug
fully
into
the
outlet,
contact
your
Sony
dealer.
¢
Unplug
the
unit
from
the
wall
outlet
if
you
do
not
intend
to
use
it
for
an
extended
period
of
time.
To
disconnect
the
cord,
pull
it
out
by
the
plug,
never
by
the
cord.
Installing
¢
Allow
adequate
air
circulation
to
prevent
internal
heat
buildup.
¢
Do
not
place
the
unit
on
surfaces
(rugs,
blankets,
etc.)
or
near
materials
(curtains,
draperies)
that
may
block
the
ventilation
slots.
©
Do
not
install
the
unit
near
heat
sources
such
as
radiators
or
air
ducts,
or
in
a
place
subject
to
direct
sunlight,
excessive
dust,
mechanical
vibration
or
shock.
¢
Do
not
install
the
unit
in
an
inclined
position.
It
is
designed
to
be
operated
in
a
horizontal
position
only.
2
|
introduction
¢
Keep
the
unit
and
cassettes
away
from
equipment
with
strong
magnets,
such
as
microwave
ovens
or
large
loudspeakers.
©
Do
not
place
heavy
objects
on
the
unit.
®
If
the
unit
is
brought
directly
from
a
cold
to
a
warm
location,
moisture
may
condense
inside
the
VCR
and
cause
damage
to
the
video
head
and
tape.
When
you
first
install
the
unit,
or
when
you
move
it
from
a
cold
to a
warm
location,
wait
for
about
one
hour
before
operating
the
unit.
Information
For
customers
in
the
USA
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses,
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
tu
correct
the
interference
by
one
or
more
of
the
following
measures:
¢
Reorient
or
relocate
the
receiving
antenna.
Increase
the
separation
between
the
equipment
and
receiver.
©
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
©
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
You
are
cautioned
that
any
changes
or
modifications
not
expressly
approved
in
this
manual
could
void
your
authority
to
operate
this
equipment.
Caution
Television
programs,
films,
video
tapes
and
other
materials
may
be
copyrighted.
Unauthorized
recording
of
such
material
may
be
contrary
to
the
provisions
of
the
copyright
laws.
Also,
use
of
this
recorder
with
cable
television
transmission
may
require
authorization
from
the
cable
television
transmission
and/or
program
owner.
Owner’s
record
The
model
number
is
located
at
the
rear
and
front
of
the
unit
and
the
serial
number
on
the
top.
Record
the
serial
number
in
the
space
provided
below.
Refer
to
them
whenever
you
call
upon
your
Sony
dealer
regarding
this
product.
Model
No.
EV-S7000
Serial
No.
4
Welcome!
Table
of
contents
5
HIG
(high
eight)
video
system
Getting
Started
Step
1:
Unpacking
7
Step
2:
Setting
up
the
remote
commander
10
Step
3:
Hookups
23
~—
Setting
the
clock
24
=“
Presetting
channels
27
~—
Setting
up
cable
box
control
30
Setting
up
VCR
Plus+
Using
the
SET
UP
menu
Basic
Operations
34
=~
Playing
a
tape
37
~—_
Recording
TV
programs
41
Recording
TV
programs
using
the
timer
44
Recording
TV
programs
using
VCR
Plus+
46
Checking/cancelling
timer
settings
Additional
Operations
48
Playing/searching
at
various
speeds
50
Adjusting
the
54
Searching
using
the
index
function
Editing
58
=
Shuttle
editing
60
Editing
with
another
VCR
62
Synchronized
editing
66
Assemble
editing
70
=
Audio
dubbing
Additional
Information
72
General
setup
information
73
~—-
Troubleshooting
75
=
Specifications
76
~—
Index
to
parts
and
controls
83
=
Index
back
Quick
reference
to
using
the
VCR
cover
Introduction
|
3
Welcome!
4
|
Introduction
inank
you
ror
purcnasing
tne
oony
Viaeo
Wassetle
necoruer
rests
(VCR).
Here
are
some
of
the
features
you'll
enjoy
with
your
VCR:
TIME
CODE
function
for
more
precise,
higher-quality
editing
Advanced
editing
function
that
lets
you
preset
8
events
to
be
edited
Flying
erase
head
for
smooth
transfer
between
inserted
portions
PCM
audio
recording
system
feature
that
allows
you
to
take
advantage
of
the
latest
technology
in
high-grade
audio
systems
JOG
dial
and
SHUTTLE
ring
for
easy
search
operations
LANC
@
jack
to
connect
peripheral
equipment
such
as
another
VCR
which
can
then
be
controlled
by
this
VCR
VCR
Plus+
system
that
lets
you
quickly
and
easily
preset
the
VCR
to
record
programs
Cable
box
control
that
allows
your
VCR
to
control
channel
selection
on
most
brands
of
cable
boxes
Remote
commander
that
features
multi-brand
TV
control
*
VCR
Plus+
and
PlusCode
are
trademarks
of
Gemstar
Development
Corporation.
The
VCR
Plus+
system
is
manufactured
under
license
from
Gemstar
Development
Corporation.
Hi
(high
eight)
video
system
Notes
¢
MIG
recording
or
playback
can
only
be
done
using
a
HIE
tape.
¢
You
cannot
make
Hifi
format
recordings
on
standard
[J
tapes.
Both
Fi
and
standard
EJ
cassette
tapes
can
be
used
with
this
VCR.
Refer
to
the
charts
below
for
the
compatibility
between
the
MiB
video
system
and
the
standard
EJ
system.
When
playing
a
tape
This
VCR
automatically
detects
the
type
of
tape
being
played,
either
HIE}
or
standard
EJ.
This
VCR
also
automatically
detects
the
tape
speed
(either
SP
or
LP)
the
tape
was
recorded
in.
Tape
type
Recording
format
Playback
mode
HMiEI
(high
eight)
HEI
(high
eight)
HIE)
tape
ens
=
El
(standard
8mm)
El
(standard
8mm)
Standard
EJ
tape
Eq]
(standard
8mm)
Eq]
(standard
8mm)
When
recording
on
a
tape
You
can
set
this
VCR
to
record
in
either
HIE}
or
standard
EJ
format.
See
“Using
the
SET
UP
menu”
on
page
32.
Tape
type
Recording
format
SET
UP
MENU
setting
HIB
(high
eight)
AUTO
FEI
tape
=—_
El
(standard
8mm)
=
OFF
Standard
[fs]
tape
(standard
8mm)
AUTO
or
OFF
Saving
a
recording
Slide
out
the
tab
on
the
cassette
so
that
the
red
color
appears.
To
re-record
on
the
cassette,
slide
the
tab
back.
Introduction
|
5
neck
tnat
you
nave
tne
rouowing
items:
Step
1:
Unpacking
¢
S-video
cable
e
Size
AA
(R6)
batteries
¢
Audio/video
cable
(3-phono
to
3-phono)
¢
Cable
mouse
(cable
box
controller)
¢
75-ohm
coaxial
cable
with
LANC
cable
F-type
connectors
6
|
Getting
Started
7
Inserting
the
batteries
Step
2:
Setting
up
the
Insert
two
size
AA
(R6)
batteries
by
matching
the
+
and
—
on
the
remote
commander
batteries
to
the
diagram
inside
the
battery
compartment.
Using
the
remote
commander
You
can
use
this
remote
commander
to
operate
this
VCR
and
a
Sony
TV.
Buttons
on
the
remote
commander
marked
with
a
dot
(¢)
can
be
used
to
operate
your
TV.
LL.
Ss
o
=I
|
=
Sid
H
Remote
sensor
|
To
operate
Set
[TV]/[VTR]
to
Notes
.
R
»
With
:ncemal
dee,
the
the
VC
VTR
and
point
at
the
remote
sensor
on
the
VCR
batteries
should
last
for
a
Sony
TV
TV
and
point
at
the
remote
sensor
on
the
TV
approximately
three
to
six
months.
©
If
you
do
not
use
the
remote
commander
for
an
extended
period
of
time,
remove
the
batteries
to
avoid
possible
damage
from
battery
leakage.
*
Do
not
use
a
new
battery
with
an
old
one.
*
Do
not
use
different
types
of
batteries.
Getting
Started
|
7

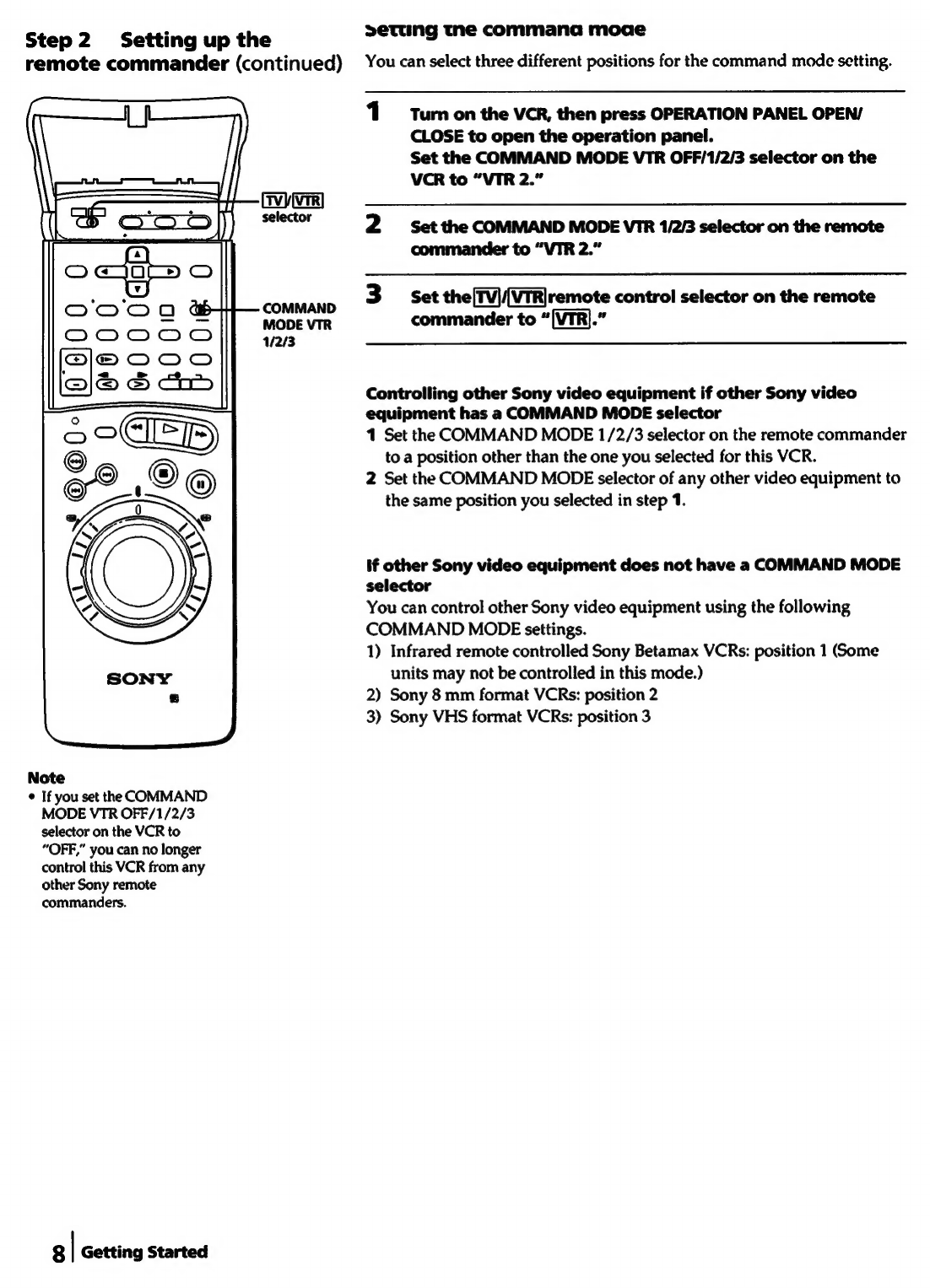

Step
2
Setting
up
the
remote
commander
(continued)
COMMAND
MODE
VTR
1/2/3
Note
¢
If
you
set
the
COMMAND
MODE
VTR
OFF/1/2/3
selector
on
the
VCR
to
“OFF,”
you
can
no
longer
control
this
VCR
from
any
other
Sony
remote
commanders.
8
|
Getting
Started
setung
the
commana
moae
You
can
select
three
different
positions
for
the
command
mode
setting.
1
Turn
on
the
VCR,
then
press
OPERATION
PANEL
OPEN/
CLOSE
to
open
the
operation
panel.
Set
the
COMMAND
MODE
VTR
OFF/1/2/3
selector
on
the
VCR
to
“VIR
2.”
2
Set the
COMMAND
MODE
VTR
1/2/3
selector
on
the
remote
commander
to
“VIR
2.”
3
Set
the[Tv|(ViR|remote
control
selector
on
the
remote
commander
to
“[VTR].”
Controlling
other
Sony
video
equipment
if
other
Sony
video
equipment
has
a
COMMAND
MODE
selector
1
Set
the
COMMAND
MODE
1/2/3
selector
on
the
remote
commander
to
a
position
other
than
the
one
you
selected
for
this
VCR.
2
Set
the
COMMAND
MODE
selector
of
any
other
video
equipment
to
the
same
position
you
selected
in
step
1.
If
other
Sony
video
equipment
does
not
have
a
COMMAND
MODE
selector
You
can
control
other
Sony
video
equipment
using
the
following
COMMAND
MODE
settings.
1)
Infrared
remote
controlled
Sony
Betamax
VCRs:
position
1
(Some
units
may
not
be
controlled
in
this
mode.)
2)
Sony
8
mm
format
VCRs:
position
2
3)
Sony
VHS
format
VCRs:
position
3
Notes
©
If
the
TV
uses
a
different
remote
control
system
from
the
one
programmed
to
work
with
the
VCR,
you
cannot
control
your
TV
with
the
remote
commander.
If
you
enter
a
new
code
number,
the
code
number
previously
entered
will
be
erased.
¢
When
you
replace
the
batteries
in
the
remote
commander,
the
code
number
automatically
resets
to
1
(Sony).
Reset
the
appropriate
code
number.
ENTER
Controlling
other
TVs
with
the
remote
commander
The
remote
commander
is
preprogrammed
to
control
non-Sony
TVs.
If
your
TV
is
listed
in
the
table
below,
set
the
appropriate
manufacturer's
code
number.
4
Set(TV/VTRlon
the
top
of
the
remote
commander
to
TV.
2
Press
and
hold
down
POWER,
and
then
enter
your
TV’s
code
number(s)
using
the
number
buttons.
Press
the
ENTER
button.
Then
release
POWER.
Code
numbers
are
listed
below.
Now
you
can
use
the
buttons
marked
with
a
dot
(¢)
to
control
your
TV.
To
control
the
VCR,
reset
TV/IVTRIto
VTR.
Code
numbers
of
controllable
TVs
If
more
than
one
code
number
is
listed,
try
entering
them
one
at
a
time
until
you
find
the
one
that
works
with
your
TV.
Manufacturer
Code
number
Sony
1
Akai
4
AOC
4
Centurion
12
Coronado
3
Curtis-Mathes
12
Daytron
12
Fisher
11
General
Electric
6,10
Hitachi
2,3
J.C.
Penney
4,12
Jvc
9
KMC
3
Magnavox
3,8,
12
Marantz
4,13
MGA/Mitsubishi
4,
12,
13,
17
NEC
4,12
Panasonic
6
Manufacturer
Code
number
£
Philco
3,4
Philips
8
Pioneer
16
Portland
3
Quasar
6
Radio
Shack
5,
14
RCA
4,10
Sampo
12
Sanyo
11
Scott
12
Sears
7,10,
11
Sharp
3, 5,
18
Sylvania
8,12
Teknika
3,
8,
14
Toshiba
7
Wards
3,4,
12
Yorx
12
Zenith
15
Getting
Started
|
9
Step
3:
Hookups
Caution
Connections
between
the
VCR's
VHF/UHF
connector
and
the
antenna
terminals
of
the
TV
receiver
should
be
made
only
as
shown
in
the
following
instructions.
Failure
to
do
so
may
result
in
operation
that
violates
the
regulations
of
the
Federal
Communications
Commission
regarding
the use
and
operation
of
RF
devices.
Never
connect
the
output
of
the
VCR
to
an
antenna
or
make
simultaneous
(parallel)
antenna
and
VCR
connections
at
the
antenna
terminals
of
your
receiver.
Note
to
CATV
system
installer
This
reminder
is
provided
to
call
the
CATV
system
installer’s
attention
to
Article
820-40
of
the
NEC
that
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
cable
entry
as
practical.
10
|
Getting
Started
Selecting
the
best
hookup
option
Before
you
can
use
your
VCR
for
the
first
time,
you
need
to
connect
it
to
your
TV
and
set
it
up
to
receive
programs
for
viewing
and
recording.
This
section
explains
how
to
hook
up
and
set
up
your
VCR
so
that
you
can
start
enjoying
it
right
away. There
are,
however,
many
types
of
TVs
available
and
many
ways
in
which
your
TV
can
be
hooked
up.
For
these
reasons,
this
manual
describes
several
ways
your
VCR
can
be
connected.
To
hook
up
your
VCR
so
that
it
works
best
for
you,
first
scan
through
the
table
below.
Then
use
the
accompanying
diagrams
and
procedures
on
the
following
pages
to
set
up
your
VCR.
If
you
have
Use
Refer
to
TV
that
has
audio/video
Audio/video
(A/V)
hookup,
Page
11
inputs
then
follow
one
of
the
hookups
below.
Cable
TV
with
cable
box
Hookup
1
Page
12
Cable
TV
without
cable
box

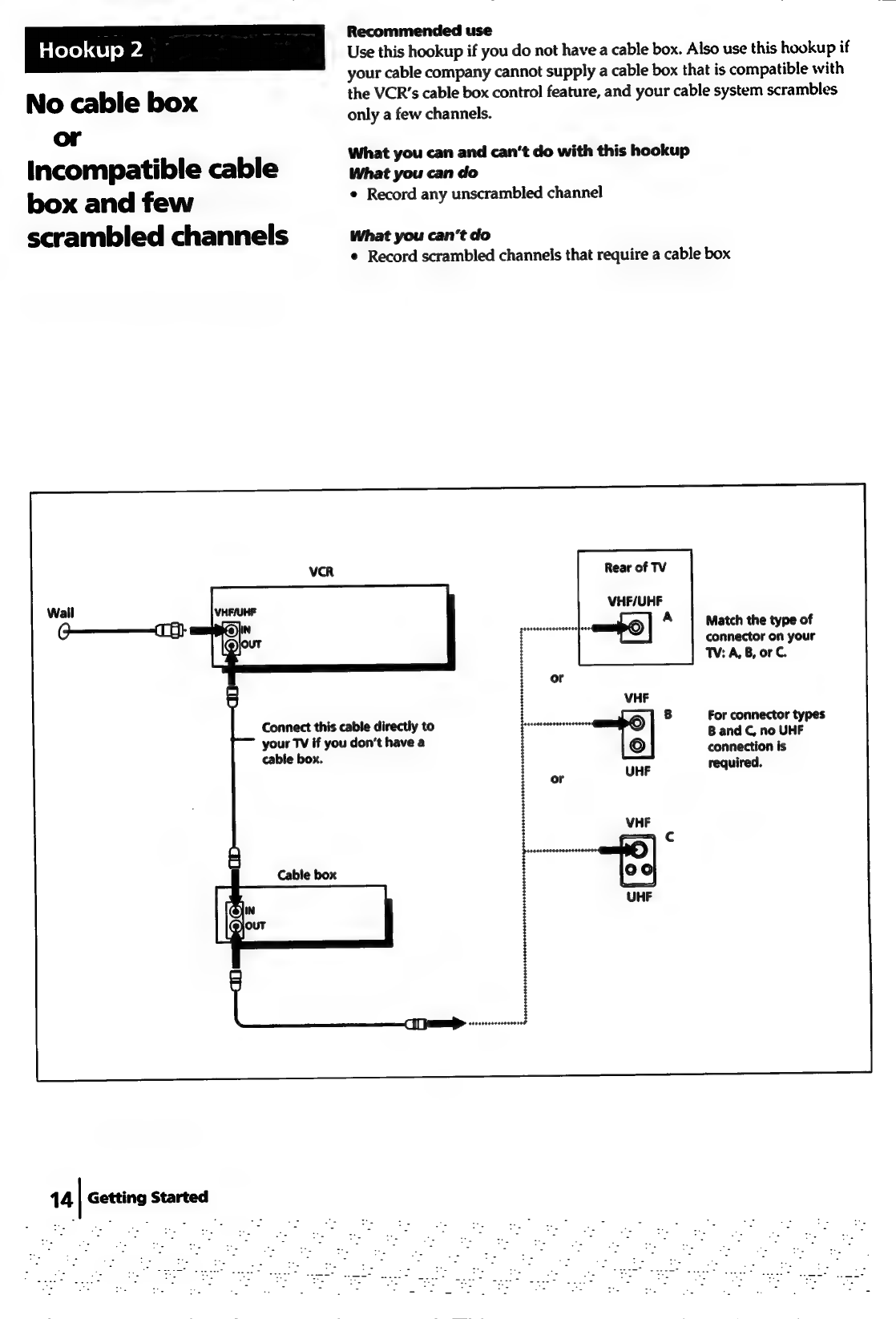

Hookup
2
Page
14
Antenna
only,
no
cable
TV
Hookup
3
Page
16
After
you've
completed
the
connections,
follow
the
instructions
for
setup
including
VCR
Plus+
setup.
During
setup,
if
you
need
more
details
of
the
procedure
described,
page
numbers
are
provided
where
you
can
find
complete,
step-by-step
instructions.
After
you’ve
completed
the
setup,
you’re
ready
to
use
your
VCR.
Procedures
differ
depending
on
the
hookup
you
used.
For
an
overview,
refer
to
“Quick
reference
to
using
the
VCR”
on
the
back
cover.
Before
you
get
started
¢
Turn
off
the
power
to
all
equipment.
¢
Do
not
connect
the
AC
power
cords
until
all
of
the
connections
are
completed.
¢
Be
sure
you
make
connections
firmly.
Loose
connections
may
cause
distortion.
¢
If
your
TV
doesn’t
match
any
of
the
examples
provided,
see
your
nearest
Sony
dealer
or
qualified
technician.
ere
If
your
TV
has
audio/video
(A/V)
input
jacks,
you
will
get
a
better
Audio/video
(A/V)
hookup
and
sound
if
you
hook
up
your
VCR
using
these
connections.
In
addition,
for
a‘true
“home
theater”
experience,
you
should
connect
the
audio
outputs
of
your
VCR
or
TV
to
your
stereo
system.
If
your
TV
doesn’t
have
A/V
inputs,
see
the
following
pages
for
antenna
or
cable
ome
hookups.
=
If
you’re
planning
to
use
your
VCR
only
to
play
back
pictures
and
movies,
you're
finished
setting
up
the
VCR
after
you’ve
made
these
connections.
If
you
want
to
record
off-air
or
off
your
cable
TV
system,
;
complete
these
connections
first,
and
then
go
to
the
following
pages
for
antenna
or
cable
hookups.
od
A
Use
this
hookup
if
your
TV
has
stereo
jacks
Stereo
receiver
AUDIO
VIDEO
S-VIDEO
S-video
cable
(supplied)
Audio
/video
cable
(supplied)
If
your
TV
is
equipped
with
S-video
jacks,
then
use
the
S-video
connection.
B
Use
this
hookup
if
your
TV
doesn’t
have
stereo
jacks
AUDIO
VIDEO
S-VIDEO
§
(supplied)
Video
cable
(not
supplied)
Audio
cable
(not
supplied)
If
your
TV
is
equipped
with
S-video
jacks,
then
use
the
S-video
connection.
AN
hookup:
VCR
setup
After
you’ve
connected
your
TV
and
completed
antenna
or
cable
hookup,
use
the
following
procedure
to
set
up
the
VCR.
Press
MENU
and
select
Set
AUTO
ANT
SEL
to
SET
UP
MENU.
OFF
and
press
EXECUTE.
MENU
PAGE?
SET
UP
MENU
PAGE2
PTIMER
SET/CHECK
up
MENU
His
@AUTO
OFF
PAUTO
ANT
SEL
ON
GOFF
SET
VCR
Plus+
CHANNELS
AUTO
STEREO
ON
@OFF
CABLE
BOX
CONTROL
t
IN
1
VIDEO
@STD
$
P
A!
CLOCK
SET
@AUTO
OFF
Use
@ F
to
select
an
Use
2%
10
select
an
ttem,then
push
EXECUTE
item,thea
push
4
For
details,
see
page
32.
Getting
Started
|
11
TERT
rte
Bee
re
BP
ES
ER
TE
ETE
SOD
POS
STEED
VTE
RU
SO
A
ean
oes
ee
Hookup
1
Using
cable
box
control
Recommended
use
This
hookup
is
recommended
for
most
cable
systems
with
cable
boxes.
It
allows
the
VCR’s
cable
box
control
feature
to
control
the
channel
on
the
cable
box,
simplifying
the
recording
process.
You
should
use
this
hookup
if
you
have
a
cable
box,
especially
if
your
cable
system
scrambles
all
or
most
channels.
A
list
of
compatible
cable
boxes
is
on
page
28.
What
you
can
and
can‘t
do
with
this
hookup
What
you
can
do
e
Record
any
channel
by
using
the
VCR’s
cable
box
control
feature
to
select
channels
on
the
cable
box
What
you
can’t
do
¢
Record
with
the
cable
box
turned
off
¢
Record
one
channel
while
watching
another
channel
Cable
mouse
Rear
of
TV
Cable
box
12
|
Getting
Started
VHF/UHF
Match
the
type
of
connector
on
your
TV:
A,
B,
or
C.
For
connector
types
B
and
C,
no
UHF
connection
is
required.
Positioning
the
cable
mouse
Position
the
cable
mouse
on
the
cable
box
as
shown
below.
Make
sure
that
the
front
of
the
cable
mouse
projects
out
above
the
cable
box
sensor
so
that
signals
from
the
cable
mouse
are
transmitted
correctly
to
the
cable
box.
Cable
mouse
Cable
mouse
==
aan
ensor
[Cable
box
Front
view
Side
view
Hookup
1:
VCR
setup
1
Set
the
RF
UNIT
switch
to
CH
3
or
CH
4,
whichever
channel
is
not
used
in
your
area.
If
both
are
used,
set
the
switch
to
either
channel.
If
you
made
A/V
connections
(from
page
11),
you
can
skip
this
step.
For
details,
see
page
72.
2
Turon
your
cable
box.
3
Set
NORMAL/CATV
to
CATV:
Press
MENU
and
select
Set
NORMAL/CATV
to
TUNER
PRESET.
CATV
and
press
EXECUTE.
MENU
PAGE!
TUNER
PRESET
CHS
DTIMER
SET/CHECK
uP
MENU
PNORMAL/CATV
NORMOCATV
T
AUTO
PRESET
SET
VCR
Pluss
CHANNELS
MANUAL
SET
@ADD
ERASE
CABLE
BOX
CONTROL
AF
@ON
OFF
CLOCK
SET
FINE
TUNING
Use
AY
to
cotect
on
Use
a V
to
select
an
trem,
then
push
EXECUTE
them,
then
push
«>
For
details,
see
page
24.
4
Set
CABLE
BOX
CONTROL
to
ON:
Press
MENU
and
select
CABLE
BOX
CONTROL.
Select
ON
and
press
EXECUTE.
MENU
PAGES
CABLE
BOX
CONTROL
TIMER
SET/CHECK
i?
MENU
SET
@ONn
OFF
T
VCR
Pluss
CHANNELS
PCABLE
BOX
CONTROL
CLOCK
SET
Use
4
>
to
select
Push
EXECUTE
for
tiest
Use
4
V
to
seteoct
en
time
setup
ttem,
then
push
EXECUTE
Push
MENU
to
quit
Enter
your
cable
code
Select
your
cable
box
output
number
and
press
EXECUTE.
channel
and
press
EXECUTE.
Your
CABLE
BOX
Code
No
Your
CABLE
BOX
Output
CH
a0
cn2
Ocn3
cné
LINE(LINE
IN
1
on
VCR]
Enter
your
CABLE
BOX
Code
No.using
0-9
keys
Reteor
to
the
Operating
Menval
tor
the
Code
Use
a ¥
to
select
CABLE
Then
push
EXECUTE
BOX
CH
Then
push
EXECUTE
For
details,
see
page
27.
If
your
cable
box
is
not
compatible
Check
with
your
cable
company
to
see
if
they
can
provide
a
compatible
box.
If
not,
use
Hookup
2
(or
5,
if
you
have
only
a
few
scrambled
channels)
or
Hookup
4
(if
you
have
many
scrambled
channels).
ferearraaniinass
Rots
PRN,
ART
STESE
PATE
F852
-F
Hookup
1:
VCR
Plus+
channel
setup
1
Find
the
VCR
Plus+
Channel
Listing
in
your
program
guide.
For
details
on
the
VCR
Plus+
Channel
Listing,
see
page
30.
2
if
thechannels
in
the
program
guide
are
different
from
the
channels
that
you
actually
use
on
your
TV,
set
the
channels
that
are
different
as
follows:
Press
MENU
and
select
SET
VCR
Plus+
CHANNELS.
Enter
the
program
guide
channel,
then
the
channel
you
use
on
your
TV.
MENU
PAGES
TIMER
SET/CHECK
UP
MENU
SET
VCR
Plus+
CHANNELS
GUIDE
CH
TV
CH
28
-
7s
CABLE
80x
CONTROL
Push
0-9
keys
10
Set
CLOCK
SET
program
GUIDE
CH
Use
4 V
to
select
an
Or
push
EXECUTE
to
see
item,thea
push
EXECUTE
VCR
Plus+
CHANNEL
LIST
Program
guide
channel
Your
actual
TV
channel
\
sf
For
details,
see
page
31.
Press
EXECUTE.
You
are
now
ready
to
use
your
VCR
A
Quick
reference
to
operations
is
provided
on
the
back
cover
to
help
you
quickly
enjoy
the
basic
functions.
These
procedures
differ
slightly
depending
on
the
hookup
used.
Make
a
note
of
which
hookup
you
used
(Hookup
1)
so
that
you
can
always
follow
the
correct
instructions.
Pa
len
a
AE
EE
oN
fas
tert
evel
sas
eae
ee
ETRE
a
Recommended
use
Hookup
2
Use
this
hookup
if
you
do
not
have
a
cable
box.
Also
use
this
hookup
if
your
cable
company
cannot
supply
a
cable
box
that
is
compatible
with
No
cable
box
the
VCR’s
cable
box
control
feature,
and
your
cable
system
scrambles
only
a
few
channels.
or
2
What
you
can
and
can’t
do
with
this
hookup
Incompatible
cable
What
you
can
do
box
and
few
¢
Record
any
unscrambled
channel
scrambled
channels
What
you
can’t
do
¢
Record
scrambled
channels
that
require
a
cable
box
Rear
of
TV
VHF/UHF
Match
the
type
of
connector
on
your
TV:
A,
B,
or
C.
7
i
y
For
connector
types
Connect
this
cable
directly
to
;
your
TV
if
you
don’t
have
a
;
Band
G
note
cable
box
i
connection
is
i
required.
Cable
box
14
|
Getting
Started
Hookup
2:
VCR
setup
Hookup
2:
VCR
Plus+
channel
setup
1
Set
the
RF
UNIT
switch
to
CH
3
or
CH
4,
whichever
1
Find
the
VCR
Plus+
Channel
Listing
in
your
program
channel
is
not
used
in
your
area.
If
both
are
used,
set
guide.
For
details
on
the
VCR
Plus+
Channel
Listing,
the
switch
to
either
channel.
see
page
30.
If
you
made
A/V
connections
(from
page
11),
you
can
skip
this
step.
2
ifthe
channels
in
the
program
guide
are
different
from
the
channels
that
you
actually
use
on
your
TV,
set
the
channels
that
are
different
as
follows:
Press
MENU
and
select
Enter
the
program
guide
SET
VCR
Plus+
CHANNELS.
channel,
then
the
channel
you
use
on
your
TV.
,
bee
seriencee
PAGE!
SET
VCR
Plus+
CHANNELS
For
details,
see
page
72.
See
ye
nena
eee.
.
<0.
ei
TUNER
PRESET
25
-
76
BOSET
VCR
Pluses
one
CABLE
BOX
CONT
Push
0-9
keys
to
set
CLOCK
SET
Progtam
GUIDE
CH
2
Set
NORMAL/CATV
to
CATV:
ttom,
then
push.
EXECUTE
VCR
Pluss
CHANNEL
List
Program
guide
channel
Press
MENU
and
select
Set
NORMAL/CATV
to
TUNER
PRESET.
CATV
and
press
EXECUTE.
Your
actual
TV
channel
$
For
details,
see
page
31.
Press
EXECUTE.
MENU
PAGE!
TUNER
PRESET
CHS
OTIMER
SETS
CHECK
UP
MEN
PNORMAL/CATV
NORMOCATY
1
AUTO
PRESET
VCR
Plus+
CHANNELS
MANUAL
SET
@ADD
ERASE
CABLE
BOX
CONTROL
art
@ON
OFF
CLOCK
SET
FINE
TUNING
Veo
&2
¥
to
select
an
Use
&
%
to
select
an
(tem,
thea
push
EXECUTE
item.
then
push
4
>
You
are
now
ready
to
use
your
VCR
A
Quick
reference
to
operations
is
provided
on
the
back
cover
to
help
you
quickly
enjoy
the
basic
functions.
These
procedures
differ
slightly
depending
on
the
hookup
used.
Make
a
note
of
which
hookup
you
3
Preset
the
channels
into
the
VCR:
used
(Hookup
2)
so
that
you
can
always
follow
the
j
correct
instructions.
For
details,
see
page
24.
Press
MENU
and
select
Select
AUTO
PRESET
TUNER
PRESET.
and
press
EXECUTE.
MENU
PAGE!
TUNER
PRESET
CHS
PTIMER
SET/CHECK
UP
MENU
NORMAL
/
CATV
NORMOCATV
PAUTO
PRESET
eT
T
VCR
Pluss
aoc
MANUAL
SET
@A0D
ERASE
rose
eer
CONTROL
AFT
@ON
OFF
CcLor
FINE
TUNING
Veo
a
¥
to
select
an
To
start
AUTO
PRESET.
item.
then
push
EXECUTE
pesh
EXECUTE
For
details,
see
page
24.
Getting
Started
|
15
FHookup3
sotieukns
Asccenunnceeninngy
Ce
taweuasay
Seca
eeuitlgs
eeGaii
cabins
San
Gehnerenis
have
cable
TV).
Antenna
hookup
A
Use
this
hookup
if
you’re
using:
¢
VHF/UHF
antenna
(you
get
channels
2-13
and
channels
14
and
higher)
¢
UHF-only
antenna
(you
get
channels
14
and
higher)
¢
separate
VHF
and
UHF
antennas
Rear
of
TV
VHF/UHF
Match
the
type
of
cates
amt
@
|
A
connector
on
your
TV:
A,
B,
or
C.
B
Use
this
hookup
if
you’re
using
a
VHF-only
antenna
(you
get
channels
2-13
only)
Rear
of
TV
VHF/UHF
Match
the
type
of
Ss
ath
|
A
connector
on
your
TV:
A,
B,
or
C.
For
connector
types
B and
C,
no
UHF
connection
is
required.
if
you
cannot
connect
your
antenna
cable
to
the
VCR
directly
If
your
antenna
cable
is
a
flat
cable
(300-ohm
twin
lead
cable),
attach
the
external
antenna
connector
(not
supplied)
so
that
you
can
connect
the
cable
to
the
VHF/UHF
IN
jack.
If
you
have
separate
cables
for
VHF
and
UHF
antennas,
you
may
use
a
U/V
band
mixer
(not
supplied).
For
details,
see
page
72.
16
|
Getting
Started
Hookup
3:
VCR
setup
Hookup
3:
VCR
Plus+
channel
setup
1
Set
the
RF
UNIT
switch
to
CH
3
or
CH
4,
whichever
1
Find
the
VCR
Plus+
Channel
Listing
in
your
program
channel
is
not
used
in
your
area.
If
both
are
used,
set
guide.
For
details
on
the
VCR
Plus+
Channel
Listing,
the
switch
to
either
channel.
see
page
30.
If
you
made
A/V
connections
(from
page
11),
you
can
skip
this
step.
2
If
the
channels
in
the
program
guide
are
different
from
the
channels
that
you
actually
use
on
your
TV,
set
the
channels
that
are
different
as
follows:
Press
MENU
and
select
Enter
the
program
guide
SET
VCR
Plus+
CHANNELS.
channel,
then
the
channel
you
use
on
your
TV.
MENU
PAGE!
SET
VCR
Plus+
CHANNELS
TIMER
SETSCHECK
SET
UP
MENU
TUNER
PRESET
PSET
VCR
Plus+
CHANNELS
CABLE
BOX
CONTROL
Push
0-9
keys
to
set
CLOCK
SET
Program
GUIDE
CH
2
Set
NORMAL/CATV
to
NORM:
gna
termes
Bee
Ake
stem,
then
push
EXECUTE
VCR
Pluss
CHANNEL
LIST
For
details,
see
page
72.
GUIDE
CH
TV
CH
25
-
78
Program
guide
channel
Your
actual
TV
channel
4
For
details,
see
page
31.
Press
EXECUTE.
Press
MENU
and
select
Set
NORMAL/CATV
to
TUNER
PRESET.
NORM
and
press
EXECUTE.
MENU
PAGE!
TUNER
PRESET
CHS
PTIMER
SETICHECK
SET
UP
MENU
PNORMAL/CATV
@NORM
CATV
TUNER
PRESET
AUTO
PRESET
SET
VCR
Pluses
CHANNELS
MANUAL
SET
@ADO
ERASE
CABLE
80X
CONTROL
AFT
ON
OFF
CLOCK
Ser
FINE
TUNING
Vigsthen
push
EXECUTE
Liescthin
gare
You
are
now
ready
to
use
your
VCR
For
details,
see
page
24.
A
Quick
reference
to
operations
is
provided
on
the
back
cover
to
help
you
quickly
enjoy
the
basic
functions.
These
procedures
differ
slightly
depending
on
the
hookup
used.
Make
a
note
of
which
hookup
you
3
Preset
the
channels
into
the
VCR:
used
(Hookup
3)
so
that
you
can
always
follow
the
correct
instructions.
Press
MENU
and
select
Select
AUTO
PRESET
TUNER
PRESET.
and
press
EXECUTE.
MENU
PAGE!
TUNER
PRESET
CHS
PTIMER
SET/CHECK
SET
uP
MENU
NORMAL/CATV
@NORM
CATV
TUNER
PRESET
PAUTO
PRESET
SET
VCR
Plus+
CHANNELS
MANUAL
SET
@ADD
ERASE
CABLE
BOX
CONTROL
aft
;
CLOCK
SET
FINE
TUNING
Use
a
¥
to
cetect
on
To
start
AUTO
PRESET.
item,
then
push
EXECUTE
push
EXECUTE
For
details,
see
page
24.
Getting
Started
|
17
Hookup
4
Use
this
hookup
if
your
cable
company
cannot
supply
a
cable
box
that
is
compatible
with
the
VCR's
cable
box
control
feature,
and
your
cable
Incompatible
cable
system
scrambles
all,
or
most
channels.
box
and
many
What
you
can
and
can‘t
do
with
this
hookup
What
you
can
do
scrambled
channels
¢
Record
any
channel
by
selecting
the
channel
on
the
cable
box
What
you
can’t
do
18
|
Getting
Started
¢
Record
with
the
cable
box
turned
off
¢
Record
by
selecting
channels
directly
with
the
VCR
¢
Record
one
channel
while
watching
another
channel
Rear
of
TV
Cable
box
VHF/UHF
Match
the
type
of
connector
on
your
TV:
A,
B,
or
C,
For
connector
types
B
and
C,
no
UHF
connection
is
required.
Hookup
4:
VCR
setup
Hookup
4:
VCR
Plus+
channel
setup
1
Set
the
RF
UNIT
switch
to
CH
3
or
CH
4,
whichever
1
Find
the
VCR
Plus+
Channel
Listing
in
your
program
channel
is
not
used
in
your
area.
If
both
are
used,
set
guide.
For
details
on
the
VCR
Plus+
Channel
Listing,
the
switch
to
either
channel.
see
page
30.
If
you
made
A/V
connections
(from
page
11),
you
can
skip
this
step.
2
Enter
all
the
channels
you
want
to
record
and
the
cable
box
output
channel
(usually
2, 3,
or
4):
RF
UNIT
J
CHS
Press
MENU
and
select
Enter
the
program
guide
SET
VCR
Plus+
CHANNELS.
channel,
then
the
cable
box
output
channel.
SET
VCR
Pluses
CHANNELS
MENU
TIMER
SET/CHECK
For
details,
see
page
72.
GUIOE
CH
Tv
CH
33
=
3
CABLE
BOX
CONTROL
Push
0-9
keys
to
set
CLOCK
SET
program
GUIDE
CH
Use
AV
to
select
an
Ot
push
EXECUTE
to
see
ttem.then
push
EXECUTE
VCR
Plus+
CHANNEL
LIST
2
Turon
your
cable
box.
Program
guide
channel
Your
cable
box
output
channel
3
Preset
the
channels
into
the
VCR:
§
For
details,
see
page
31.
Press
EXECUTE.
Press
MENU
and
select
Select
AUTO
PRESET
TUNER
PRESET.
and
press
EXECUTE.
MENU
TUNER
PRESET
CHS
DTIMER
SET/CHECK
Wy
TUNER
PRESET
rauTo
PRESET,
nee
You
are
now
ready
to
use
your
VCR
scneeto’ssnsaet™e'*
|
am
|
aie
SET
le
say
!
CLOCK
SET
FINE
TUNING
A
Quick
reference
to
operations
is
provided
on
the
Vita!
nen
oStn*fuedire
poet
Eedeotes
“MESET
Pacis)
torep
youauicsly
cupy
te
basic
functions.
These
procedures
differ
slightly
depending
For
details,
see
page
24.
on
the
hookup
used.
Make
a
note
of
which
hookup
you
used
(Hookup
4)
so
that
you
can
always
follow
the
correct
instructions.
Getting
Started
|
49
Incompatible
cable
box
with
few
scrambled
channels,
using
an
A/B
switch
20
|
Getting
Started
Recommended
use
By
using
an
A/B
switch,
this
hookup
allows
you
to
easily
record
both
scrambled
and
unscrambled
channels.
With
the
A/B
switch
set
to
position
“A,”
you
can
record
unscrambled
channels
by
selecting
channels
directly
with
the
VCR.
You
only
use
position
“B”
and
the
cable
box
to
record
a
scrambled
channel.
What
you
can
and
can’t
do
with
this
hookup
What
you
can
do
¢
Record
any
unscrambled
channel
by
selecting
the
channel
directly
with
your
VCR
(the
A/B
switch
is
set
to
“A”)
e
Record
any
scrambled
channel
by
selecting
the
channel
on
the
cable
box
(the
A/B
switch
is
set
to
“B”)
What
you
can’t
do
¢
Record
one
channel
while
watching
another
channel
Rear
of
TV
VHE/UHF
Match
the
type
of
connector
on
your
TV:
A,
B,
or
C.
For
connector
types
B
and
C,
no
UHF
connection
is
required.
Other manuals for EV-S7000
1
Table of contents
Other Sony VCR System manuals
Sony
Sony SLV-ED88ME, SLV-ED66ME User manual
Sony
Sony SLV-900HF User manual
Sony
Sony SLV-D300P Operating Instructions (SLVD300P) User manual
Sony
Sony DVCAM DSR-50P User manual
Sony
Sony SLV-N55 - Video Cassette Recorder User manual
Sony
Sony SLV-E580EE User manual
Sony
Sony DSR-1/1P User manual
Sony
Sony SLV-X9N ShowView User manual
Sony
Sony SLV-LX66S User manual
Sony
Sony SLV-M91HF - Video Cassette Recorder User manual
Sony
Sony MSW-A2000 User manual
Sony
Sony EZ77NZ User manual
Sony
Sony SLV-662HF Operating Instructions (SLV-662HF / 679HF / 679HF PX... User manual
Sony
Sony Walkman GV-HD700 User manual
Sony
Sony SLV-AV100C User manual
Sony
Sony EVO-250 User manual
Sony
Sony SVT-DL224 User manual
Sony
Sony DVCAM DSR-30P User manual
Sony
Sony SLV-SX40EG User manual
Sony
Sony SLV-495 User manual
